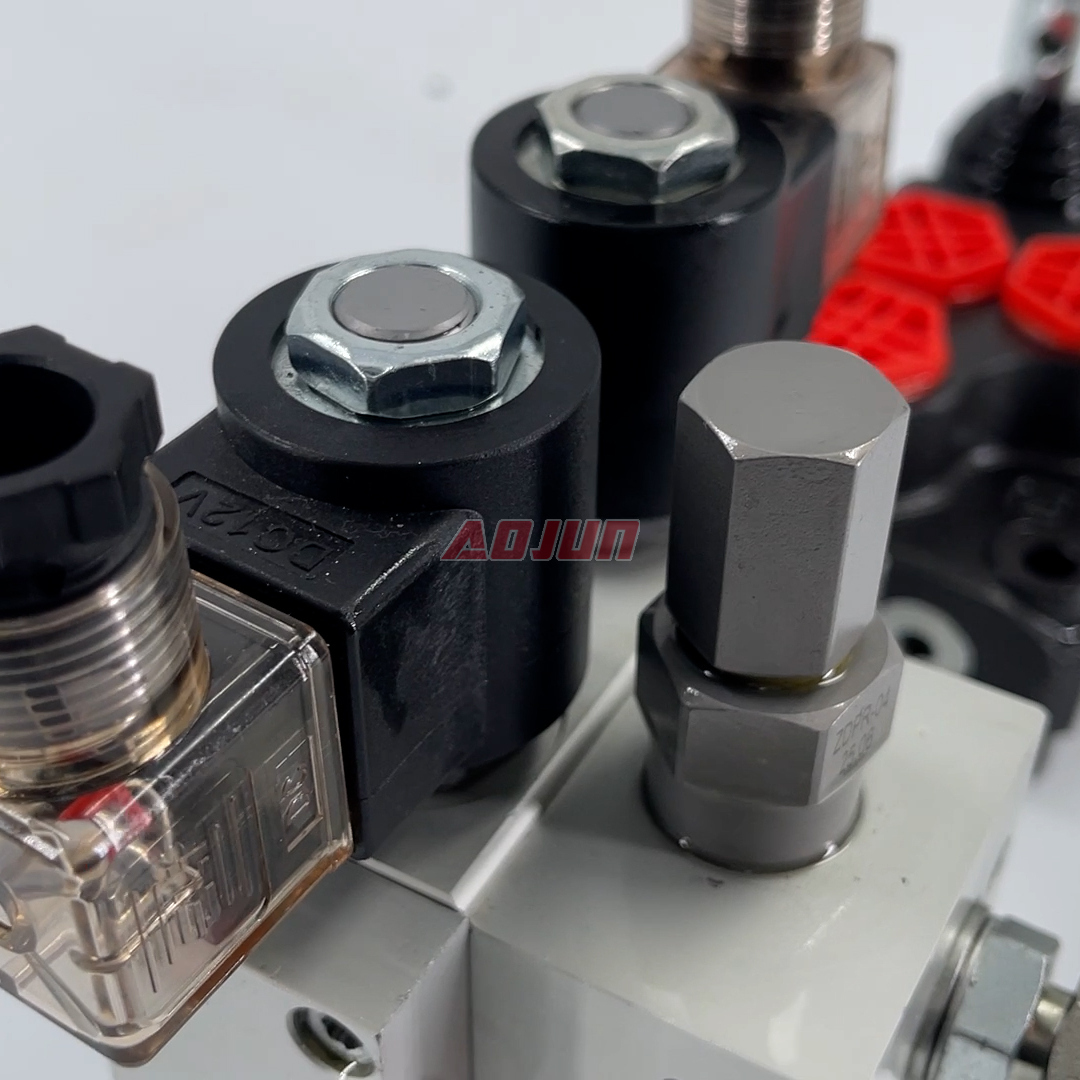

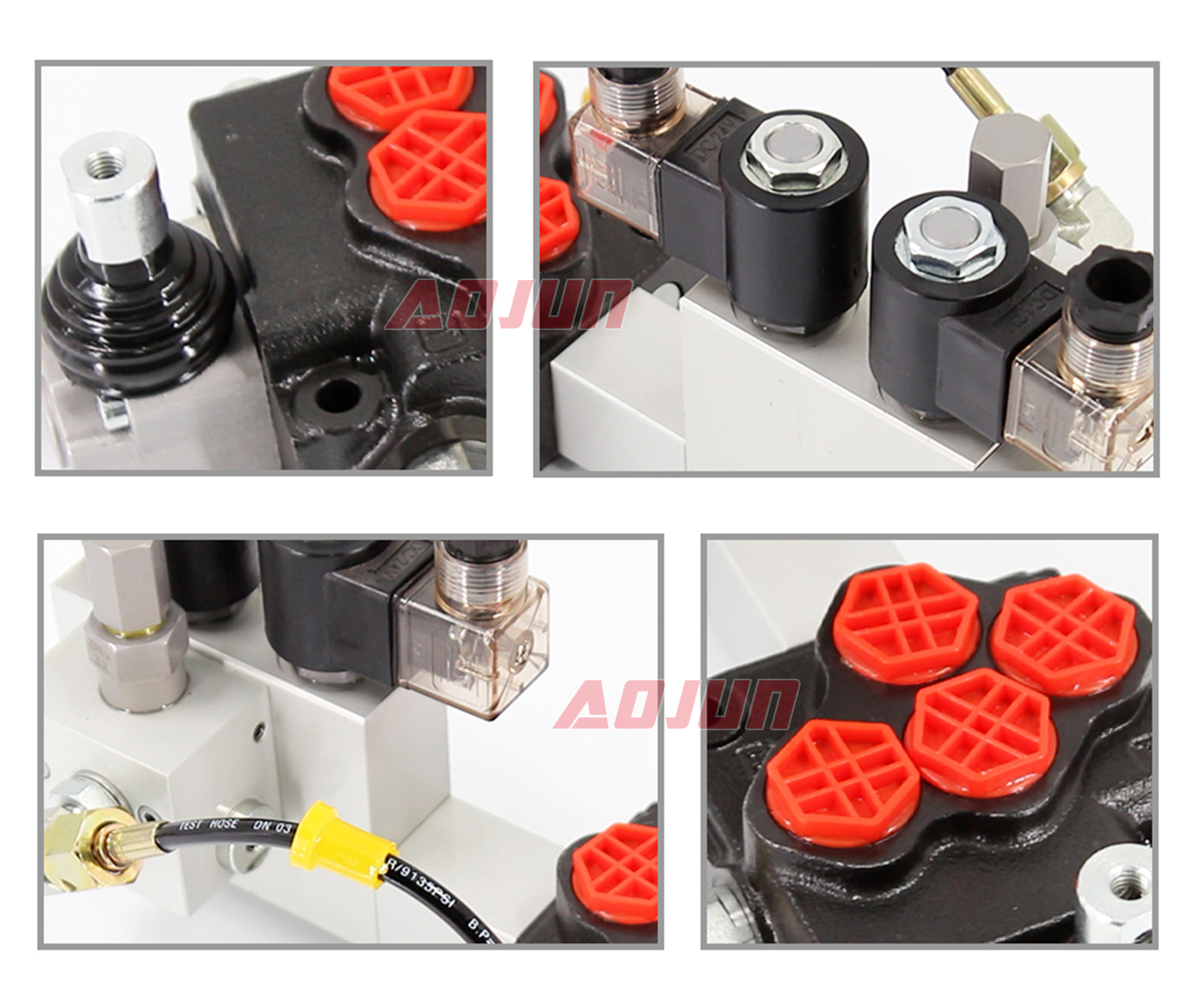

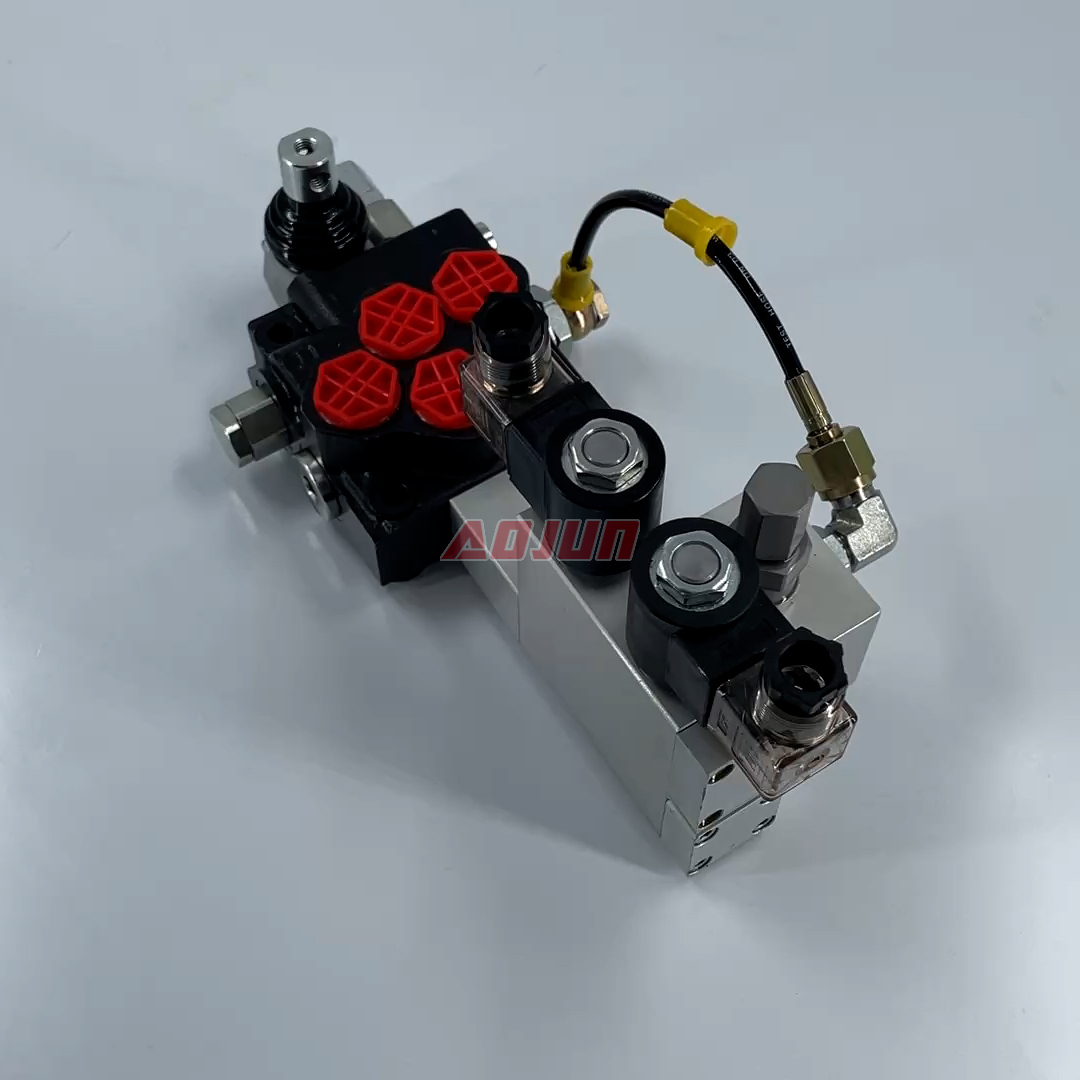

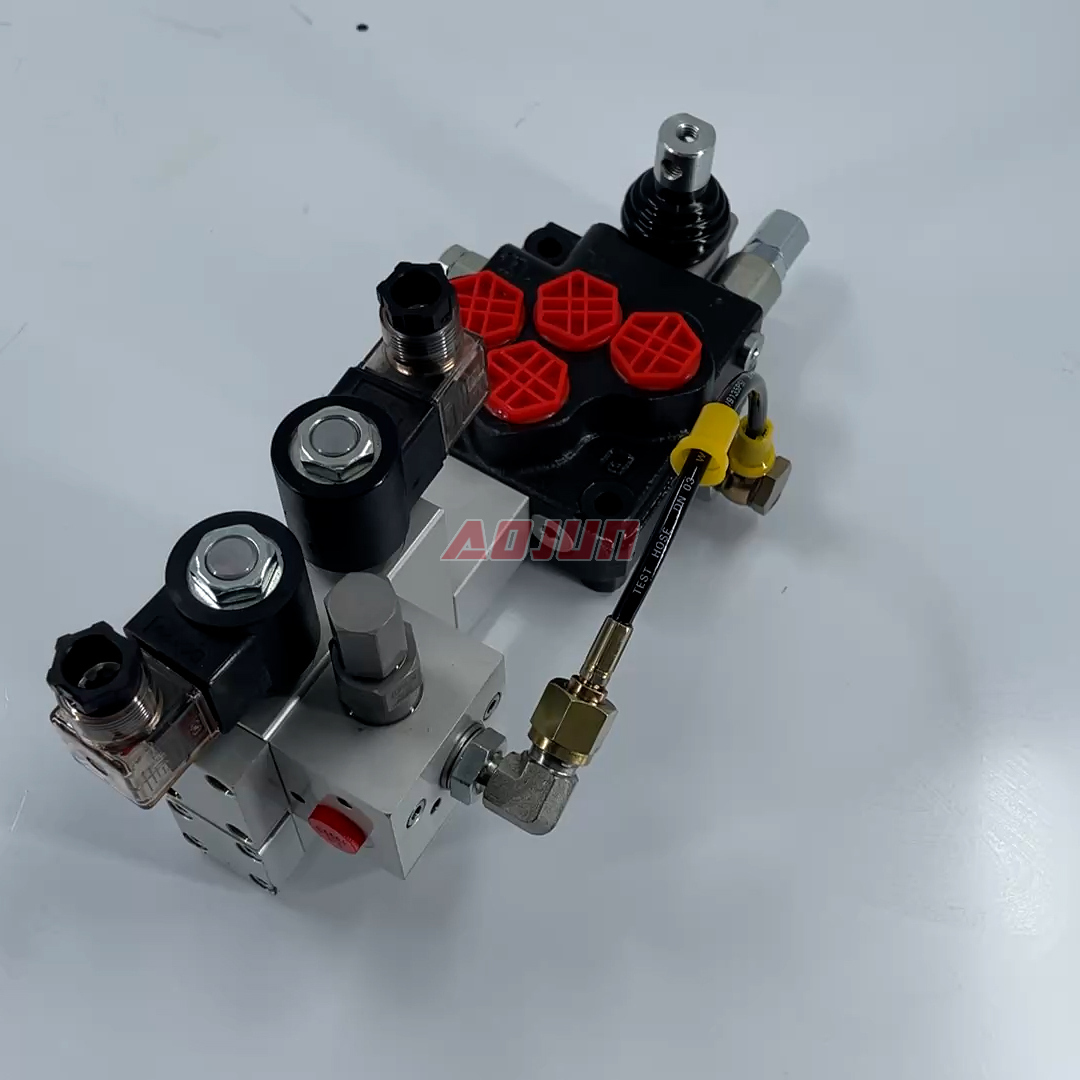

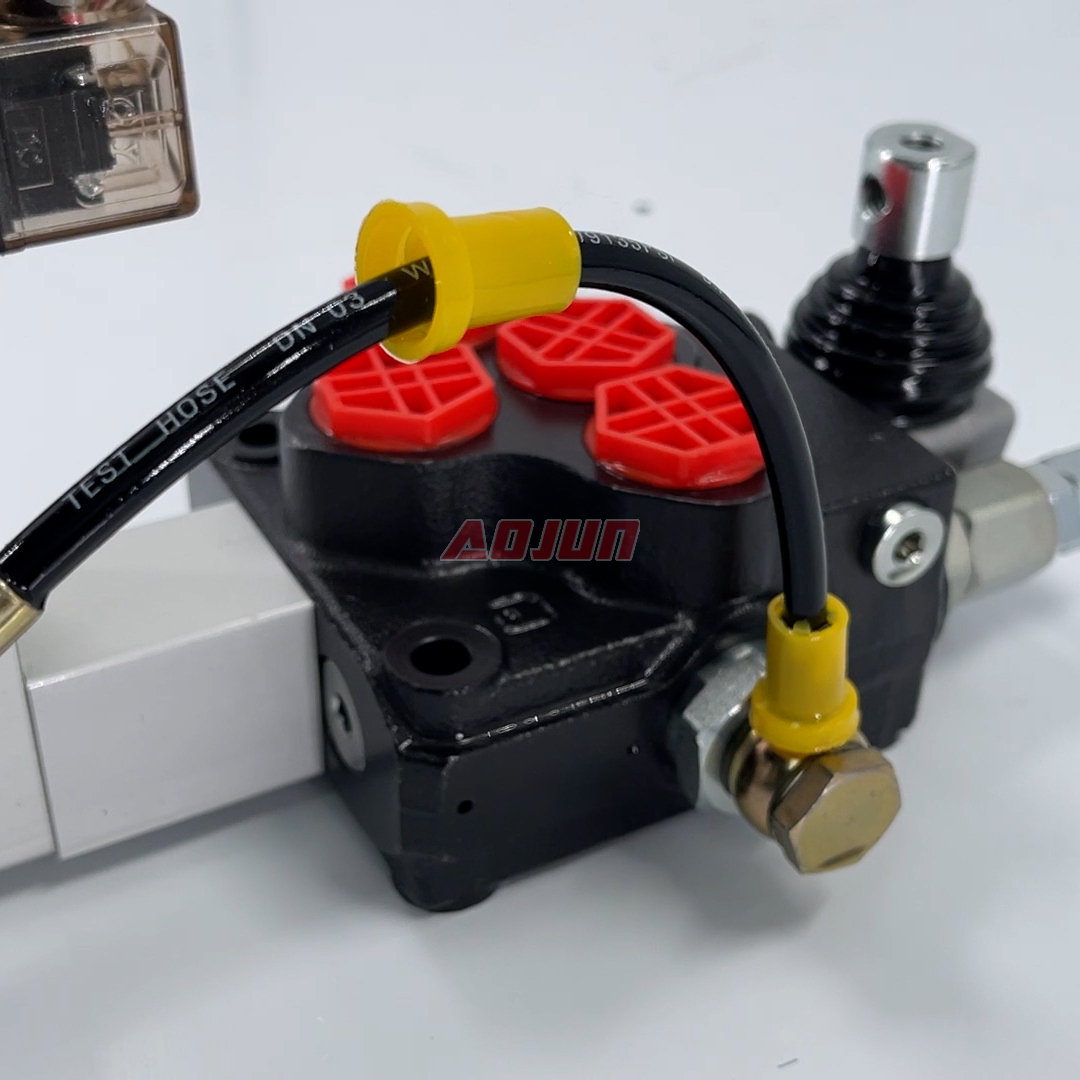

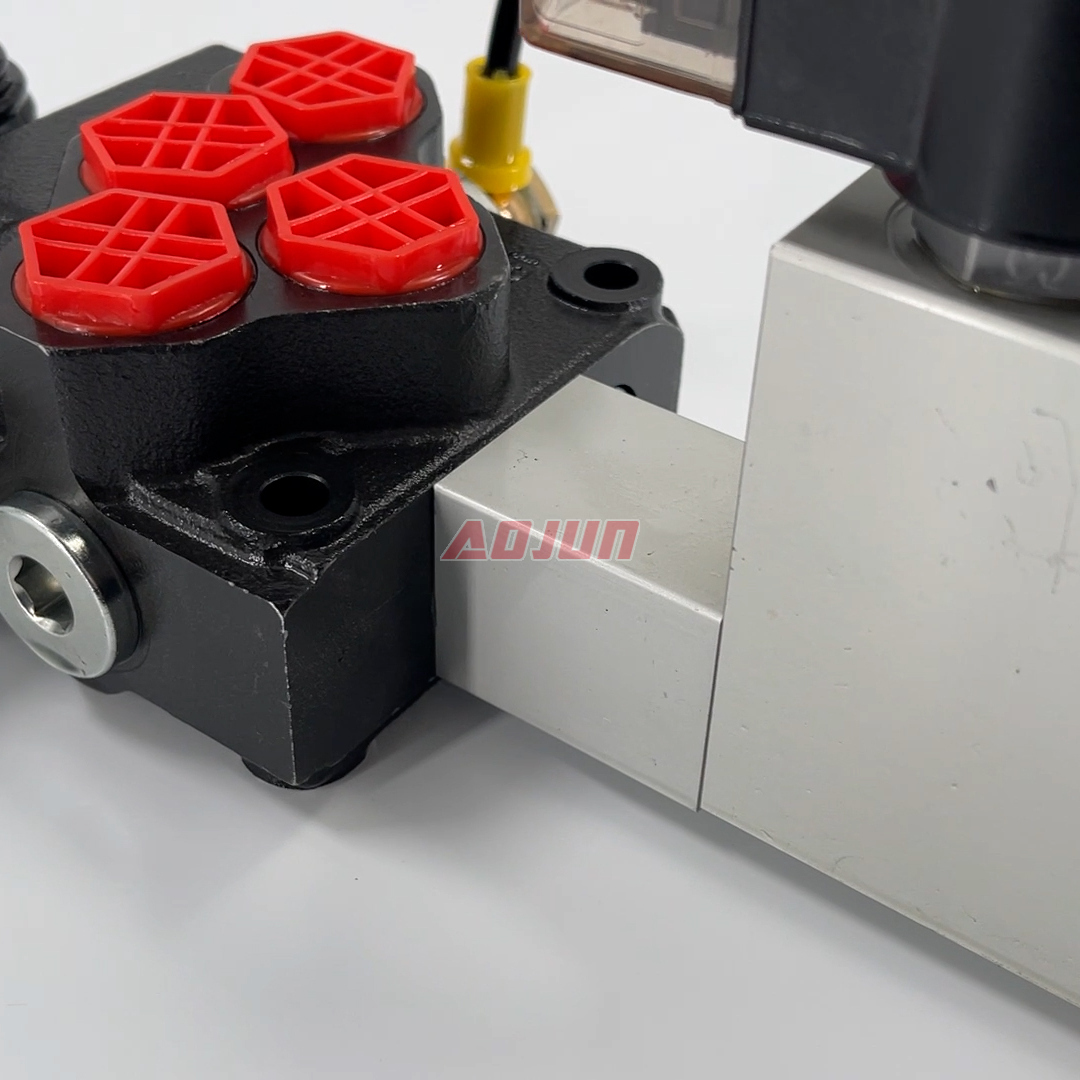

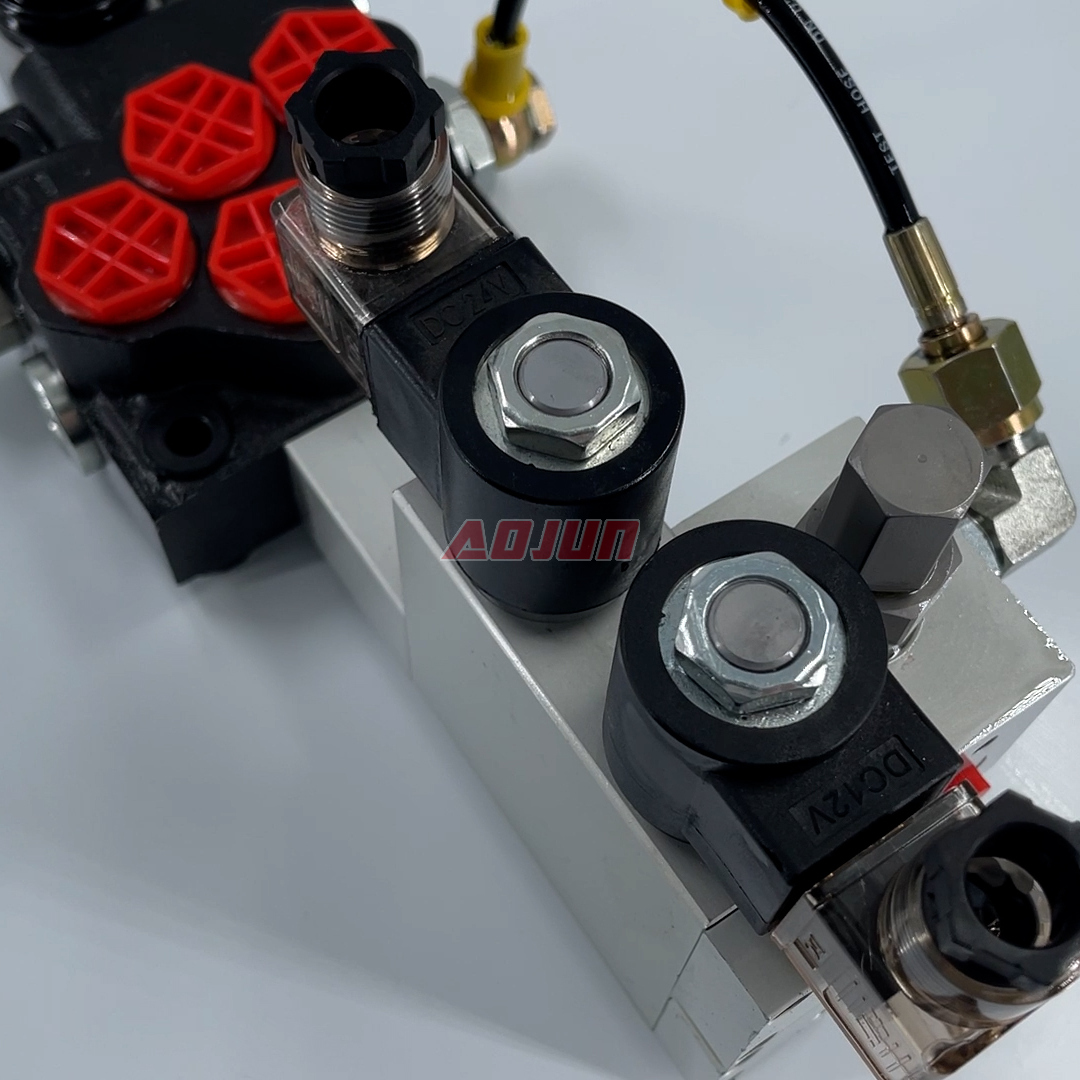

Compact 1-section electro-hydraulic monoblock valve designed for reliable directional control in mobile hydraulic systems, delivering 40 L/min rated flow and up to 315 bar working pressure across a wide viscosity and ambient temperature range.
global shipping world wide
Online Service For 24 X 7
Support OEM customization
This 1-spool, 1-section monoblock directional control solution is optimized for mobile machinery where space, durability, and consistent actuation are critical. Electro-hydraulic control enables flexible integration with electrical command systems while keeping hydraulic performance stable.
Key advantages:
- High capability: 40 L/min rated flow and 315 bar maximum pressure for demanding duty cycles.
- Environmental adaptability: operates in -40°C to +60°C ambient conditions; supports 15–75 mm²/s oil viscosity for cold start and varied hydraulic fluids.
- Compact monoblock structure: fewer leak paths and simplified installation versus multi-piece assemblies.
- Typical uses: lift, tilt, steering assist functions, auxiliary circuits, and attachment control on forklifts, telehandlers, aerial platforms, skid steers, loaders, mini/midi excavators, and agricultural front-end loaders.
Supply options: manufacturer direct support for OEM/ODM, private label, custom configurations, bulk/wholesale purchasing, and distributor/agent partnerships for global markets.
| SD5 Series Monoblock Directional Valve Parameters | |
|---|---|
| Control Method | Manual, Pneumatic, Electro-pneumatic, Electro-hydraulic, Solenoid, Hydraulic, Hydraulic and Manual, Cable, Joystick |
| Spool | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool |
| Section | 1 Section, 2 Section, 3 Section, 4 Section, 5 Section, 6 Section, 7 Section |
| Structure Type | Monoblock valve |
| Rated Flow | 40 L/min (10.5 US gpm) |
| Max Pressure | 315 bar (4600 psi) |
| Operating Viscosity Range | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| Ambient Temperature Range | -40°C to +60°C (-40°F to +140°F) |
