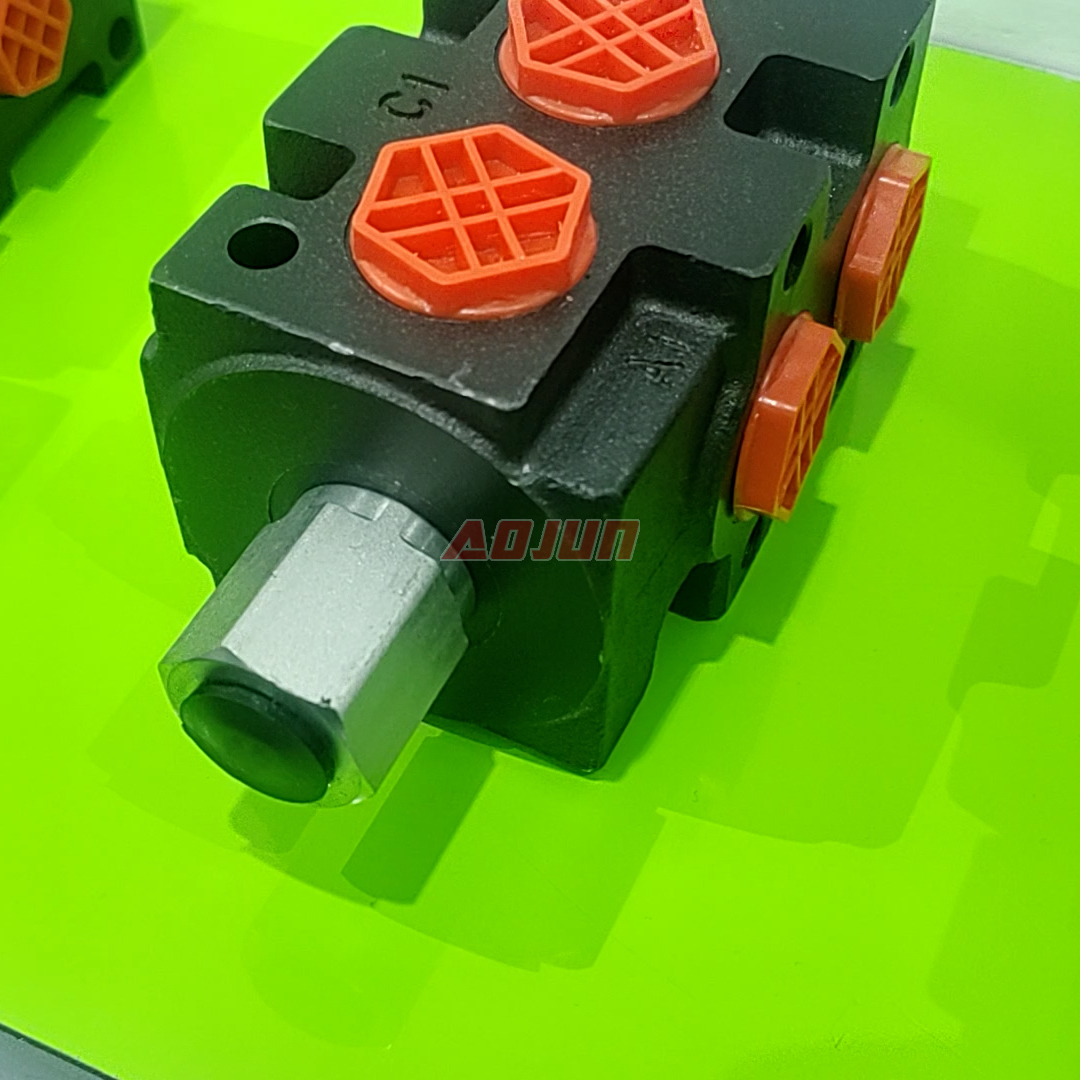

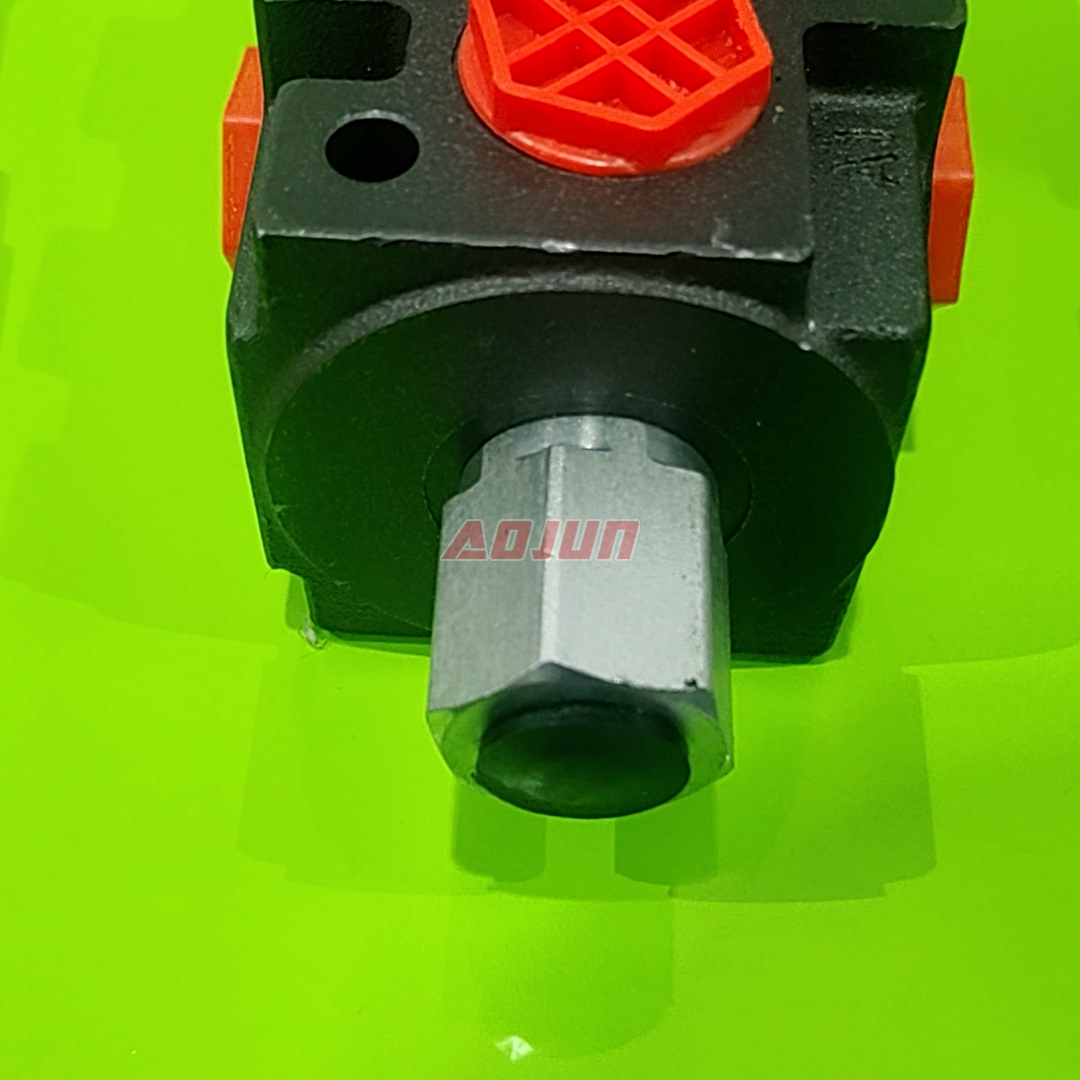

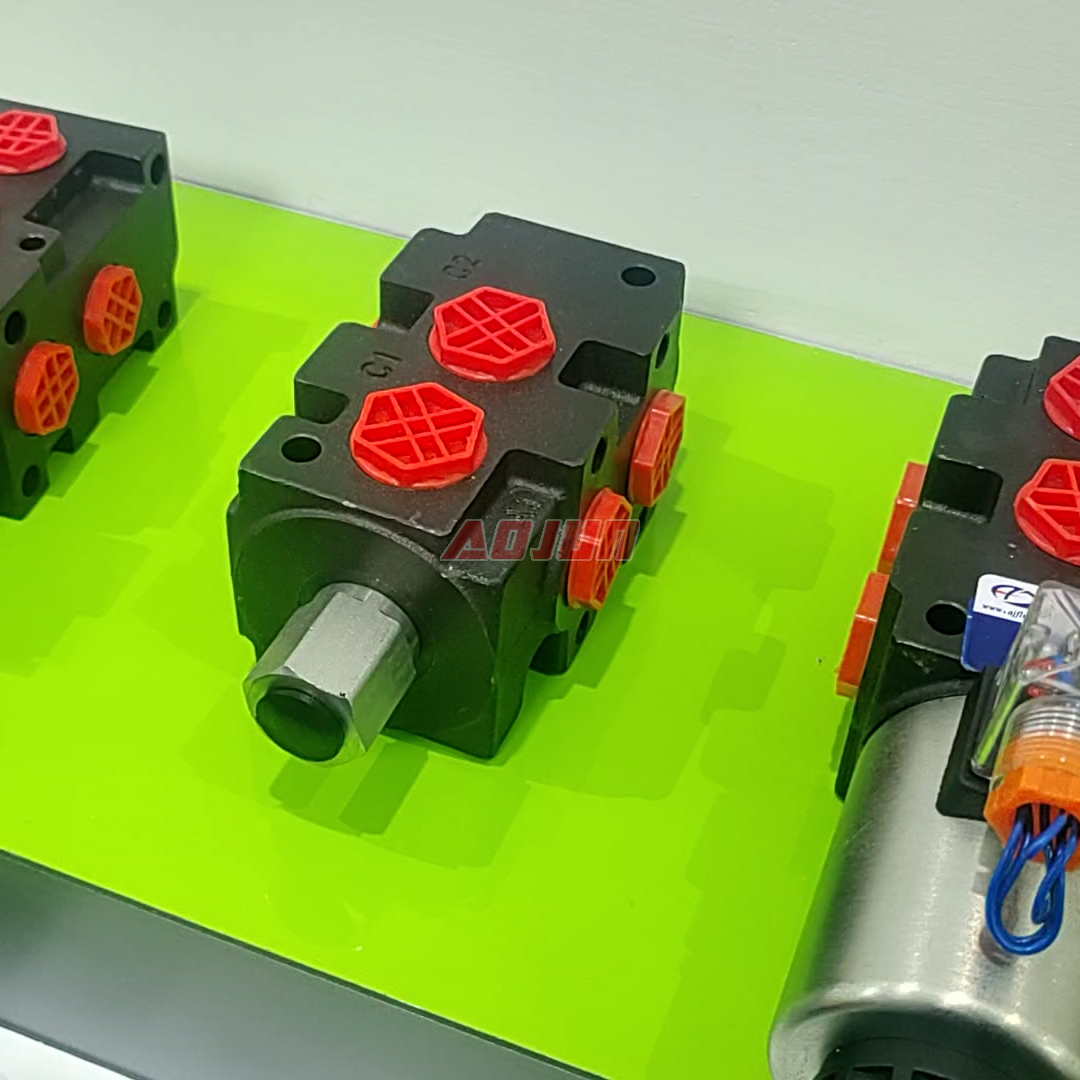

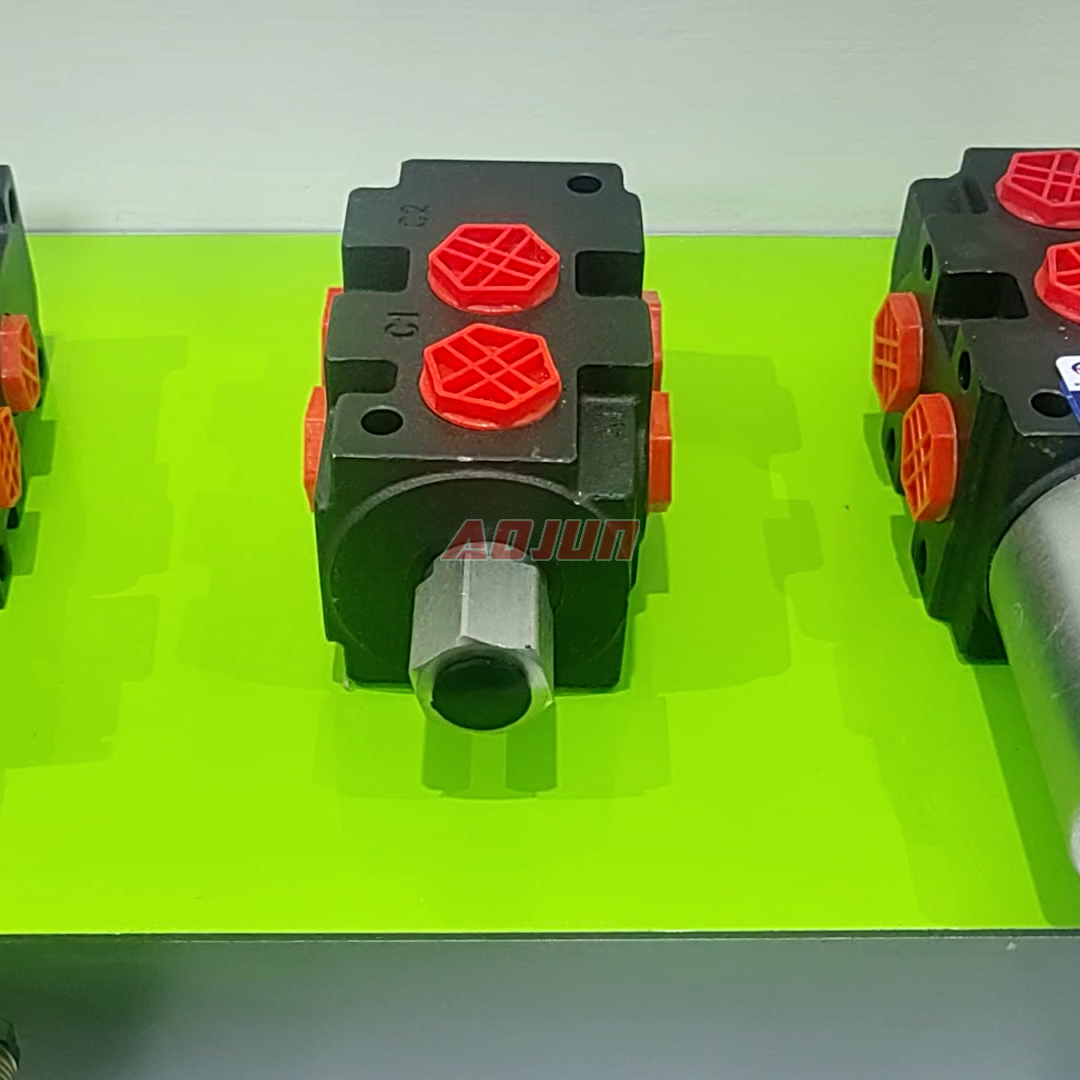

Hydraulically controlled 1-section, 1-spool flow diverter valve designed to divert/switch hydraulic flow for mobile equipment circuits. Rated 90 L/min with up to 180 bar pressure capability, supporting 15–75 cSt oils and -20°C to +80°C environments for reliable operation in demanding field conditions.
global shipping world wide
Online Service For 24 X 7
Support OEM customization
Key features: 1-spool, 1-section sectional valve structure for straightforward integration and serviceability; hydraulic control actuation for stable switching under load; 90 L/min rated flow for common auxiliary/attachment circuits; 180 bar max pressure for mobile hydraulics; broad oil viscosity tolerance (15–75 mm²/s) and wide ambient temperature range (-20°C to +80°C) for all-season use.
Typical applications: diverting flow between two functions (e.g., attachment changeover, auxiliary tool selection, implement/actuator switching) on material handling and construction machines such as forklifts, telehandlers, skid steers, loaders, backhoe loaders, and compact excavators.
Supply capability: factory direct manufacturing for global customers, offering OEM/ODM, private label, customization, bulk orders, and support for distributors/agents/wholesalers/traders.
| HSV09 Series Flow Diverter Valve Parameters | |
|---|---|
| Control Method | Solenoid |
| Spool | 1 Spool, 2 Spool, 3 Spool |
| Section | 1 Section, 2 Section, 3 Section |
| Structure Type | Sectional valve |
| Rated Flow | 90 L/min (23.8 US gpm) |
| Max Pressure | 180 bar (2600 psi) |
| Operating Viscosity Range | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| Ambient Temperature Range | -20°C to +80°C (-4°F to +176°F) |
We provide OEM/ODM services. When your product orders reach a certain value, we can offer a variety of customization services, including labels, packaging, product colors, and more.
We support multiple currencies and diverse payment methods, such as T/T, L/C, Alibaba platform, China Manufacturing Payment Platform, bank transfer, and more.
We can provide samples, and the sample costs will be refunded to you in the form of deducted payments in the later stages.
