Manual 1-section monoblock hydraulic directional valve with a single spool, rated for 140 L/min flow and up to 19 MPa pressure, featuring G3/4 and G1 BSPP port options for mobile and industrial hydraulic systems.
global shipping world wide
Online Service For 24 X 7
Support OEM customization

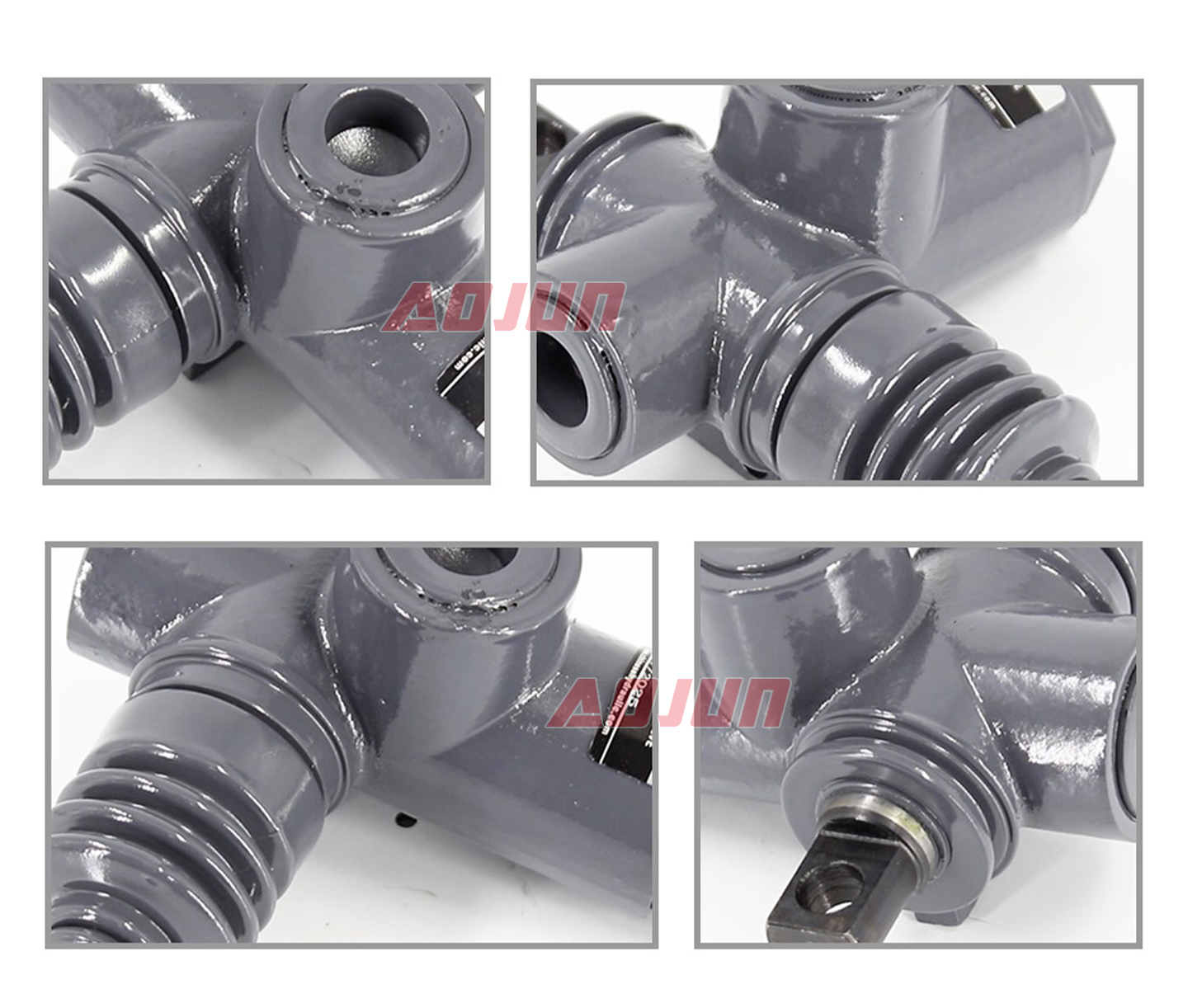

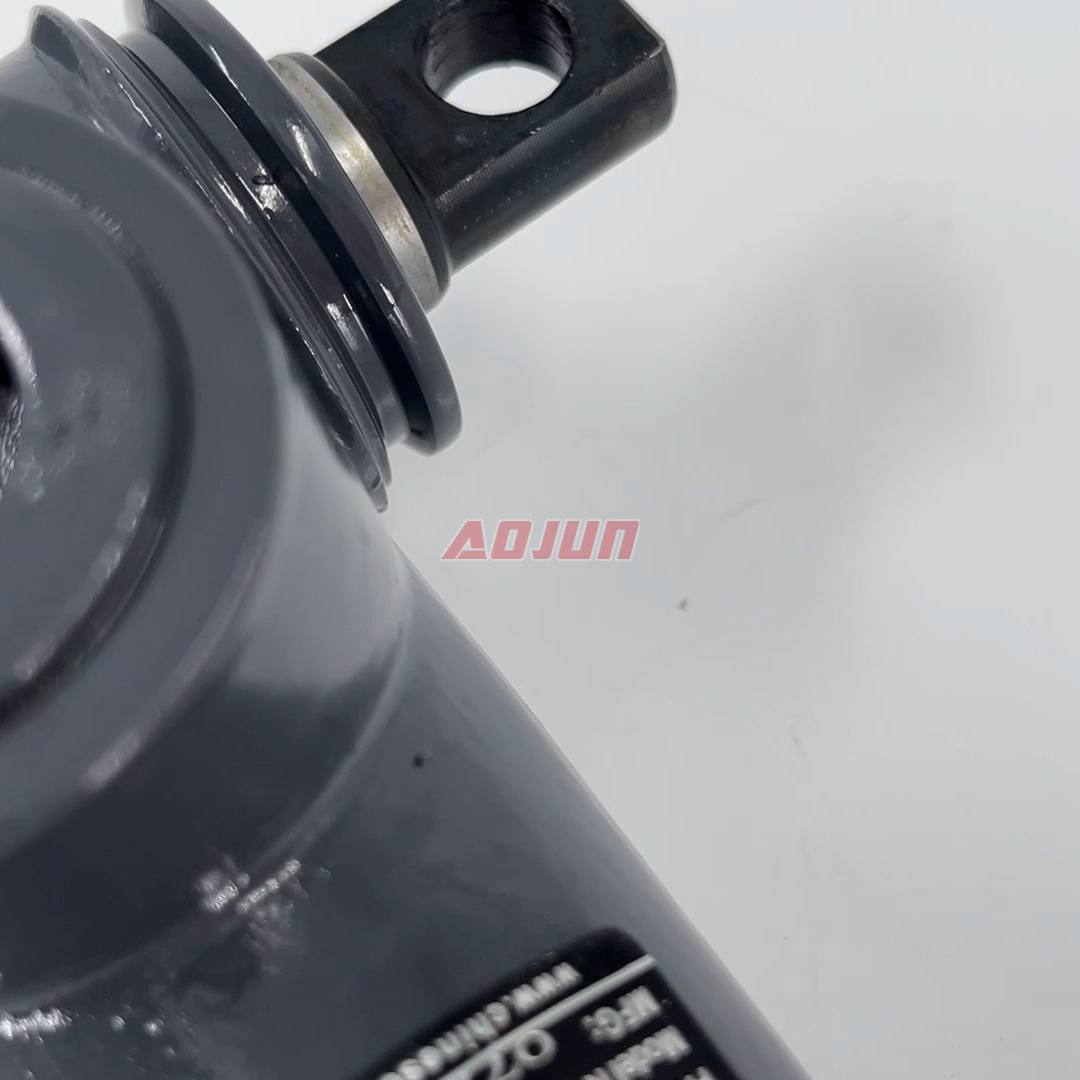

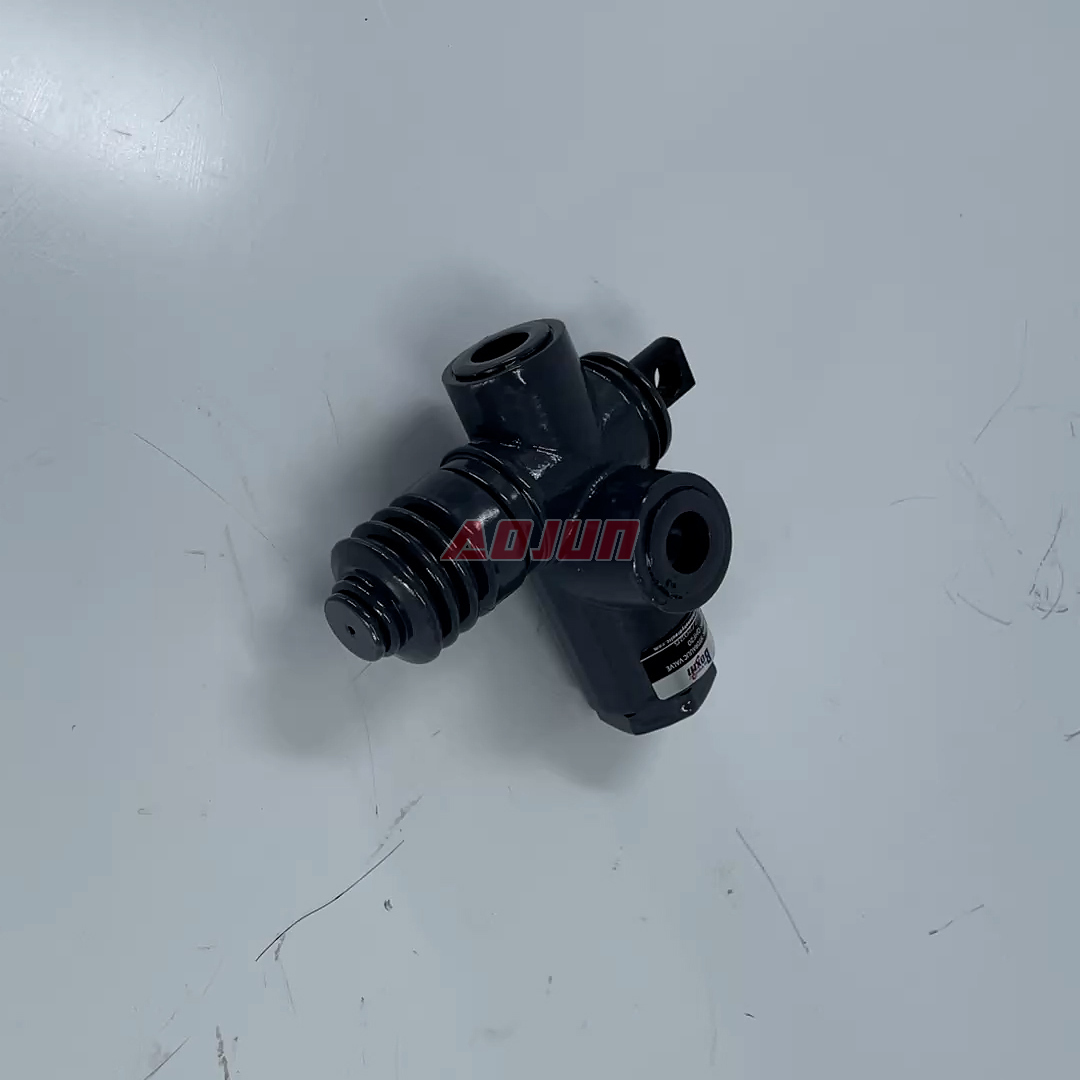

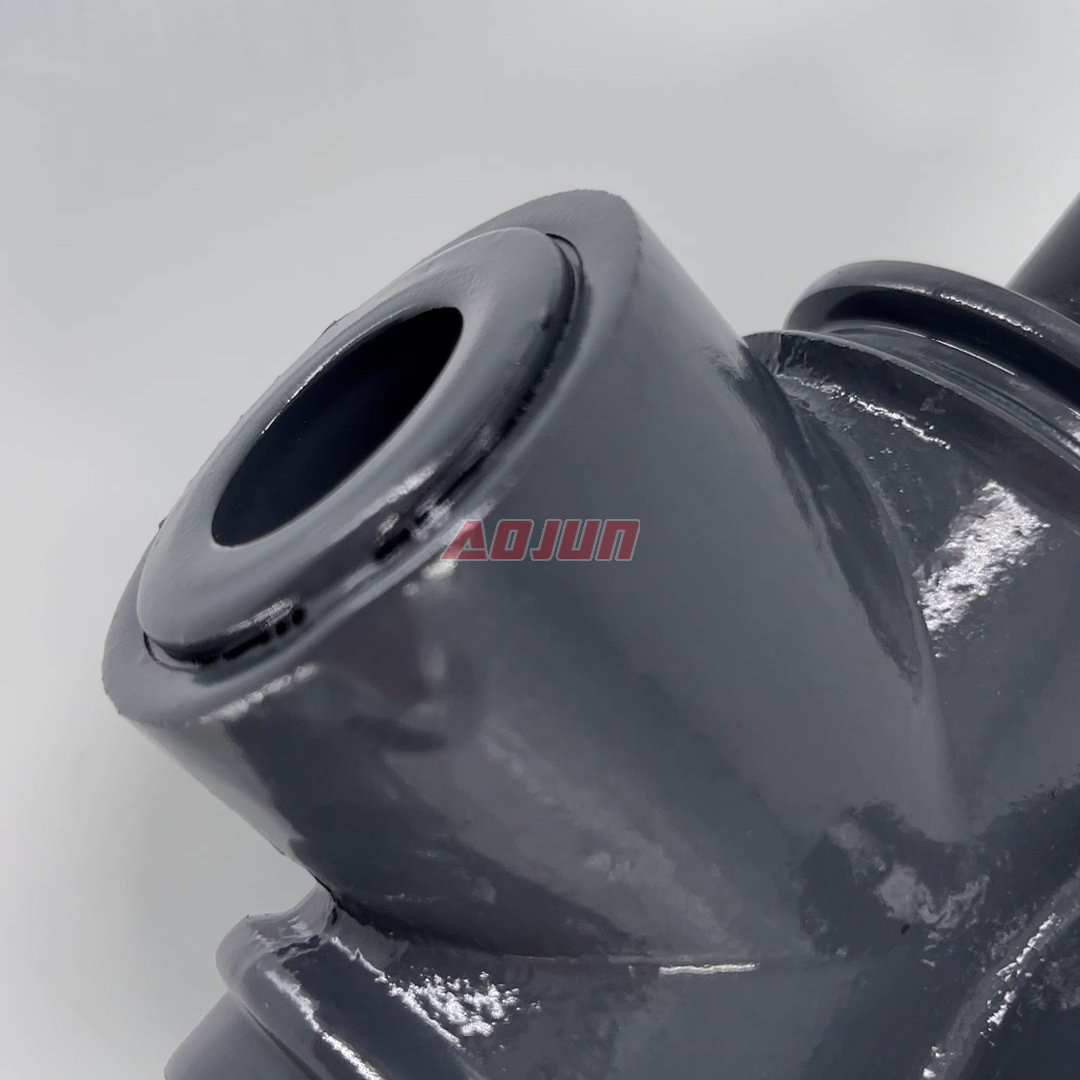

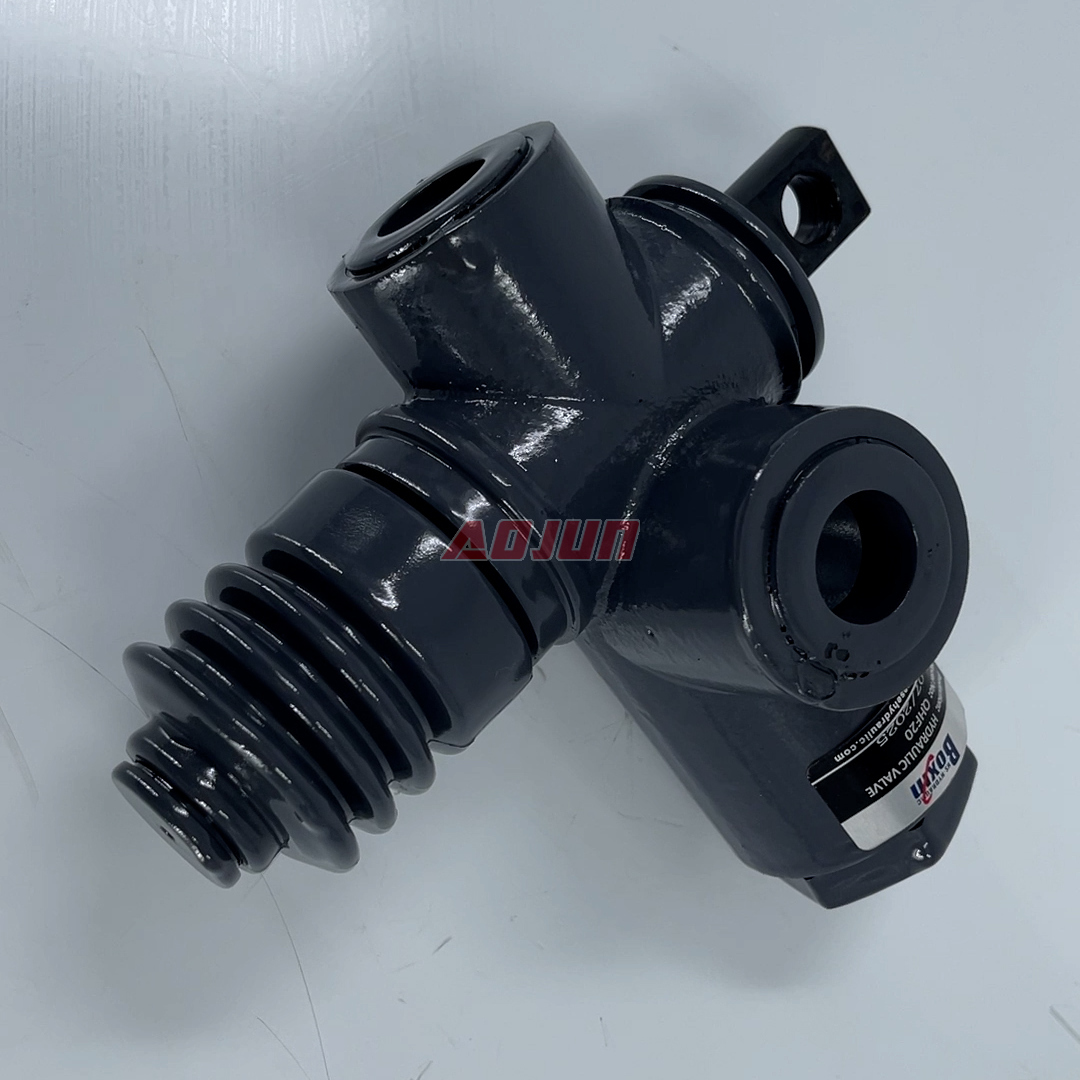

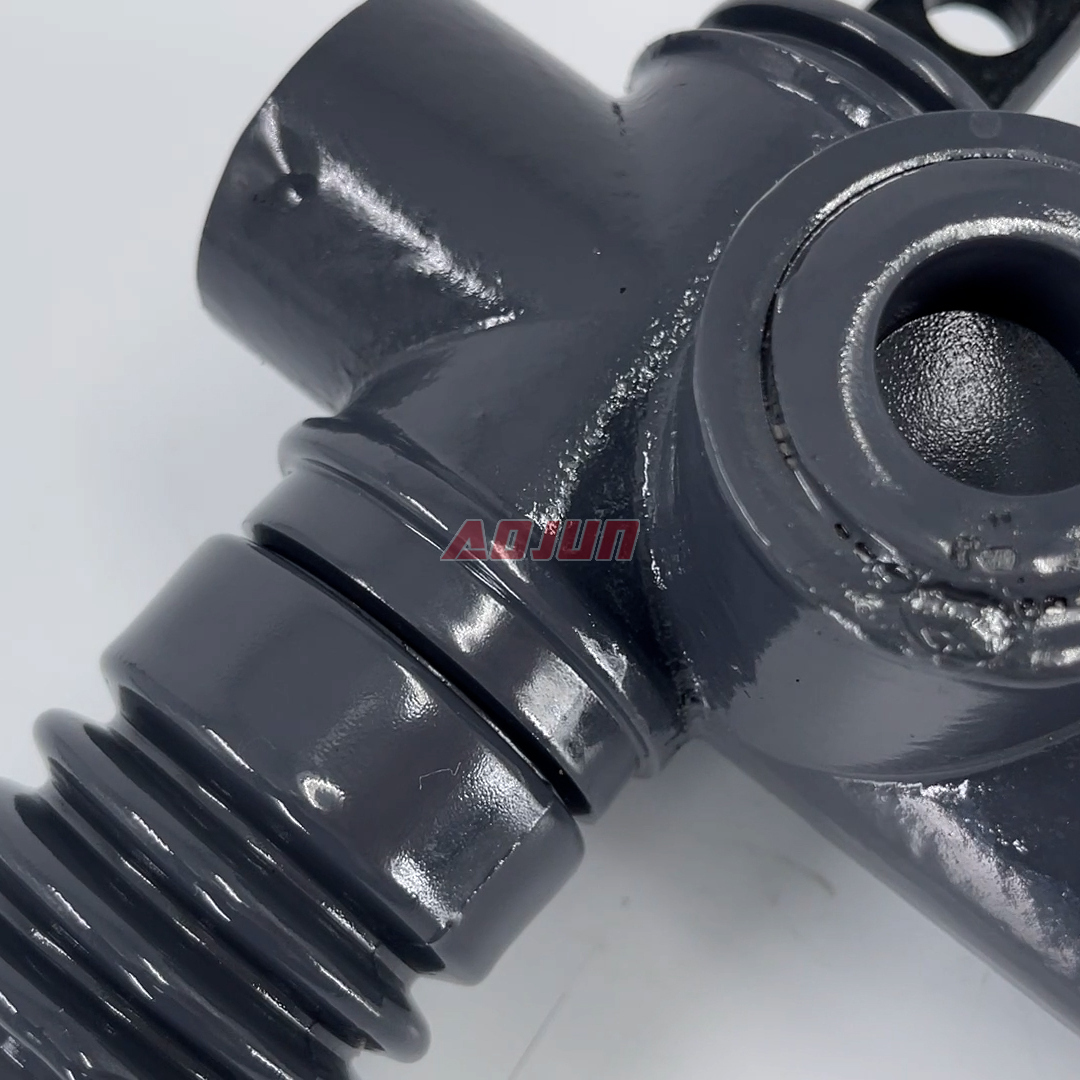

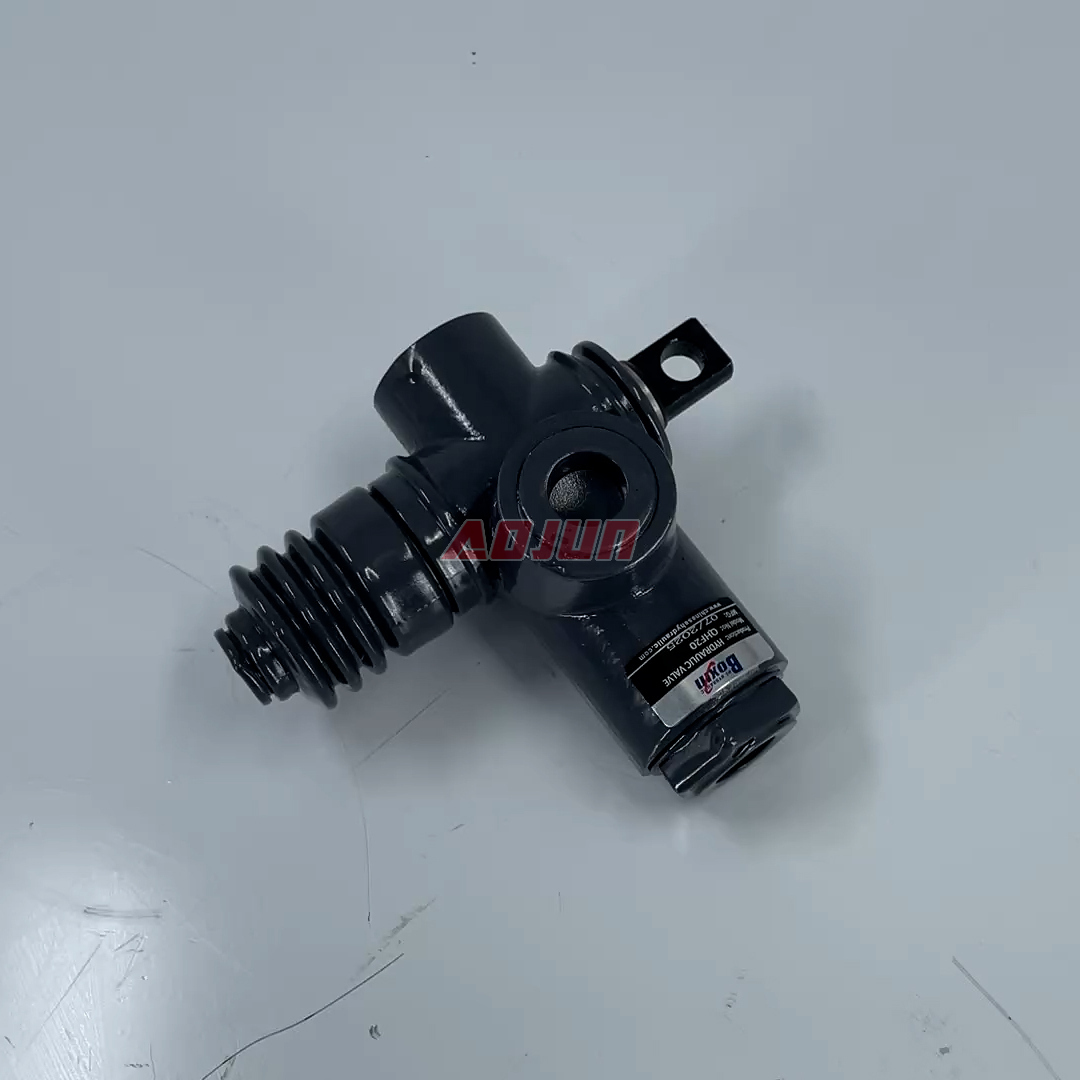

QHF20 is a manual lever-operated, 1-spool monoblock directional control valve designed for reliable on/off and direction switching of cylinders or hydraulic motors in mobile hydraulics. It supports high throughput (140 L/min) for fast actuator response while maintaining a compact monoblock structure to reduce potential leakage paths and simplify installation. Maximum working pressure is 19 MPa, suitable for common construction, material handling, agricultural, and industrial vehicle hydraulic circuits. Port configurations include G3/4 and G1 (BSPP) for inlet/outlet and working ports, making it easy to match existing hose/fitting standards. The valve operates across a wide oil viscosity range (15–75 mm²/s typical; usable 12–400 mm²/s) and ambient temperatures from -20°C to +80°C, supporting cold-start and high-heat jobsite environments. Typical applications include lift/tilt functions on loaders, auxiliary lines on excavators, mast/lift functions on forklifts, and general hydraulic function control on telehandlers and tractors.
| QHF Series Monoblock Directional Valve Parameters | |
|---|---|
| Spool | 1 Spool |
| Control Method | Manual |
| Port Size | G3/4, G1 |
| Section | 1 Section |
| Ambient Temperature Range | -20°C to +80°C (-4°F to +176°F) |
| Operating Viscosity Range | 15 - 75 mm²/s (15 cSt to 75 cSt), 12 - 400 mm²/s (12 cSt to 400 cSt) |
| Outlet Port | G3/4, G1 |
| Max Pressure | 19 MPa (2735 psi) |
| Rated Flow | 140 L/min (37 US gpm) |
| Structure Type | Monoblock valve |
| Inlet Port | G3/4, G1 |
