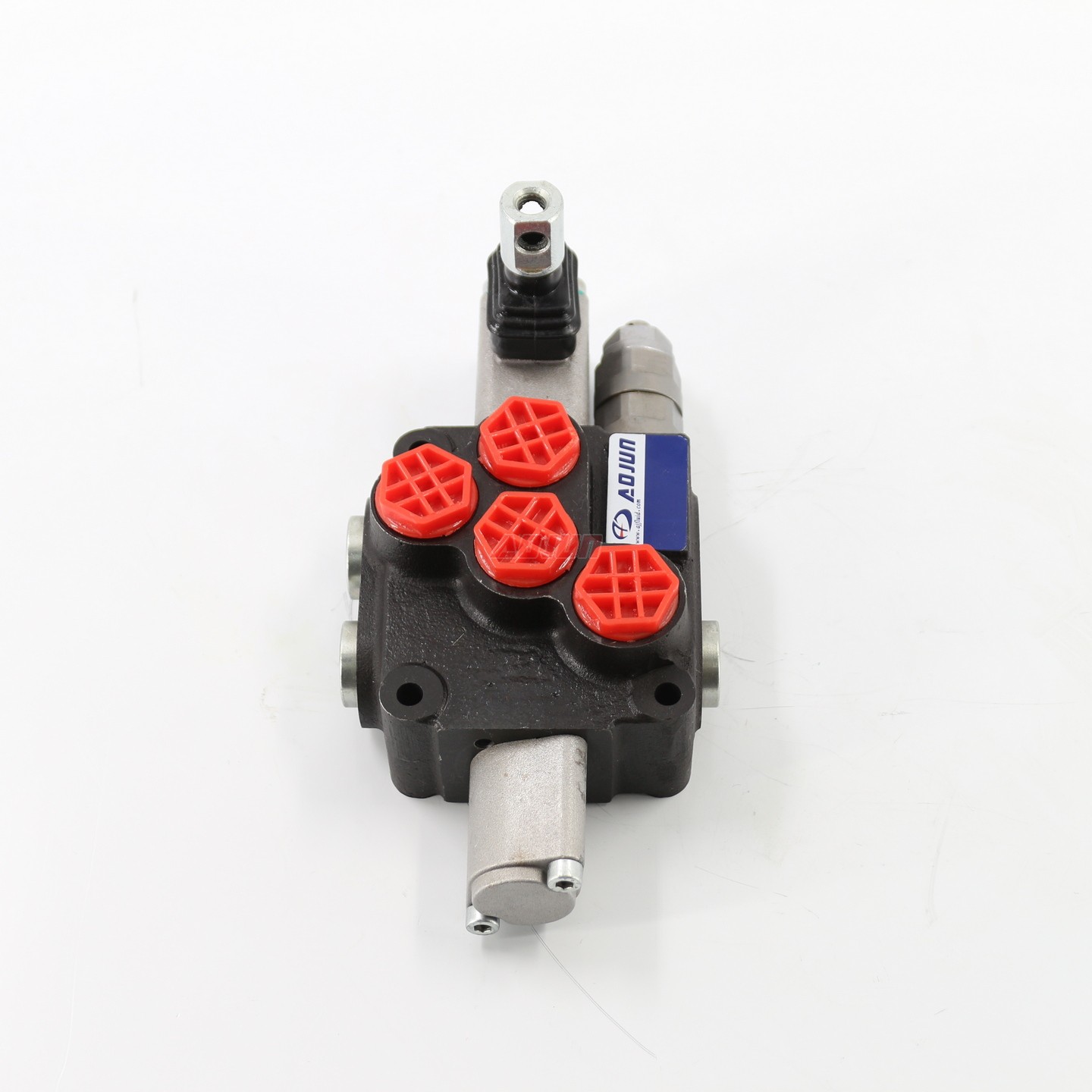

QHF20A is a 1-section manual monoblock hydraulic directional valve with a single spool, designed for reliable flow control in mobile hydraulic systems up to 140 L/min and 19 MPa.
global shipping world wide
Online Service For 24 X 7
Support OEM customization
• Configuration: 1 section / 1 spool, manual lever control, monoblock structure for compact installation and fewer leak paths.
• Performance: rated flow 140 L/min (37 US gpm); max pressure 19 MPa (2735 psi) for demanding mobile hydraulics.
• Fluid adaptability: operating viscosity 15–75 mm²/s (extended 12–400 mm²/s) to suit different hydraulic oil conditions.
• Environment: ambient temperature -20°C to +80°C for outdoor equipment use.
• Ports: inlet/outlet and port options in BSPP G3/4 and G1 for common hose/fitting compatibility.
• Typical uses: directional control for cylinders or motors on loaders, excavators, telehandlers, forklifts, aerial platforms, agricultural machinery and general industrial vehicles.
• Supply options: factory direct for OEM/ODM, private label, customization, bulk wholesale, and distributor/agent partnerships.
| QHF Series Monoblock Directional Valve Parameters | |
|---|---|
| Spool | 1 Spool |
| Control Method | Manual |
| Port Size | G3/4, G1 |
| Section | 1 Section |
| Ambient Temperature Range | -20°C to +80°C (-4°F to +176°F) |
| Operating Viscosity Range | 15 - 75 mm²/s (15 cSt to 75 cSt), 12 - 400 mm²/s (12 cSt to 400 cSt) |
| Outlet Port | G3/4, G1 |
| Max Pressure | 19 MPa (2735 psi) |
| Rated Flow | 140 L/min (37 US gpm) |
| Structure Type | Monoblock valve |
| Inlet Port | G3/4, G1 |
