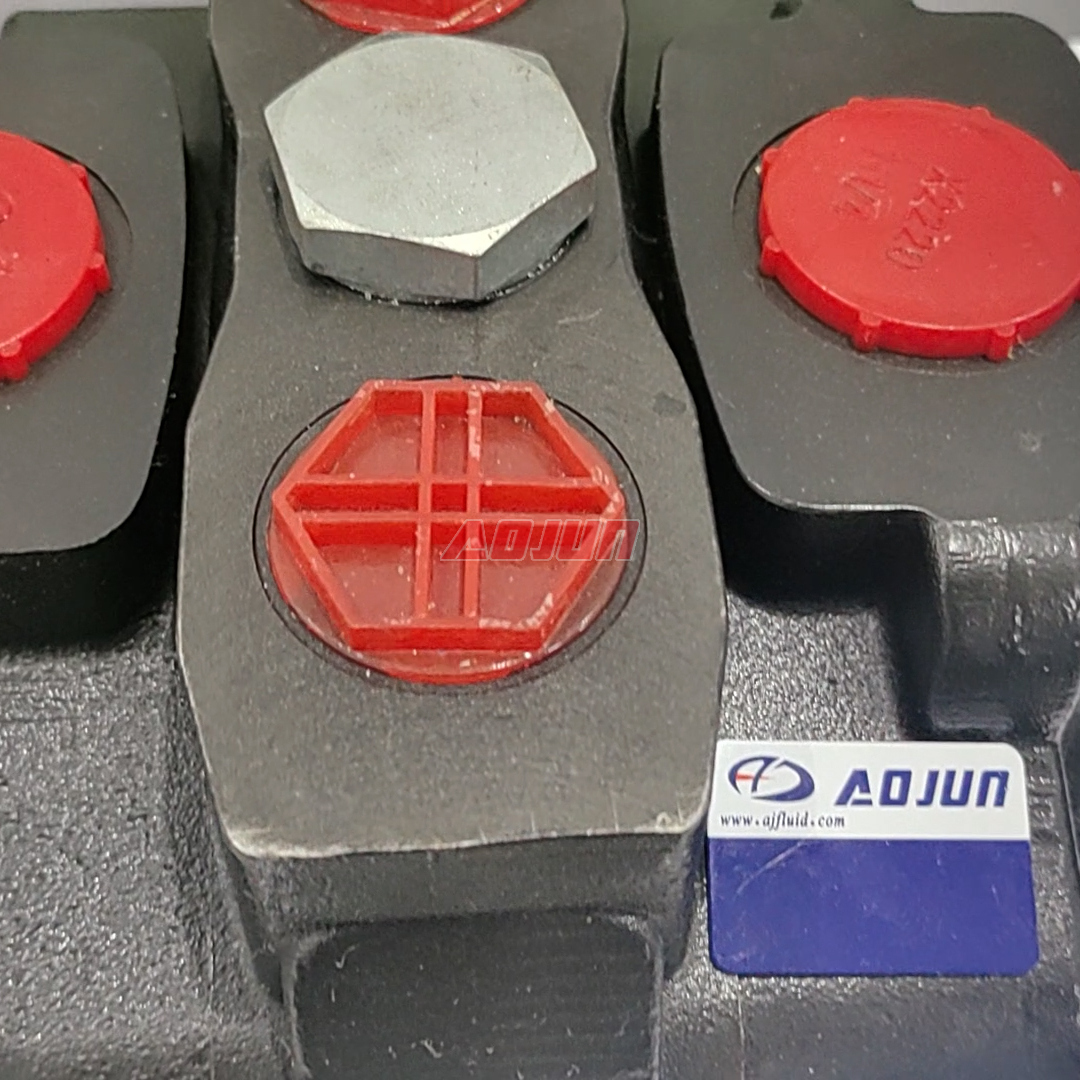

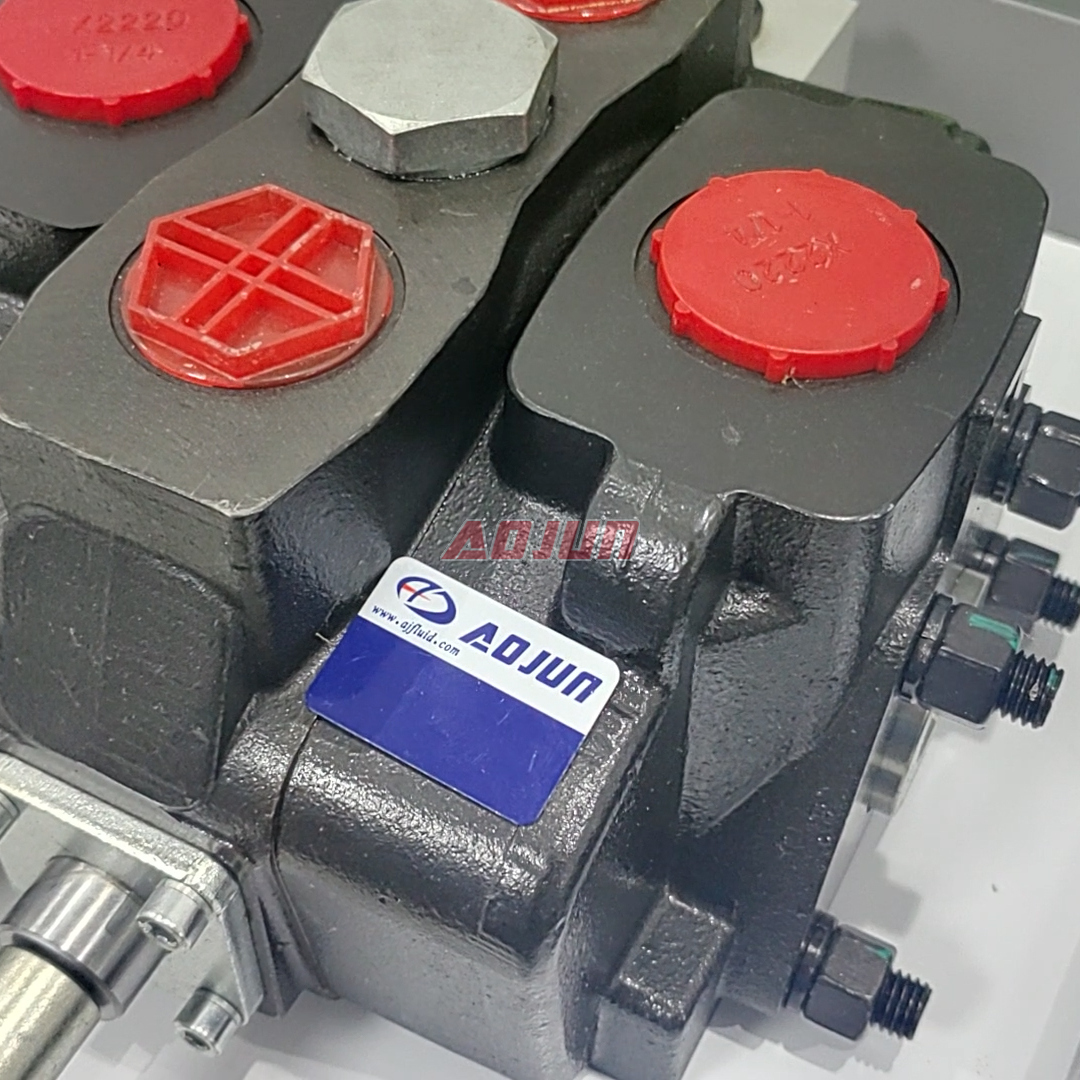

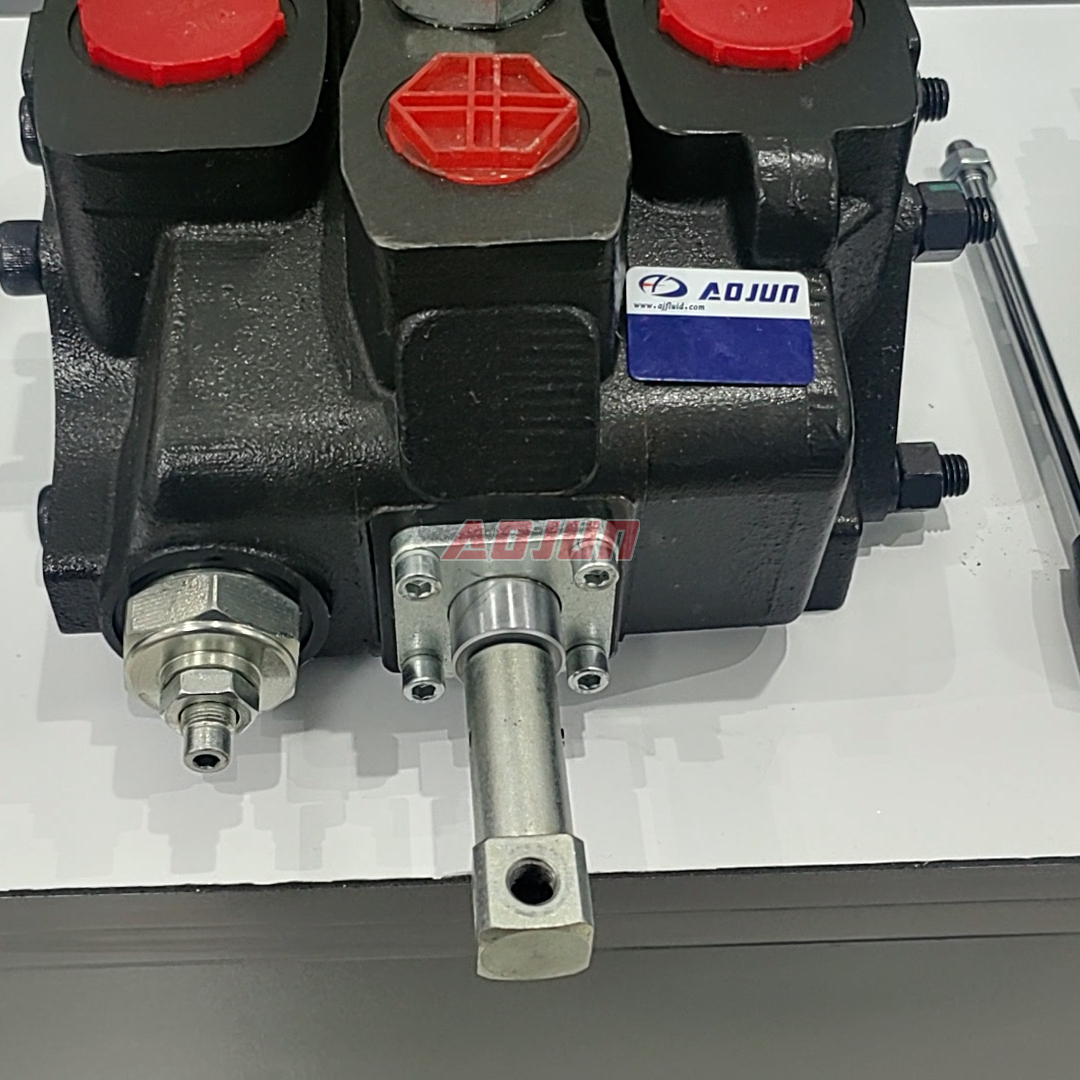

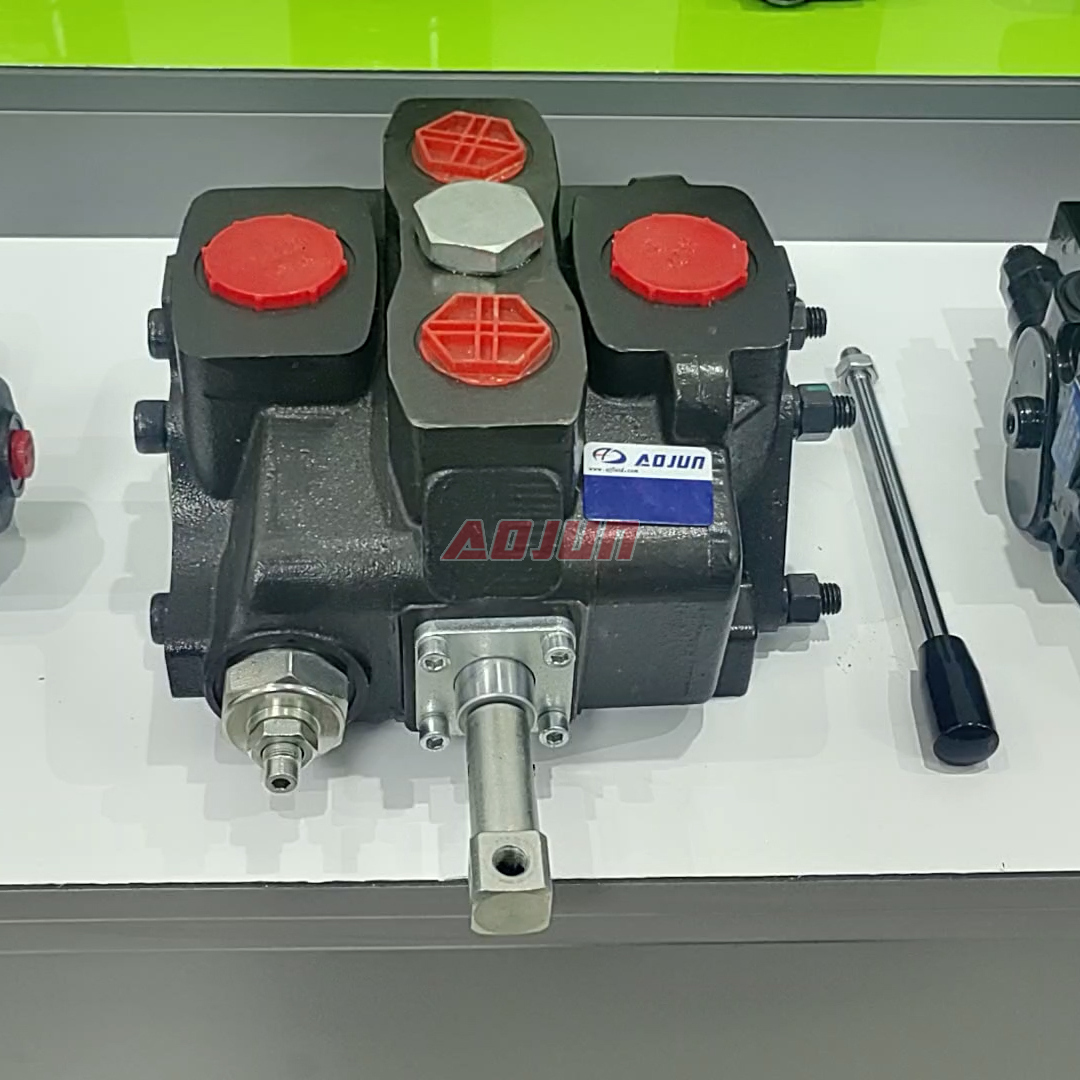

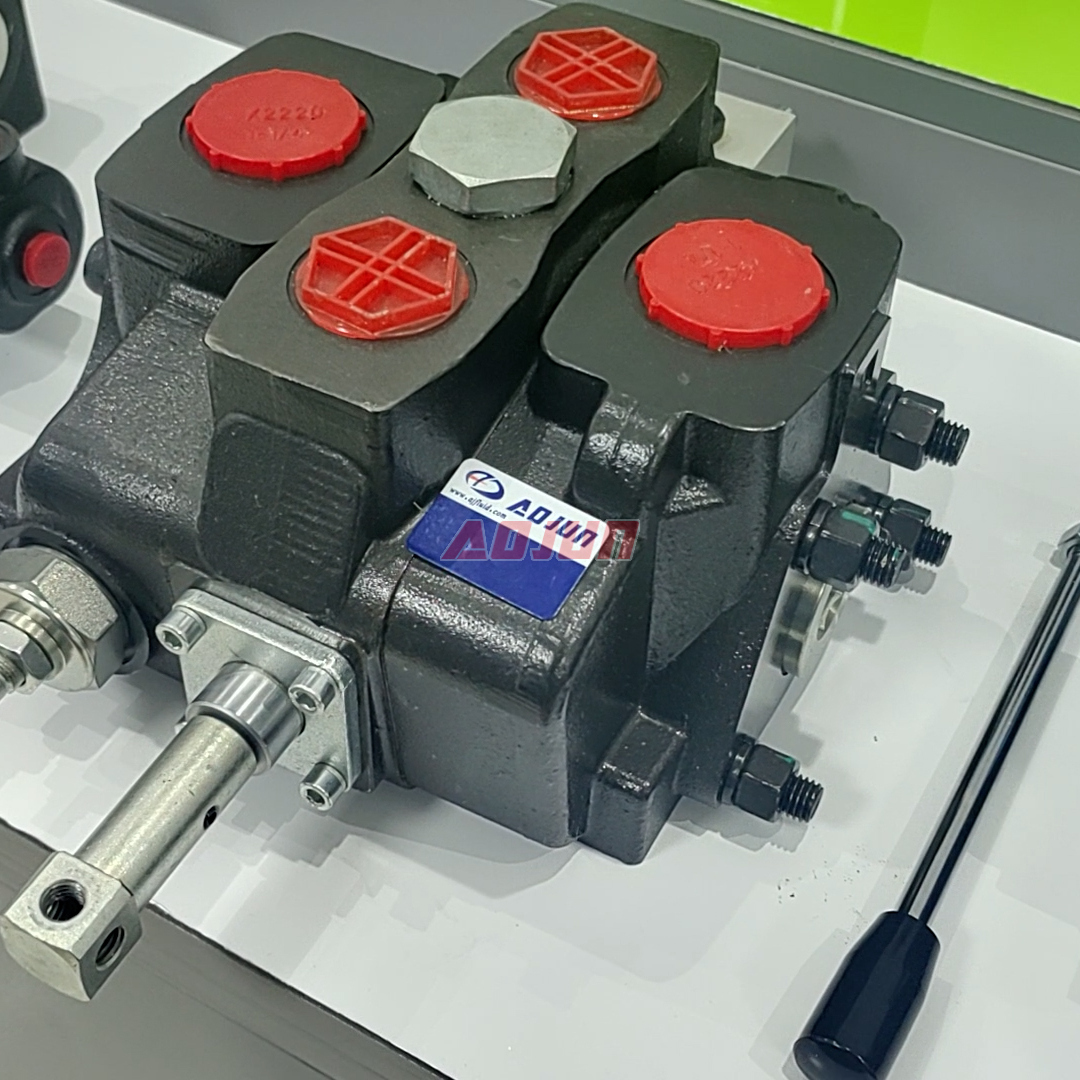

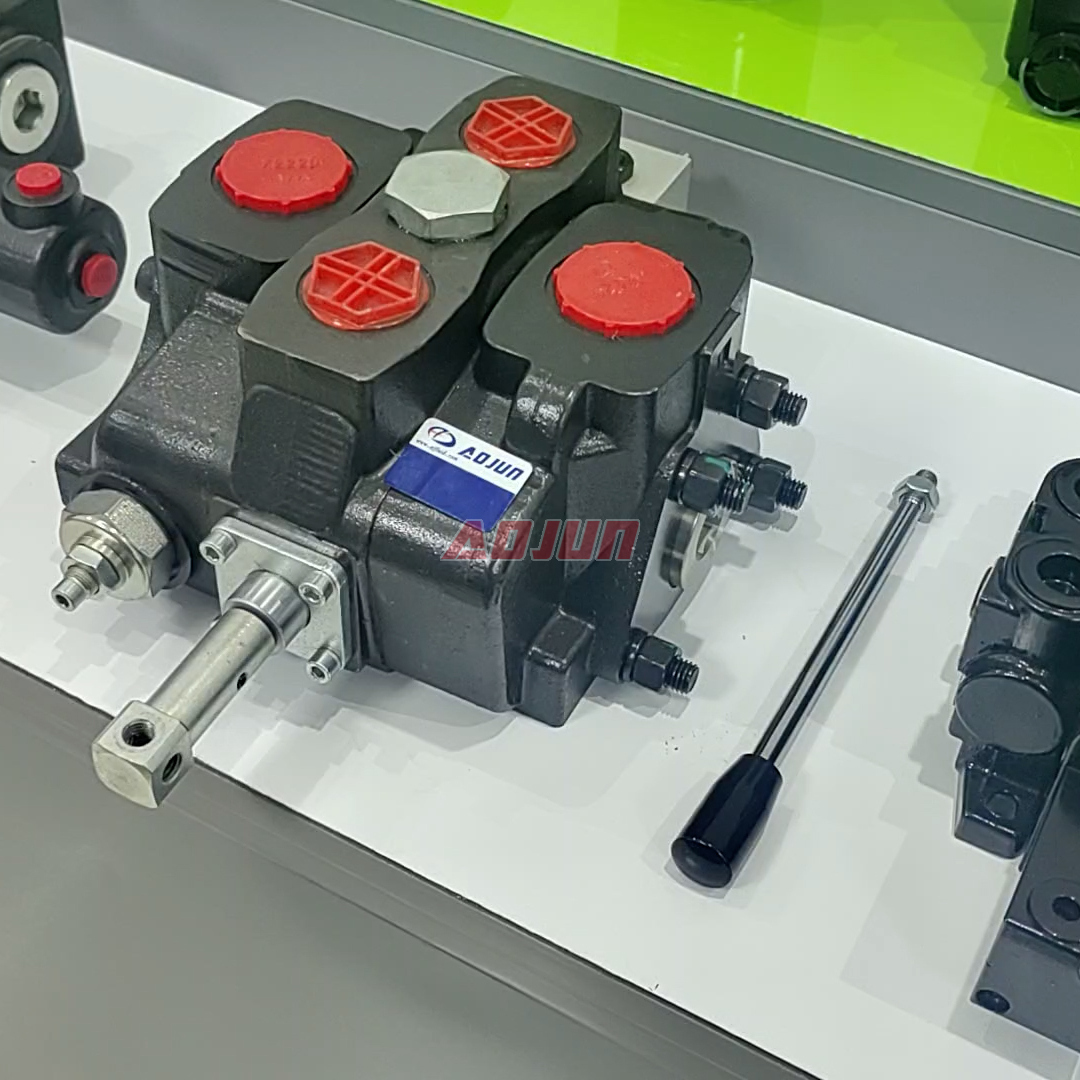

A 1-spool, 1-section manual monoblock directional valve designed for mobile hydraulic systems, delivering up to 240 L/min flow and 315 bar pressure with wide viscosity and temperature adaptability.
global shipping world wide
Online Service For 24 X 7
Support OEM customization

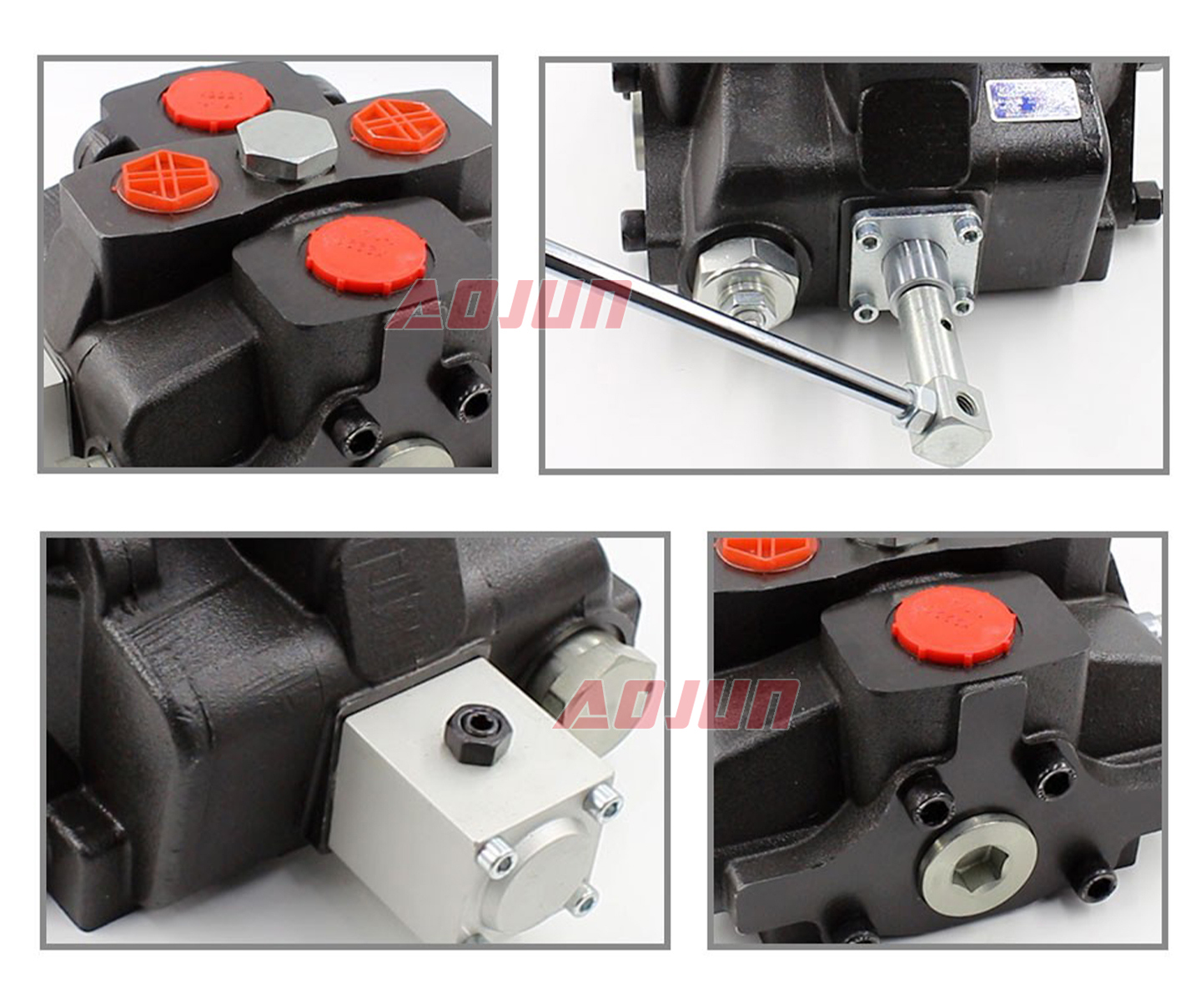

This manual sectional directional valve uses a compact monoblock structure for reliable operation in demanding mobile equipment. Key performance includes 240 L/min (63.4 gpm) rated flow for high-throughput circuits and 315 bar (4600 psi) max pressure for heavy-duty actuators. It supports a wide operating viscosity range (12–400 cSt) for different hydraulic oils and maintains stable performance from -40°C to +80°C for cold-start and hot-environment applications. With 1 spool and 1 section, it is ideal for single-function control such as cylinders, motors, clamps, lifts, or auxiliary circuits on loaders, excavators, forklifts, telehandlers, aerial platforms, and agricultural implements. Suitable for global OEM/ODM supply, private label, custom configurations, wholesale, and distributor/agent partnerships.
| SD25 Series Sectional Directional Valve Parameters | |
|---|---|
| Control Method | Manual, Electro-hydraulic, Hydraulic |
| Spool | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool |
| Section | 1 Section, 2 Section, 3 Section, 4 Section, 5 Section, 6 Section, 7 Section, 8 Section, 9 Section, 10 Section |
| Structure Type | Monoblock valve |
| Rated Flow | 240 L/min (63.4 US gpm) |
| Max Pressure | 315 bar (4600 psi) |
| Operating Viscosity Range | 12 - 400 mm²/s (12 cSt to 400 cSt) |
| Ambient Temperature Range | -40°C to +80°C (-40°F to +176°F) |
