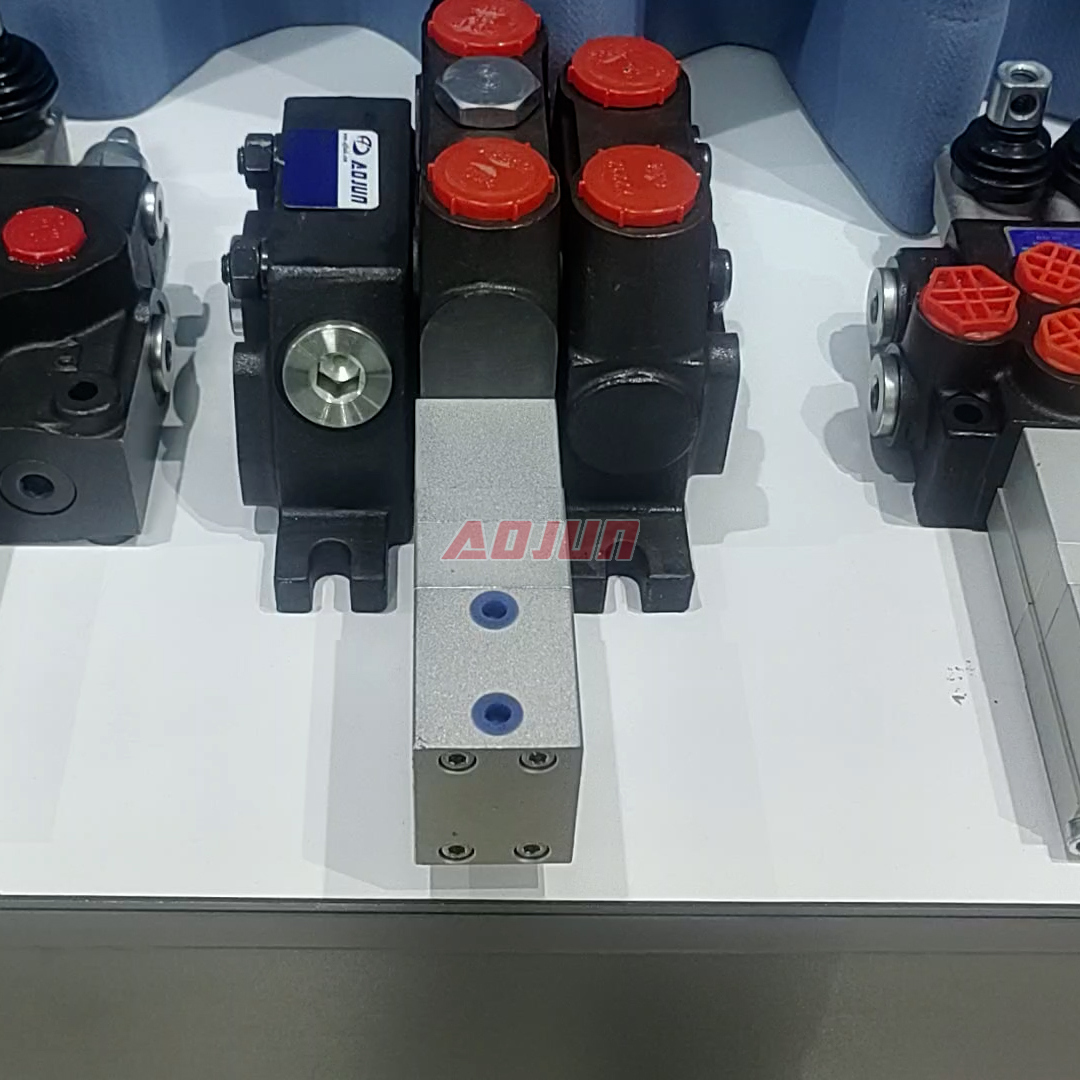

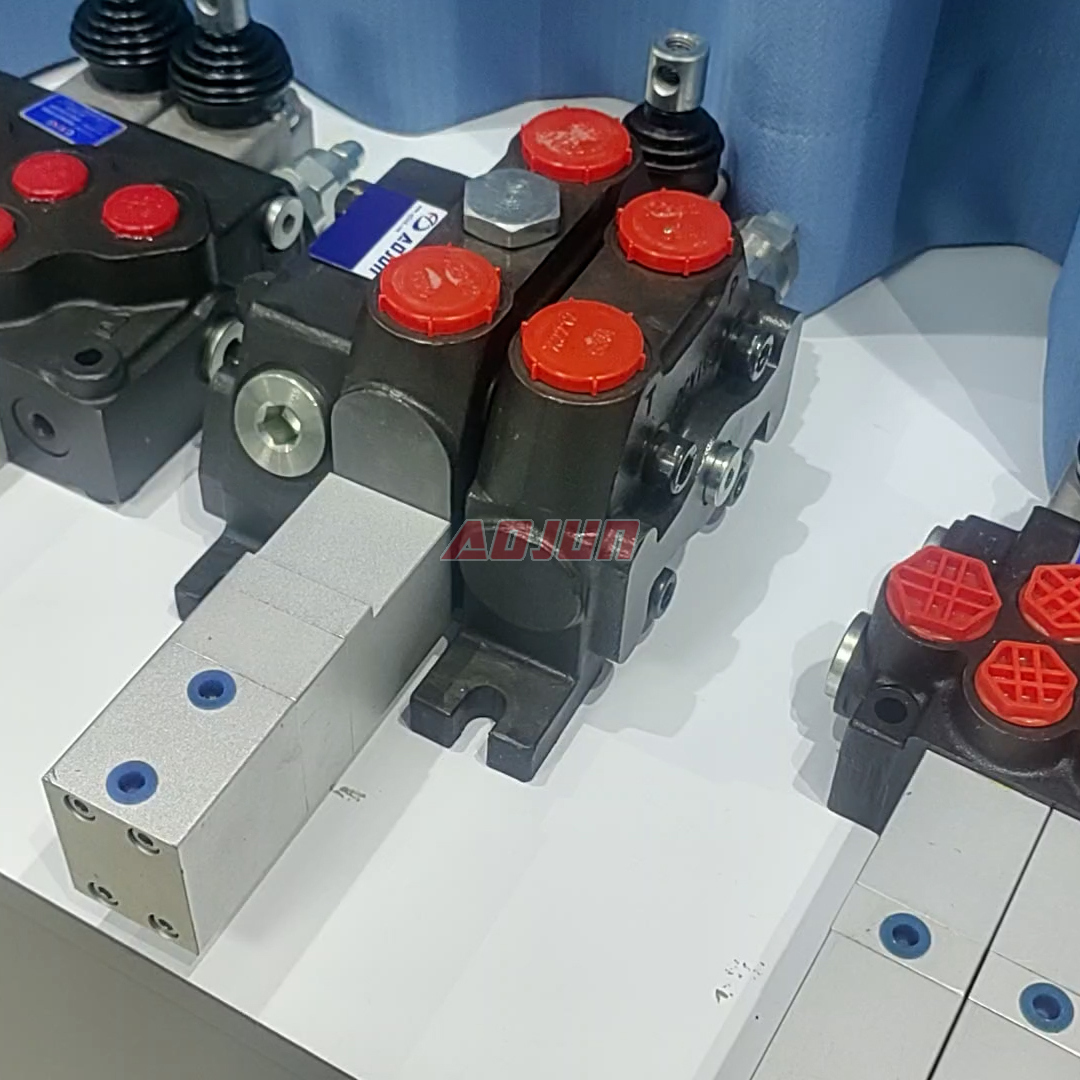

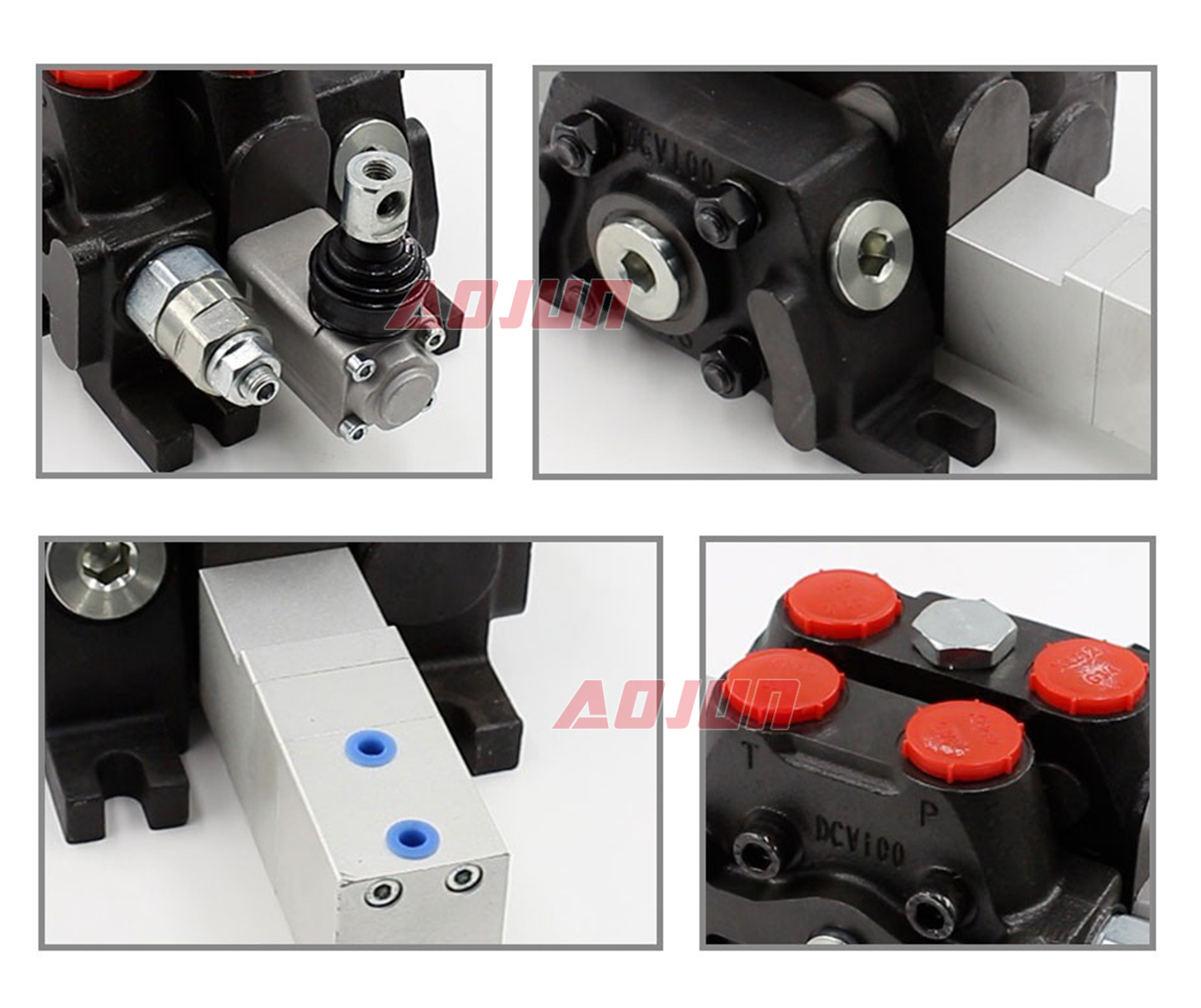

Pneumatic-controlled 1-section, 1-spool sectional directional valve designed for mobile and industrial hydraulic systems, delivering up to 100 L/min flow and 350 bar max pressure with reliable operation from -40°C to +60°C.
global shipping world wide
Online Service For 24 X 7
Support OEM customization
Key specs: rated flow 100 L/min (26.5 gpm), max pressure 350 bar (5100 psi), operating viscosity 15–75 mm²/s, ambient temperature -40°C to +60°C.
Features & benefits: pneumatic actuation enables remote/air-pilot control and easier integration with pneumatic logic; sectional structure supports modular system layouts and compact plumbing; 1-spool / 1-section configuration is ideal for single-function circuits (e.g., lift, tilt, steering assist, clamps); high-pressure capability supports demanding mobile equipment duty cycles.
Typical applications: material handling equipment, compact construction machines, agricultural implements, and industrial vehicles requiring dependable directional switching under high pressure and wide temperature conditions.
Supply options: manufacturer direct for OEM/ODM, private label, custom configuration, bulk wholesale, and global distributor/agent partnerships.
| DCV100 Series Sectional Directional Valve Parameters | |
|---|---|
| Spool | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool, 8 Spool, 9 Spool, 10 Spool |
| Control Method | Manual, Pneumatic, Electro-pneumatic, Electro-hydraulic, Hydraulic, Cable, Joystick, Manual and Joystick |
| Ambient Temperature Range | -40°C to +60°C (-40°F to +140°F) |
| Operating Viscosity Range | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| Max Pressure | 350 bar (5100 psi) |
| Rated Flow | 100 L/min (26.5 US gpm) |
| Structure Type | Sectional valve |
| Section | 1 Section, 2 Section, 3 Section, 4 Section, 5 Section, 6 Section, 7 Section, 8 Section, 9 Section, 10 Section |
