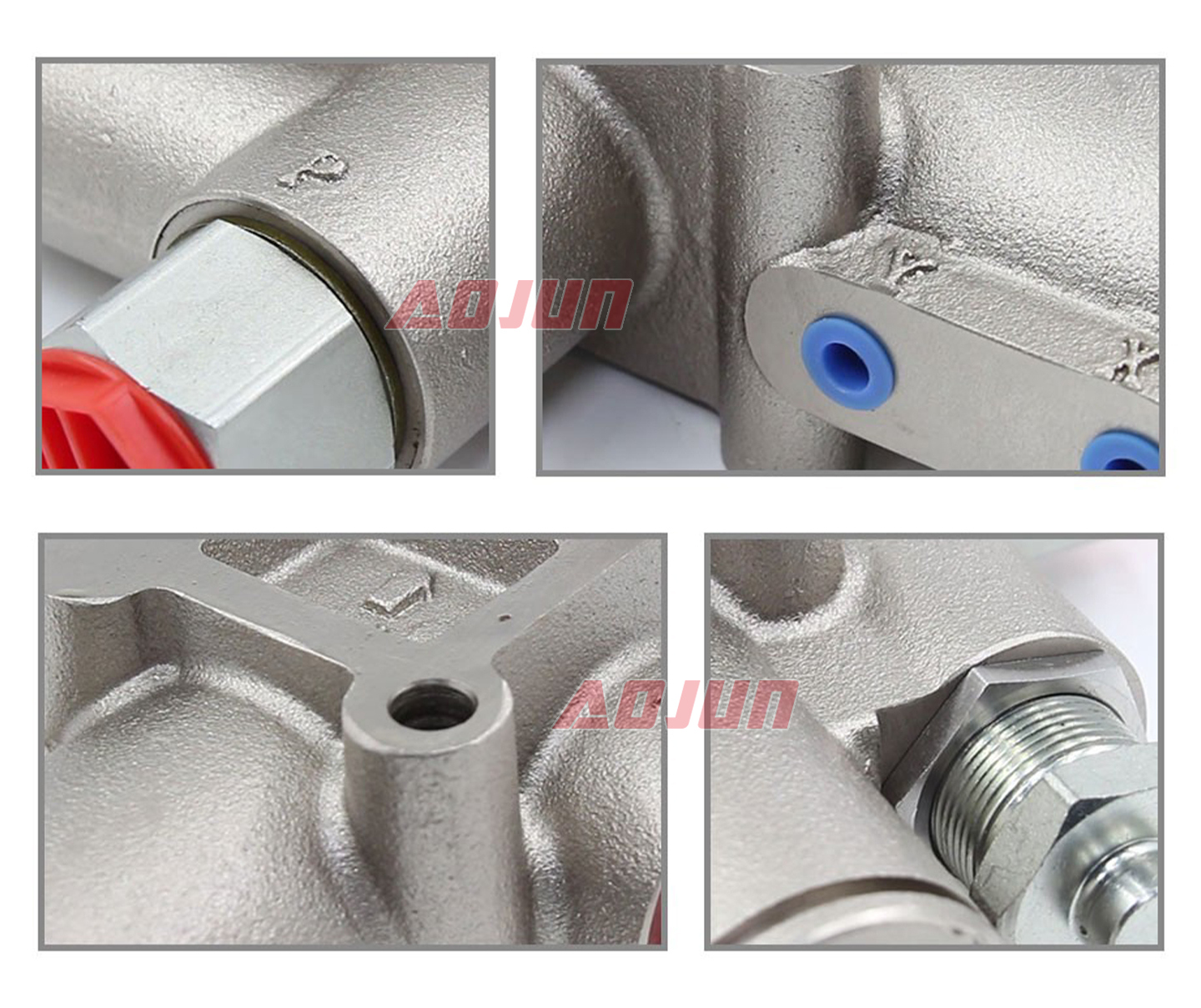

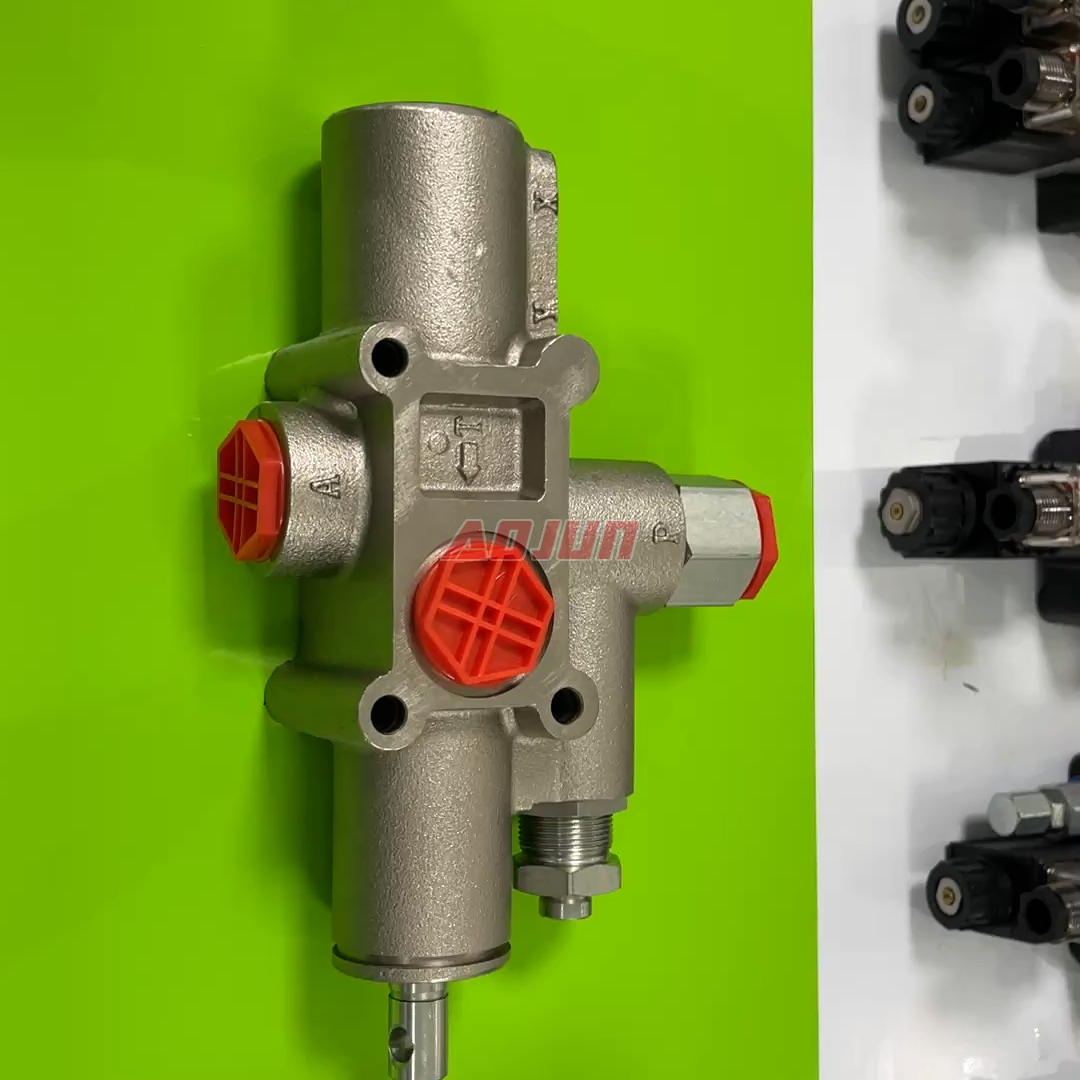

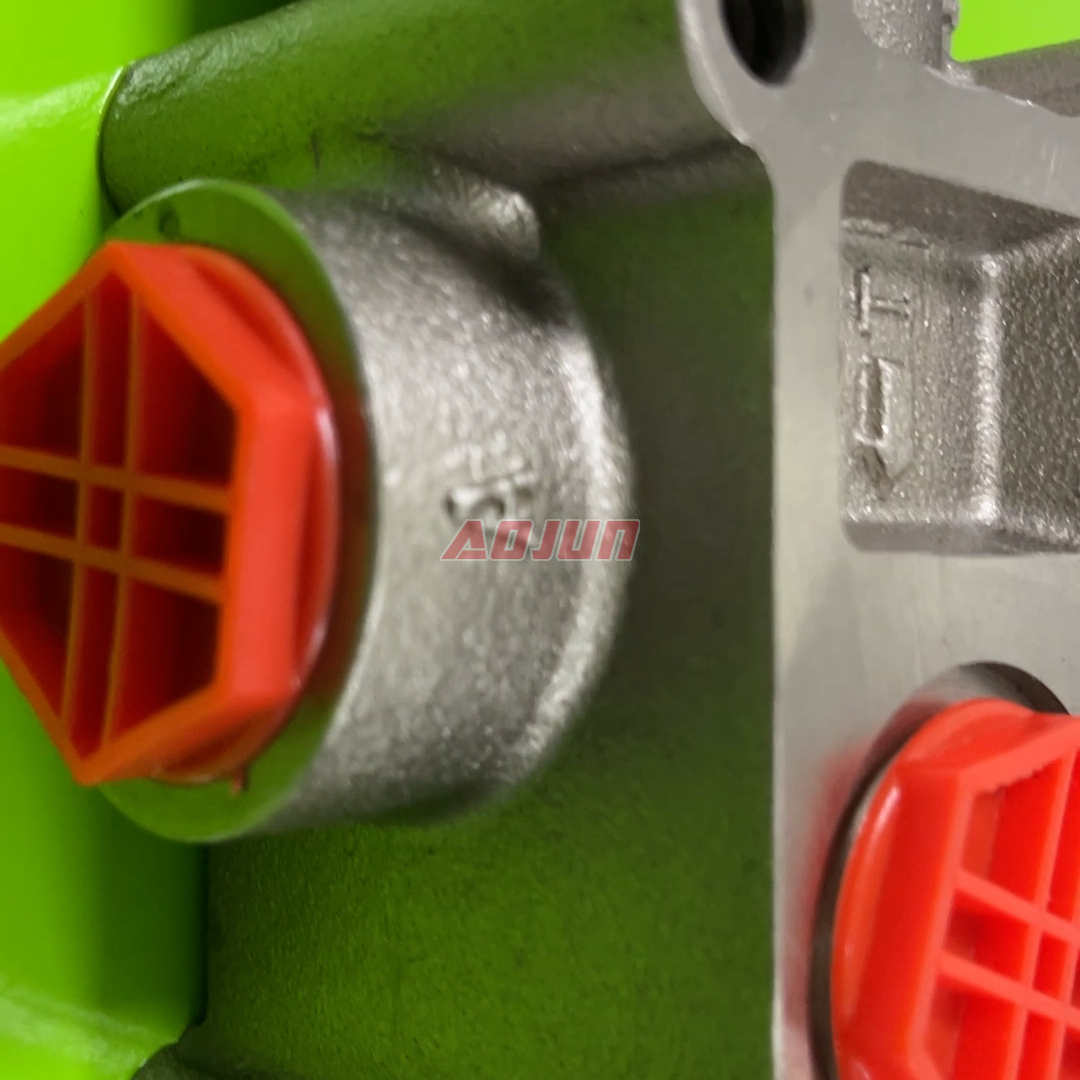

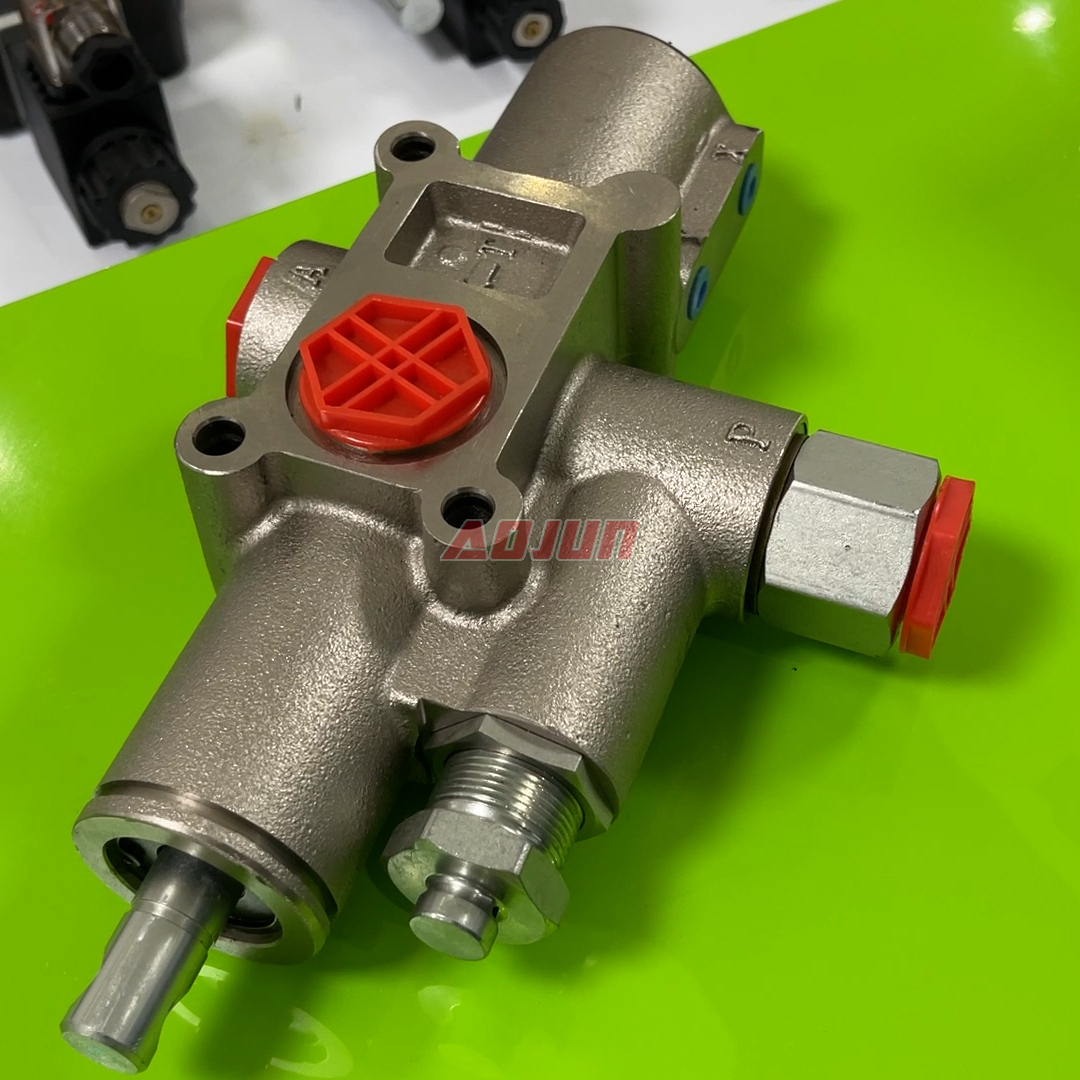

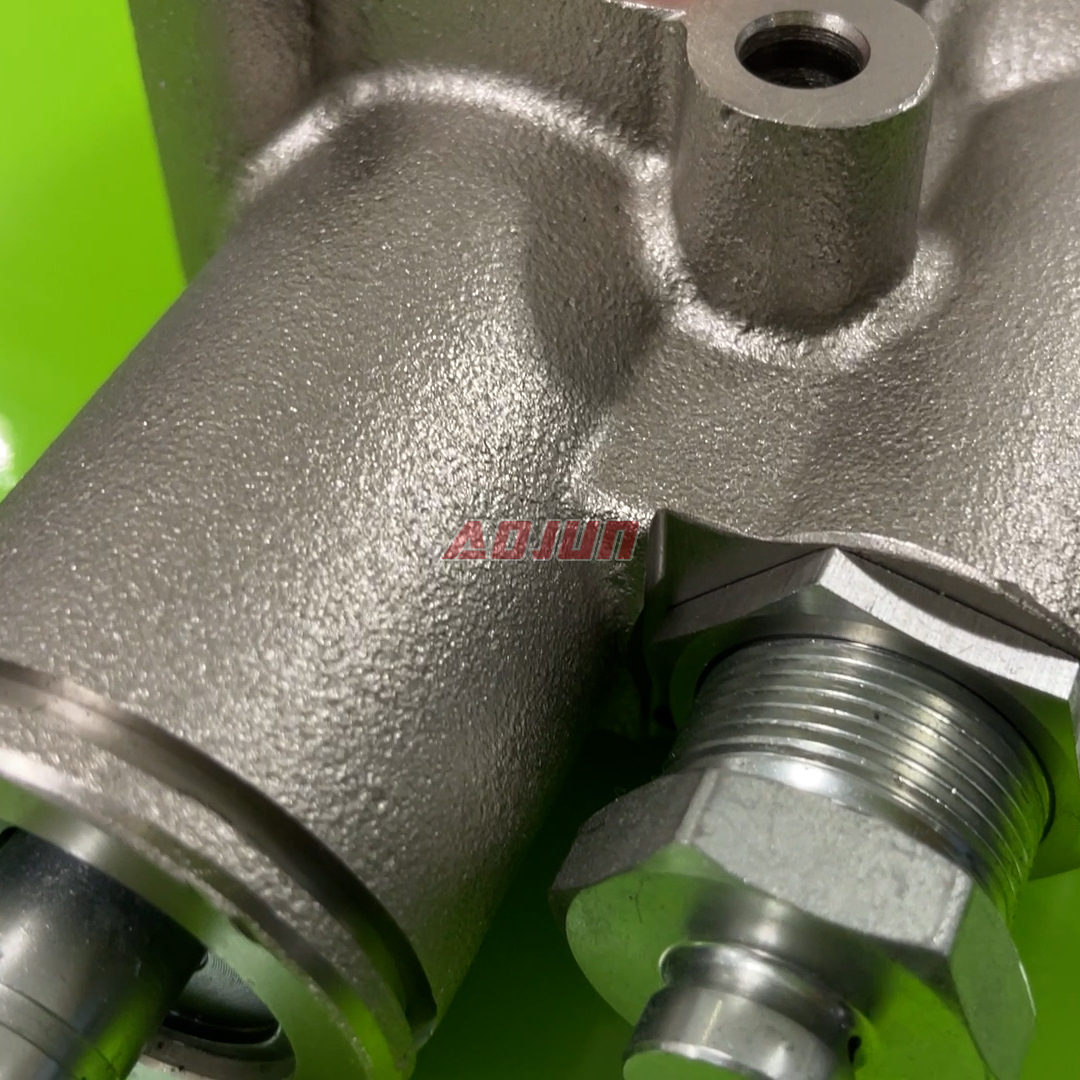

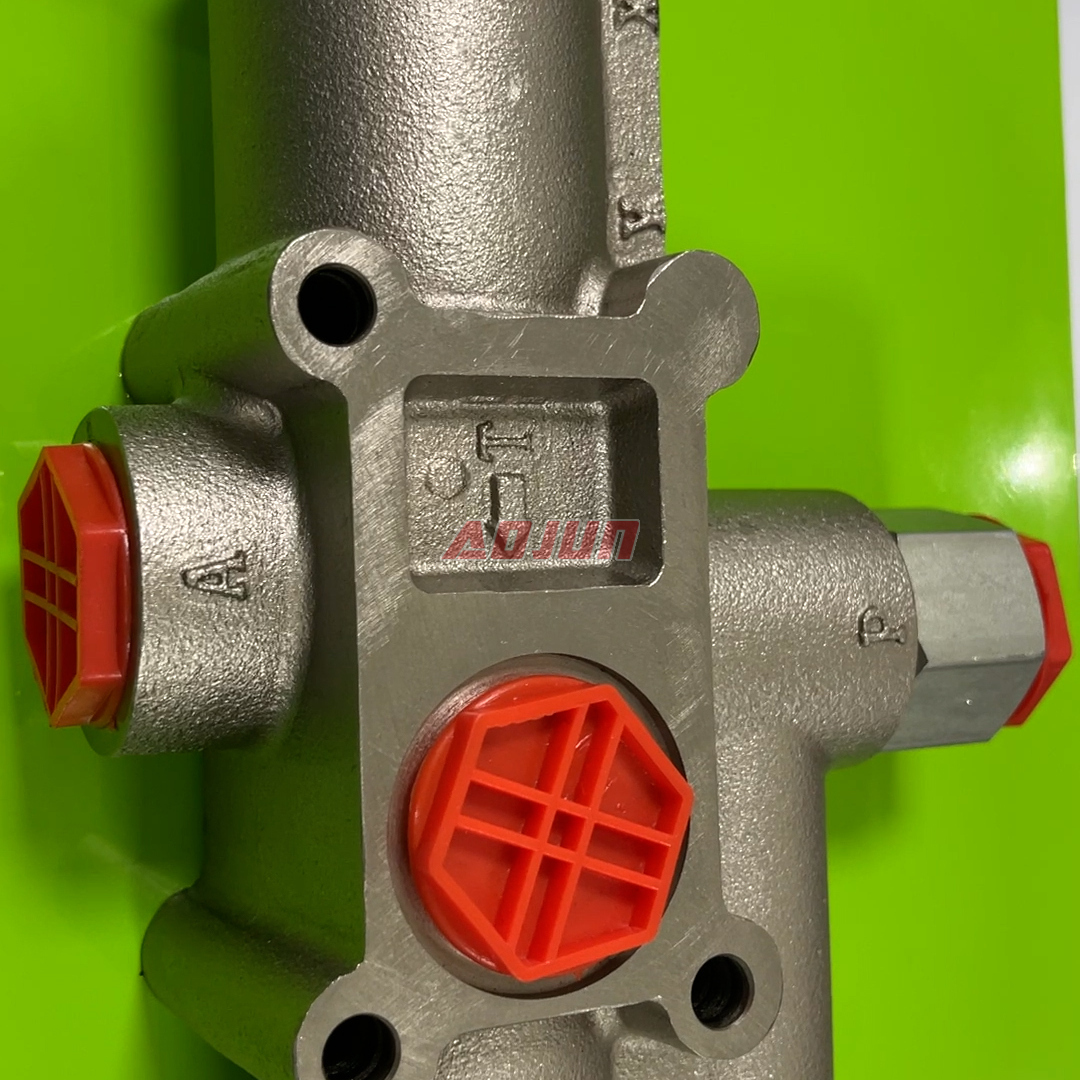

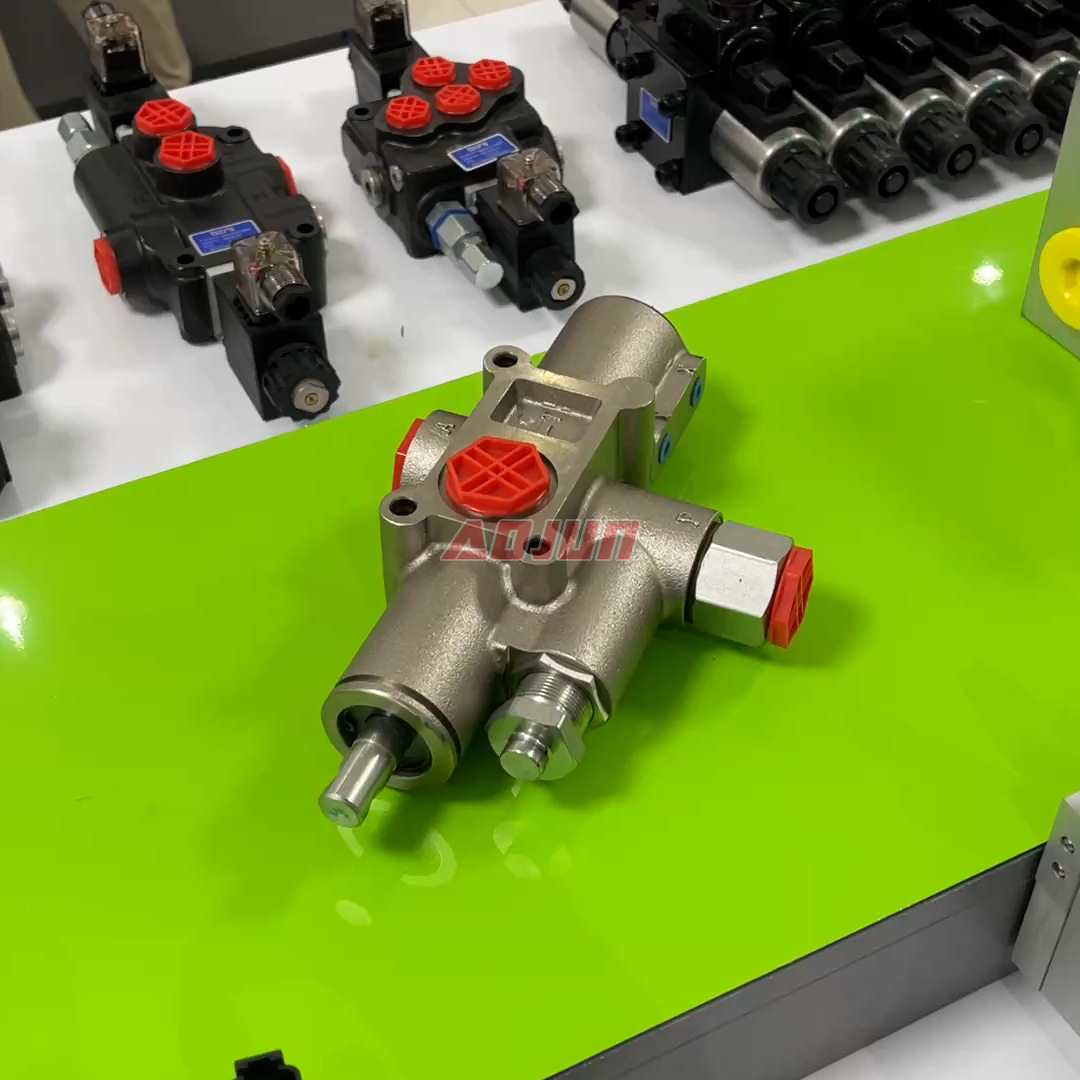

A single-spool, pneumatic-controlled monoblock directional valve designed for mobile and industrial hydraulics, offering 130 L/min rated flow, up to 315 bar pressure capability, and stable operation across wide viscosity and extreme ambient temperatures.
global shipping world wide
Online Service For 24 X 7
Support OEM customization
Key features: pneumatic actuation for remote/safer control integration; monoblock construction for strength, compactness, and reduced leak paths; high flow capacity (130 L/min) for fast actuator response; high pressure rating (max 315 bar) suitable for demanding duty cycles; wide oil viscosity tolerance (15–75 cSt) supporting varied hydraulic fluids and operating conditions; extreme ambient temperature range (-40°C to +80°C) for cold-region and high-heat environments.
Typical uses: directional control of cylinders or motors on material handling machines, construction/earth-moving equipment, agricultural machinery, and industrial vehicles where air control is preferred for simplicity, operator comfort, or automation.
Supply options: factory direct manufacturing for wholesale, OEM/ODM, private labeling, and customization (ports, mounting interfaces, spool function, and application-specific configurations) for distributors, agents, and trading partners.
| DM130 Seires Tipping Valve Parameters | |
|---|---|
| Control Method | Pneumatic |
| Spool | 1 Spool |
| Section | 1 Section |
| Rated Flow | 130 L/min (34.3 US gpm) |
| Max Pressure | 315 bar (4600 psi) |
| Operating Viscosity Range | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| Ambient Temperature Range | -40°C to +80°C (-40°F to +176°F) |
| Structure Type | Monoblock valve |
We provide OEM/ODM services. When your product orders reach a certain value, we can offer a variety of customization services, including labels, packaging, product colors, and more.
We support multiple currencies and diverse payment methods, such as T/T, L/C, Alibaba platform, China Manufacturing Payment Platform, bank transfer, and more.
We can provide samples, and the sample costs will be refunded to you in the form of deducted payments in the later stages.
