A 1-spool, 1-section solenoid-controlled hydraulic flow diverter designed for mobile machinery to switch or route flow between circuits, delivering up to 90 L/min with a maximum working pressure of 180 bar.
global shipping world wide
Online Service For 24 X 7
Support OEM customization

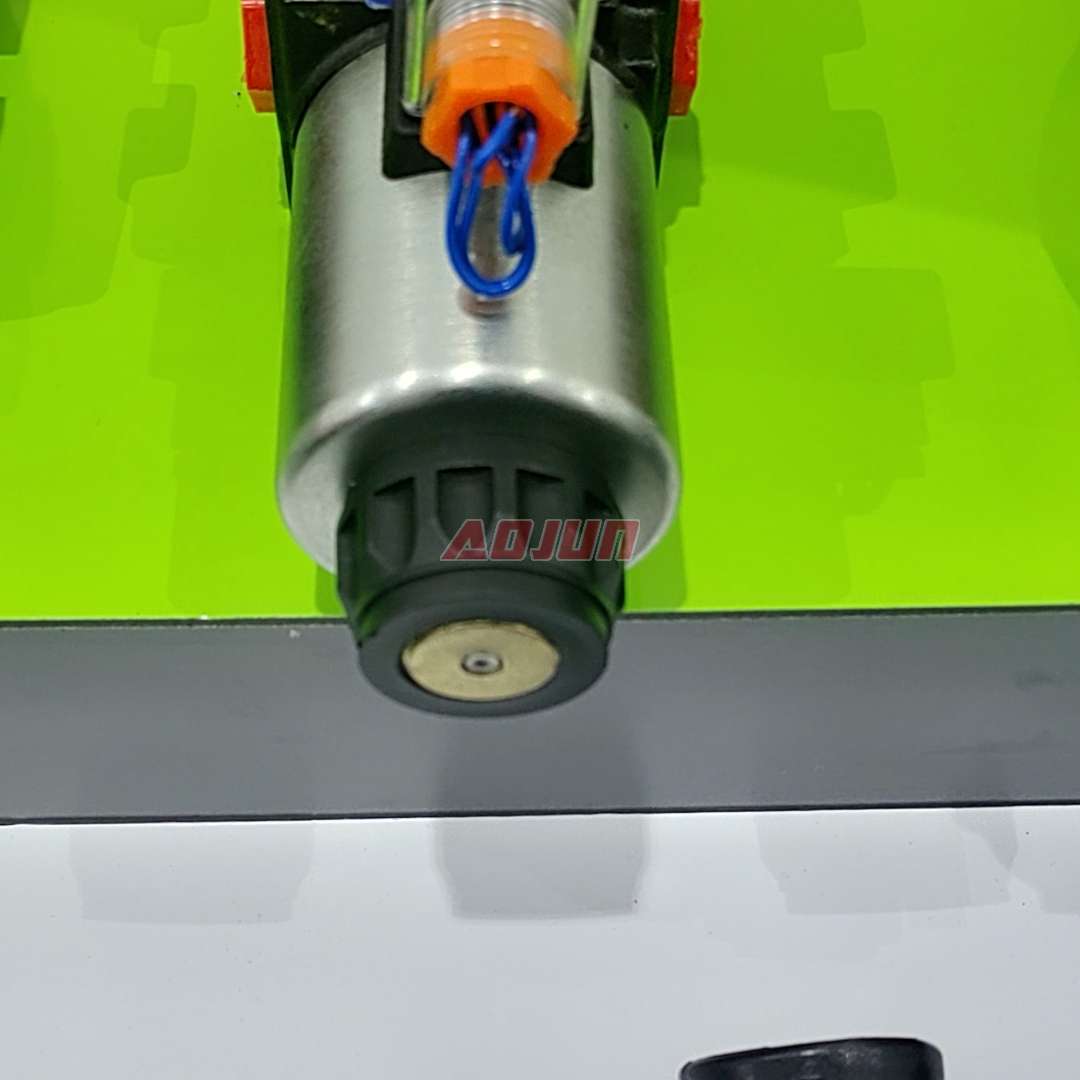

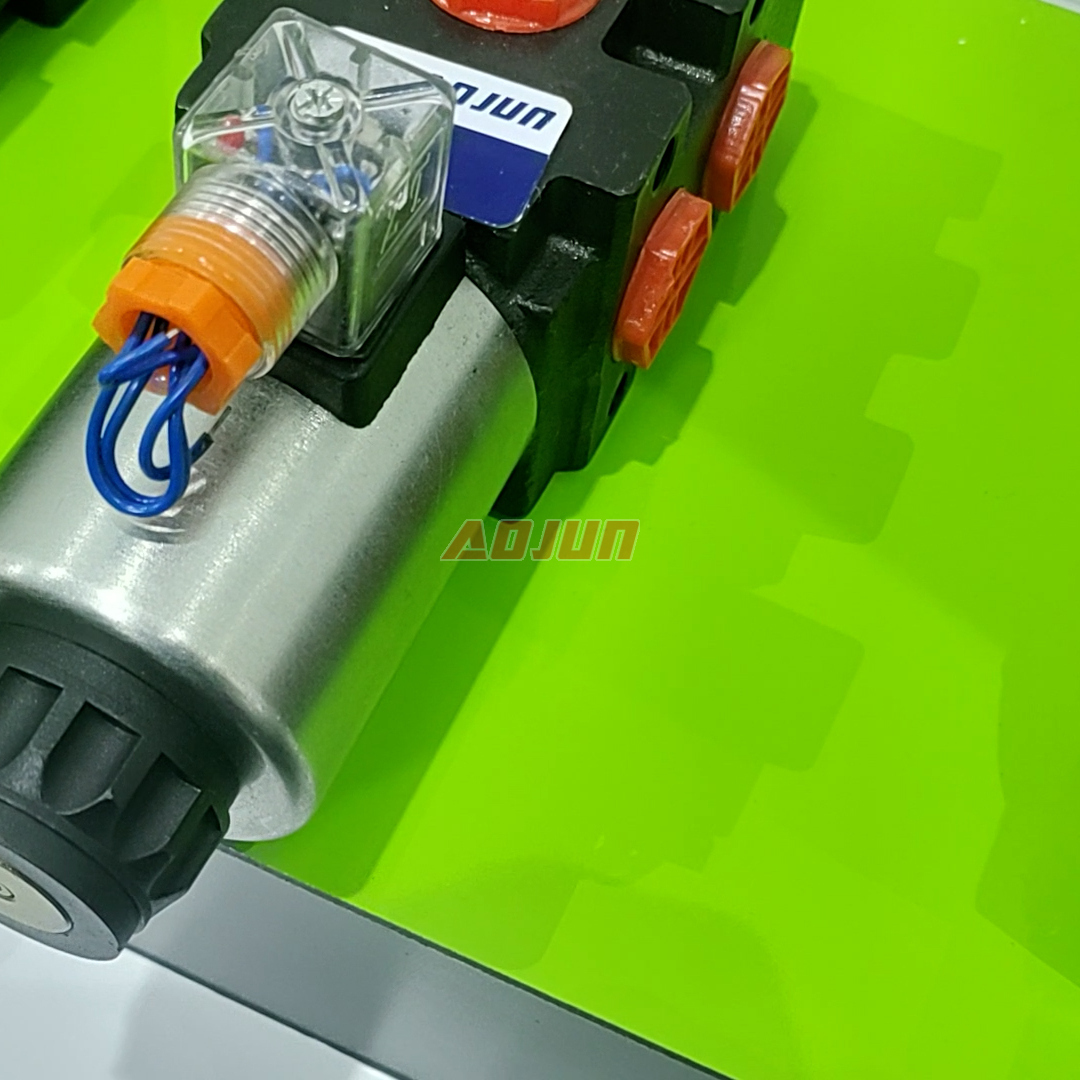

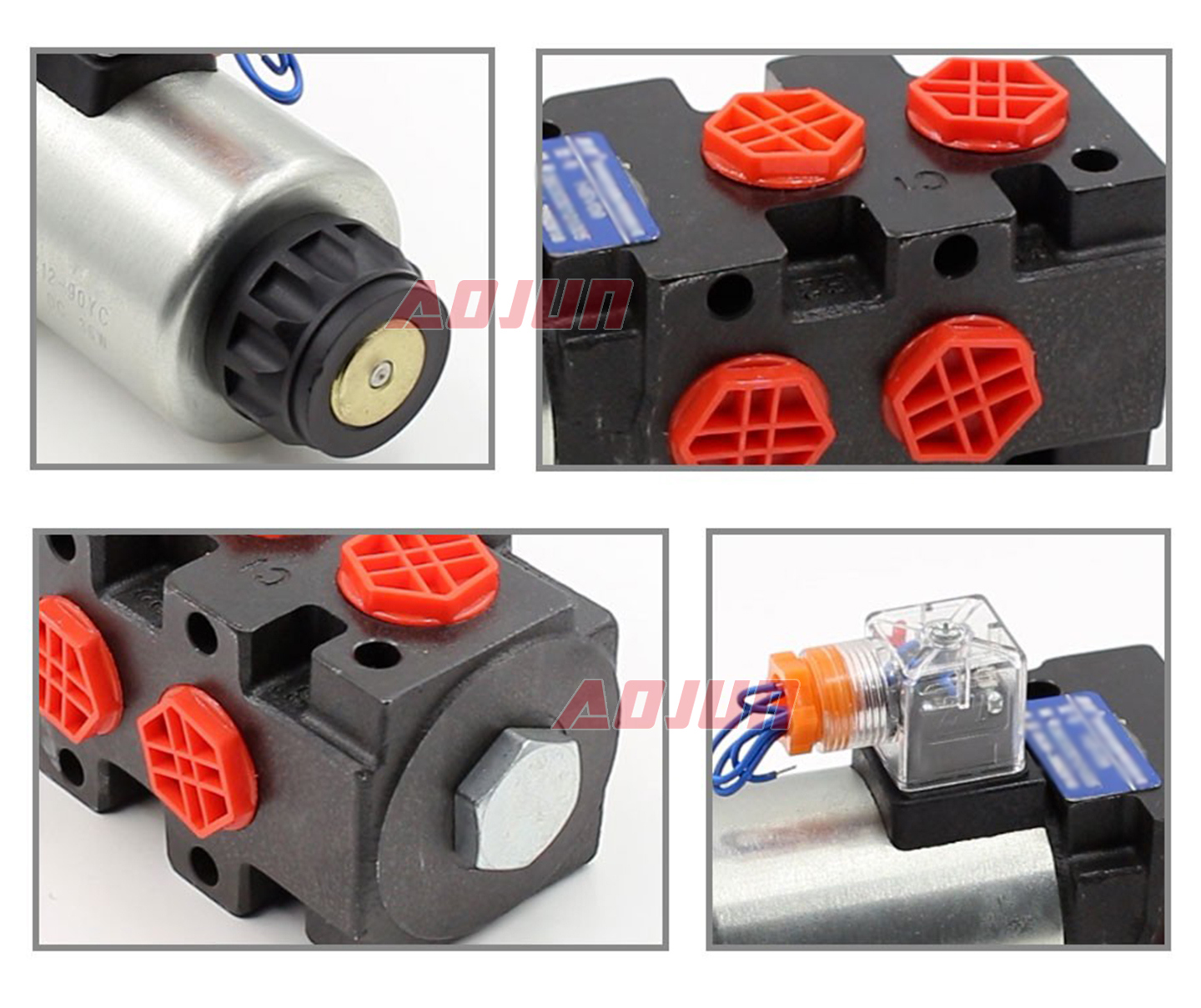

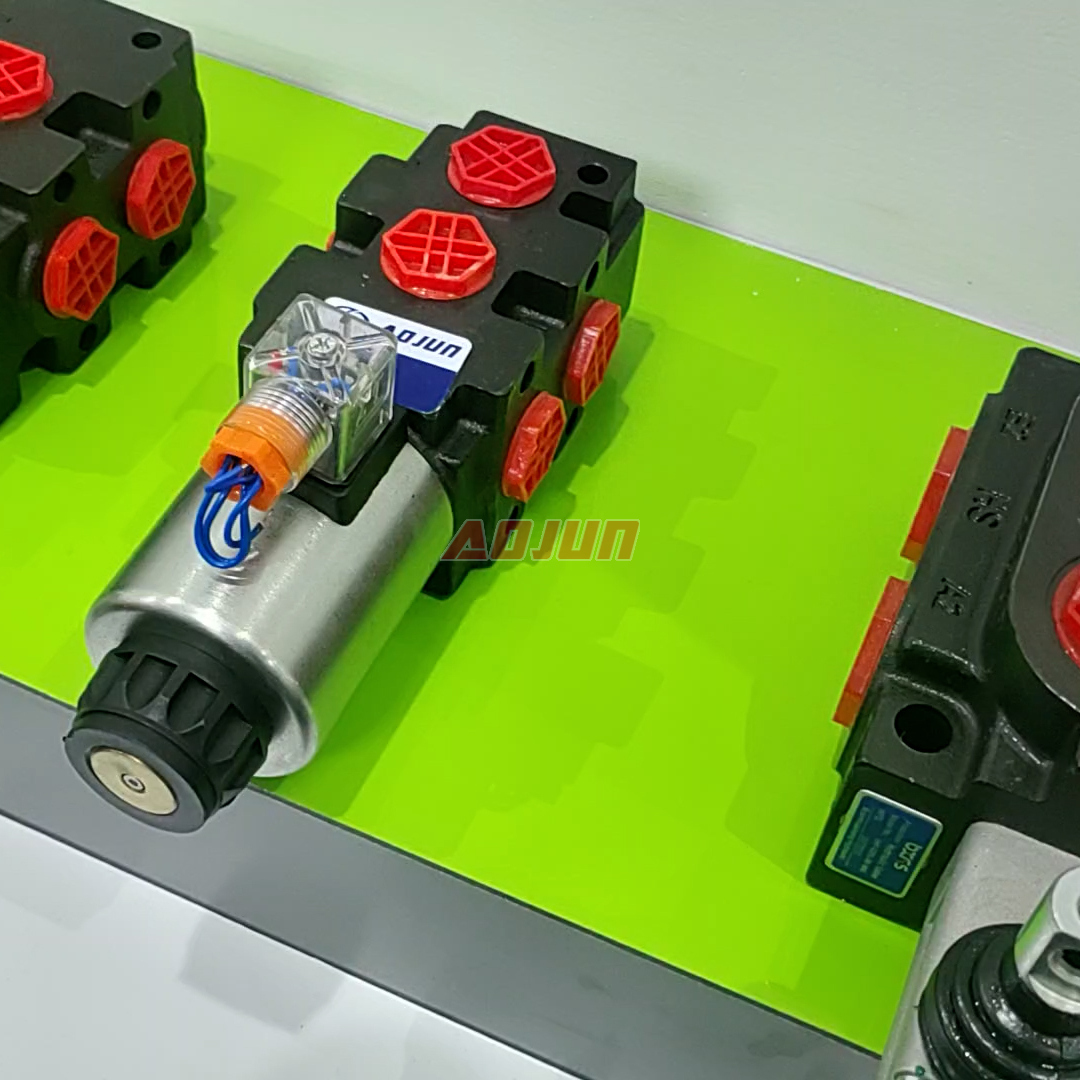

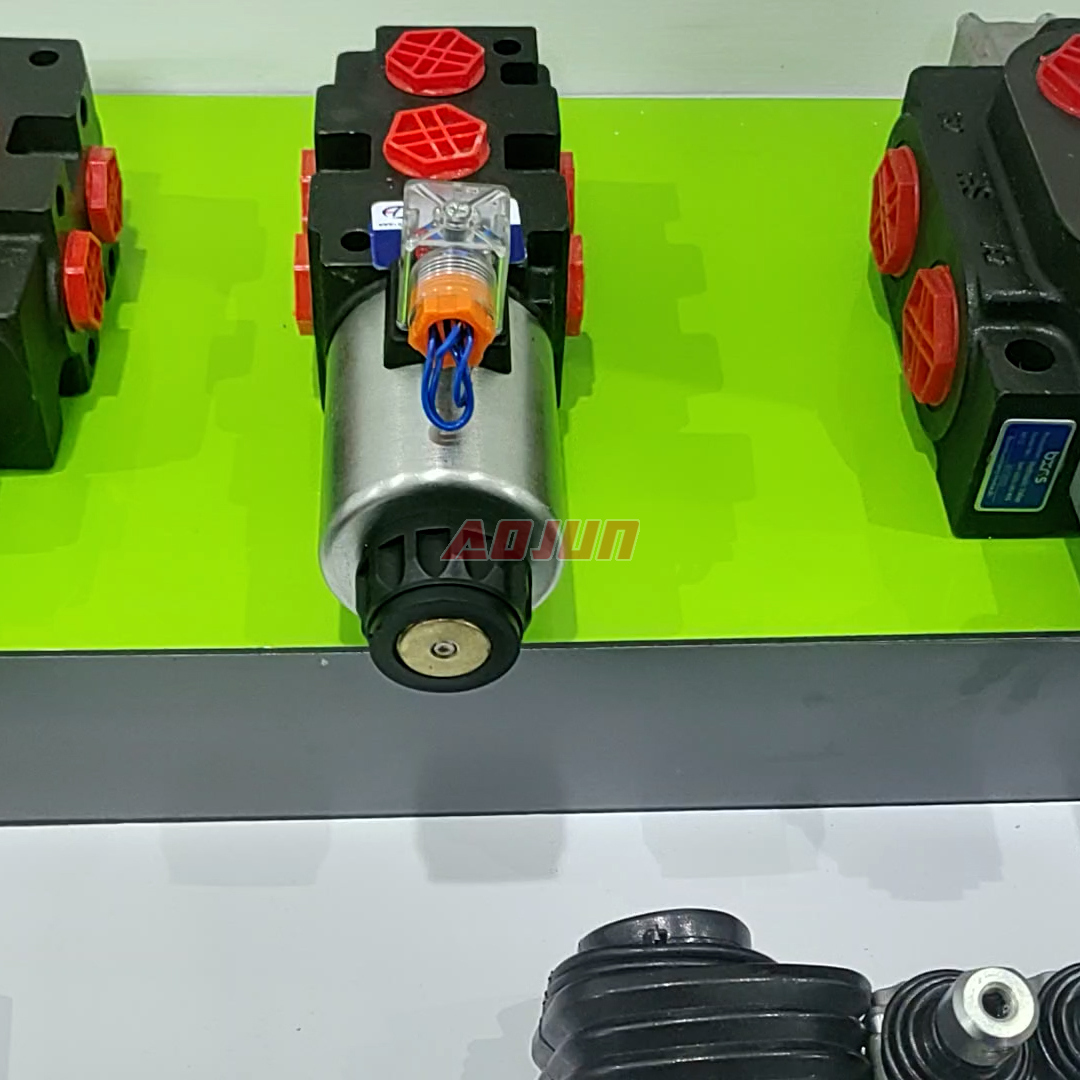

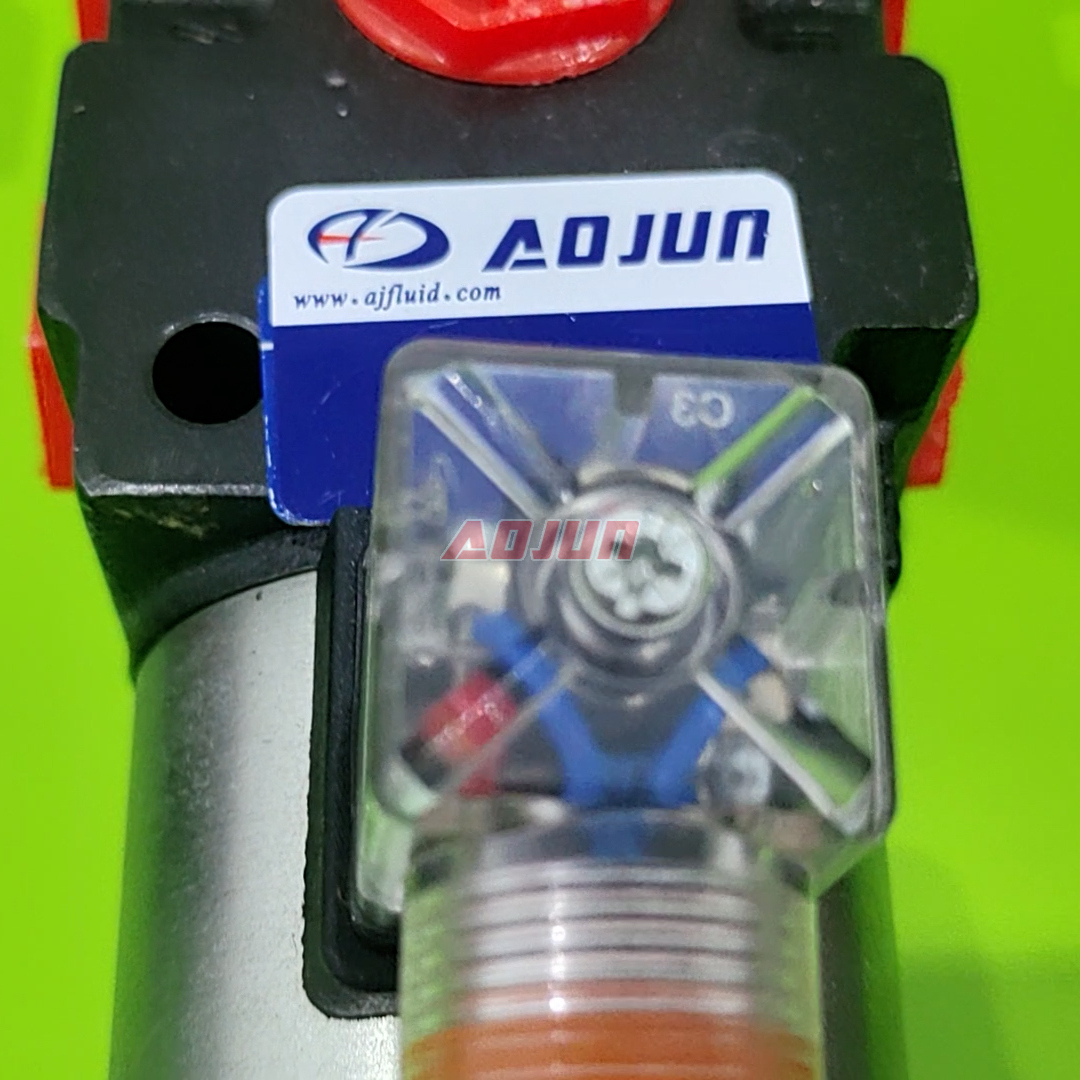

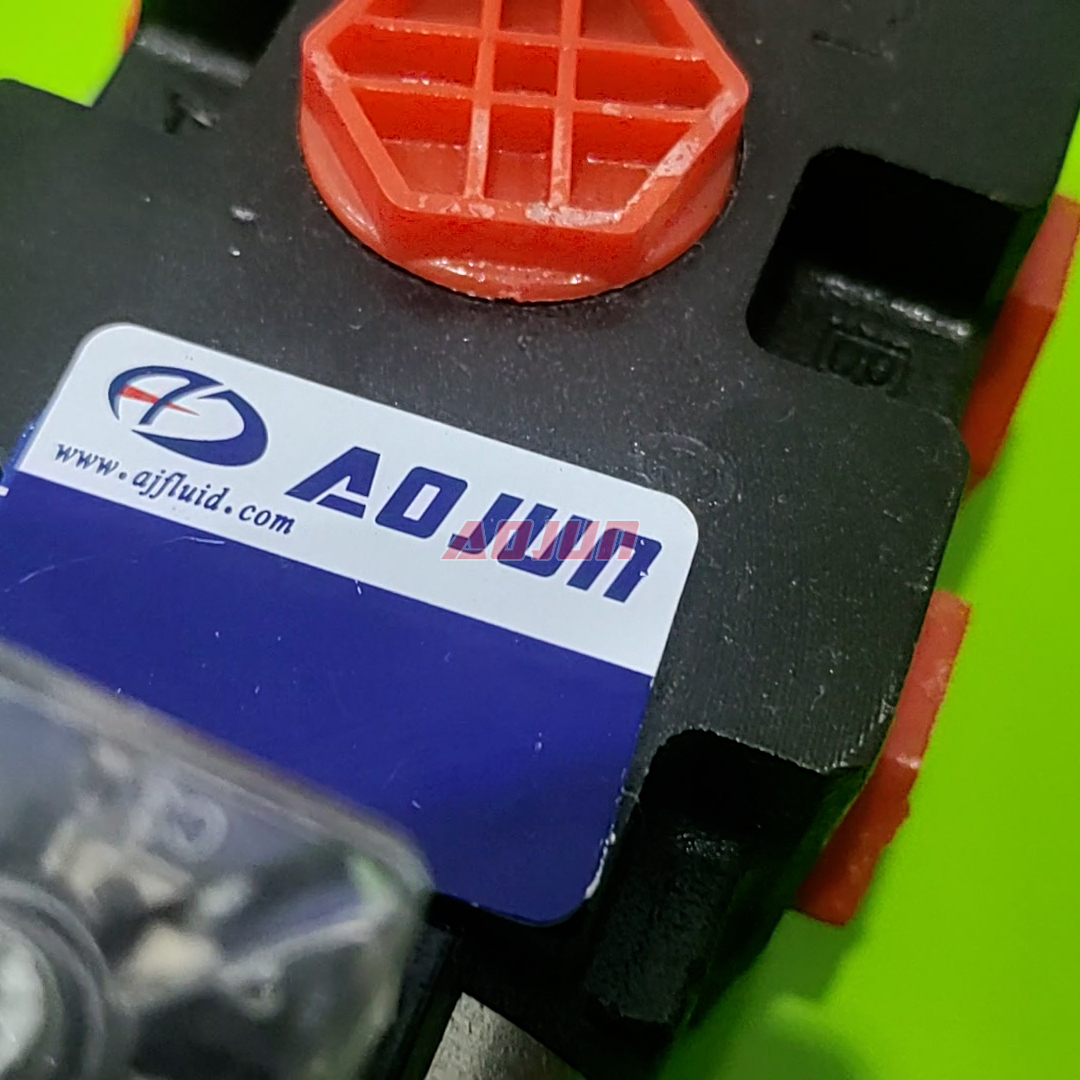

This solenoid-operated sectional diverter valve uses a single spool to redirect hydraulic flow to alternate work ports, making it ideal for attachment changeover and auxiliary function switching on mobile equipment. Rated flow is 90 L/min (23.8 gpm) for high-throughput circuits, with max pressure up to 180 bar (2600 psi) for demanding applications. The valve is compatible with common hydraulic oils across 15–75 mm²/s (cSt) viscosity, supporting stable operation over a wide ambient temperature range from -20°C to +80°C. Typical use cases include switching between implements (e.g., forks/grapples, buckets/augers), routing auxiliary circuits on telehandlers and skid steers, and function selection on industrial vehicles and construction machines. Suitable for OEM manufacturing, private label, customization, wholesale supply, and distributor/agent cooperation.
| HSV09 Series Flow Diverter Valve Parameters | |
|---|---|
| Control Method | Solenoid |
| Spool | 1 Spool, 2 Spool, 3 Spool |
| Section | 1 Section, 2 Section, 3 Section |
| Structure Type | Sectional valve |
| Rated Flow | 90 L/min (23.8 US gpm) |
| Max Pressure | 180 bar (2600 psi) |
| Operating Viscosity Range | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| Ambient Temperature Range | -20°C to +80°C (-4°F to +176°F) |
We provide OEM/ODM services. When your product orders reach a certain value, we can offer a variety of customization services, including labels, packaging, product colors, and more.
We support multiple currencies and diverse payment methods, such as T/T, L/C, Alibaba platform, China Manufacturing Payment Platform, bank transfer, and more.
We can provide samples, and the sample costs will be refunded to you in the form of deducted payments in the later stages.
