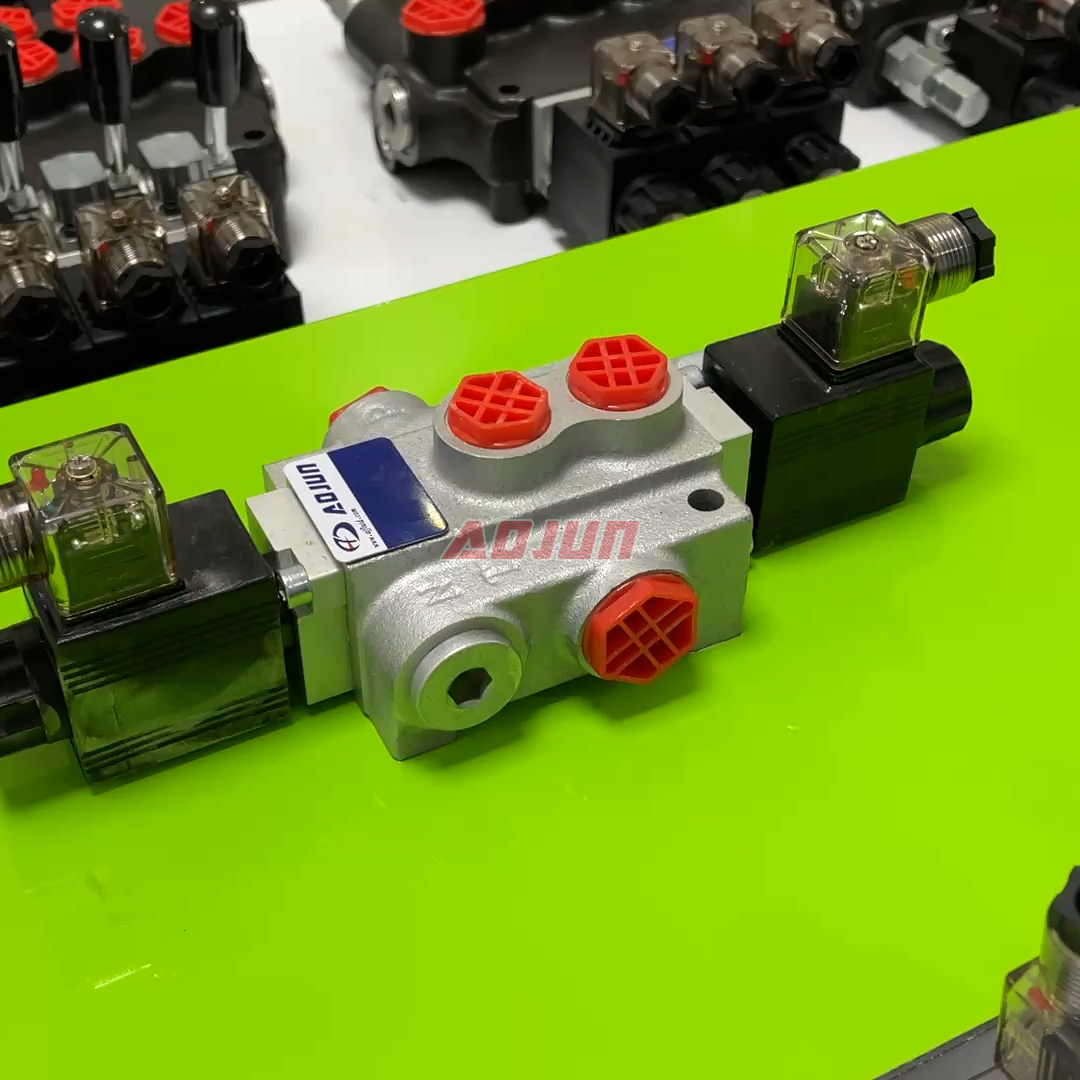

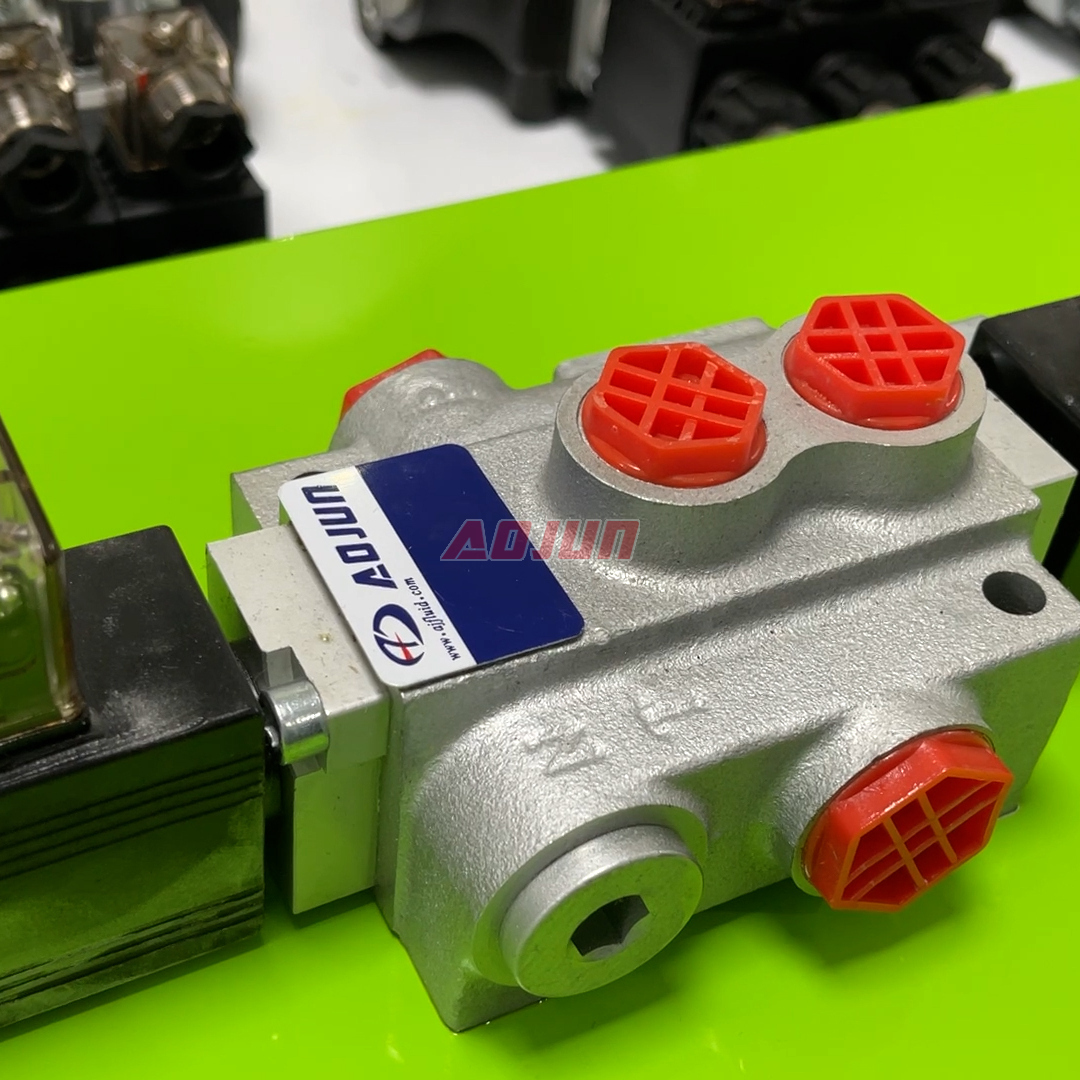

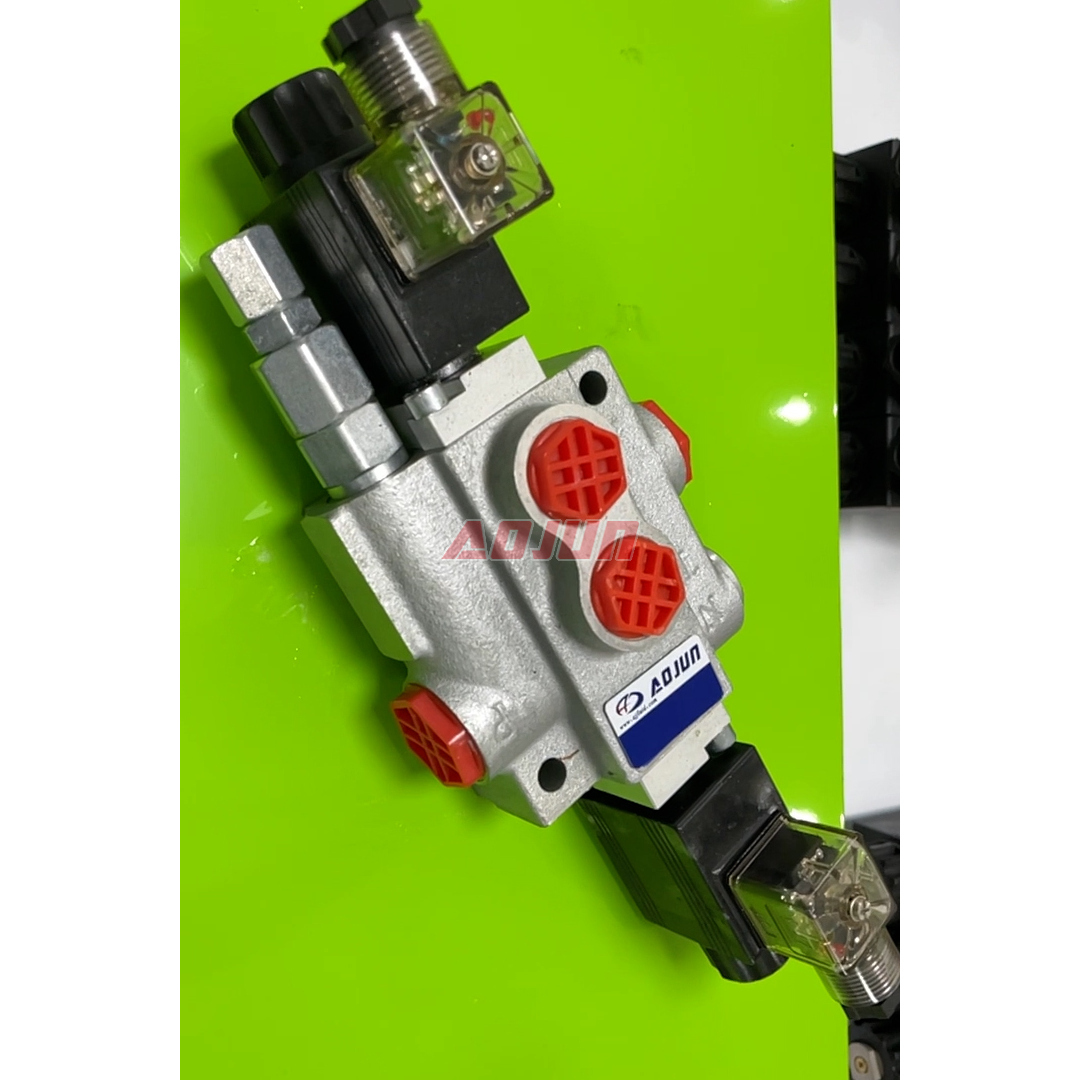

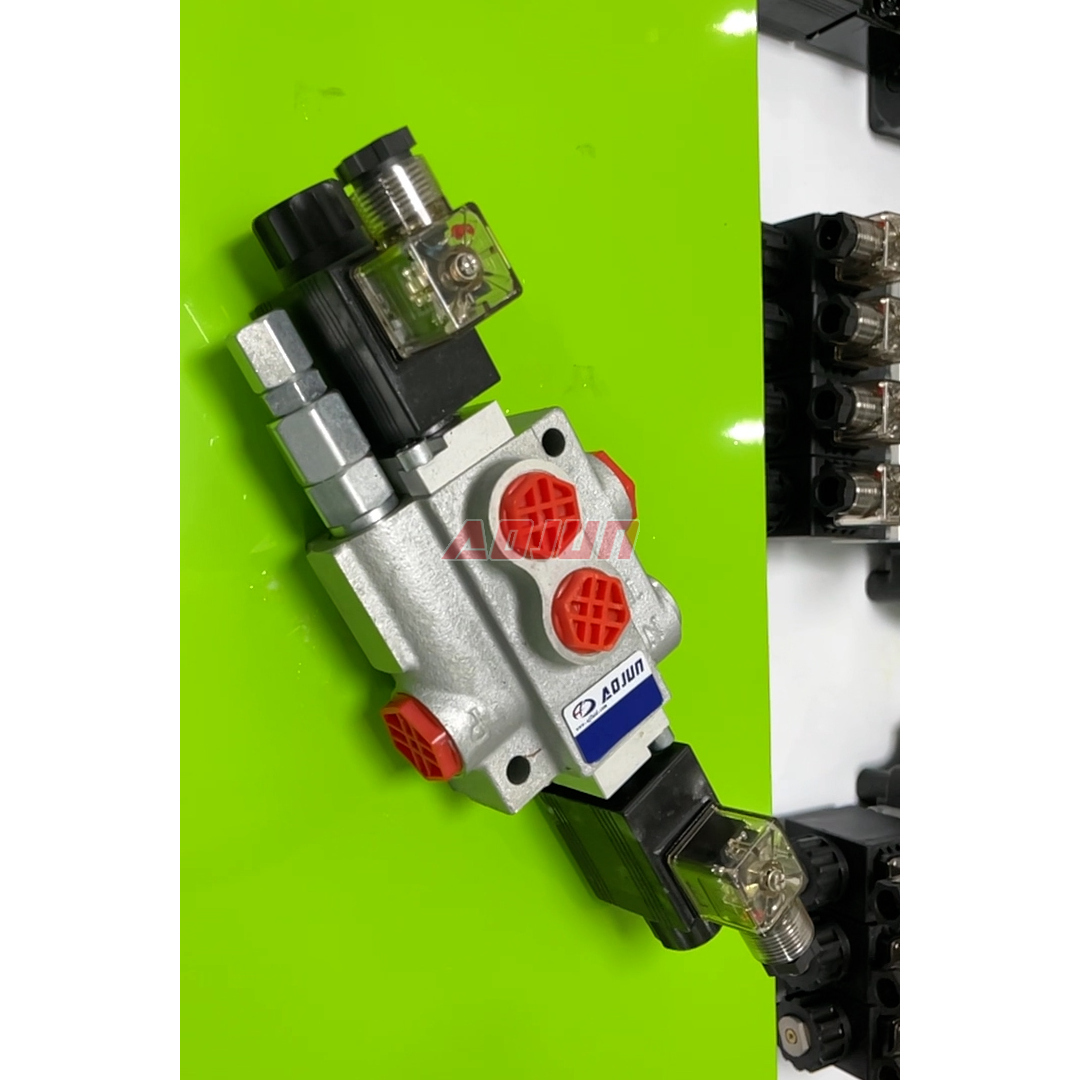

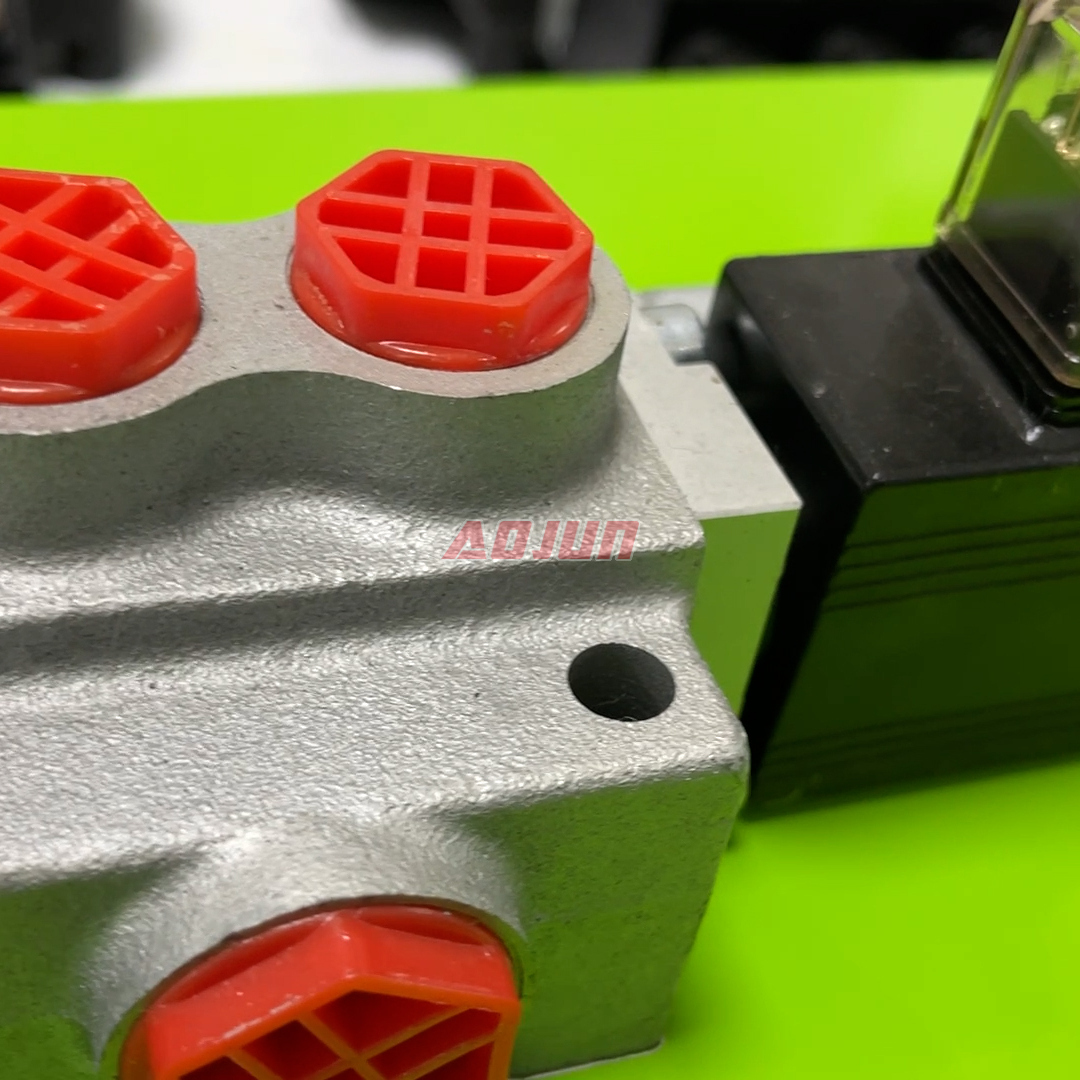

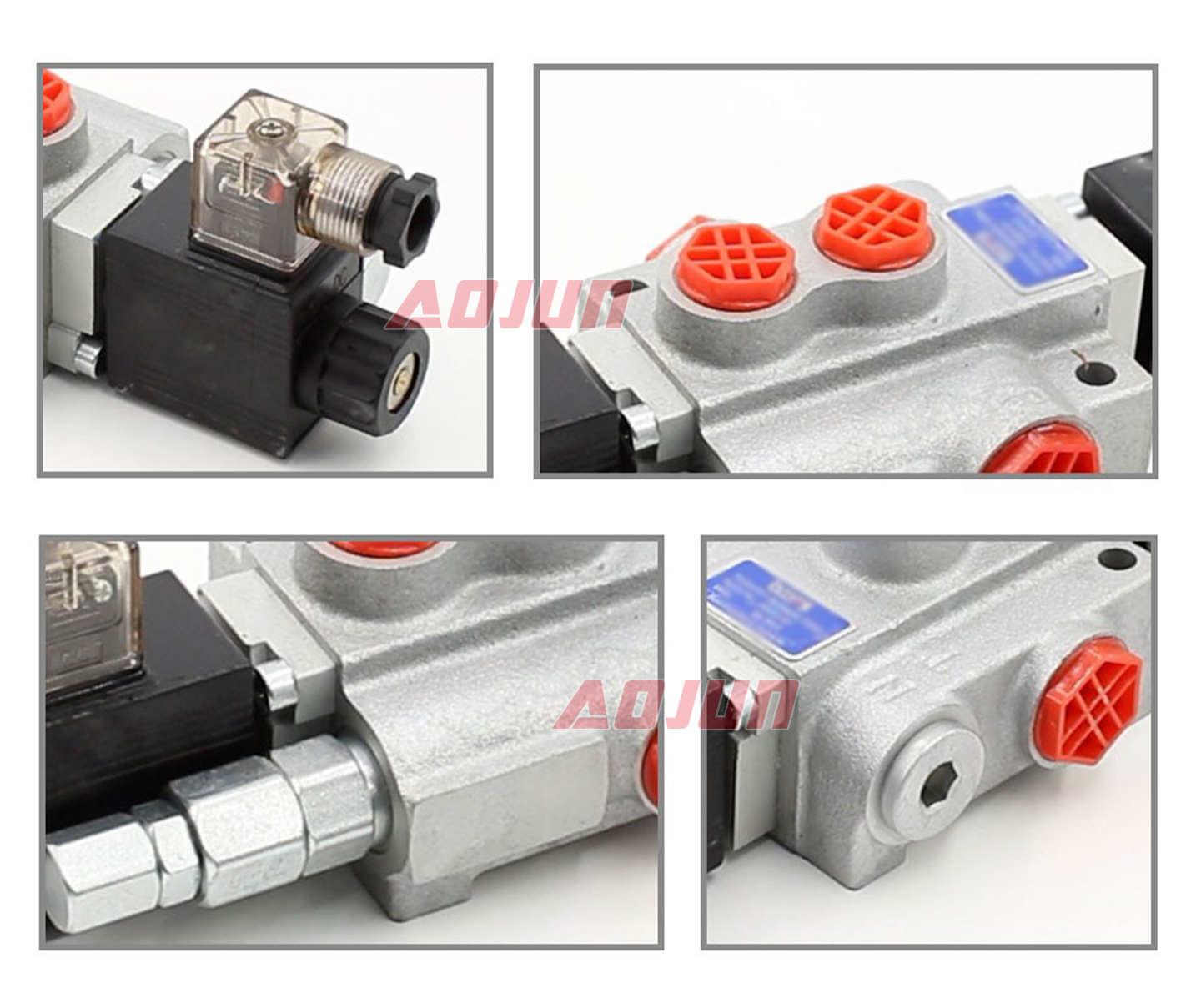

A 1-section, 1-spool solenoid-operated monoblock directional control valve designed for mobile hydraulic systems, delivering 40 L/min flow capacity and up to 250 bar pressure with reliable operation across wide viscosity and ambient temperature ranges.
global shipping world wide
Online Service For 24 X 7
Support OEM customization
This solenoid-actuated monoblock directional valve is built for compact, cost-effective hydraulic control where a single function (one spool) is required. Key performance includes 40 L/min rated flow for responsive actuator control and 250 bar maximum pressure for demanding mobile equipment. Its working viscosity range (15–75 mm²/s) supports common hydraulic oils, while the -40°C to +80°C ambient rating suits both cold-start and high-heat job sites. Typical applications include auxiliary circuits or main function control on forklifts, telehandlers, skid steers, compact loaders, excavators, backhoes, and aerial platforms. As a manufacturer, we support OEM/ODM, private label, customization, bulk supply, and global distributor/wholesaler/agent partnerships.
| P40-DKL Series Monoblock Directional Valve Parameters | |
|---|---|
| Control Method | Manual, Pneumatic, Electro-pneumatic, Electro-hydraulic, Solenoid, Hydraulic, Hydraulic and Manual, Cable, Joystick, Electric, Manual and Joystick |

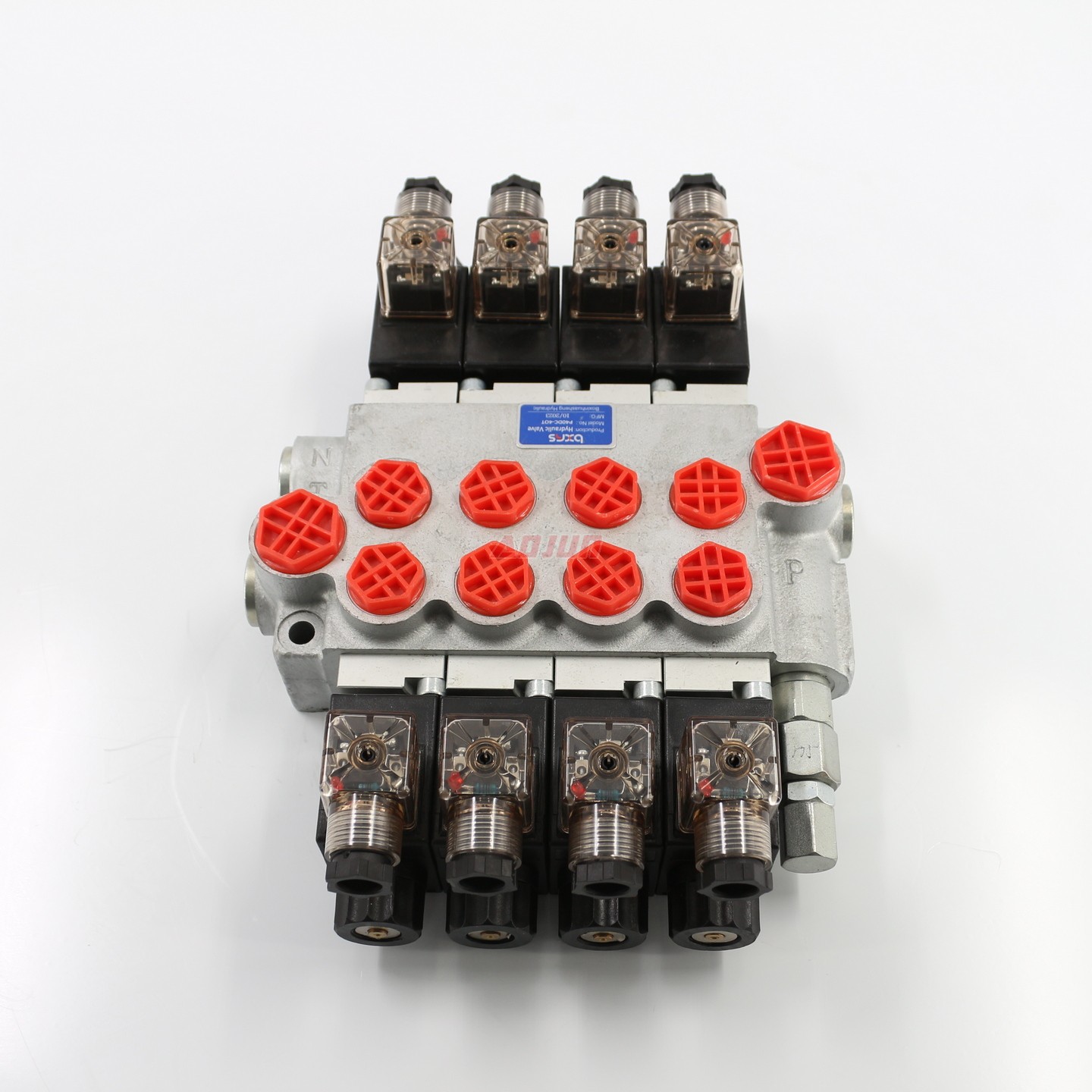

| Spool | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Section | 1 Section, 2 Section, 3 Section, 4 Section, 5 Section, 6 Section, 7 Section |
| Structure Type | Monoblock valve |
| Rated Flow | 40 L/min (10.5 US gpm) |
| Max Pressure | 250 bar (3600 psi) |
| Operating Viscosity Range | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| Ambient Temperature Range | -40°C to +80°C (-40°F to +176°F) |
We provide OEM/ODM services. When your product orders reach a certain value, we can offer a variety of customization services, including labels, packaging, product colors, and more.
We support multiple currencies and diverse payment methods, such as T/T, L/C, Alibaba platform, China Manufacturing Payment Platform, bank transfer, and more.
We can provide samples, and the sample costs will be refunded to you in the form of deducted payments in the later stages.
