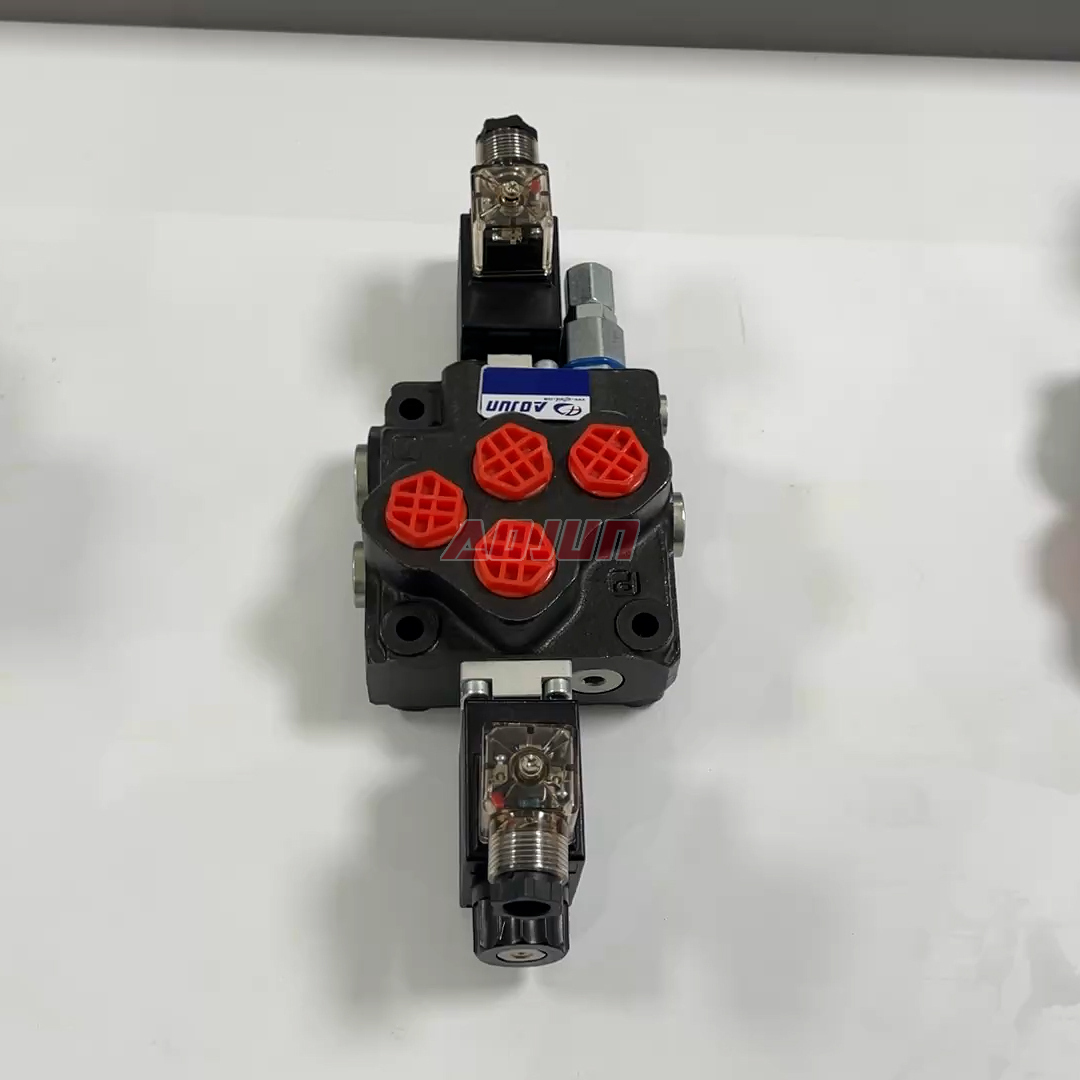

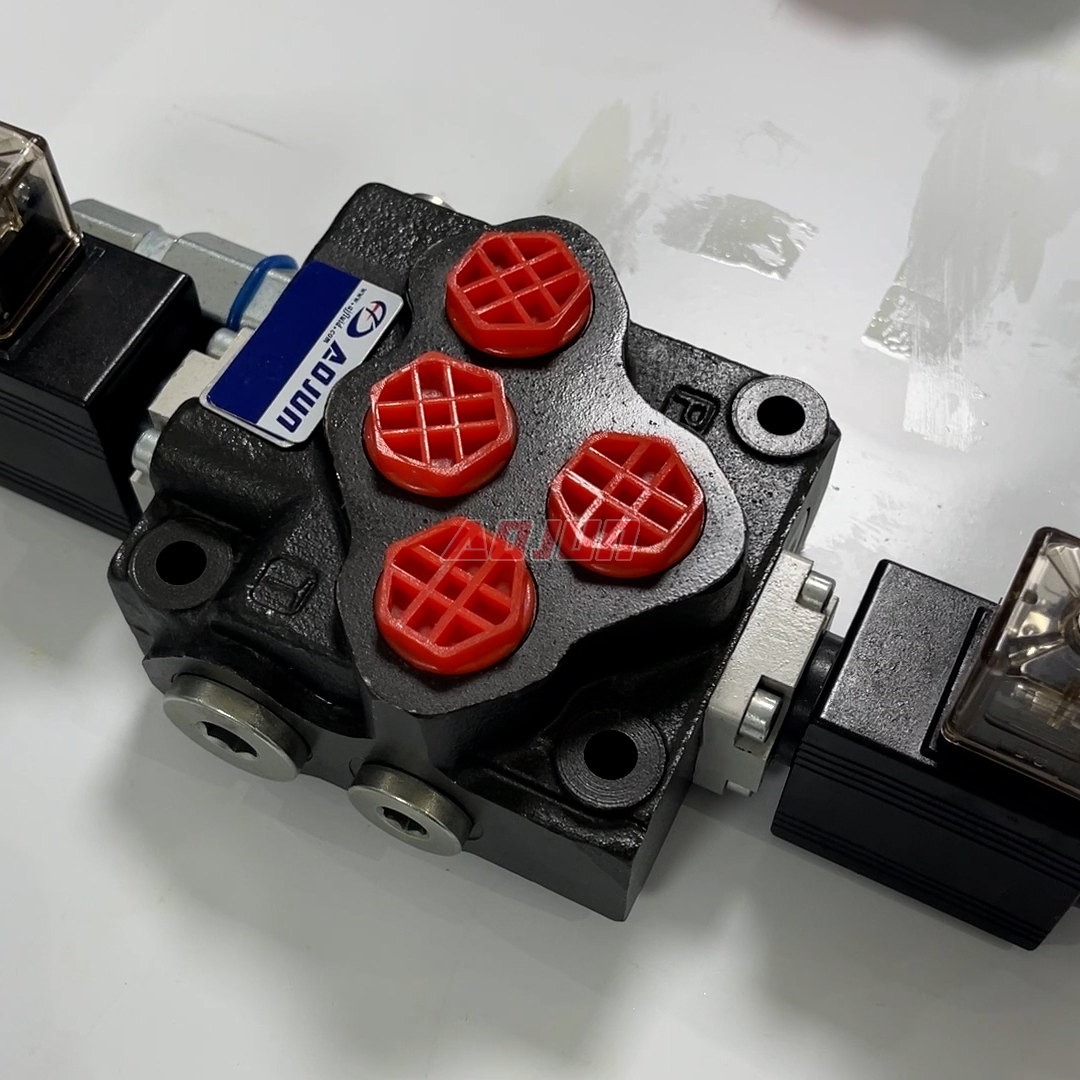

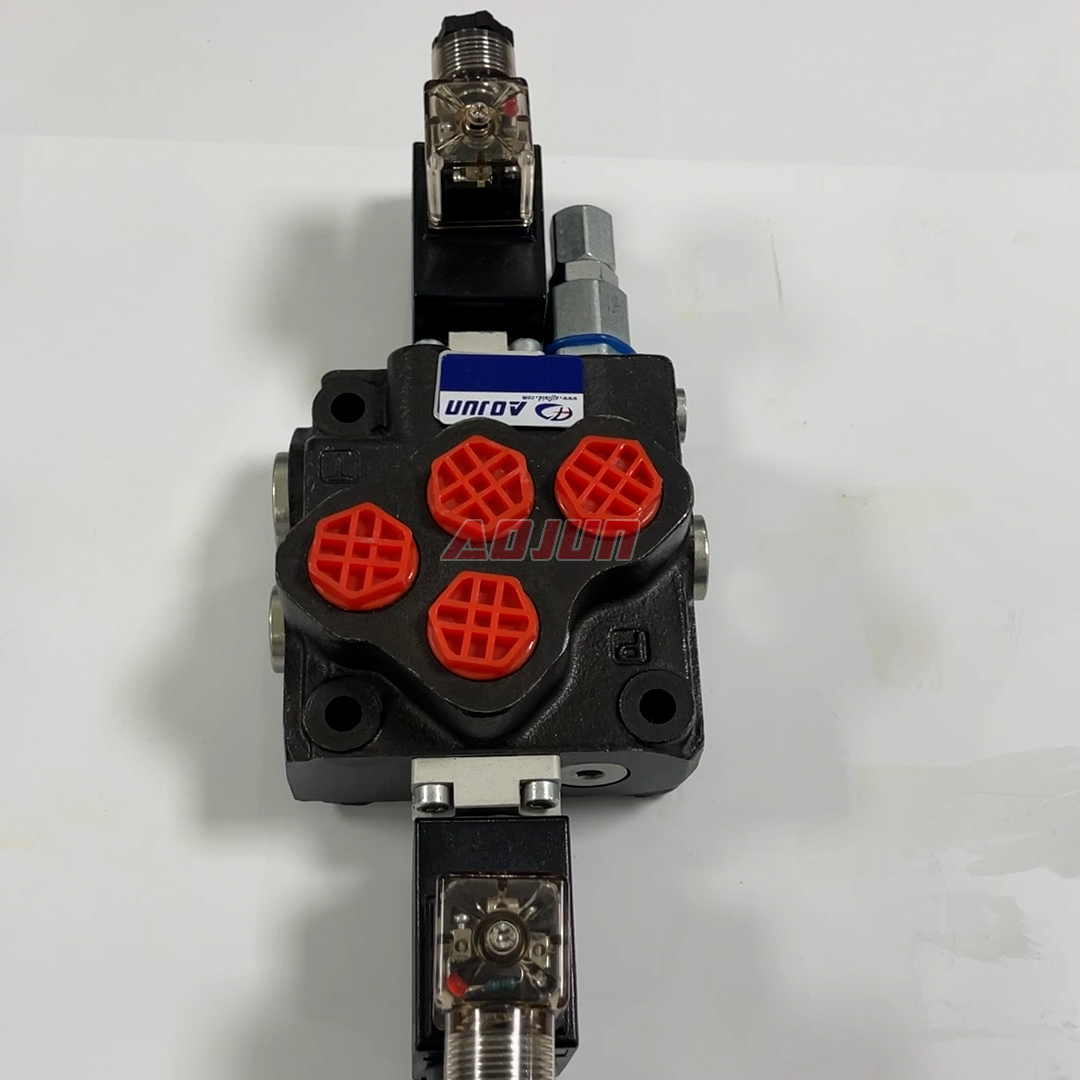

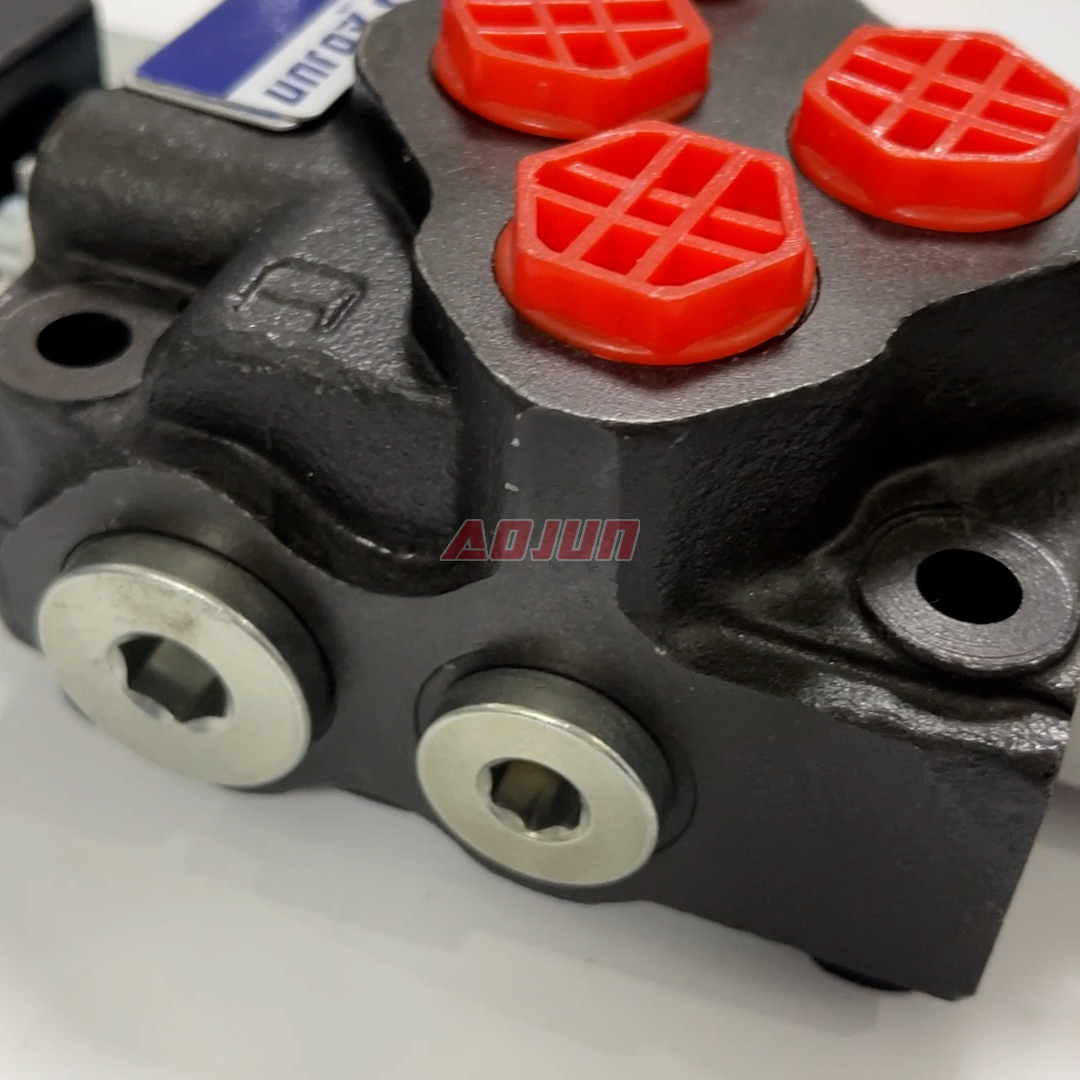

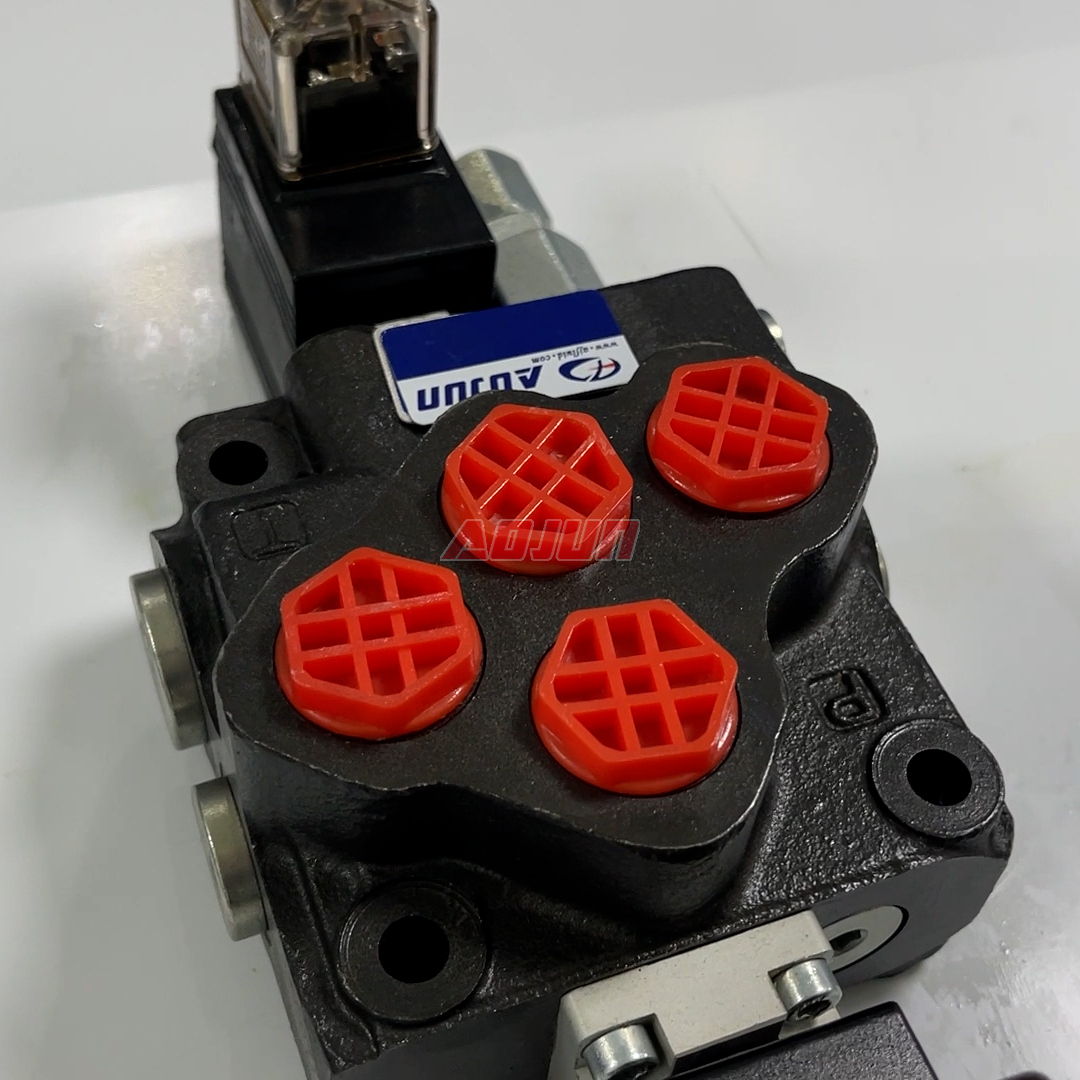

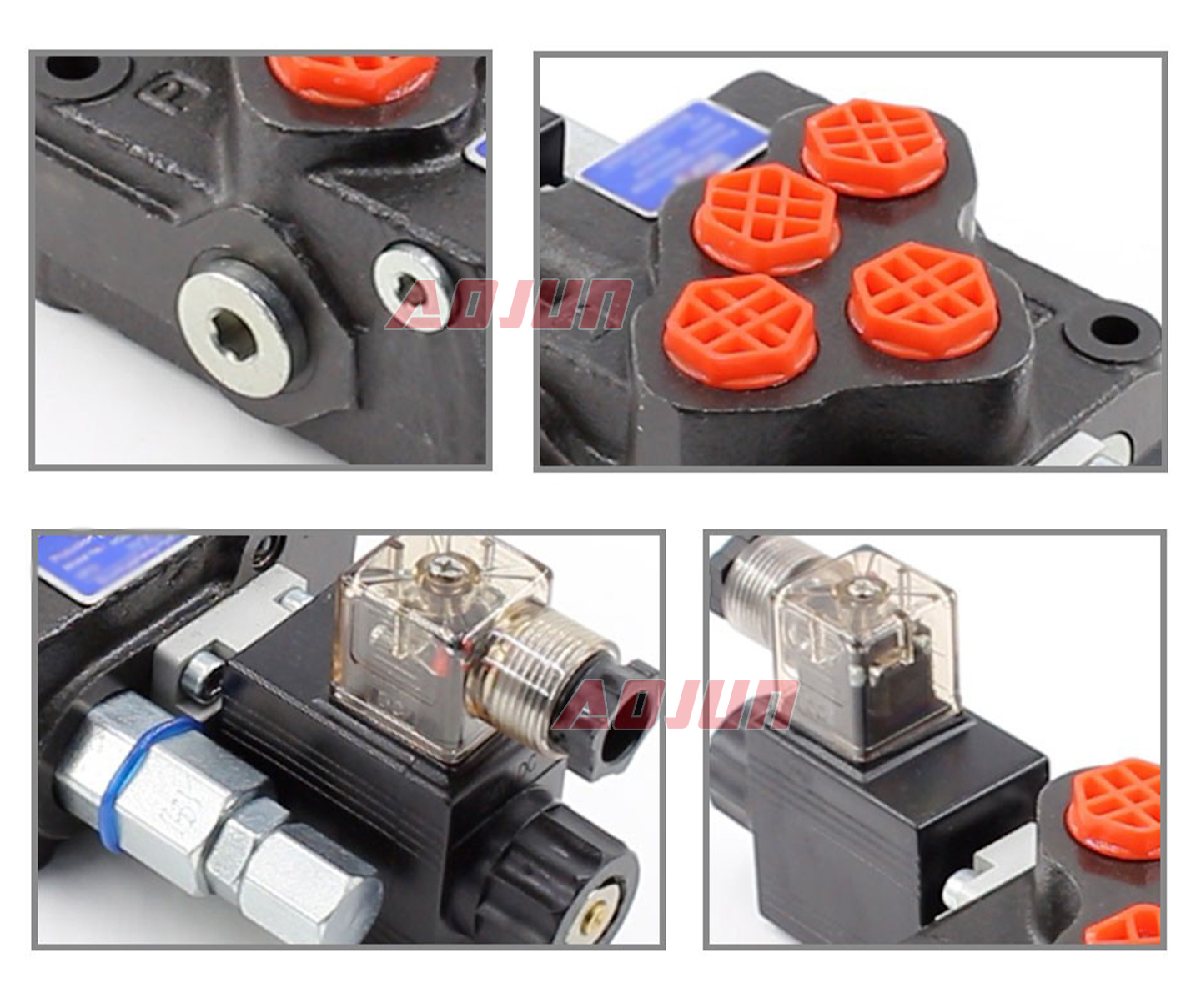

A compact 1-section, solenoid-operated monoblock hydraulic directional valve designed for mobile equipment, delivering 40 L/min flow capacity and up to 315 bar pressure for reliable on/off and directional actuation in harsh environments.
global shipping world wide
Online Service For 24 X 7
Support OEM customization
This solenoid-controlled monoblock directional valve uses a single spool and one integrated body for a compact footprint and fewer leak paths—ideal for mobile hydraulics where space, durability, and serviceability matter.
Key performance highlights:
- Rated flow: 40 L/min (10.5 US gpm) for common auxiliary functions and actuator control.
- Maximum pressure: 315 bar (4600 psi) suitable for high-pressure work circuits.
- Oil viscosity compatibility: 15–75 mm²/s (cSt) supporting a wide range of hydraulic fluids used in field equipment.
- Ambient temperature range: -40°C to +60°C enabling reliable operation in cold starts and outdoor duty cycles.
Typical applications:
- Construction and earth moving: auxiliary lines, compact attachments, cylinder direction control on mini/midi excavators, skid steer loaders, backhoe loaders.
- Material handling and industrial vehicles: function control on forklifts, telehandlers, aerial platforms.
- Agriculture: hydraulic actuation on tractors with loaders and implements.
Supply capabilities for global buyers:
- Manufacturer direct: OEM manufacturing, ODM development, private label/branding, customized porting and configurations, wholesale supply.
- Partner opportunities: seeking distributors, wholesalers, agents, and trading companies.
| SD5 Series Monoblock Directional Valve Parameters | |
|---|---|
| Control Method | Manual, Pneumatic, Electro-pneumatic, Electro-hydraulic, Solenoid, Hydraulic, Hydraulic and Manual, Cable, Joystick |
| Spool | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool |
| Section | 1 Section, 2 Section, 3 Section, 4 Section, 5 Section, 6 Section, 7 Section |
| Structure Type | Monoblock valve |
| Rated Flow | 40 L/min (10.5 US gpm) |
| Max Pressure | 315 bar (4600 psi) |
| Operating Viscosity Range | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| Ambient Temperature Range | -40°C to +60°C (-40°F to +140°F) |
