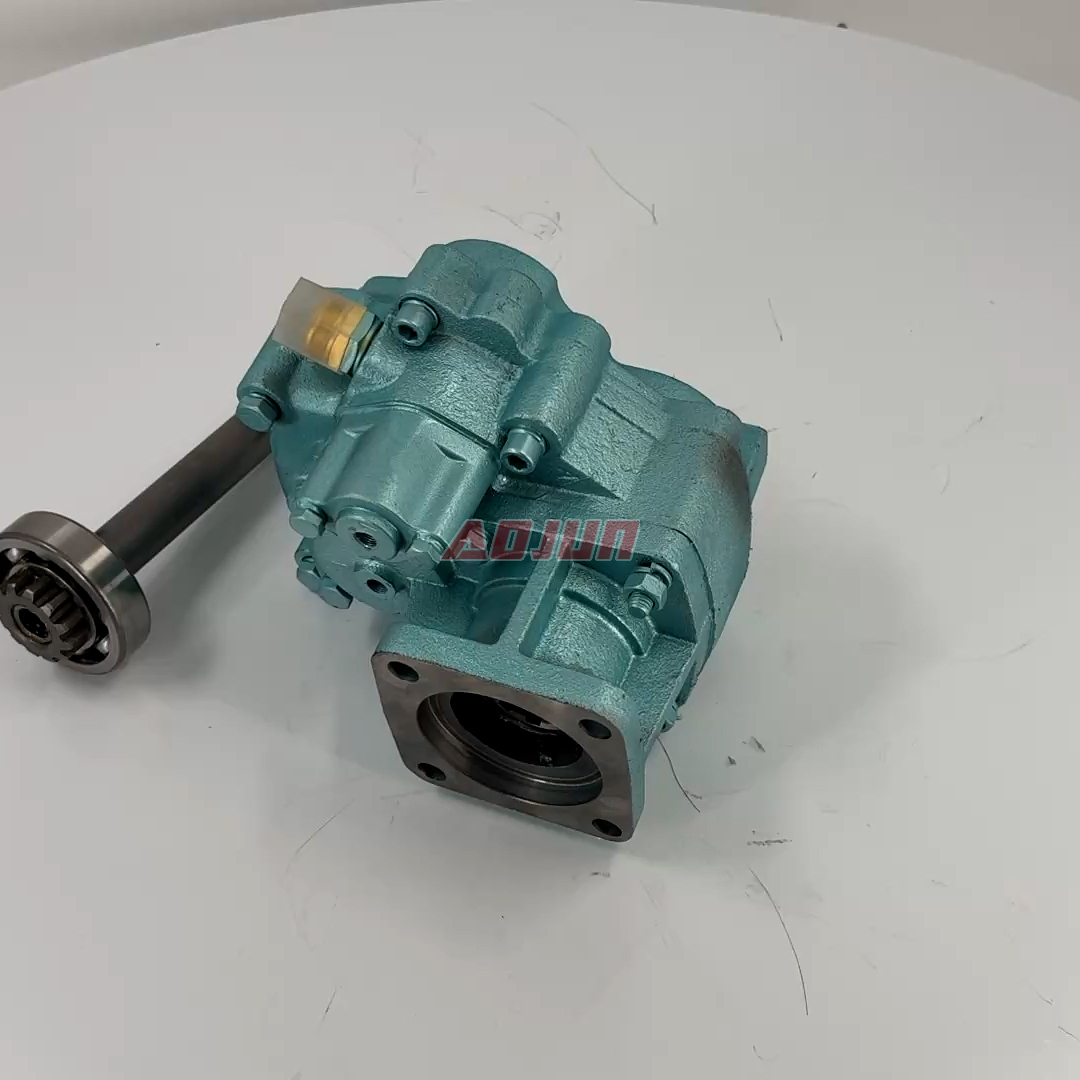

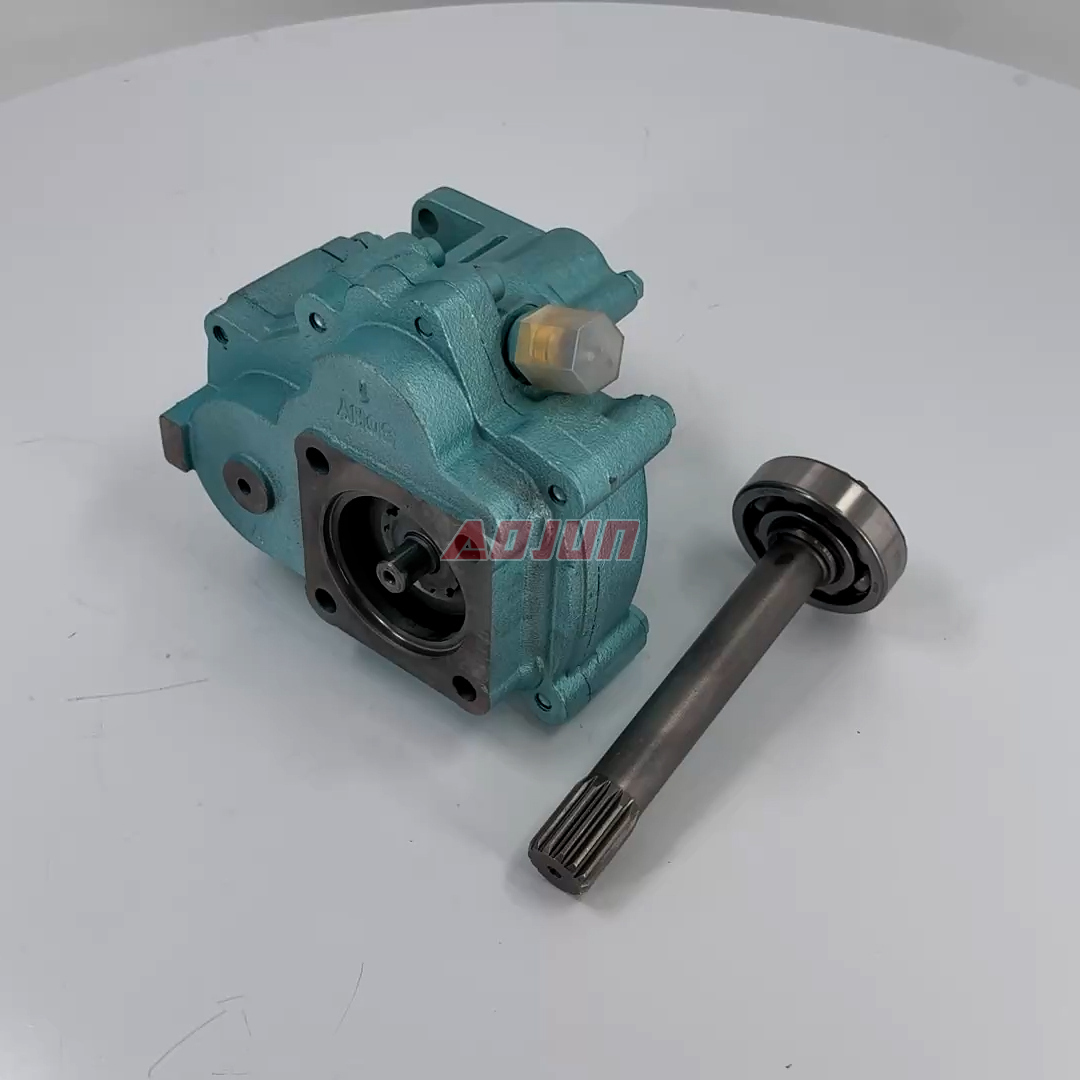

A standard-mount, pressure-lubricated pneumatic PTO designed to drive hydraulic pumps on vocational vehicles, featuring single-acting air engagement with spring reset, 350 Nm rated output torque, and 1.14 speed ratio with opposite-direction output rotation.
global shipping world wide
Online Service For 24 X 7
Support OEM customization
This PTO is engineered for reliable auxiliary power transmission on truck and vocational drivetrains where stable hydraulic output is required.
Key features:
- Pneumatic control: single-acting cylinder engagement with spring reset for fast, consistent shifting.
- Pressure lubrication: supports improved durability and heat management under continuous-duty hydraulic pump loading.
- Performance: 350 Nm rated output torque with 1.14 speed ratio for efficient pump driving.
- Installation: standard mount configuration for easier integration on common transmission interfaces.
- Output behavior: opposite-to-engine steering direction output rotation to match specific pump/vehicle routing needs.
- Air requirements: 8–12 bar control air pressure for stable actuation.
Typical applications:
- Driving hydraulic pumps for concrete boom pumps, dump/tipping systems, hook-lift/skip systems, sweepers, waste compactors, and aerial platform hydraulic circuits.
Supply capability:
- Available for manufacturing, OEM/ODM, private label, customization, and wholesale; suitable for global distributors, agents, and traders.
| PTO Series Power Take Off Parameters | |
|---|---|
| Mounting Type | 8 bolt, 4 bolt |
| Control Air Pressure | 8-12 bar |
| Output Steering | Opposite to the engine steering direction |
| Manipulation Form | Pneumatic (single acting cylinder) spring reset |
| Speed Ratio | 1.14 |
| Rated Output Torque | 350 Nm |
| Lube Option | Pressure Lube |
| Mounting Option | Standard Mount |
