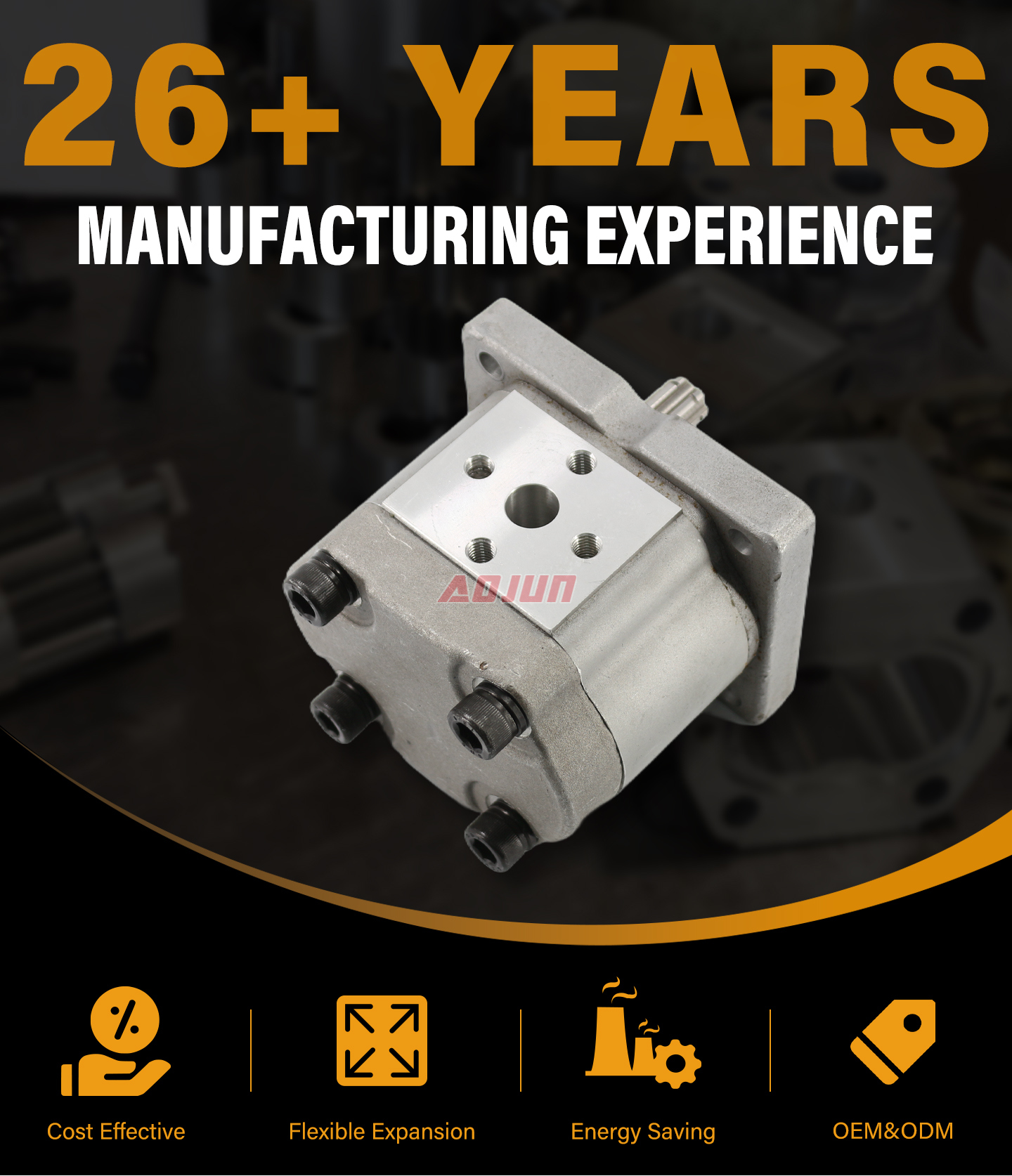

NSH-10 is a 10 cc/rev external gear hydraulic pump with 18 MPa rated pressure, 2000 r/min rated speed (up to 4200 r/min), left (CCW) rotation, aluminium body, B-square flange and involute spline shaft—ideal for compact mobile hydraulic power transmission and OEM/ODM supply.
global shipping world wide
Online Service For 24 X 7
Support OEM customization
Key specifications: 10 cc/rev displacement; rated pressure 18 MPa (2610 psi); rated speed 2000 r/min; max speed 4200 r/min; left (counter-clockwise) rotation; external gear structure; aluminium housing; B-square flange mounting; involute spline (X) shaft for reliable torque transfer.
Product advantages: compact and lightweight aluminium construction for mobile equipment; stable flow output from external gear design; high allowable speed range for flexible matching with engines/e-motors; spline shaft reduces slip and improves driveline durability; square flange simplifies installation and interchange.
Typical applications: pilot/auxiliary circuits, steering, lifting, and general hydraulic power supply on material handling equipment, construction machinery, agricultural machines, and industrial vehicles.
Supply capabilities: manufacturer direct for global markets—manufacturing, contract production, private label, customization, and wholesale; seeking distributors/wholesalers/agents/traders.
| NSH Series Hydraulic Gear Pump Parameters | |
|---|---|
| Displacement | 10 cc/rev, 40 cc/rev, 50 cc/rev, 100 cc/rev |
| Shaft Type | X: Involute Spline |
| Flange Version | B-Square Flange |
| Material | Aluminium |
| Structure | External Gear Pump |
| Rotation | L: Left (counter-clockwise) |
| Max Speed | 4200 r/min |
| Rated Speed | 2000 r/min |
| Rated Pressure | 18 MPa (2610 psi) |
We provide OEM/ODM services. When your product orders reach a certain value, we can offer a variety of customization services, including labels, packaging, product colors, and more.
We support multiple currencies and diverse payment methods, such as T/T, L/C, Alibaba platform, China Manufacturing Payment Platform, bank transfer, and more.
We can provide samples, and the sample costs will be refunded to you in the form of deducted payments in the later stages.
