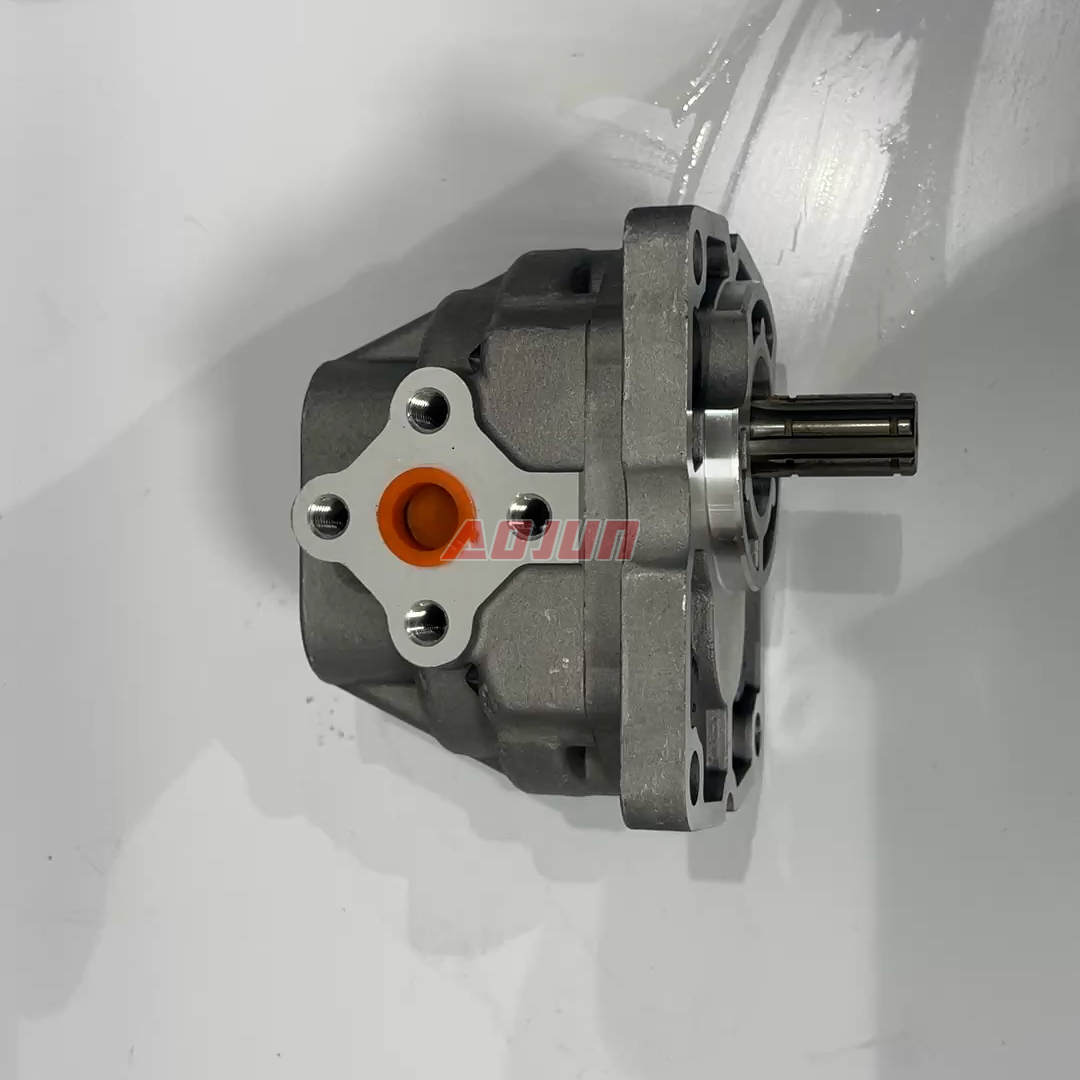

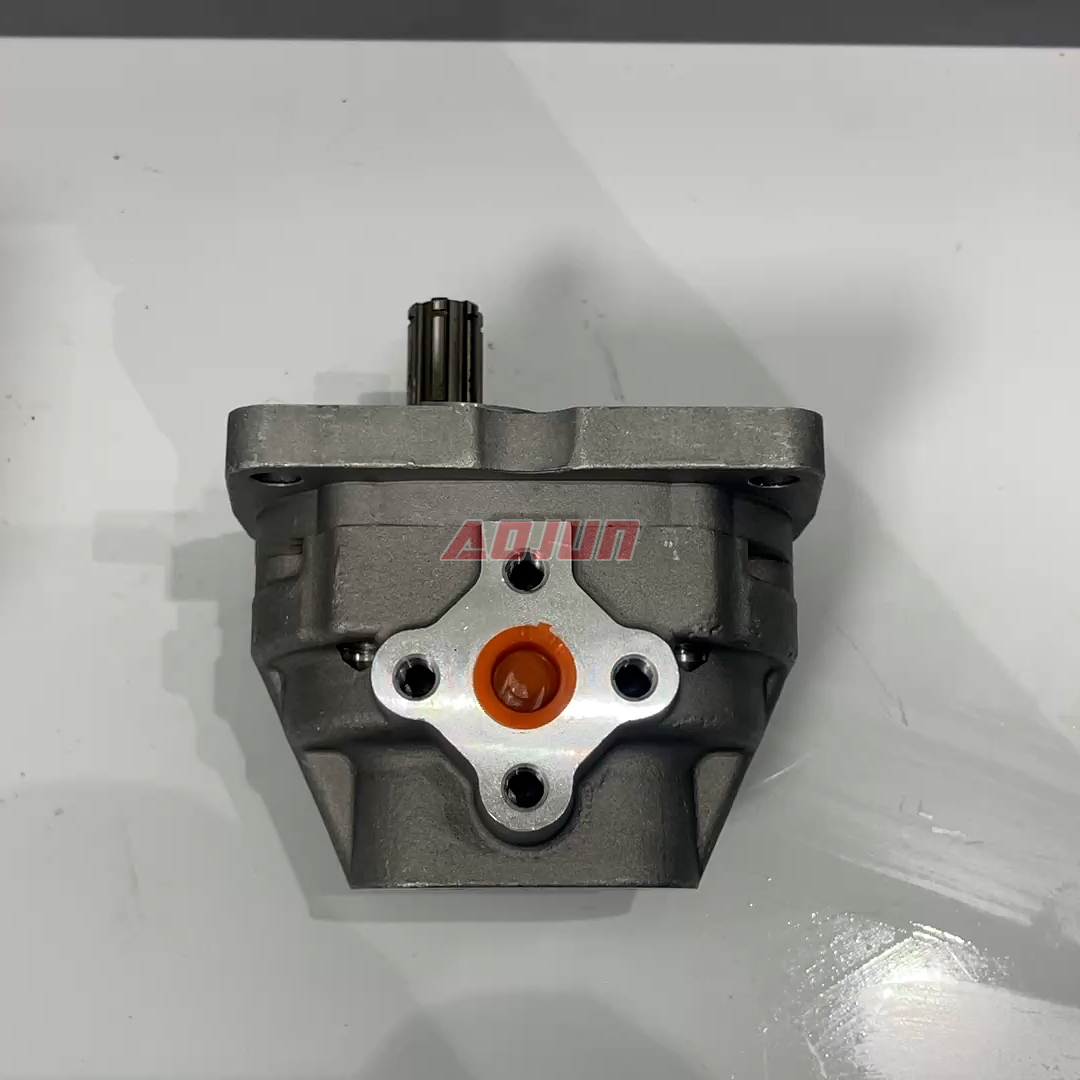

A compact 10 cc/rev external gear pump with aluminium housing, rated 18 MPa and designed for mobile hydraulic systems requiring stable flow at 2000 r/min (up to 4200 r/min). B-square flange mounting, involute spline shaft, and left-hand (CCW) rotation support easy integration on many industrial and off-highway machines.
global shipping world wide
Online Service For 24 X 7
Support OEM customization

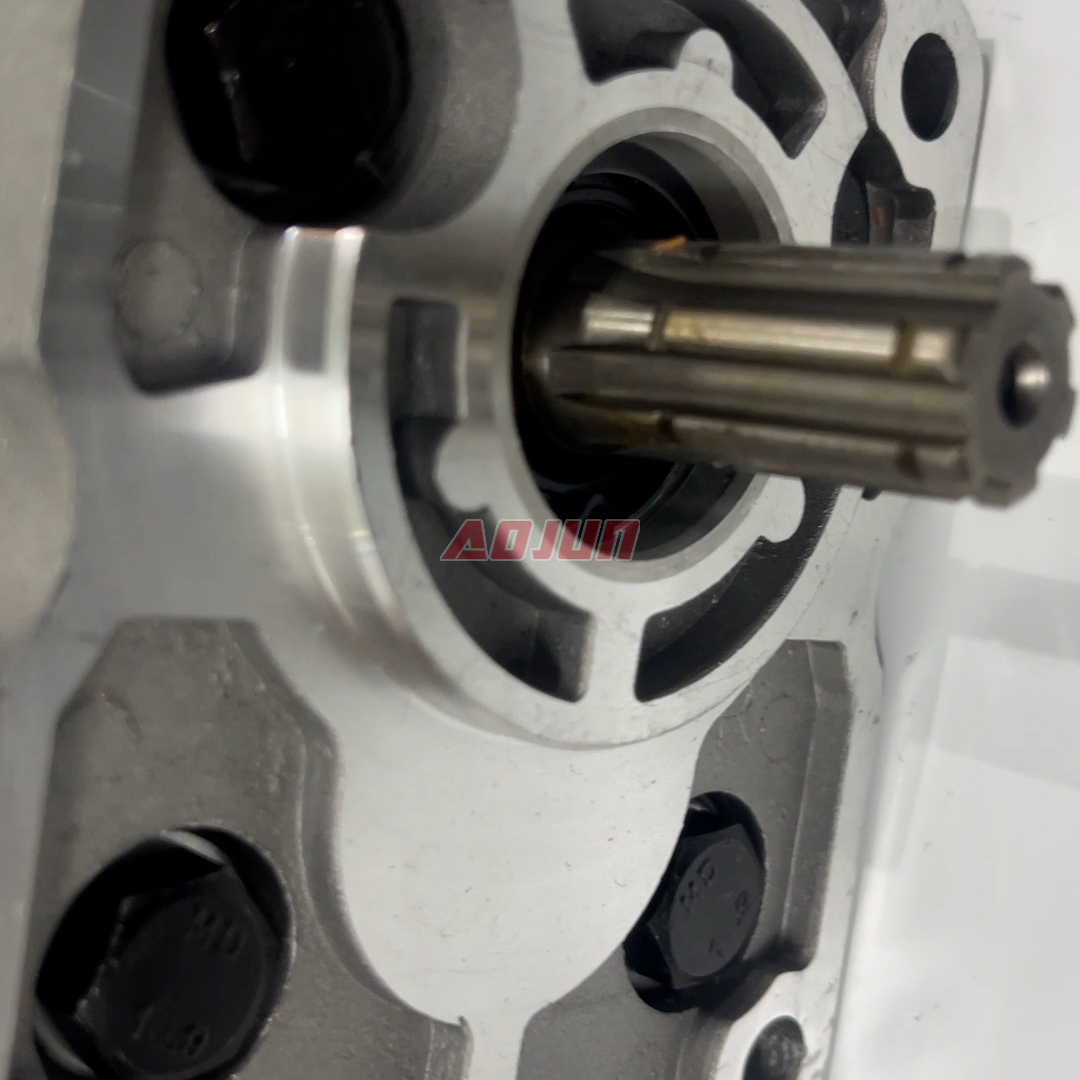

Key specs: 10 cc/rev displacement; rated pressure 18 MPa (2610 psi); rated speed 2000 r/min; max speed 4200 r/min; left rotation (counter-clockwise); external gear structure; aluminium body; B-square flange; involute spline shaft.
Product advantages: compact aluminium construction for reduced weight; external gear design for reliable, cost-effective performance and straightforward maintenance; high allowable speed range for mobile applications; standardized flange/shaft interfaces to simplify replacement and interchange.
Typical applications: auxiliary hydraulics, steering and pilot circuits, implement functions, and general fluid power supply on material handling, construction/earth-moving, agricultural, and industrial vehicle platforms.
Supply services: factory direct manufacturing, OEM/ODM, private label, customization, bulk wholesale, and support for distributors/agents/traders worldwide.
| NSH Series Hydraulic Gear Pump Parameters | |
|---|---|
| Displacement | 10 cc/rev, 40 cc/rev, 50 cc/rev, 100 cc/rev |
| Shaft Type | X: Involute Spline |
| Flange Version | B-Square Flange |
| Material | Aluminium |
| Structure | External Gear Pump |
| Rotation | L: Left (counter-clockwise) |
| Max Speed | 4200 r/min |
| Rated Speed | 2000 r/min |
| Rated Pressure | 18 MPa (2610 psi) |
