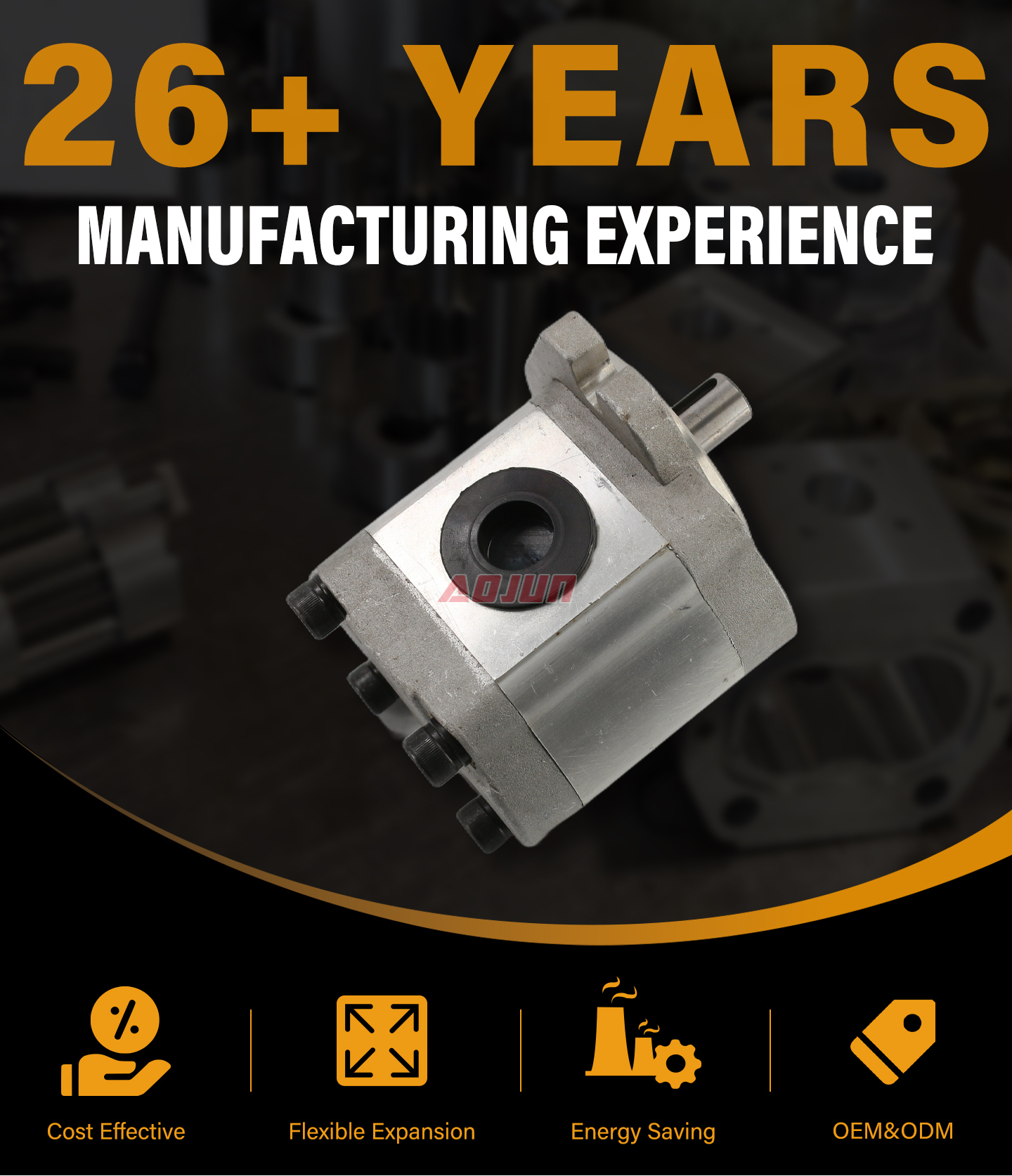

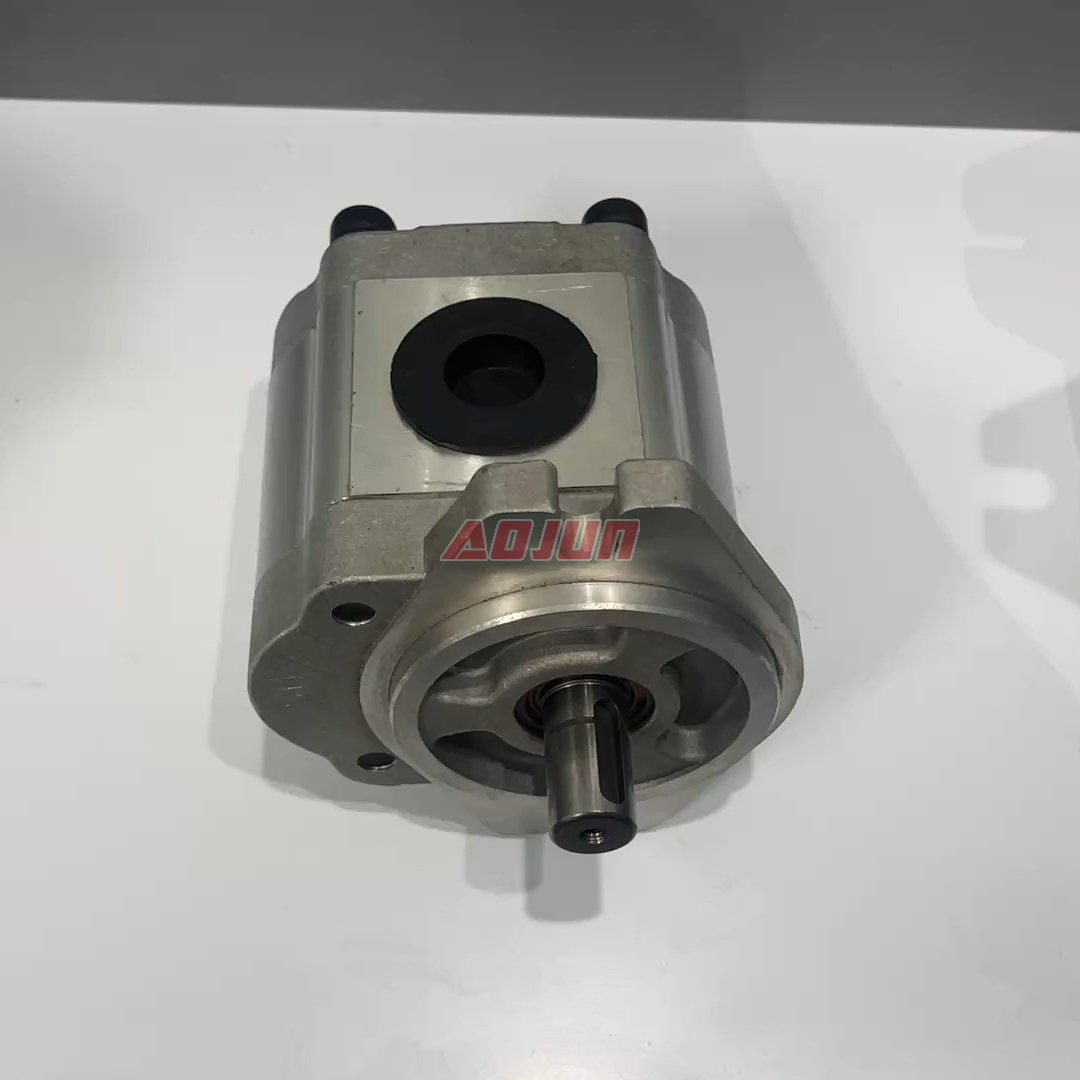

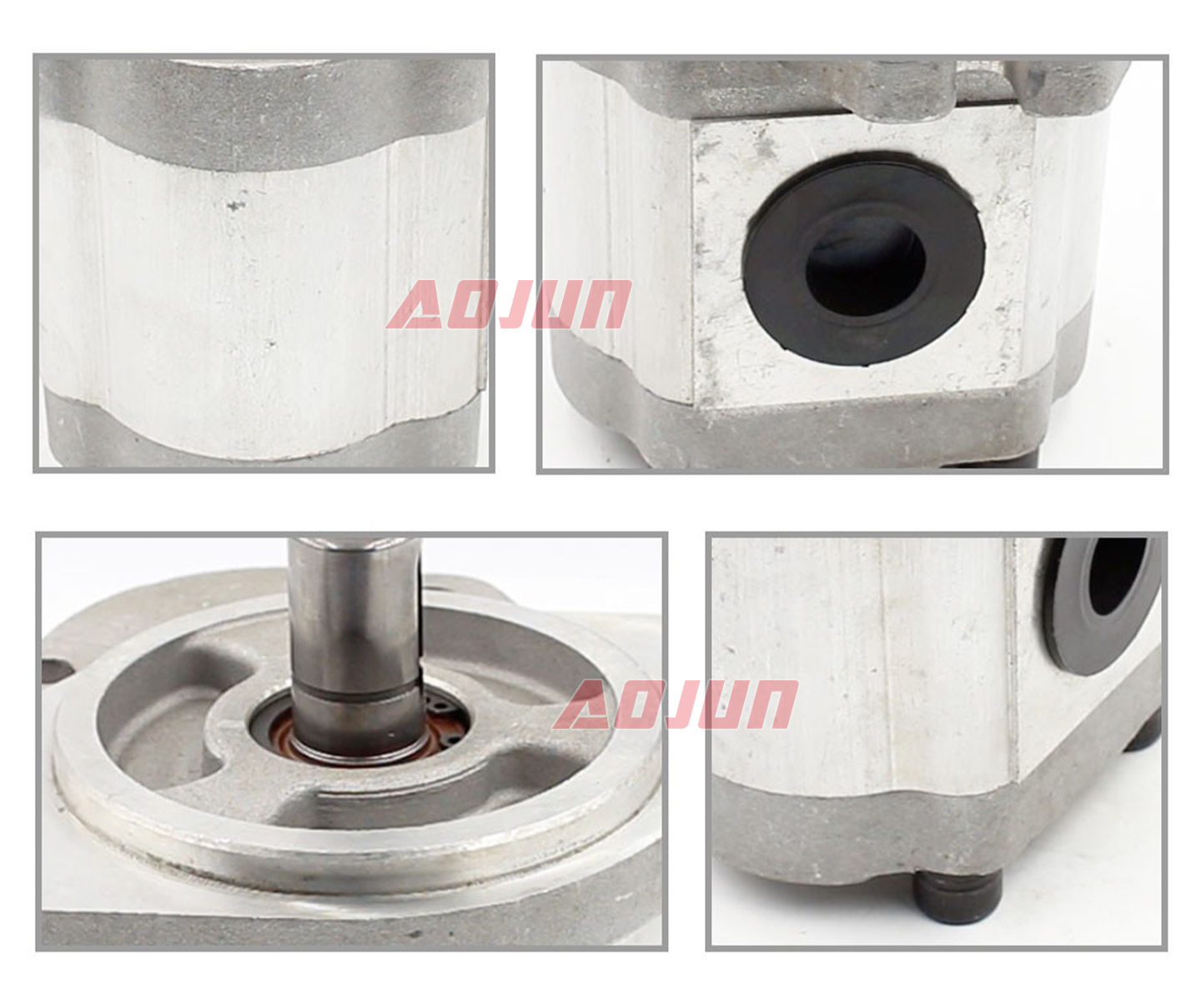

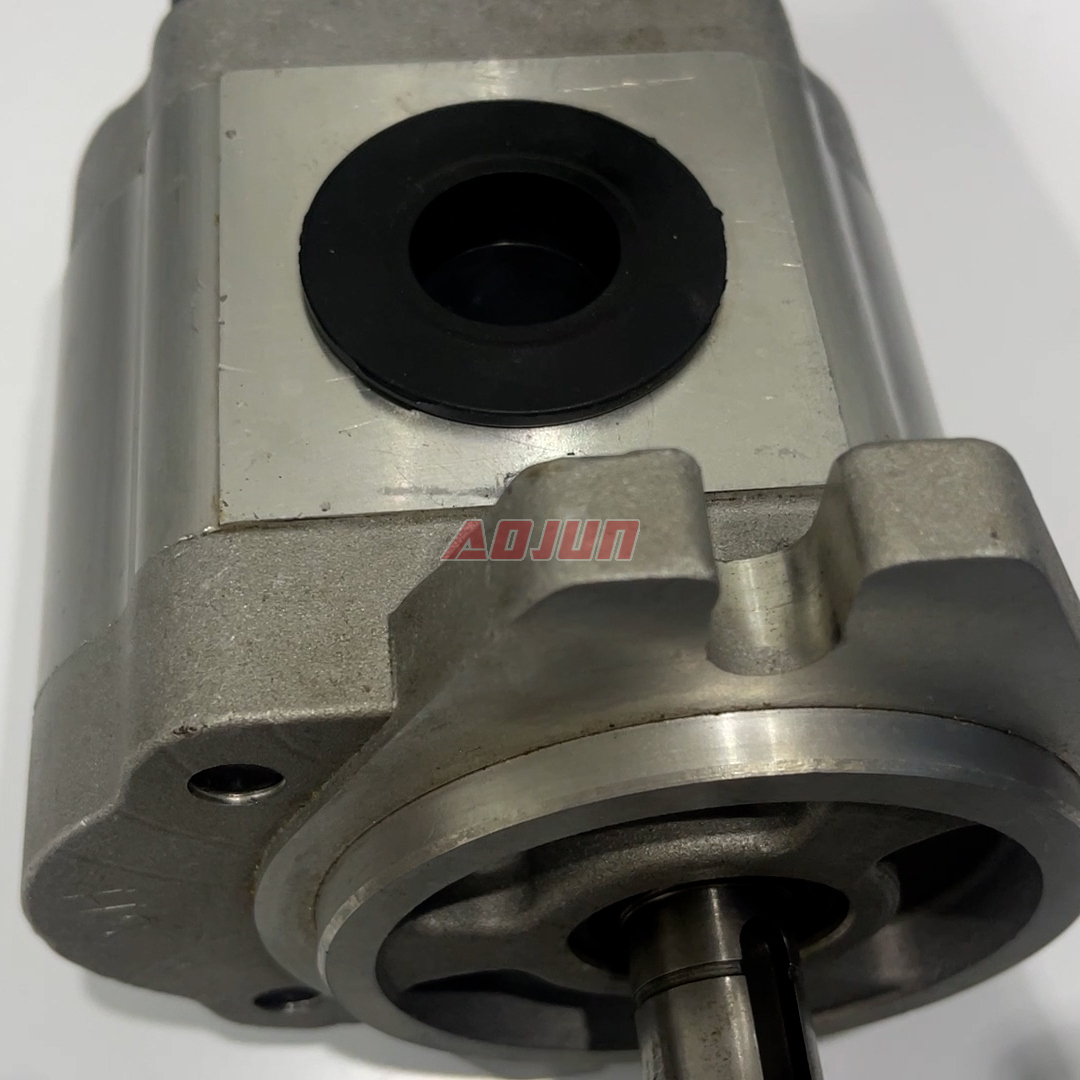

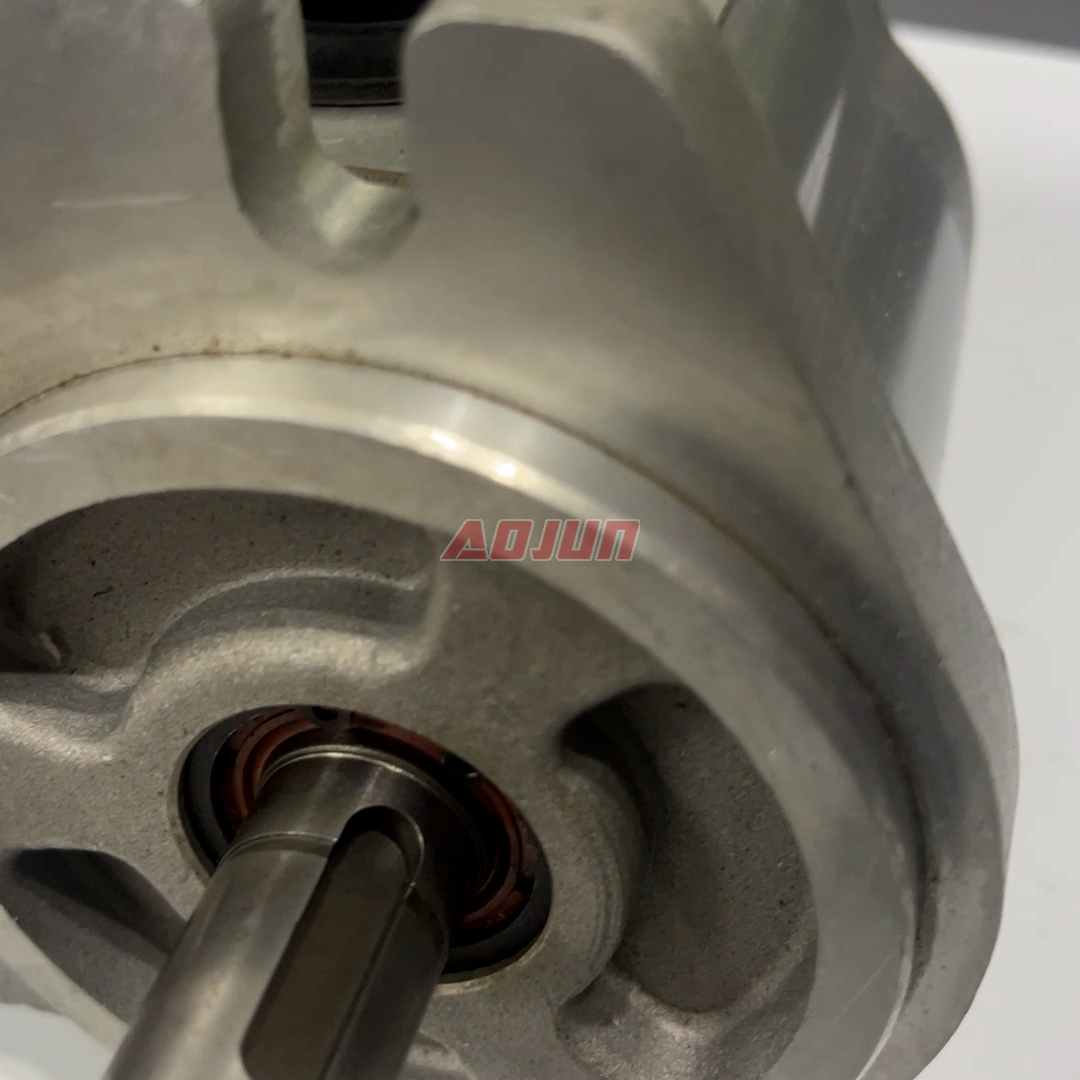

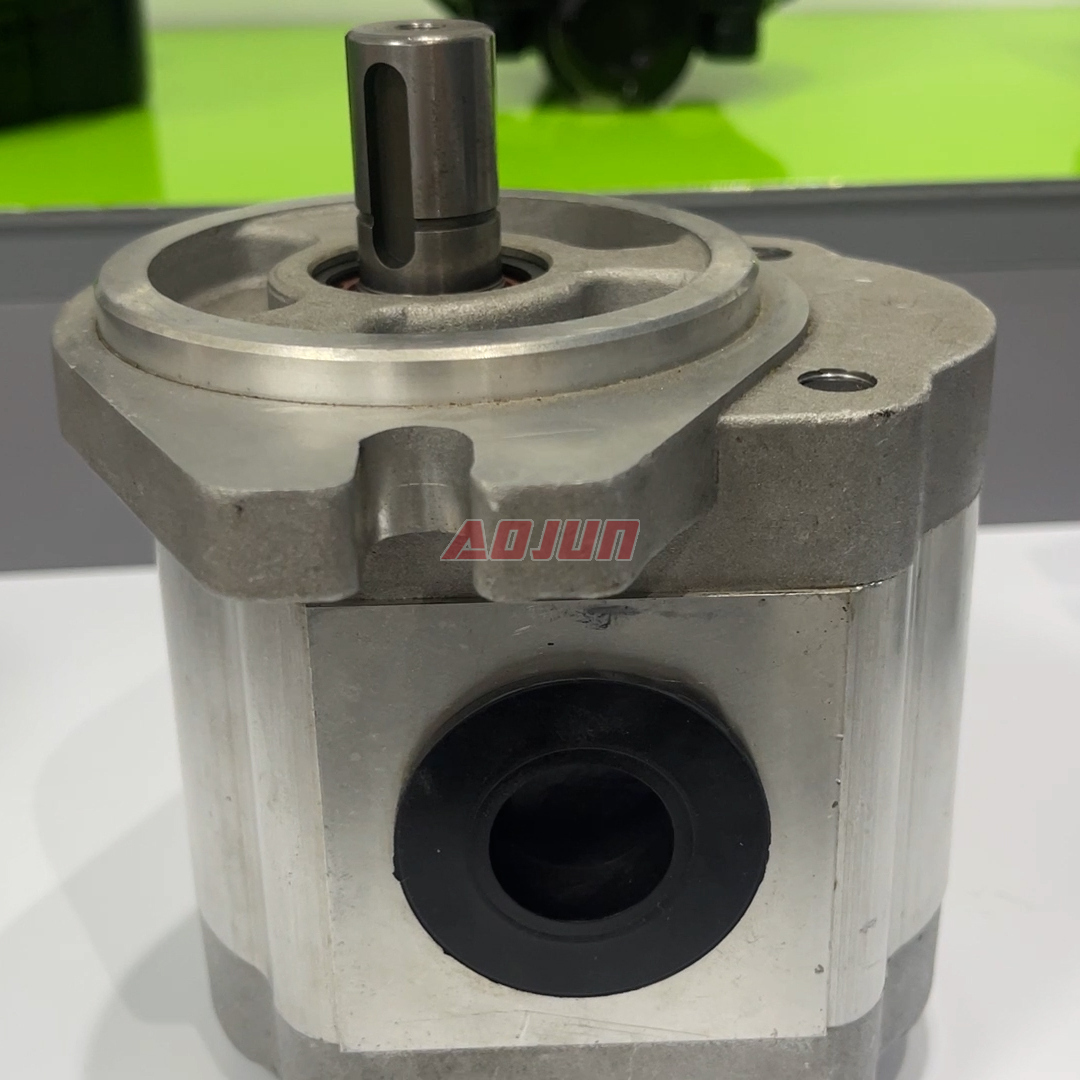

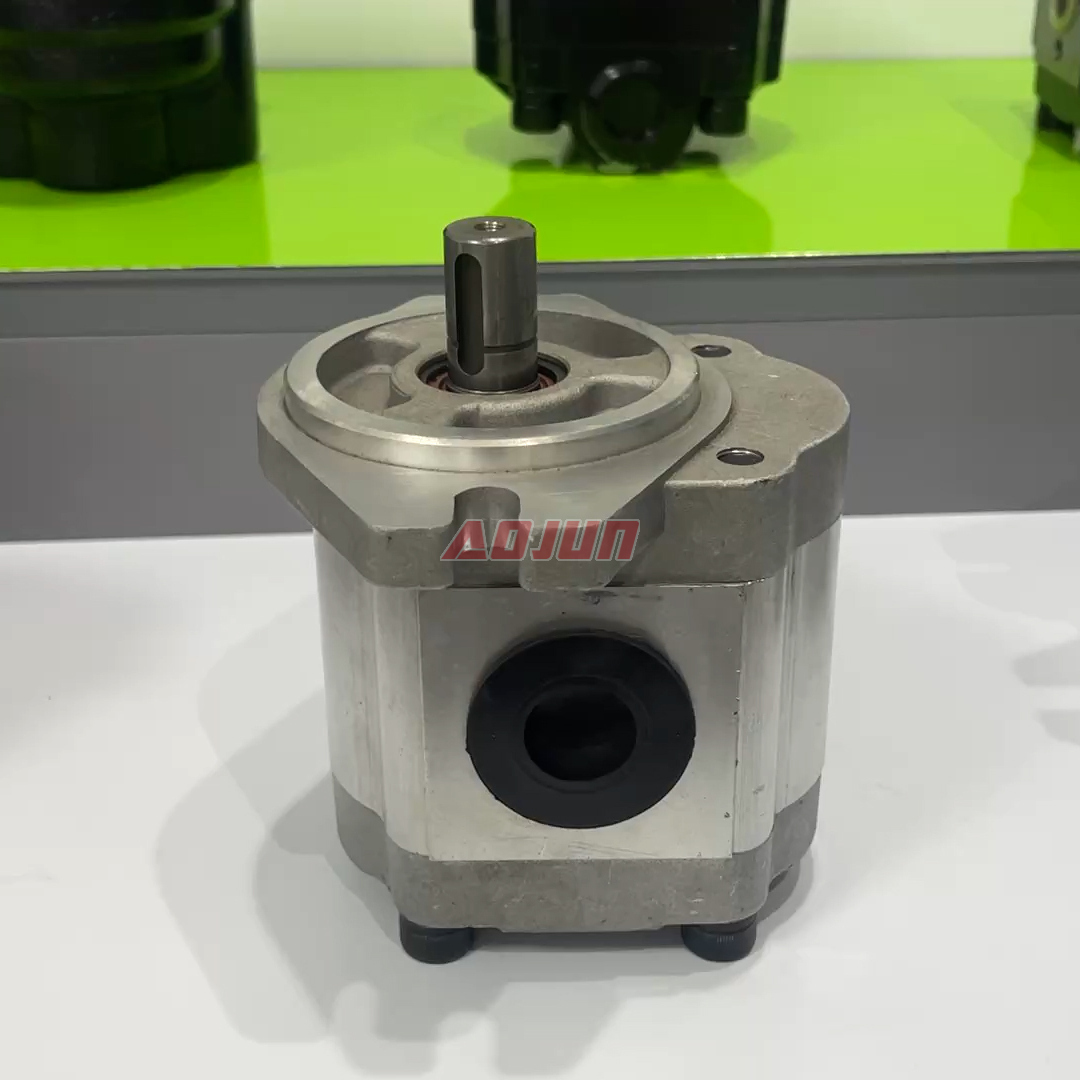

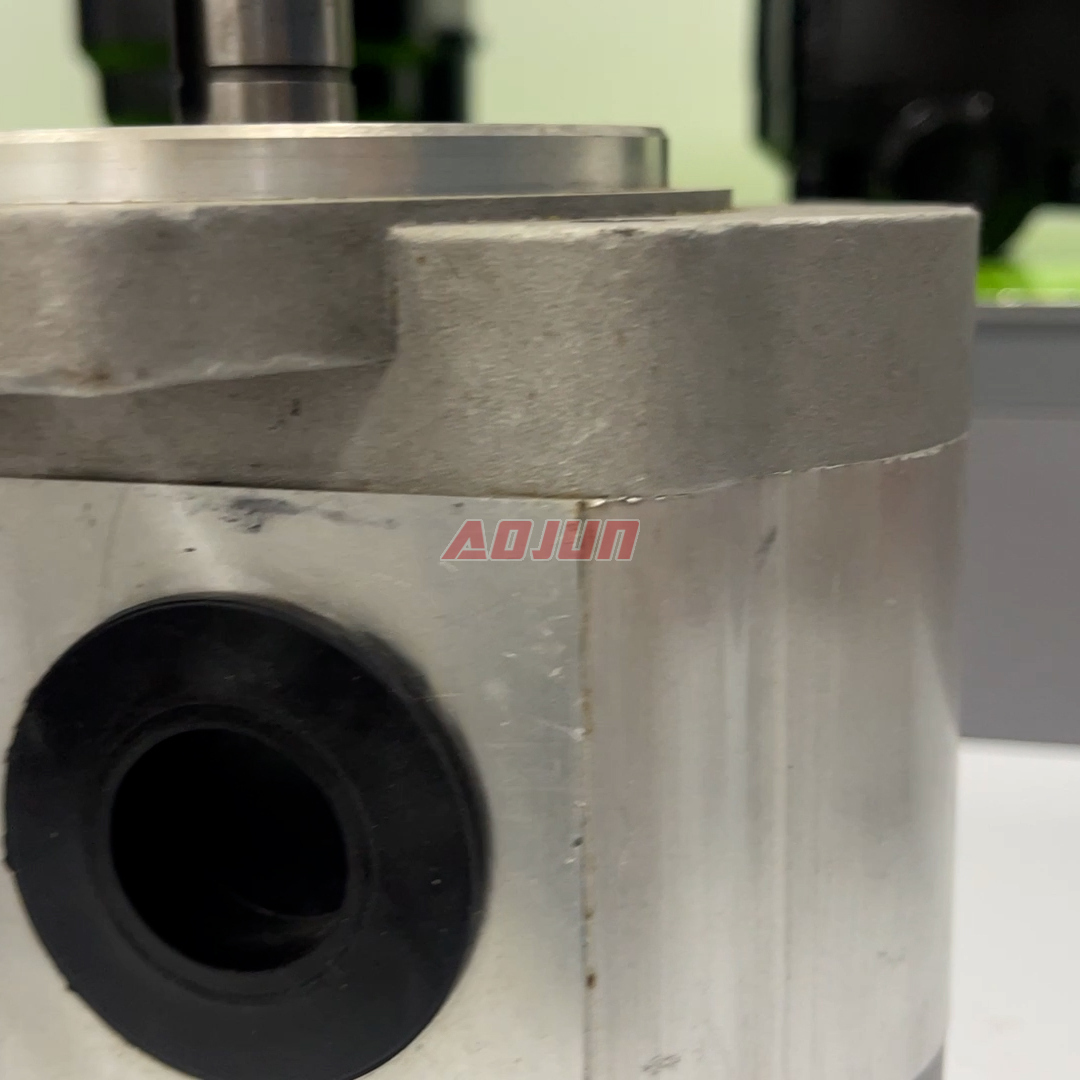

14 cc/rev internal gear hydraulic pump with 20 MPa rated/max pressure and up to 3000 r/min speed, featuring an aluminium body, A-oval flange mounting, and plain key shaft; offered in left or right rotation for mobile and industrial hydraulic systems.
global shipping world wide
Online Service For 24 X 7
Support OEM customization
Key specs: 14 cc/rev displacement; rated/max pressure 20 MPa (2900 psi); rated speed 2000 r/min; max speed 3000 r/min; rotation options L (CCW) or R (CW); internal gear structure; aluminium housing; A-oval flange; plain key shaft. Benefits: stable flow output for compact hydraulic circuits, lightweight aluminium construction for mobile equipment, and flexible installation with common oval flange + keyed shaft interface. Typical uses: steering and auxiliary hydraulics, lifting/tilting functions, power packs, and compact hydraulic drives in forklifts, telehandlers, skid steers, mini excavators, wheel loaders, aerial platforms, and agricultural machinery. Supply capabilities: manufacturer direct support for OEM/ODM, private label, customization, bulk wholesale, and distributor/agent cooperation for global markets.
| CBHS-FL3 Series Hydraulic Gear Pump Parameters | |
|---|---|
| Displacement | 10 cc/rev, 16 cc/rev, 14 cc/rev, 6 cc/rev |
| Rated Pressure | 20 MPa (2900 psi) |
| Max Pressure | 20 MPa (2900 psi) |
| Rated Speed | 2000 r/min |
| Max Speed | 3000 r/min |
| Rotation | L: Left (counter-clockwise), R: Right (clockwise) |
| Structure | Internal Gear Pump |
| Material | Aluminium |
| Flange Version | A-Oval Flange |
| Shaft Type | P: Plain Key |
We provide OEM/ODM services. When your product orders reach a certain value, we can offer a variety of customization services, including labels, packaging, product colors, and more.
We support multiple currencies and diverse payment methods, such as T/T, L/C, Alibaba platform, China Manufacturing Payment Platform, bank transfer, and more.
We can provide samples, and the sample costs will be refunded to you in the form of deducted payments in the later stages.
