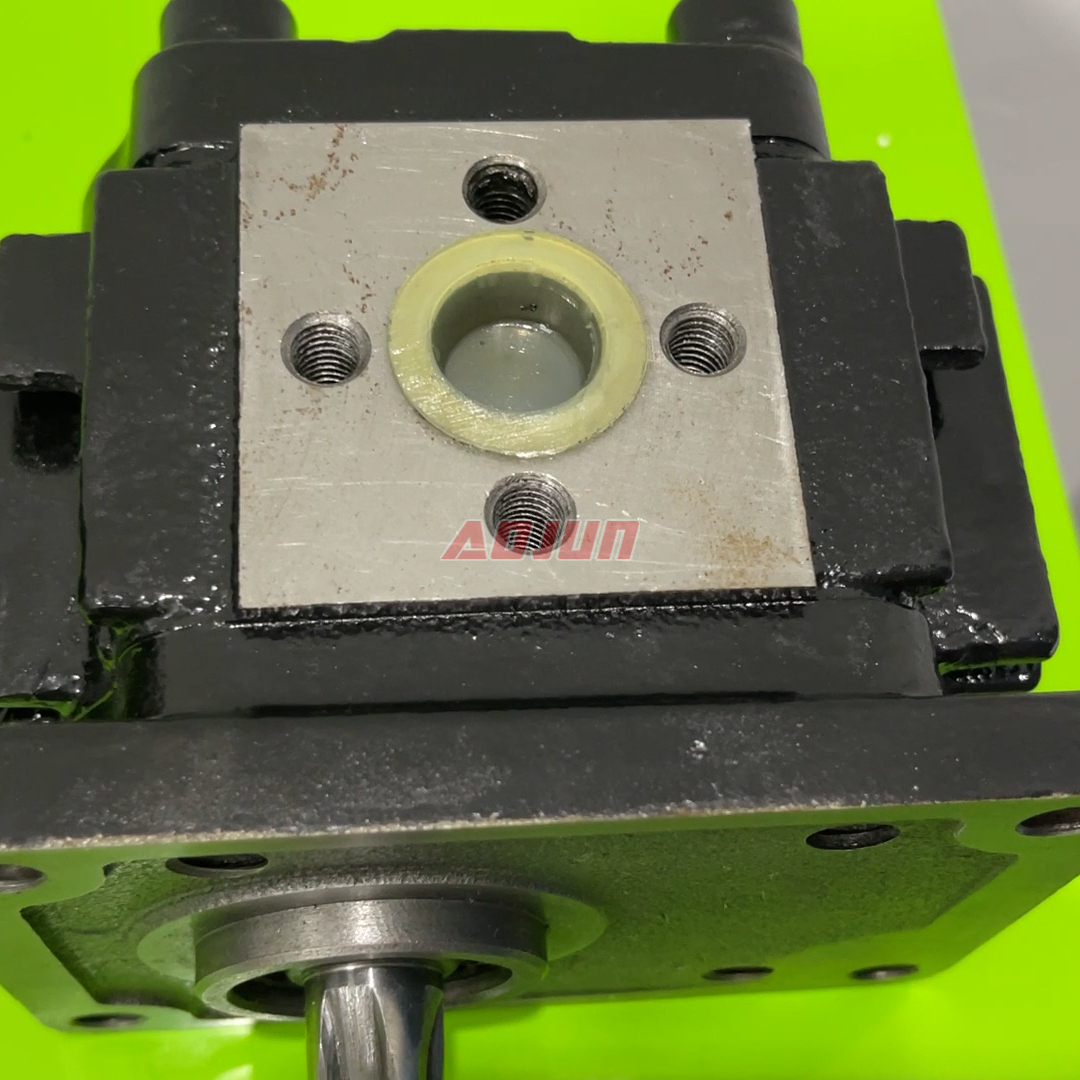

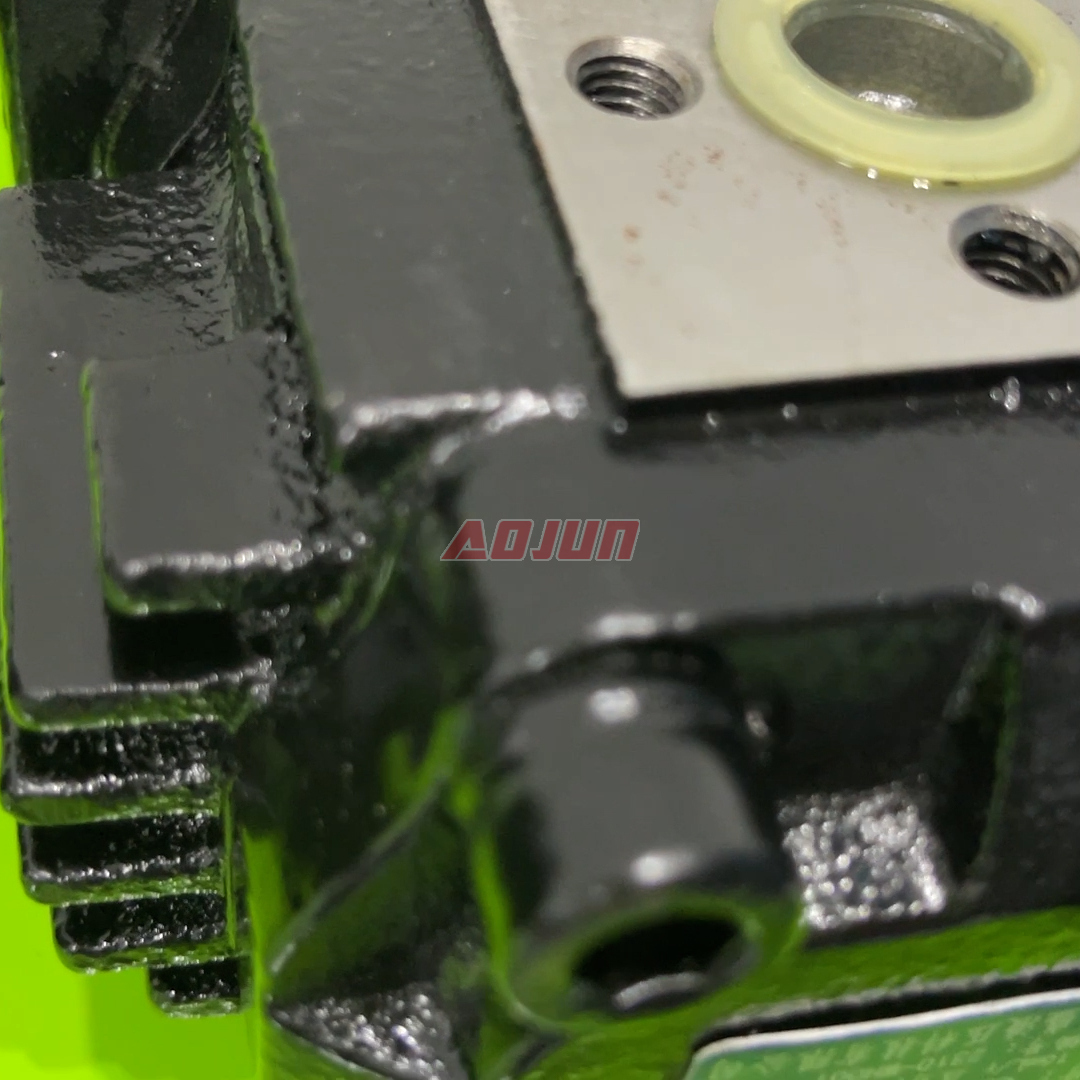

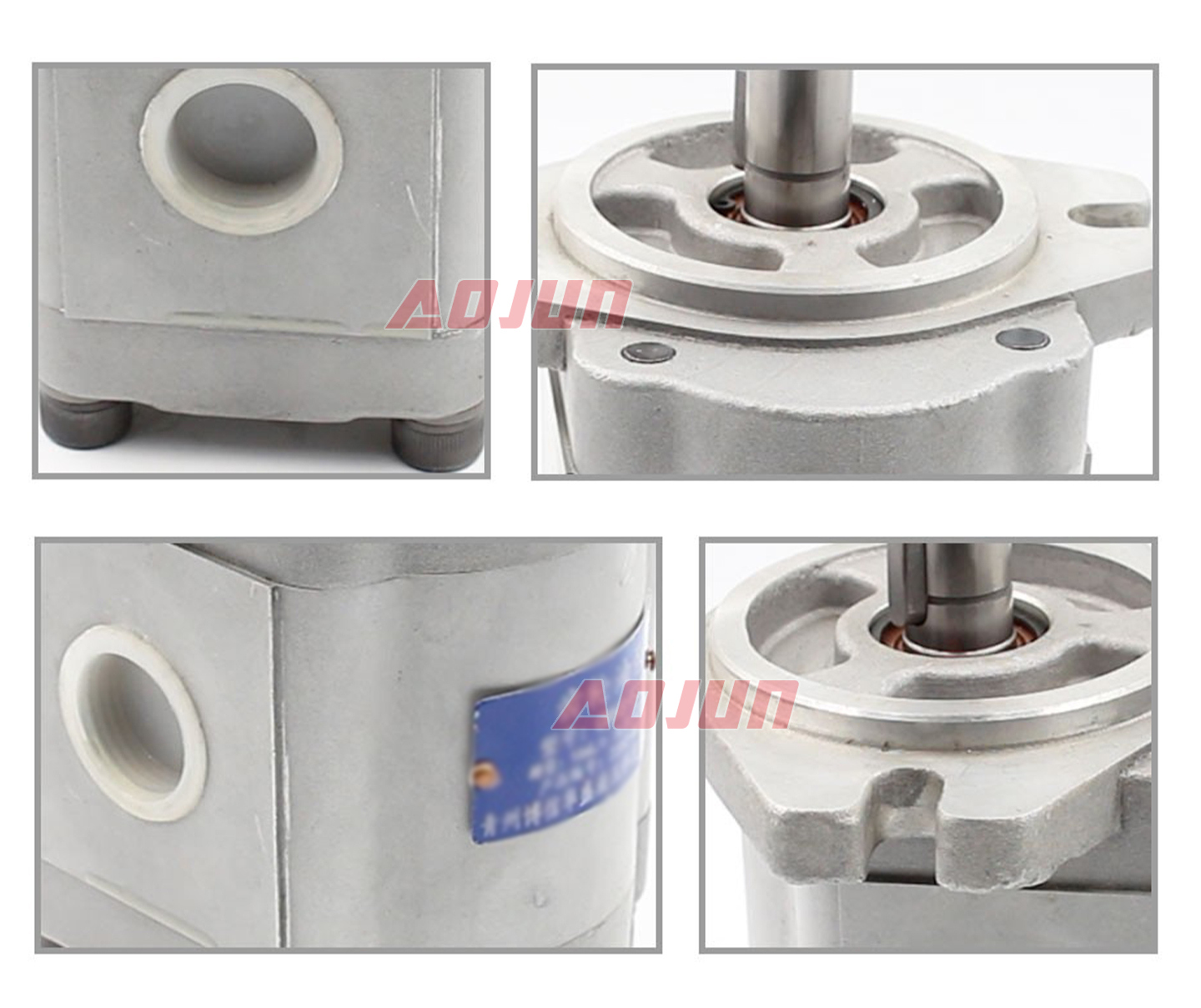

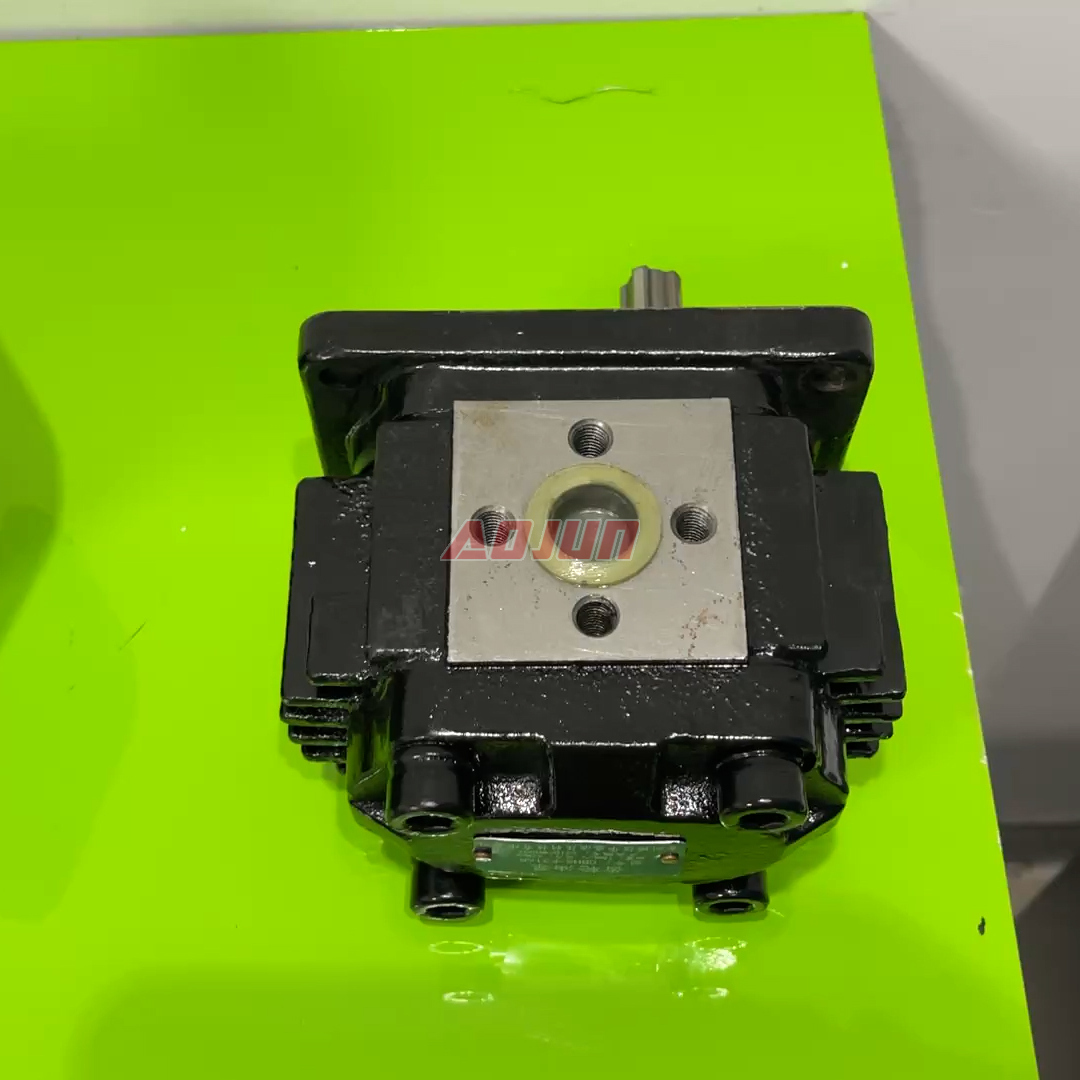

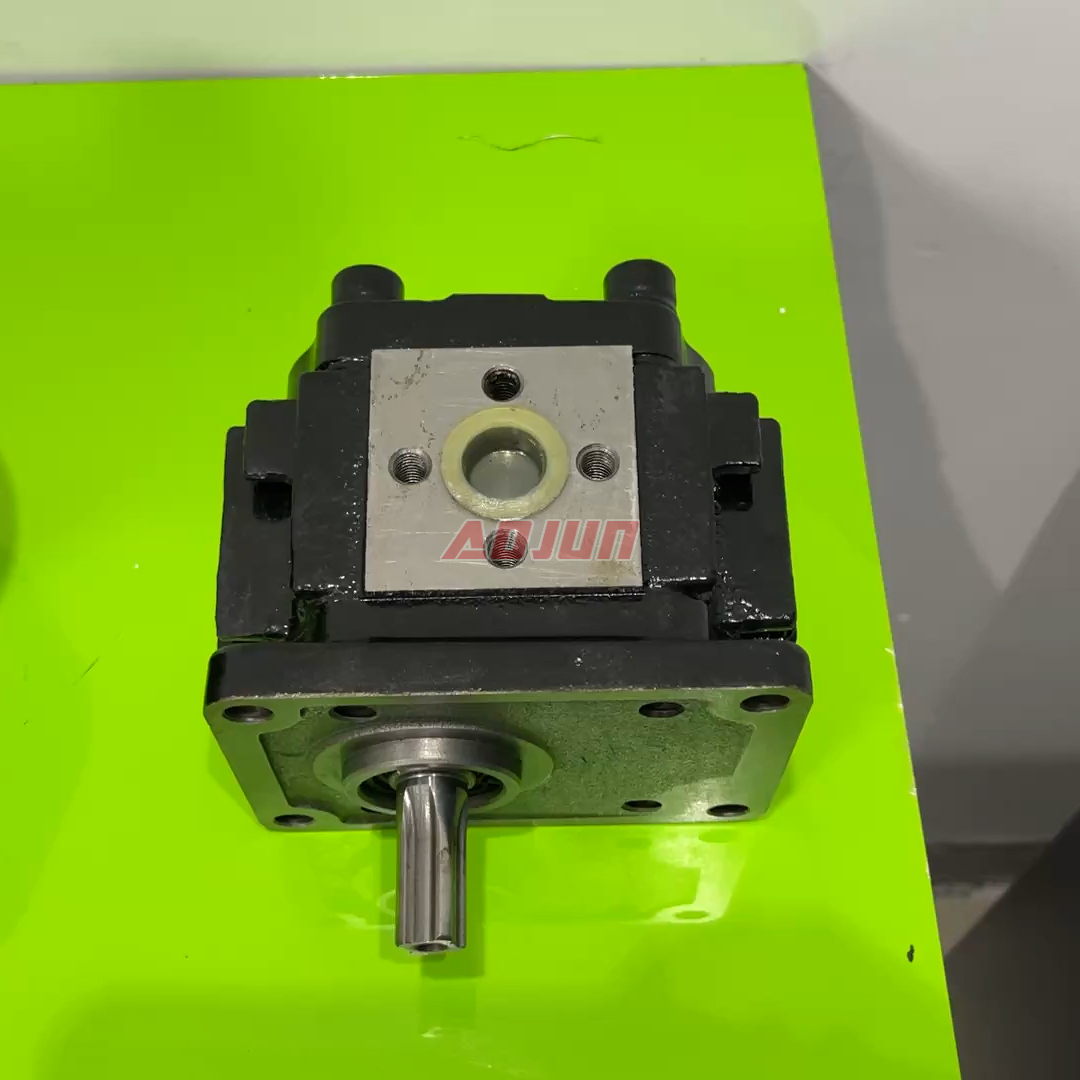

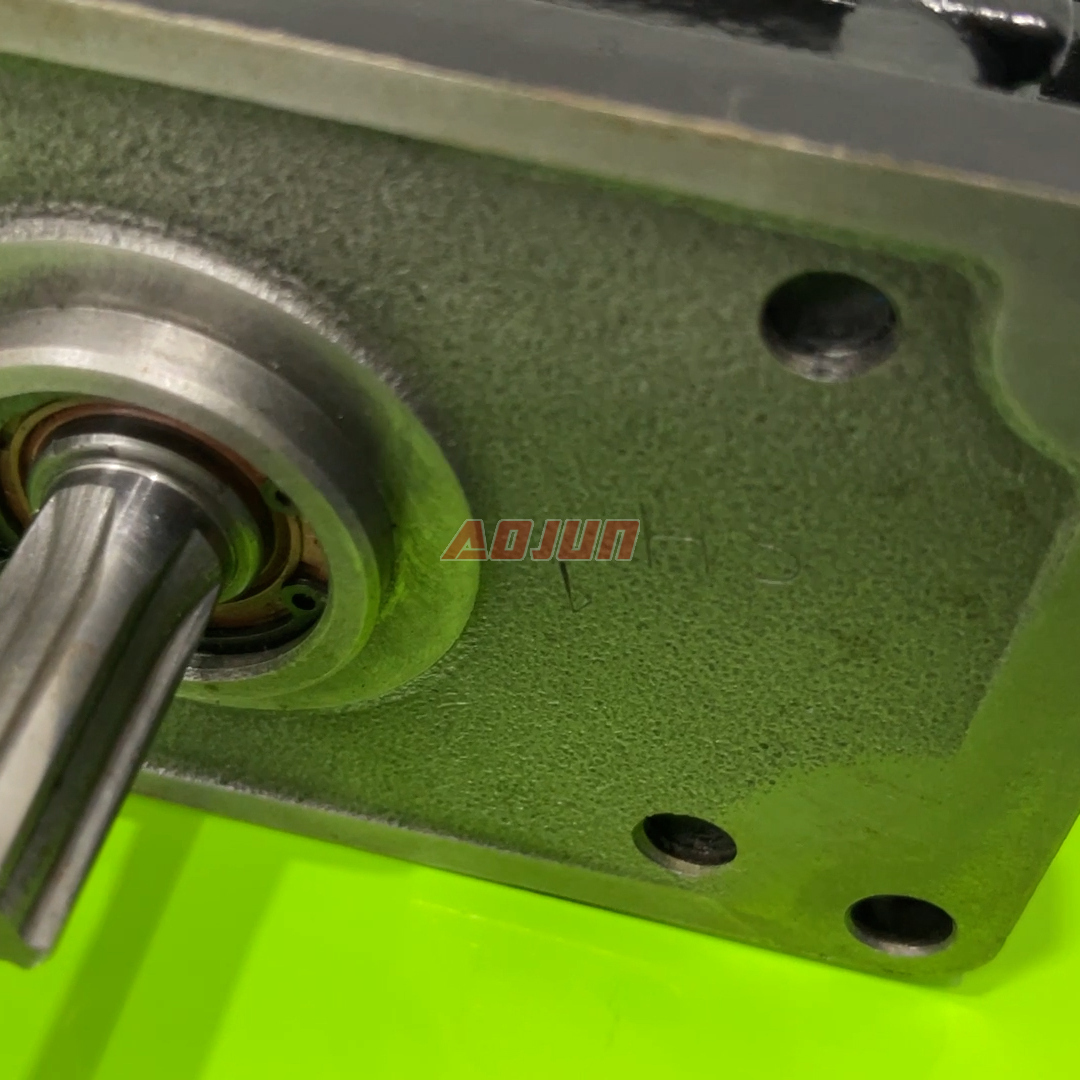

16 cc/rev aluminium gear-type hydraulic pump with 18 MPa rated pressure (20 MPa max), up to 2200 r/min, A-oval flange and plain key shaft, offering left or right rotation for mobile and industrial hydraulic systems.
global shipping world wide
Online Service For 24 X 7
Support OEM customization
Key specs: 16 cc/rev displacement; rated pressure 18 MPa (2610 psi) and max pressure 20 MPa (2900 psi); rated speed 2000 r/min and max speed 2200 r/min. Configuration options: left (counter-clockwise) or right (clockwise) rotation; A-oval flange mounting; plain key shaft for reliable torque transmission. Construction: aluminium housing for reduced weight and good heat dissipation; available in cam plate type / internal gear / external gear structures depending on system needs. Benefits: stable flow output for hydraulic circuits, compact footprint for tight installations, and flexible rotation/mounting to simplify replacement or integration in OEM designs. Typical use: steering and working hydraulics on forklifts/telehandlers, auxiliary hydraulics on excavators and loaders, agricultural implements, sweepers, and other industrial vehicles. Supply capabilities: factory direct manufacturing with OEM/ODM, private label, customization, bulk wholesale, and distributor/agent cooperation for global markets.
| CBHS-F3 Series Hydraulic Gear Pump Parameters | |
|---|---|
| Displacement | 32 cc/rev, 45 cc/rev, 50 cc/rev, 63 cc/rev |
| Rated Pressure | 18 MPa (2610 psi) |
| Max Pressure | 20 MPa (2900 psi) |
| Rated Speed | 2000 r/min |
| Max Speed | 2200 r/min |
| Rotation | L: Left (counter-clockwise), R: Right (clockwise) |
| Structure | Cam Plate Type, External Gear Pump, Internal Gear Pump |
| Material | Aluminium |
| Flange Version | A-Oval Flange |
| Shaft Type | P: Plain Key |
