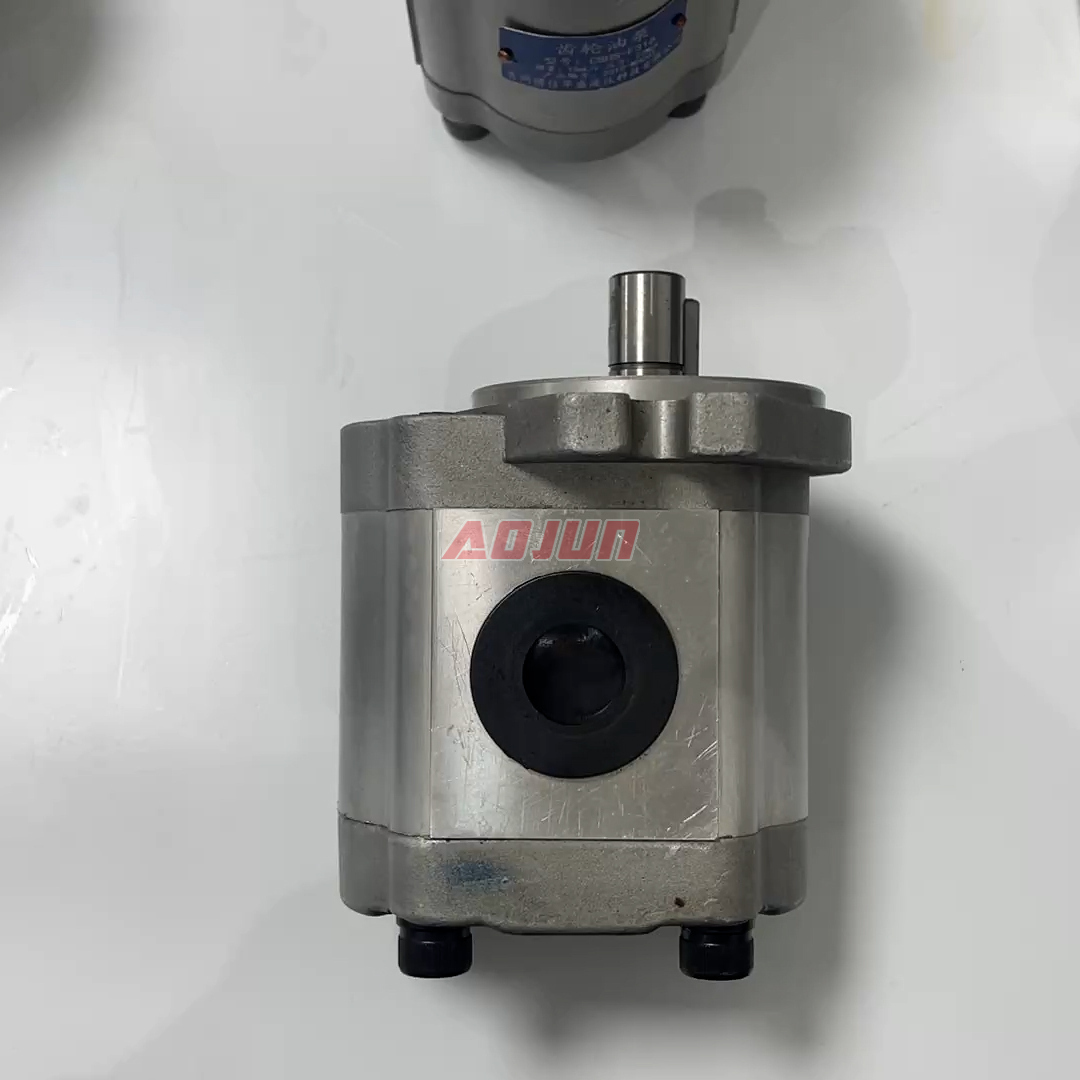

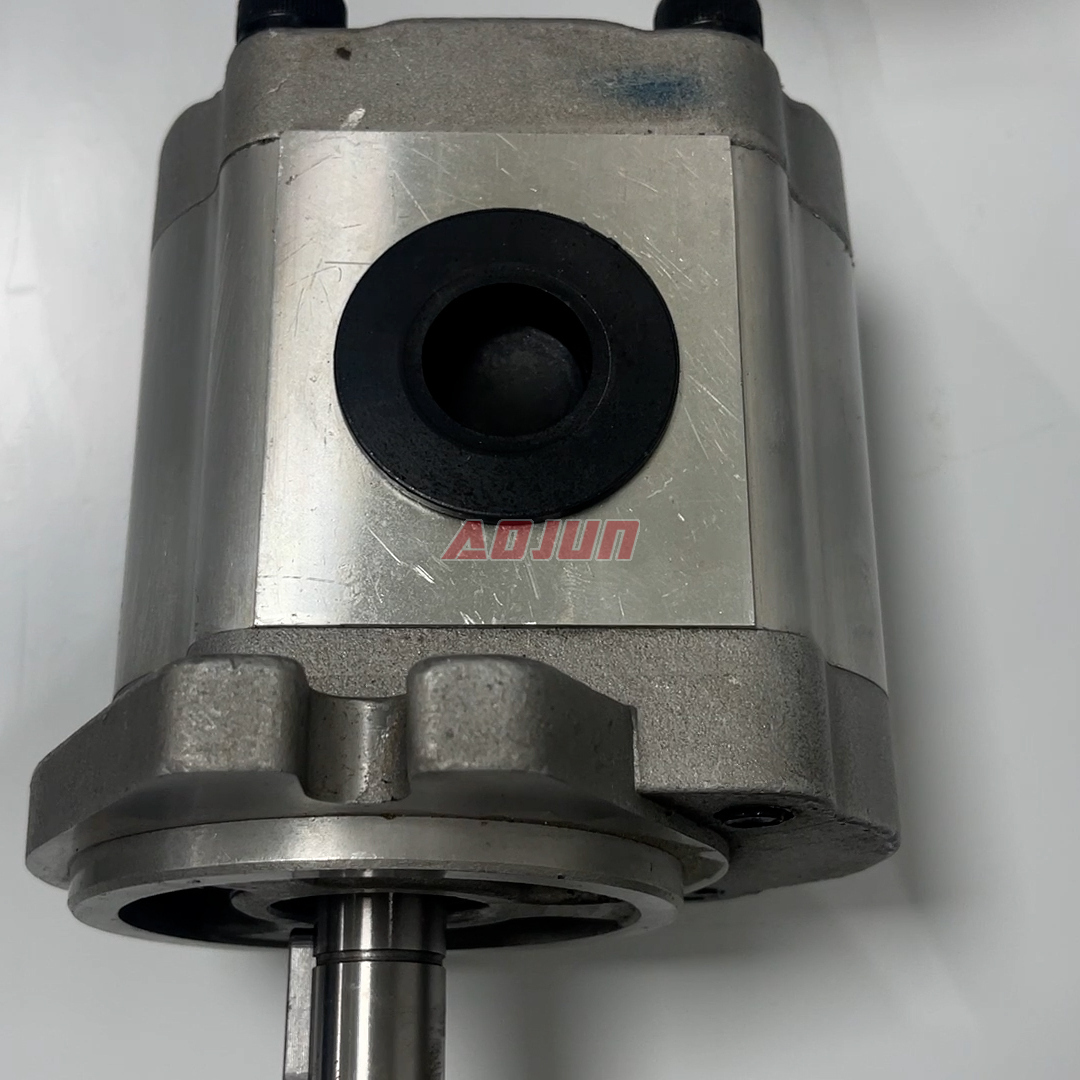

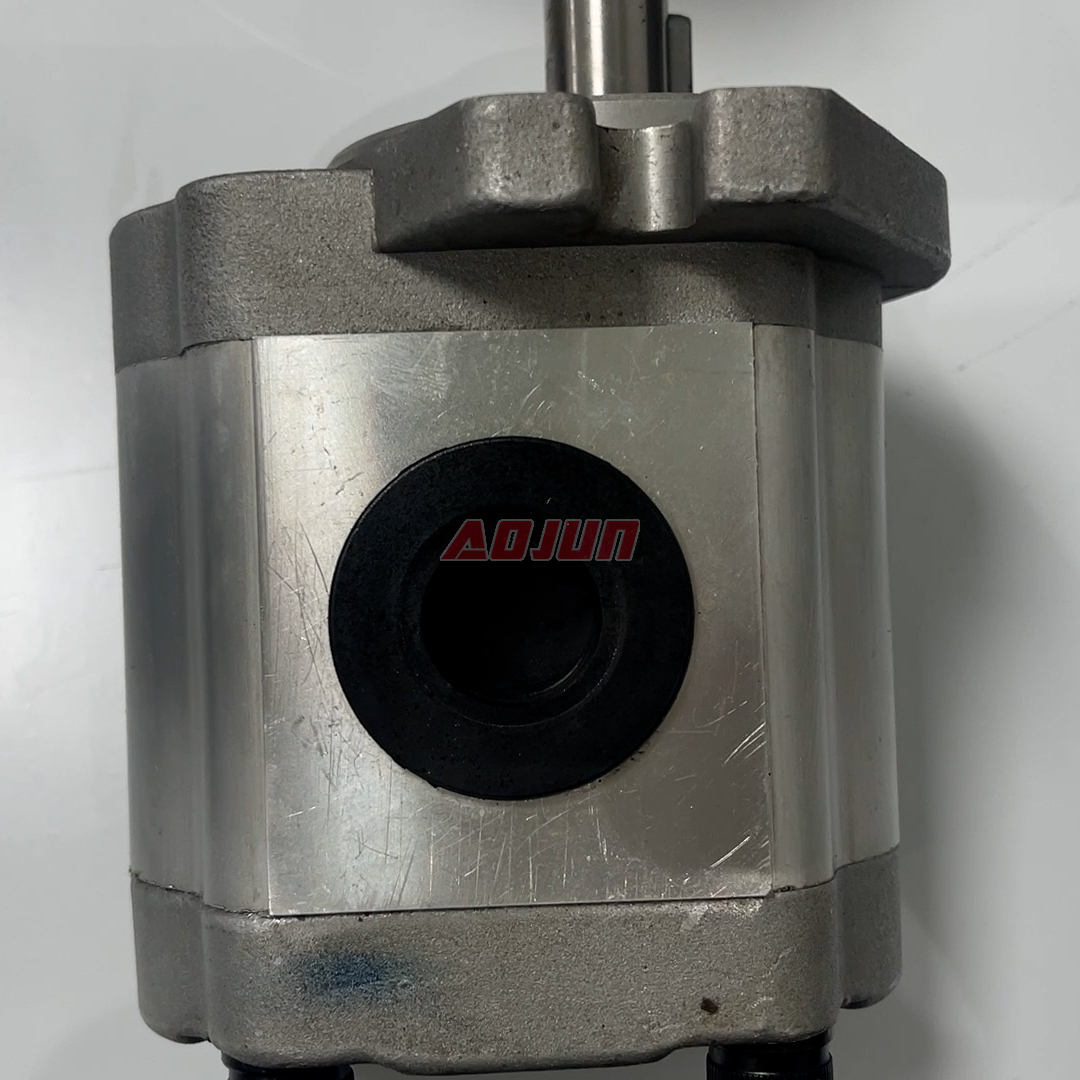

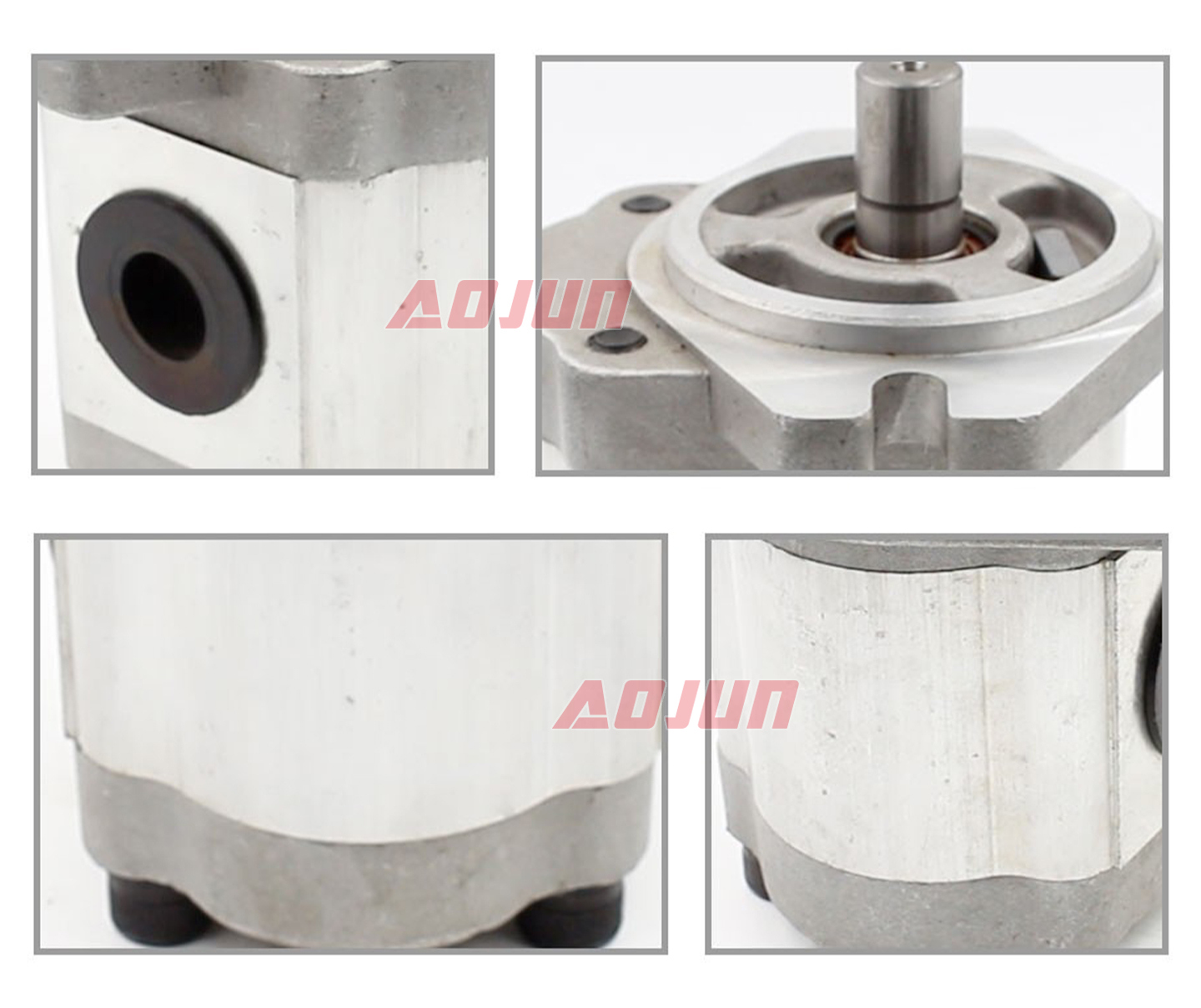

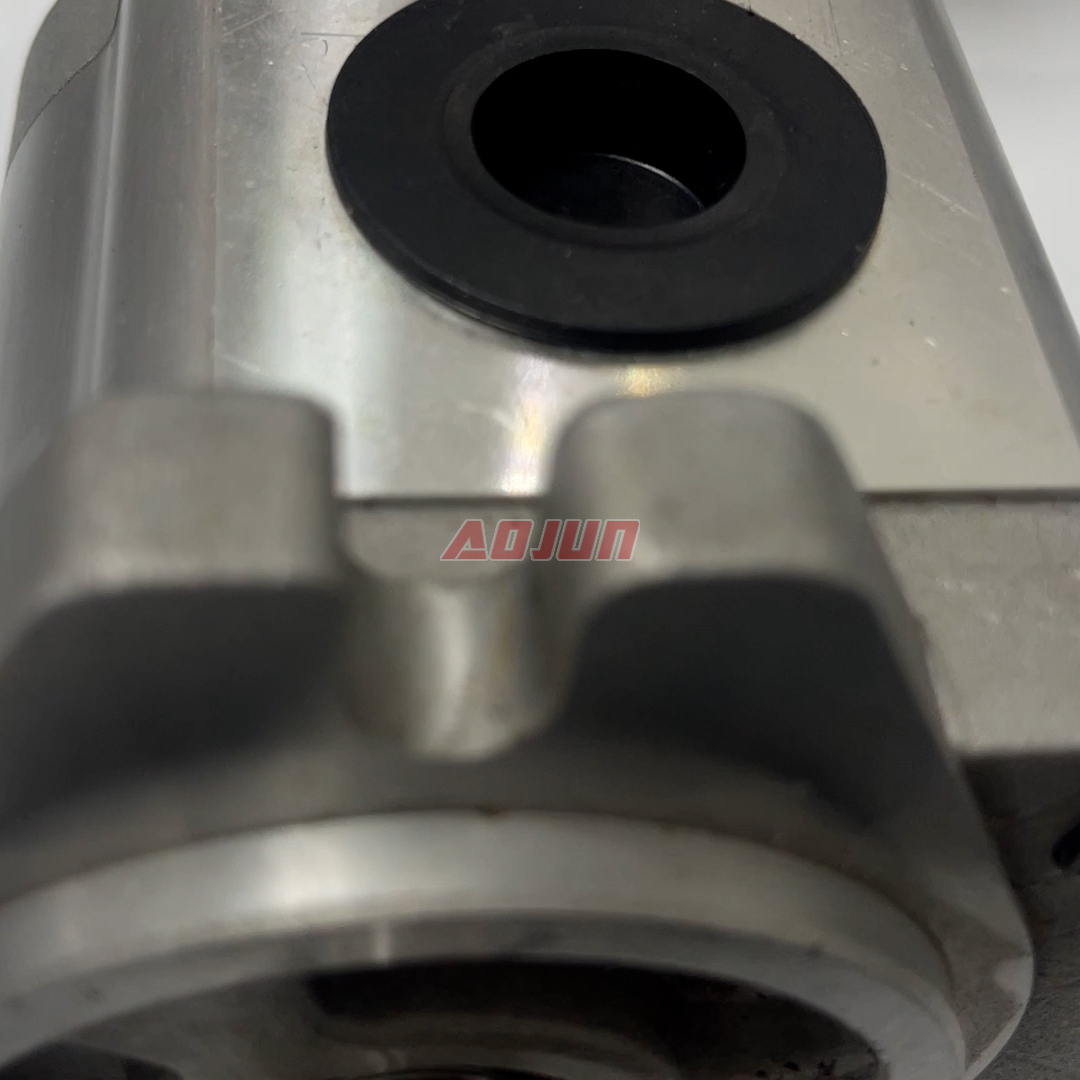

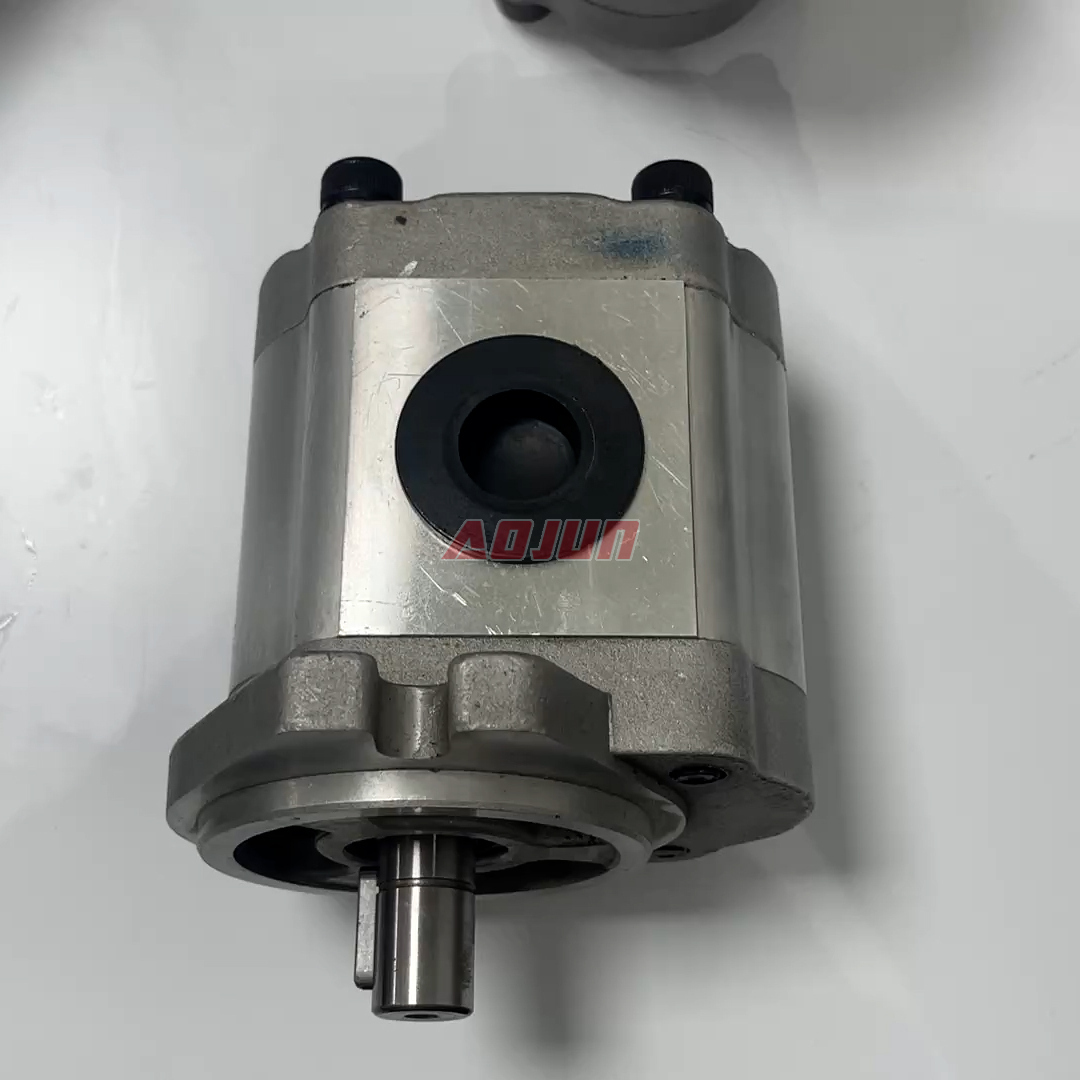

16 cc/rev internal gear hydraulic pump with aluminum body, A-oval flange and plain key shaft, delivering up to 20 MPa pressure with rated speed 2000 r/min and max speed 3000 r/min. Supports left or right rotation for flexible installation in mobile and industrial hydraulic systems.
global shipping world wide
Online Service For 24 X 7
Support OEM customization
Key features: internal gear structure for stable flow and compact layout; aluminum housing for lightweight, corrosion resistance and better heat dissipation; A-oval flange mounting for easy interchangeability in common mobile power units; plain key shaft for standard coupling to engines or gearboxes. Performance: rated/max pressure 20 MPa (2900 psi); rated speed 2000 r/min; max speed 3000 r/min; available in left (CCW) or right (CW) rotation to match different drive directions. Typical applications: auxiliary or main pump duties in material handling equipment (forklifts, stackers, telehandlers), compact construction machinery (skid steer and wheel loaders), agricultural machinery (tractors and implements), and industrial vehicles requiring reliable medium-pressure hydraulic power. Supply capability: manufacturer direct support for OEM/ODM, private label, customization, bulk wholesale, and global distributor/agent cooperation.
| CBHS-FL3 Series Hydraulic Gear Pump Parameters | |
|---|---|
| Displacement | 10 cc/rev, 16 cc/rev, 14 cc/rev, 6 cc/rev |
| Rated Pressure | 20 MPa (2900 psi) |
| Max Pressure | 20 MPa (2900 psi) |
| Rated Speed | 2000 r/min |
| Max Speed | 3000 r/min |
| Rotation | L: Left (counter-clockwise), R: Right (clockwise) |
| Structure | Internal Gear Pump |
| Material | Aluminium |
| Flange Version | A-Oval Flange |
| Shaft Type | P: Plain Key |
We provide OEM/ODM services. When your product orders reach a certain value, we can offer a variety of customization services, including labels, packaging, product colors, and more.
We support multiple currencies and diverse payment methods, such as T/T, L/C, Alibaba platform, China Manufacturing Payment Platform, bank transfer, and more.
We can provide samples, and the sample costs will be refunded to you in the form of deducted payments in the later stages.
