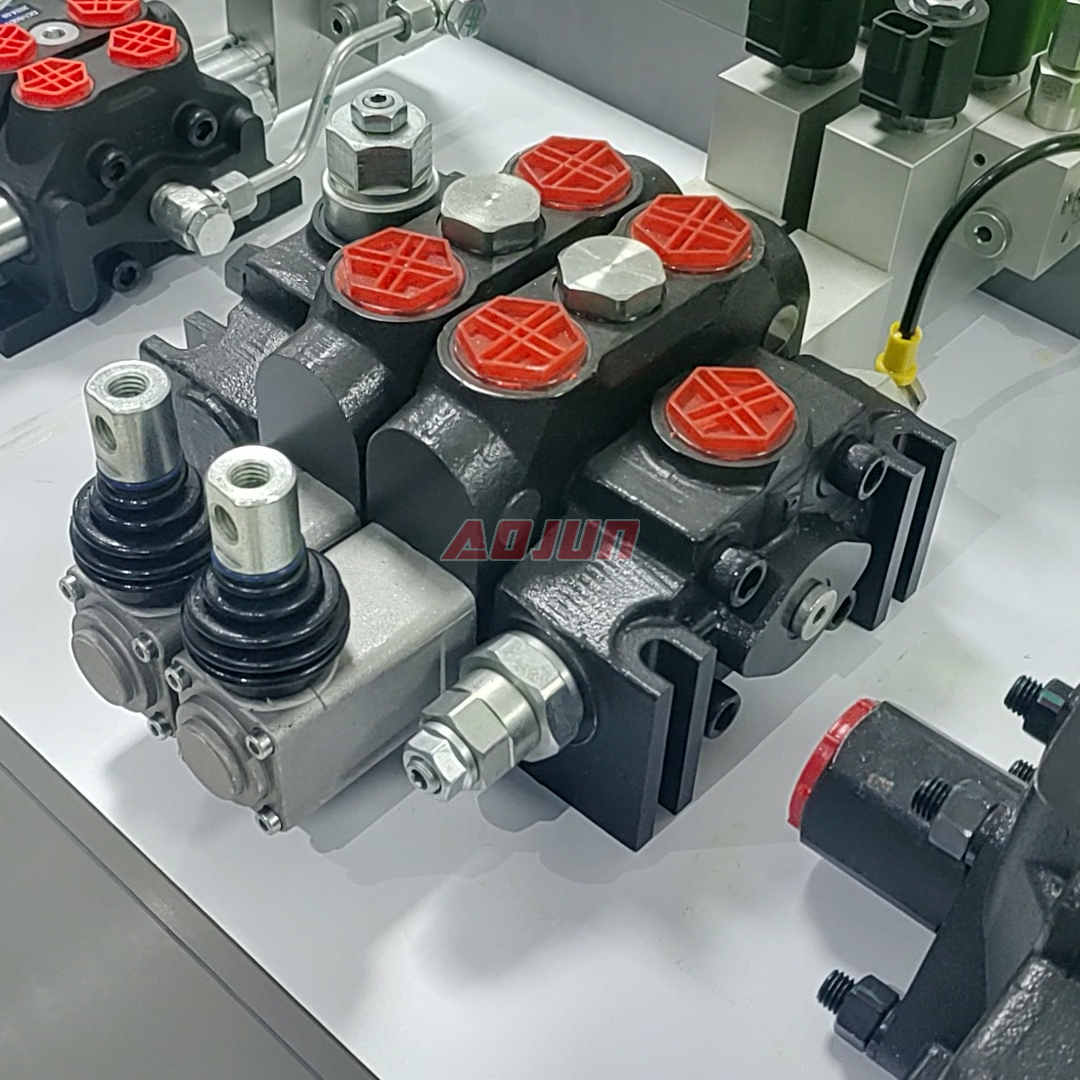

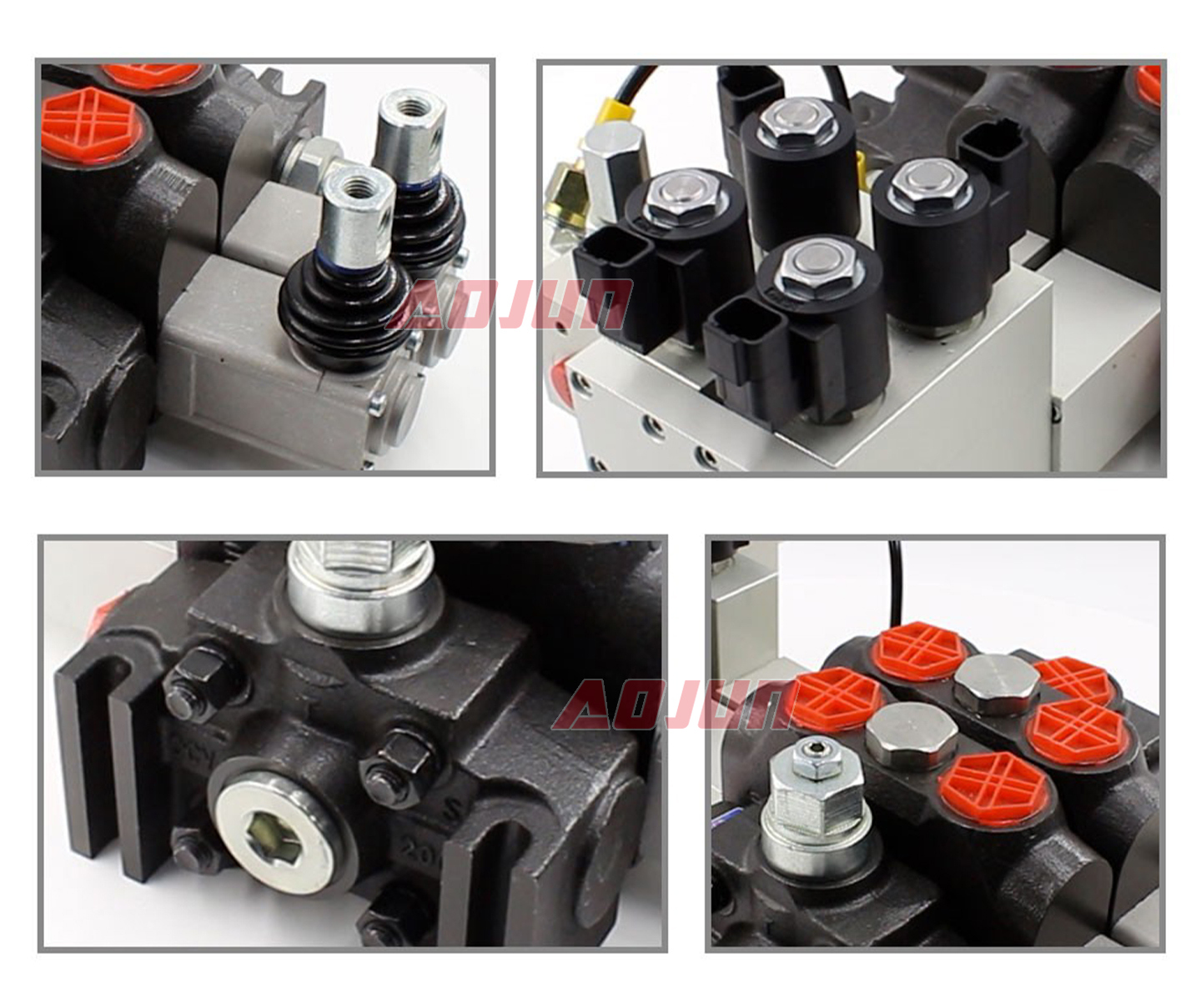

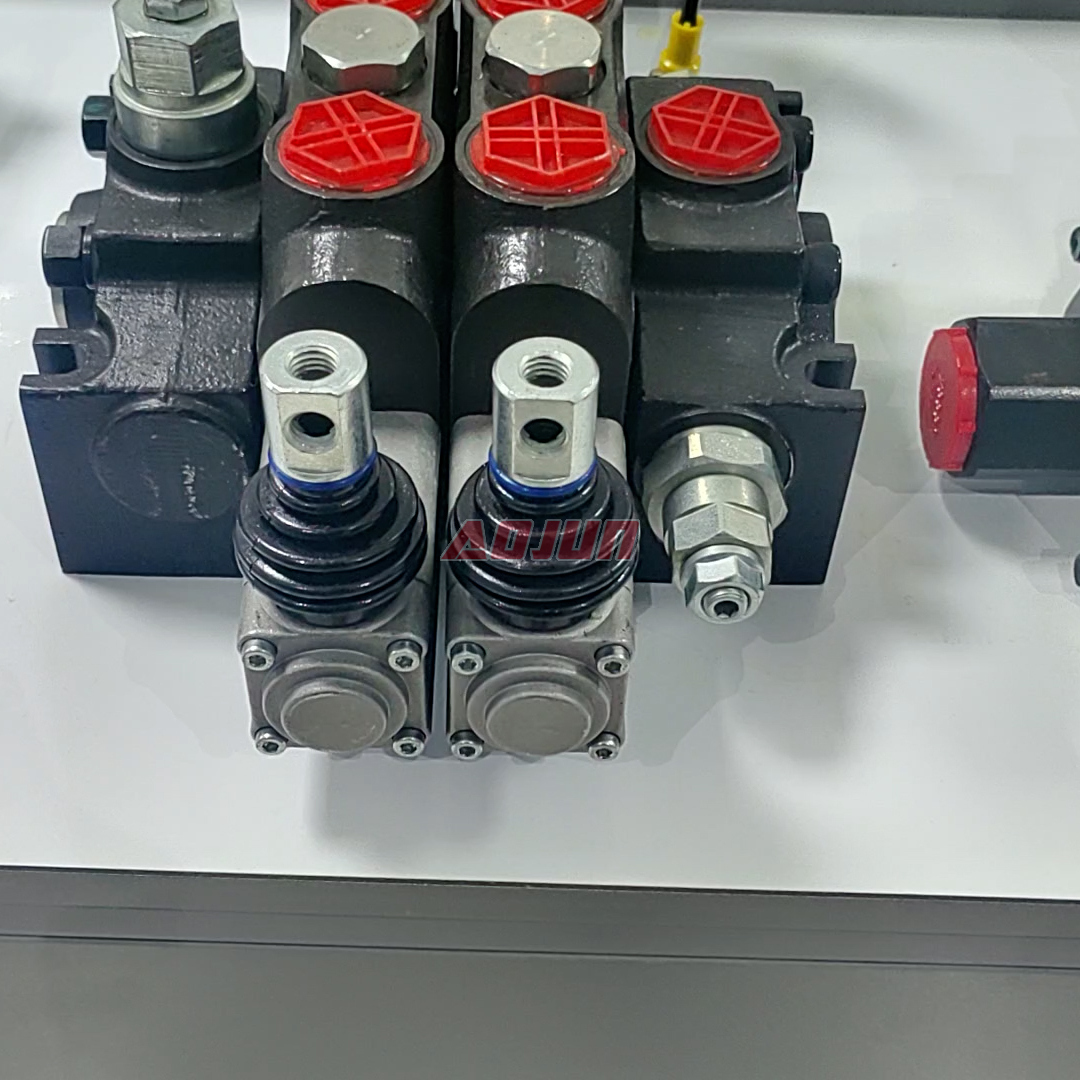

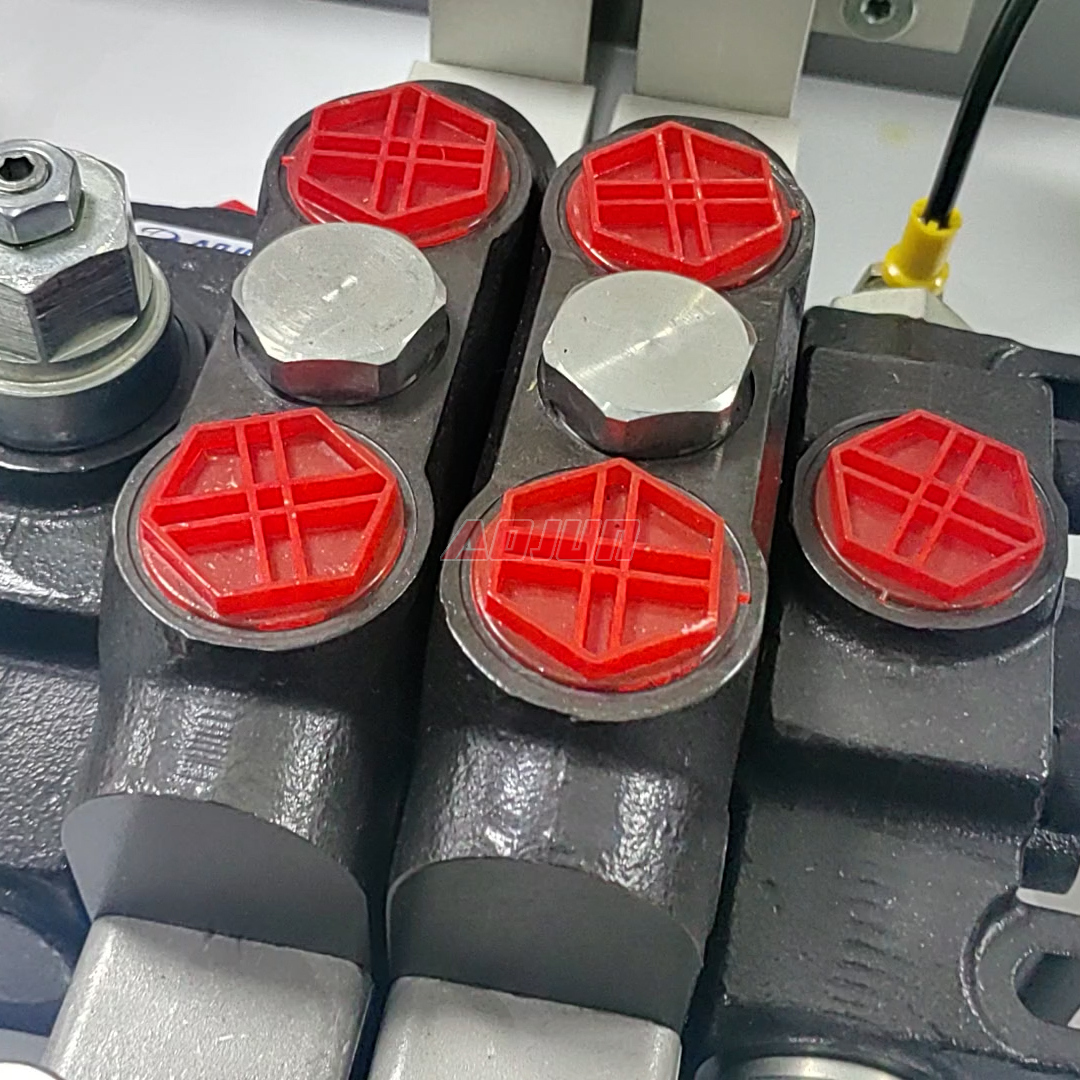

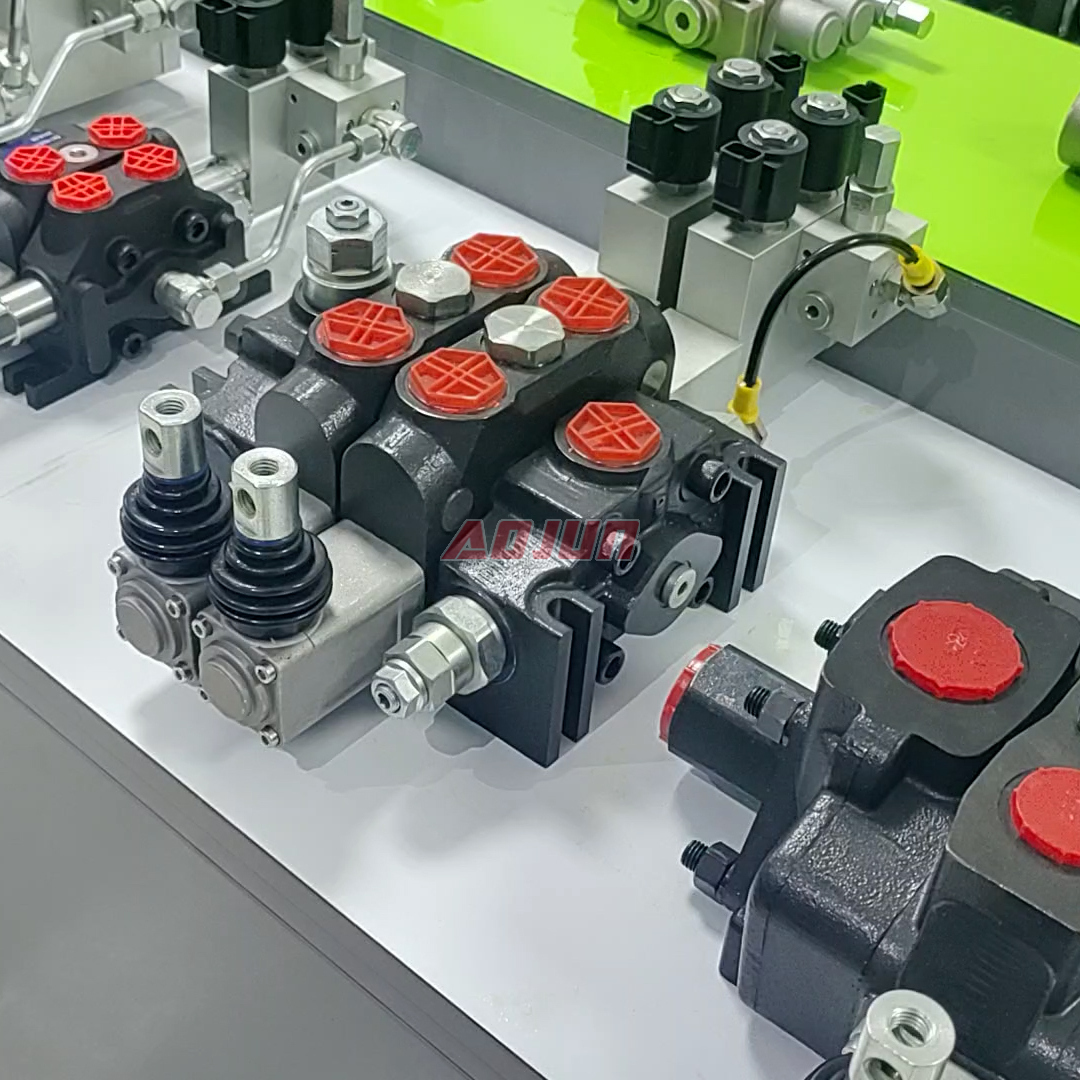

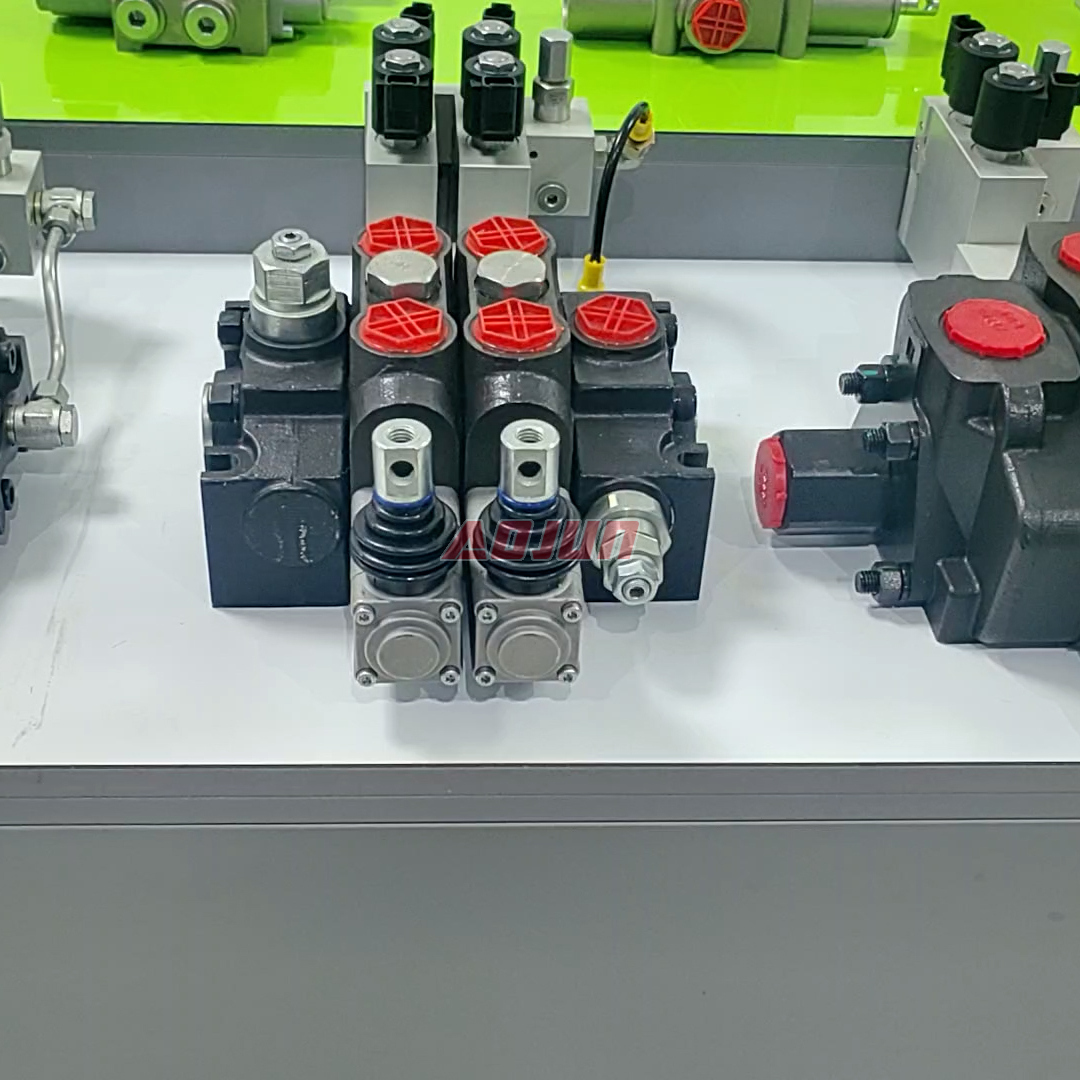

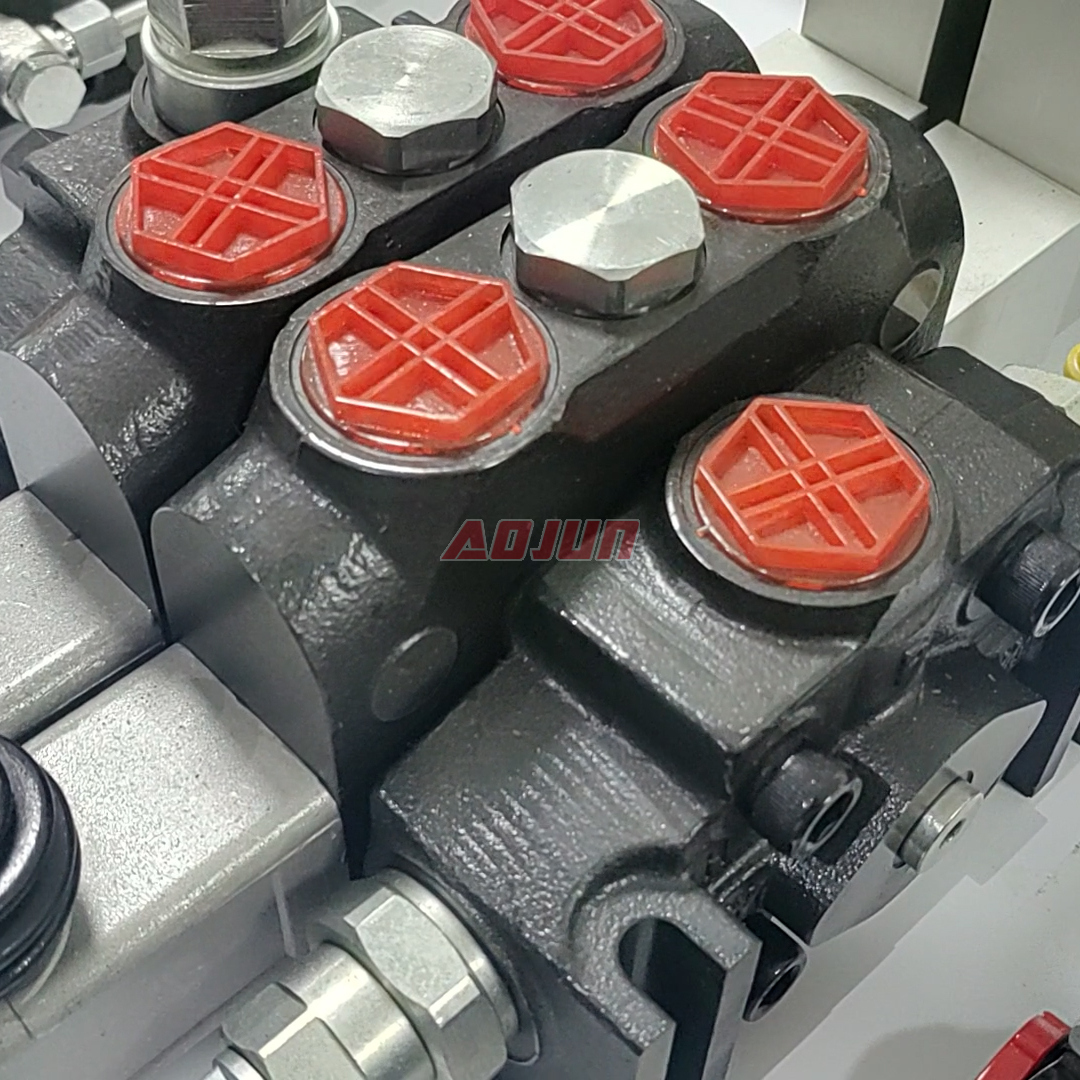

2-section electro-hydraulic sectional directional valve with two spools, designed for high-flow mobile hydraulic systems up to 200 L/min and 350 bar, operating reliably across wide viscosity and ambient temperature ranges.
global shipping world wide
Online Service For 24 X 7
Support OEM customization
This electro-hydraulic sectional directional valve uses a modular (sectional) block design with 2 working sections and 2 spools, ideal for compact multi-function control on mobile machinery. Rated flow is 200 L/min (52 US gpm) for high-demand actuators, with max pressure up to 350 bar (5100 psi) for heavy-duty applications. It supports hydraulic oils within 15–75 mm²/s viscosity, and is built for harsh environments with an ambient range of -40°C to +80°C. Typical use cases include boom/bucket/auxiliary circuits on loaders and excavators, lift/tilt functions on telehandlers and forklifts, and multi-motion control on aerial platforms and pumps. Suitable for OEM supply, private label, and customized configurations (e.g., circuit/porting/actuation setups) for distributors, wholesalers, and equipment manufacturers.
| DCV200 Series Sectional Directional Valve Parameters | |
|---|---|
| Control Method | Manual, Pneumatic, Electro-pneumatic, Electro-hydraulic, Hydraulic, Hydraulic and Manual, Cable, Joystick |
| Spool | 1 Spool, 2 Spool, 3 Spool, 5 Spool, 7 Spool, 9 Spool, 11 Spool |
| Section | 1 Section, 2 Section, 3 Section, 4 Section, 5 Section, 6 Section, 7 Section, 8 Section, 9 Section, 10 Section |
| Rated Flow | 200 L/min (52 US gpm) |
| Max Pressure | 350 bar (5100 psi) |
| Operating Viscosity Range | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| Ambient Temperature Range | -40°C to +80°C (-40°F to +176°F) |
| Structure Type | Sectional valve |
We provide OEM/ODM services. When your product orders reach a certain value, we can offer a variety of customization services, including labels, packaging, product colors, and more.
We support multiple currencies and diverse payment methods, such as T/T, L/C, Alibaba platform, China Manufacturing Payment Platform, bank transfer, and more.
We can provide samples, and the sample costs will be refunded to you in the form of deducted payments in the later stages.
