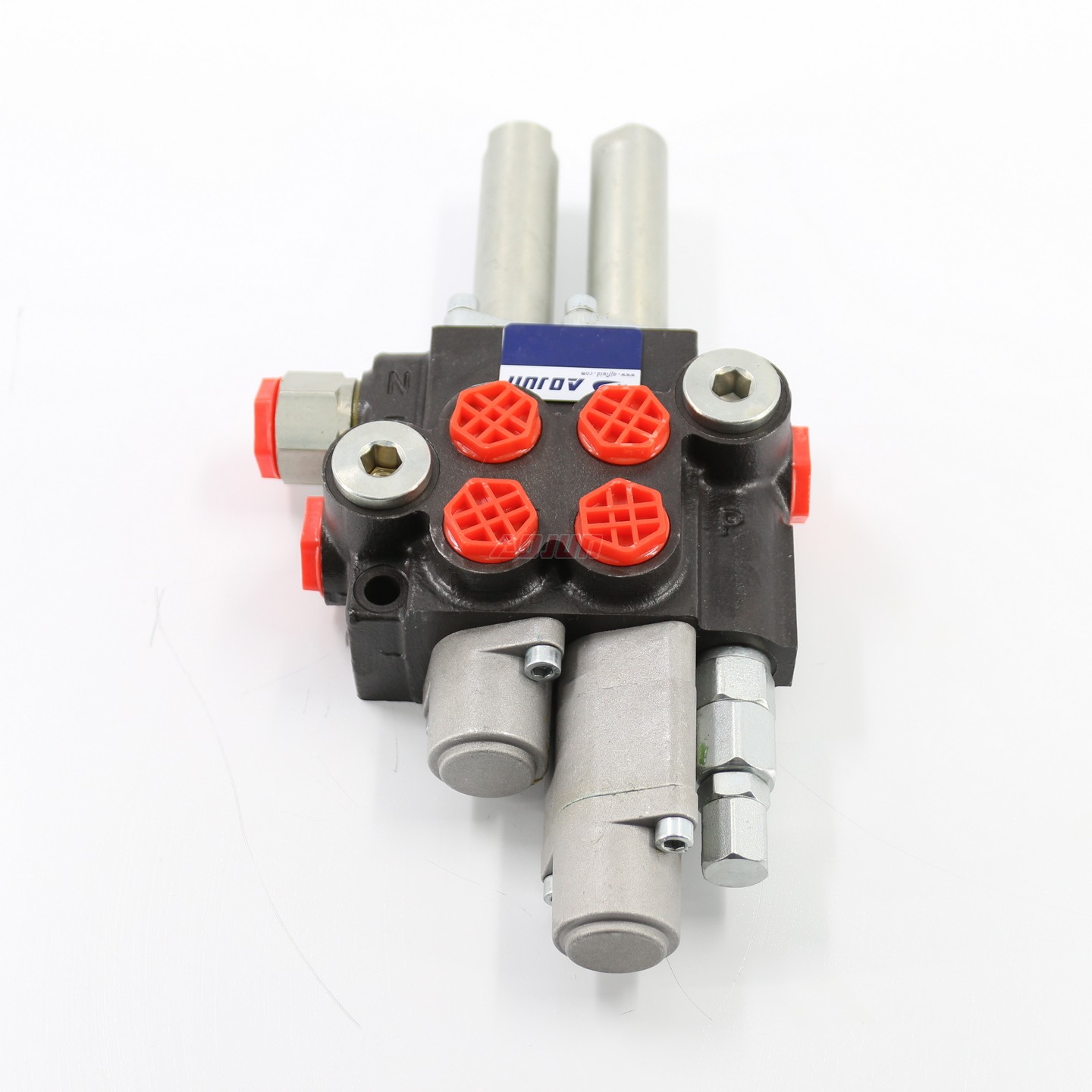

A compact 2-section joystick-operated monoblock directional valve designed for mobile hydraulic machinery, delivering up to 40 L/min flow with 250 bar max pressure and broad viscosity/temperature capability for reliable field use.
global shipping world wide
Online Service For 24 X 7
Support OEM customization

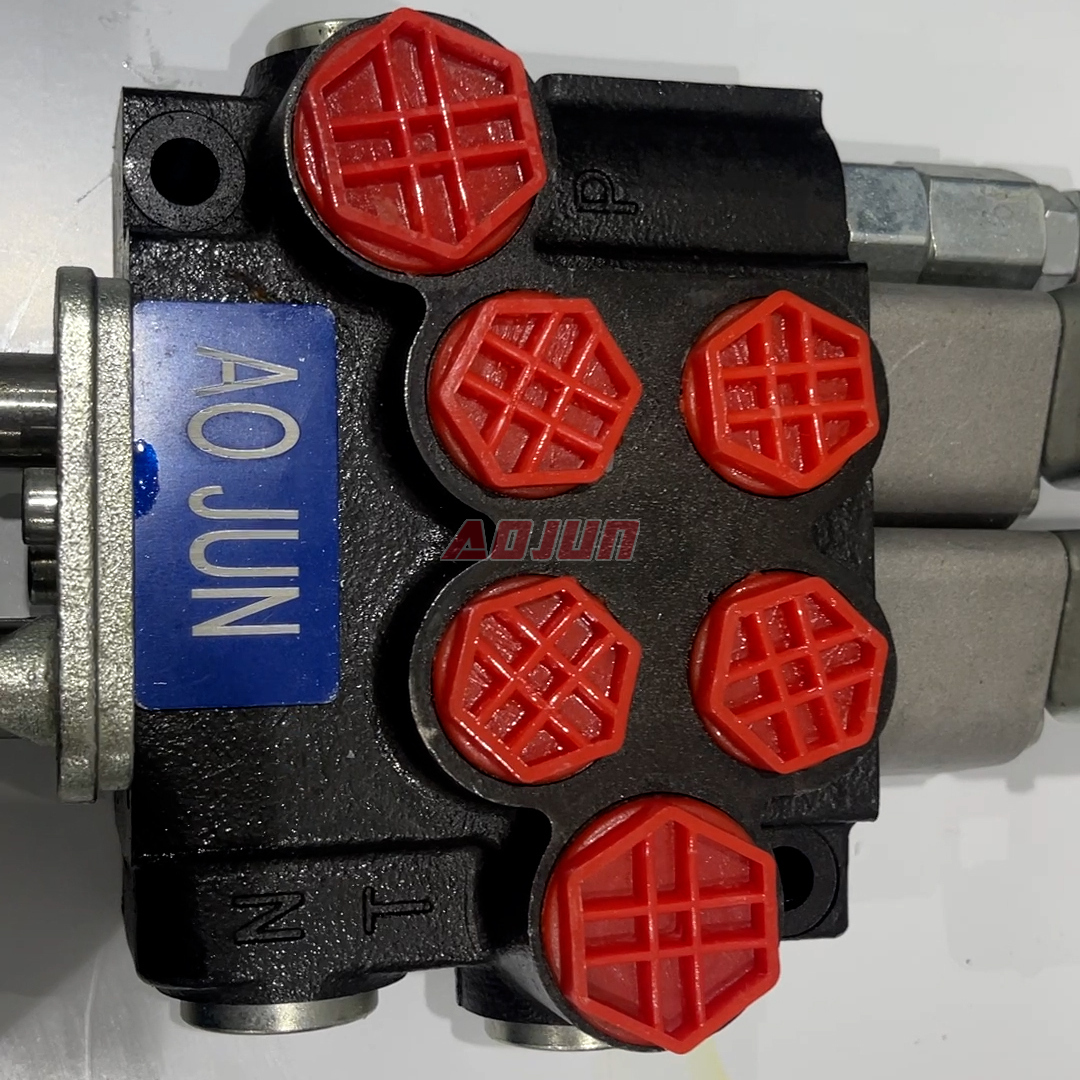

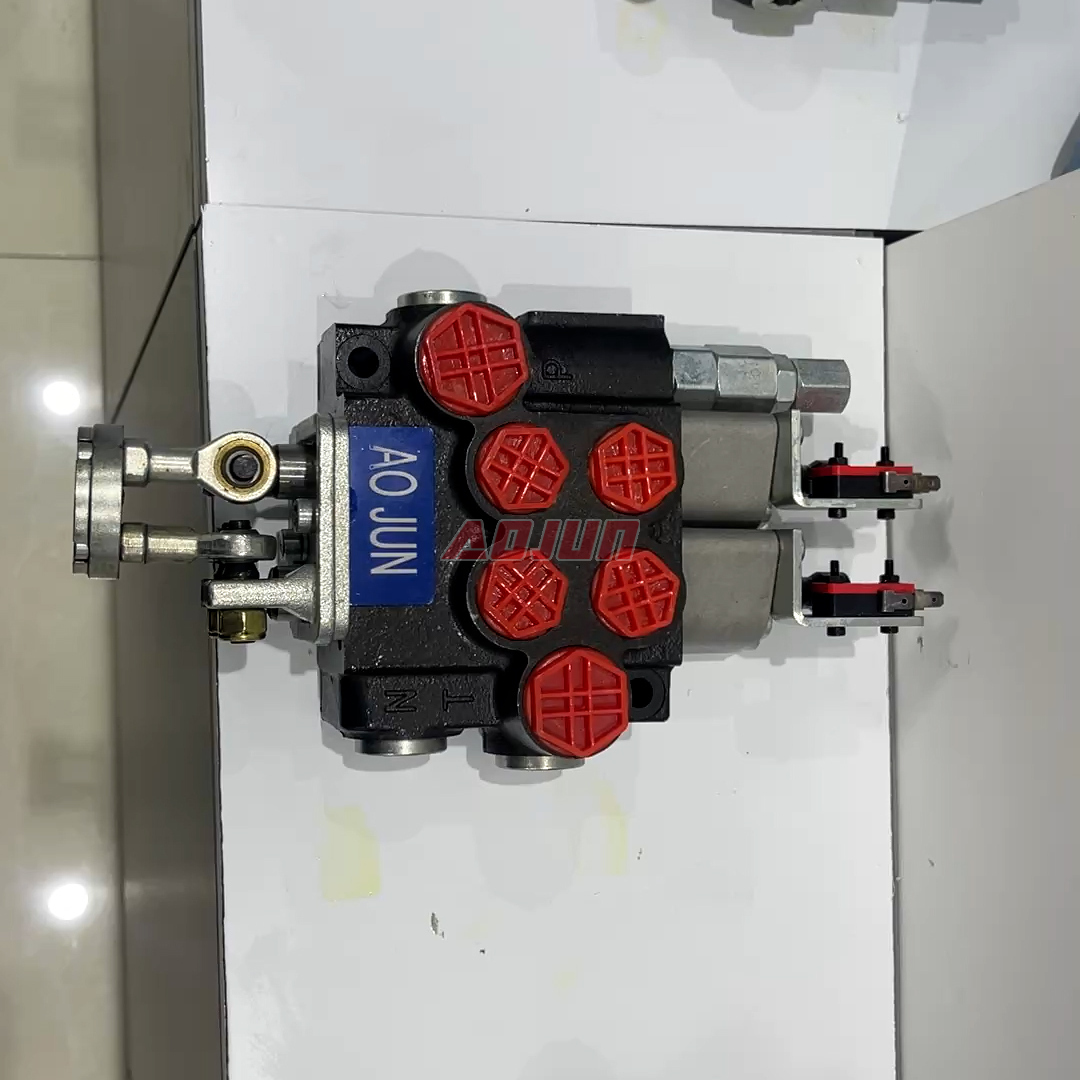

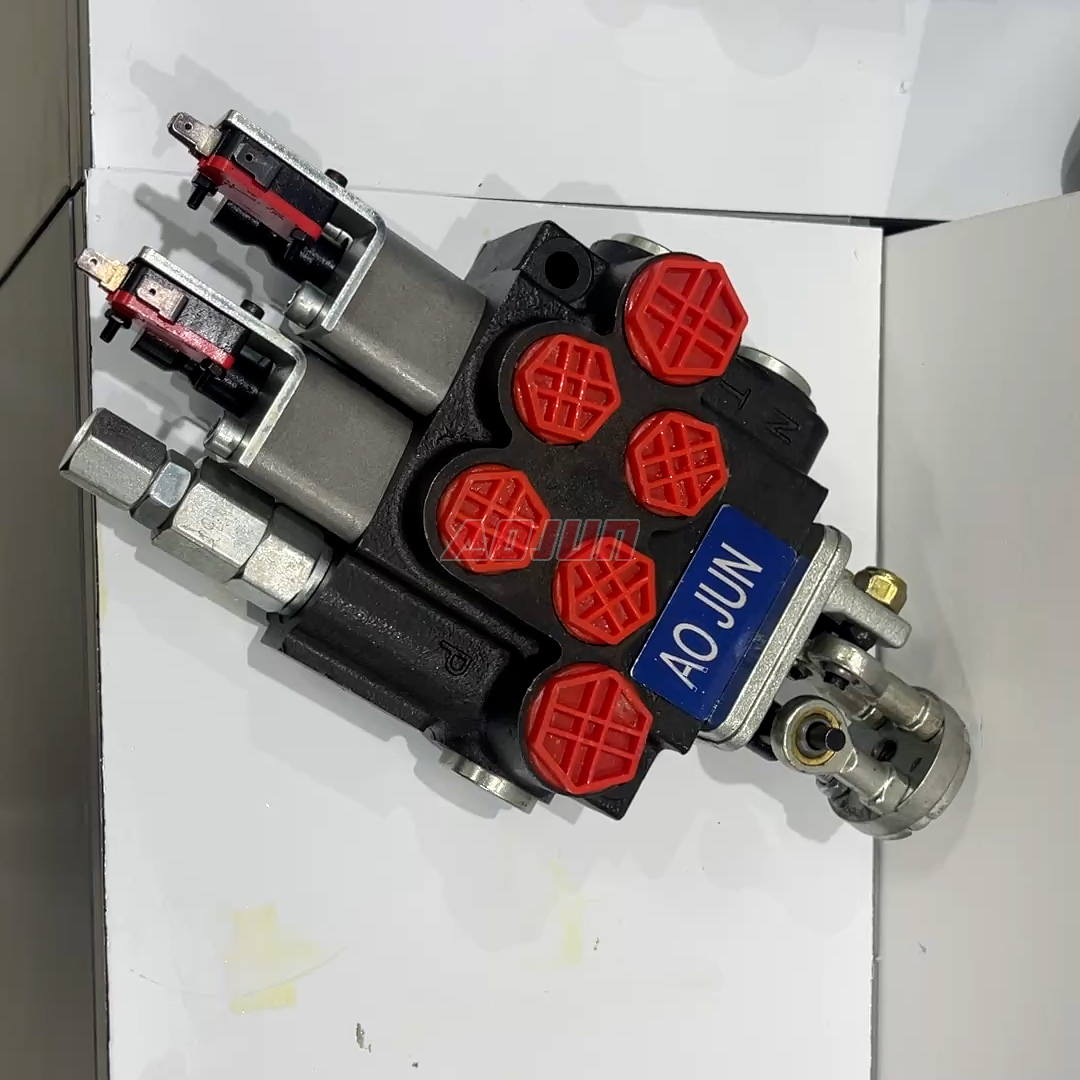

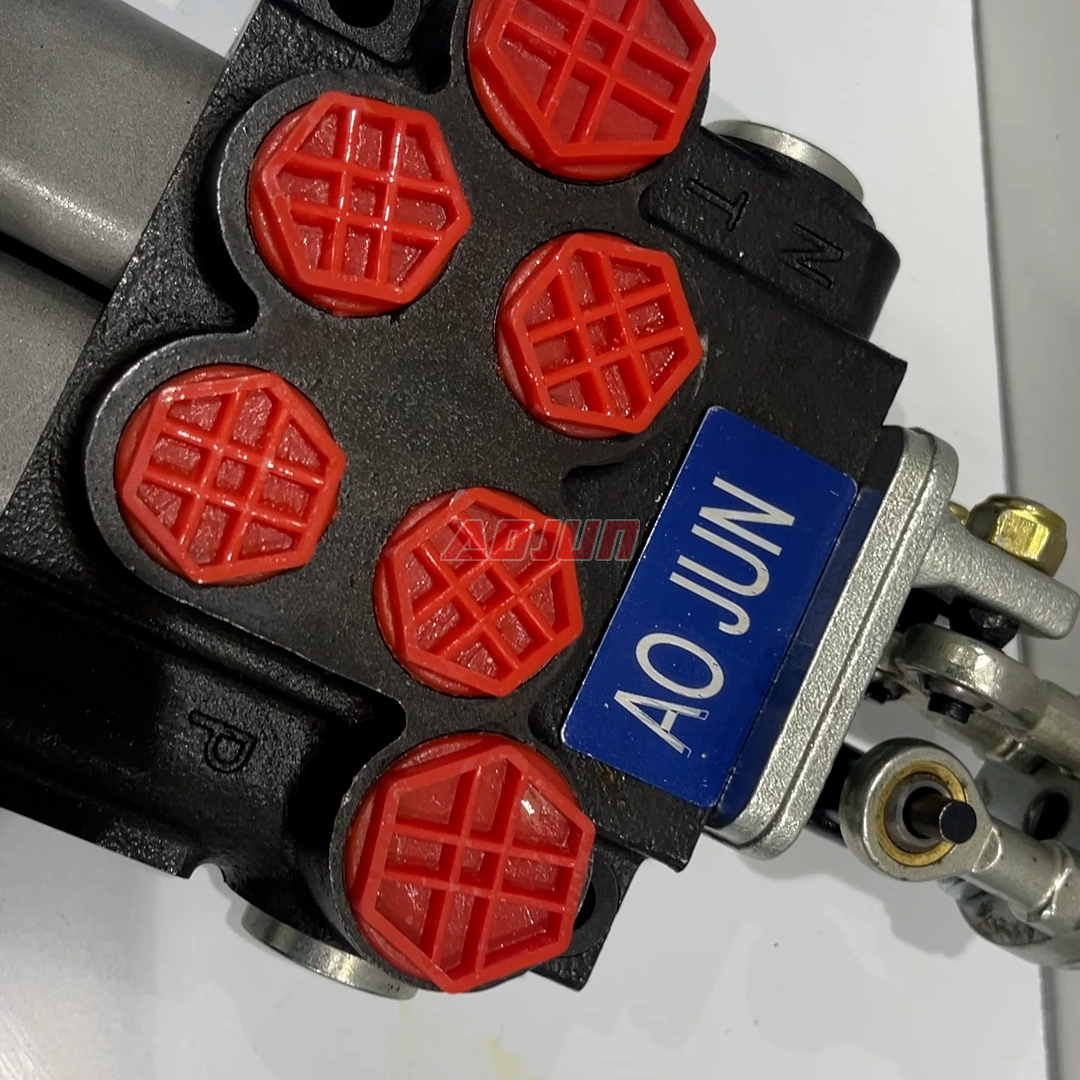

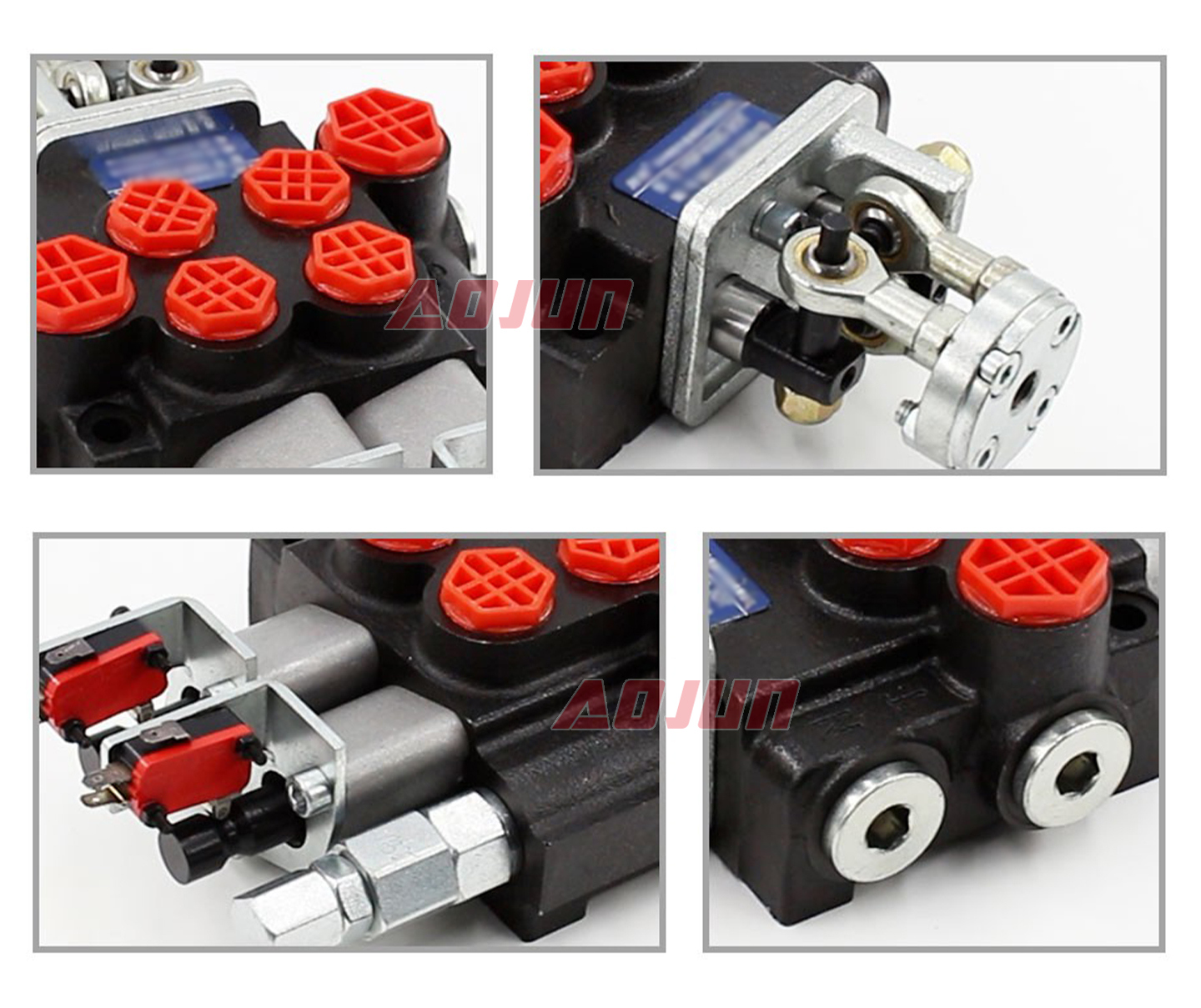

This 2-spool, 2-section monoblock directional control valve uses joystick actuation for smooth, precise metering of two hydraulic functions on mobile equipment. Rated flow is 40 L/min (10.5 US gpm) with max pressure up to 250 bar (3600 psi), suitable for loaders, telehandlers, forklifts, compact excavators, aerial platforms and agricultural attachments. It supports operating oil viscosity from 15–75 mm²/s and ambient temperature from -40°C to +80°C, improving cold-start and hot-environment reliability. Multiple inlet/outlet/working port options are available to match common installation standards: 1/2 NPT, 3/8 NPT, M22×1.5, M18×1.5, G1/2, G3/8, SAE 8, SAE 10. Designed for OEM/ODM supply, private label, customization and wholesale programs, with support for global distributors, agents and trading partners.
| P40 Series Monoblock Directional Valve Parameters | |
|---|---|
| Control Method | Manual, Pneumatic, Electro-pneumatic, Electro-hydraulic, Solenoid, Hydraulic, Hydraulic and Manual, Cable, Joystick, Manual and Joystick |
| Spool | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Rated Flow | 40 L/min (10.5 US gpm) |
| Max Pressure | 250 bar (3600 psi) |
| Inlet Port | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Outlet Port | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Port Size | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Section | 1 Section, 2 Section, 3 Section, 4 Section, 5 Section, 6 Section, 7 Section |
| Structure Type | Monoblock valve |
| Ambient Temperature Range | -40°C to +80°C (-40°F to +176°F) |
| Operating Viscosity Range | 15 - 75 mm²/s (15 cSt to 75 cSt) |
We provide OEM/ODM services. When your product orders reach a certain value, we can offer a variety of customization services, including labels, packaging, product colors, and more.
We support multiple currencies and diverse payment methods, such as T/T, L/C, Alibaba platform, China Manufacturing Payment Platform, bank transfer, and more.
We can provide samples, and the sample costs will be refunded to you in the form of deducted payments in the later stages.
