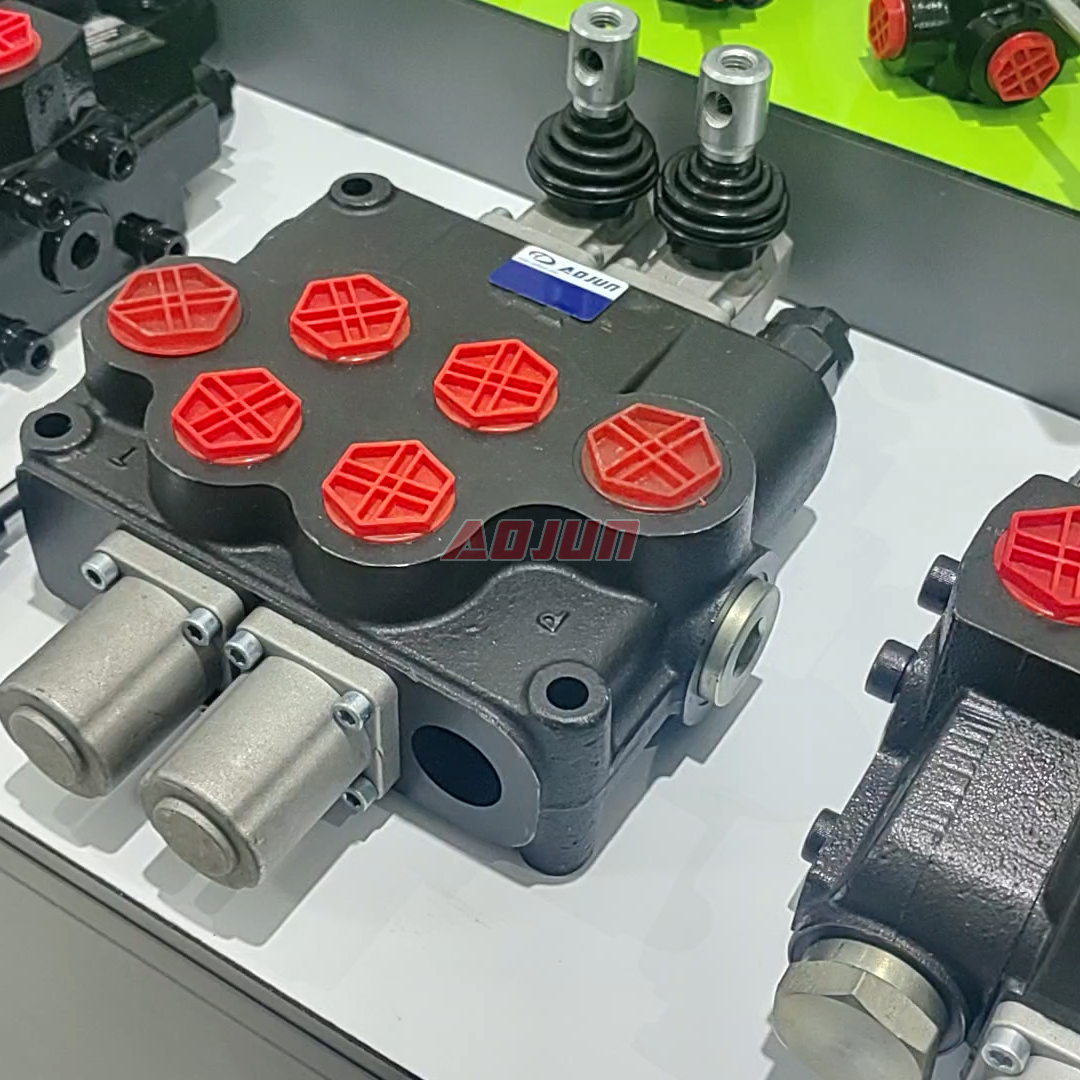

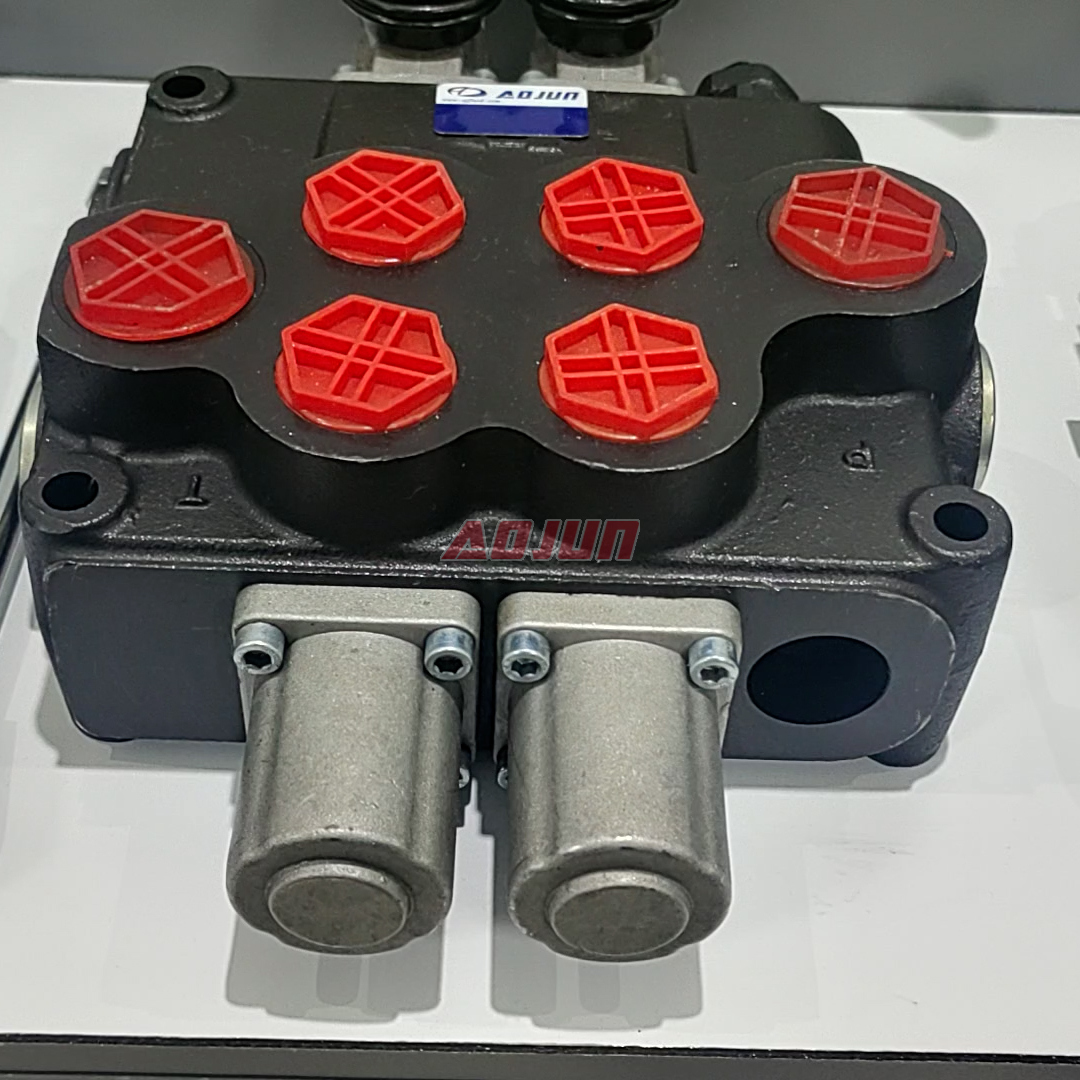

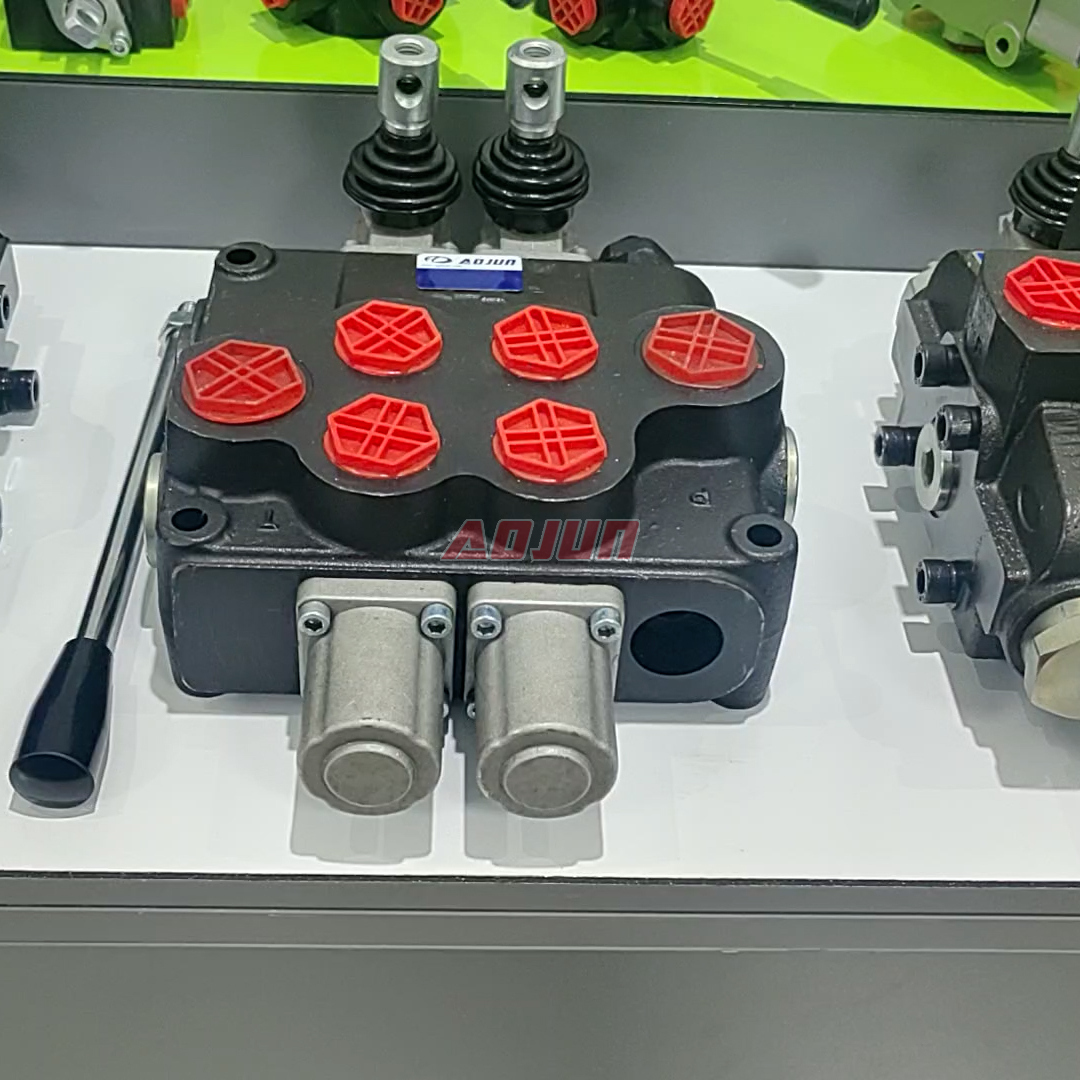

Manual 2-section monoblock hydraulic spool valve designed for mobile equipment, offering 120 L/min rated flow and up to 250 bar pressure for reliable multi-function actuation in harsh environments.
global shipping world wide
Online Service For 24 X 7
Support OEM customization
Key specs: 2-spool, 2-section monoblock construction; rated flow 120 L/min (31.7 gpm); max pressure 250 bar (3600 psi); operating viscosity 15–75 cSt; ambient temperature -40°C to +80°C.
Advantages: Monoblock body improves sealing and durability versus sectional stacks; high-flow capacity supports fast cylinder/motor response; wide viscosity and temperature range suits cold starts and heavy-duty work; manual lever control provides simple, low-cost operation with strong field serviceability.
Applications: Ideal as a main or auxiliary control valve for functions such as boom/bucket control, steering/attachments, outriggers, clamps, lift/tilt circuits, and general actuator control in construction machinery, agricultural equipment, industrial vehicles, and material-handling machines.
Supply capability: Manufacturer support for OEM/ODM, private label, customization, wholesale, and distributor/agent cooperation for global markets.
| P120 Series Monoblock Directional Valve Parameters | |
|---|---|
| Control Method | Manual, Cable, Joystick, Manual and Joystick |
| Spool | 1 Spool, 2 Spool, 3 Spool, 4 Spool |
| Section | 1 Section, 2 Section, 3 Section, 4 Section |
| Structure Type | Monoblock valve |
| Rated Flow | 120 L/min (31.7 US gpm) |
| Max Pressure | 250 bar (3600 psi) |
| Operating Viscosity Range | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| Ambient Temperature Range | -40°C to +80°C (-40°F to +176°F) |
We provide OEM/ODM services. When your product orders reach a certain value, we can offer a variety of customization services, including labels, packaging, product colors, and more.
We support multiple currencies and diverse payment methods, such as T/T, L/C, Alibaba platform, China Manufacturing Payment Platform, bank transfer, and more.
We can provide samples, and the sample costs will be refunded to you in the form of deducted payments in the later stages.
