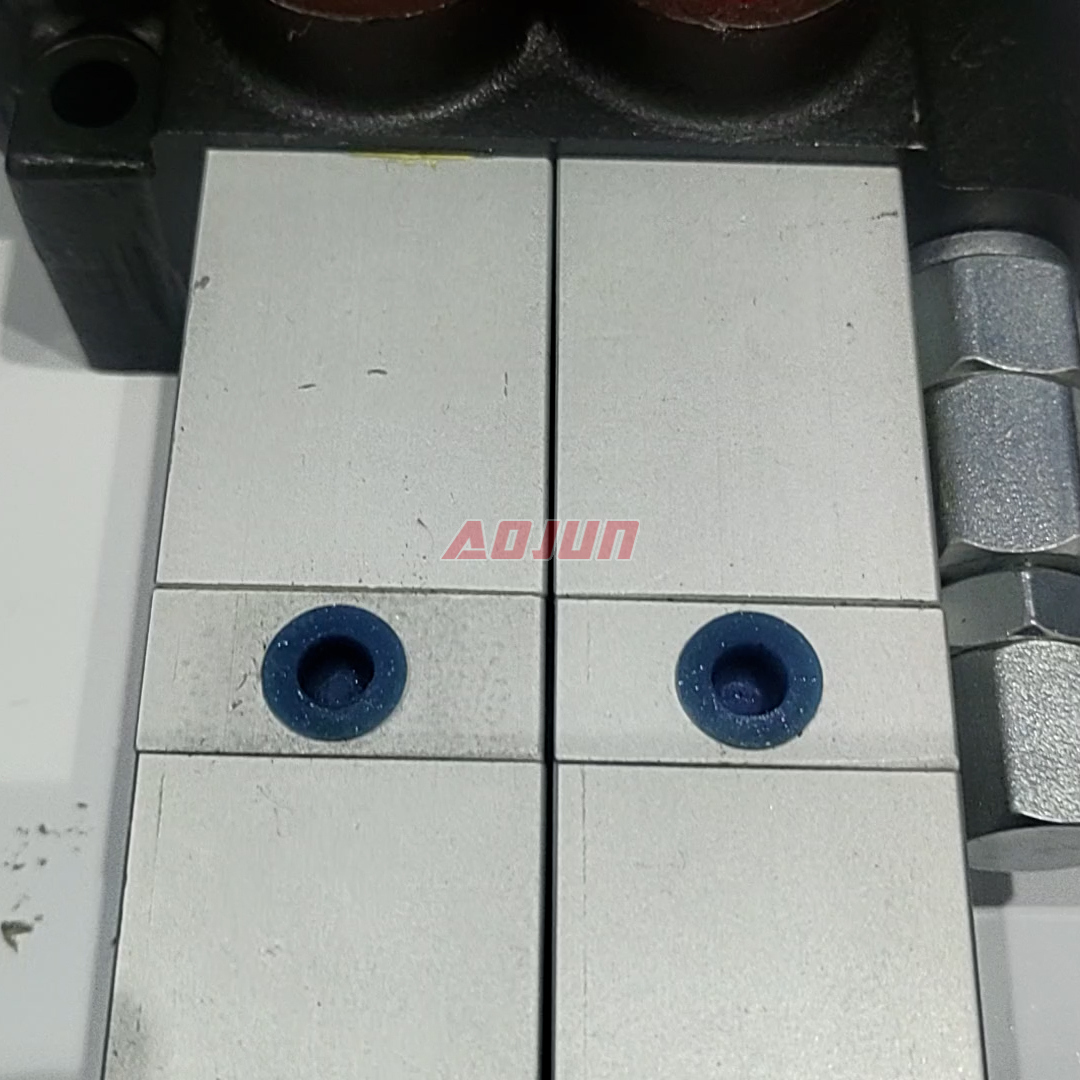

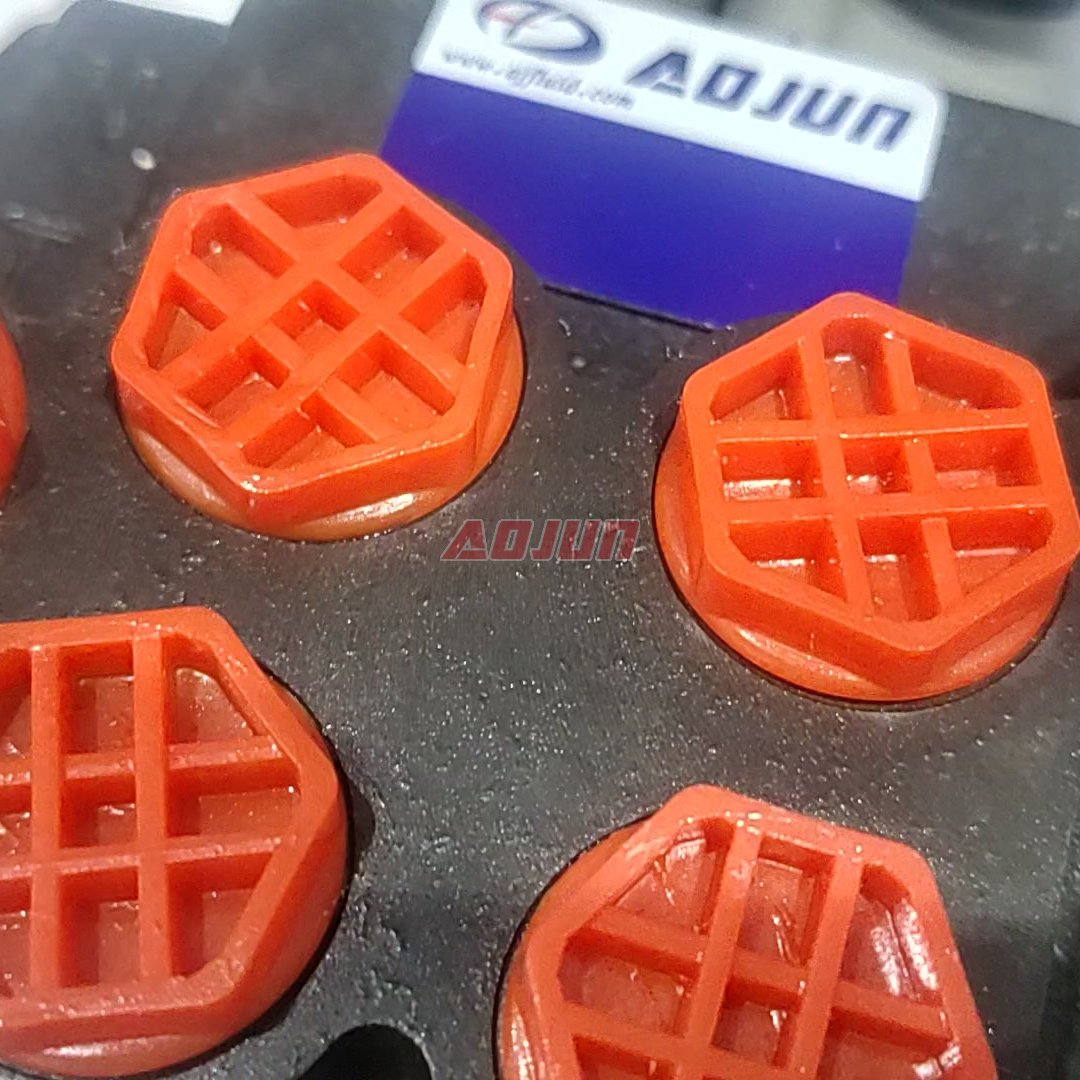

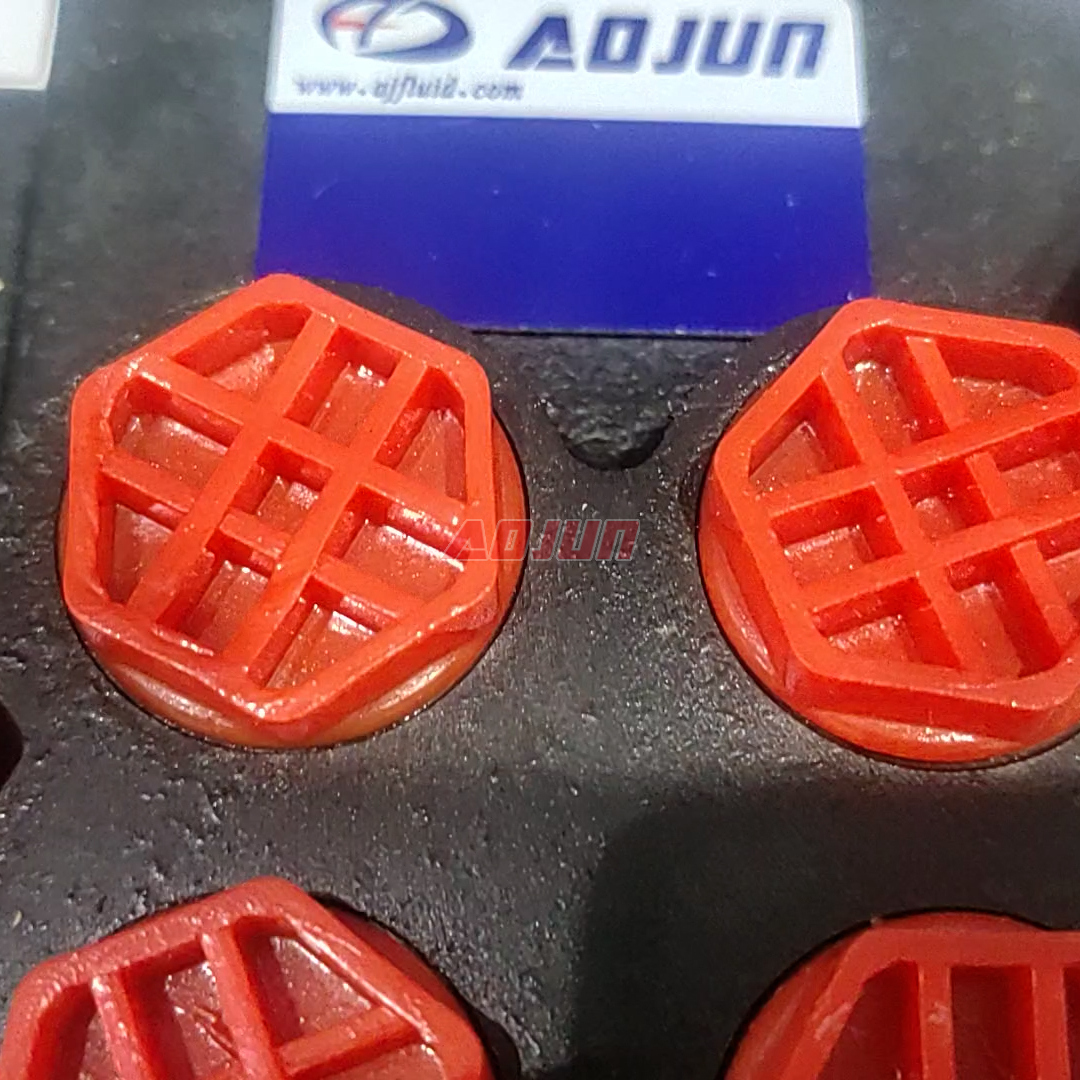

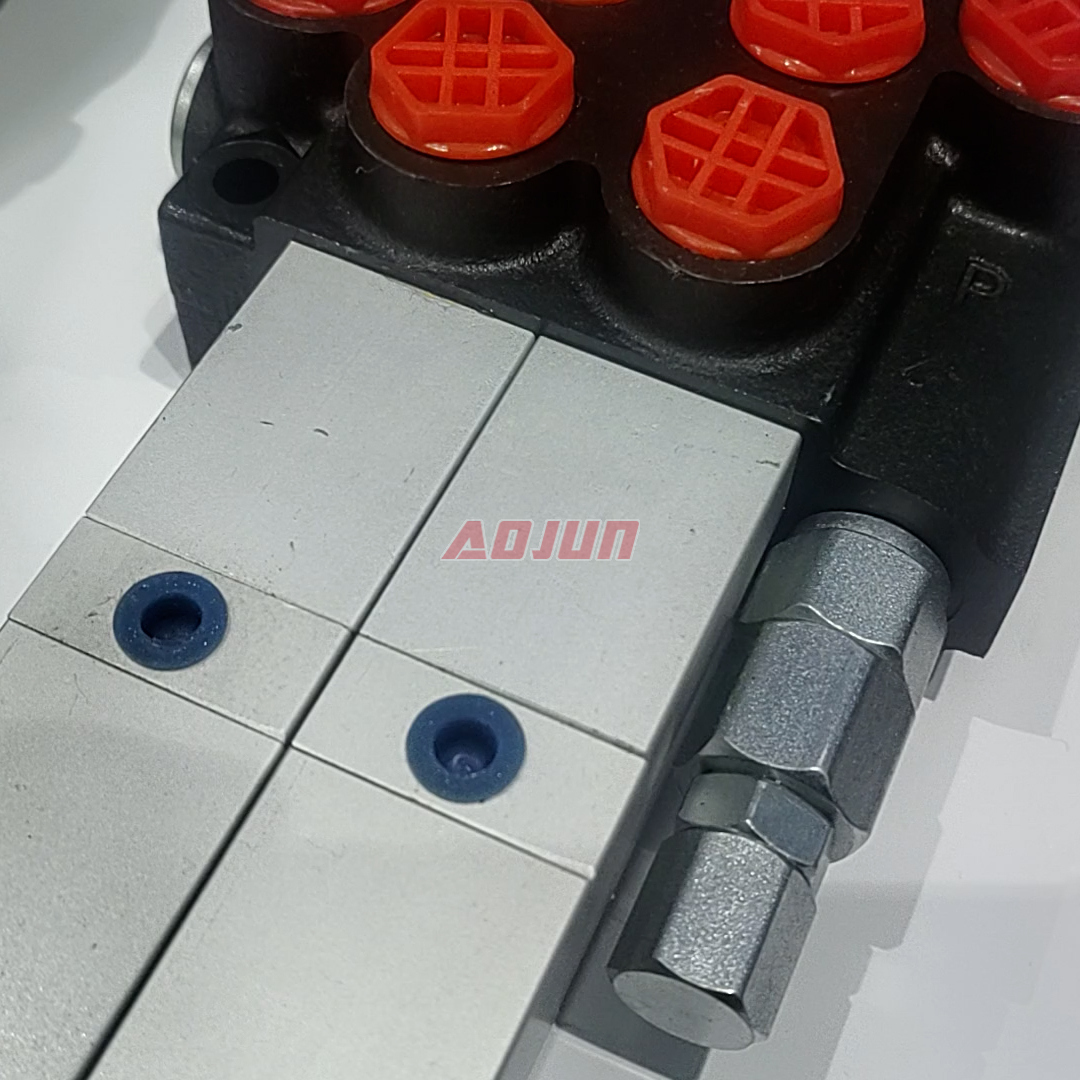

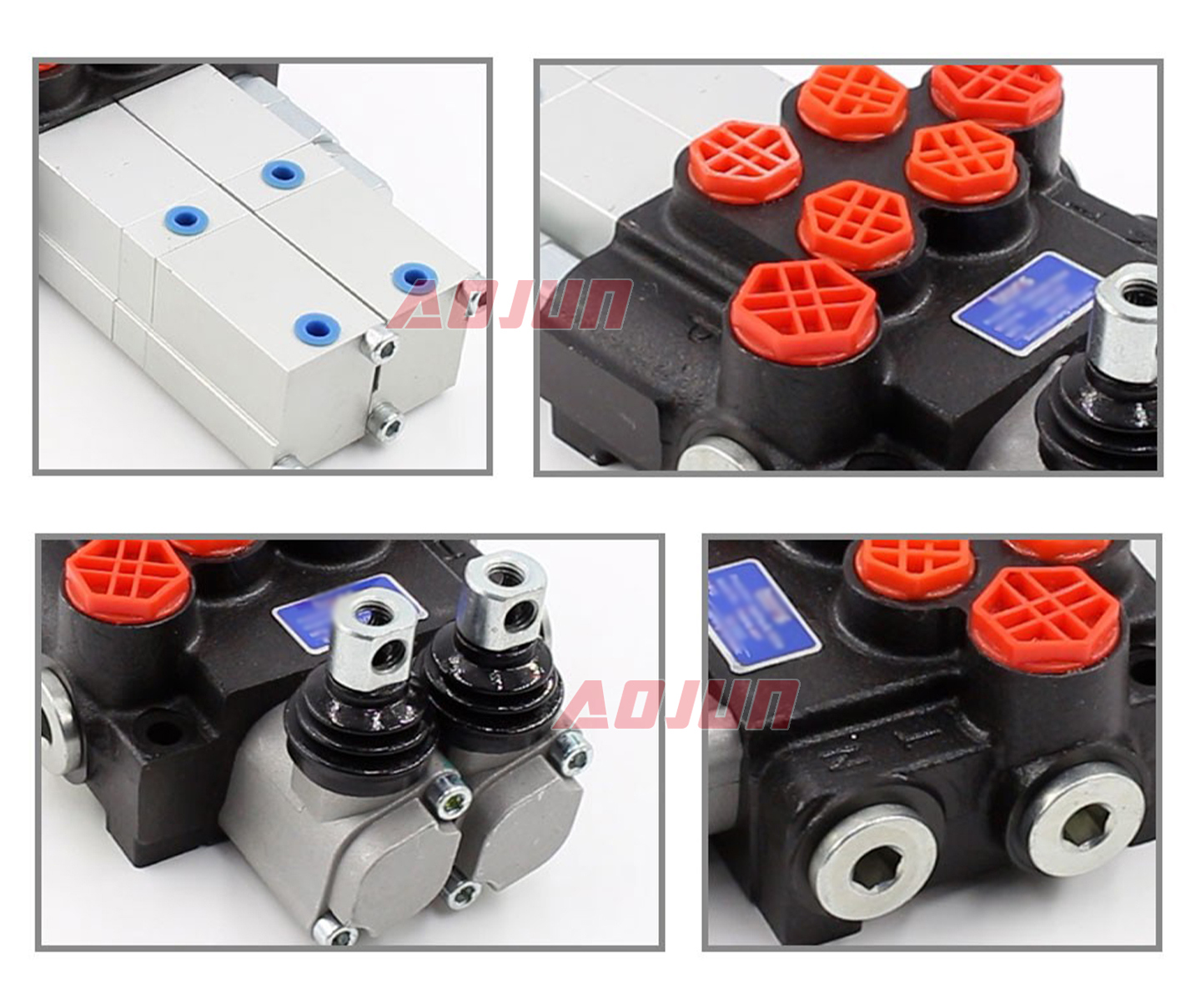

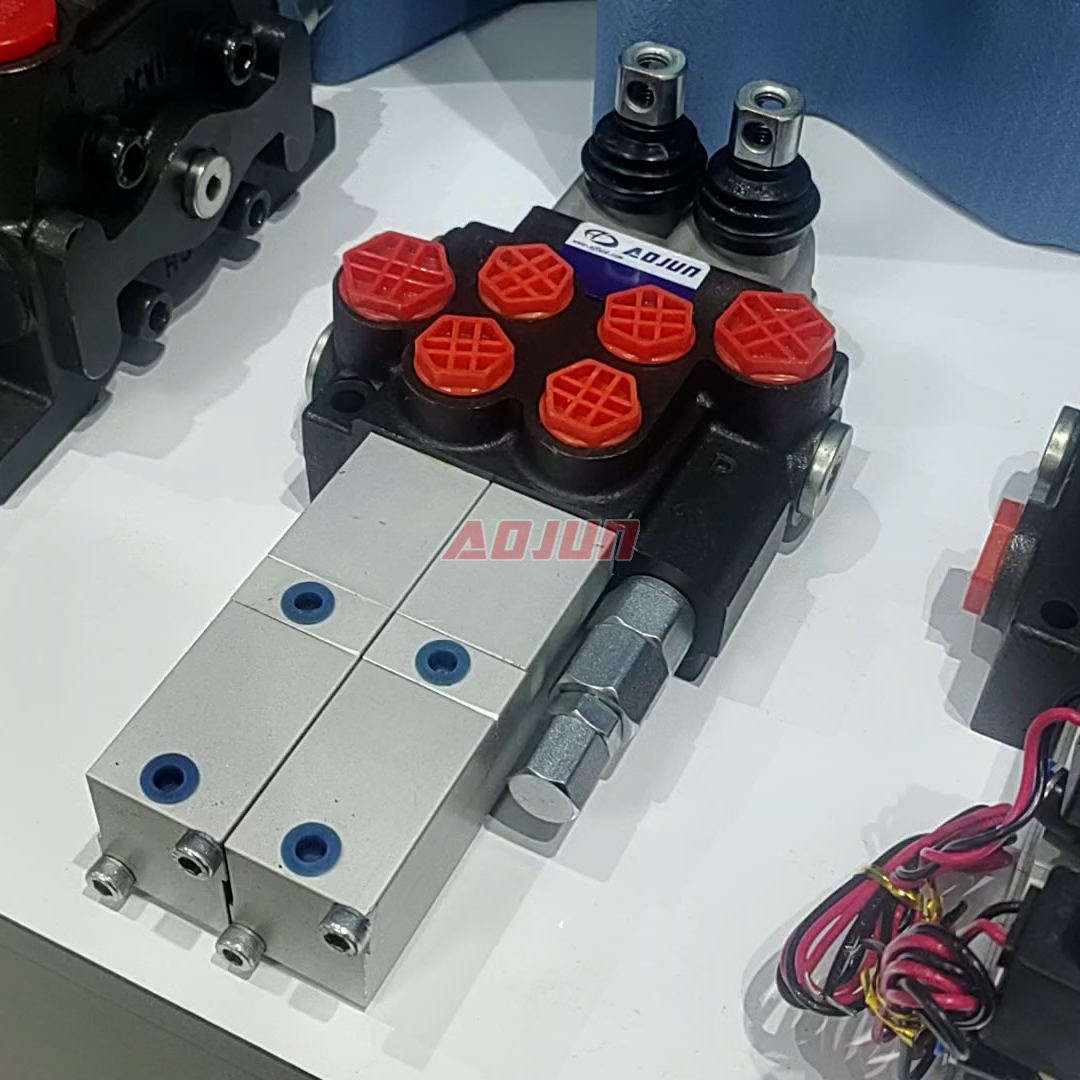

A compact 2-spool pneumatic-controlled monoblock directional valve designed for mobile hydraulic circuits, delivering up to 40 L/min flow and 250 bar working pressure with reliable performance in harsh temperatures.
global shipping world wide
Online Service For 24 X 7
Support OEM customization
This 2-section monoblock valve uses pneumatic actuation for safer remote operation and reduced operator effort in mobile equipment. Rated flow is 40 L/min (10.5 US gpm) with max pressure up to 250 bar (3600 psi), suitable for common functions such as lift/lower, tilt, steering assist, clamp/attachment actuation, and auxiliary services. Designed for stable operation with hydraulic oils in the 15–75 mm²/s viscosity range and ambient temperatures from -40°C to +80°C, supporting cold-start and high-heat working environments. The monoblock structure helps minimize external leak paths and keeps the assembly compact for tight installations. We support manufacturing, OEM/ODM, private label, customization, wholesale supply, and partner programs for distributors/agents/traders for global markets.
| P40 Series Monoblock Directional Valve Parameters | |
|---|---|
| Spool | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |

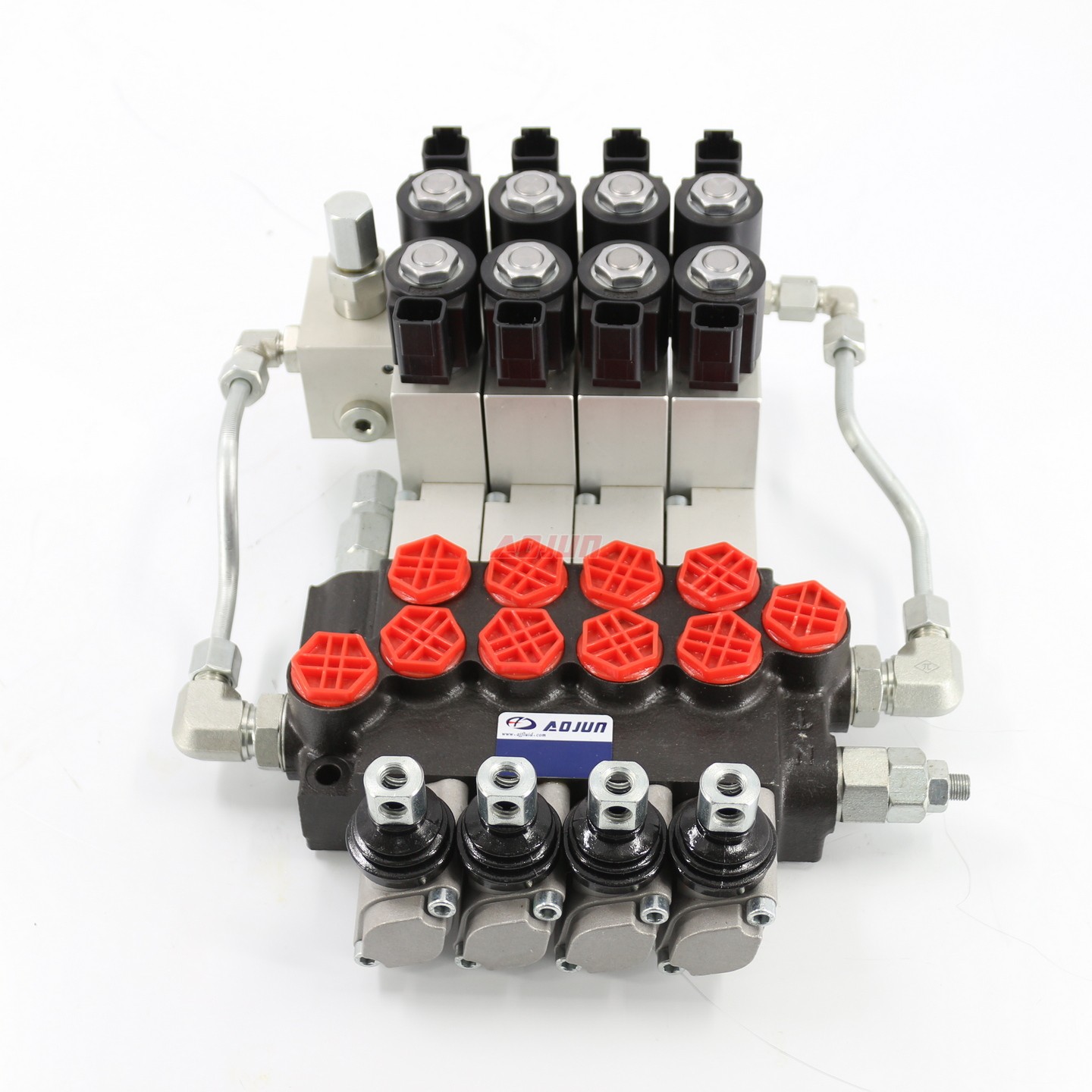

| Control Method | Manual, Pneumatic, Electro-pneumatic, Electro-hydraulic, Solenoid, Hydraulic and Manual, Cable, Joystick, Solenoid and Joystick |
| Ambient Temperature Range | -40°C to +80°C (-40°F to +176°F) |
| Operating Viscosity Range | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| Max Pressure | 250 bar (3600 psi) |
| Rated Flow | 40 L/min (10.5 US gpm) |
| Structure Type | Monoblock valve |
| Section | 1 Section, 2 Section, 3 Section, 4 Section, 5 Section, 6 Section, 7 Section |
