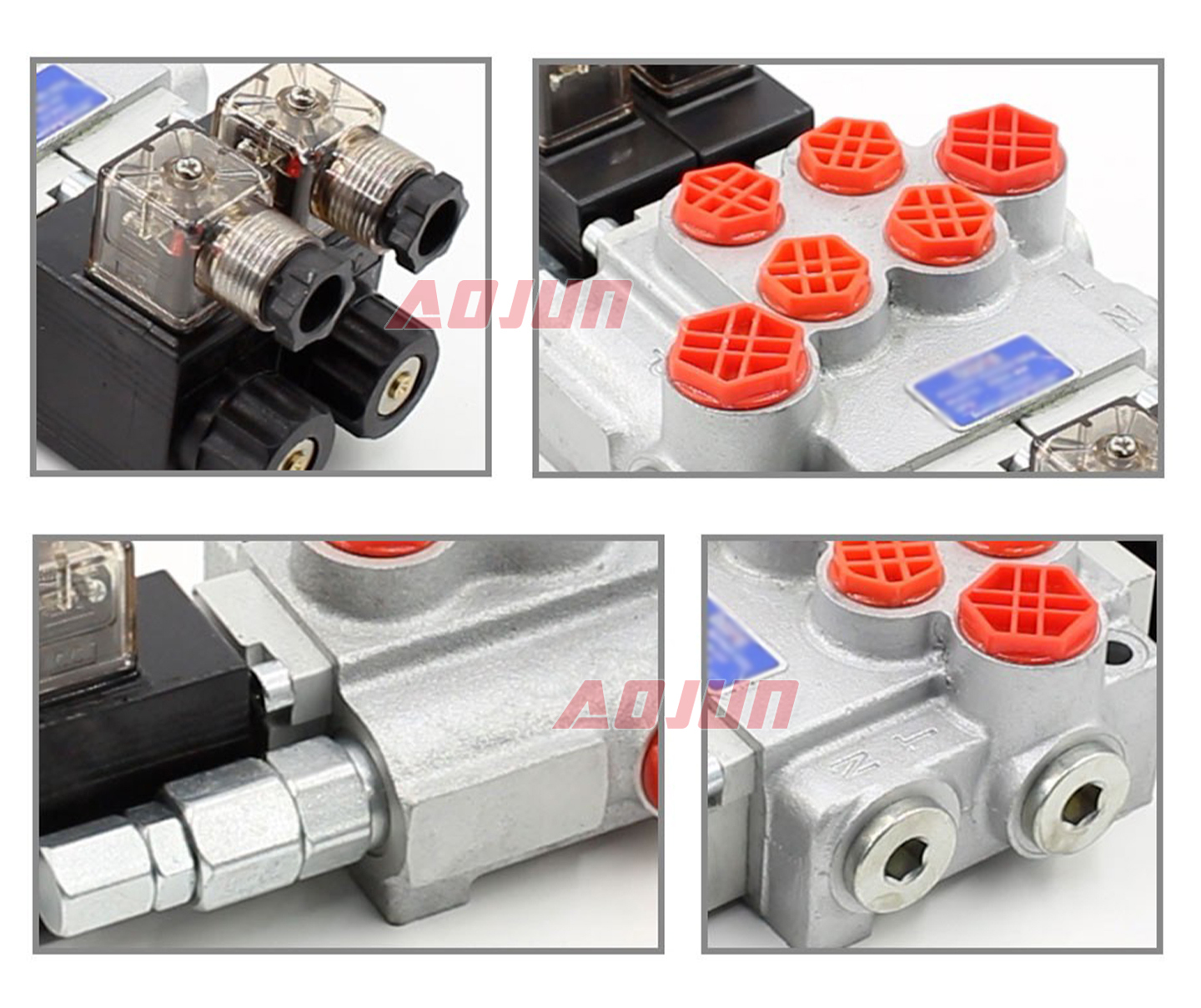

A 2-section, solenoid-operated monoblock directional control valve designed for mobile hydraulic systems, delivering 40 L/min flow and up to 250 bar pressure with reliable performance across wide oil viscosity and ambient temperature ranges.
global shipping world wide
Online Service For 24 X 7
Support OEM customization
This solenoid-controlled monoblock directional valve integrates two spool sections in a compact body for simplified plumbing and reduced leakage points versus multi-piece stack designs. Rated flow is 40 L/min with maximum working pressure up to 250 bar, making it suitable for auxiliary functions, implements, and actuator control on mobile machinery. It supports common hydraulic oil viscosity ranges (15–75 mm²/s) and harsh environments with an ambient temperature range from -40°C to +80°C. Typical applications include attachment actuation, stabilizers, lifting/tilting circuits, and other on/off directional control tasks on telehandlers, forklifts, loaders, compact excavators, and agricultural equipment. Factory services include OEM/ODM, private label, customization (ports, mounting, spool functions, coil voltage/options by request), bulk supply, and distributor/agent cooperation for global markets.
| P40-DKL Series Monoblock Directional Valve Parameters | |
|---|---|
| Control Method | Manual, Pneumatic, Electro-pneumatic, Electro-hydraulic, Solenoid, Hydraulic, Hydraulic and Manual, Cable, Joystick, Electric, Manual and Joystick |
| Spool | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Section | 1 Section, 2 Section, 3 Section, 4 Section, 5 Section, 6 Section, 7 Section |
| Structure Type | Monoblock valve |
| Rated Flow | 40 L/min (10.5 US gpm) |
| Max Pressure | 250 bar (3600 psi) |
| Operating Viscosity Range | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| Ambient Temperature Range | -40°C to +80°C (-40°F to +176°F) |
