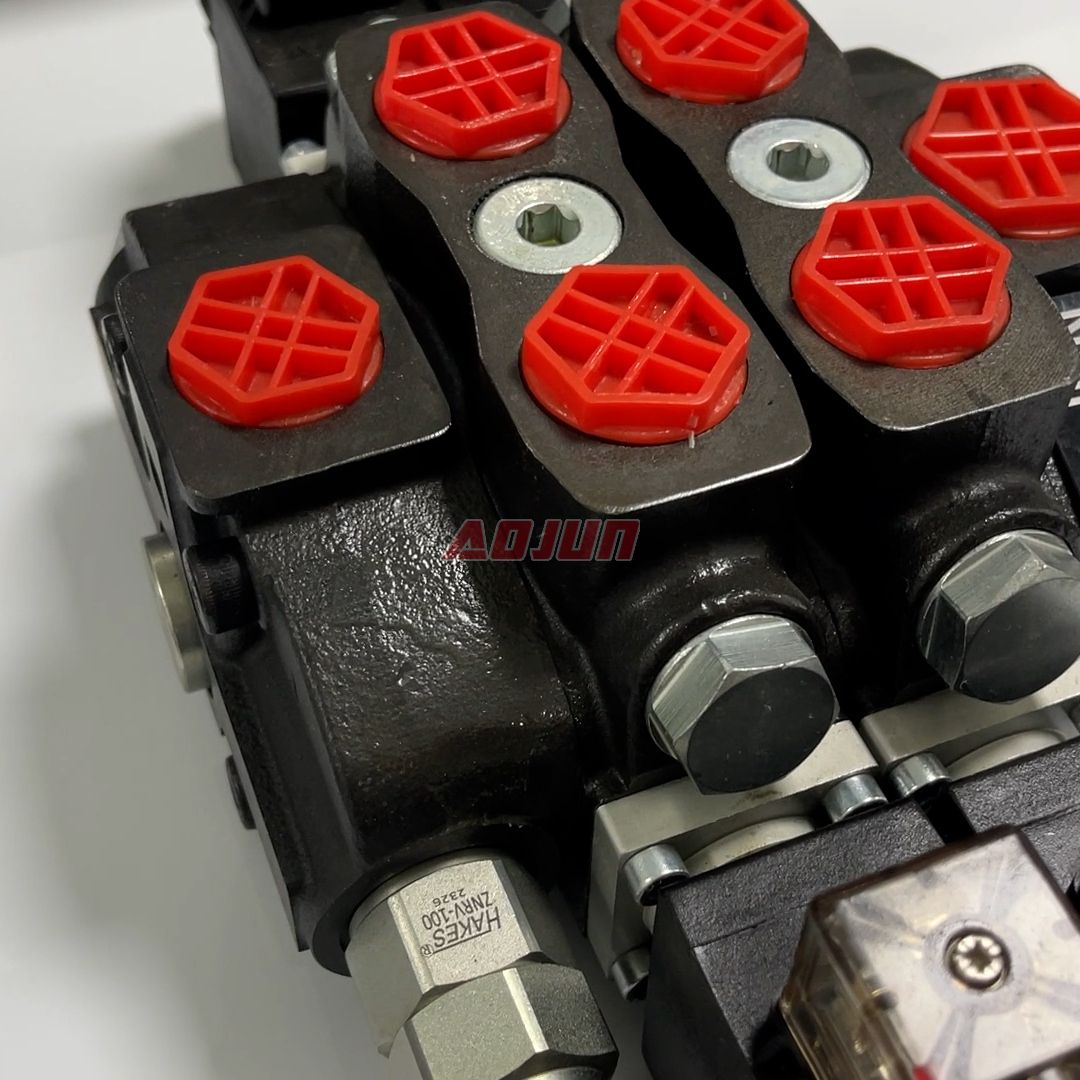

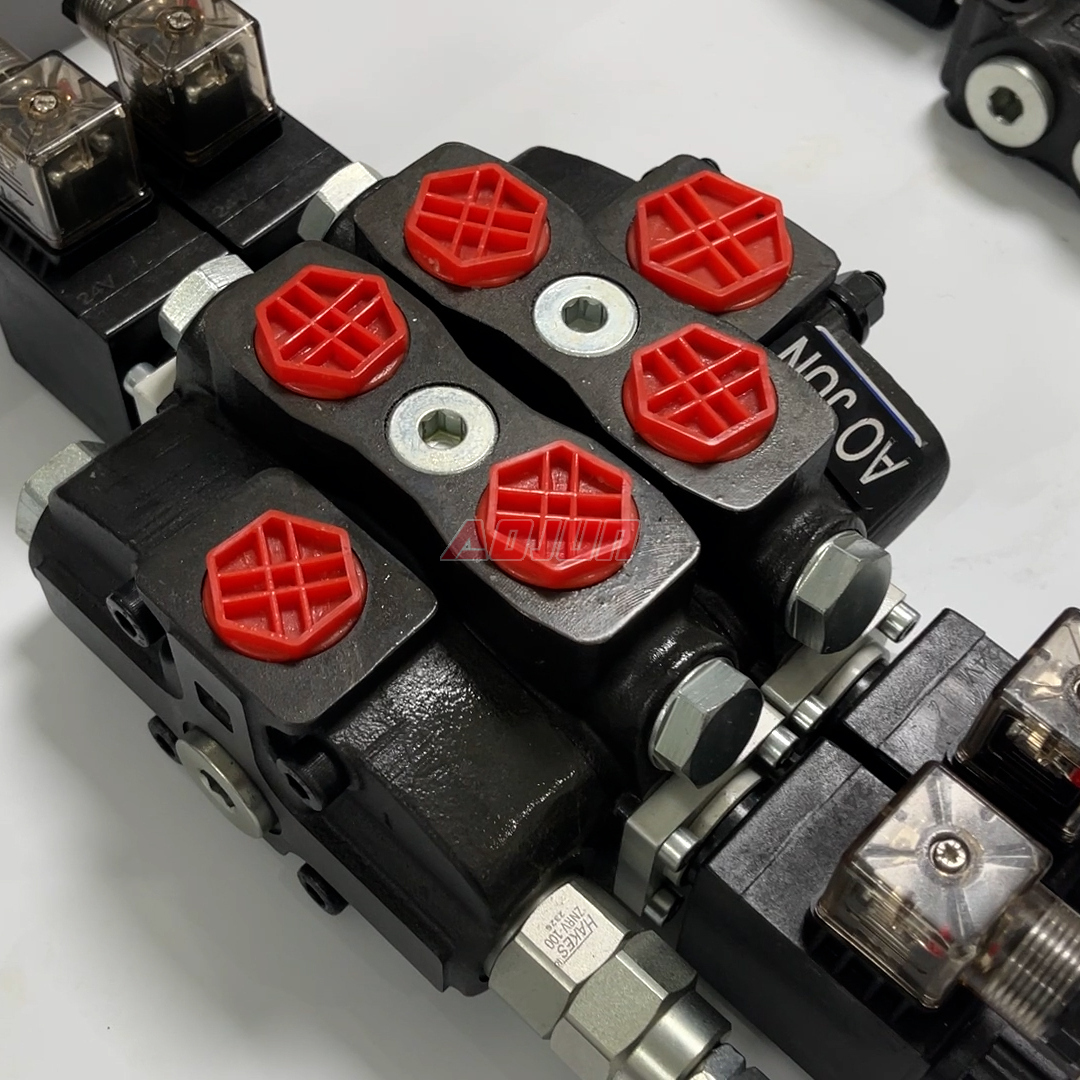

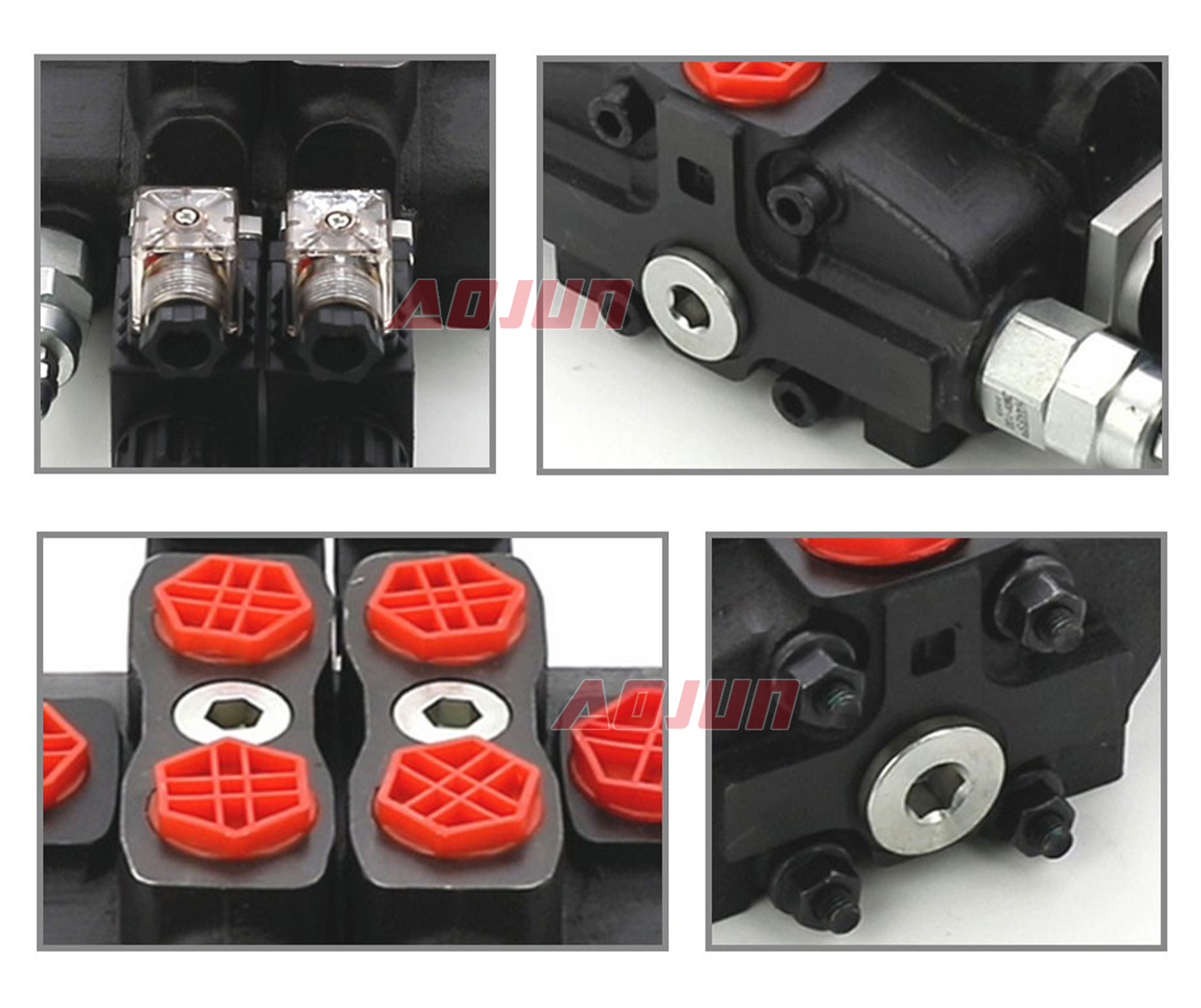

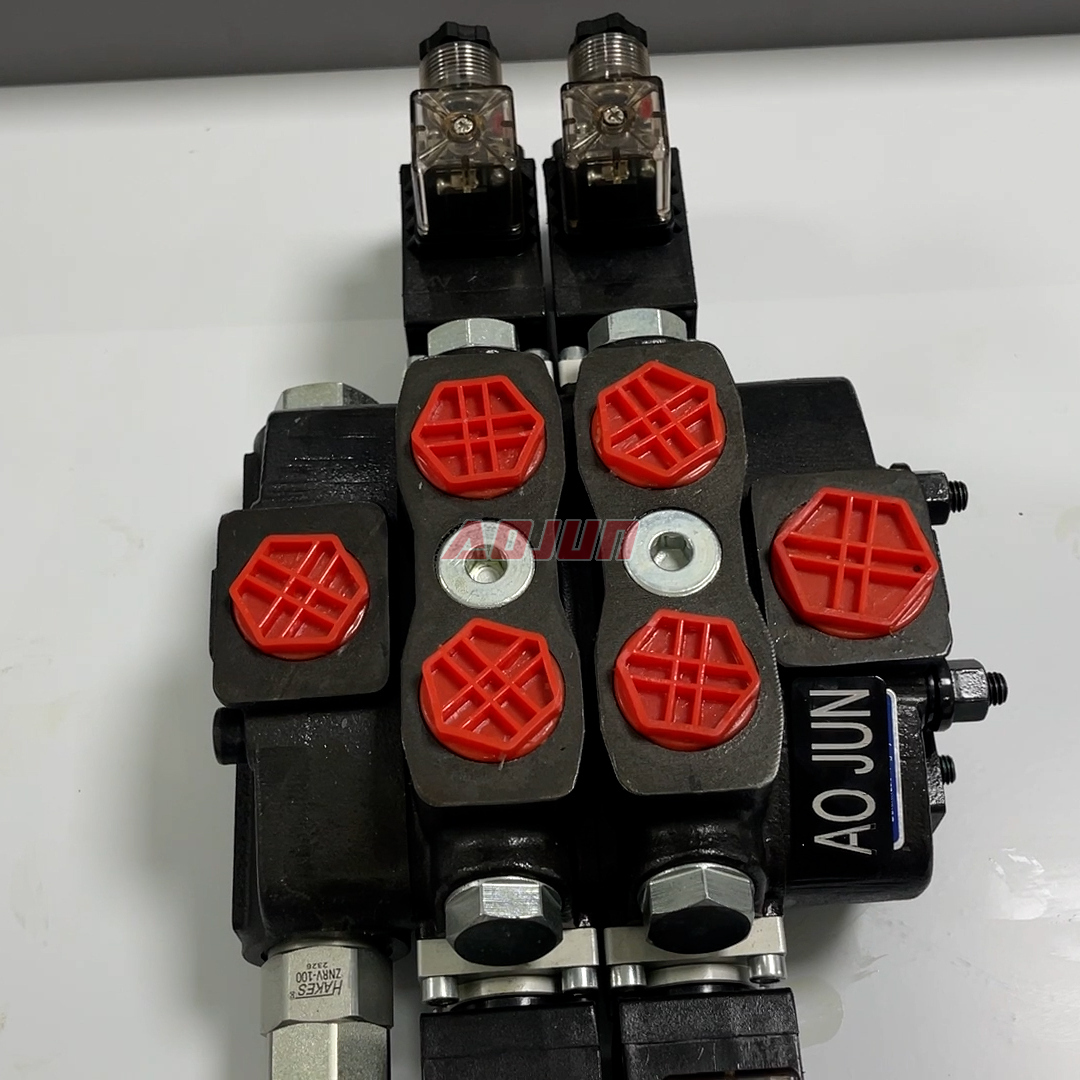

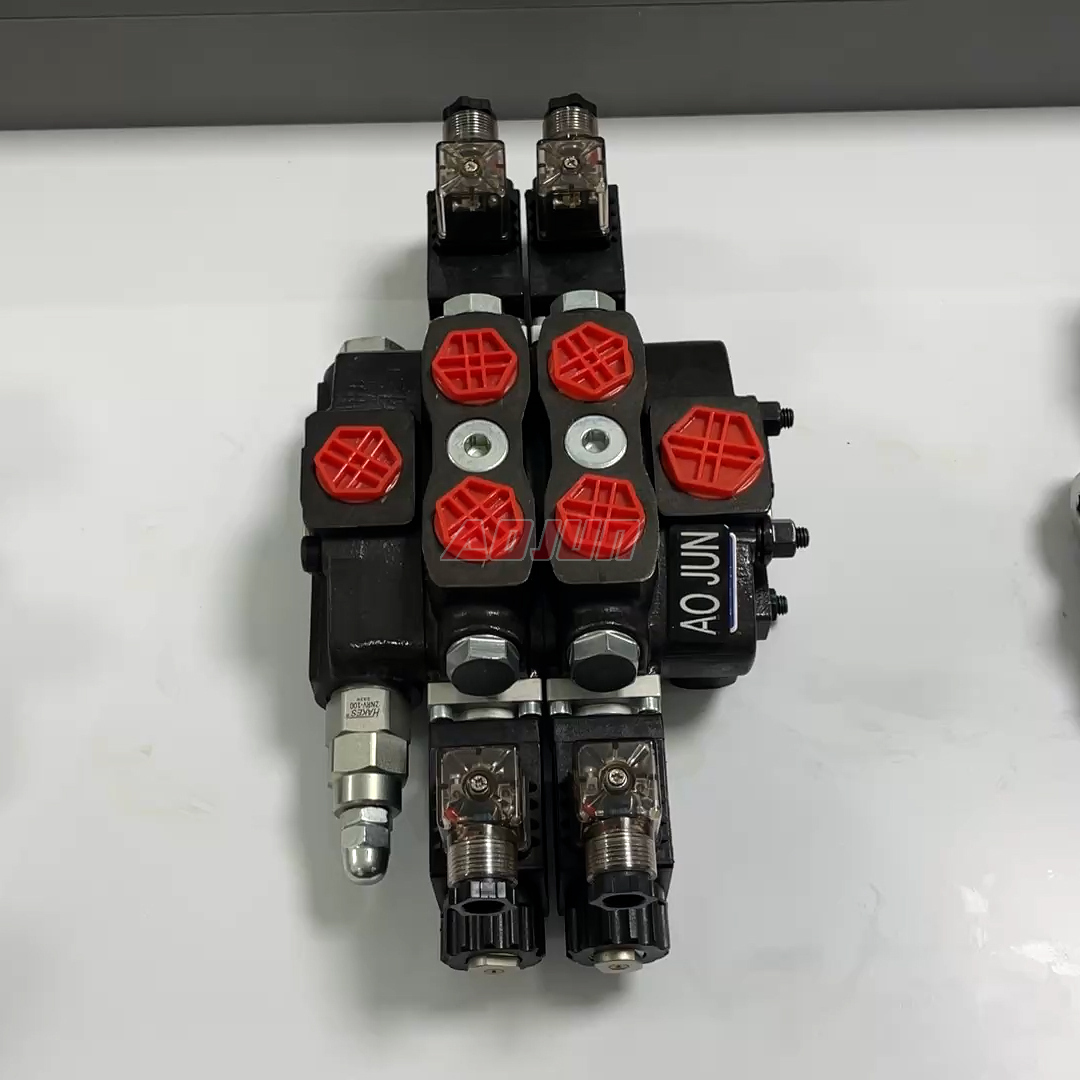

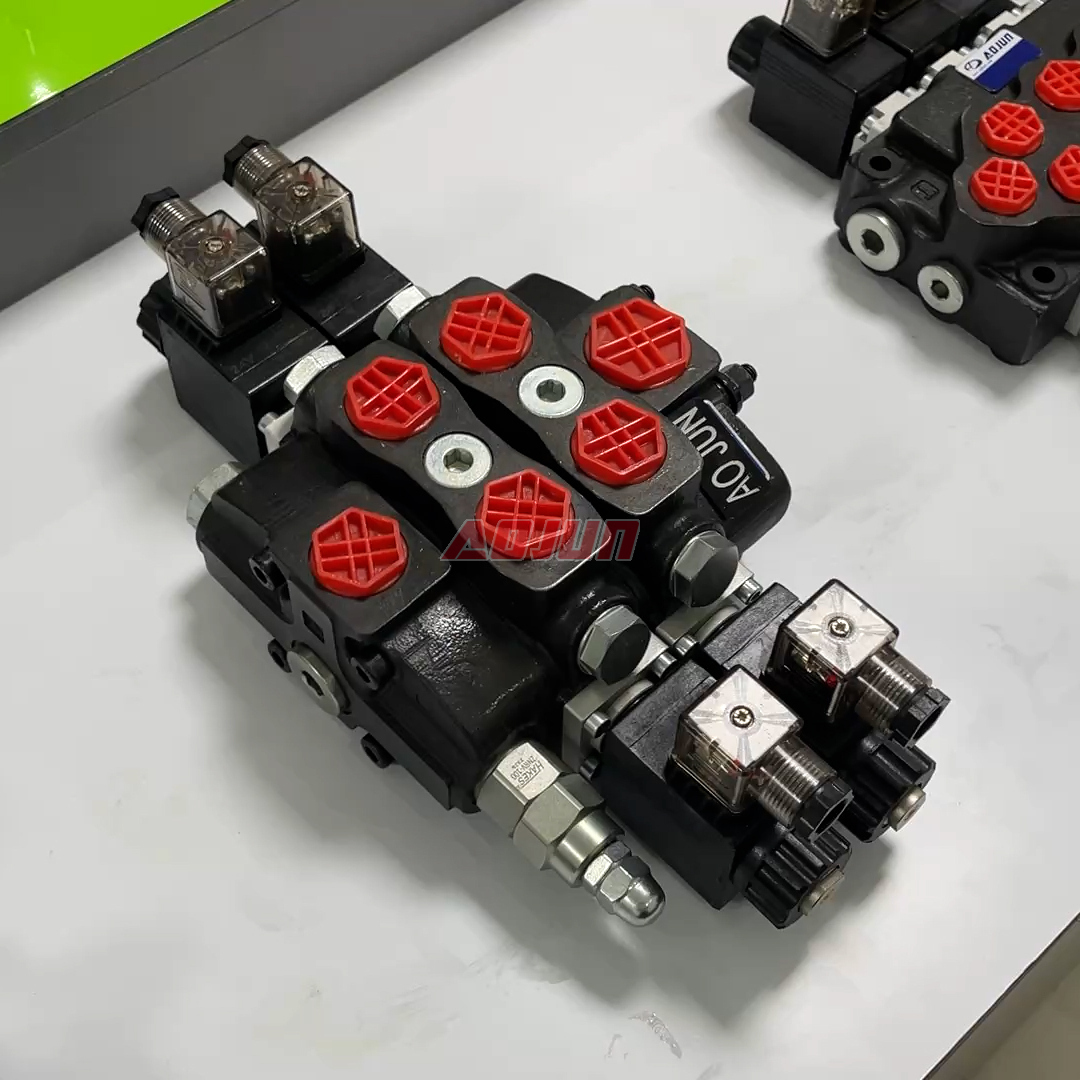

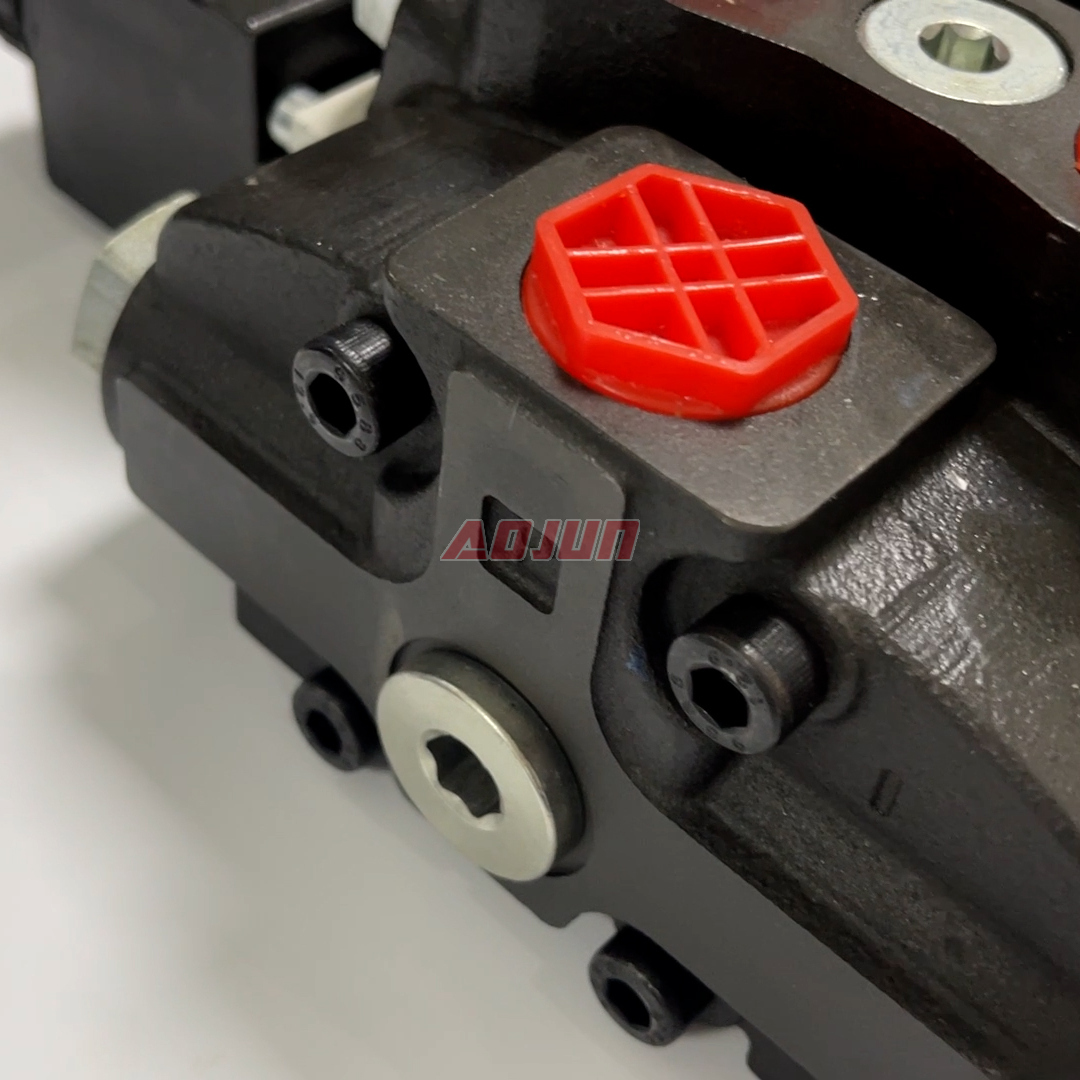

2-section solenoid-operated sectional directional valve designed for mobile hydraulic machines, delivering up to 90 L/min flow and high-pressure capability up to 350 bar, with reliable operation across wide viscosity and temperature ranges.
global shipping world wide
Online Service For 24 X 7
Support OEM customization
This 2-section (2-spool) solenoid-controlled sectional directional valve is built for compact, multi-function hydraulic control on mobile and industrial equipment. Rated flow is 90 L/min (23.8 US gpm) for responsive actuator control, while maximum pressure reaches 350 bar (5100 psi) for demanding work circuits (also available/used at 250 bar / 3600 psi depending on circuit design). The valve supports a broad operating viscosity range of 12–400 mm²/s, enabling stable performance from cold start to high-temperature operation, and it is suitable for harsh environments with an ambient range of -40°C to +80°C. Typical applications include boom/attachment functions, auxiliary hydraulics, and on-off directional control where fast electrical actuation is preferred. As a manufacturer, we support OEM/ODM, private labeling, customization, bulk supply, and cooperation with distributors/wholesalers/agents for global markets.
| SD8 Series Sectional Directional Valve Parameters | |
|---|---|
| Control Method | Manual, Pneumatic, Electro-pneumatic, Electro-hydraulic, Solenoid, Hydraulic, Hydraulic and Manual, Cable, Joystick, Solenoid and Joystick, Manual and Joystick |
| Spool | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool, 8 Spool, 9 Spool, 10 Spool |
| Section | 1 Section, 2 Section, 3 Section, 4 Section, 5 Section, 6 Section, 7 Section, 8 Section, 9 Section, 10 Section |
| Structure Type | Sectional valve |
| Rated Flow | 90 L/min (23.8 US gpm) |
| Max Pressure | 250 bar (3600 psi), 350 bar (5100 psi) |
| Operating Viscosity Range | 12 - 400 mm²/s (12 cSt to 400 cSt) |
| Ambient Temperature Range | -40°C to +80°C (-40°F to +176°F) |
