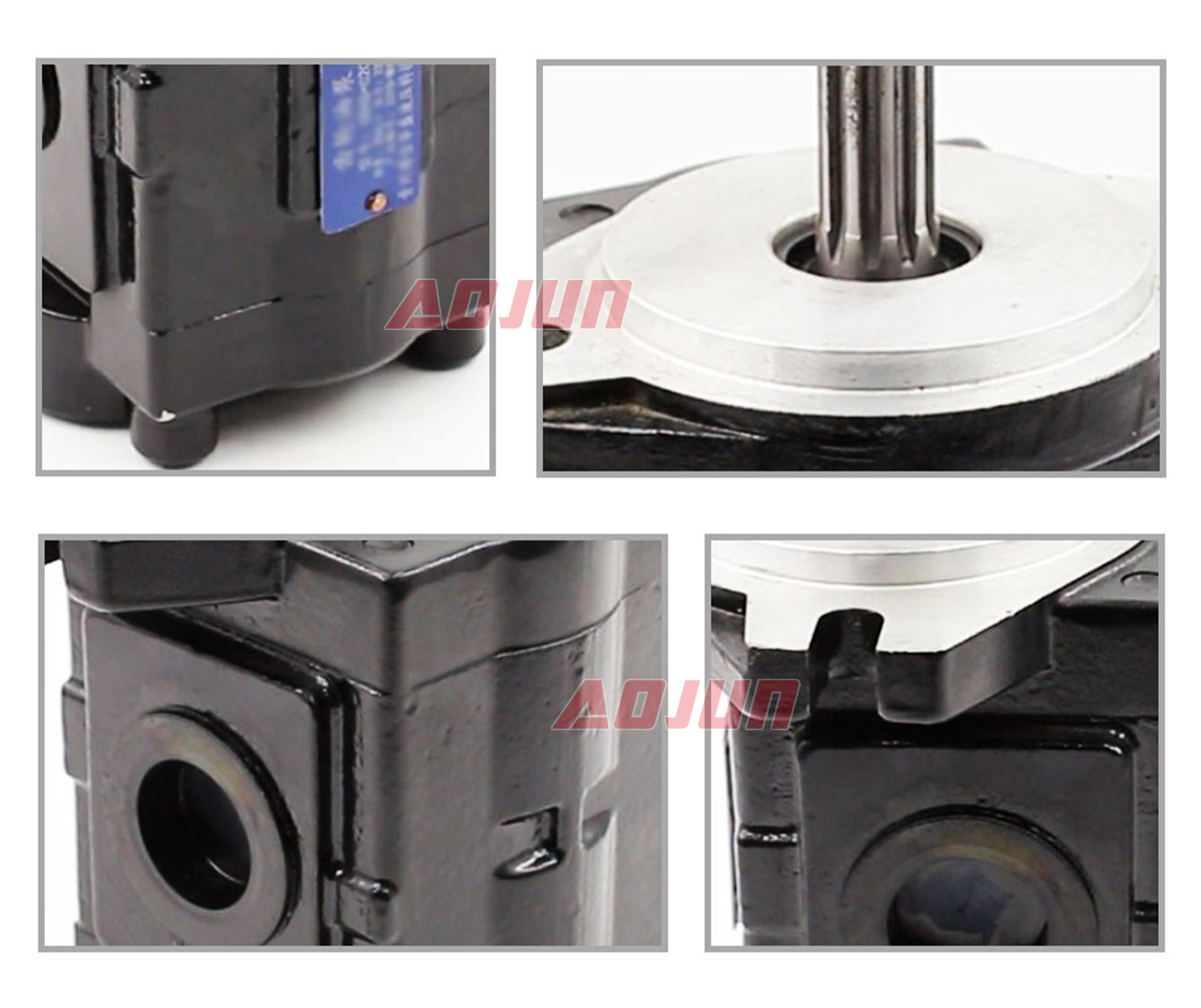

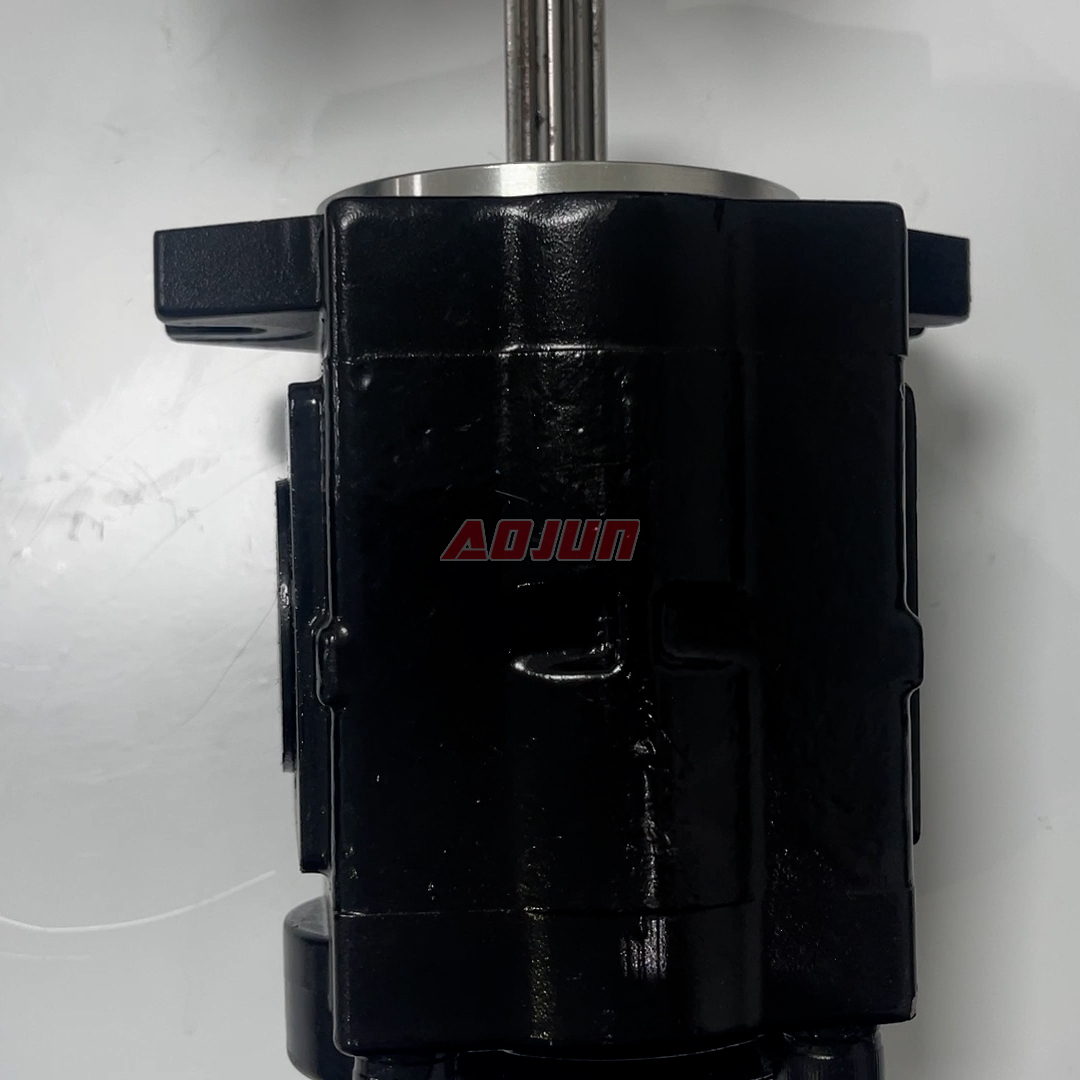

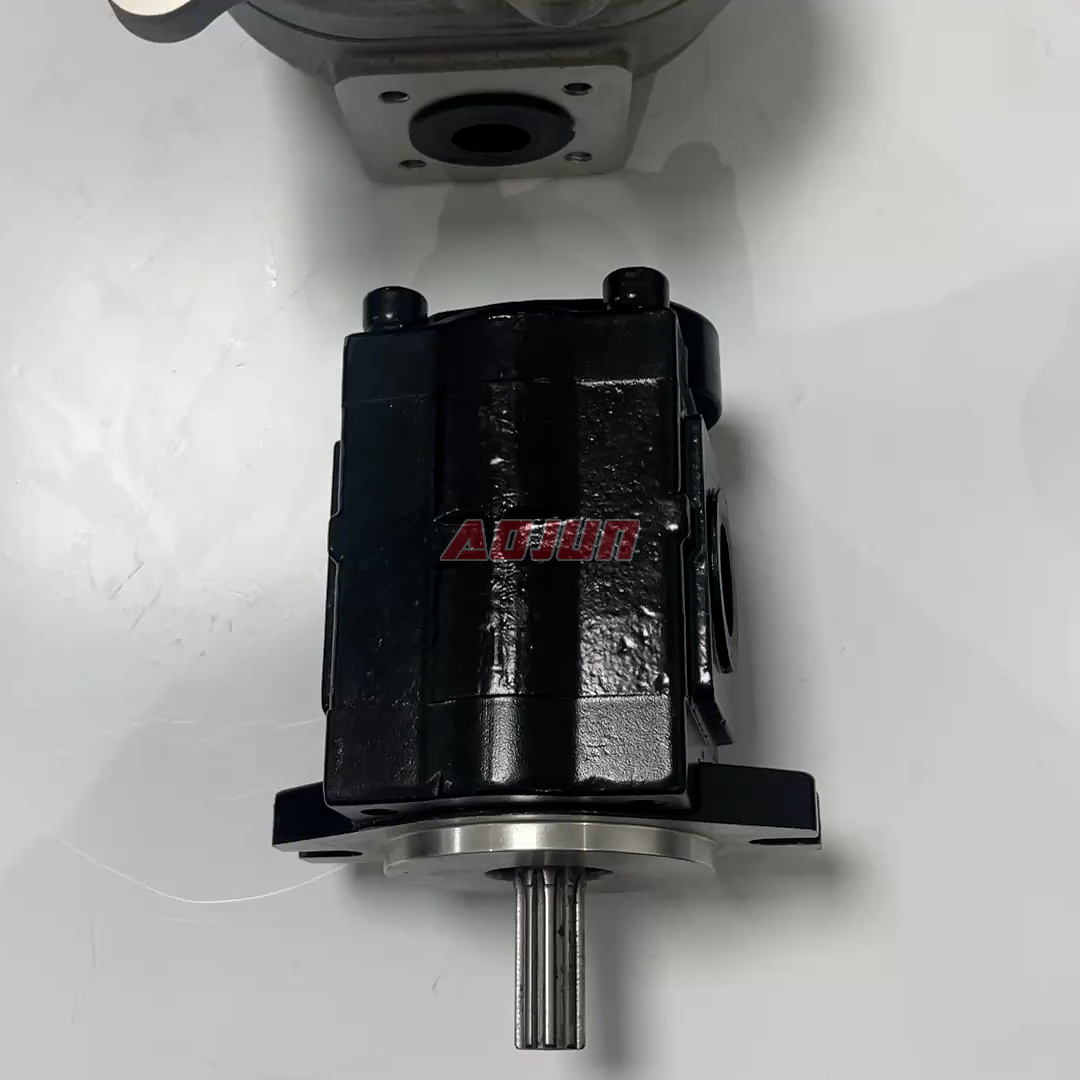

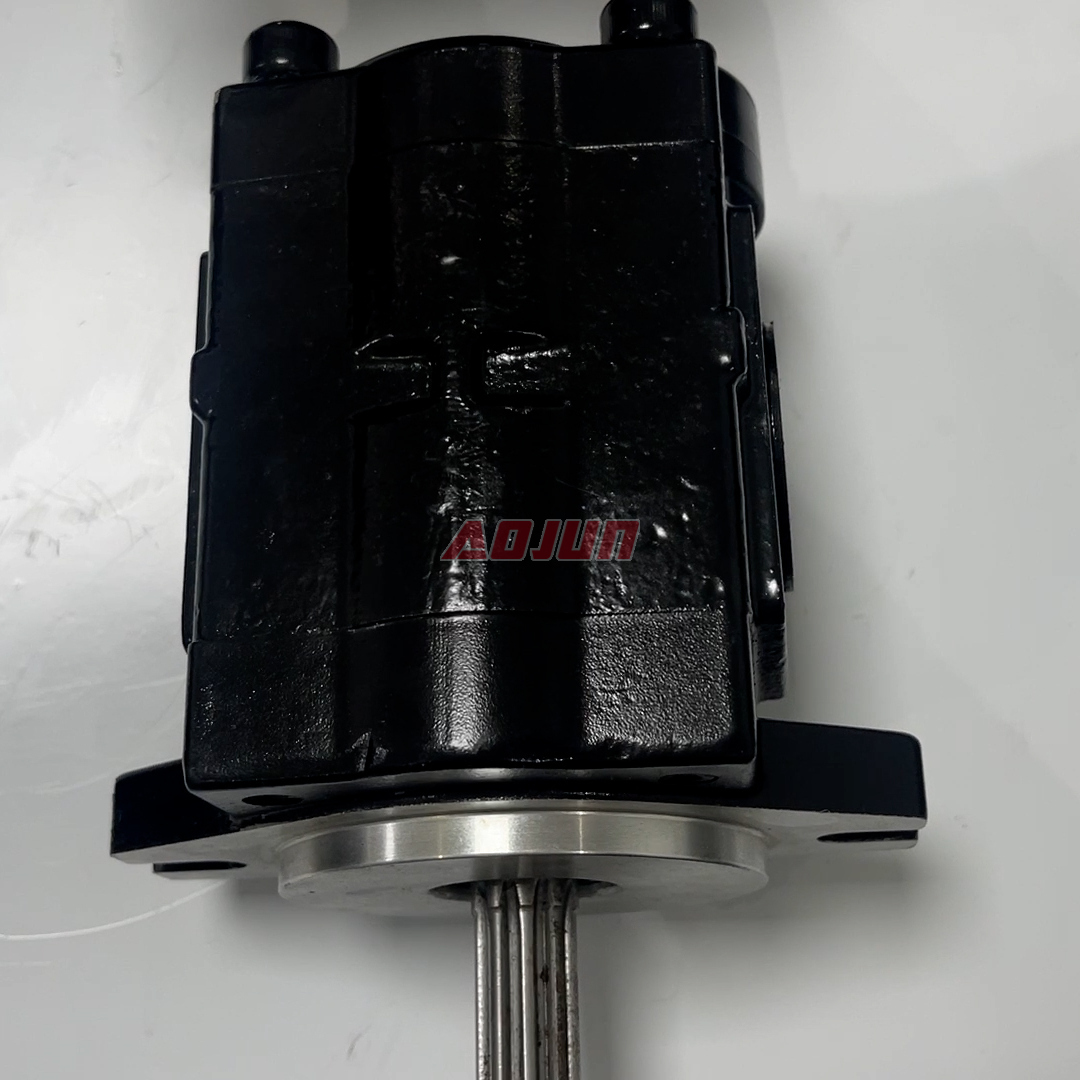

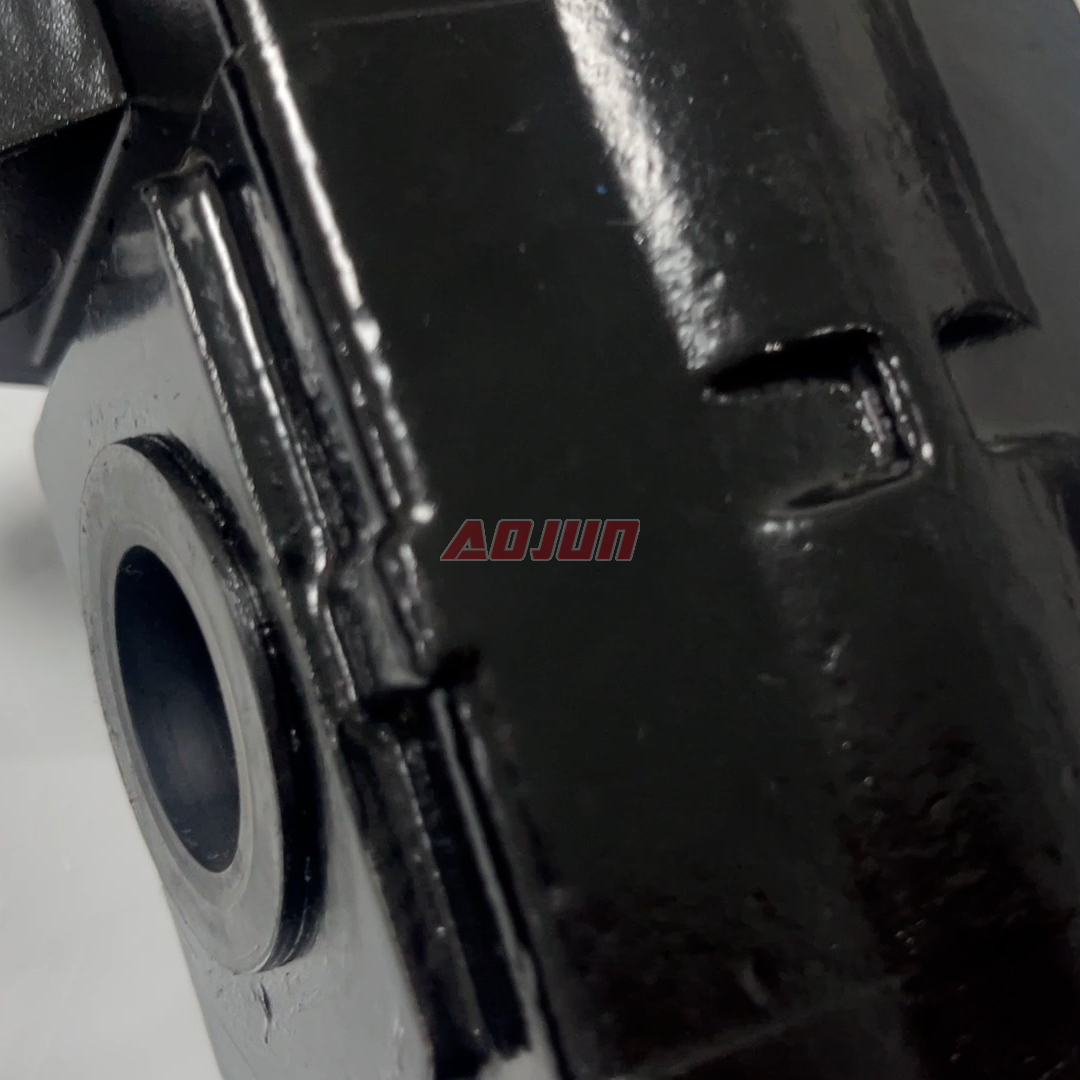

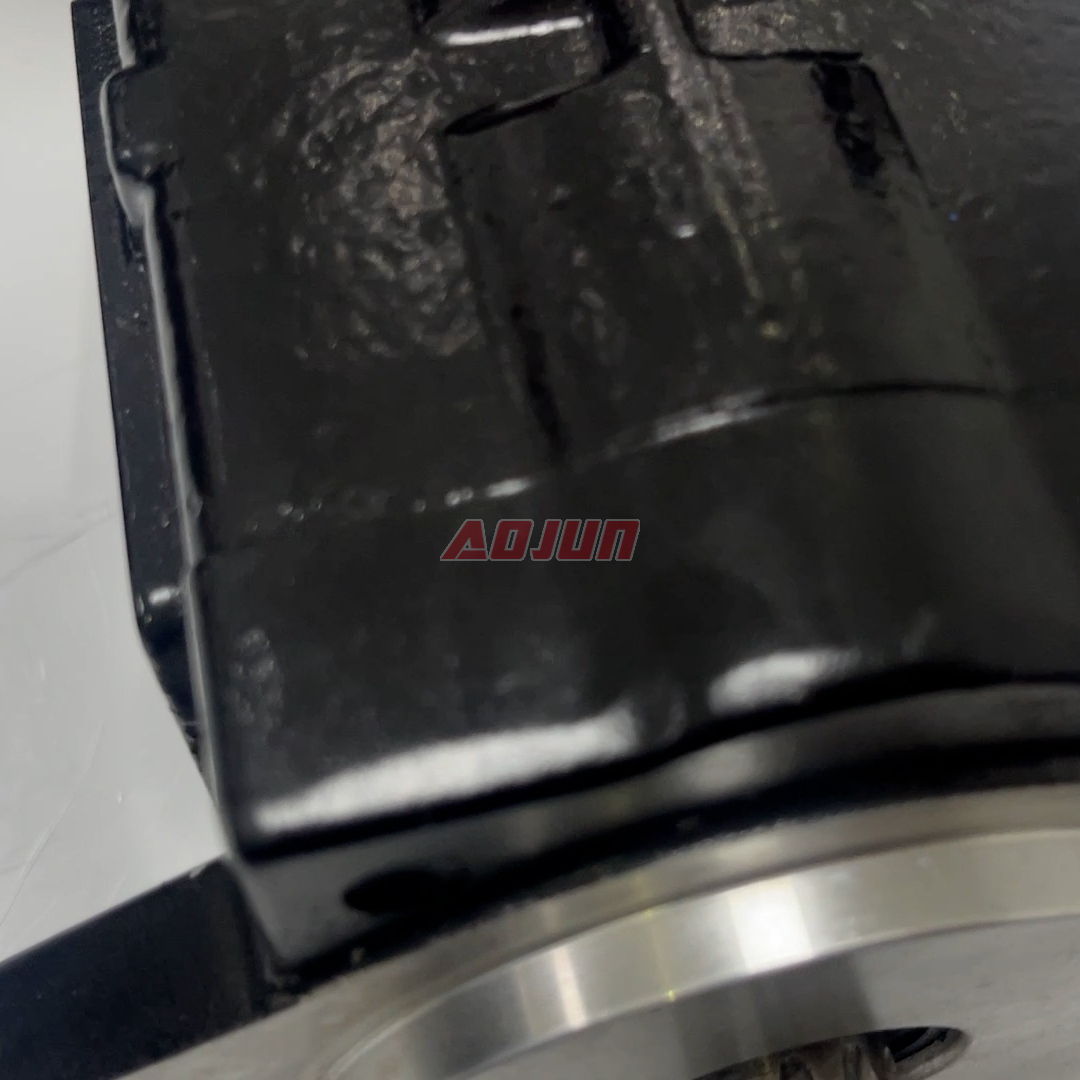

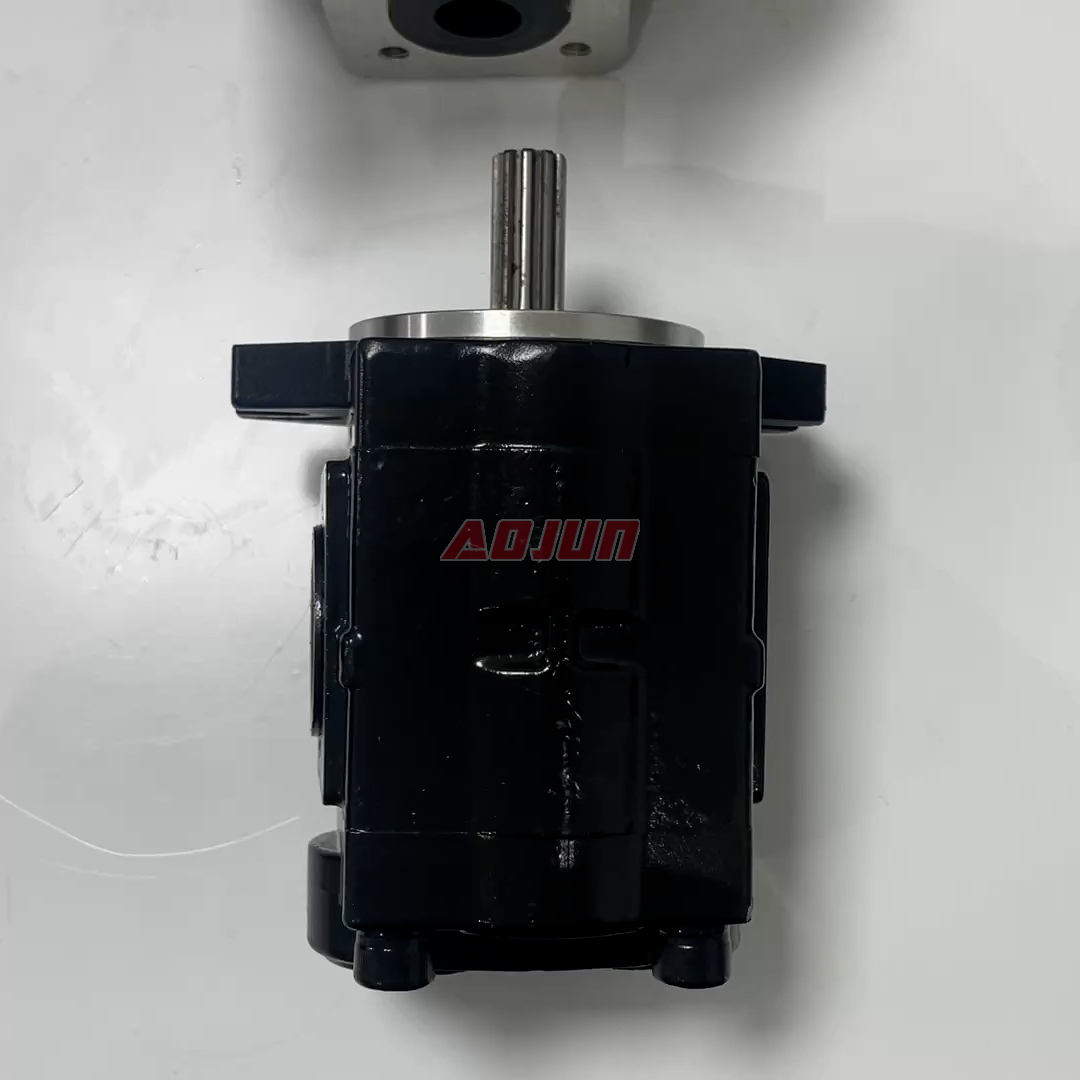

CBHS-C20 is a 20 cc/rev external gear hydraulic pump with cast iron housing, ISO-4 flange mounting, rectangle spline shaft, and bidirectional rotation, designed for reliable mobile and industrial hydraulic power.
global shipping world wide
Online Service For 24 X 7
Support OEM customization
Key specs: 20 cc/rev displacement; rated pressure 20 MPa (2900 psi), max pressure 25 MPa (3625 psi); rated speed 2500 r/min, max speed 3000 r/min; bidirectional rotation; external gear structure; cast iron body; ISO-4 mounting holes; H rectangle spline shaft. Advantages: compact, robust cast-iron construction for durability; stable flow output for steering, lifting, and auxiliary circuits; suitable for continuous duty at rated conditions; convenient integration via ISO flange and spline shaft. Typical applications: material handling equipment (forklifts/stackers/telehandlers), construction and earth-moving machines (mini-excavators, skid steers, loaders, dumpers), agricultural machinery (tractors with loaders), and industrial vehicles requiring dependable hydraulic power. Supply options: manufacturer direct with OEM/ODM, private label, customization, bulk wholesale, and distributor/agent cooperation.
| CBHS-C20 Series Hydraulic Gear Pump Parameters | |
|---|---|
| Displacement | 100 cc/rev |
| Rated Pressure | 20 MPa (2900 psi) |
| Max Pressure | 25 MPa (3625 psi) |
| Rated Speed | 2500 r/min |
| Max Speed | 3000 r/min |
| Rotation | /: (Bidirectional) |
| Structure | External Gear Pump |
| Material | Cast Iron |
| Flange Version | ISO-4 Mounting Holes |
| Shaft Type | H: Rectangle Spline |
