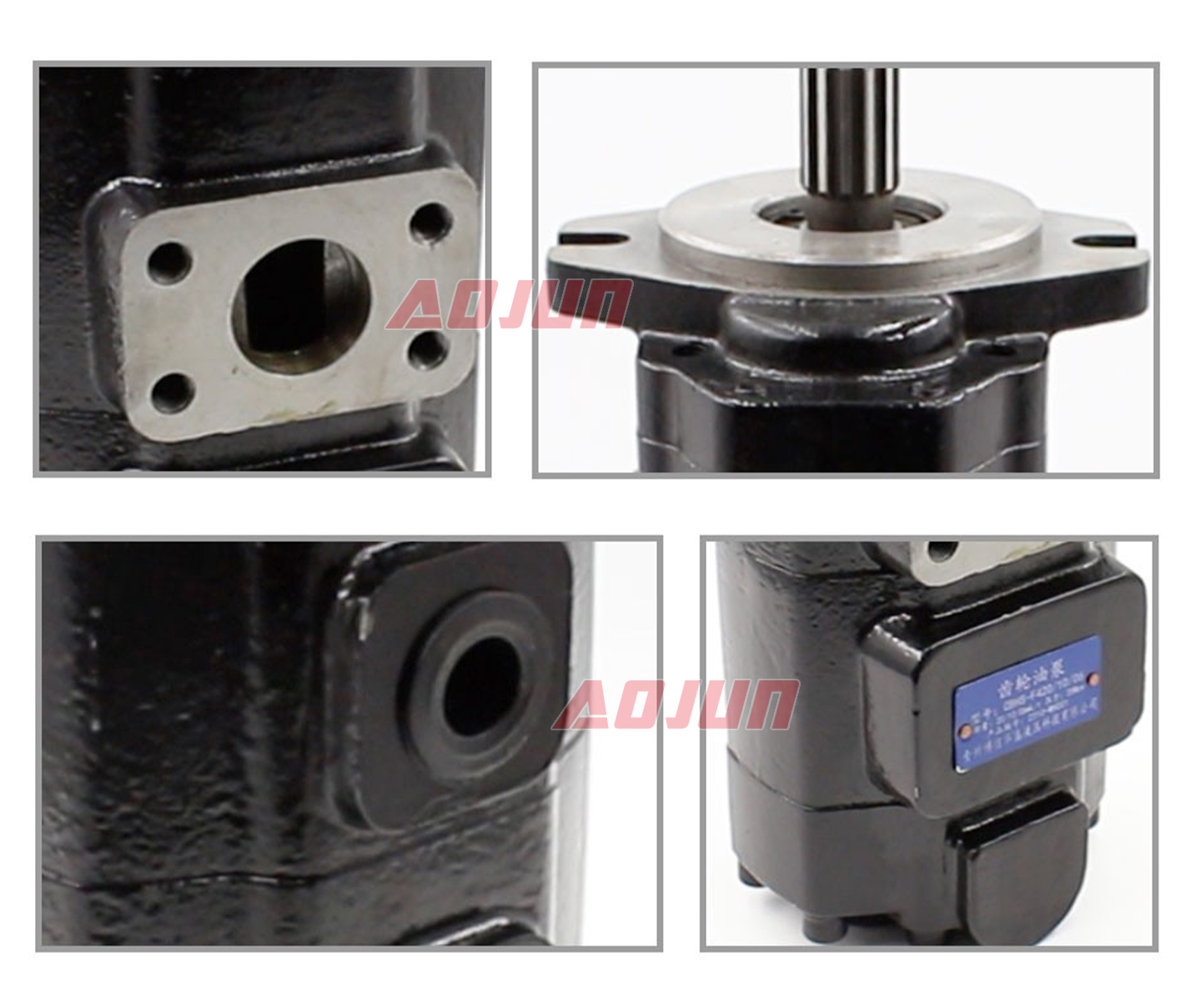

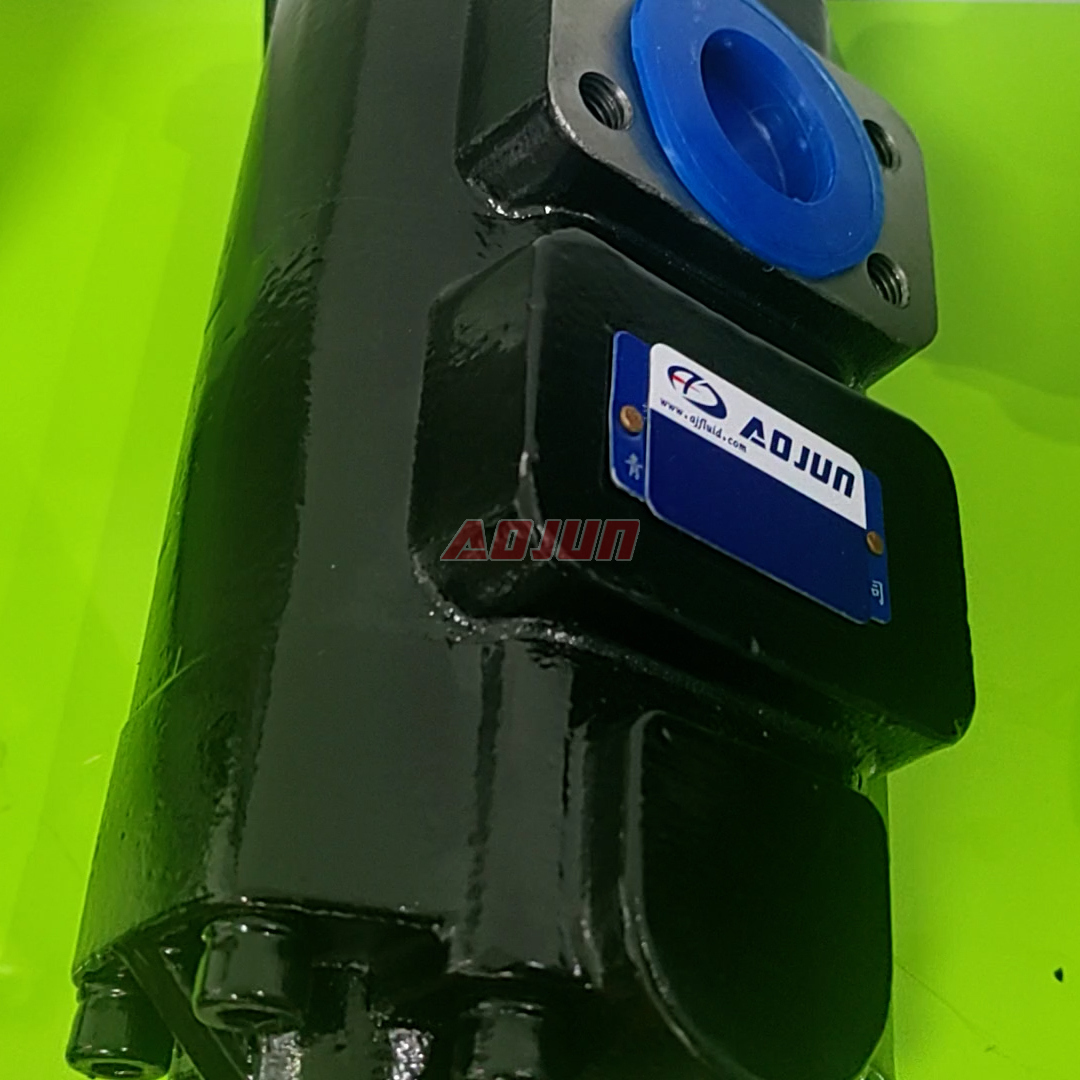

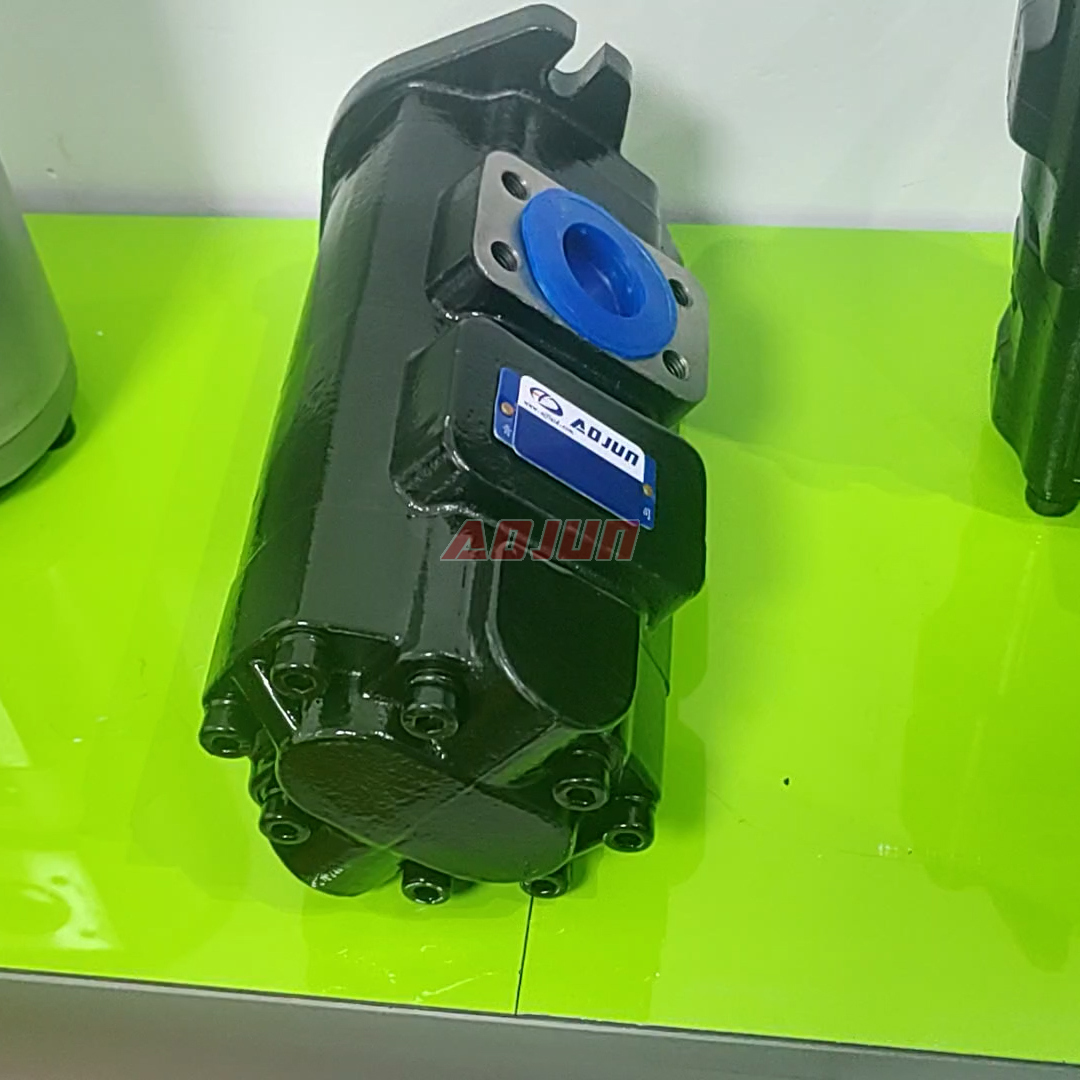

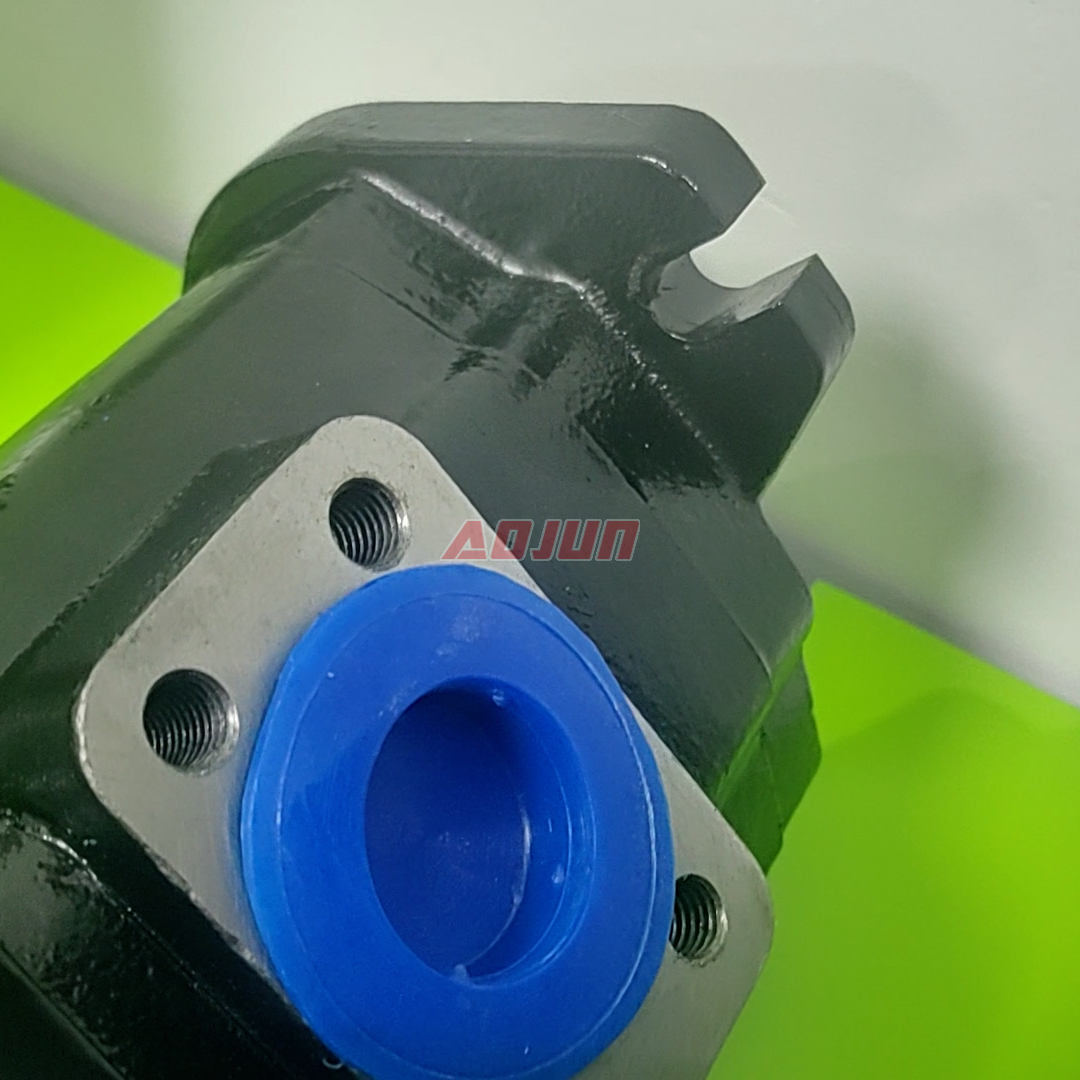

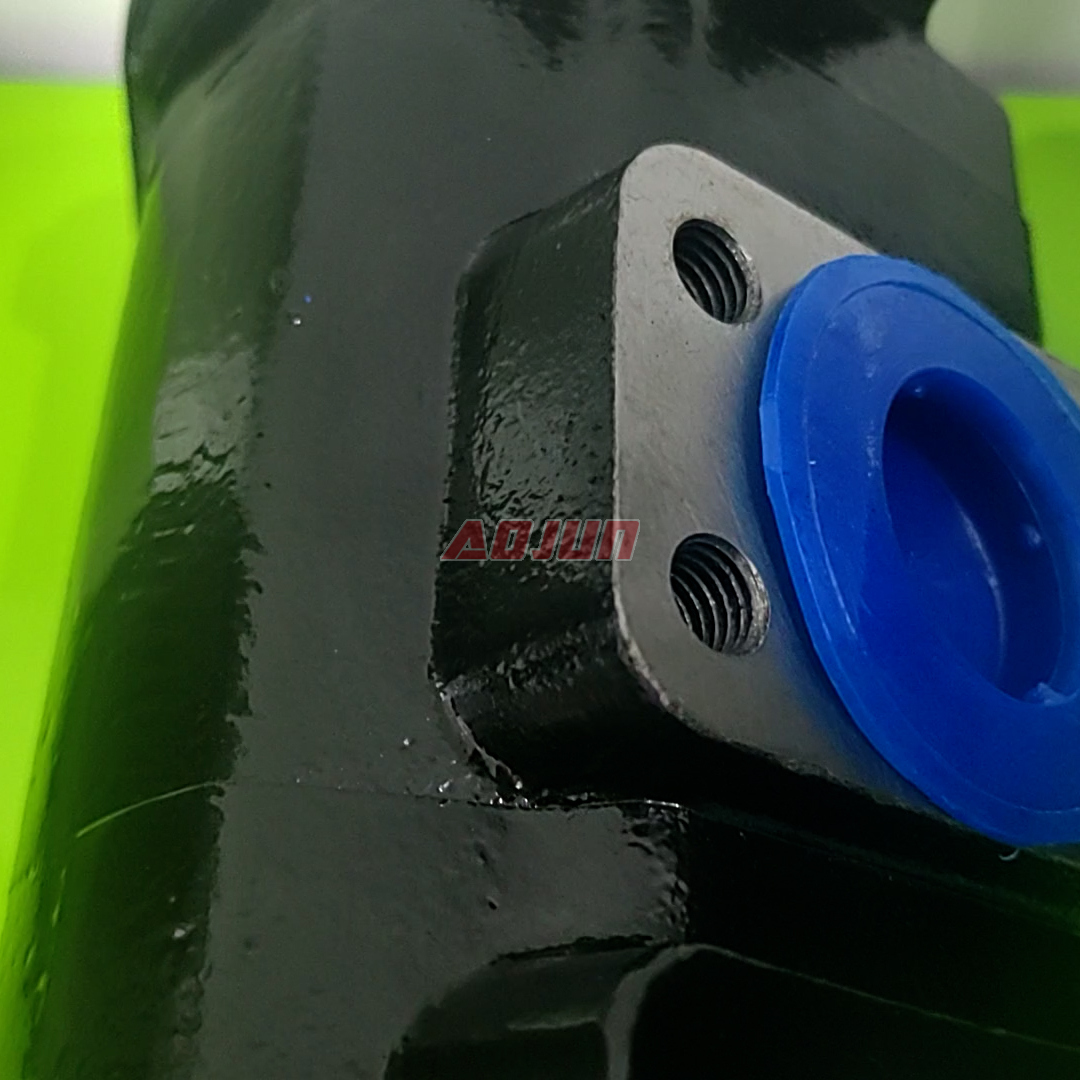

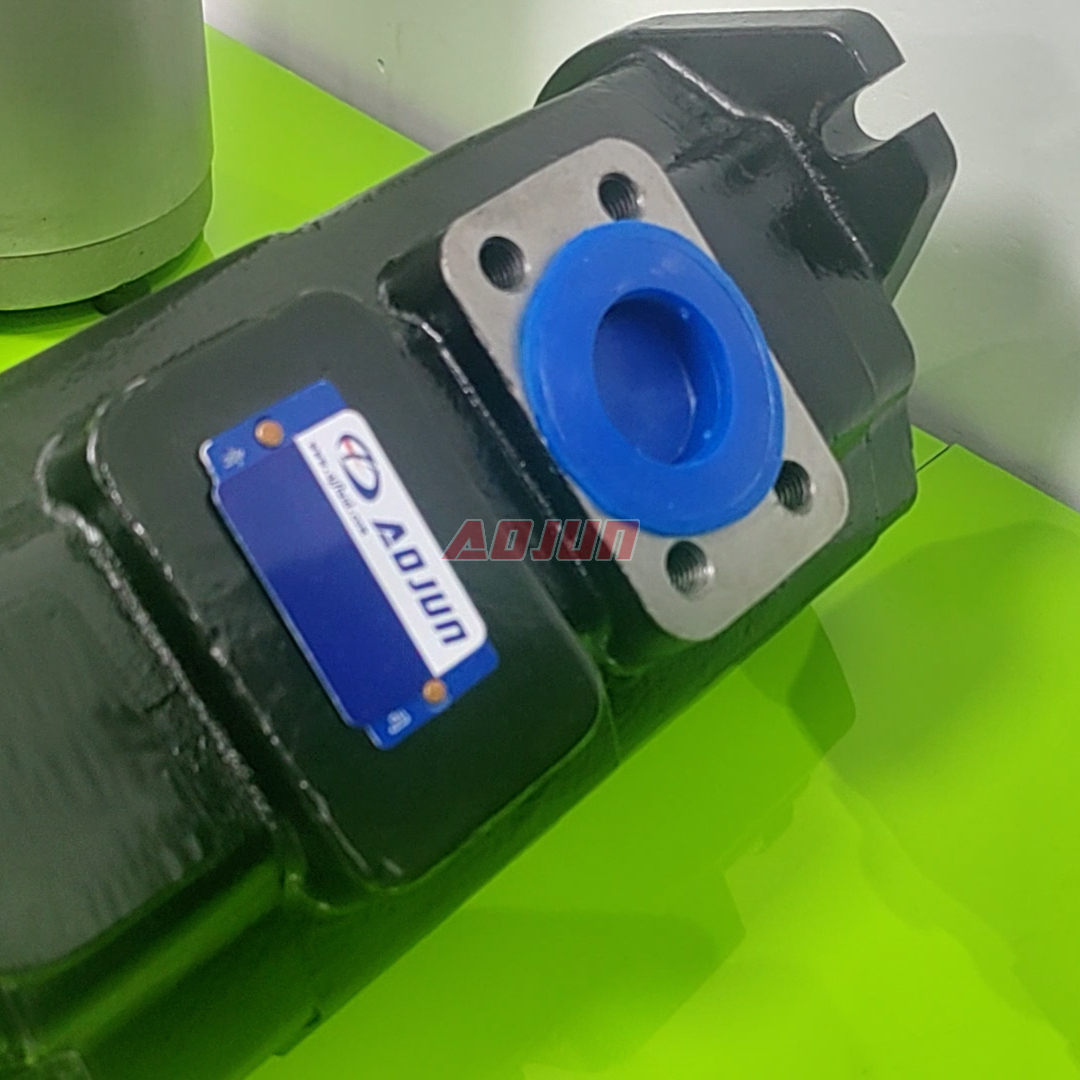

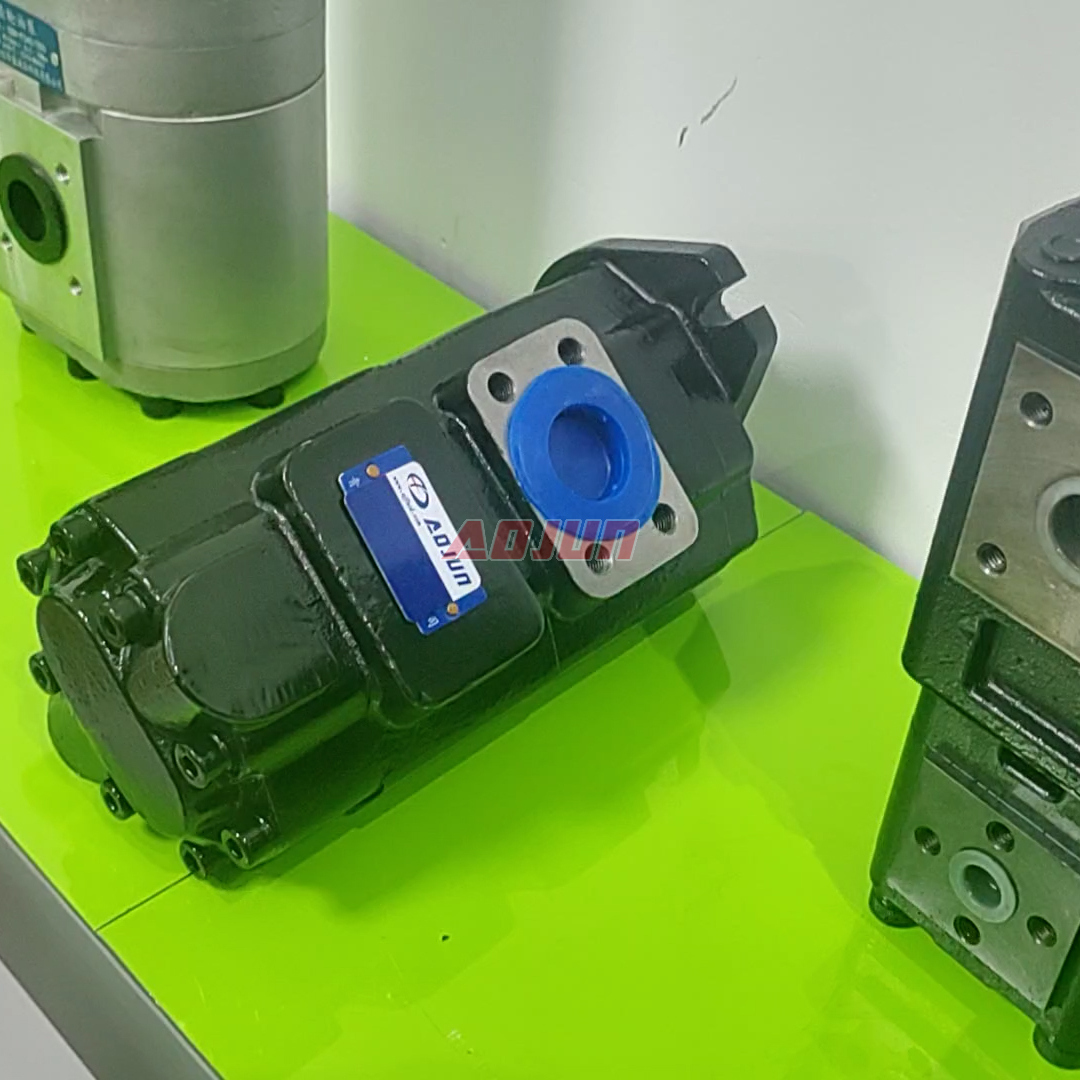

20 cc/rev cam-plate type hydraulic gear pump designed for mobile and industrial hydraulic systems, offering 20 MPa rated pressure (25 MPa max), up to 3000 r/min speed, selectable rotation (R/L), flange options (oval/square), and rectangle spline shaft for flexible OEM integration.
global shipping world wide
Online Service For 24 X 7
Support OEM customization
Key performance: 20 cc/rev displacement for stable flow output; rated pressure 20 MPa (2900 psi) with 25 MPa (3625 psi) max for demanding duty cycles; rated speed 2200 r/min and max 3000 r/min for wide operating range in compact hydraulic power units.
Mounting & interfaces: A-oval flange or B-square flange to match common equipment housings; H rectangle spline shaft for reliable torque transmission and quick coupling; rotation selectable right (clockwise) or left (counter-clockwise) to suit circuit layouts.
Structure & benefits: cam plate type construction supports smooth operation, consistent volumetric efficiency, and robust durability for continuous use.
Typical applications: mobile hydraulics on construction and earth-moving machines, material handling vehicles, agricultural equipment, and industrial vehicles—commonly used for implement circuits, steering assist, lifting/tilting, auxiliary hydraulics, and compact power packs.
Supply capability: factory direct manufacturing for global buyers, supporting OEM/ODM, private label, customization, wholesale orders, and distributor/agent cooperation.
| CBHS-F4 Series Hydraulic Gear Pump Parameters | |
|---|---|
| Displacement | 20 cc/rev, 16 cc/rev |
| Rated Pressure | 20 MPa (2900 psi) |
| Max Pressure | 25 MPa (3625 psi) |
| Rated Speed | 2200 r/min |
| Max Speed | 3000 r/min |
| Rotation | L: Left (counter-clockwise), R: Right (clockwise) |
| Structure | Cam Plate Type |
| Flange Version | A-Oval Flange, B-Square Flange |
| Shaft Type | H: Rectangle Spline |
