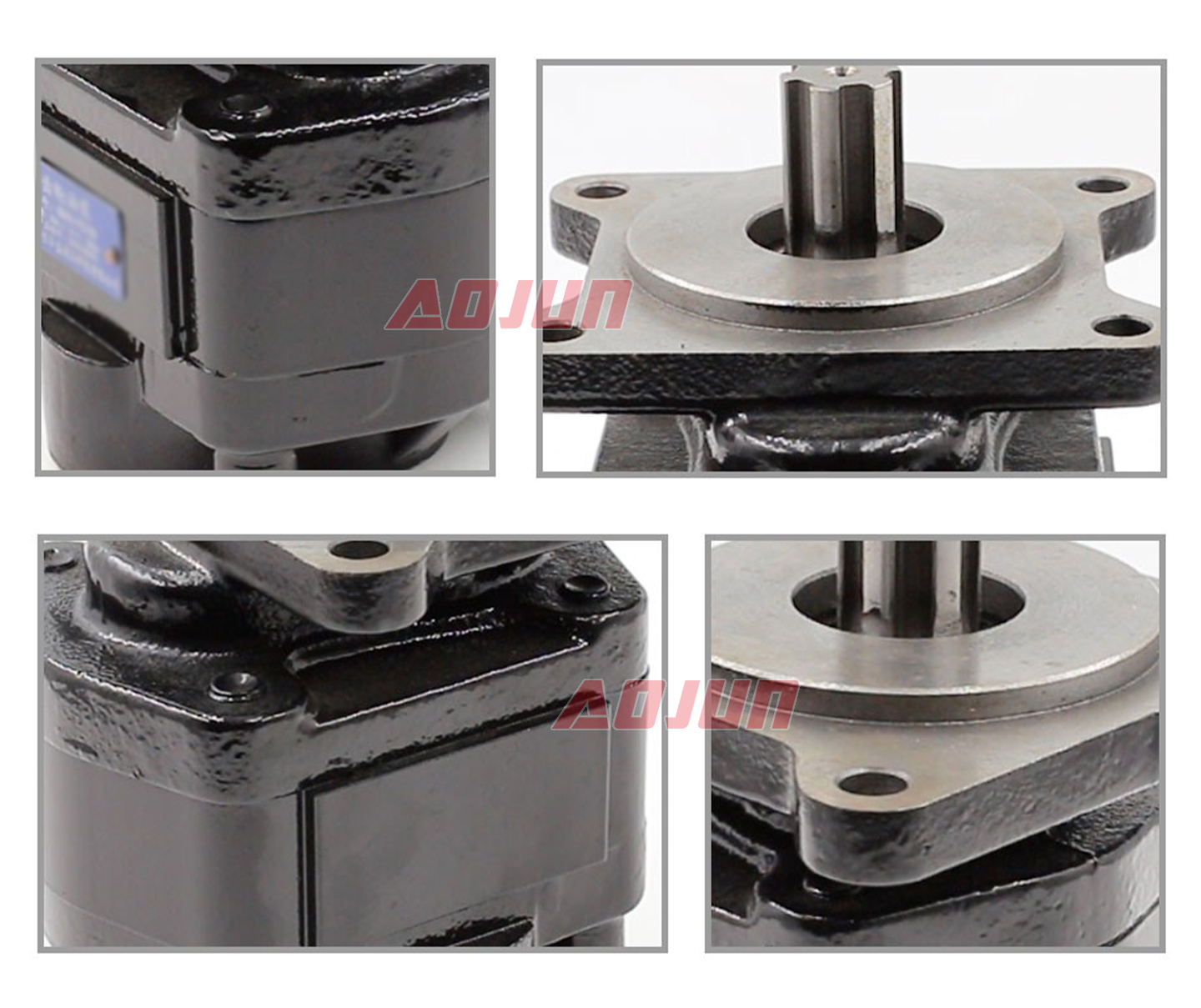

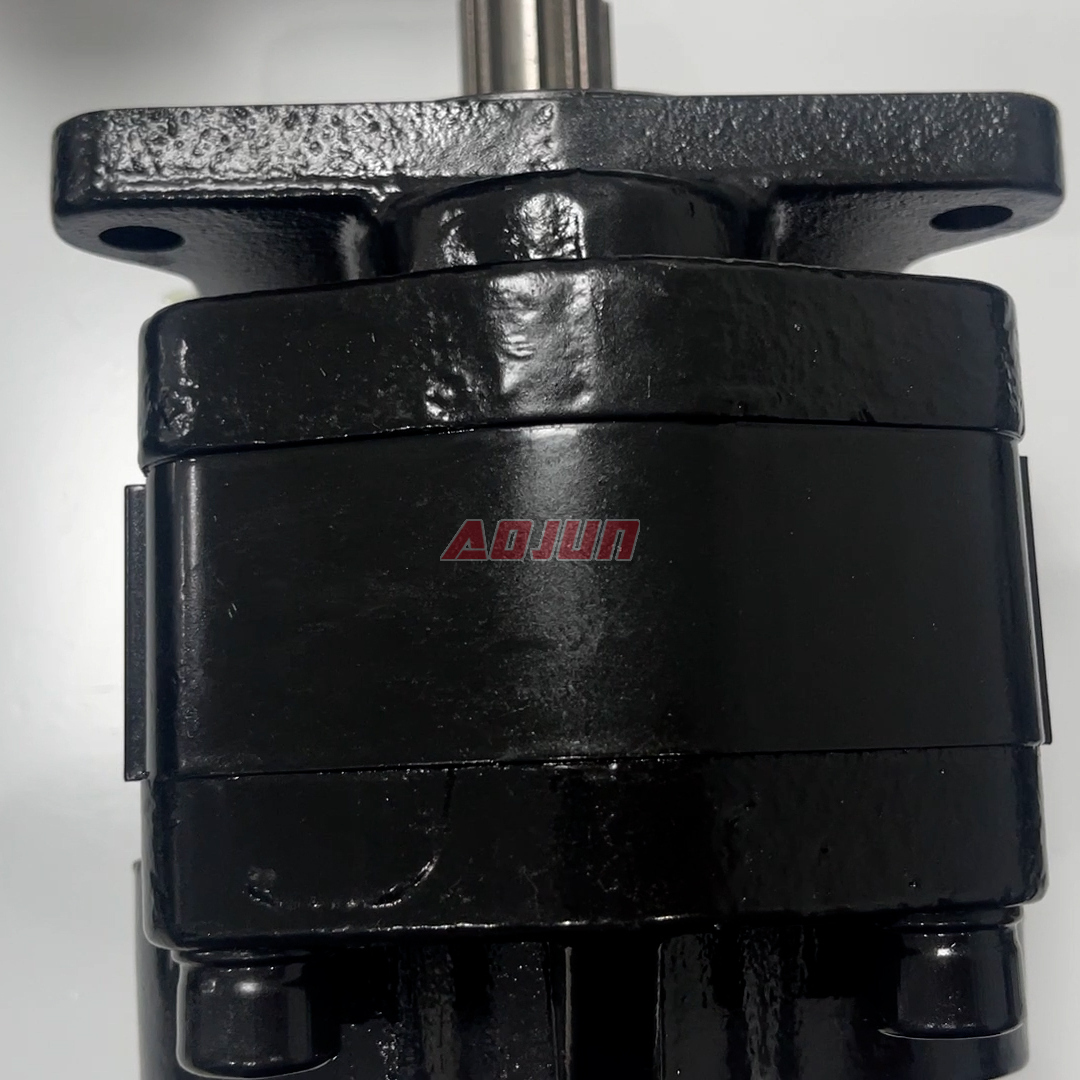

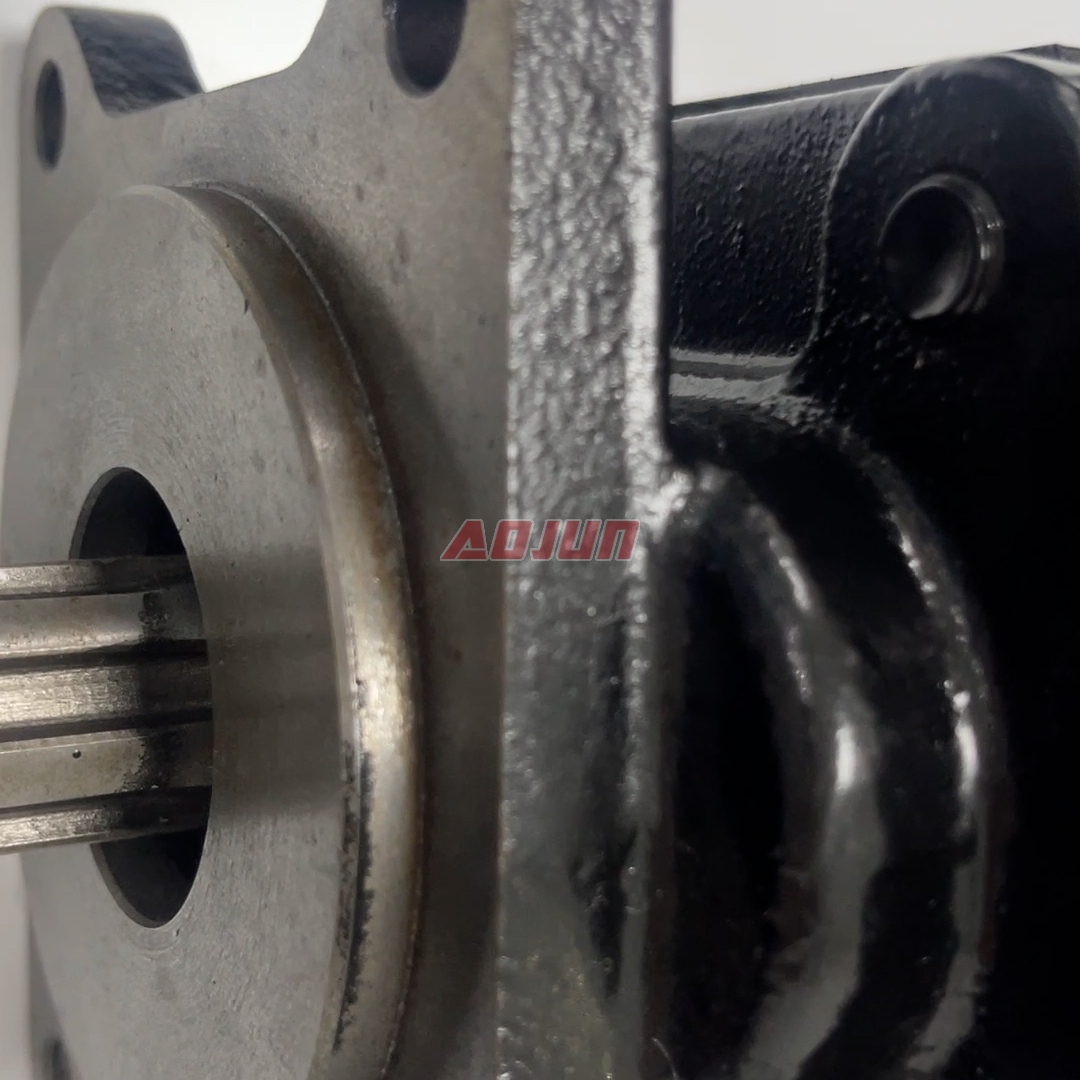

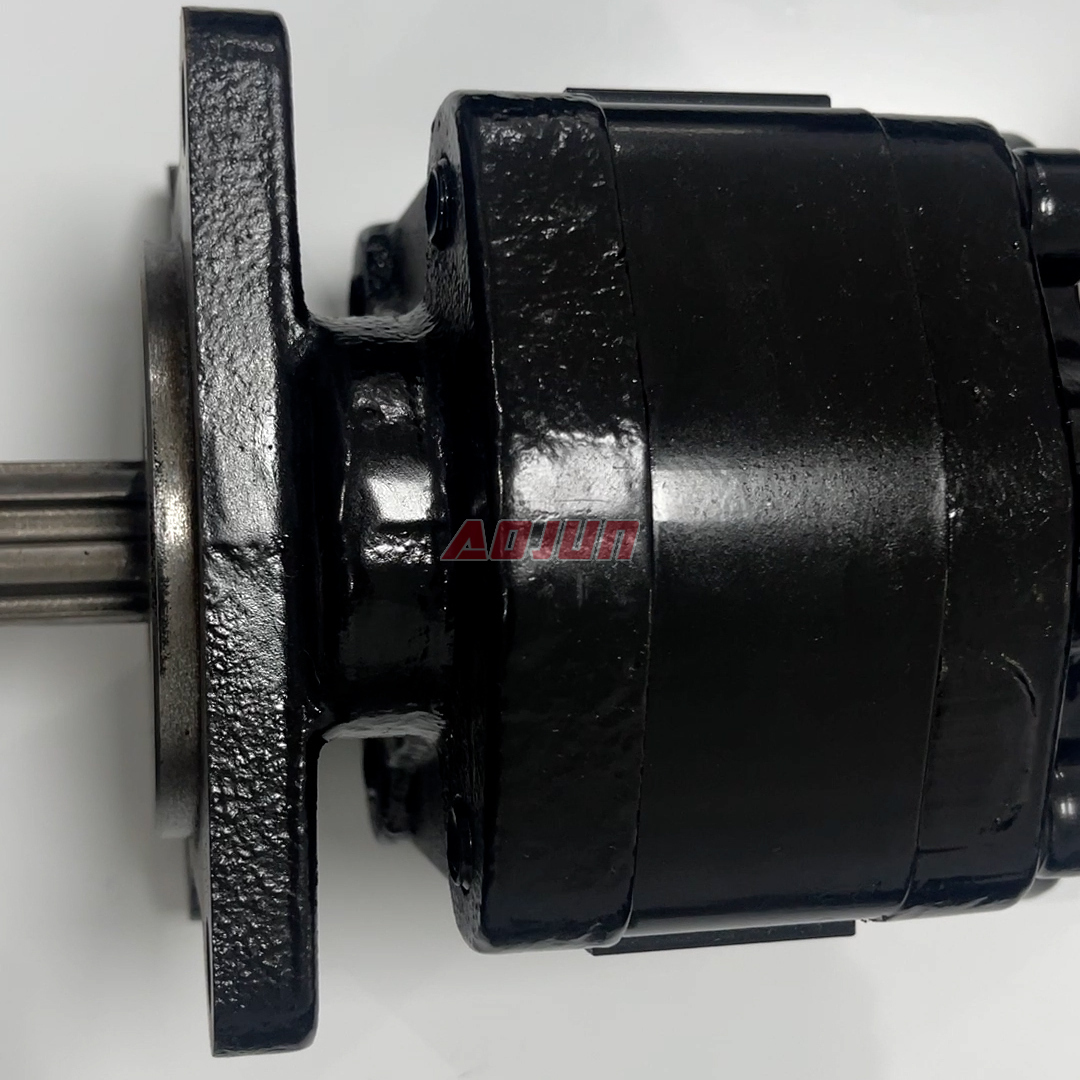

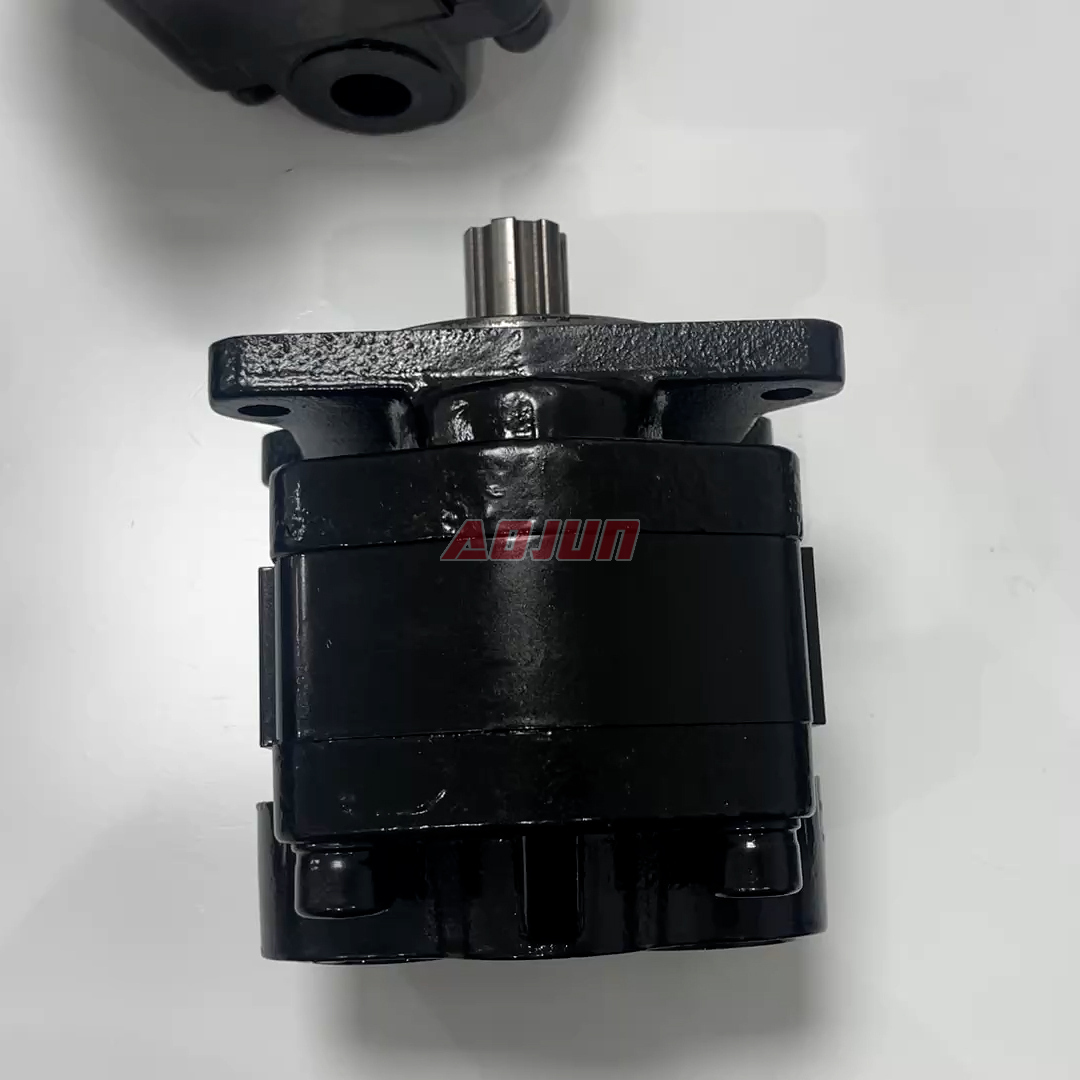

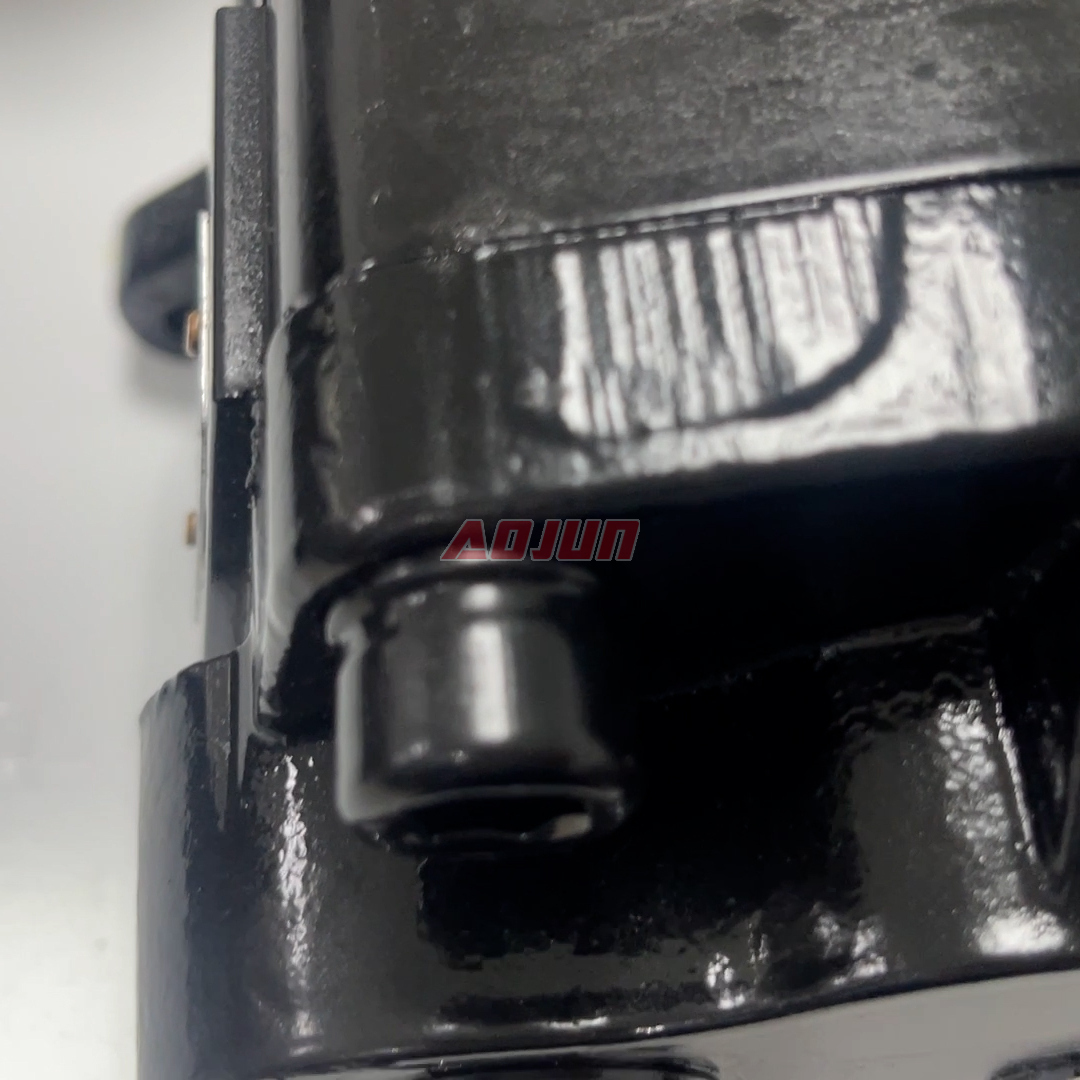

20 cc/rev internal gear hydraulic pump with cast-iron body, 20 MPa rated pressure, and up to 2200 r/min speed. Available in left/right rotation, B-square flange mounting, and multiple shaft types for easy OEM replacement and mobile equipment integration.
global shipping world wide
Online Service For 24 X 7
Support OEM customization
Key specifications: 20 cc/rev displacement; rated pressure 20 MPa (2900 psi); rated speed 2000 r/min; max speed 2200 r/min; internal gear structure for smooth flow; cast iron material for durability; B-square flange mounting; rotation options L (counter-clockwise) / R (clockwise); shaft options P (plain key), H (rectangle spline), X (involute spline).
Product advantages: internal gear architecture helps provide stable output, low pulsation and reliable performance for continuous duty; cast-iron housing improves wear resistance and service life in harsh environments; multiple shaft/flange/rotation configurations simplify interchangeability and retrofit on global equipment platforms.
Typical applications: mobile hydraulic power units, lifting and steering circuits, auxiliary hydraulics on material handling and construction machinery, and agricultural hydraulic systems.
Supply capabilities: manufacturer direct support for OEM/ODM, private label, customization, bulk/wholesale orders, and global distributor/agent cooperation.
| CBHS-F5 Series Hydraulic Gear Pump Parameters | |
|---|---|
| Displacement | 32 cc/rev, 50 cc/rev, 63 cc/rev |
| Shaft Type | H: Rectangle Spline, X: Involute Spline, P: Plain Key |
| Flange Version | B-Square Flange |
| Material | Cast Iron |
| Structure | Internal Gear Pump |
| Rotation | L: Left (counter-clockwise), R: Right (clockwise) |
| Max Speed | 2200 r/min |
| Rated Speed | 2000 r/min |
| Rated Pressure | 20 MPa (2900 psi) |
