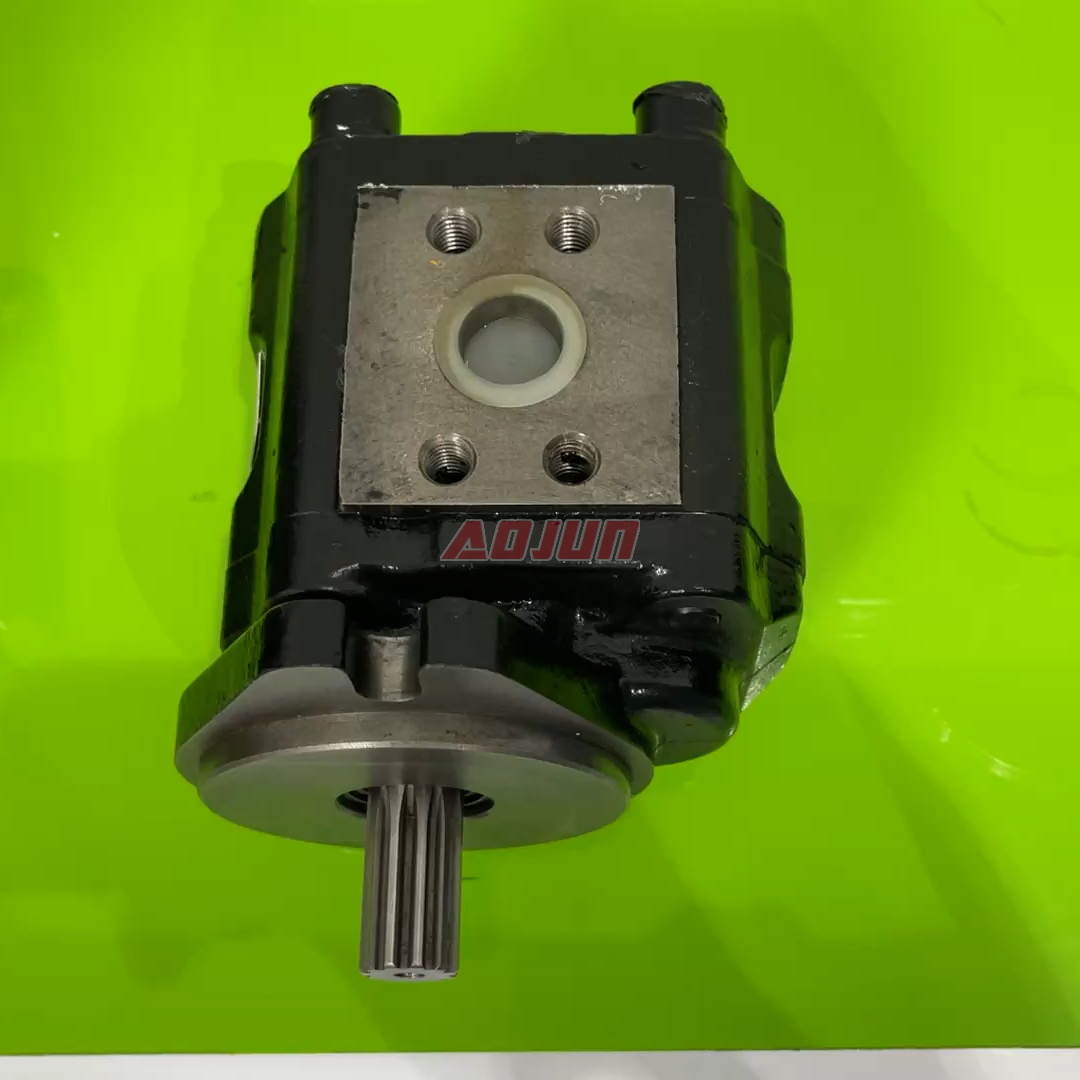

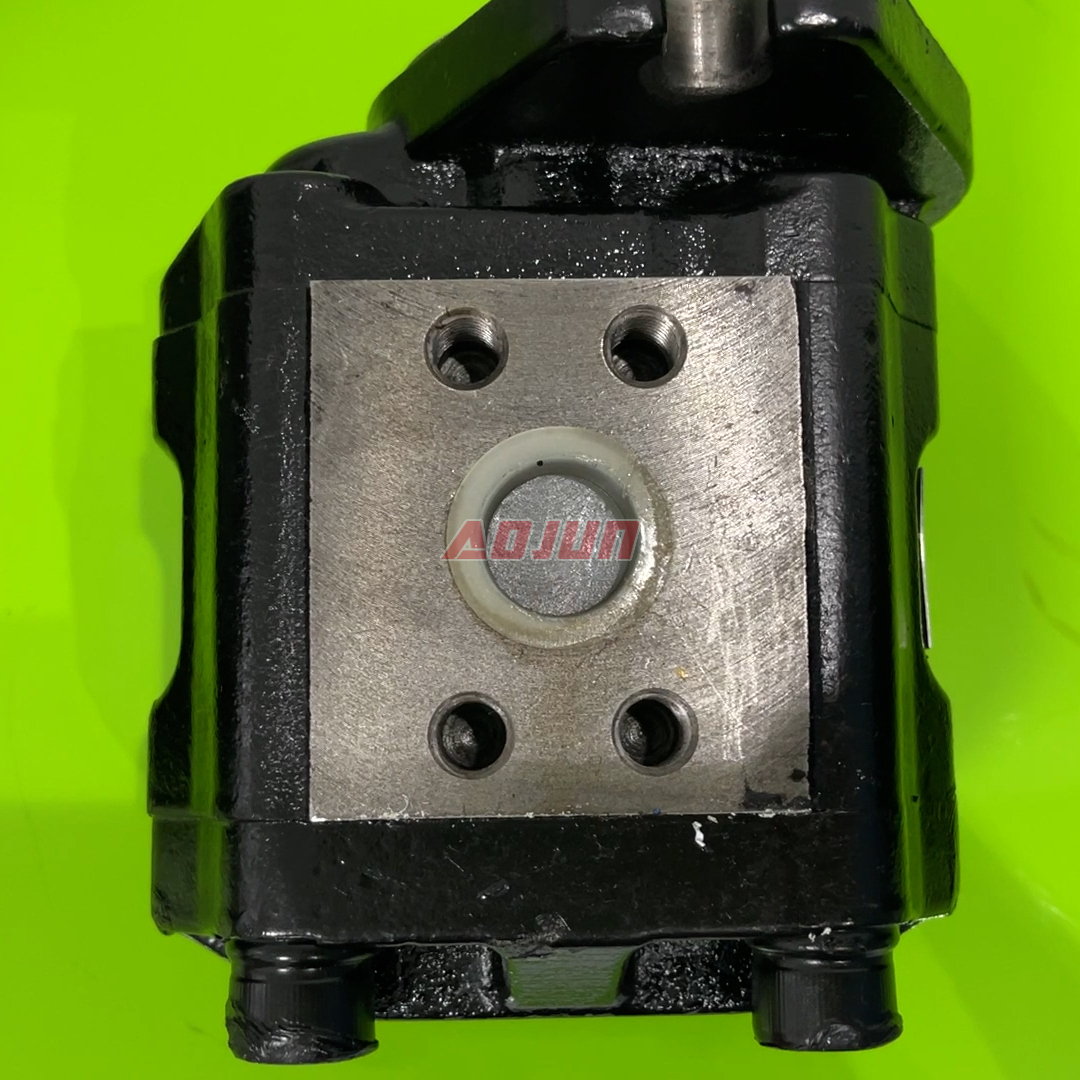

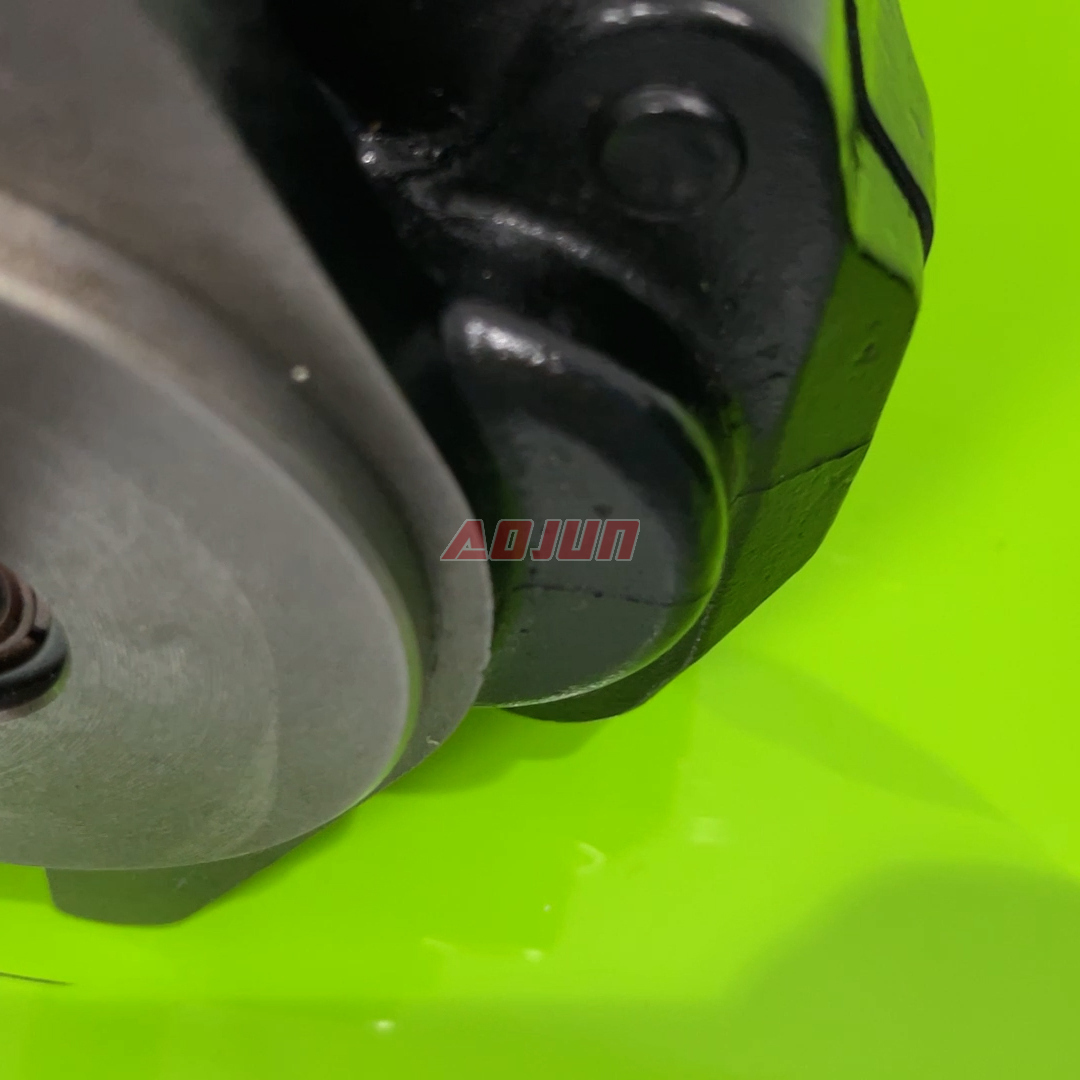

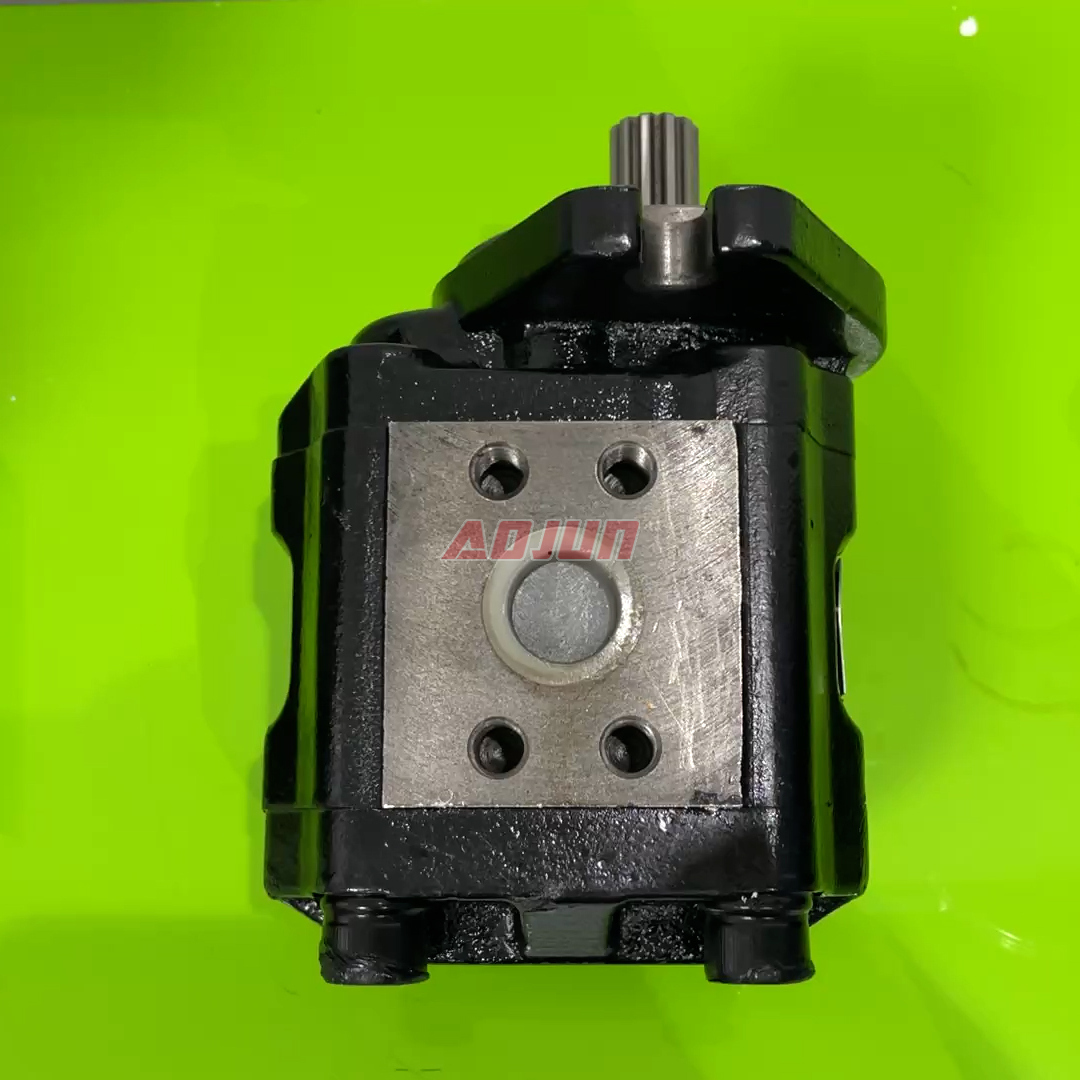

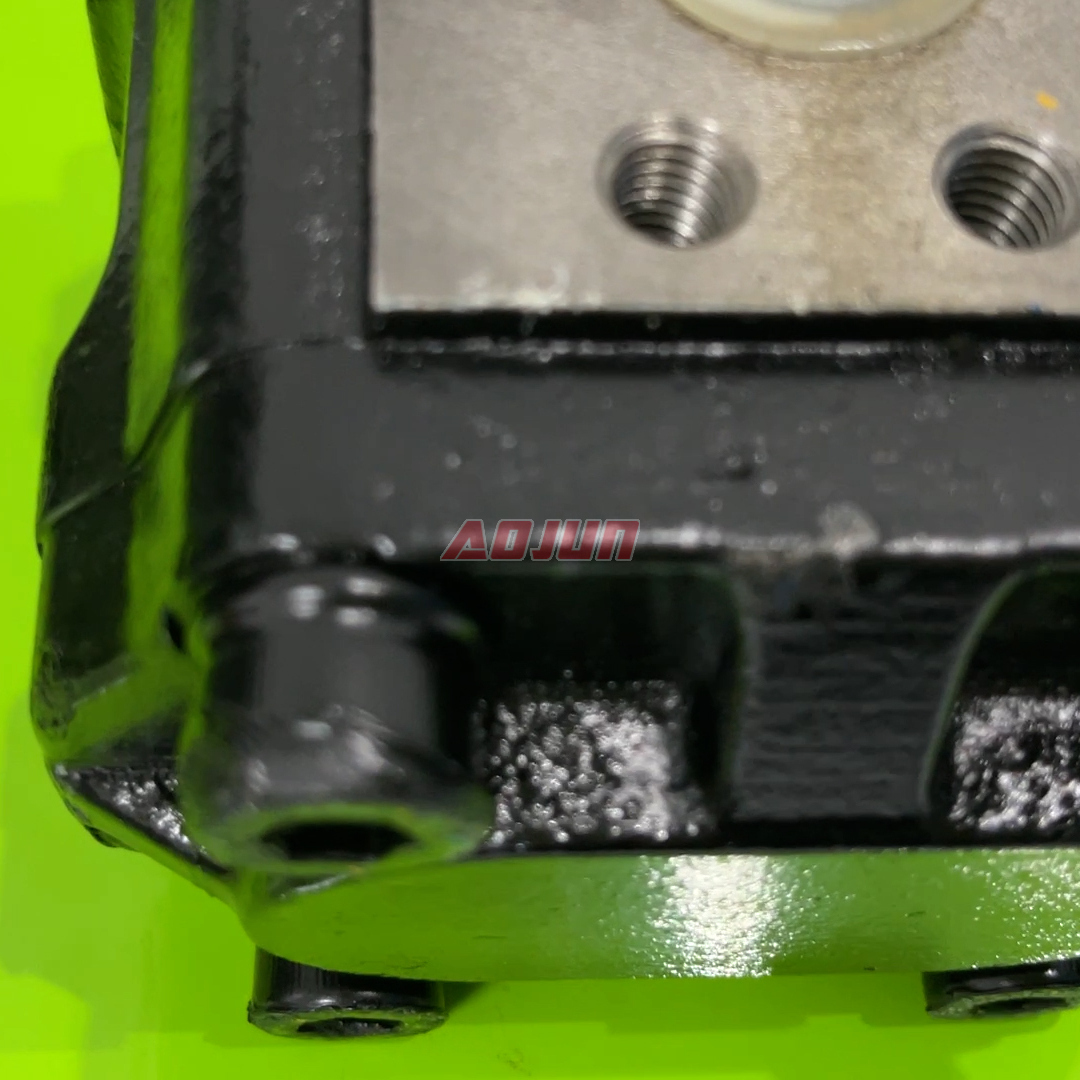

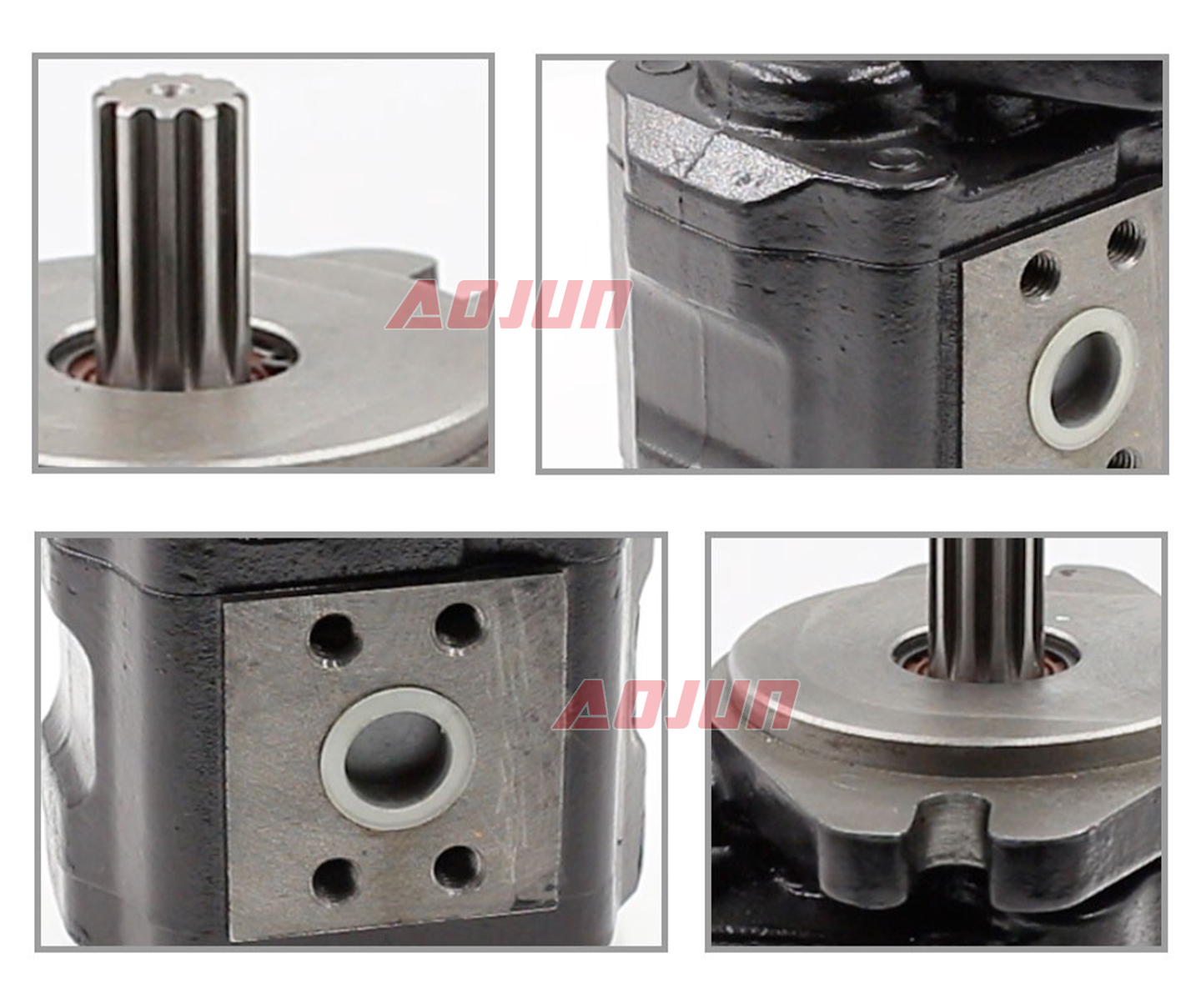

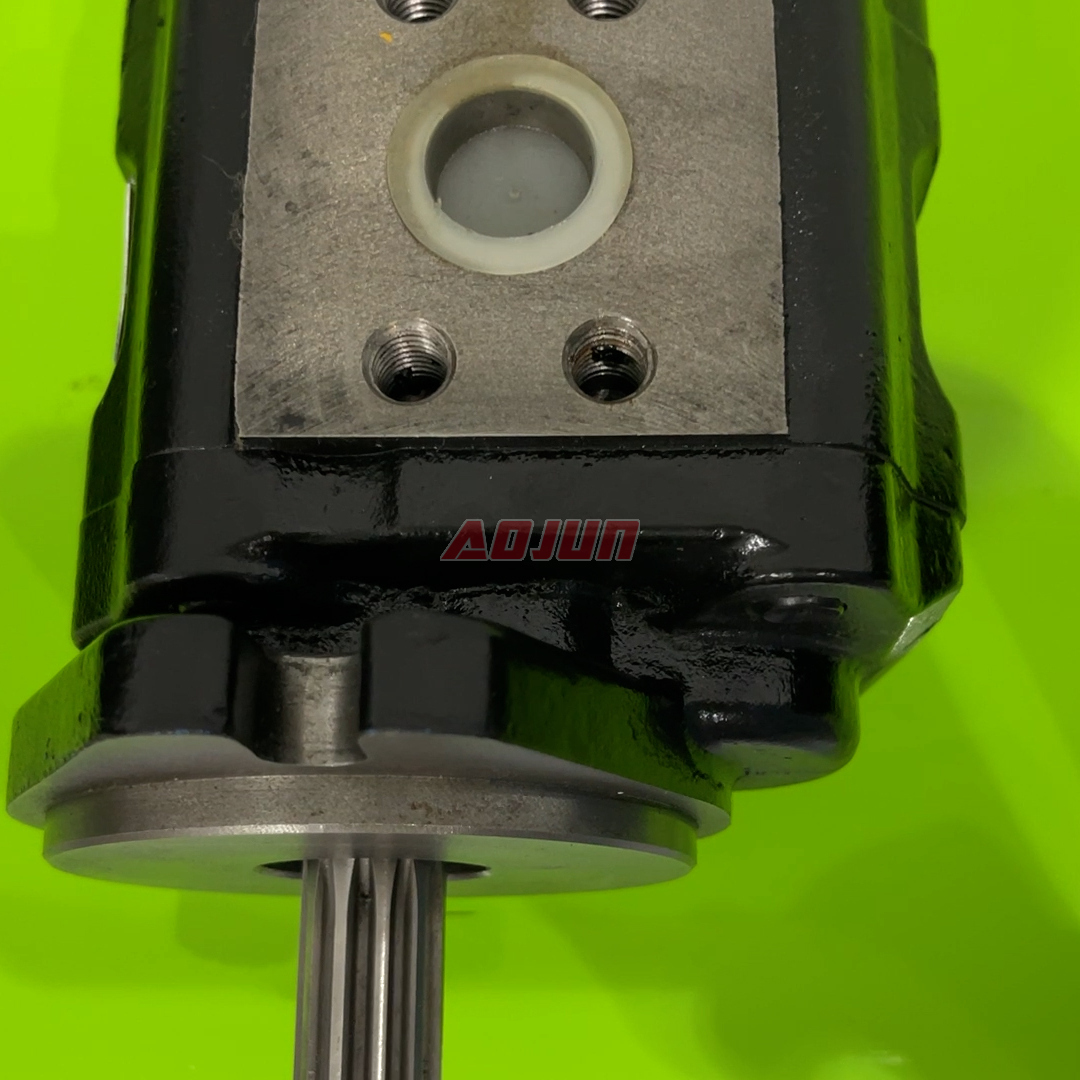

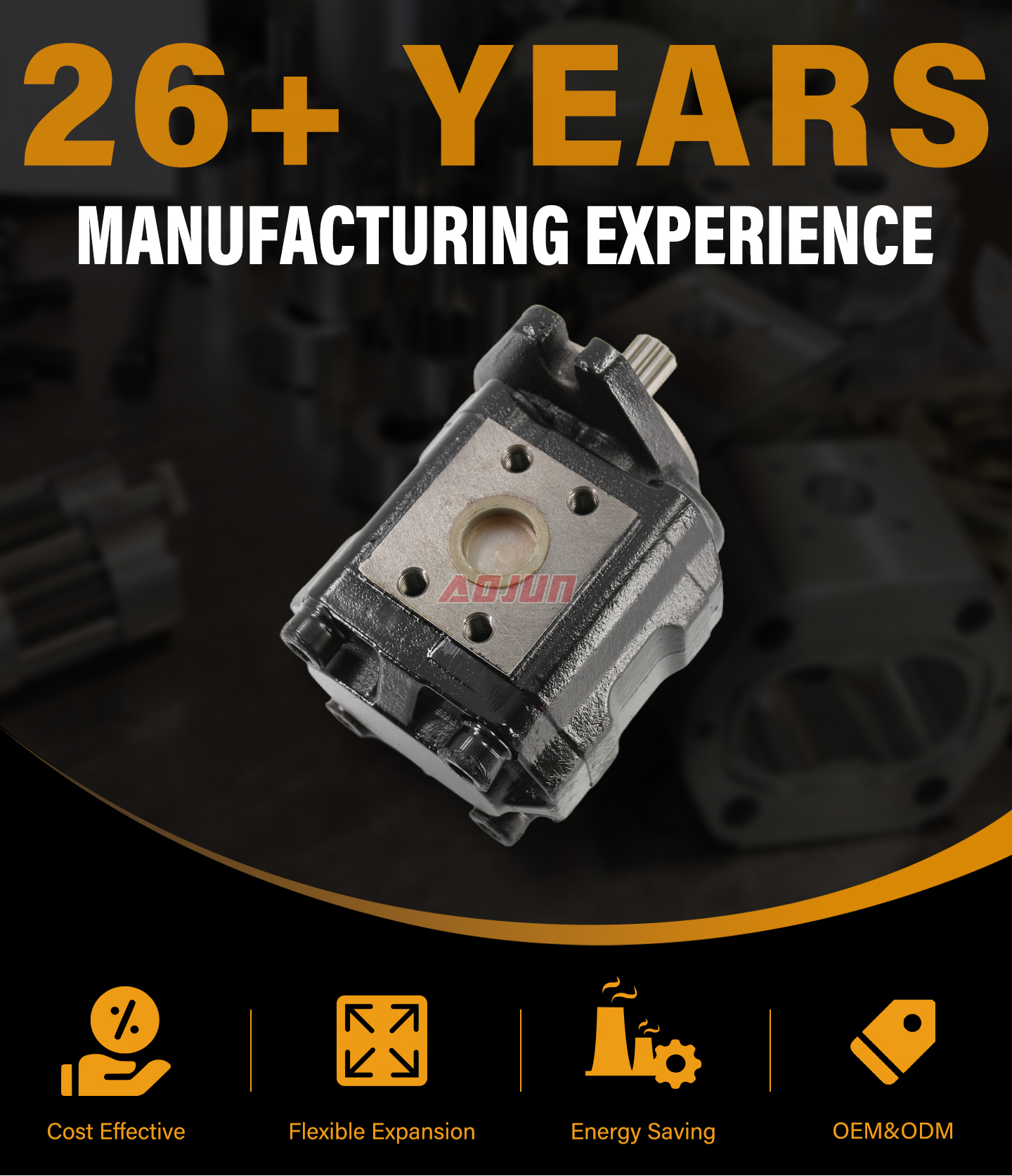

A 25 cc/rev cam-plate type hydraulic gear pump designed for mobile and industrial equipment, delivering stable flow at 20 MPa rated pressure with up to 25 MPa peak capability and speeds up to 3000 r/min.
global shipping world wide
Online Service For 24 X 7
Support OEM customization
Key specs: 25 cc/rev displacement; 20 MPa (2900 psi) rated pressure; 25 MPa (3625 psi) max pressure; 2200 r/min rated speed; 3000 r/min max speed. Configuration options: R (clockwise) or L (counter-clockwise) rotation; A oval flange or B square flange mounting; H rectangle spline shaft. Advantages: compact gear-pump solution with reliable output for steering, lifting, auxiliary circuits, and general hydraulic power packs; suitable for continuous-duty mobile hydraulics where consistent flow, easy mounting interchange, and OEM/ODM customization (private label, bulk supply, distributor support) are required.
| CBHS-F4 Series Hydraulic Gear Pump Parameters | |
|---|---|
| Displacement | 20 cc/rev, 16 cc/rev |
| Rated Pressure | 20 MPa (2900 psi) |
| Max Pressure | 25 MPa (3625 psi) |
| Rated Speed | 2200 r/min |
| Max Speed | 3000 r/min |
| Rotation | L: Left (counter-clockwise), R: Right (clockwise) |
| Structure | Cam Plate Type |
| Flange Version | A-Oval Flange, B-Square Flange |
| Shaft Type | H: Rectangle Spline |
