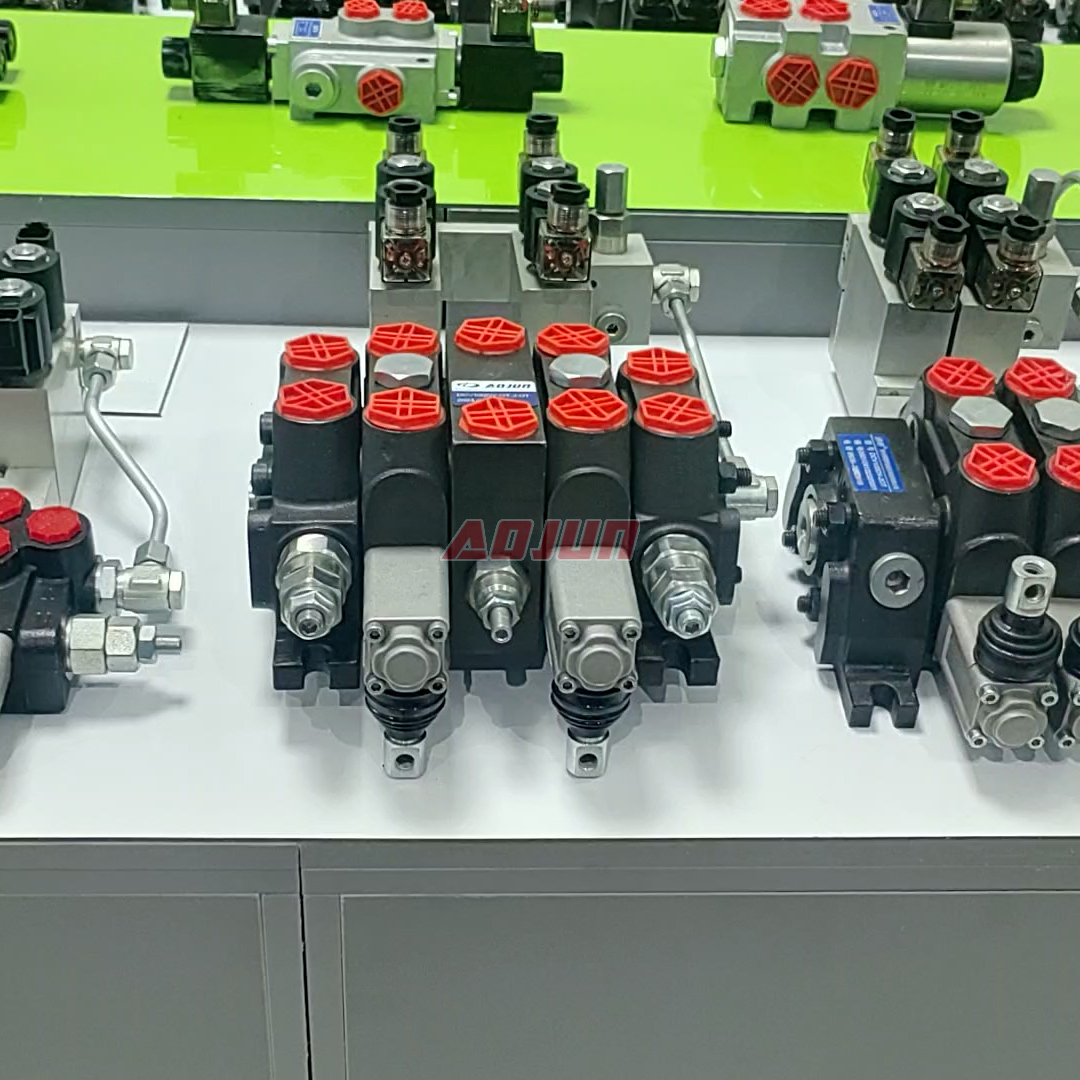

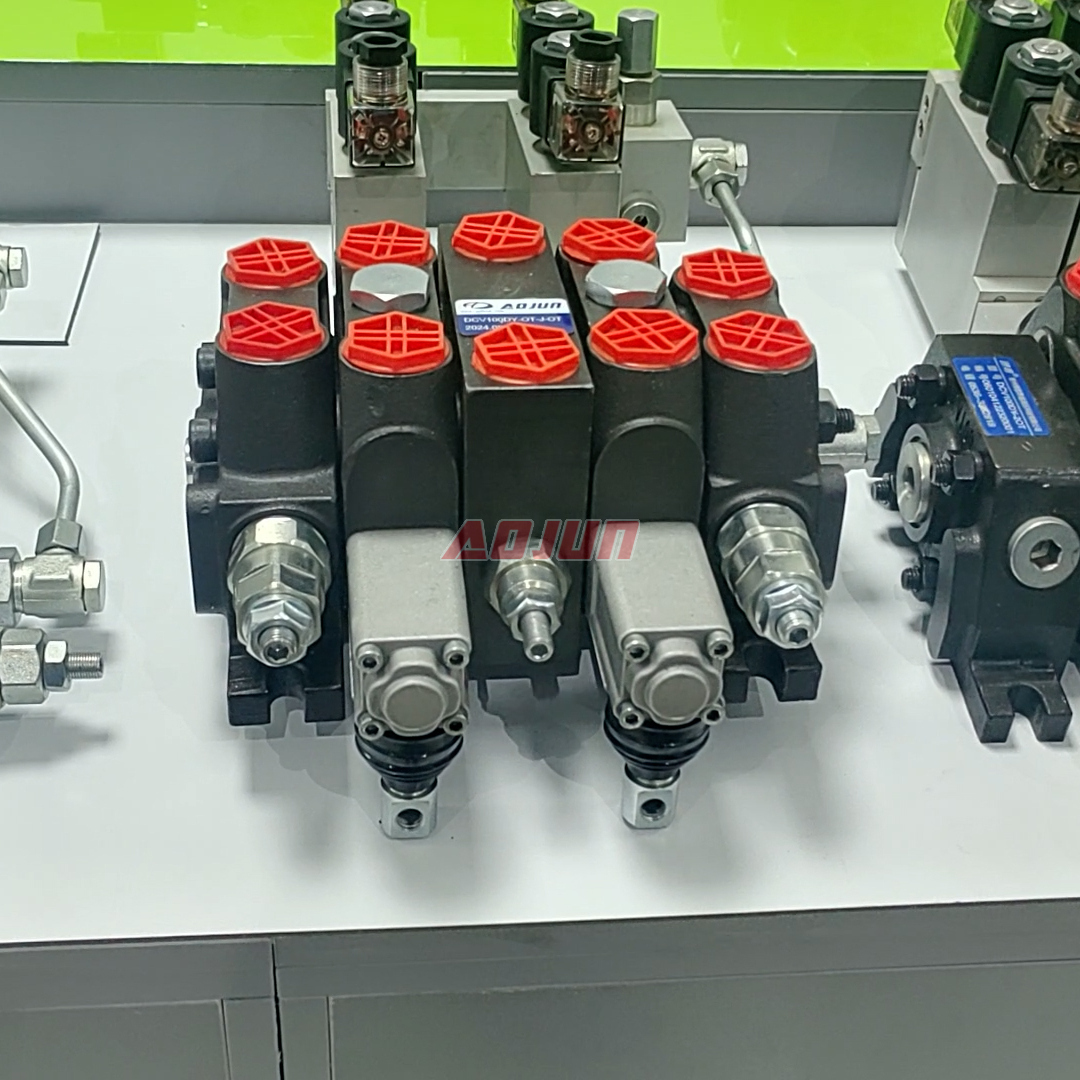

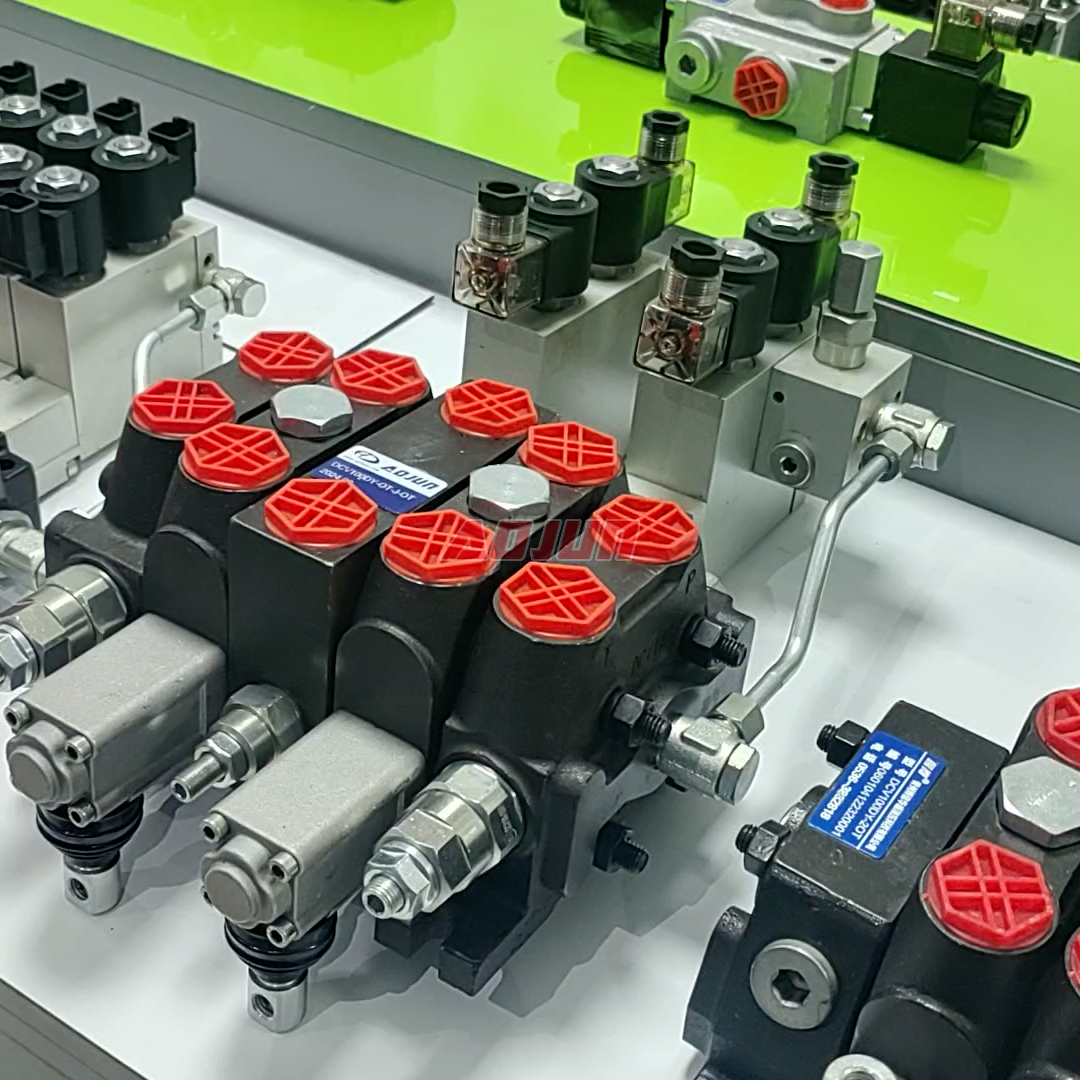

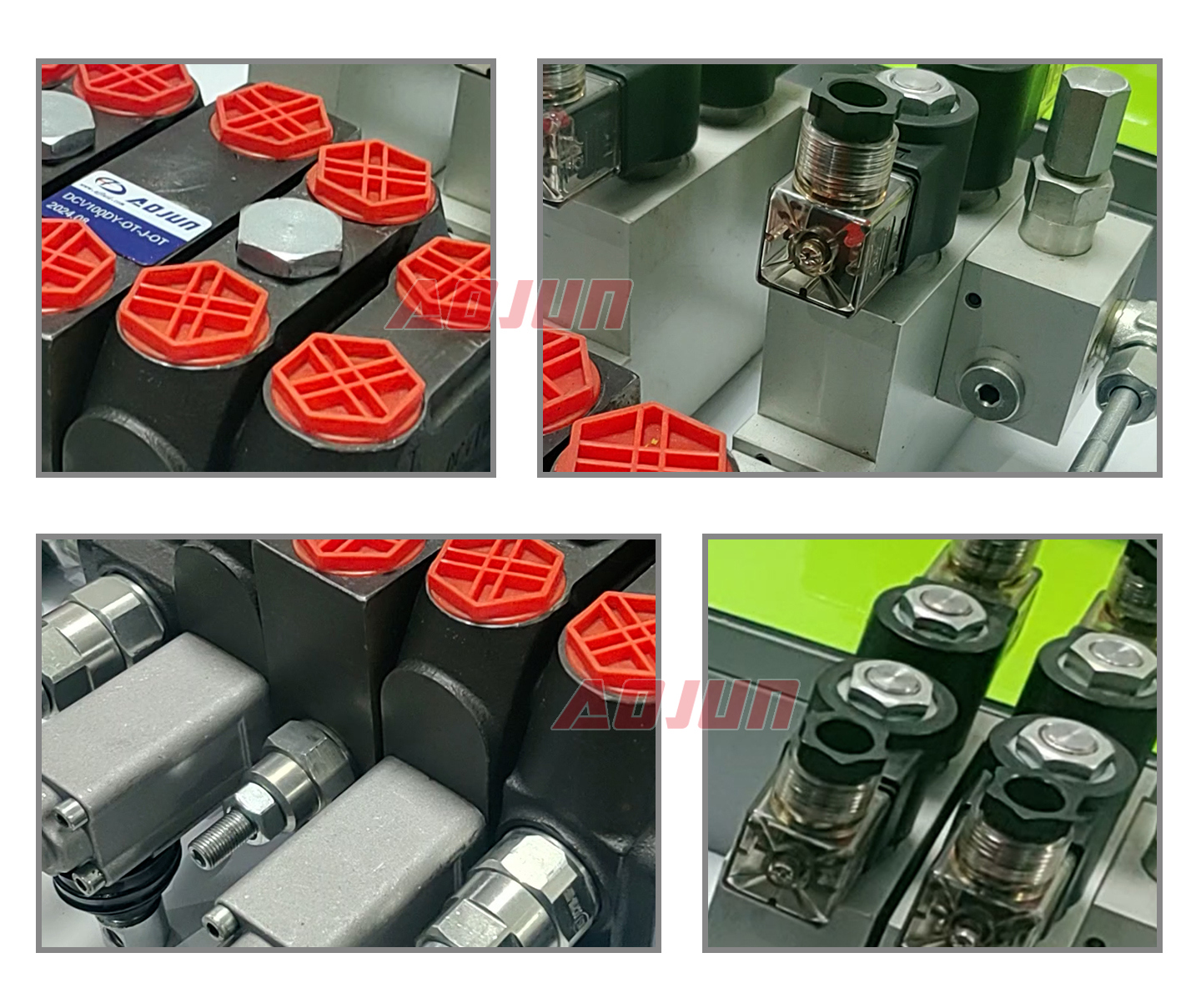

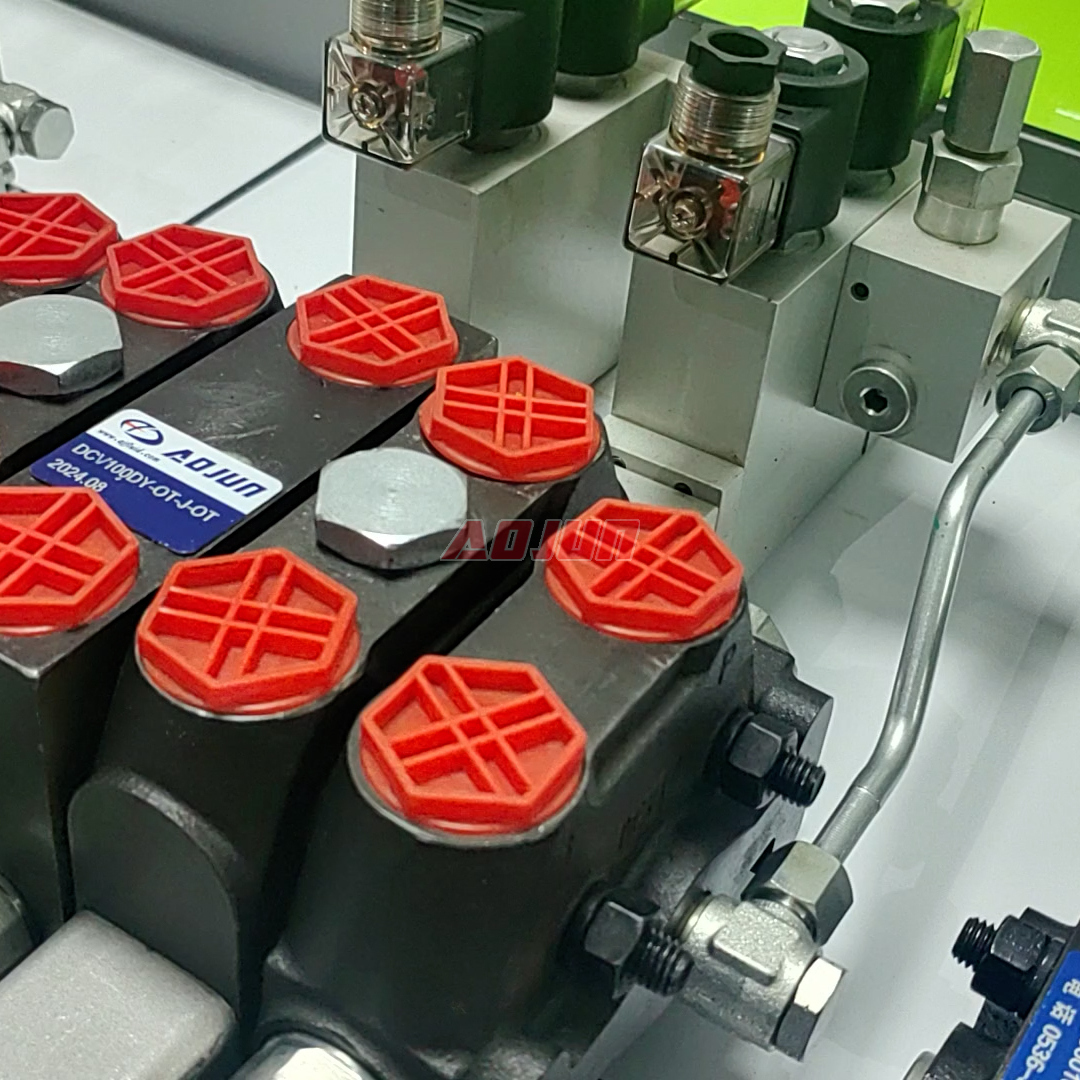

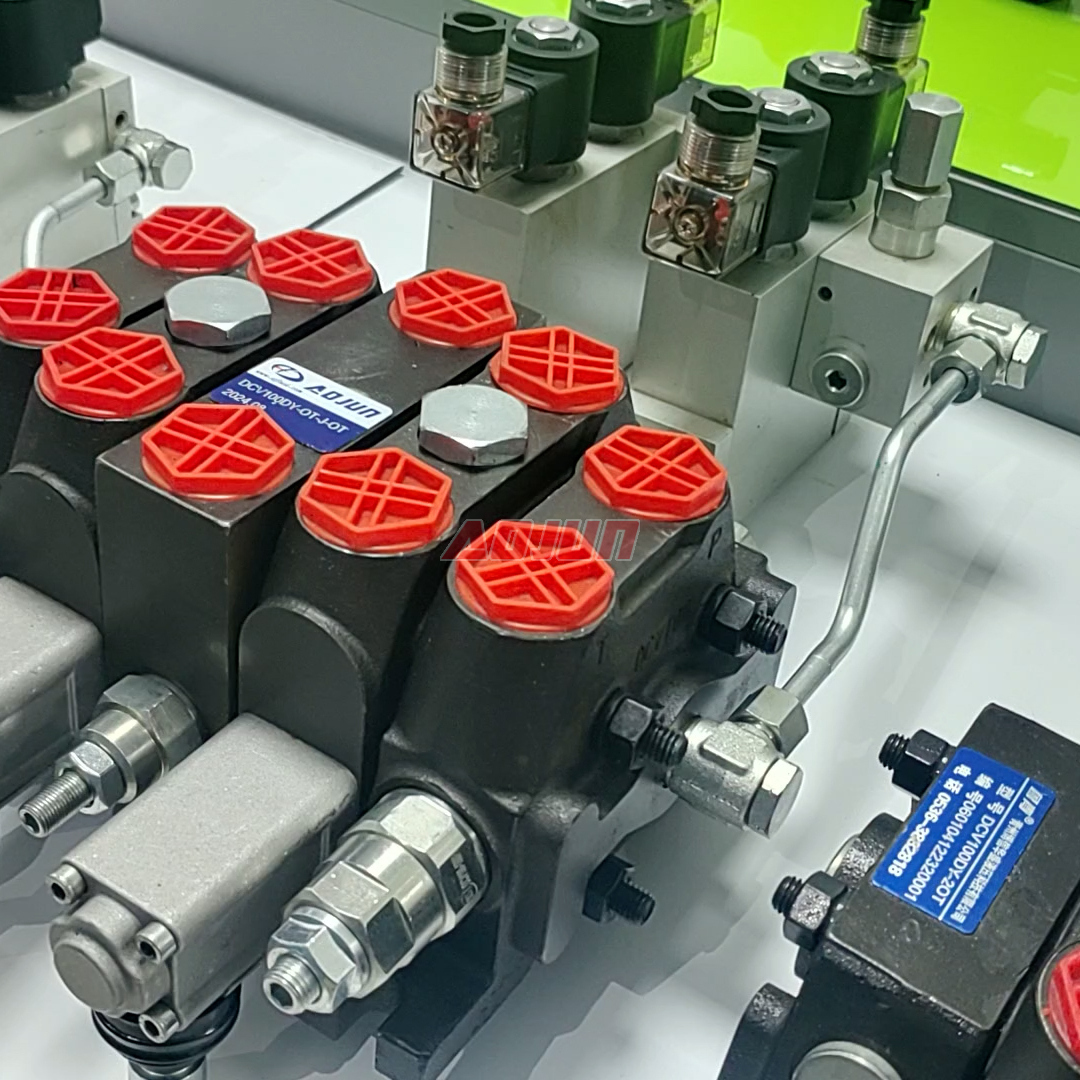

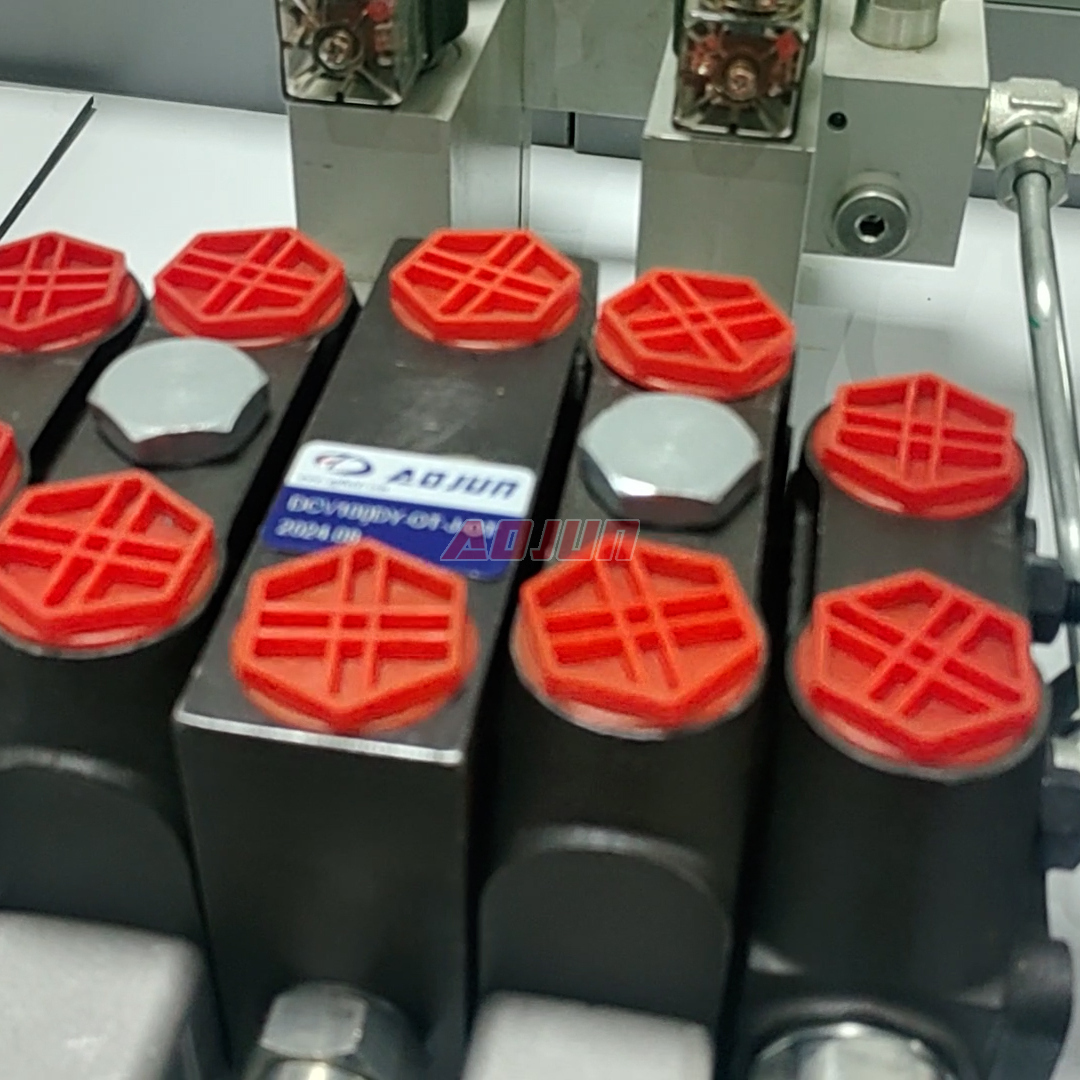

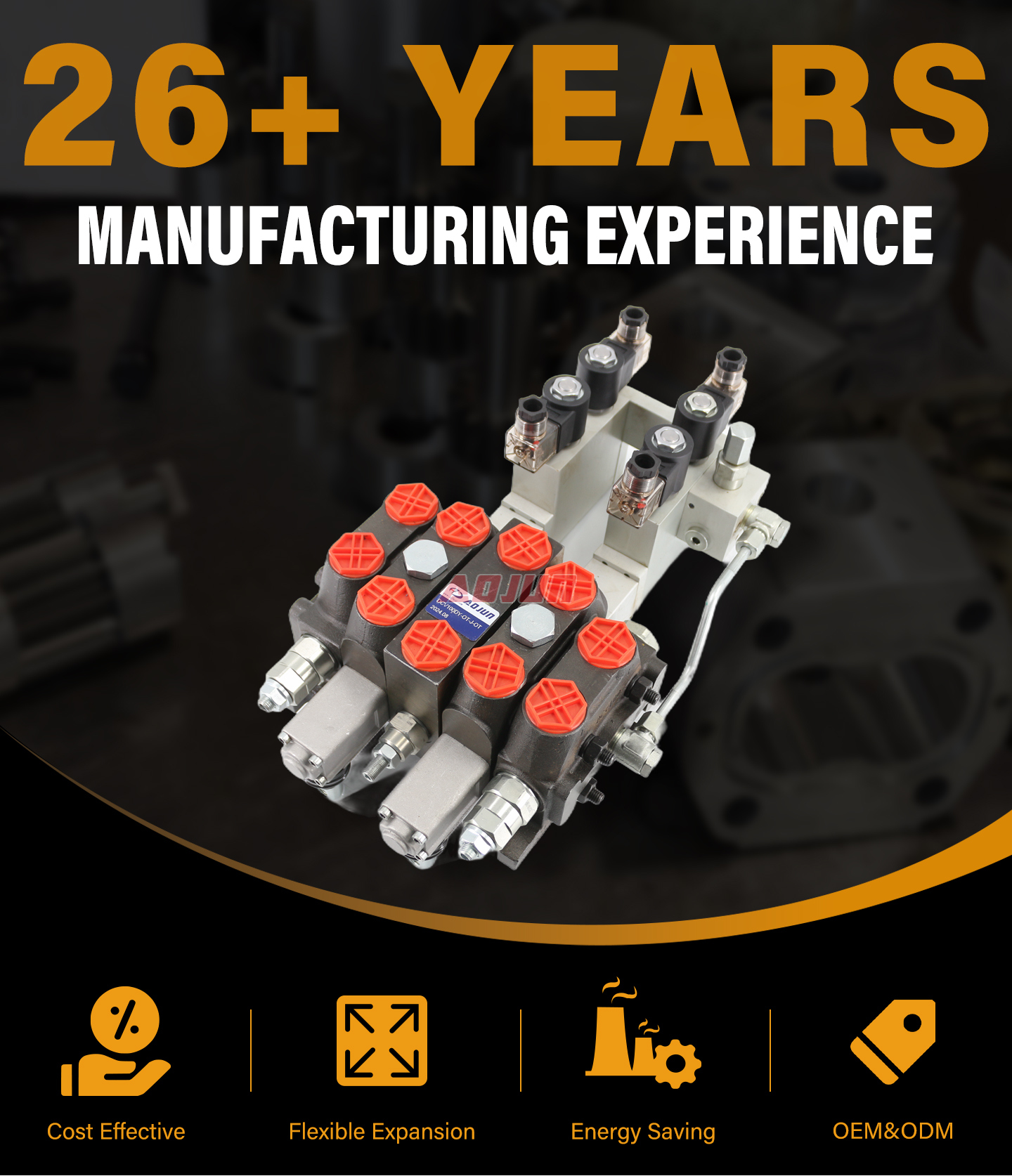

3-spool electro-hydraulic sectional directional control valve with 100 L/min rated flow and up to 350 bar pressure, designed for mobile machinery requiring precise remote/joystick control, wide temperature tolerance, and flexible port configurations.
global shipping world wide
Online Service For 24 X 7
Support OEM customization
This electro-hydraulic sectional valve (3 sections / 3 spools) is built for high-performance mobile hydraulics where stable control, high flow capacity, and rugged pressure capability are required. Rated flow is 100 L/min (26.5 US gpm) with maximum pressure up to 350 bar (5100 psi), suitable for loaders, telehandlers, aerial platforms, excavators, and other work machines. It supports hydraulic oils in a 15–75 mm²/s viscosity range and operates in harsh environments from -40°C to +60°C. Multiple inlet/outlet/port thread options are available (G3/4, M27×2.0, M22×1.5, 3/4 NPT, SAE 10, SAE 12) to simplify integration with different hose standards and global markets. Ideal for OEM/ODM, private label, customization, and wholesale supply—well suited for distributors, agents, and trading partners needing consistent quality and scalable production.
| DCV100 Series Sectional Directional Valve Parameters | |
|---|---|
| Control Method | Manual, Pneumatic, Electro-pneumatic, Hydraulic, Cable, Joystick, Manual and Joystick, Manual and Electro-hydraulic, Electric motor |
| Spool | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool, 8 Spool, 9 Spool, 10 Spool, 11 Spool, 12 Spool |
| Section | 1 Section, 2 Section, 3 Section, 4 Section, 5 Section, 6 Section, 7 Section, 8 Section, 9 Section, 10 Section, 11 Section, 12 Section |
| Ambient Temperature Range | -40°C to +60°C (-40°F to +140°F) |
| Operating Viscosity Range | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| Structure Type | Sectional valve |
| Rated Flow | 100 L/min (26.5 US gpm) |
| Max Pressure | 350 bar (5100 psi) |
| Inlet Port | G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 3/4 NPT |
| Outlet Port | G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 3/4 NPT |
| Port Size | G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 3/4 NPT |
We provide OEM/ODM services. When your product orders reach a certain value, we can offer a variety of customization services, including labels, packaging, product colors, and more.
We support multiple currencies and diverse payment methods, such as T/T, L/C, Alibaba platform, China Manufacturing Payment Platform, bank transfer, and more.
We can provide samples, and the sample costs will be refunded to you in the form of deducted payments in the later stages.
