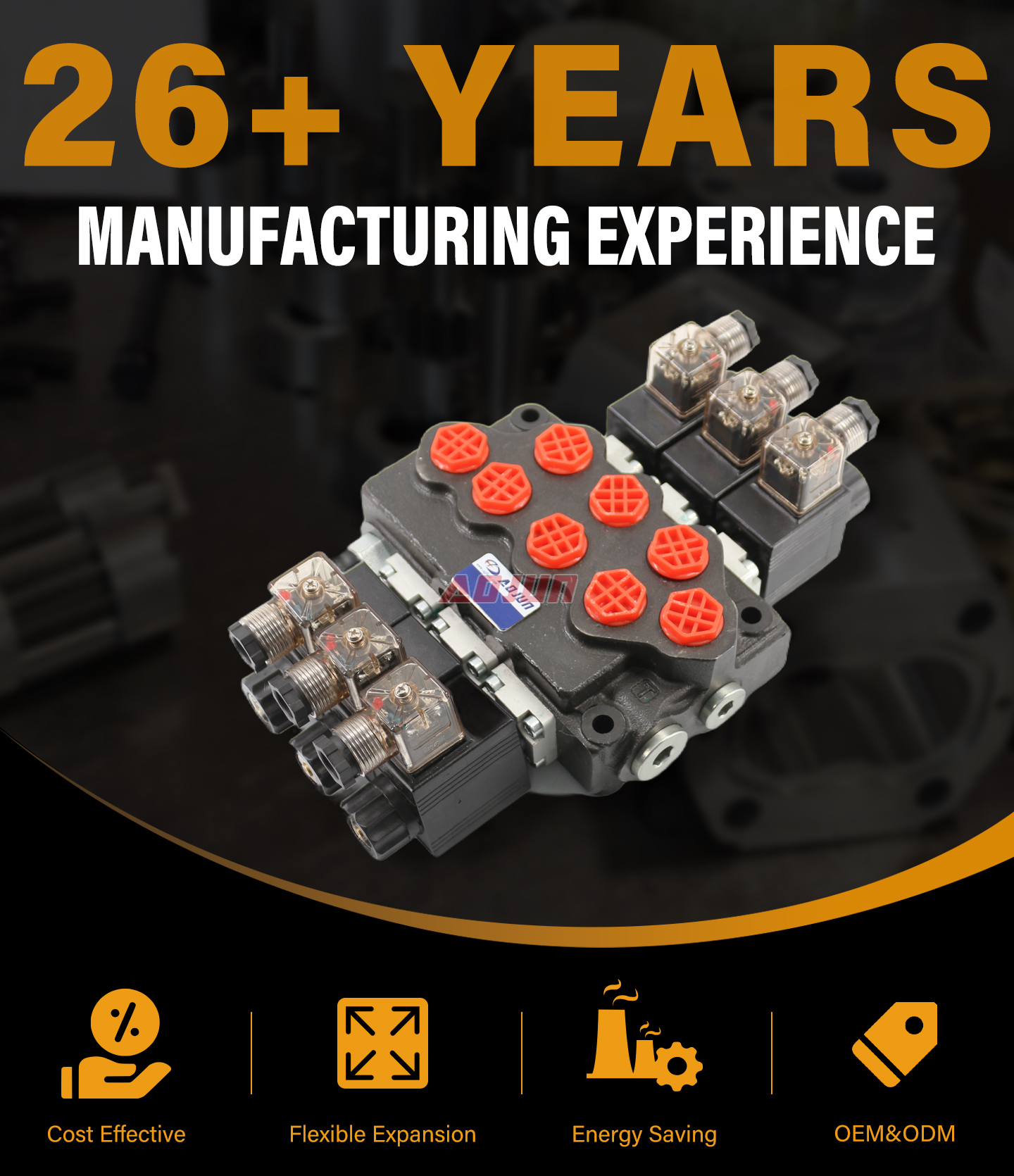

A compact 3-section, solenoid-operated monoblock directional control valve designed for mobile hydraulic systems, delivering up to 40 L/min flow and 315 bar working pressure with reliable performance across wide viscosity and ambient temperature ranges.
global shipping world wide
Online Service For 24 X 7
Support OEM customization
This solenoid-controlled monoblock valve integrates three spool sections in a single compact body to simplify plumbing and reduce leakage points versus sectional stacks. Rated flow is 40 L/min (10.5 gpm) with maximum pressure up to 315 bar (4600 psi), suitable for demanding mobile equipment functions such as boom, bucket, steering, stabilizers, clamps, outriggers, and auxiliary circuits.
Key advantages include fast electric actuation for remote/automated control, stable operation with hydraulic oils from 15–75 mm²/s, and strong environmental adaptability from -40°C to +60°C for cold-start and hot-site conditions. Typical applications include forklifts/telehandlers, skid steers, mini excavators, wheel loaders, backhoe loaders, aerial platforms, motor graders, and tractors with front-end loaders.
We support global OEM supply, contract manufacturing, private label, customization, bulk orders, and distributor/agent cooperation.
| SD5 Series Monoblock Directional Valve Parameters | |
|---|---|
| Control Method | Manual, Pneumatic, Electro-pneumatic, Electro-hydraulic, Solenoid, Hydraulic, Hydraulic and Manual, Cable, Joystick |
| Spool | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool |
| Section | 1 Section, 2 Section, 3 Section, 4 Section, 5 Section, 6 Section, 7 Section |
| Structure Type | Monoblock valve |
| Rated Flow | 40 L/min (10.5 US gpm) |
| Max Pressure | 315 bar (4600 psi) |
| Operating Viscosity Range | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| Ambient Temperature Range | -40°C to +60°C (-40°F to +140°F) |
We provide OEM/ODM services. When your product orders reach a certain value, we can offer a variety of customization services, including labels, packaging, product colors, and more.
We support multiple currencies and diverse payment methods, such as T/T, L/C, Alibaba platform, China Manufacturing Payment Platform, bank transfer, and more.
We can provide samples, and the sample costs will be refunded to you in the form of deducted payments in the later stages.
