A compact 32 cc/rev internal hydraulic gear pump with cast iron body, 20 MPa rated pressure and up to 2200 r/min, designed for reliable mobile and industrial hydraulic power generation with multiple shaft and rotation options.
global shipping world wide
Online Service For 24 X 7
Support OEM customization

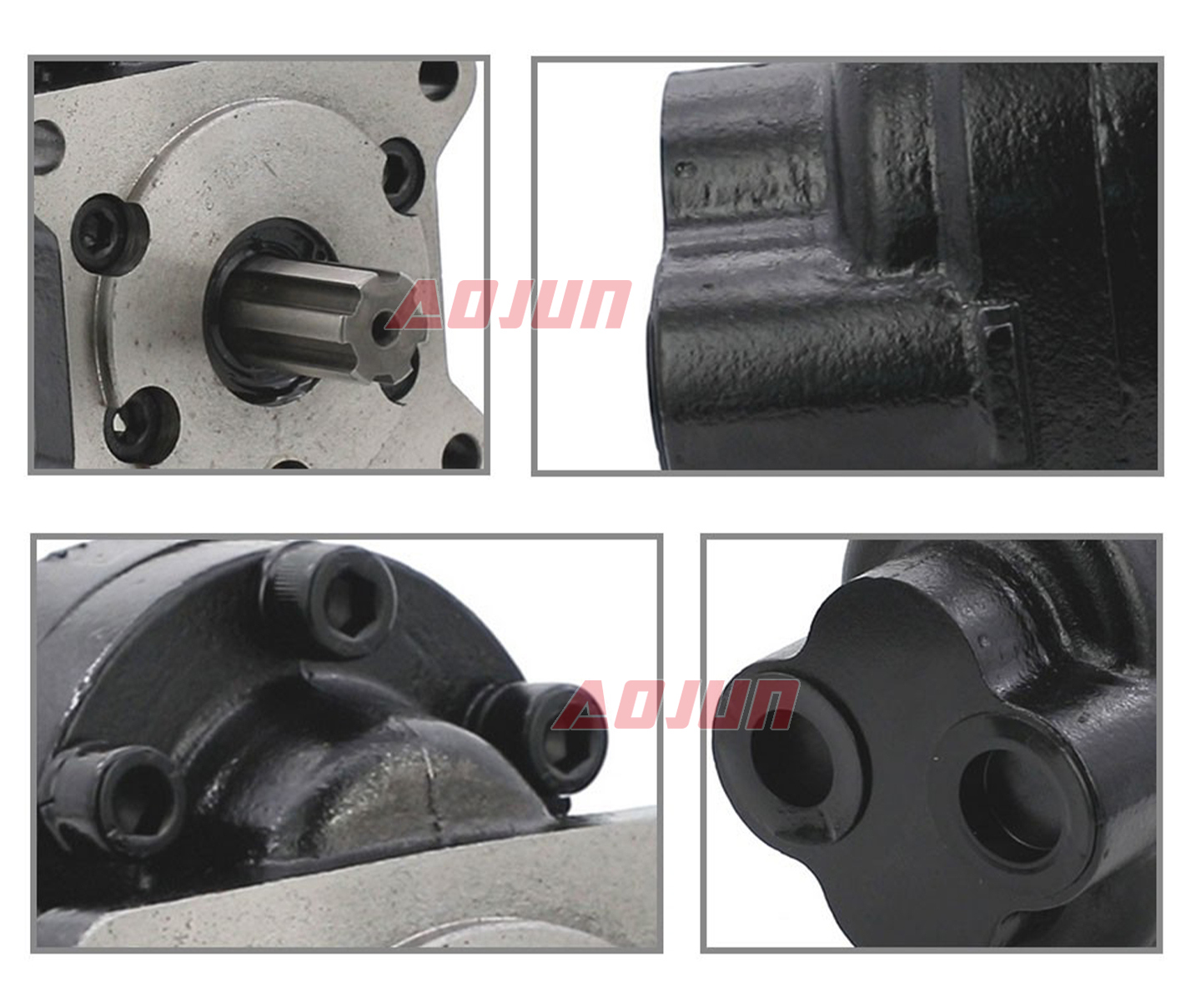

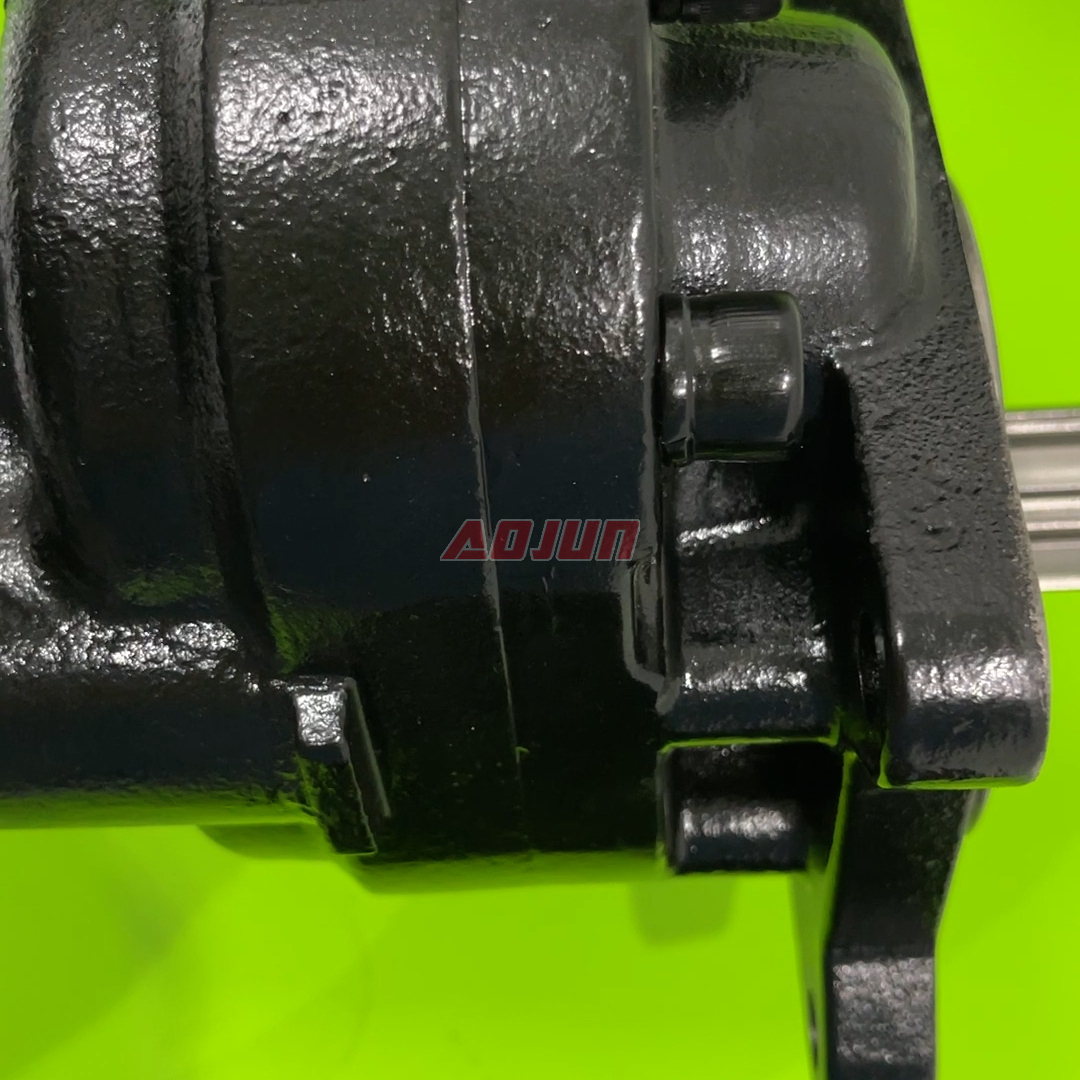

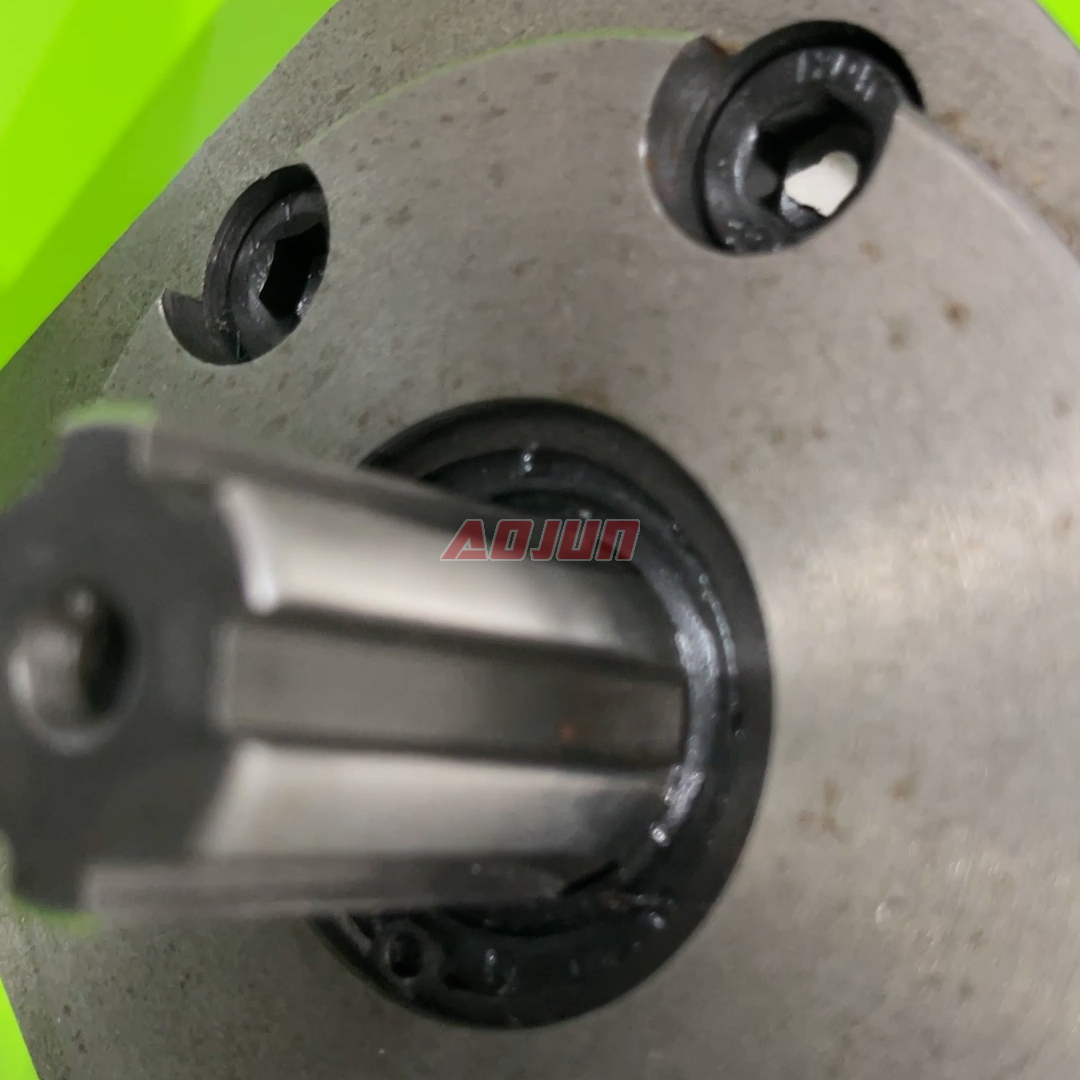

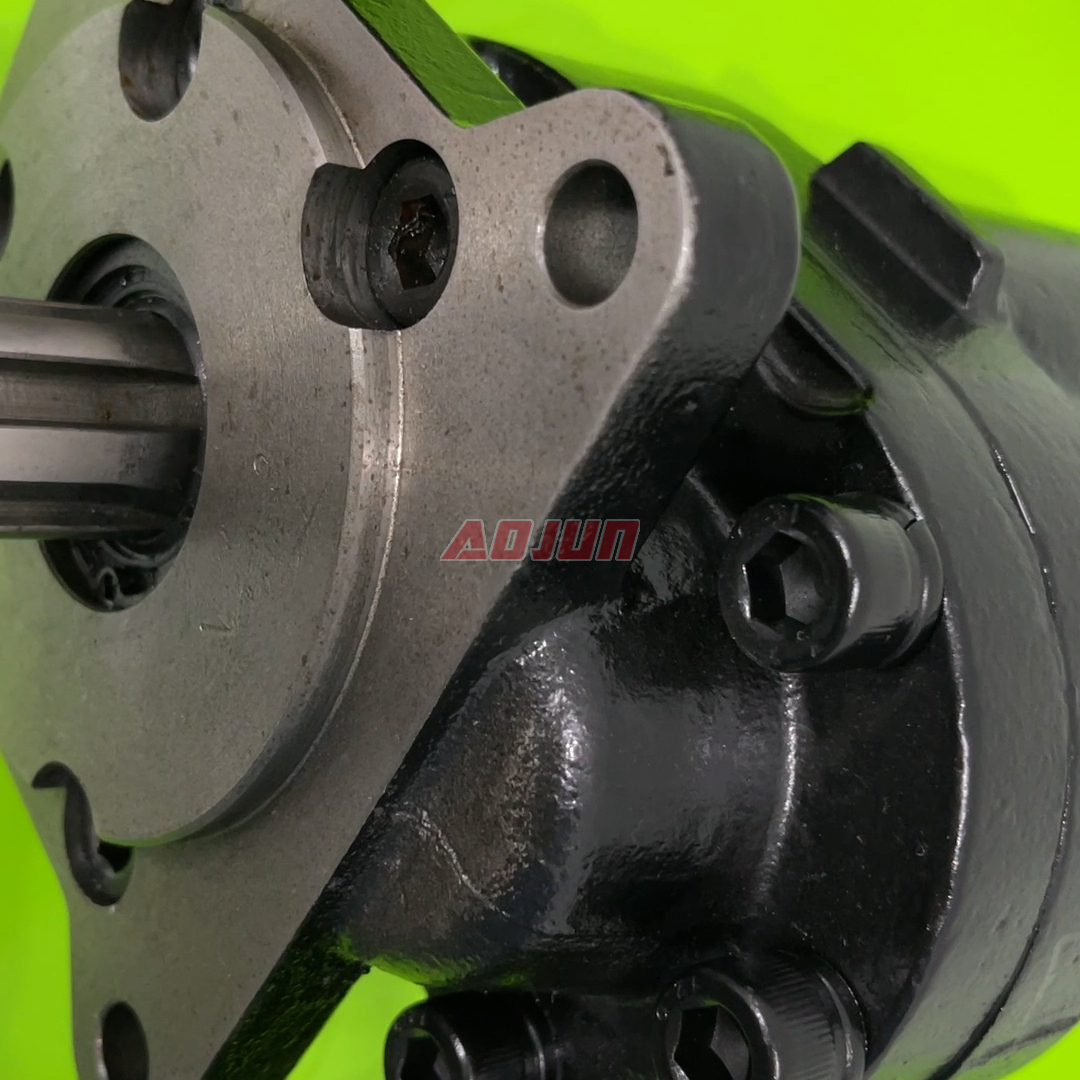

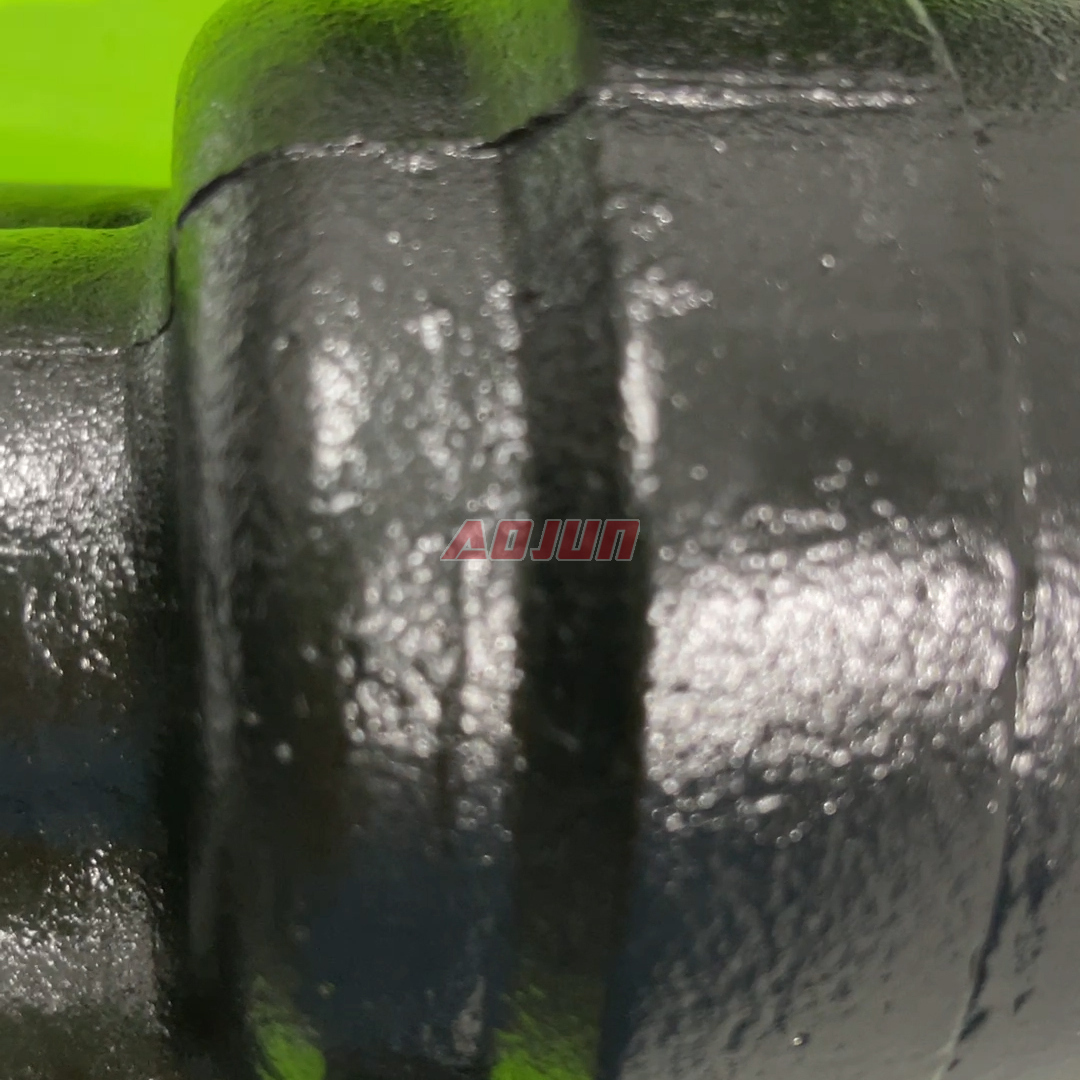

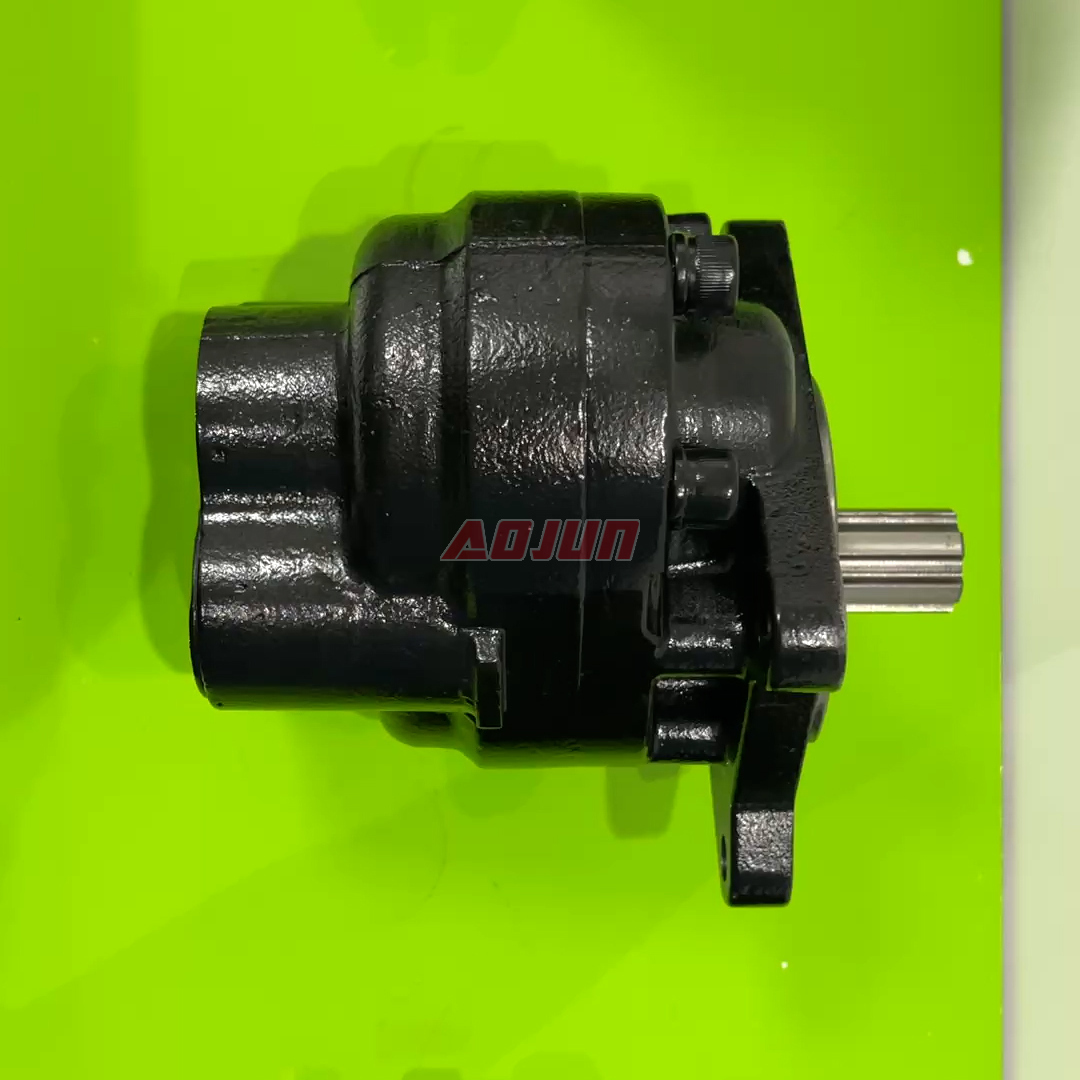

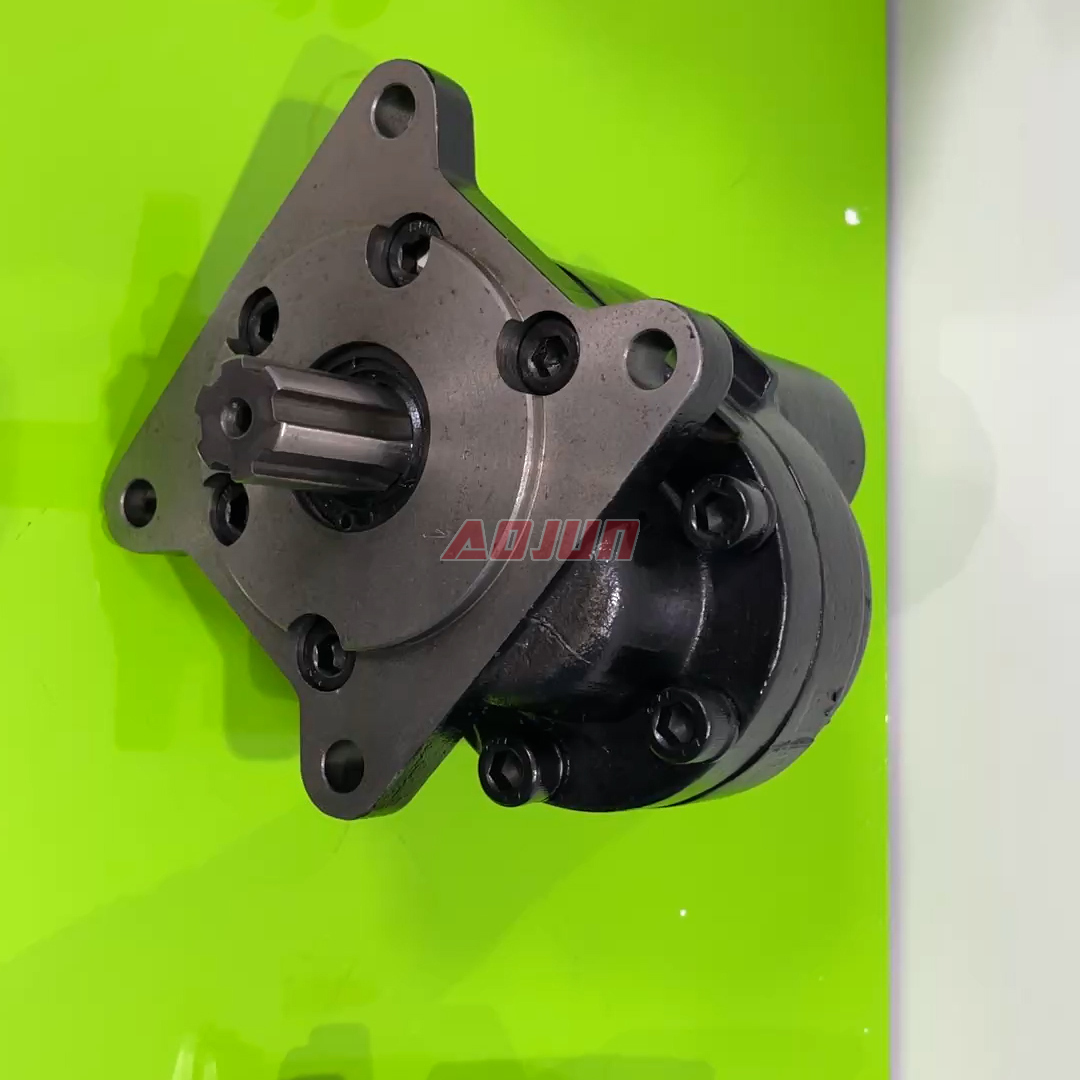

This internal gear hydraulic pump is built for stable flow and long service life in demanding duty cycles. Key specs include 32 cc/rev displacement, 20 MPa (2900 psi) rated pressure, 2000 r/min rated speed and 2200 r/min max speed. The cast iron housing improves strength and wear resistance for construction, material handling, agricultural and industrial vehicle hydraulics. Installation flexibility comes from the B-square flange interface and multiple drive configurations: plain key, rectangle spline, or involute spline shafts. Left (CCW) and right (CW) rotation options support different system layouts. Typical uses include hydraulic power units and mobile hydraulics circuits for lifting, steering, auxiliary implements and work functions. We support manufacturing, OEM/ODM, private label, customization and wholesale supply, and are actively seeking global distributors, agents and trading partners.
| CBHS-F5 Series Hydraulic Gear Pump Parameters | |
|---|---|
| Displacement | 32 cc/rev, 50 cc/rev, 63 cc/rev |
| Shaft Type | H: Rectangle Spline, X: Involute Spline, P: Plain Key |
| Flange Version | B-Square Flange |
| Material | Cast Iron |
| Structure | Internal Gear Pump |
| Rotation | L: Left (counter-clockwise), R: Right (clockwise) |
| Max Speed | 2200 r/min |
| Rated Speed | 2000 r/min |
| Rated Pressure | 20 MPa (2900 psi) |
We provide OEM/ODM services. When your product orders reach a certain value, we can offer a variety of customization services, including labels, packaging, product colors, and more.
We support multiple currencies and diverse payment methods, such as T/T, L/C, Alibaba platform, China Manufacturing Payment Platform, bank transfer, and more.
We can provide samples, and the sample costs will be refunded to you in the form of deducted payments in the later stages.
