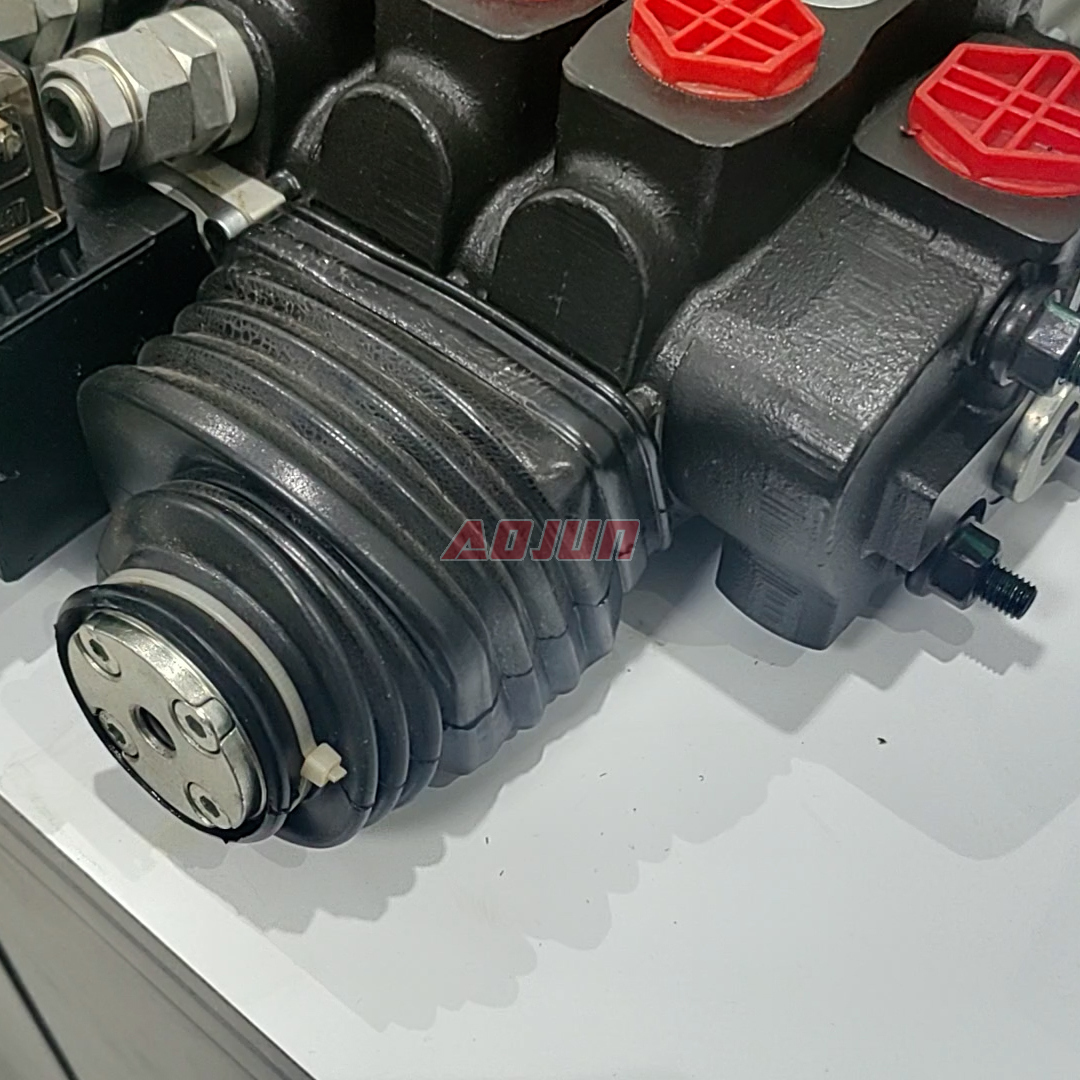

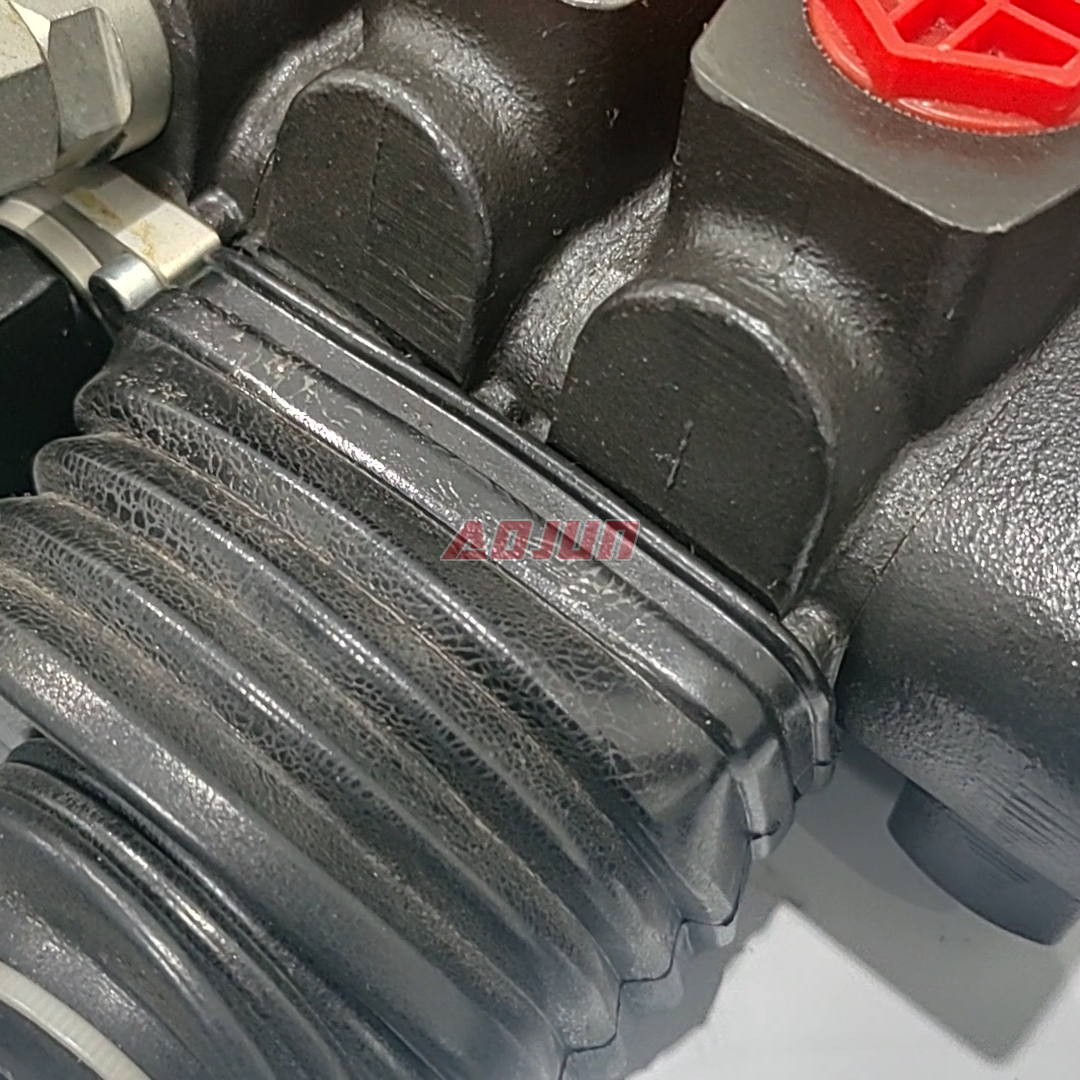

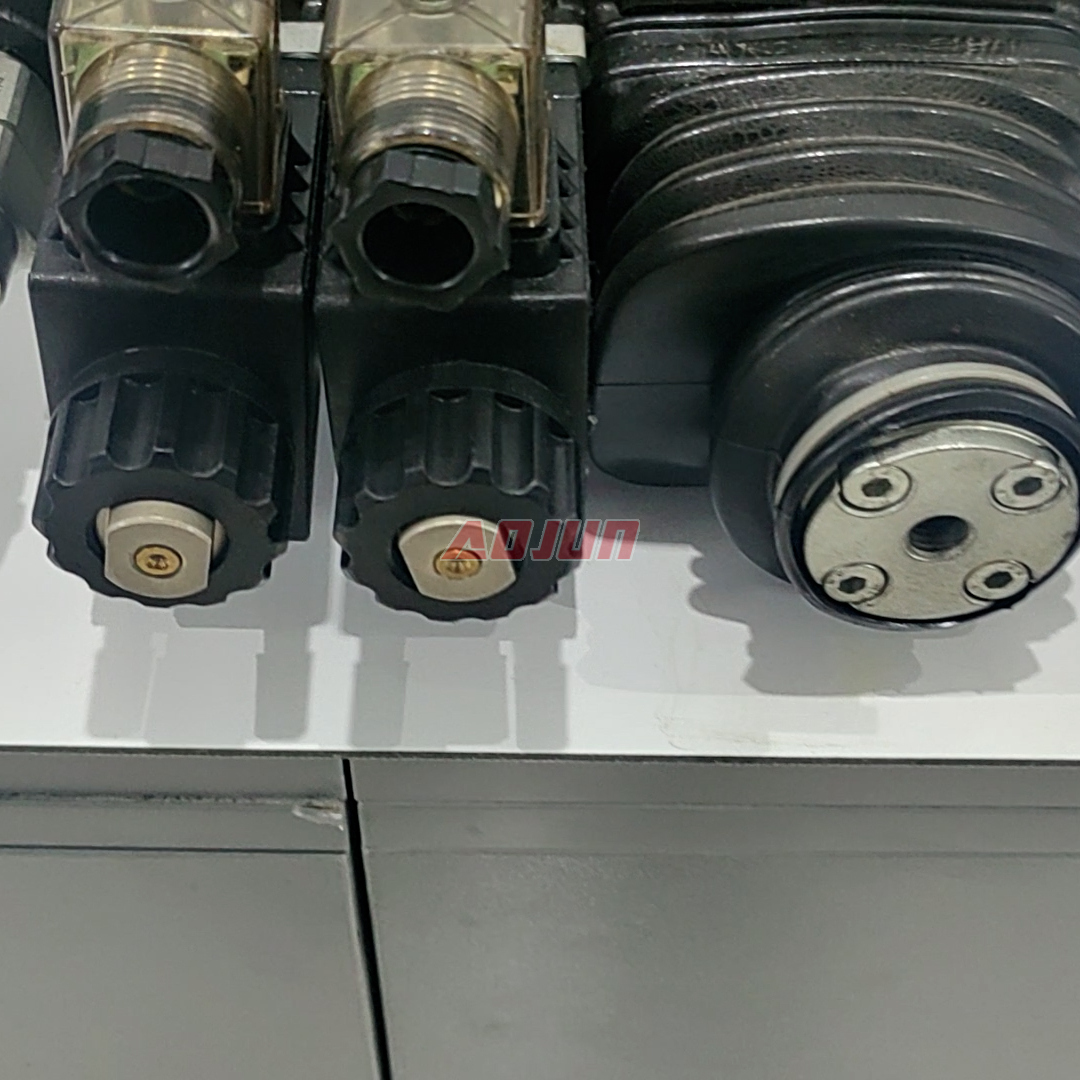

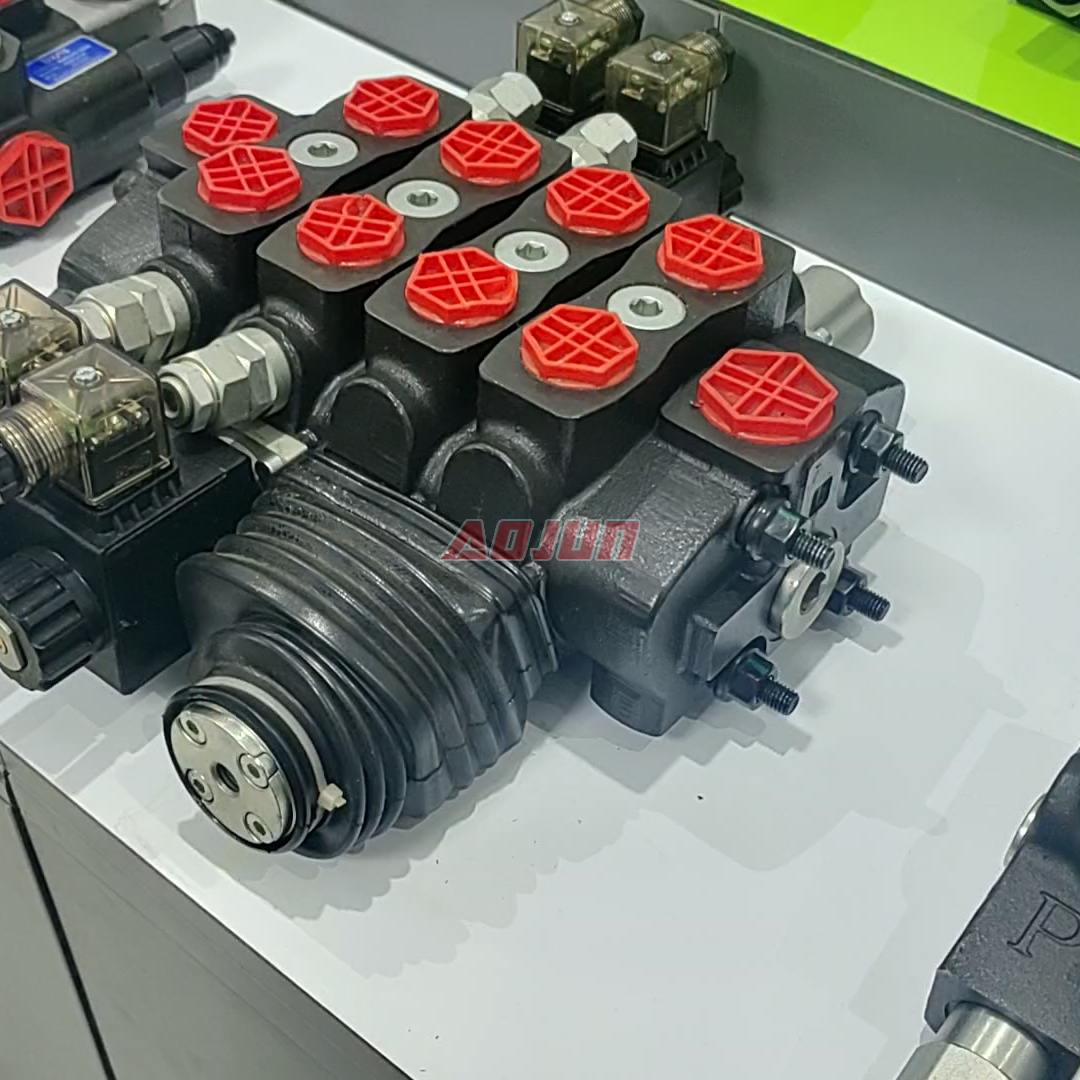

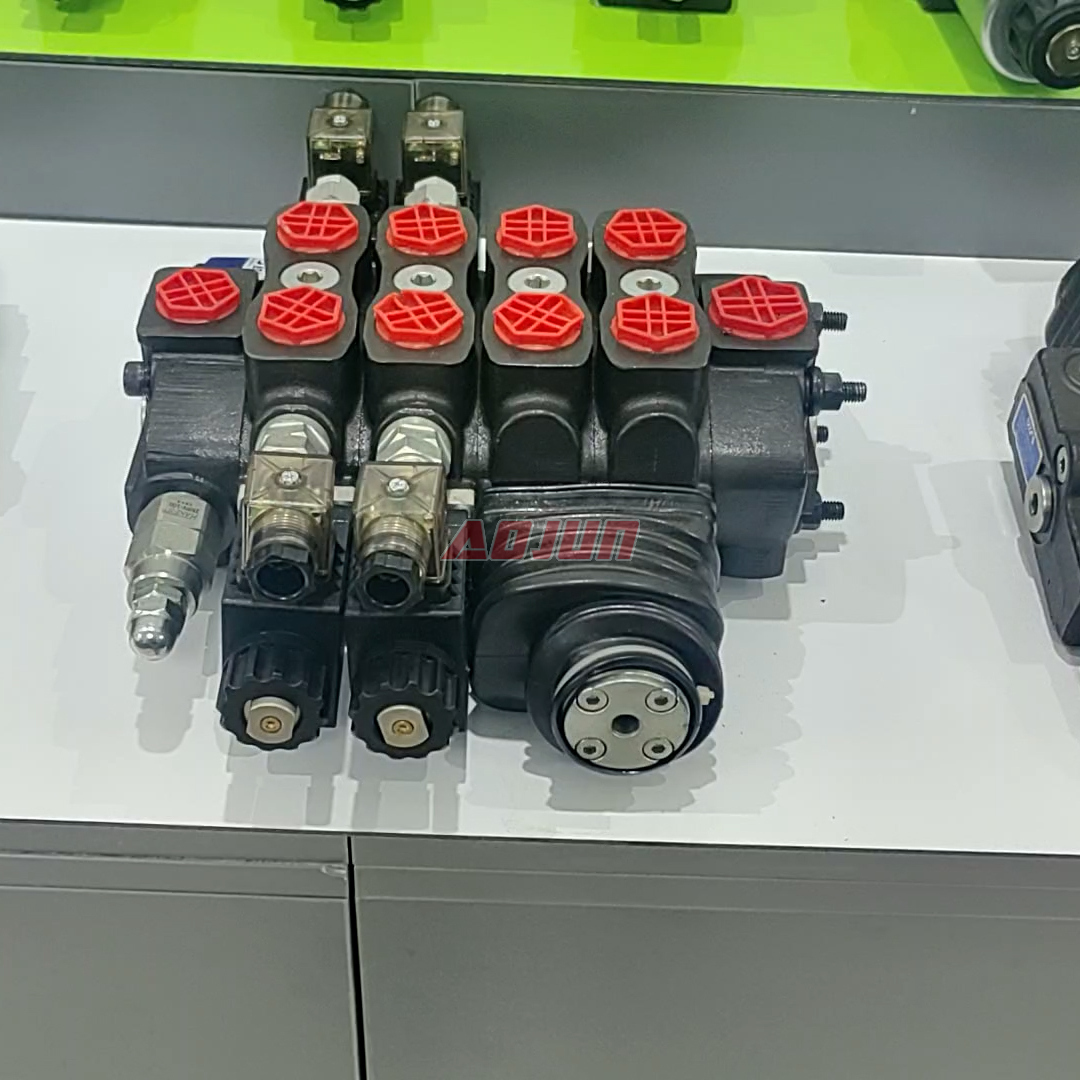

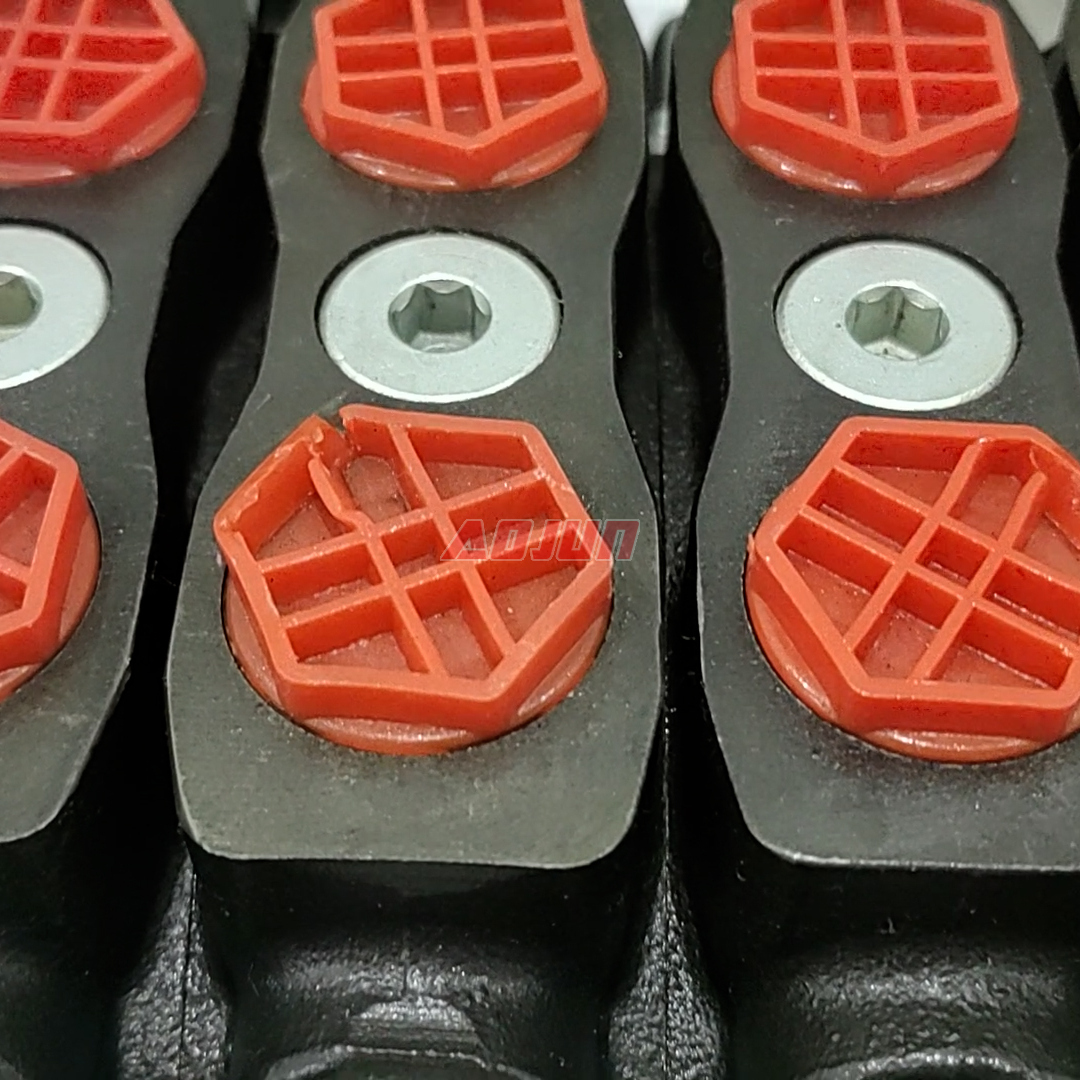

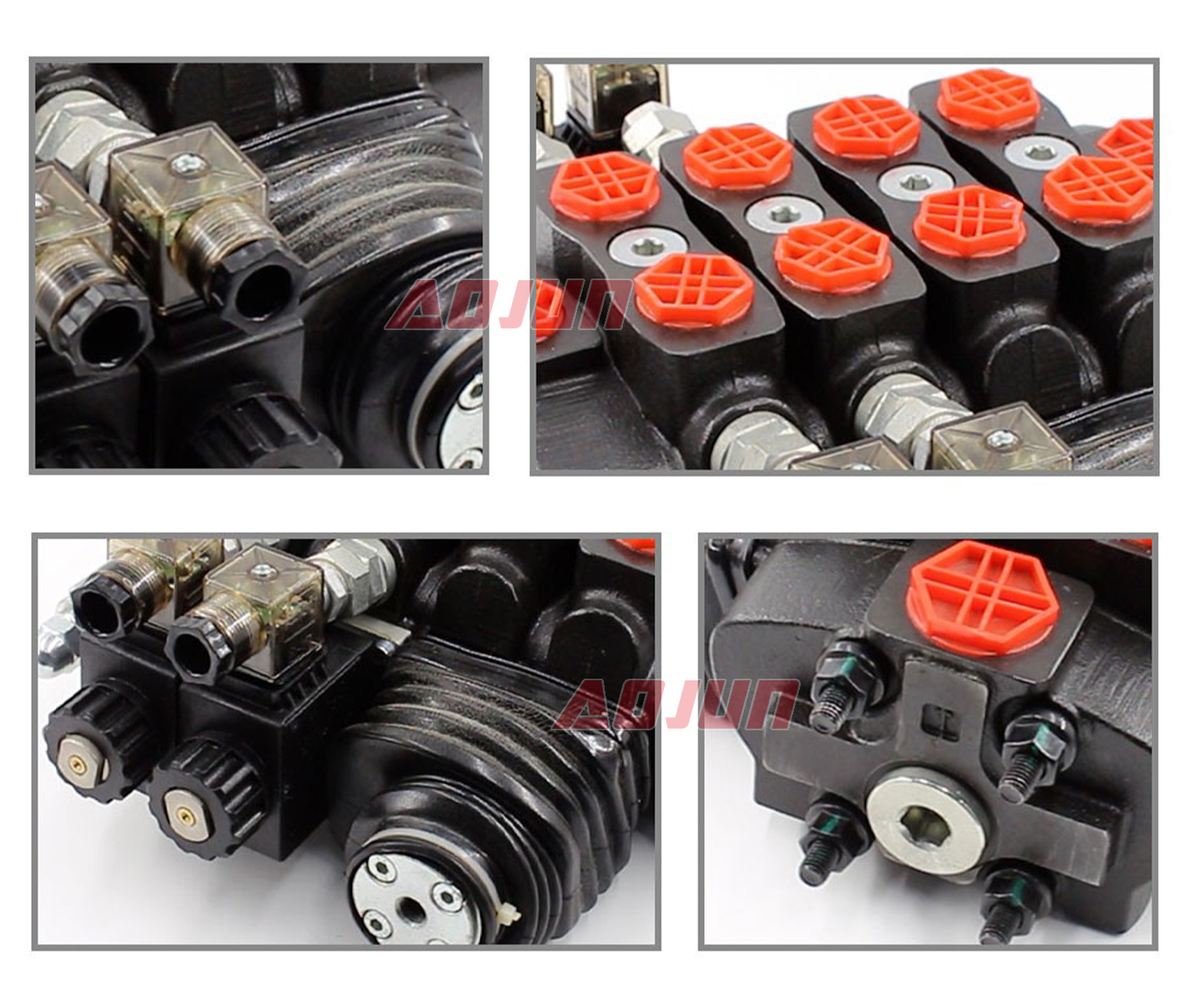

A 4-section sectional hydraulic directional valve with combined solenoid and joystick actuation, designed for mobile machinery needing multi-function control, up to 90 L/min flow and up to 350 bar pressure, with wide viscosity and extreme ambient temperature capability.
global shipping world wide
Online Service For 24 X 7
Support OEM customization
Control & flexibility: 4-spool, 4-section sectional architecture enables multi-circuit control for boom/bucket/auxiliary functions; supports both solenoid actuation (electro-hydraulic/remote control) and joystick operation (operator-friendly manual control).
Performance: rated flow 90 L/min (23.8 US gpm) for fast actuator response; maximum pressure up to 350 bar (5100 psi) for demanding mobile hydraulics.
Reliability in harsh environments: operating viscosity range 12–400 mm²/s supports various hydraulic oils and seasonal changes; ambient temperature range -40°C to +80°C supports cold-start and hot-site duty.
Typical applications: material handling and construction equipment valve banks, agricultural implements, industrial vehicles and multi-function attachments where stable directional control and high-pressure capability are required.
Supply capabilities: suitable for OEM manufacturing, contract manufacturing, private label, customization, bulk supply, and distributor/agent partnerships for global markets.
| SD8 Series Sectional Directional Valve Parameters | |
|---|---|
| Control Method | Manual, Pneumatic, Electro-pneumatic, Electro-hydraulic, Solenoid, Hydraulic, Hydraulic and Manual, Cable, Joystick, Solenoid and Joystick, Manual and Joystick |
| Spool | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool, 8 Spool, 9 Spool, 10 Spool |
| Section | 1 Section, 2 Section, 3 Section, 4 Section, 5 Section, 6 Section, 7 Section, 8 Section, 9 Section, 10 Section |
| Structure Type | Sectional valve |
| Rated Flow | 90 L/min (23.8 US gpm) |
| Max Pressure | 250 bar (3600 psi), 350 bar (5100 psi) |
| Operating Viscosity Range | 12 - 400 mm²/s (12 cSt to 400 cSt) |
| Ambient Temperature Range | -40°C to +80°C (-40°F to +176°F) |
