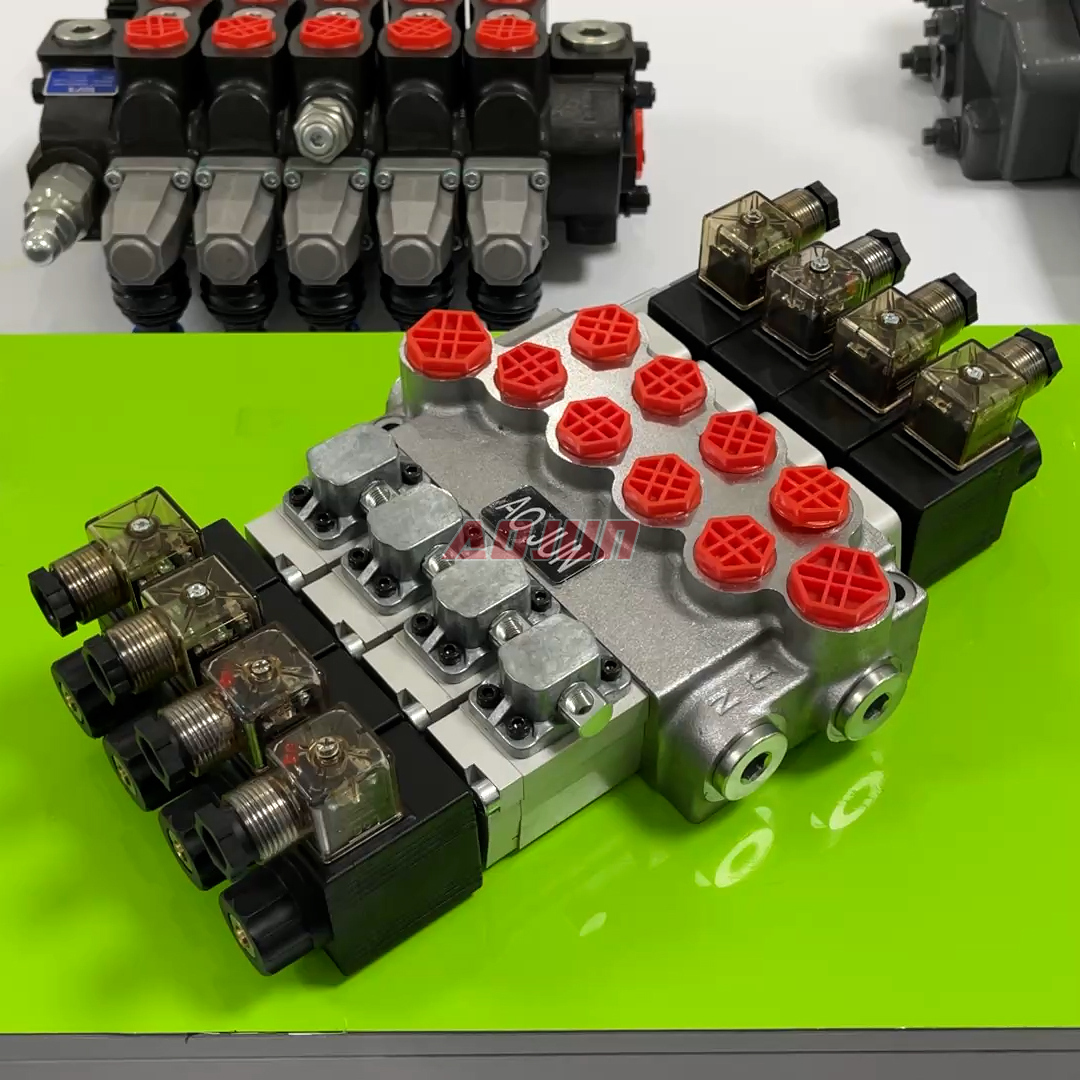

A 4-section, solenoid-operated monoblock directional valve designed for mobile hydraulic systems, delivering 40 L/min rated flow and up to 250 bar pressure, with wide viscosity and ambient temperature capability for demanding field equipment.
global shipping world wide
Online Service For 24 X 7
Support OEM customization
Key specs: 4 spools/4 sections, solenoid control, monoblock structure, rated flow 40 L/min (10.5 US gpm), max pressure 250 bar (3600 psi). Reliability window: supports hydraulic oil viscosity 15–75 mm²/s (cSt) and ambient temperature from -40°C to +80°C, helping ensure stable shifting and performance across cold starts and hot-duty cycles.
Benefits: compact monoblock body reduces external leakage points versus multi-piece sectional stacks; electric solenoid actuation enables easy integration with PLC/ECU control and remote operation; suitable for multi-function circuits where four independent actuator functions are required.
Typical uses: lift/tilt/aux functions on forklifts and telehandlers, attachment control on skid steer loaders, auxiliary circuits on mini/midi excavators, implement control on tractor loaders, and valve banks for aerial platforms and mobile pumps.
Supply options: factory direct manufacturing for global customers, including OEM/ODM, private label, customization, wholesale supply, and support for distributors/agents/traders.
| P40 Series Monoblock Directional Valve Parameters | |
|---|---|
| Spool | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Control Method | Manual, Pneumatic, Electro-pneumatic, Electro-hydraulic, Solenoid, Hydraulic and Manual, Cable, Joystick, Solenoid and Joystick |
| Ambient Temperature Range | -40°C to +80°C (-40°F to +176°F) |
| Operating Viscosity Range | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| Max Pressure | 250 bar (3600 psi) |
| Rated Flow | 40 L/min (10.5 US gpm) |
| Structure Type | Monoblock valve |
| Section | 1 Section, 2 Section, 3 Section, 4 Section, 5 Section, 6 Section, 7 Section |
We provide OEM/ODM services. When your product orders reach a certain value, we can offer a variety of customization services, including labels, packaging, product colors, and more.
We support multiple currencies and diverse payment methods, such as T/T, L/C, Alibaba platform, China Manufacturing Payment Platform, bank transfer, and more.
We can provide samples, and the sample costs will be refunded to you in the form of deducted payments in the later stages.
