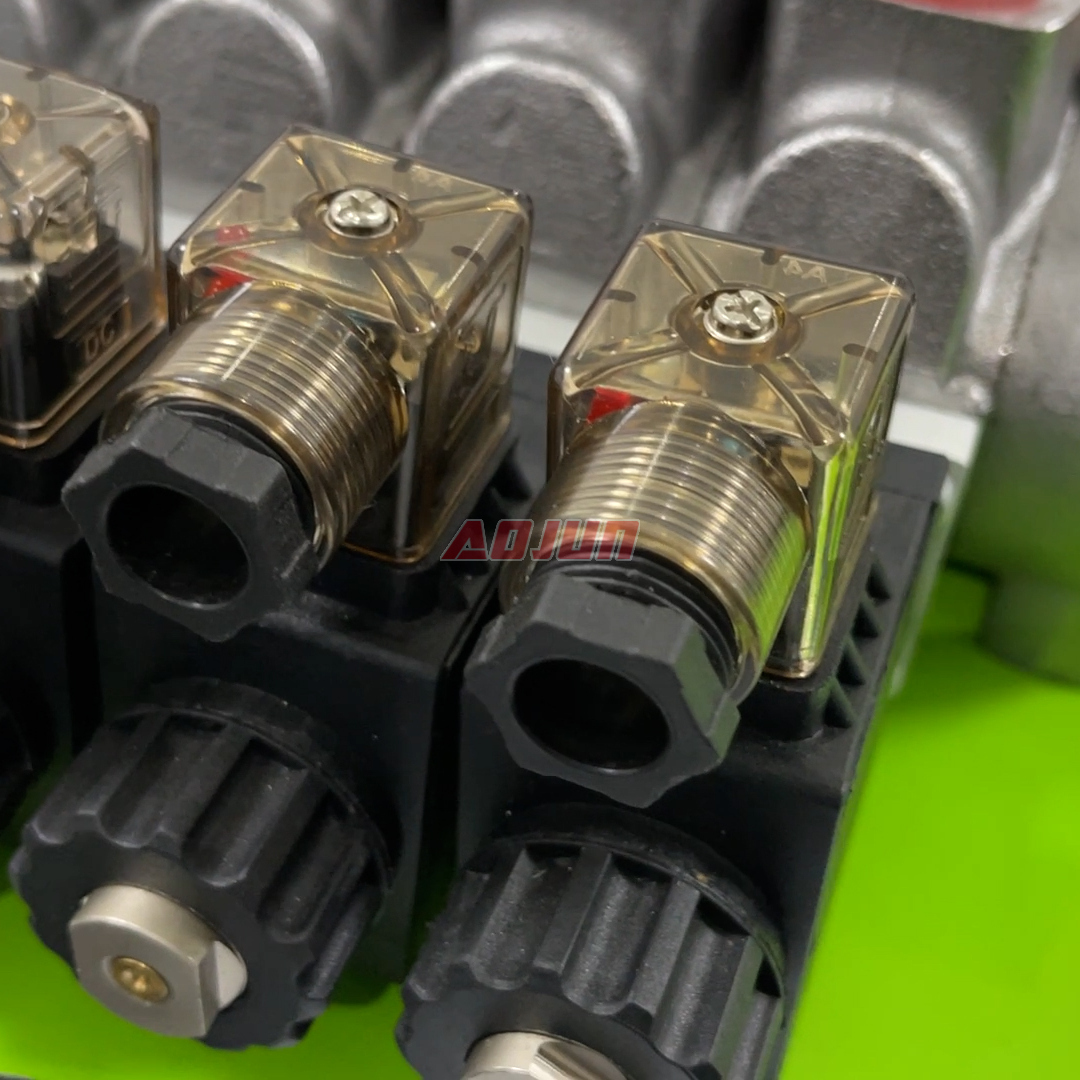

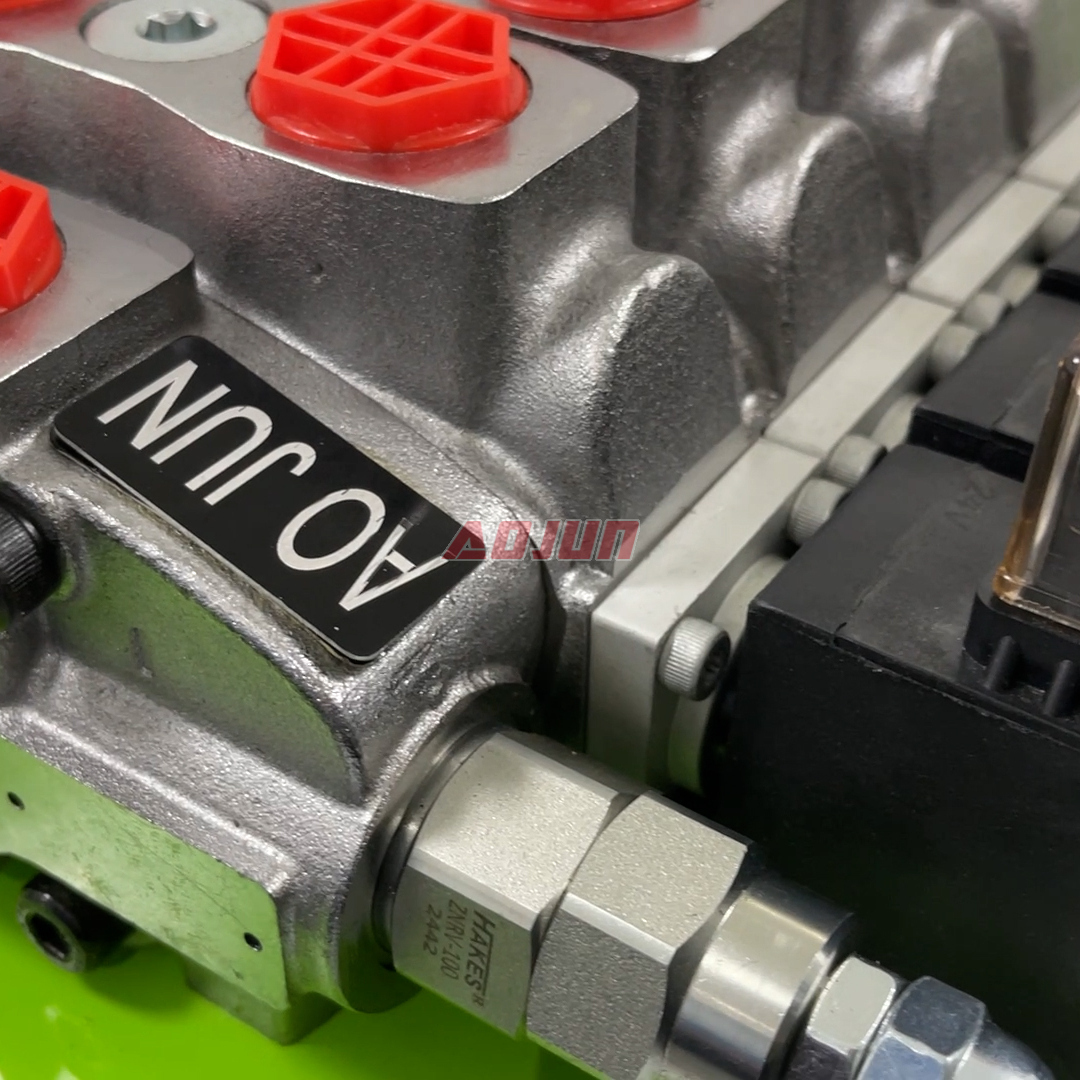

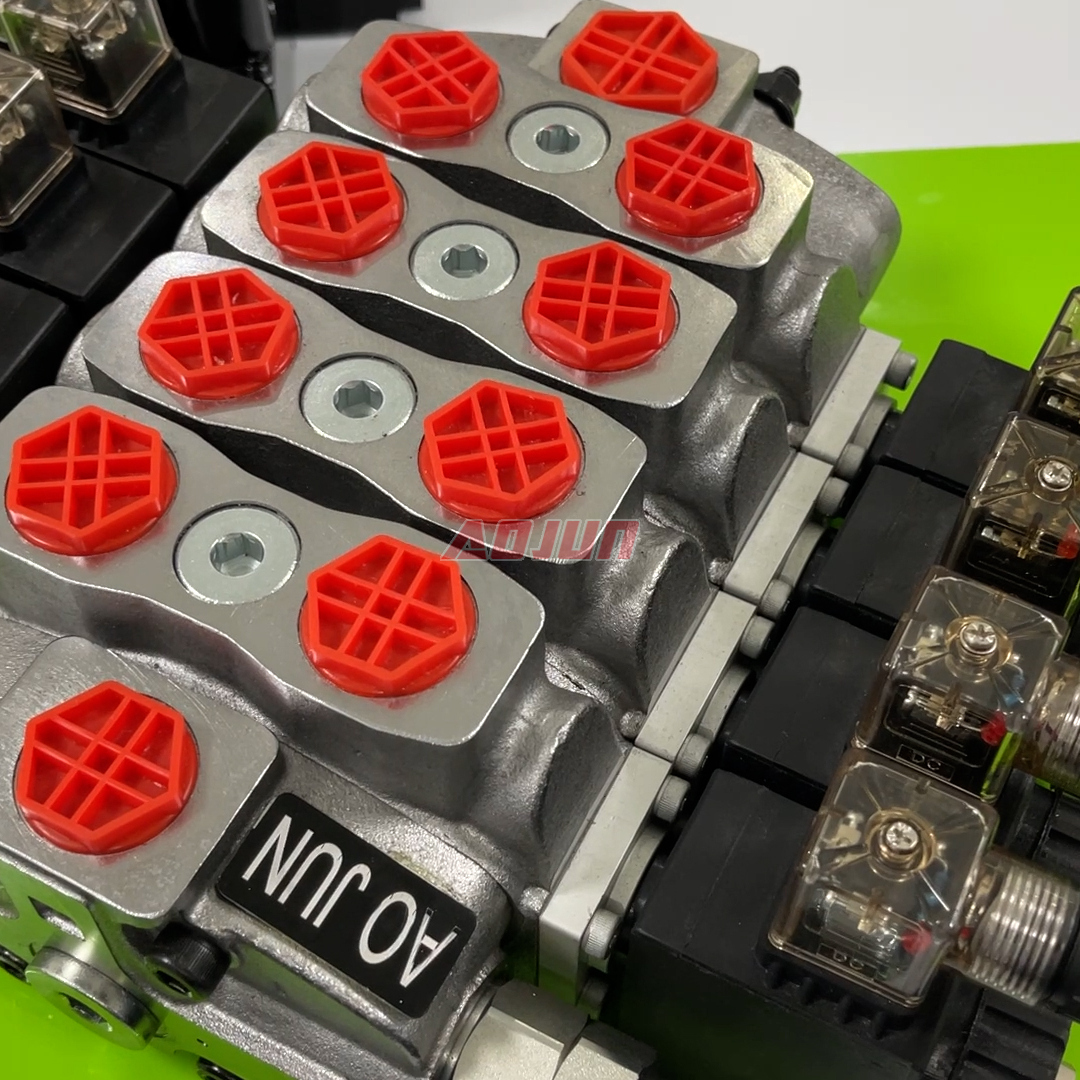

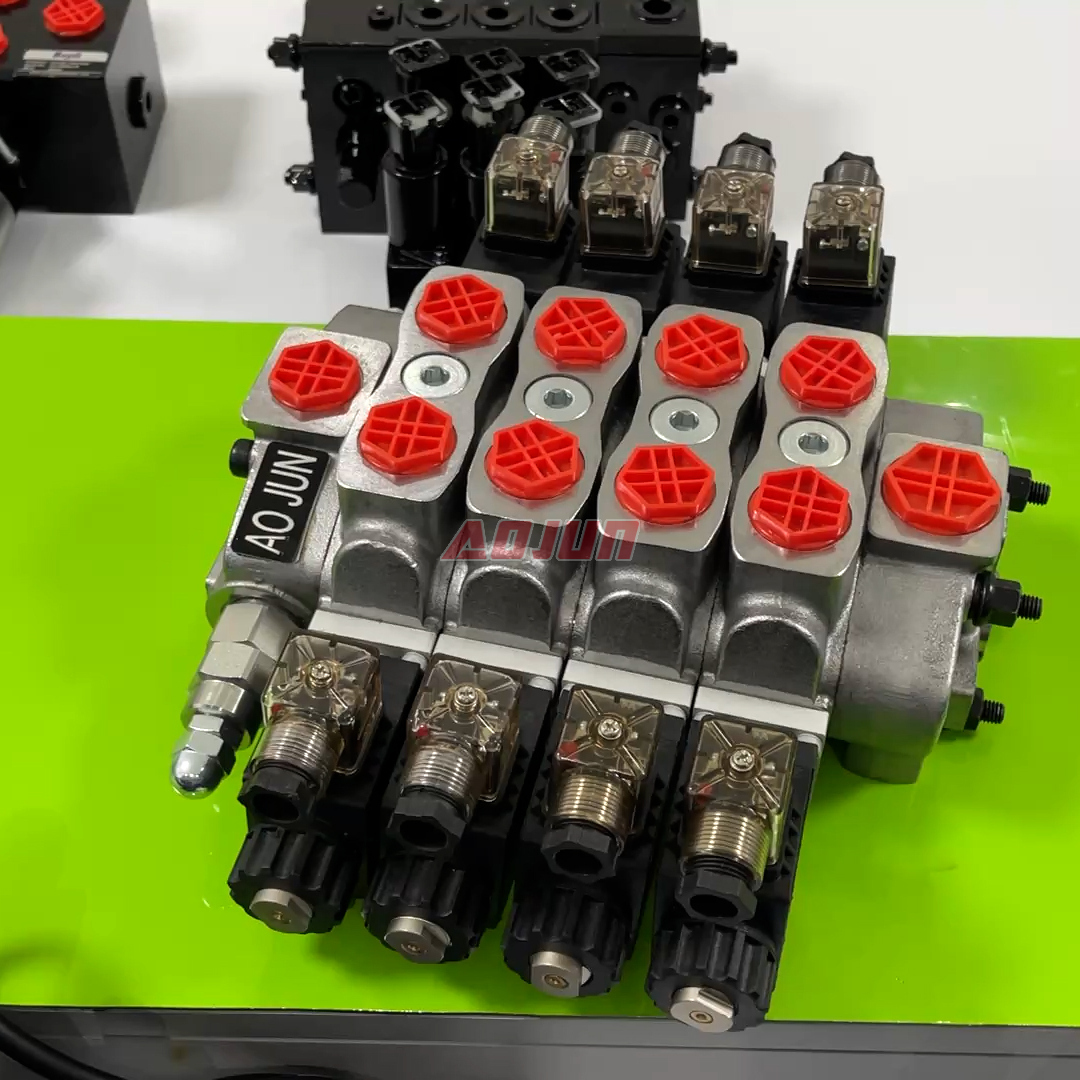

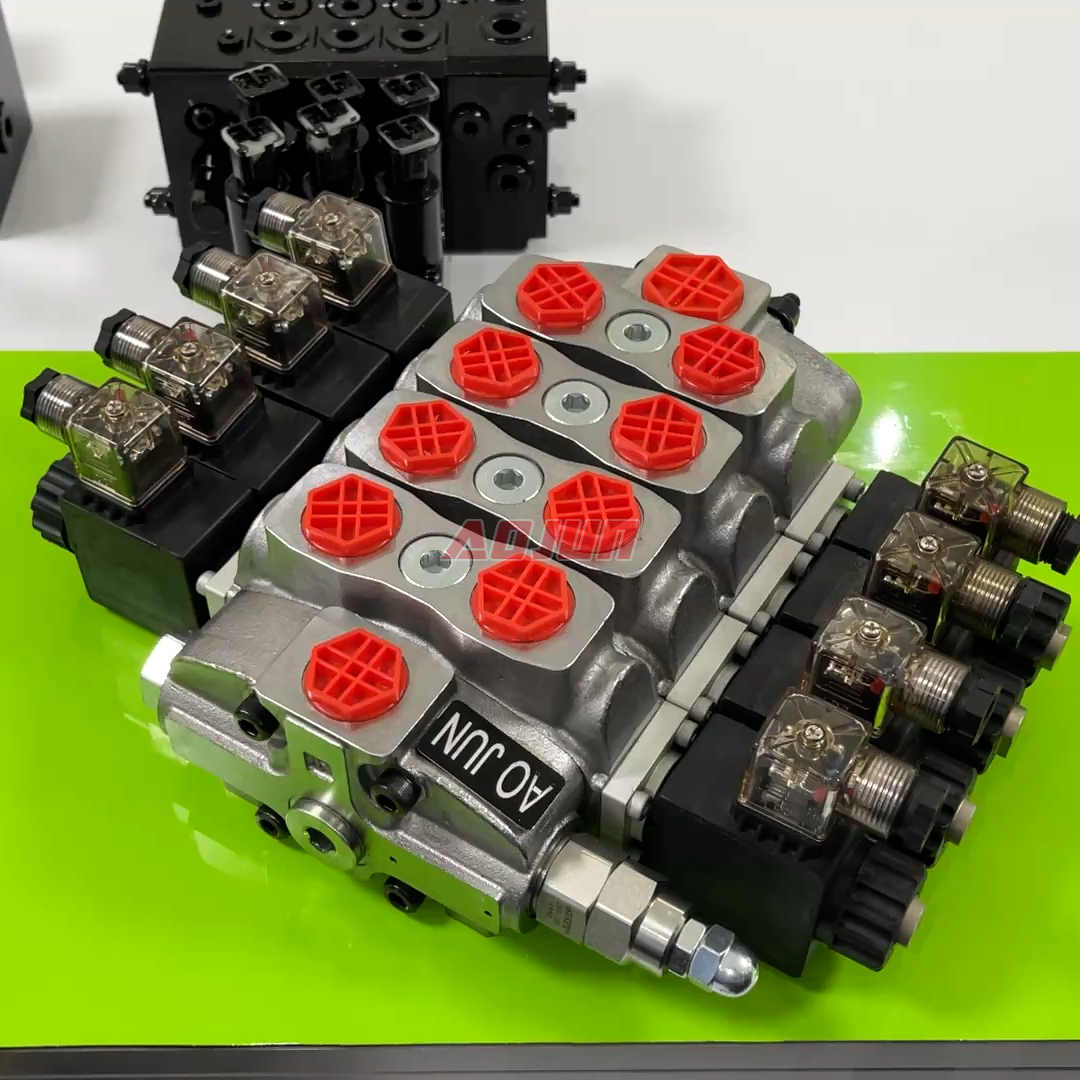

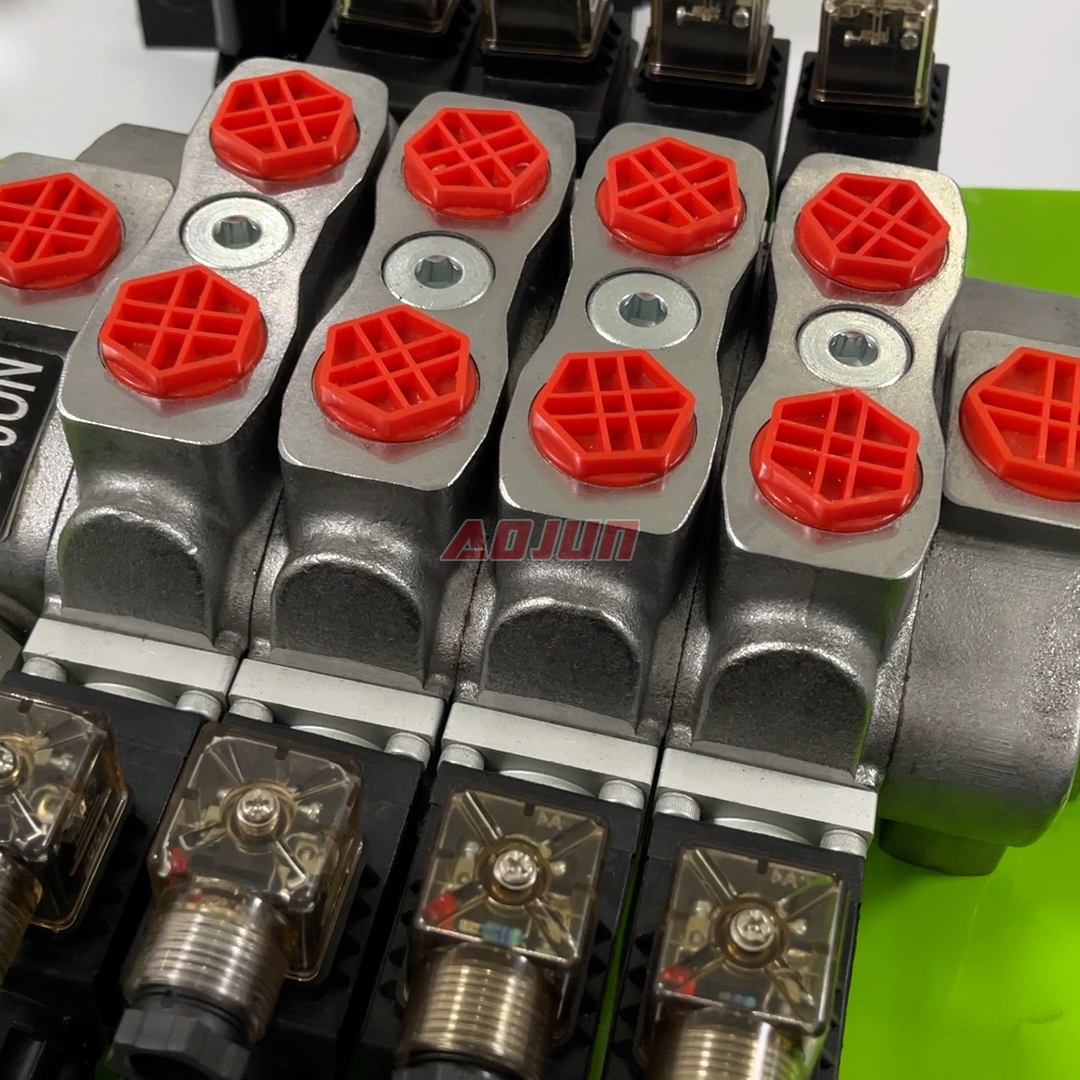

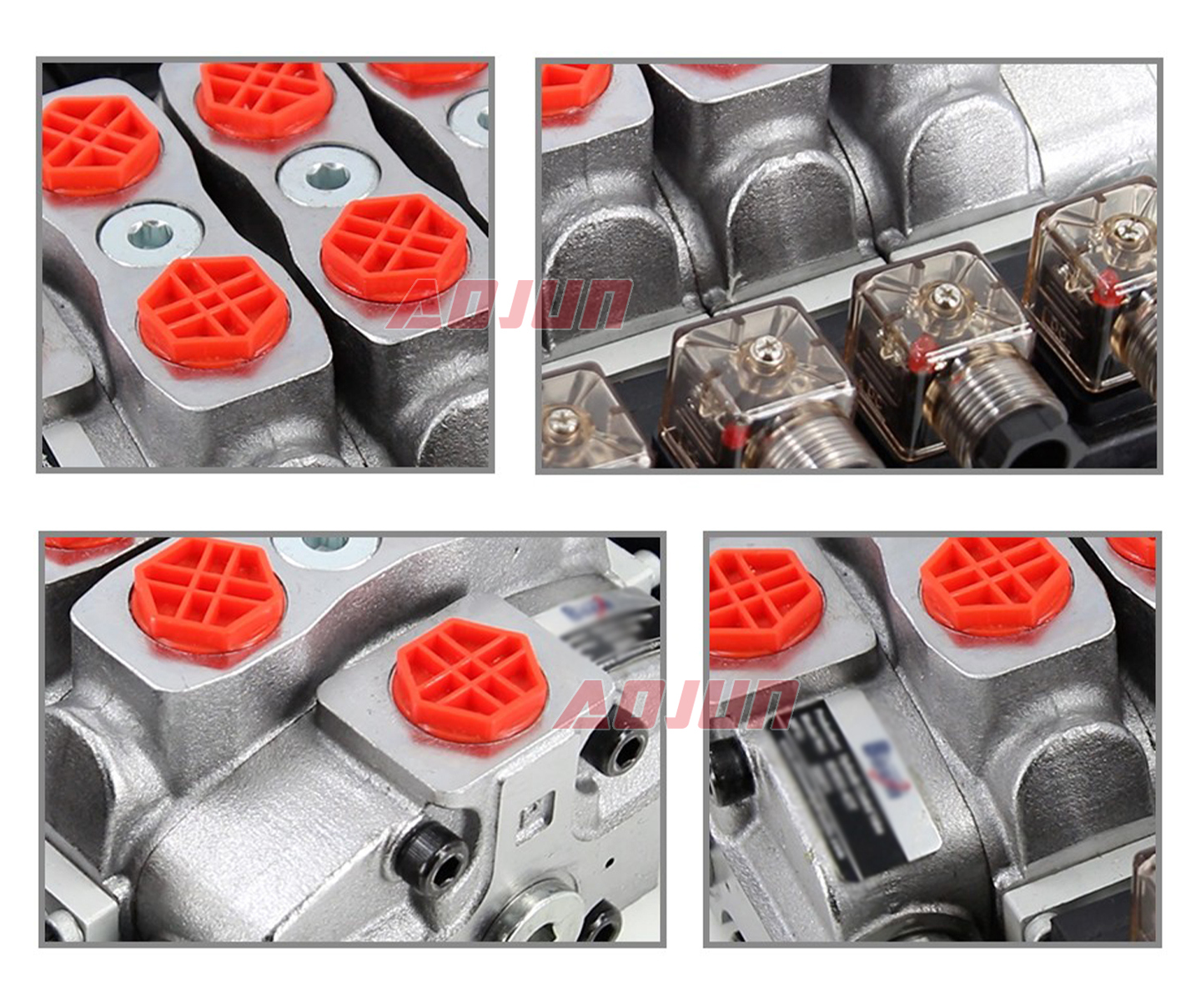

4-section solenoid-operated sectional directional valve with 4 spools, designed for mobile equipment needing stable multi-function control at up to 90 L/min and high pressure, with wide viscosity and temperature capability.
global shipping world wide
Online Service For 24 X 7
Support OEM customization
This modular sectional valve bank provides 4 independent spool functions for controlling multiple actuators (lift, tilt, steering, outriggers, attachments) in one compact assembly. Rated flow is 90 L/min (23.8 US gpm) with maximum pressure up to 350 bar (5100 psi) and 250 bar (3600 psi) depending on circuit requirements. Built for demanding environments, it supports hydraulic oil viscosity from 12 to 400 mm²/s and ambient temperatures from -40°C to +80°C, making it suitable for cold starts and high-load duty cycles. Typical applications include telehandlers, forklifts, aerial platforms, skid steers, excavators and loaders where fast response and repeatable solenoid actuation are required. Manufacturer supply options include OEM/ODM customization, private labeling, valve section configuration, and bulk/wholesale programs for distributors and agents.
| SD8 Series Sectional Directional Valve Parameters | |
|---|---|
| Control Method | Manual, Pneumatic, Electro-pneumatic, Electro-hydraulic, Solenoid, Hydraulic, Hydraulic and Manual, Cable, Joystick, Solenoid and Joystick, Manual and Joystick |
| Spool | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool, 8 Spool, 9 Spool, 10 Spool |
| Section | 1 Section, 2 Section, 3 Section, 4 Section, 5 Section, 6 Section, 7 Section, 8 Section, 9 Section, 10 Section |
| Structure Type | Sectional valve |
| Rated Flow | 90 L/min (23.8 US gpm) |
| Max Pressure | 250 bar (3600 psi), 350 bar (5100 psi) |
| Operating Viscosity Range | 12 - 400 mm²/s (12 cSt to 400 cSt) |
| Ambient Temperature Range | -40°C to +80°C (-40°F to +176°F) |
