A 40 cc/rev swashplate axial piston pump built for mobile and industrial hydraulics, delivering 25 MPa rated pressure (30 MPa max) with bidirectional rotation, cast-iron durability, and ISO/UNI flange mounting options.
global shipping world wide
Online Service For 24 X 7
Support OEM customization
This fixed-displacement axial piston pump uses a swashplate structure to provide stable flow and fast response for work functions in mobile machinery. Key specs include 40 cc/rev displacement, 25 MPa rated pressure (30 MPa peak), 800 r/min rated speed and up to 1300 r/min maximum speed. The cast iron housing improves strength, wear resistance, and heat stability for demanding duty cycles. Bidirectional rotation supports flexible installation and system layout. Mounting compatibility includes ISO-4 and UNI-3 mounting-hole flange versions, and the H-type rectangle spline shaft helps ensure reliable torque transmission. Typical applications include travel/drive, steering, lifting, and auxiliary hydraulic circuits on construction equipment, material handling machines, agricultural equipment, and industrial vehicles. We support manufacturing supply, OEM/ODM, private label, customization, bulk wholesale, and distributor/agent cooperation for global markets.
| P Series Hydraulic Piston Pump Parameters | |
|---|---|
| Displacement | 40 cc/rev, 63 cc/rev, 80 cc/rev |
| Rated Pressure | 25 MPa (3625 psi) |
| Max Pressure | 30 MPa (4351 psi) |
| Rated Speed | 800 r/min |
| Max Speed | 1300 r/min |
| Rotation | /: (Bidirectional) |
| Structure | Swashplate |
| Material | Cast Iron |
| Flange Version | ISO-4 Mounting Holes, UNI-3 Mounting Holes |

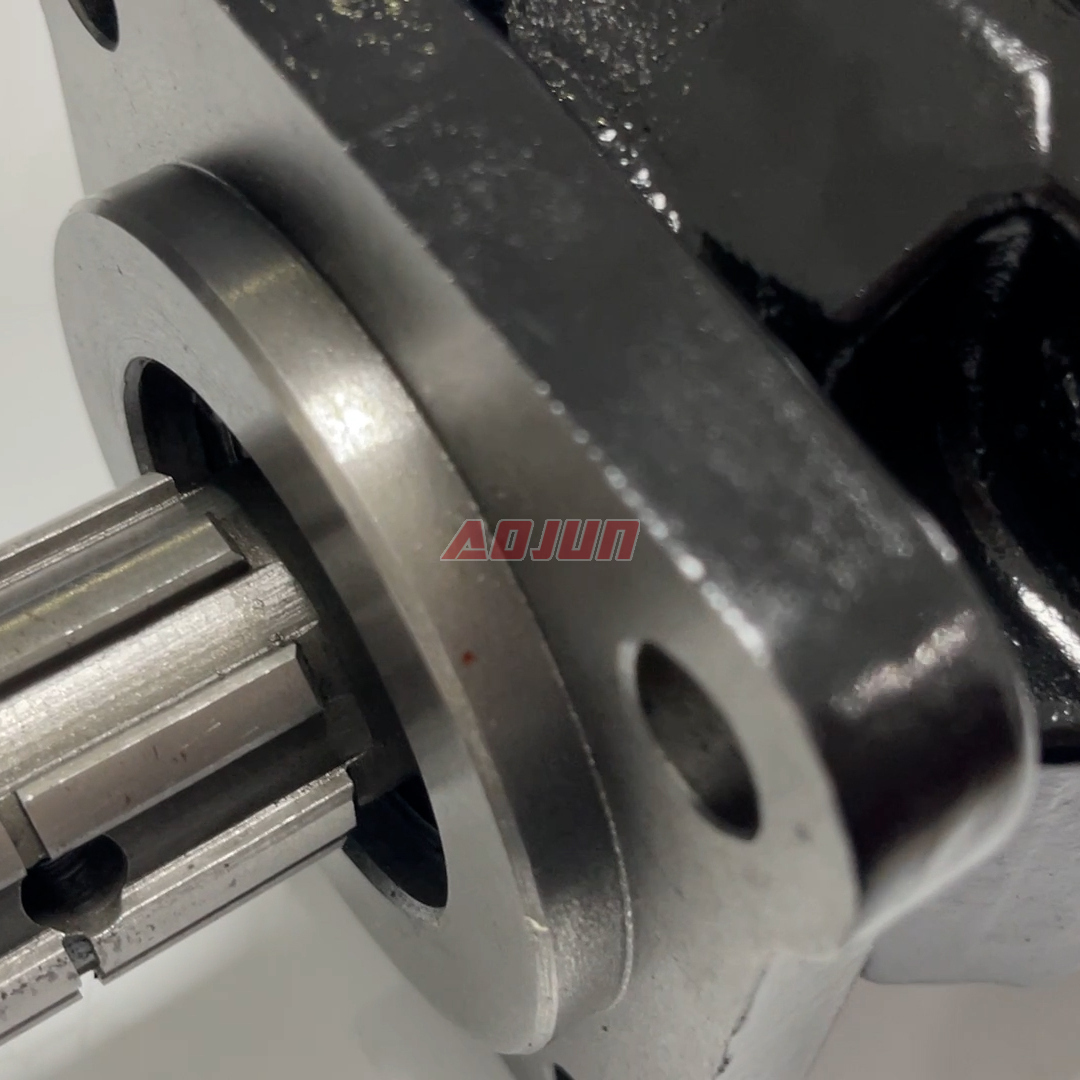

| Shaft Type | H: Rectangle Spline |
We provide OEM/ODM services. When your product orders reach a certain value, we can offer a variety of customization services, including labels, packaging, product colors, and more.
We support multiple currencies and diverse payment methods, such as T/T, L/C, Alibaba platform, China Manufacturing Payment Platform, bank transfer, and more.
We can provide samples, and the sample costs will be refunded to you in the form of deducted payments in the later stages.
