A 5-section electro-hydraulic monoblock directional control valve rated at 40 L/min with up to 350 bar working capability, designed for reliable multi-function control on mobile equipment across wide viscosity and ambient temperature ranges.
global shipping world wide
Online Service For 24 X 7
Support OEM customization

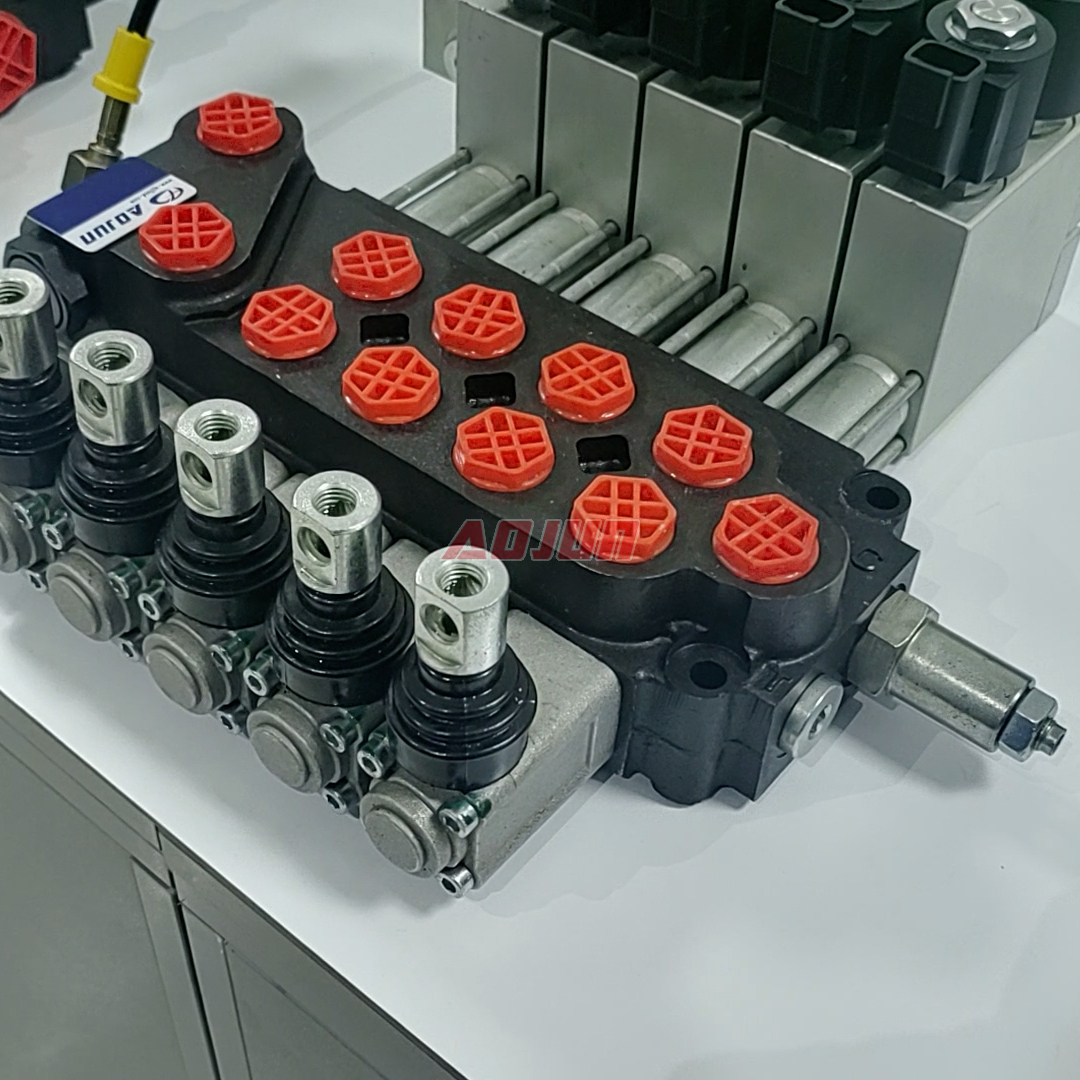

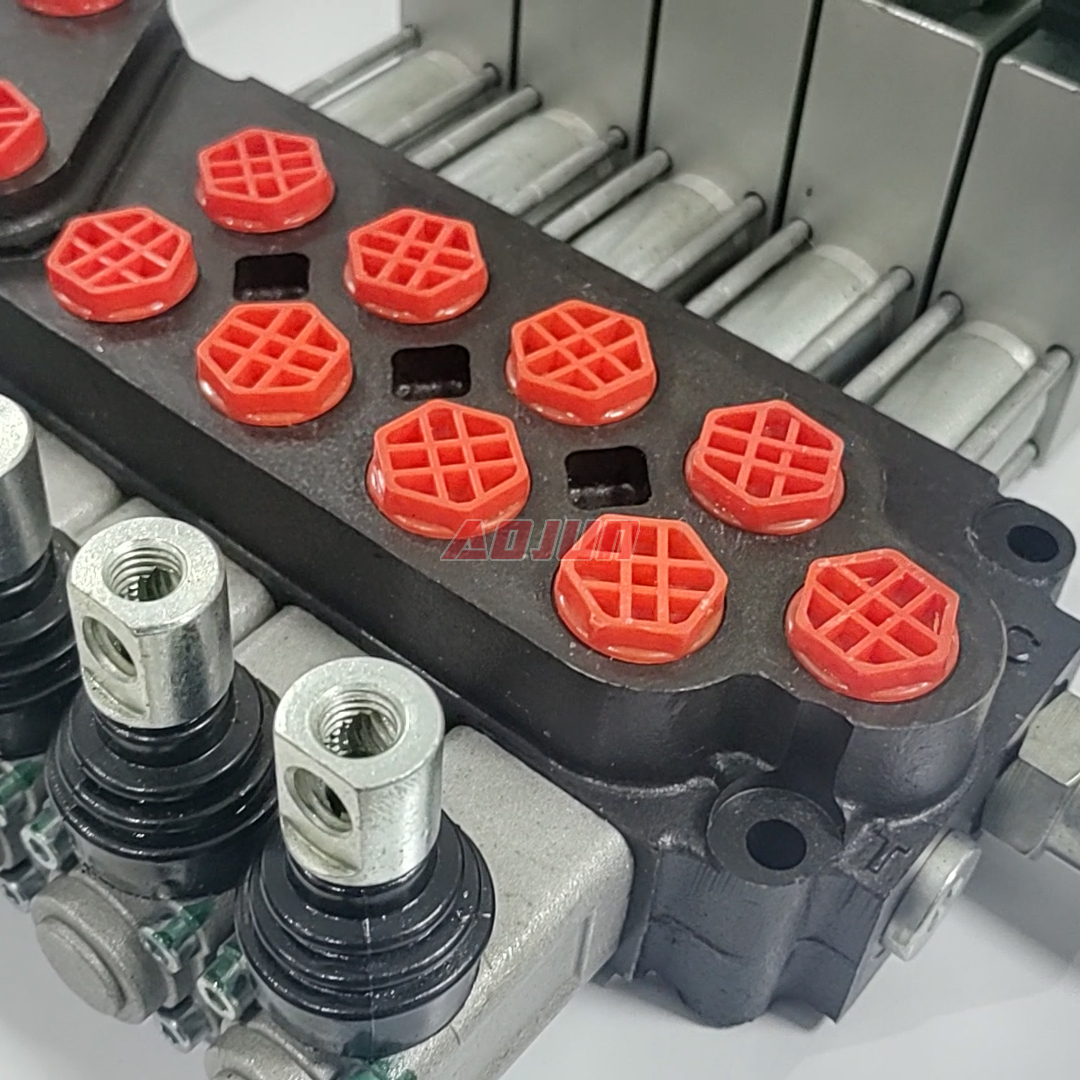

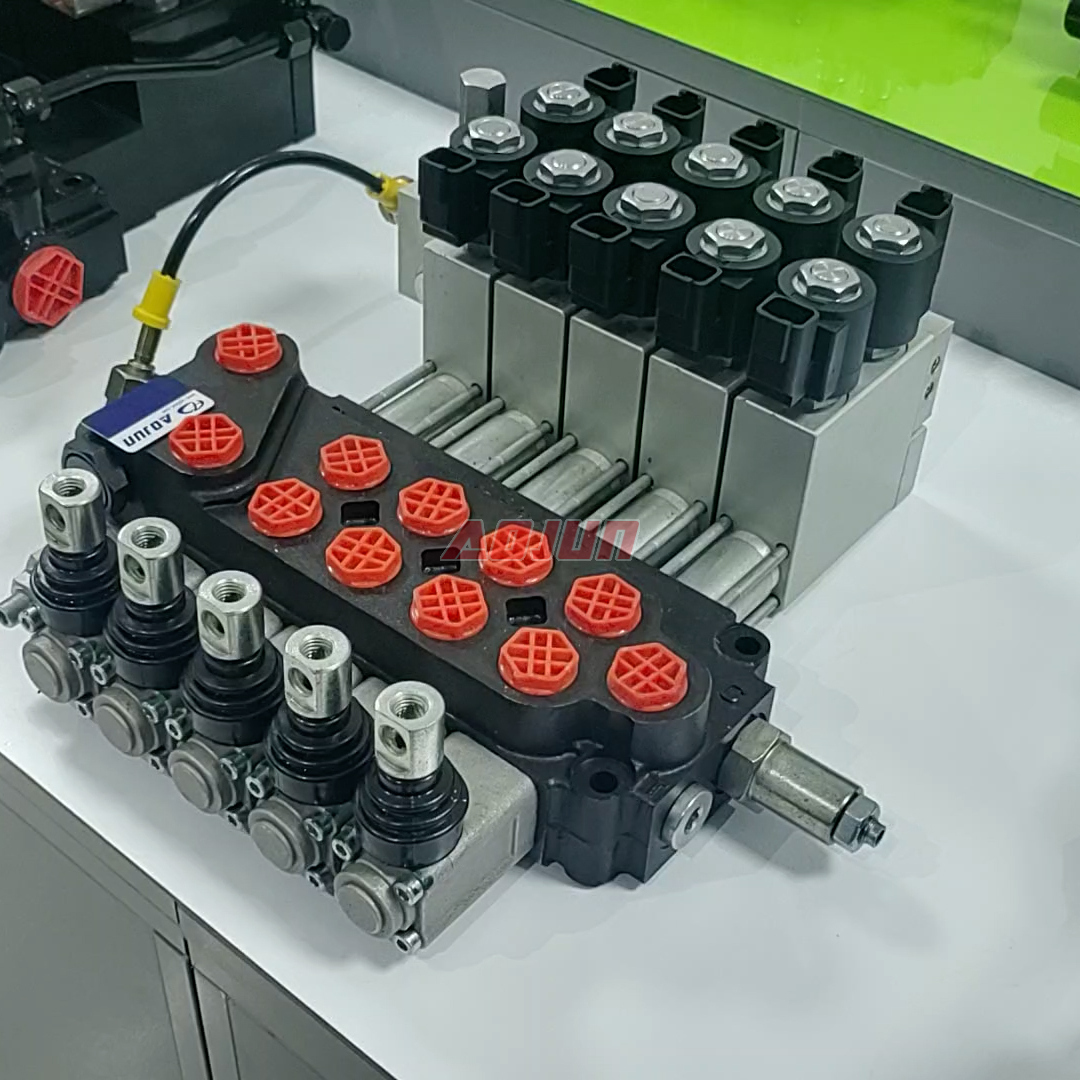

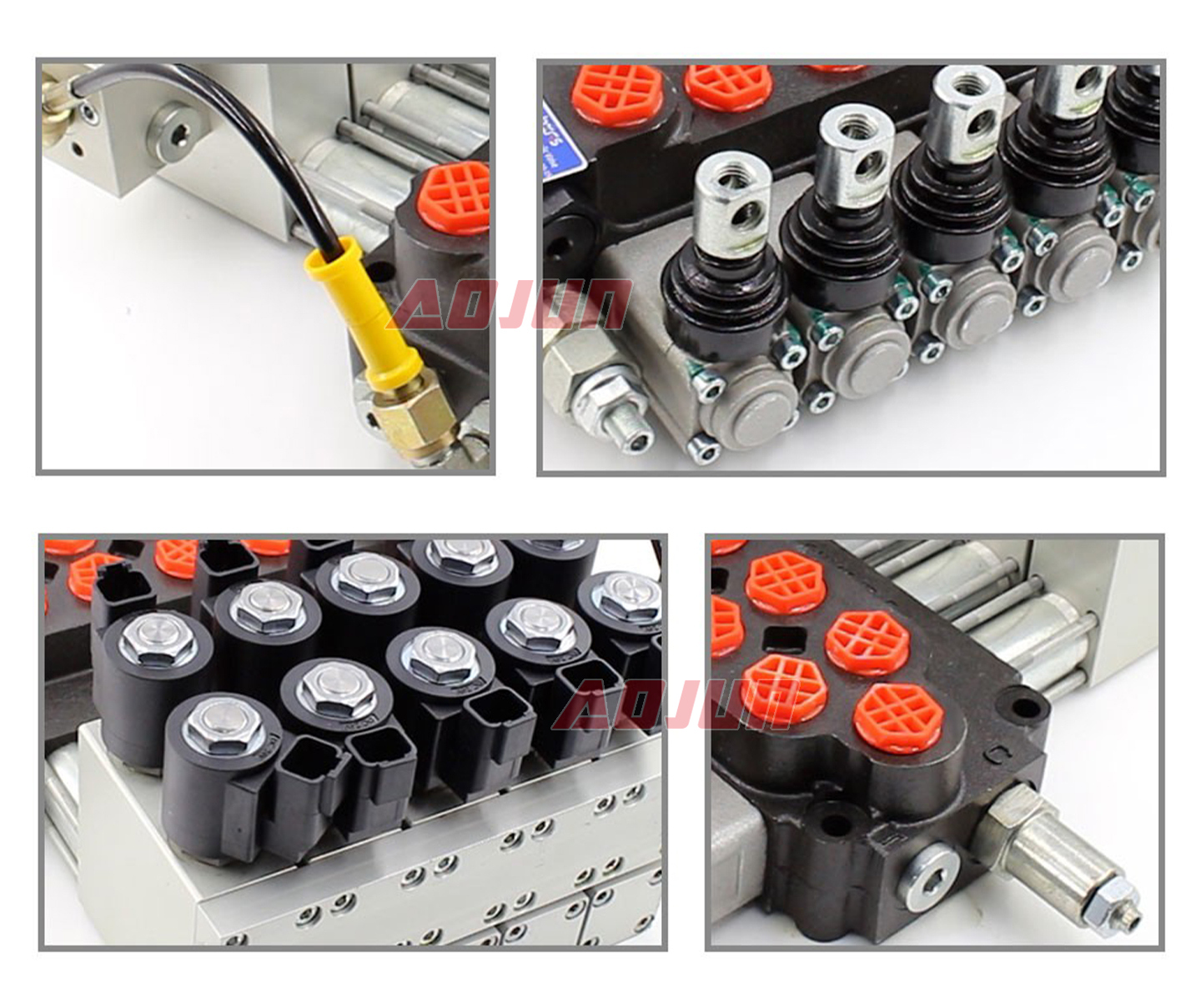

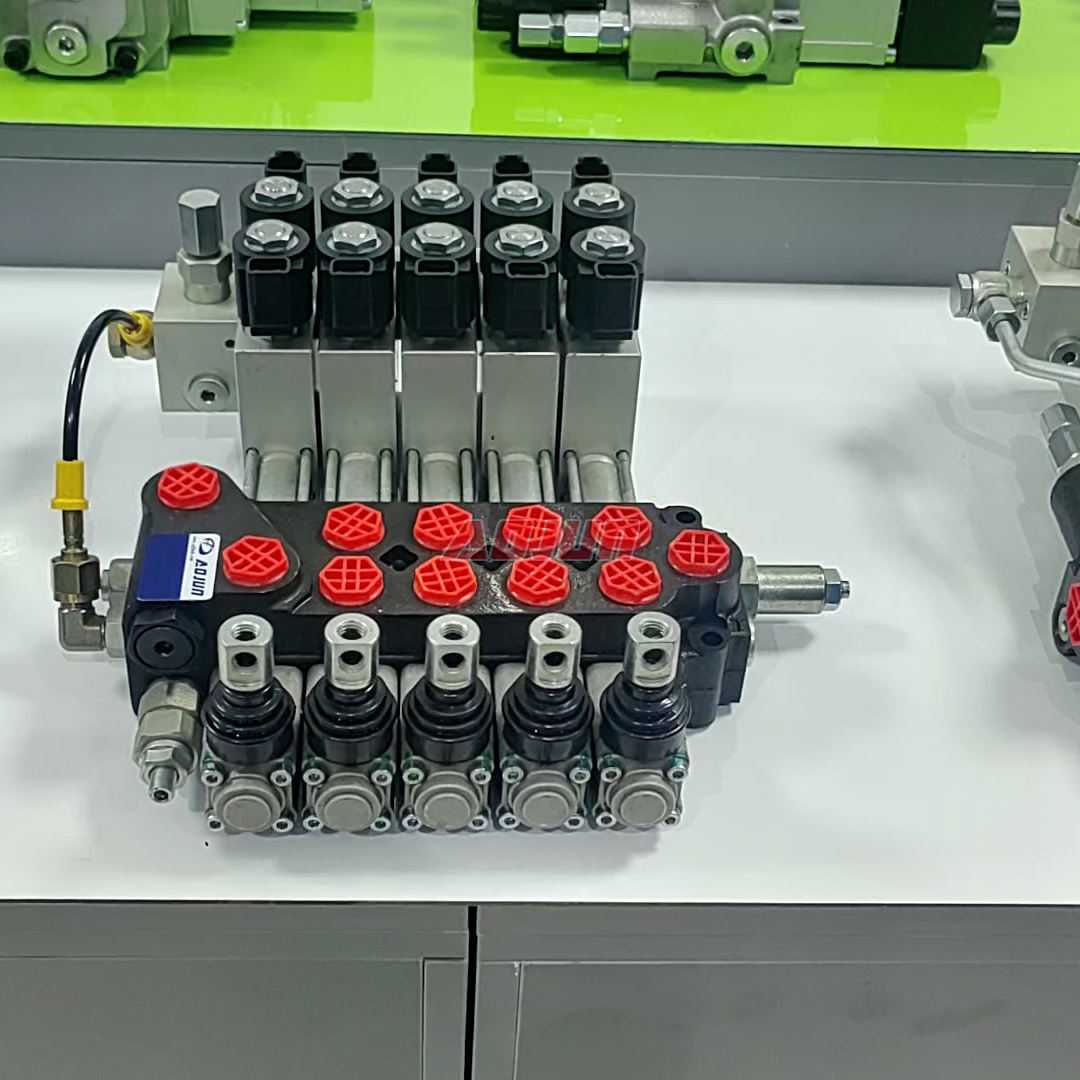

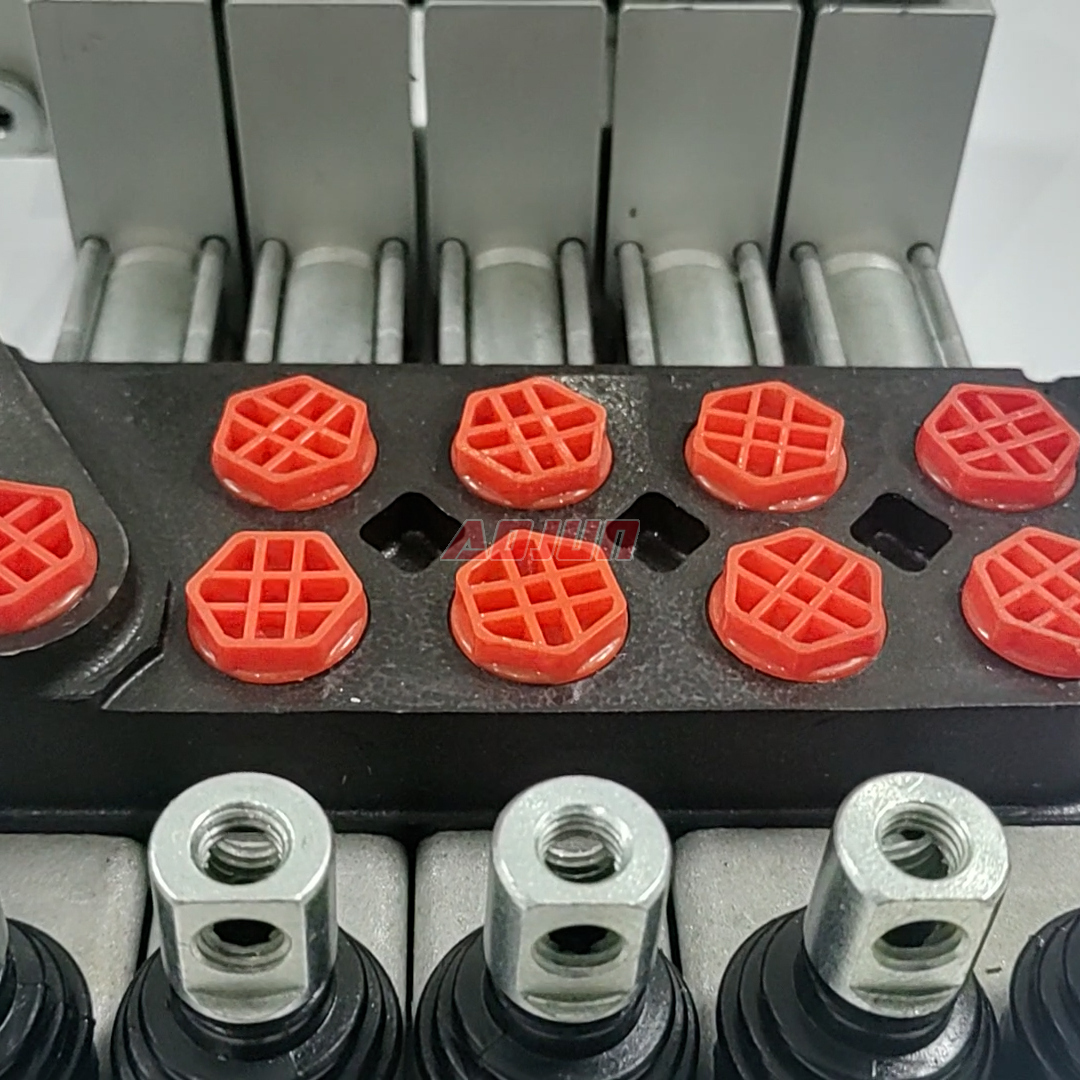

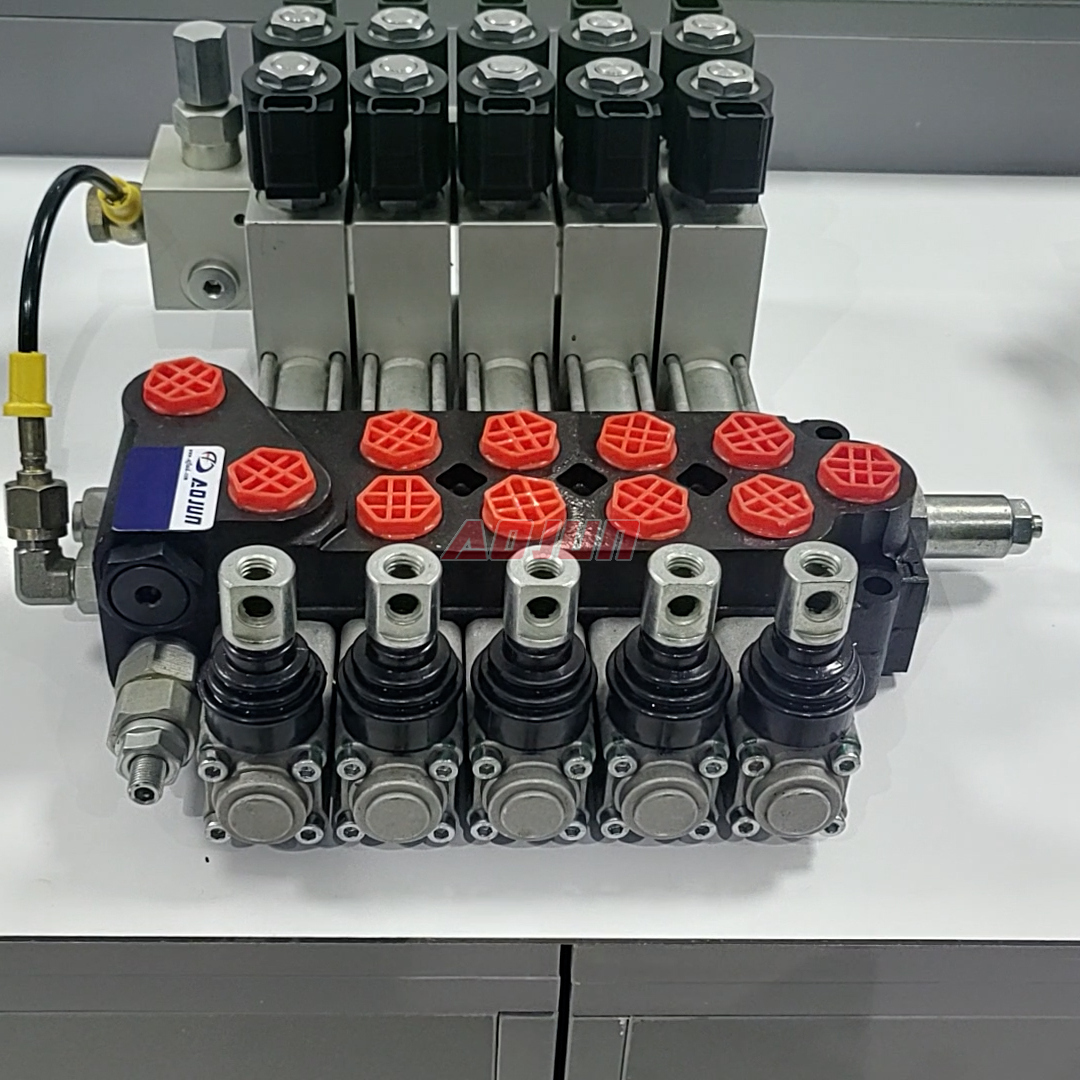

DCV40DY is a 5-spool, 5-section monoblock directional valve using electro-hydraulic control for efficient remote or assisted operation of multiple actuators (cylinders/motors) on mobile machinery. The monoblock structure helps reduce external leak paths, simplifies plumbing, and improves compactness versus multi-piece sectional stacks—ideal where space, robustness, and serviceability matter.
Key performance highlights:
- Rated flow: 40 L/min (10.5 US gpm) for common mobile implement circuits
- Max pressure: 350 bar (5100 psi) for demanding work functions
- Oil viscosity range: 15–75 mm²/s for stable spool response across typical hydraulic oils
- Ambient range: -40°C to +80°C for cold-start and high-heat jobsite use
- 5 spools/5 sections: supports multi-function machines (boom/bucket/aux/steering/attachments, etc.)
Typical applications:
Material handling and industrial vehicles (forklifts, telehandlers, stack/attachment control), construction and earth-moving equipment (skid steer loaders, mini-excavators, wheel loaders, backhoe loaders), and agricultural machines (tractor front-end loader functions, implements).
Supply capabilities:
Factory direct manufacturing for global markets with OEM/ODM, private label, customization, and wholesale. Customization can include spool function selection, port/interface adaptation, and application-specific configuration to match your hydraulic circuit and operating requirements.
| DCV40 Series Monoblock Directional Valve Parameters | |
|---|---|
| Control Method | Manual, Pneumatic, Electro-pneumatic, Electro-hydraulic, Hydraulic, Hydraulic and Manual, Cable, Joystick, Manual and Joystick |
| Spool | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Section | 1 Section, 2 Section, 3 Section, 4 Section, 5 Section, 6 Section, 7 Section |
| Structure Type | Monoblock valve |
| Rated Flow | 40 L/min (10.5 US gpm) |
| Max Pressure | 350 bar (5100 psi) |
| Operating Viscosity Range | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| Ambient Temperature Range | -40°C to +80°C (-40°F to +176°F) |
We provide OEM/ODM services. When your product orders reach a certain value, we can offer a variety of customization services, including labels, packaging, product colors, and more.
We support multiple currencies and diverse payment methods, such as T/T, L/C, Alibaba platform, China Manufacturing Payment Platform, bank transfer, and more.
We can provide samples, and the sample costs will be refunded to you in the form of deducted payments in the later stages.
