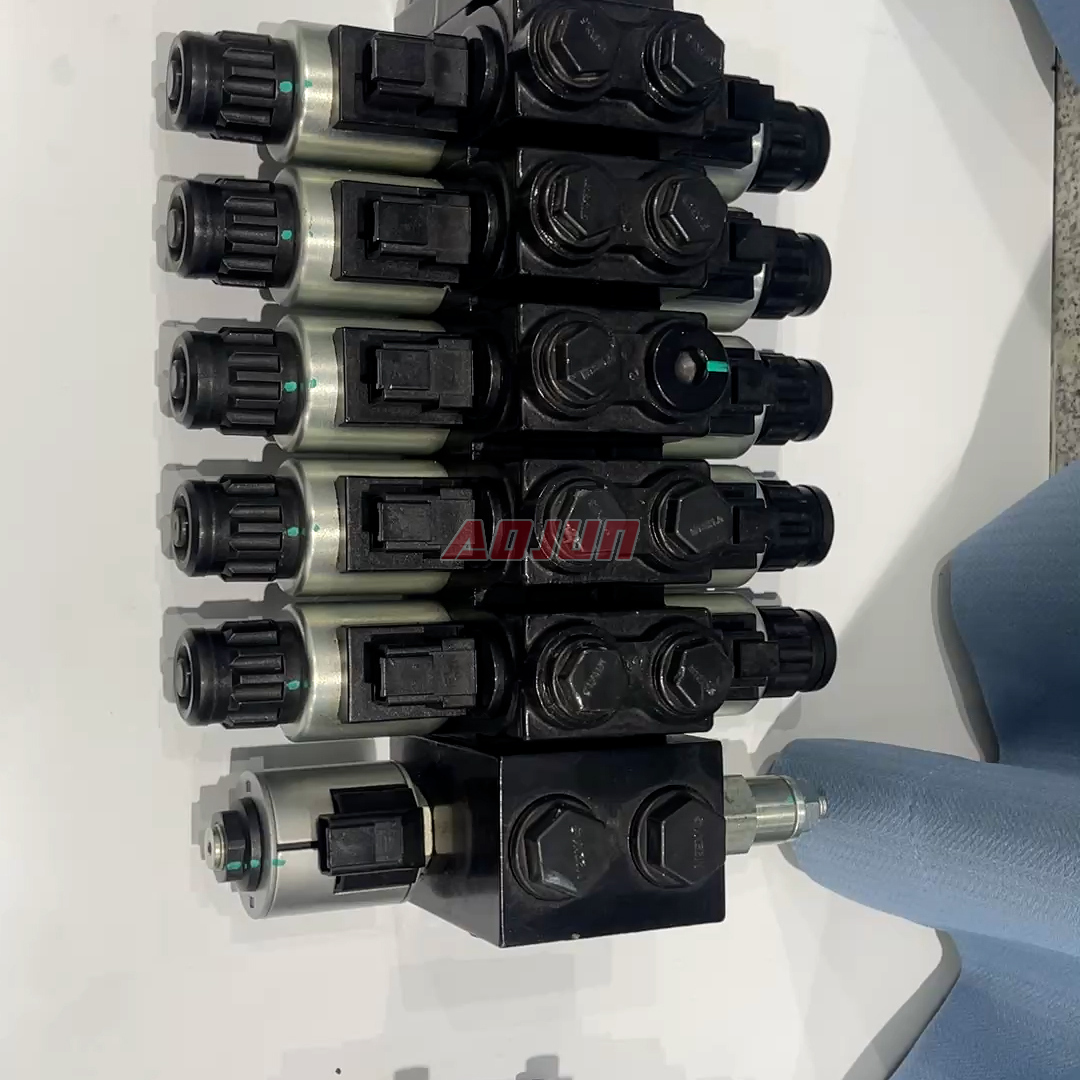

A 5-section, solenoid-actuated sectional directional valve designed for mobile hydraulic systems, delivering up to 50 L/min flow and handling pressures up to 160 bar across a wide viscosity and ambient temperature range.
global shipping world wide
Online Service For 24 X 7
Support OEM customization
This modular sectional valve bank uses solenoid control for reliable on/off directional switching of multiple hydraulic functions in compact mobile machinery. With 5 spool sections, it supports multi-actuator circuits (e.g., lift/tilt/extend/aux functions) while maintaining stable performance at 50 L/min rated flow and 160 bar maximum pressure. It is engineered to operate with hydraulic oils in the 15–75 mm²/s viscosity range and withstand -20°C to +80°C ambient environments, making it suitable for both cold starts and high-temperature duty cycles. Typical applications include material handling equipment, construction machines, agricultural implements, and industrial vehicles requiring centralized, multi-function valve control. As a manufacturer, we support OEM/ODM production, private labeling, customization (spool functions, circuit configuration, and integration requirements), bulk supply, and distributor/agent cooperation for global markets.
| HDCF50 Series Solenoid Control Valve Parameters | |
|---|---|
| Control Method | Solenoid |
| Spool | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool, 8 Spool, 9 Spool, 10 Spool |
| Section | 1 Section, 2 Section, 3 Section, 4 Section, 5 Section, 6 Section, 7 Section, 8 Section, 9 Section, 10 Section |
| Structure Type | Sectional valve |
| Rated Flow | 50 L/min (13.2 US gpm) |
| Max Pressure | 160 bar (2300 psi) |
| Operating Viscosity Range | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| Ambient Temperature Range | -20°C to +80°C (-4°F to +176°F) |
