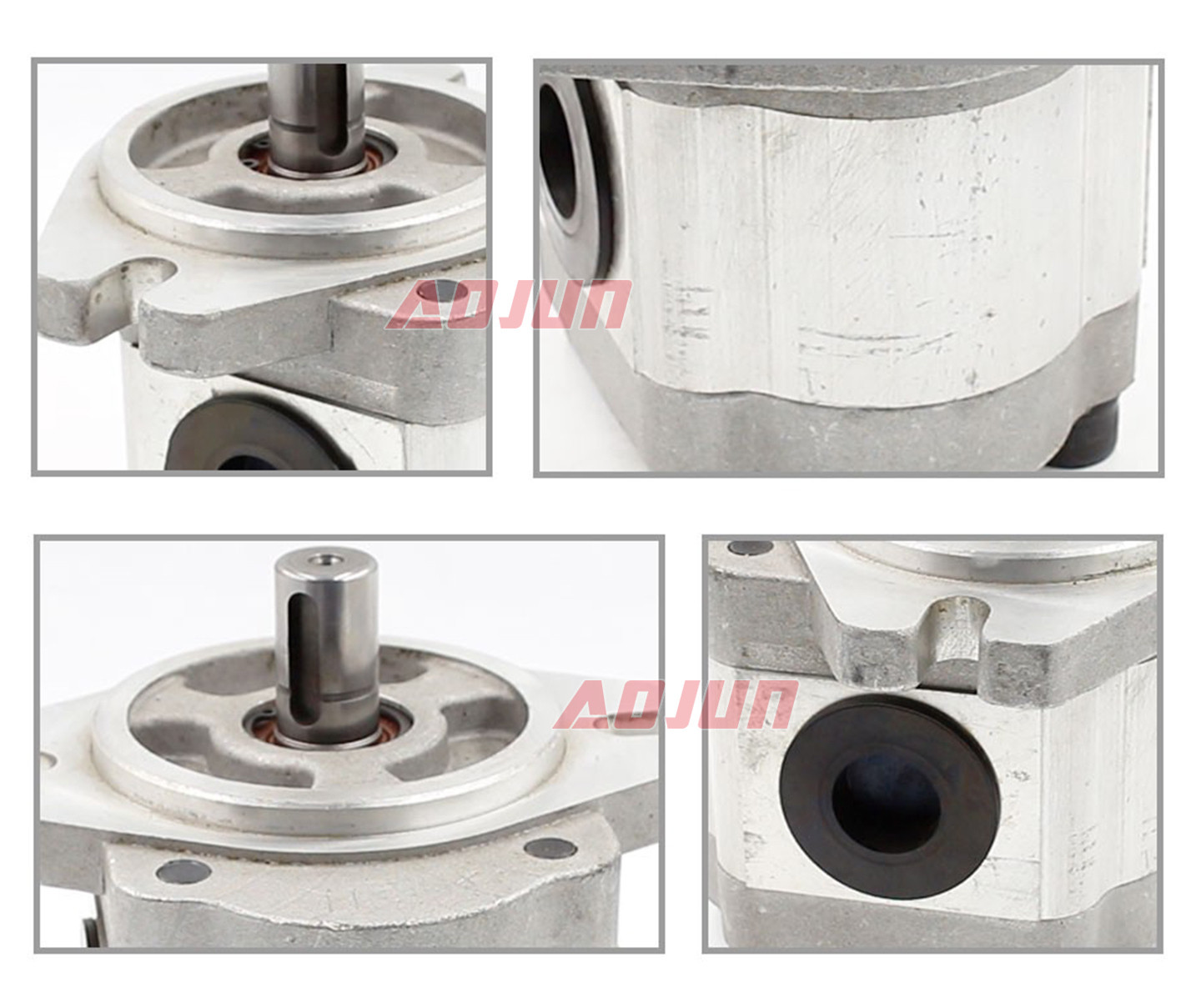

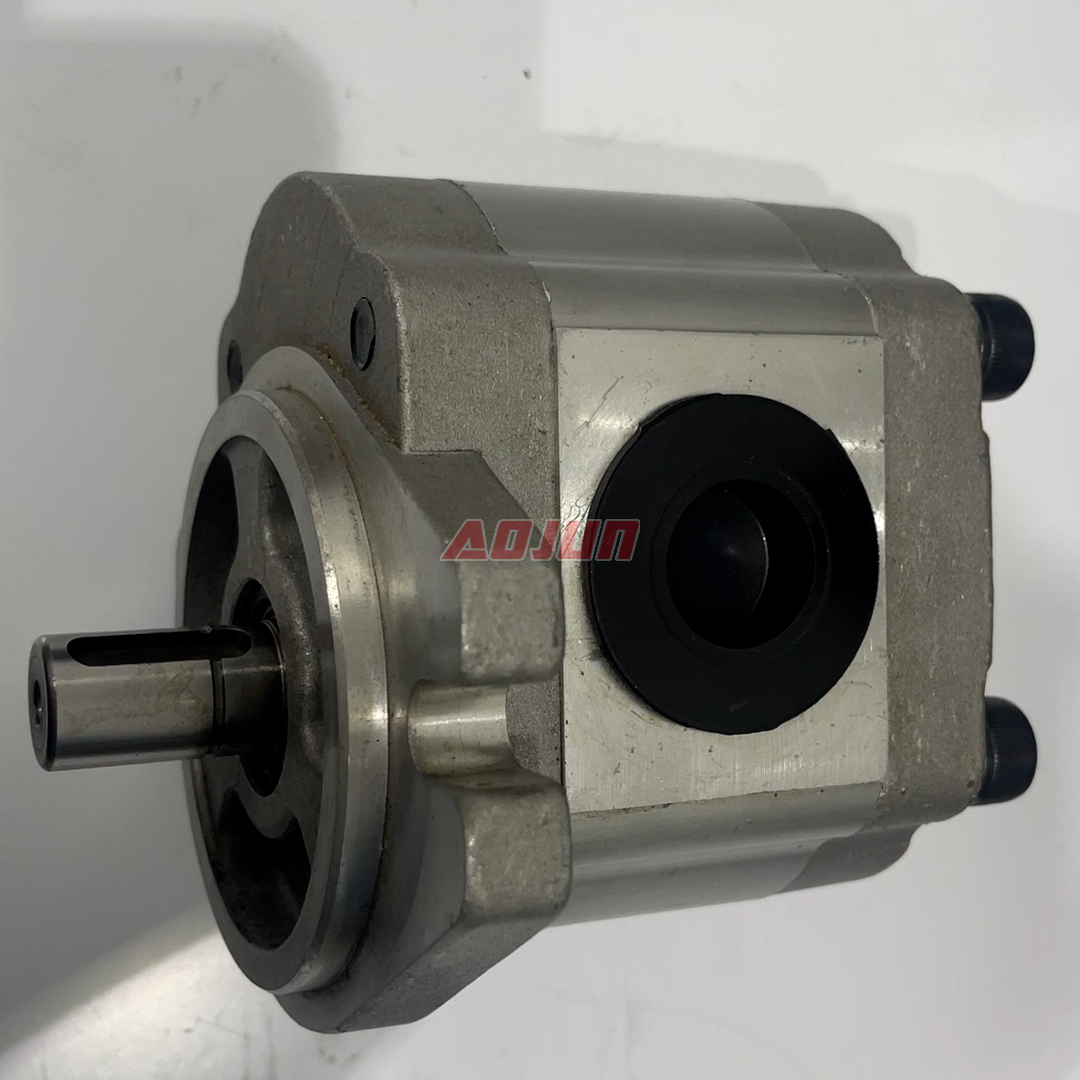

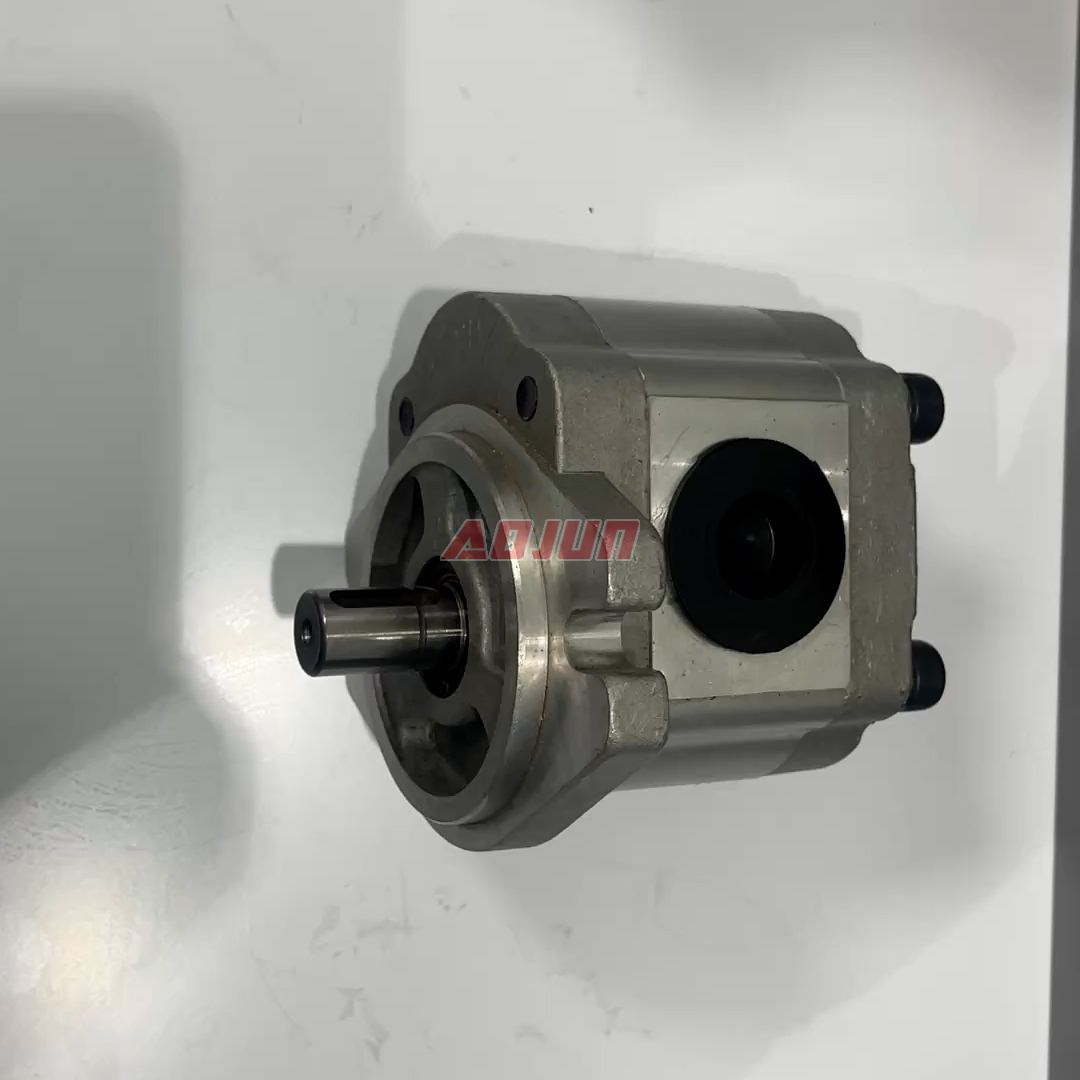

CBHS-FL-306 is a compact 6 cc/rev internal gear pump with an aluminum body, A-oval flange mount, and plain-key shaft, delivering up to 20 MPa with rated speed 2000 r/min and maximum 3000 r/min, available in left or right rotation for mobile and industrial hydraulic systems.
global shipping world wide
Online Service For 24 X 7
Support OEM customization
Key specs: 6 cc/rev displacement; rated/max pressure 20 MPa (2900 psi); rated speed 2000 r/min, max 3000 r/min; rotation options L (CCW) or R (CW). Design: internal gear structure for stable flow and low pulsation in compact hydraulic circuits. Construction: aluminum housing to reduce weight while maintaining durability for mobile equipment. Installation: A-oval flange version for common OEM mounting; P (plain key) shaft for straightforward coupling with existing drive systems.
Typical uses: steering assist, lifting/tilt, auxiliary and pilot circuits in forklifts, telehandlers, skid steers, mini/midi excavators, compact loaders, aerial platforms, agricultural implements, and other industrial vehicles.
Supply capability: factory direct manufacturing for global customers, supporting OEM/ODM, private label, customization, bulk wholesale, and distributor/agent partnerships.
| CBHS-FL3 Series Hydraulic Gear Pump Parameters | |
|---|---|
| Displacement | 10 cc/rev, 16 cc/rev, 14 cc/rev, 6 cc/rev |
| Rated Pressure | 20 MPa (2900 psi) |
| Max Pressure | 20 MPa (2900 psi) |
| Rated Speed | 2000 r/min |
| Max Speed | 3000 r/min |
| Rotation | L: Left (counter-clockwise), R: Right (clockwise) |
| Structure | Internal Gear Pump |
| Material | Aluminium |
| Flange Version | A-Oval Flange |
| Shaft Type | P: Plain Key |
