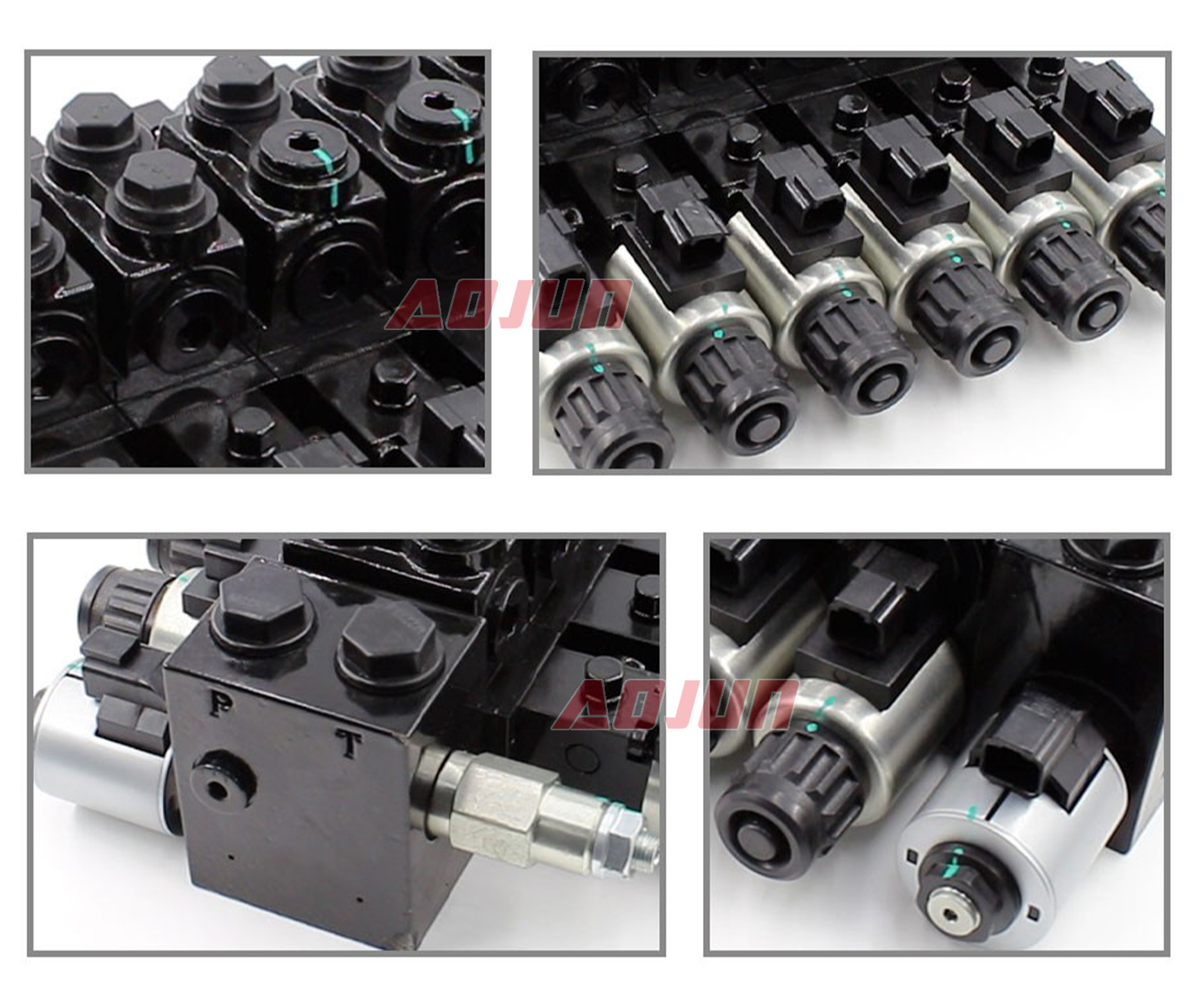

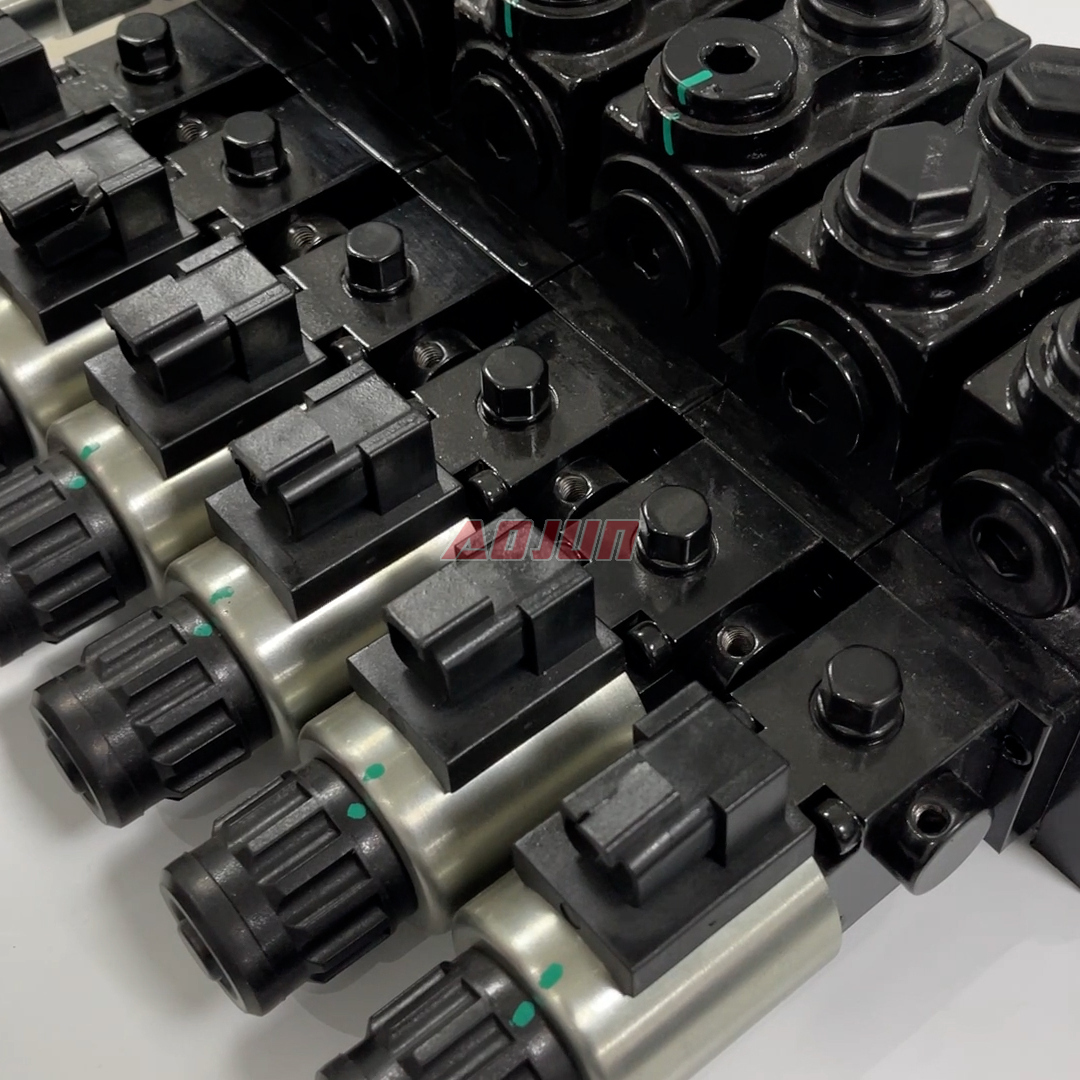

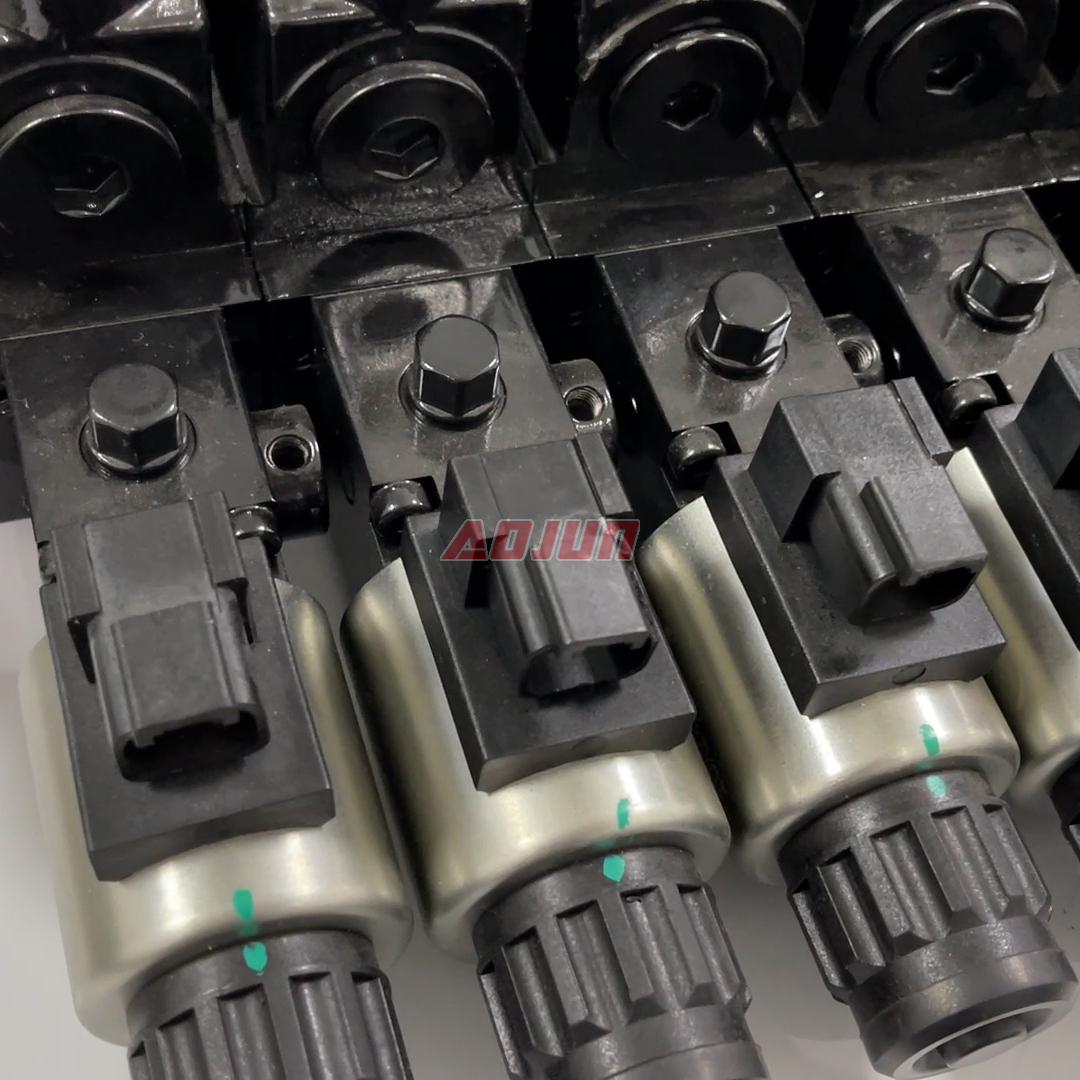

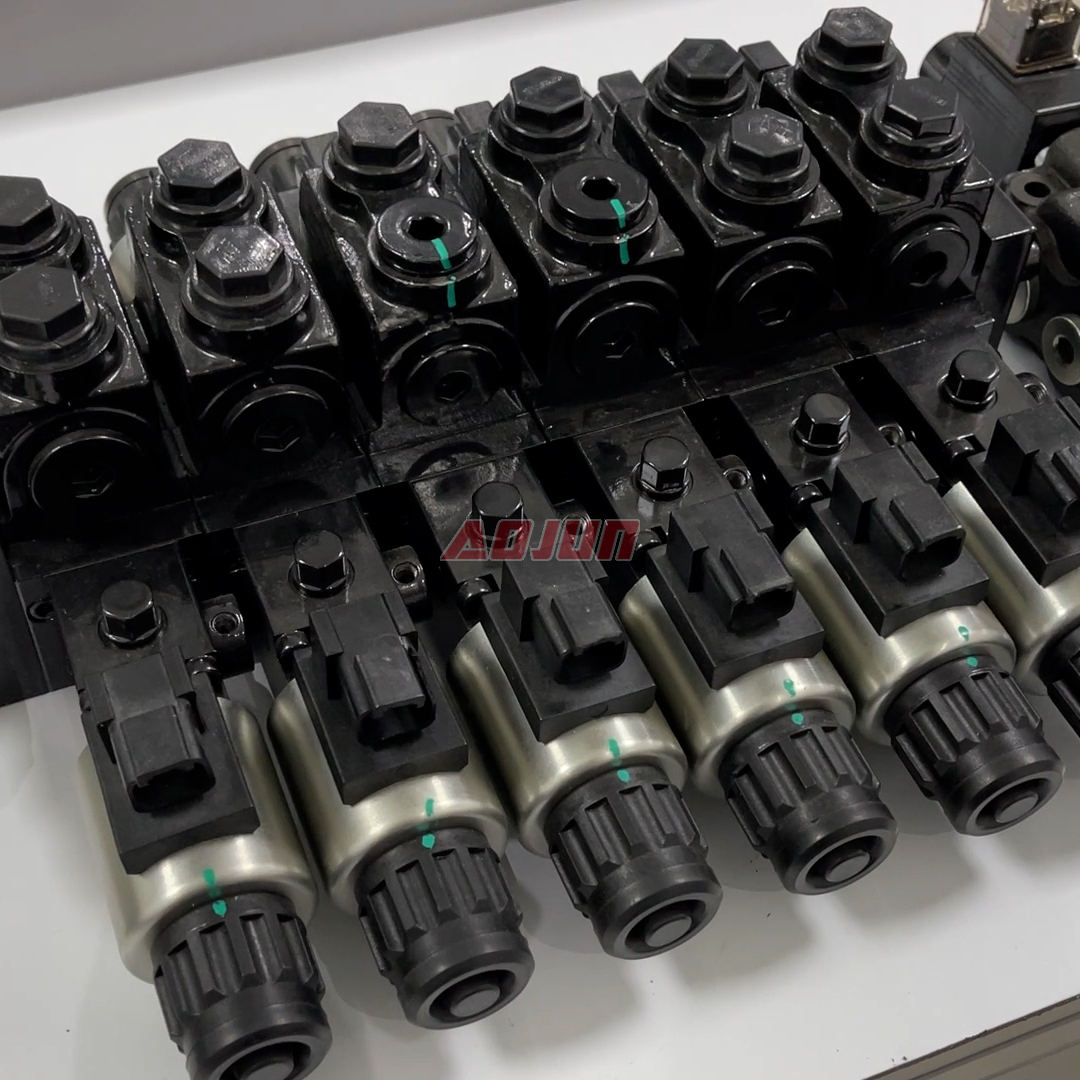

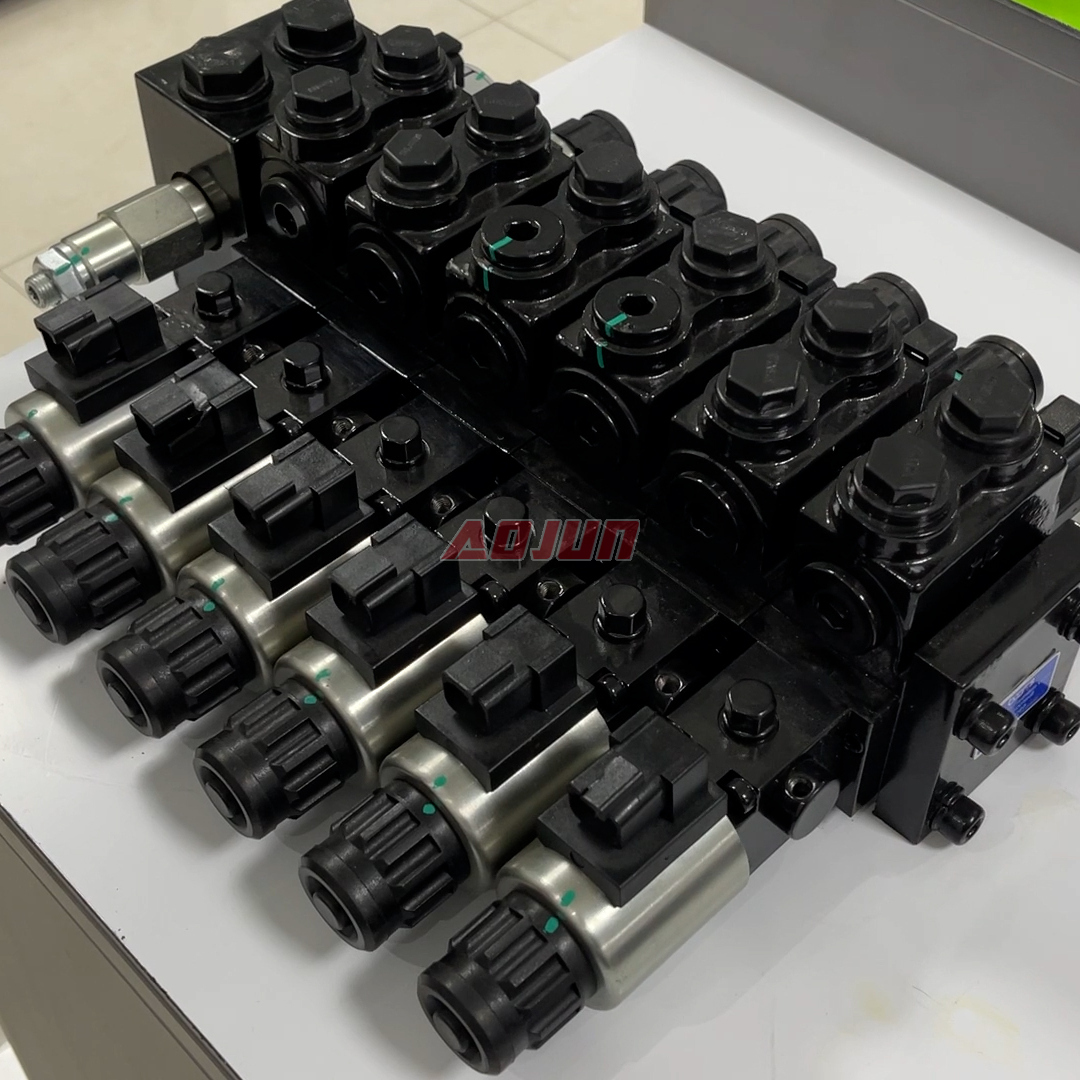

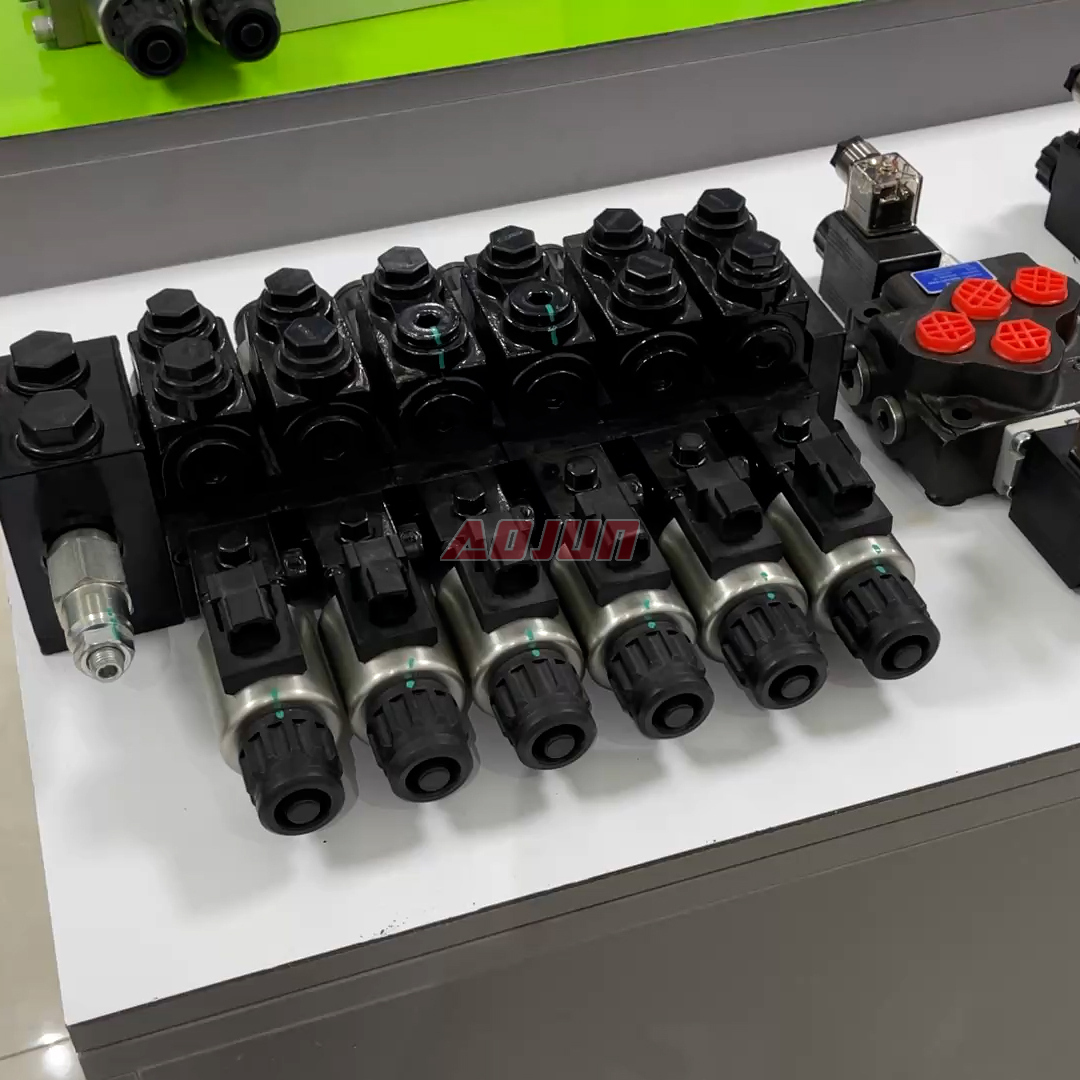

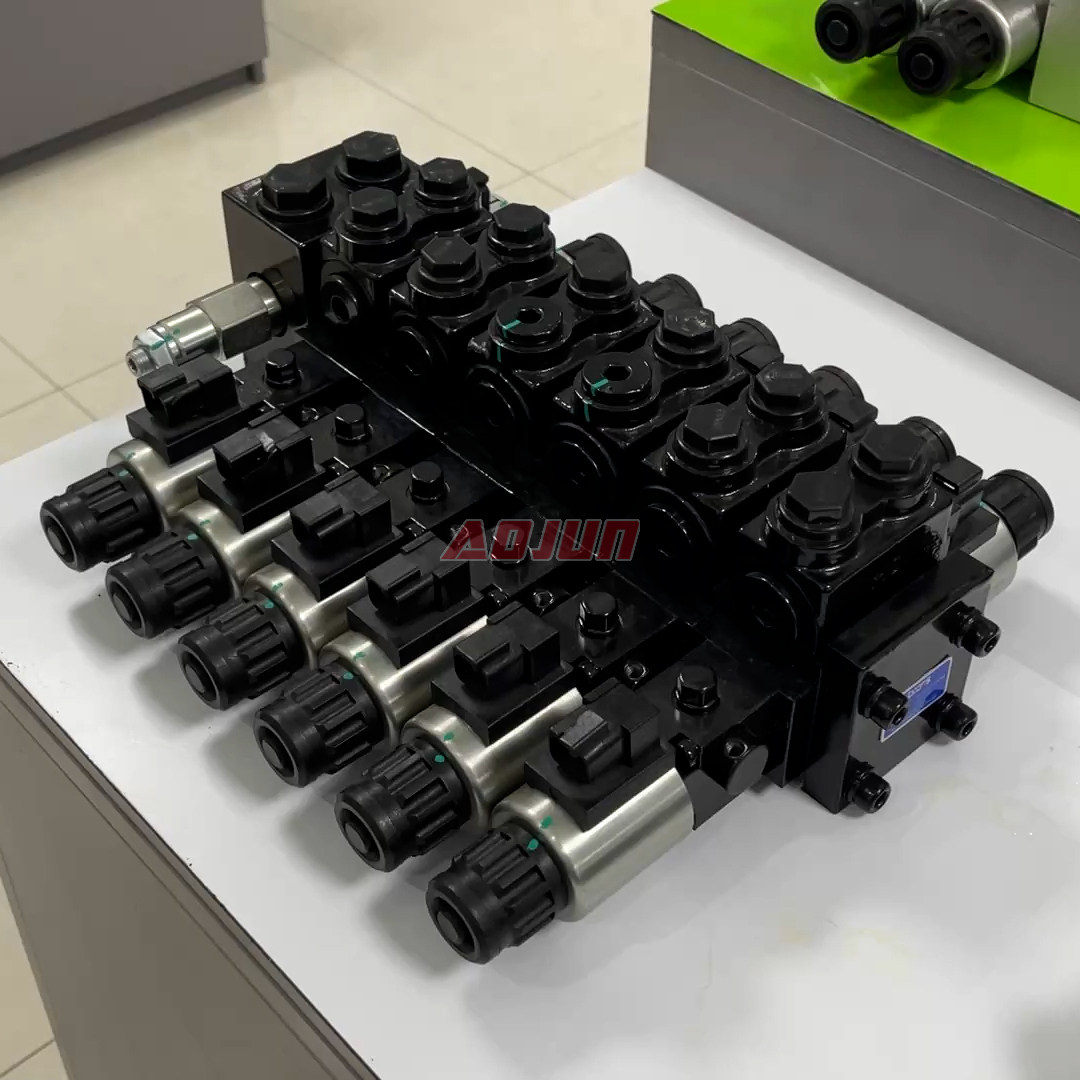

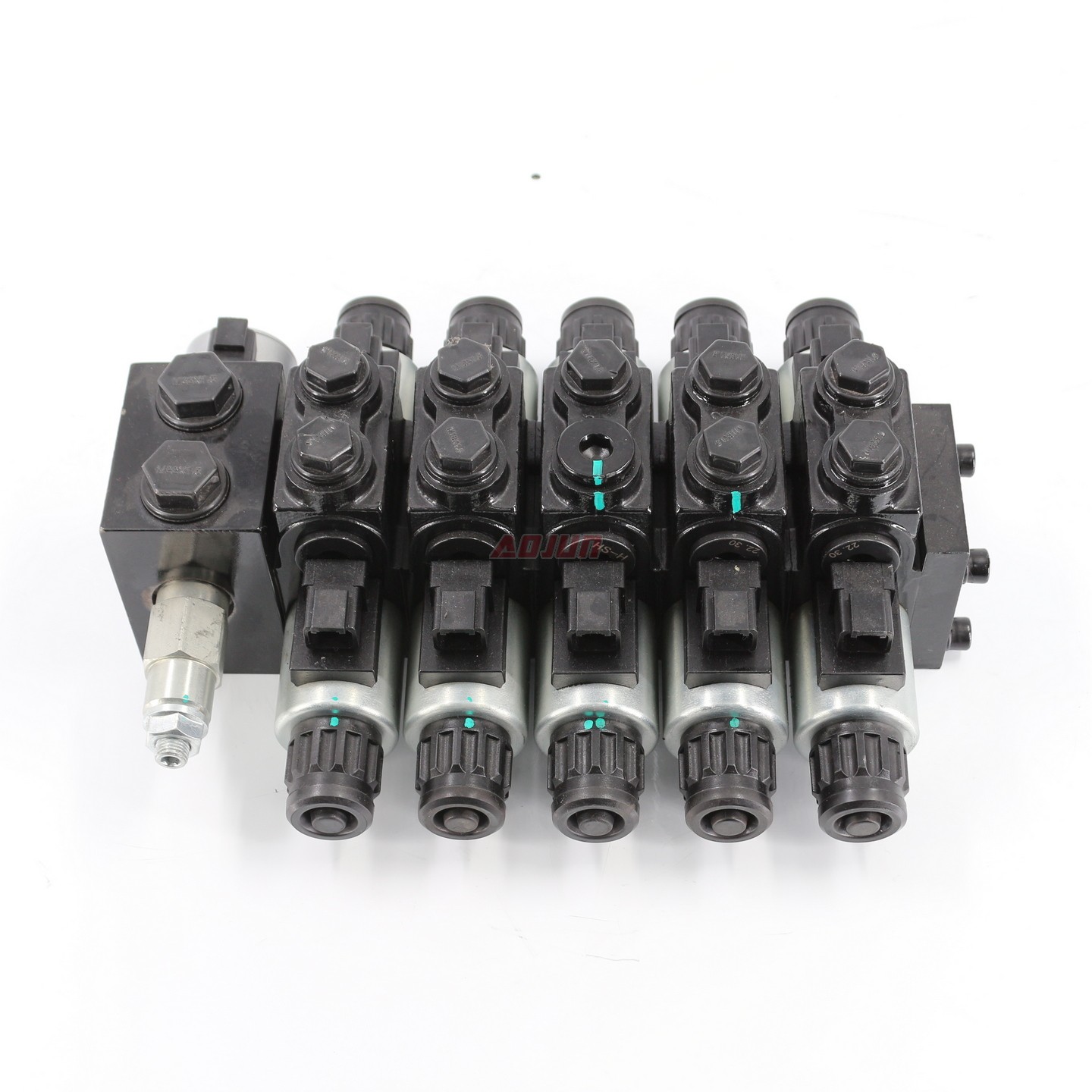

A 6-section sectional hydraulic directional valve with solenoid actuation, designed for multi-function mobile machinery. Rated at 50 L/min flow and up to 160 bar pressure, it supports stable operation across common hydraulic oil viscosities and harsh ambient temperatures.
global shipping world wide
Online Service For 24 X 7
Support OEM customization
Key features: (1) Solenoid control for fast, repeatable spool shifting—ideal for electro-hydraulic automation and operator joystick systems. (2) 6-spool / 6-section sectional construction enables multi-actuator control (multiple cylinders or hydraulic motors) within one compact valve bank. (3) Performance ratings: 50 L/min rated flow and 160 bar max pressure for typical mobile hydraulics duty cycles. (4) Wide usability range: operating viscosity 15–75 cSt and ambient temperature -20°C to +80°C, suitable for outdoor job sites and seasonal operation.
Typical applications: multi-function control on construction and earth-moving equipment (mini/midi excavators, loaders, backhoe loaders), material handling machines (forklifts, telehandlers, stack handling systems), agricultural machinery (tractor and front-end loader attachments), and various industrial vehicles requiring centralized directional control.
Supply capabilities: available for OEM manufacturing, contract manufacturing, private label, and customized configurations (e.g., section count variants, port/connection adaptations, and application-matched settings) to support distributors, wholesalers, agents, and traders.
| HDCF50 Series Solenoid Control Valve Parameters | |
|---|---|
| Control Method | Solenoid |
| Spool | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool, 8 Spool, 9 Spool, 10 Spool |
| Section | 1 Section, 2 Section, 3 Section, 4 Section, 5 Section, 6 Section, 7 Section, 8 Section, 9 Section, 10 Section |
| Structure Type | Sectional valve |
| Rated Flow | 50 L/min (13.2 US gpm) |
| Max Pressure | 160 bar (2300 psi) |
| Operating Viscosity Range | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| Ambient Temperature Range | -20°C to +80°C (-4°F to +176°F) |
We provide OEM/ODM services. When your product orders reach a certain value, we can offer a variety of customization services, including labels, packaging, product colors, and more.
We support multiple currencies and diverse payment methods, such as T/T, L/C, Alibaba platform, China Manufacturing Payment Platform, bank transfer, and more.
We can provide samples, and the sample costs will be refunded to you in the form of deducted payments in the later stages.
