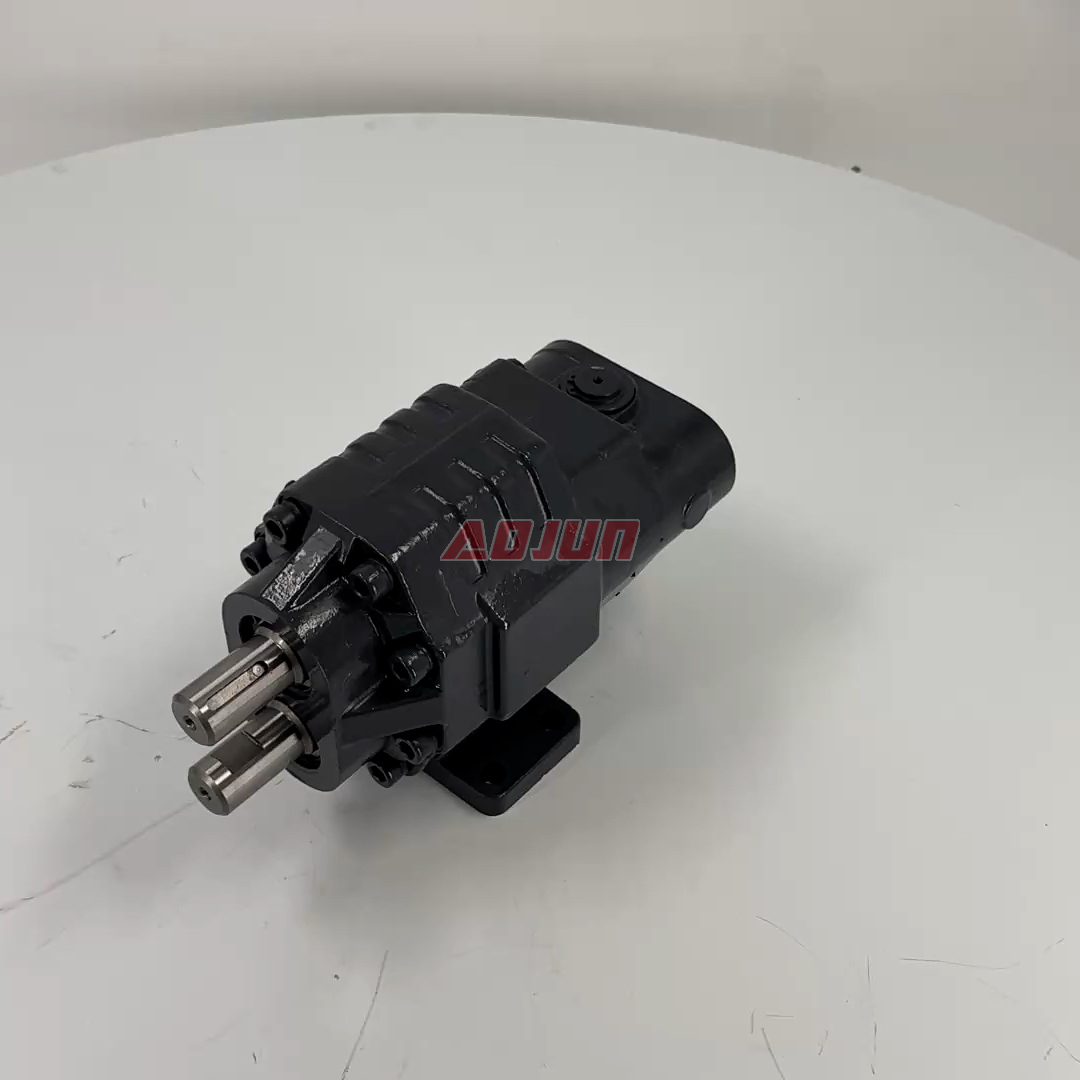

63 cc/rev cast-iron gear pump with bidirectional rotation, rated up to 20/25 MPa and max 25 MPa, supporting up to 2500 r/min. Multiple flange and shaft options make it suitable for mobile and industrial hydraulic power packs as an OEM/ODM replacement pump.
global shipping world wide
Online Service For 24 X 7
Support OEM customization
Key performance: 63 cc/rev displacement delivers stable flow for lift/steer/aux circuits; rated pressure 20 MPa and optional 25 MPa (max 25 MPa) for demanding mobile hydraulics; rated speed 2000 r/min with max 2500 r/min for compact high-output systems.
Design & durability: cast iron body for high strength and wear resistance; bidirectional rotation supports flexible installation and hose routing; available in internal or external gear structure to match noise/efficiency and system preferences.
Mounting & interfaces: UNI-3 mounting holes and A-oval flange options for broad interchangeability; shaft choices include rectangle spline (H) and plain key (P) to fit common driveline couplings.
Typical applications: material handling (forklifts/stackers), construction (skid steer loaders, mini-excavators, wheel loaders, backhoe loaders), agriculture (tractors with front-end loaders), and industrial vehicles (sweepers), used for lifting, steering assist, implement hydraulics, and auxiliary attachments.
Supply capabilities: factory direct manufacturing for wholesale, private label, and customization (ports, seals, shaft/flange combos, pressure rating), supporting global distributors, agents, and trading partners.
| BF Series Hydraulic Gear Pump Parameters | |
|---|---|
| Displacement | 63 cc/rev, 80 cc/rev, 110 cc/rev, 43 cc/rev |
| Rated Pressure | 20 MPa (2900 psi), 25 MPa (3625 psi) |
| Rated Speed | 2000 r/min |
| Structure | External Gear Pump, Internal Gear Pump |
| Material | Cast Iron |
| Shaft Type | H: Rectangle Spline, P: Plain Key |
| Flange Version | A-Oval Flange, UNI-3 Mounting Holes |
| Max Pressure | 25 MPa (3625 psi) |
| Rotation | /: (Bidirectional) |
| Max Speed | 2500 r/min |
We provide OEM/ODM services. When your product orders reach a certain value, we can offer a variety of customization services, including labels, packaging, product colors, and more.
We support multiple currencies and diverse payment methods, such as T/T, L/C, Alibaba platform, China Manufacturing Payment Platform, bank transfer, and more.
We can provide samples, and the sample costs will be refunded to you in the form of deducted payments in the later stages.
