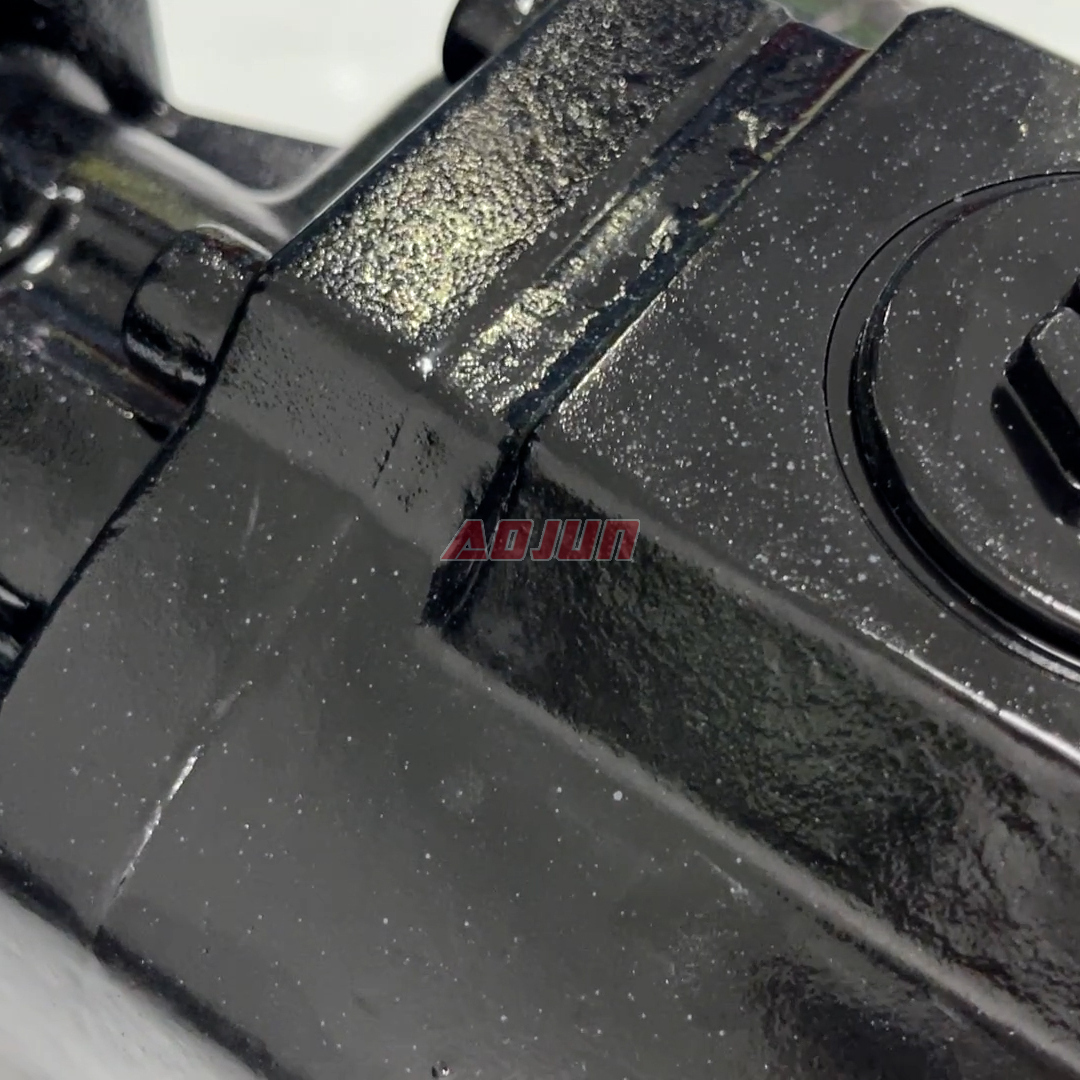

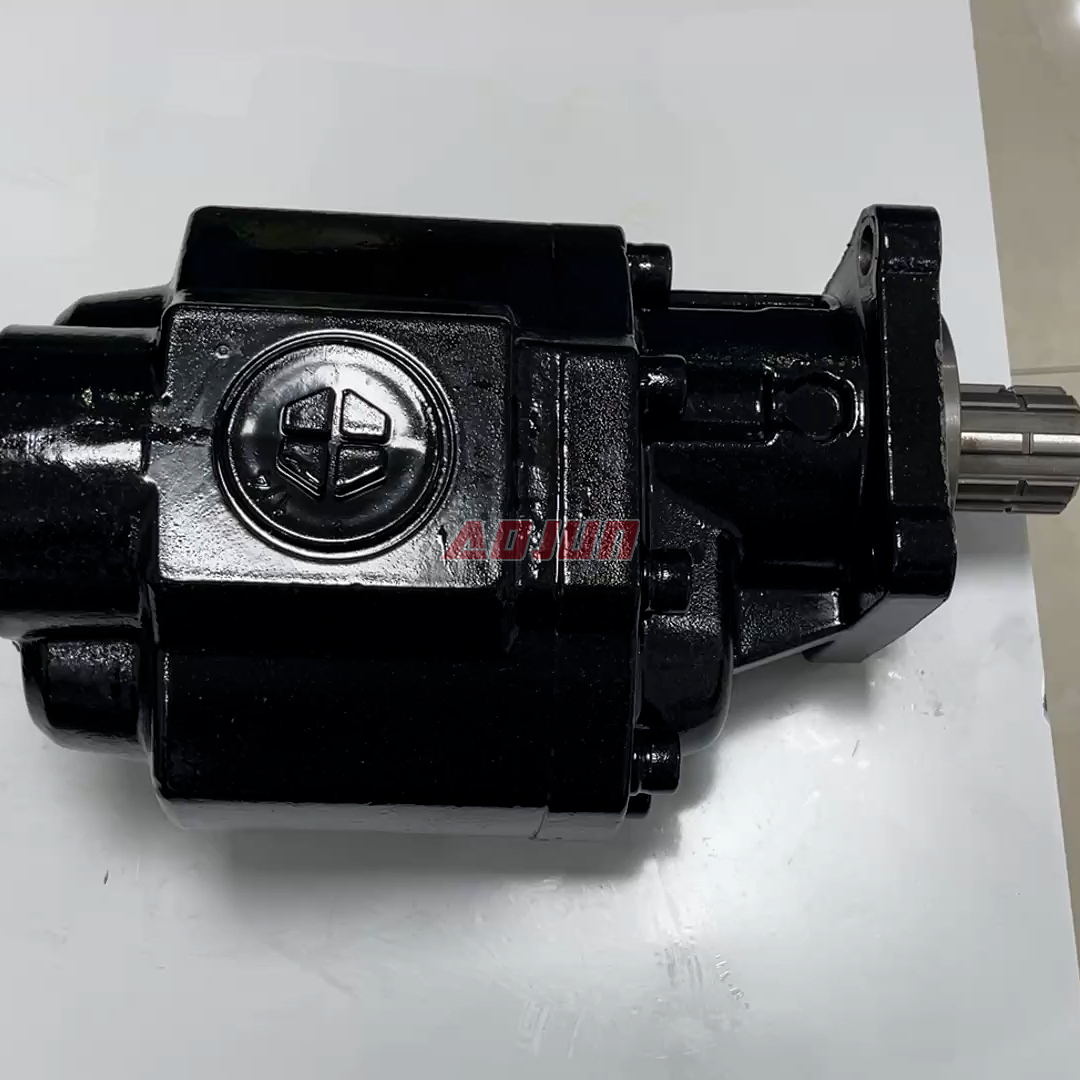

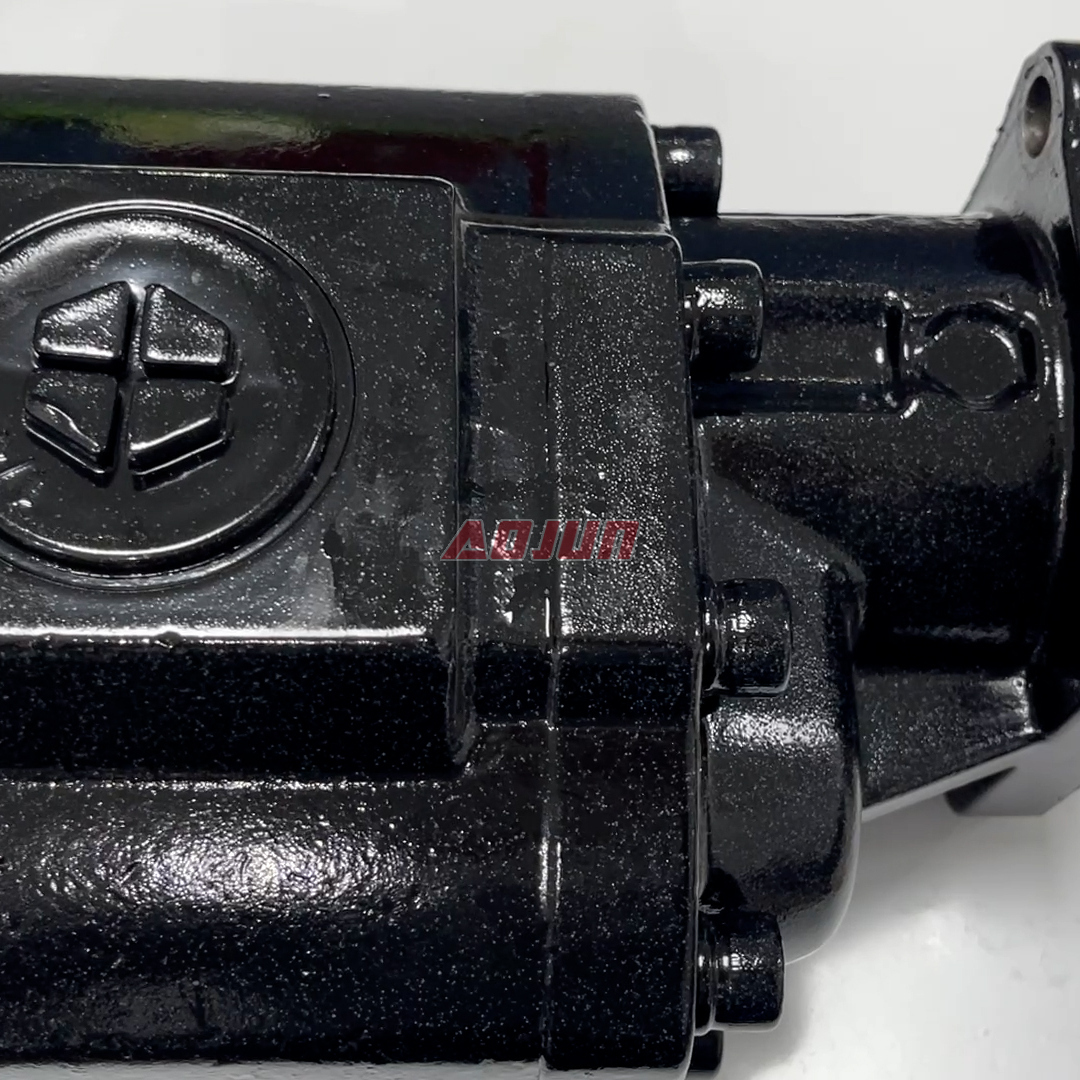

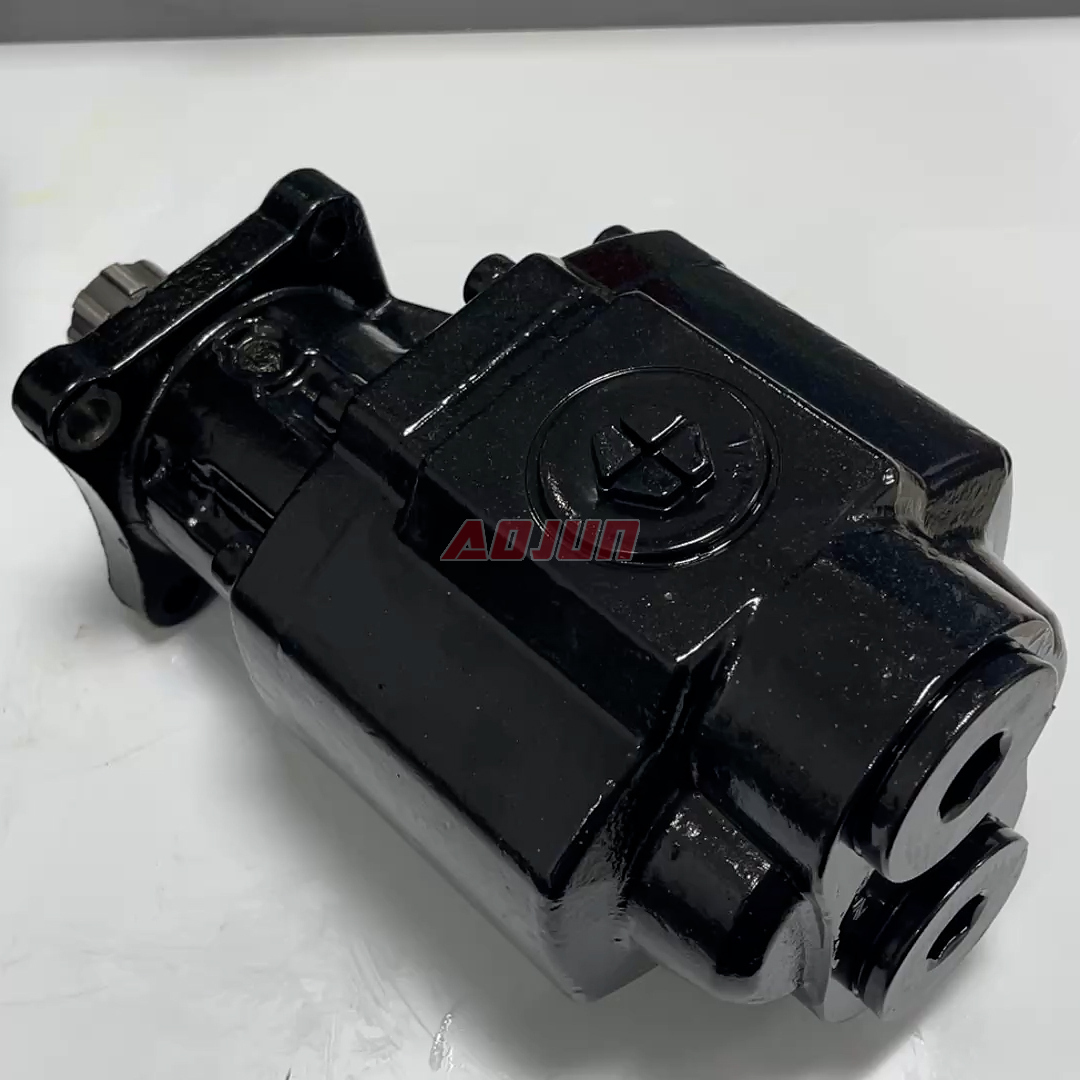

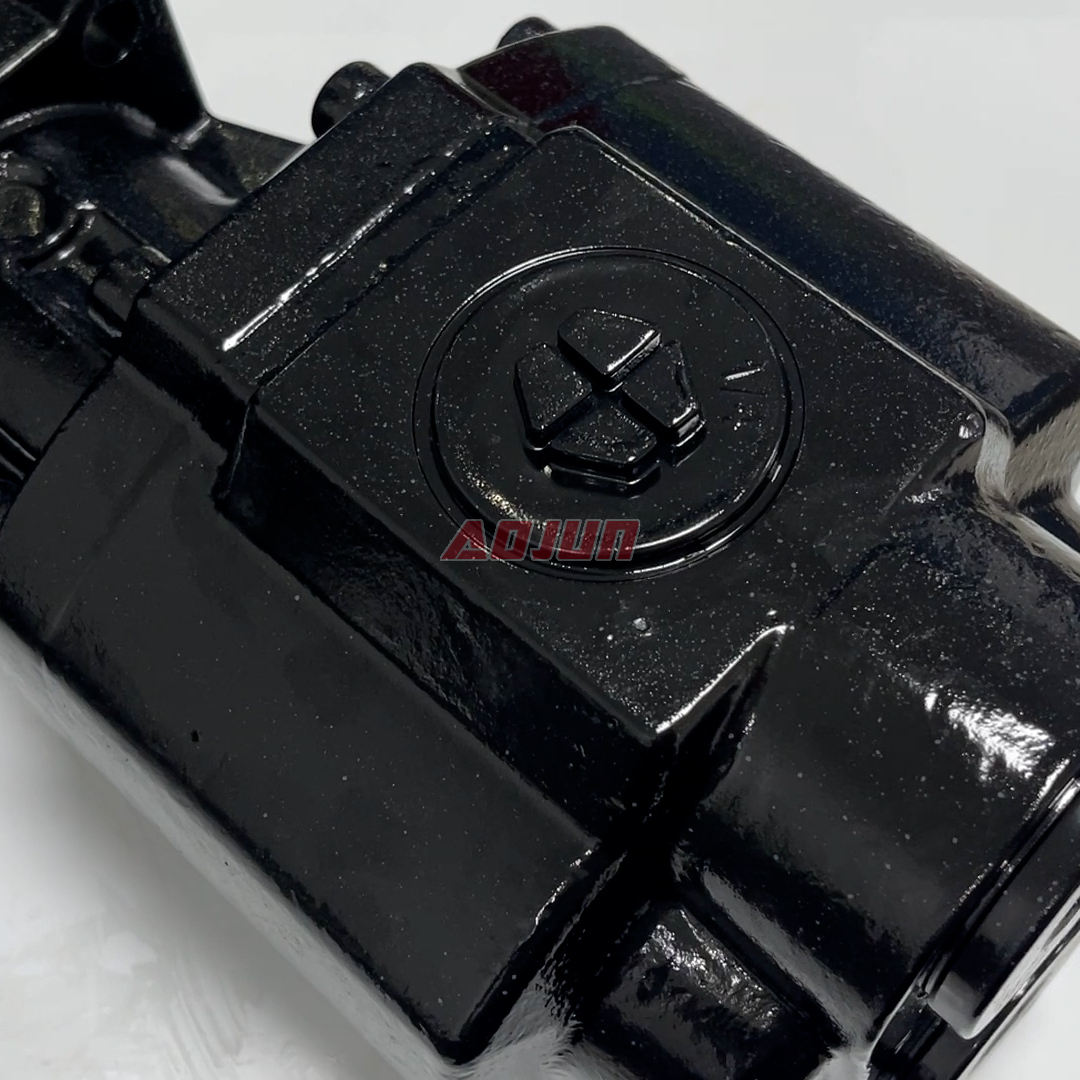

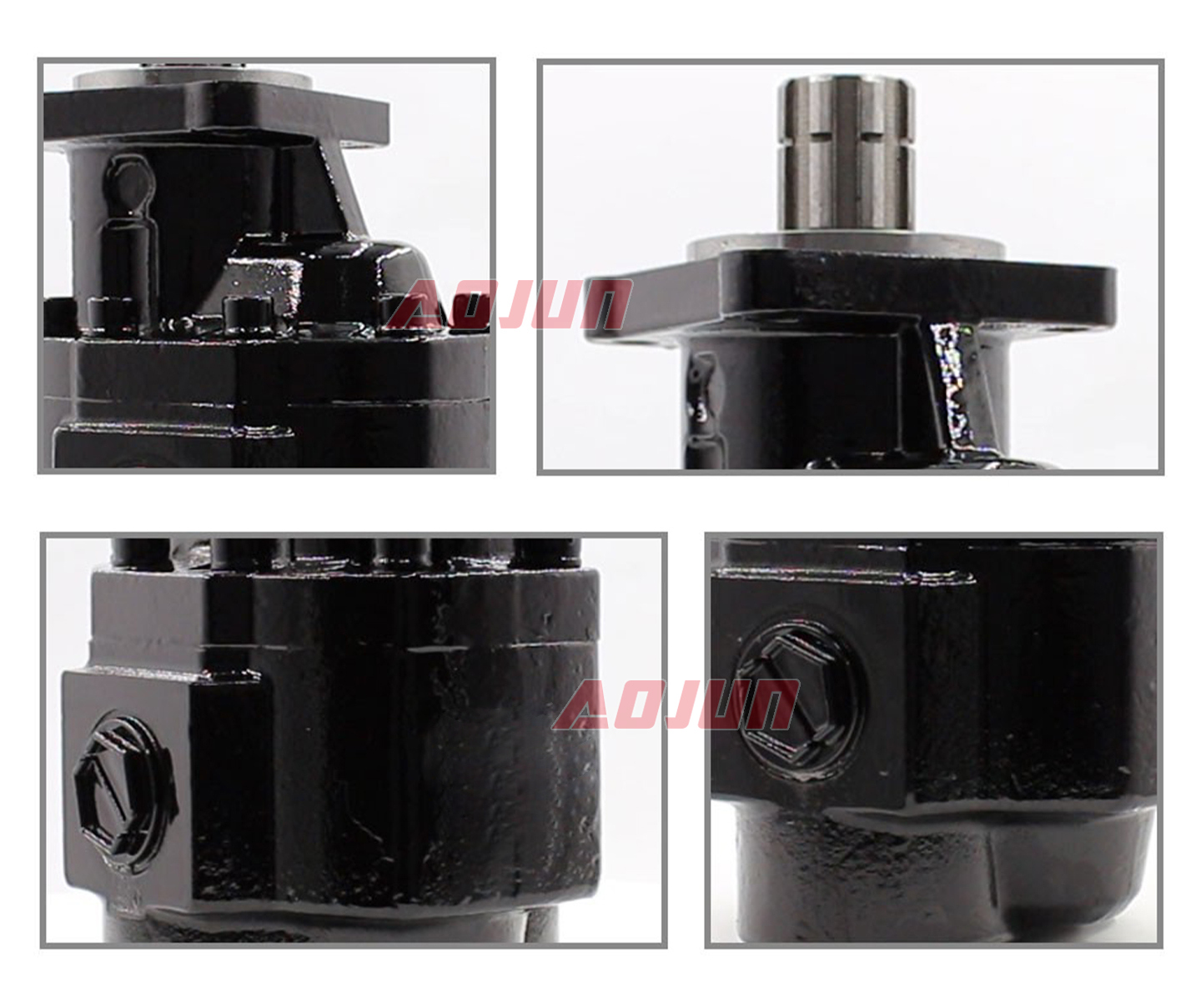

A 63 cc/rev hydraulic pump designed for mobile and industrial applications, featuring cast iron construction, ISO 4-bolt flange mounting, rectangle spline shaft, and bidirectional rotation. Rated at 23 MPa with a 25 MPa maximum, and speeds up to 2500 r/min for reliable hydraulic power delivery.
global shipping world wide
Online Service For 24 X 7
Support OEM customization

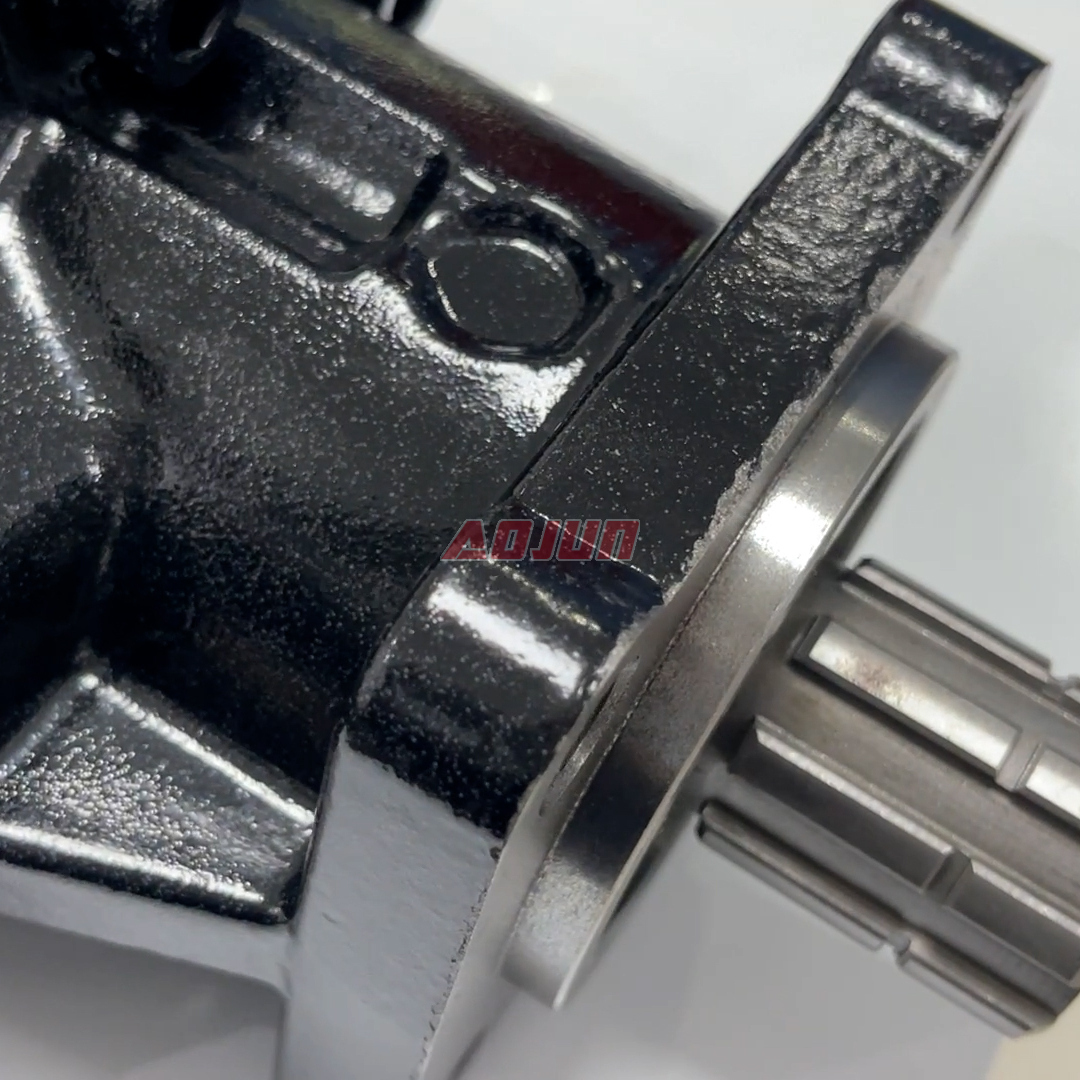

Key specs: 63 cc/rev displacement; rated pressure 23 MPa (3335 psi), max pressure 25 MPa (3625 psi); rated speed 2000 r/min, max speed 2500 r/min; bidirectional rotation; swashplate structure; cast iron housing; ISO-4 mounting holes flange; H rectangle spline shaft.
Product advantages: robust cast iron body for durability; ISO flange standardization for easier interchange and installation; rectangle spline shaft for stable torque transmission; supports bidirectional operation to match different circuit layouts; suitable for high-pressure mobile hydraulic systems.
Typical applications: material handling and industrial vehicles (forklift, stacker, aerial platform), construction and earth moving (skid steer loader, mini-excavator, wheel loader, backhoe loader), and agriculture (tractor and front-end loader, harvester).
Supply capabilities: factory direct manufacturing for global customers, supporting OEM/ODM, private label, customization, wholesale supply, and long-term cooperation with distributors, wholesalers, agents, and traders.
| CBHST1-ISO Series Hydraulic Gear Pump Parameters | |
|---|---|
| Displacement | 50 cc/rev, 63 cc/rev, 80 cc/rev, 100 cc/rev, 34 cc/rev, 43 cc/rev, 120 cc/rev |
| Rated Pressure | 23 MPa (3335 psi) |
| Max Pressure | 25 MPa (3625 psi) |
| Rated Speed | 2000 r/min |
| Max Speed | 2500 r/min |
| Rotation | /: (Bidirectional) |
| Structure | Swashplate |
| Material | Cast Iron |
| Flange Version | ISO-4 Mounting Holes |
| Shaft Type | H: Rectangle Spline |
