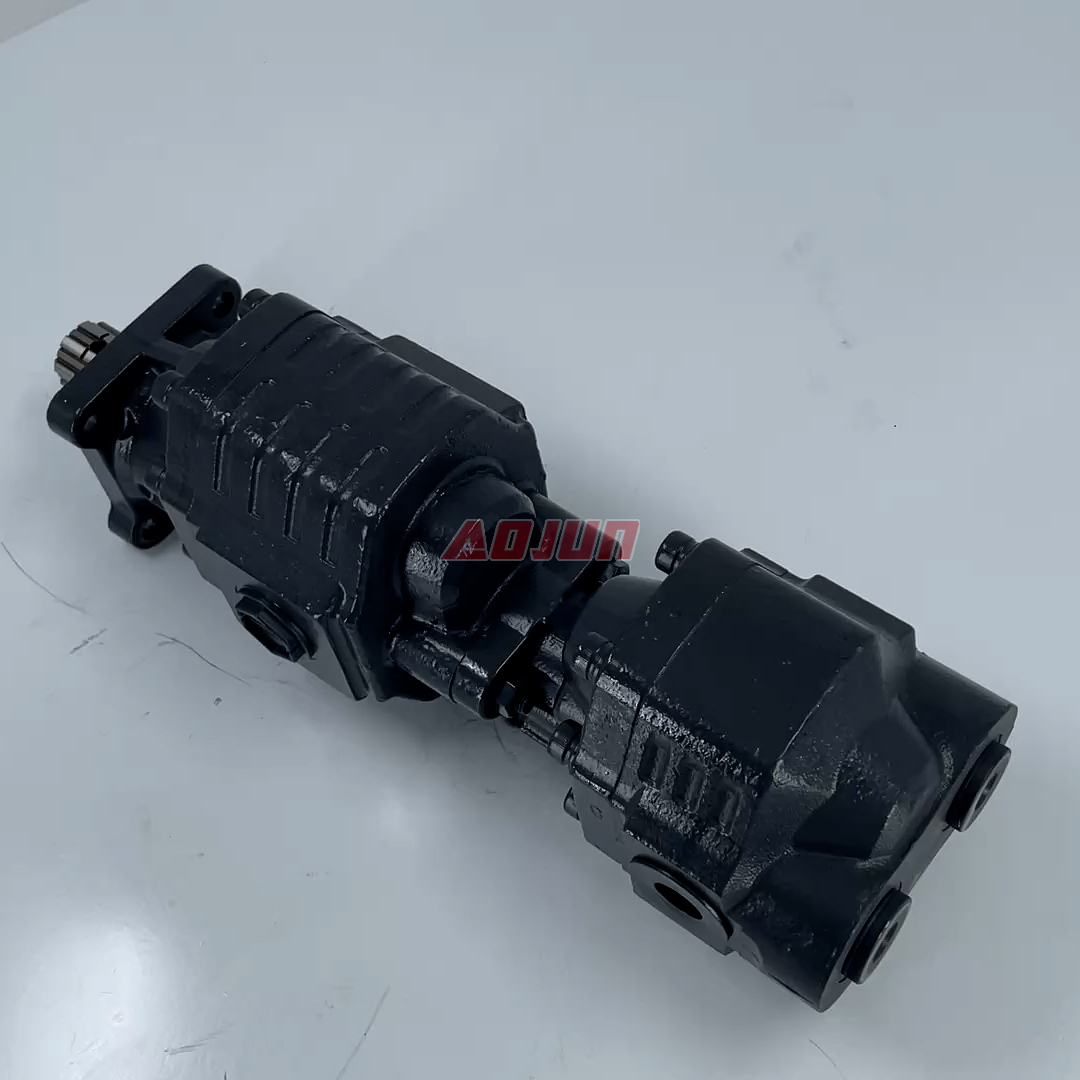

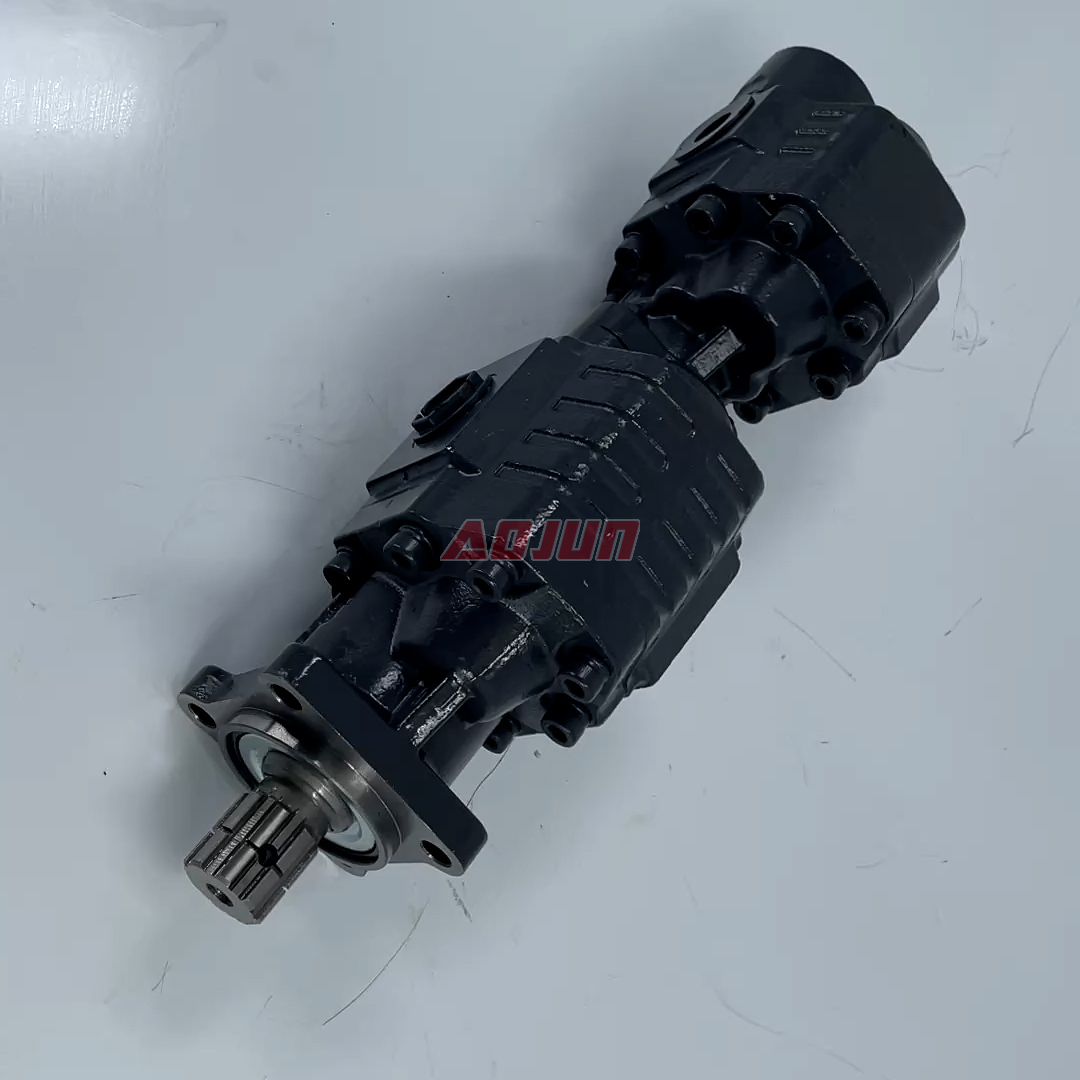

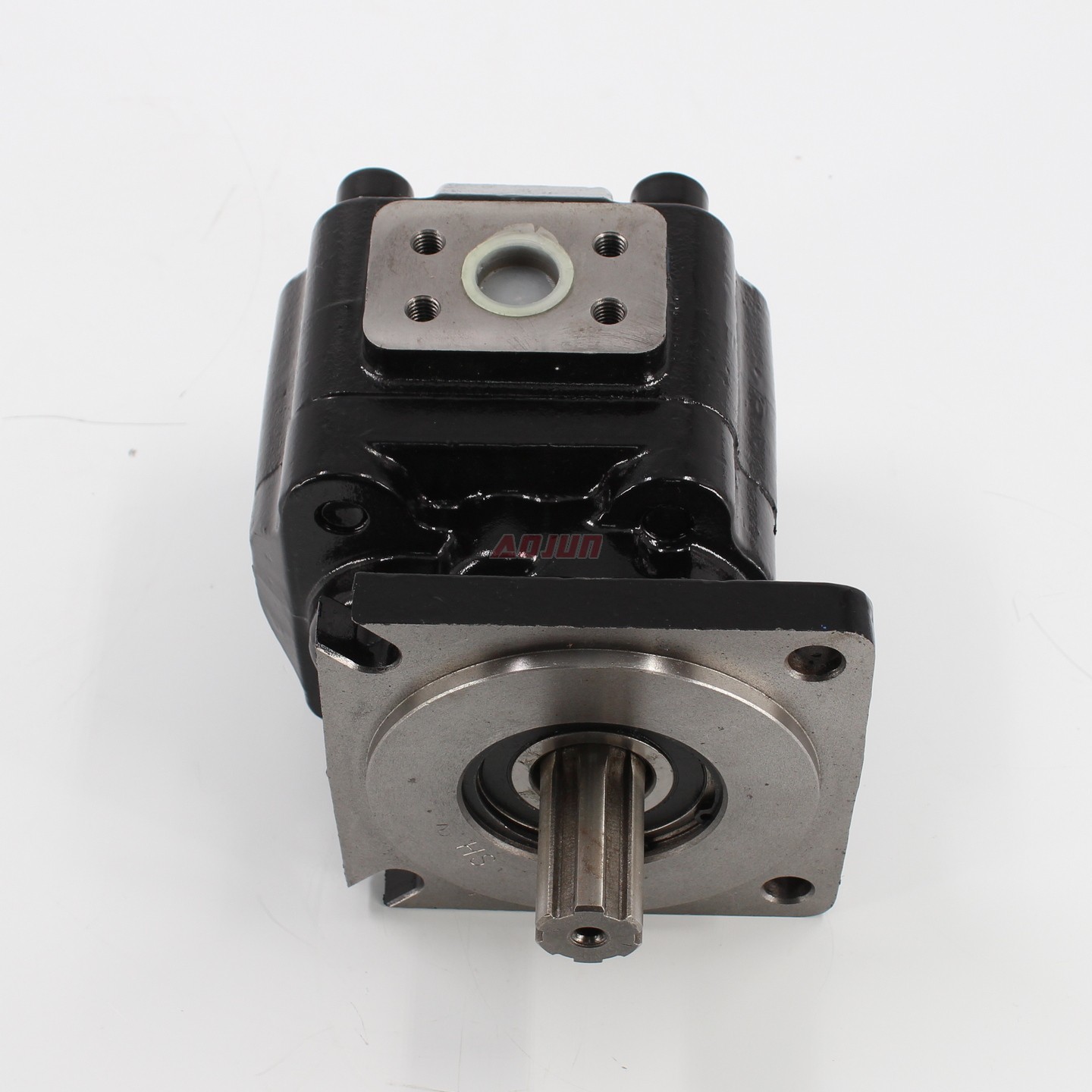

CBSL-2063-2040 is a 63 cc/rev external hydraulic gear pump with cast iron body, ISO-4 flange mounting and rectangle spline shaft. It supports right/left rotation options, delivers 20 MPa rated pressure (25 MPa max), and is designed for mobile and industrial hydraulic systems up to 2250 r/min.
global shipping world wide
Online Service For 24 X 7
Support OEM customization
Key specs: 63 cc/rev displacement; rated pressure 20 MPa (2900 psi) and max pressure 25 MPa (3625 psi); rated speed 2000 r/min and max speed 2250 r/min. Structure: external gear pump for stable flow delivery and robust operation in mobile hydraulics. Materials & interface: cast iron housing for durability; ISO-4 mounting holes for common flange compatibility; H-type rectangle spline shaft for reliable torque transmission.
Rotation options: available in bidirectional / right-hand (clockwise) / left-hand (counter-clockwise) configurations to match different machine layouts and hose routing.
Typical applications: hydraulic power units and implement circuits on telehandlers, forklifts, skid steer loaders, mini excavators, backhoe loaders, wheel loaders, aerial platforms, concrete boom pumps, tractors/loaders, and sweepers—where compact size, rugged construction, and consistent output are required.
Supply capabilities: factory-direct manufacturing for global markets with OEM/ODM, private label, customization and wholesale support (e.g., rotation, mounting/flange, shaft, and connection adaptations per project).
| CBSL Series Hydraulic Gear Pump Parameters | |
|---|---|
| Displacement | 50 cc/rev, 63 cc/rev, 100 cc/rev, 34 cc/rev, 90 cc/rev, 82 cc/rev, 73 cc/rev |
| Rated Pressure | 20 MPa (2900 psi) |
| Rated Speed | 2000 r/min |
| Structure | External Gear Pump |
| Material | Cast Iron |
| Shaft Type | H: Rectangle Spline |
| Flange Version | ISO-4 Mounting Holes |
| Max Pressure | 25 MPa (3625 psi) |
| Rotation | L: Left (counter-clockwise), R: Right (clockwise), /: (Bidirectional) |
| Max Speed | 2250 r/min |
