A 7-section manual monoblock directional control valve designed for mobile hydraulic systems, delivering 40 L/min rated flow and up to 315 bar pressure with stable operation across wide viscosity and temperature ranges.
global shipping world wide
Online Service For 24 X 7
Support OEM customization

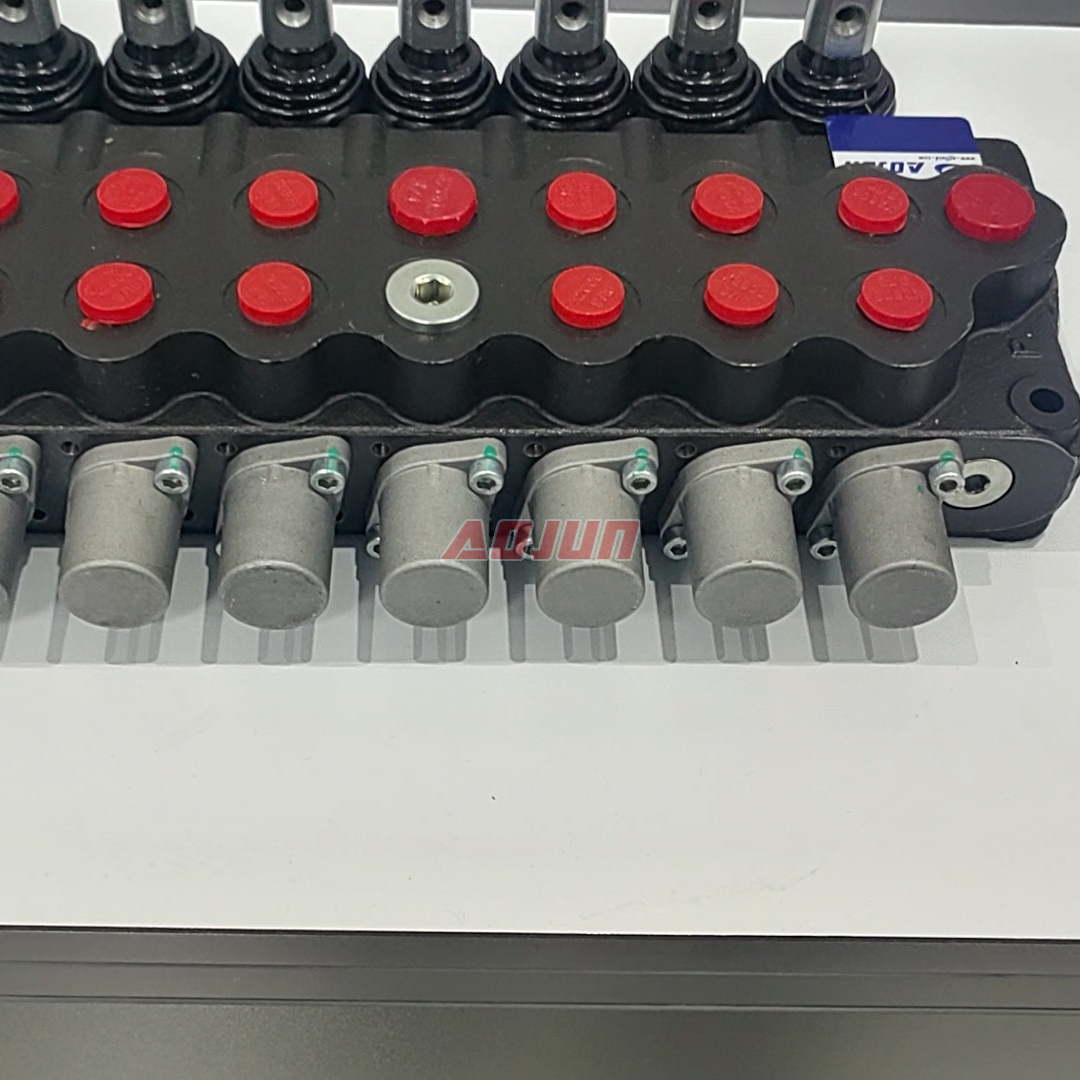

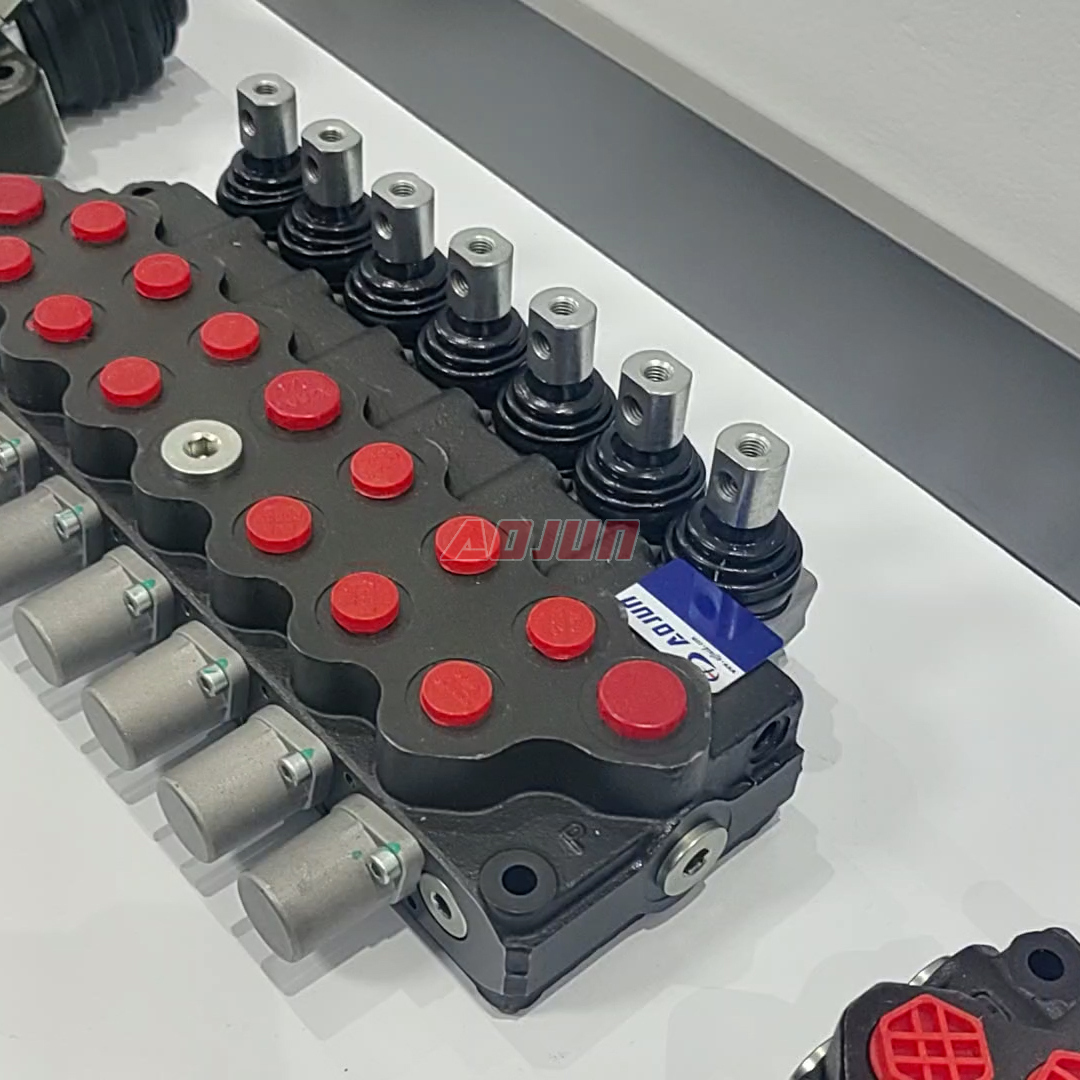

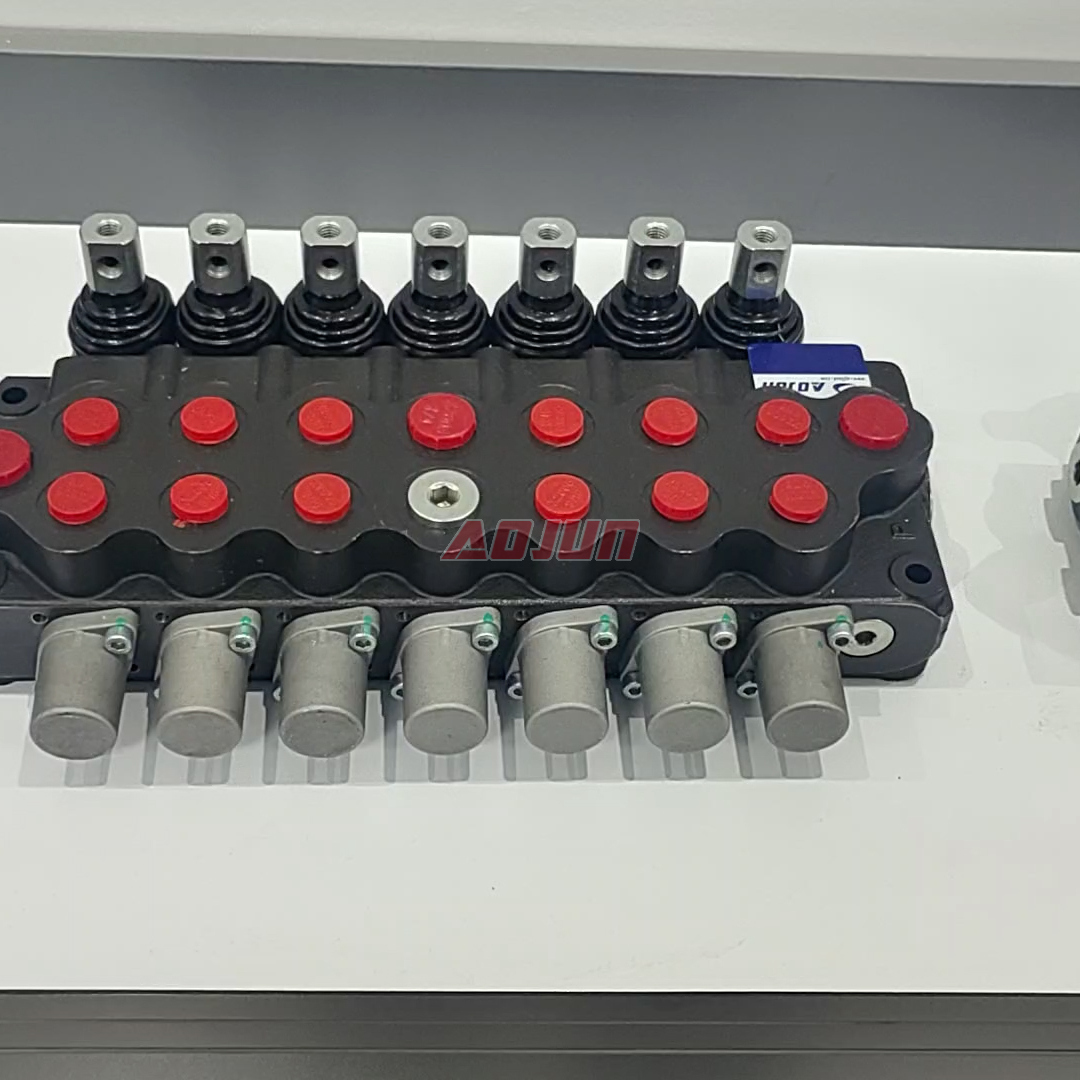

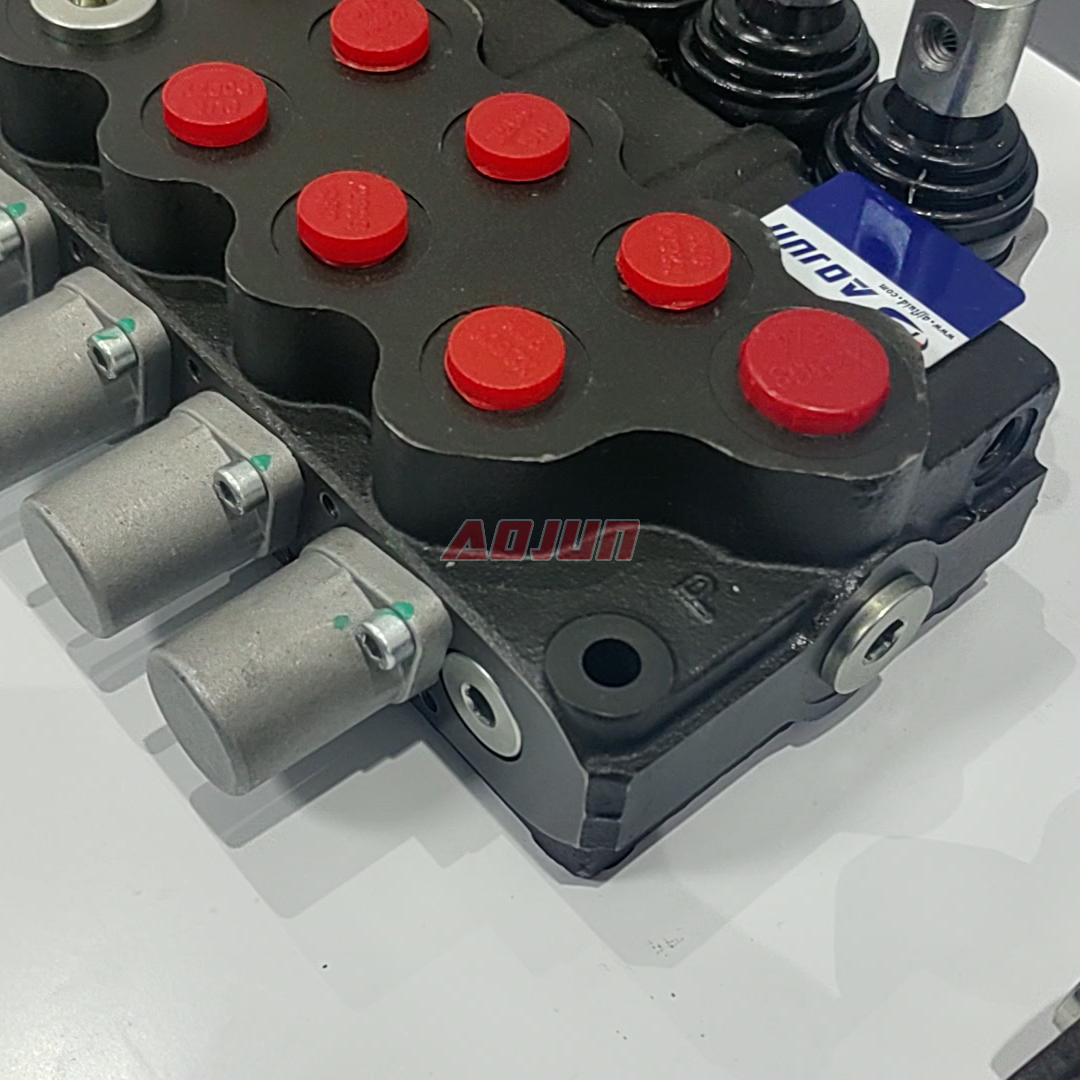

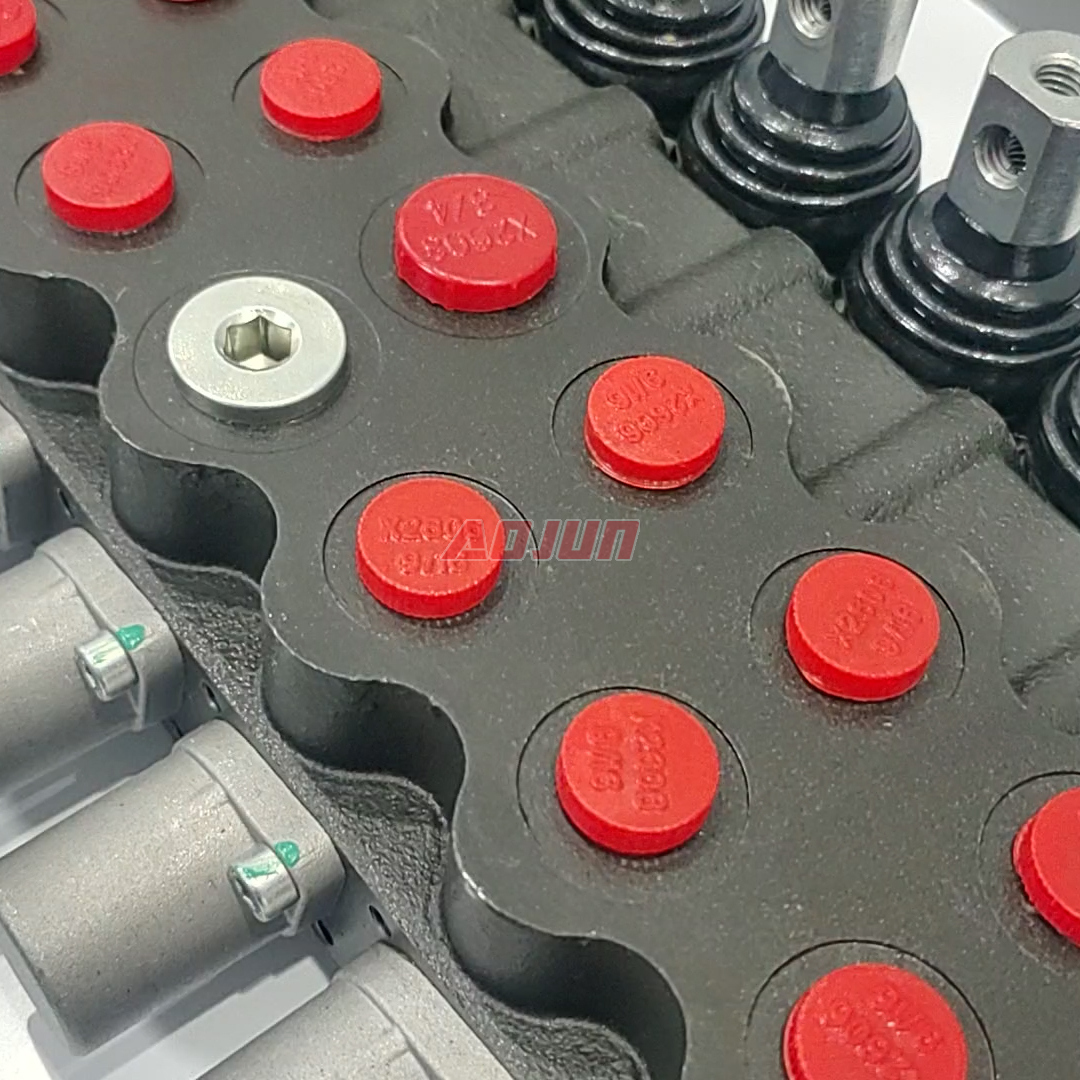

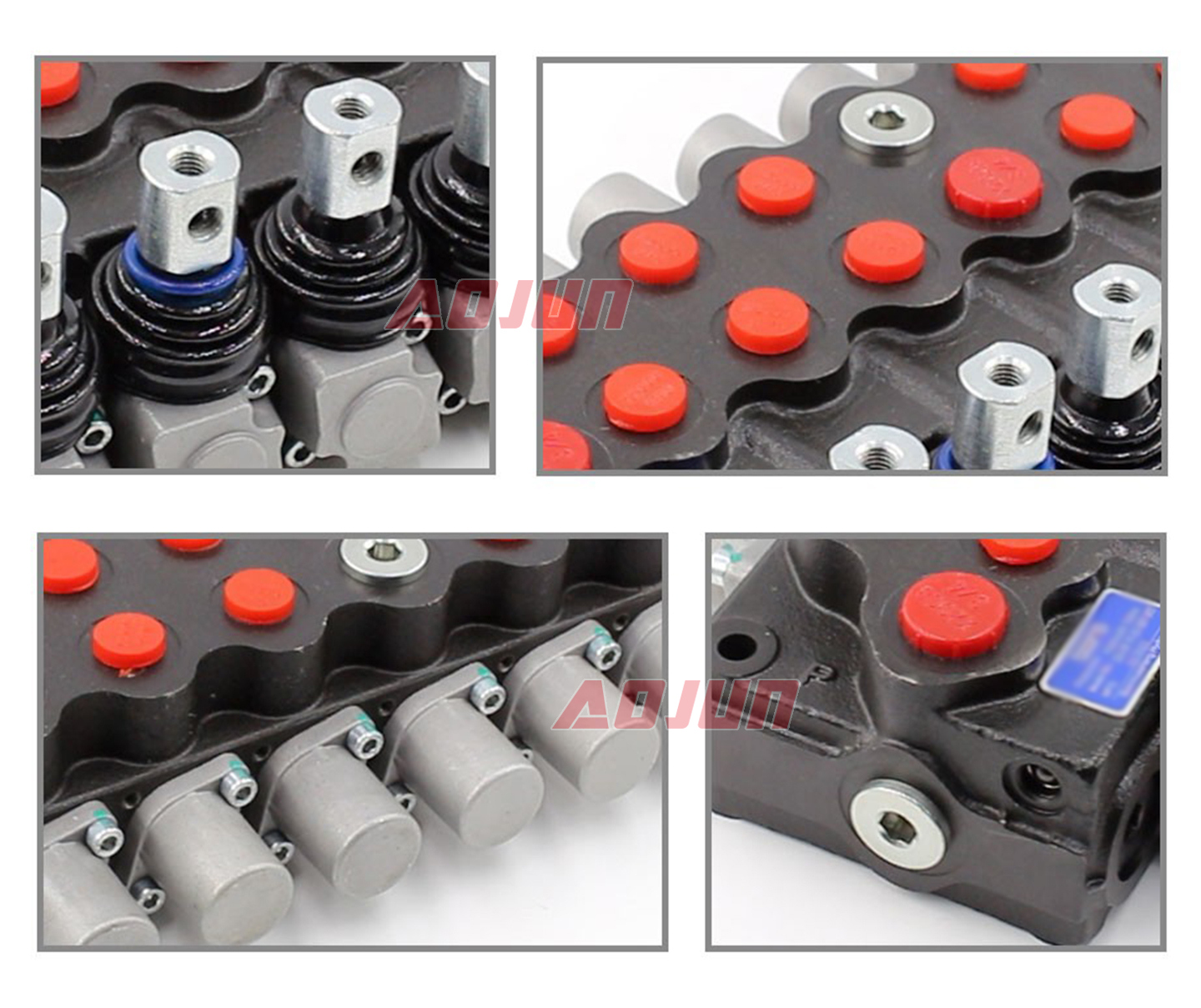

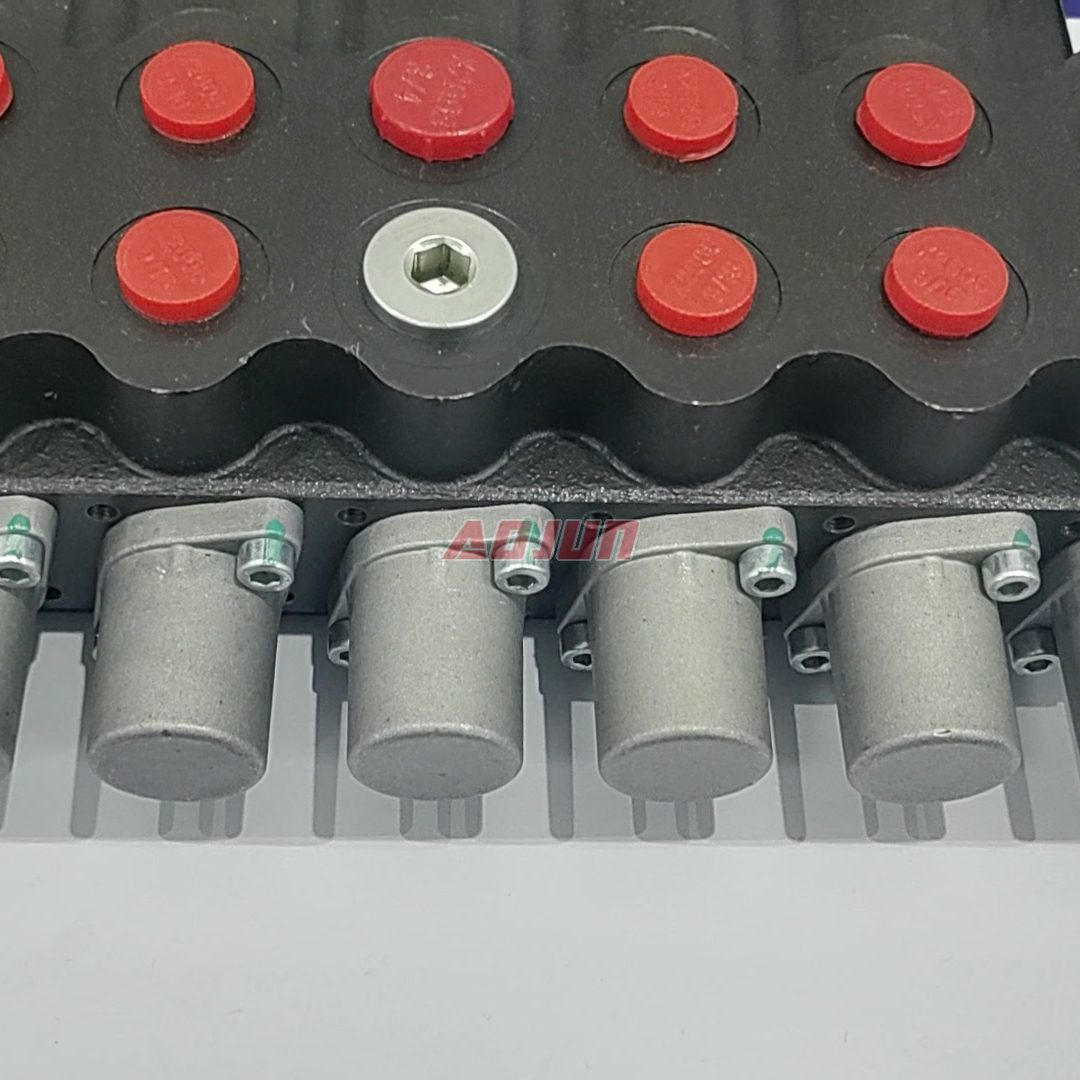

This manual lever-operated monoblock valve integrates 7 spools in a compact one-piece body to reduce leakage paths and simplify installation on mobile equipment. Rated flow is 40 L/min (10.5 US gpm) with maximum working pressure up to 315 bar (4600 psi), suitable for multi-actuator circuits requiring reliable directional control. It supports operating oil viscosity from 15–75 mm²/s and ambient temperature from -40°C to +60°C, making it suitable for harsh outdoor environments. Typical applications include construction machinery, material handling vehicles, agricultural equipment, and industrial vehicles where multiple functions must be controlled from a single valve bank. As a manufacturer, we offer OEM/ODM, private label, customization and bulk supply for distributors, agents, wholesalers, and traders serving global markets.
| SD5 Series Monoblock Directional Valve Parameters | |
|---|---|
| Control Method | Manual, Pneumatic, Electro-pneumatic, Electro-hydraulic, Solenoid, Hydraulic, Hydraulic and Manual, Cable, Joystick |
| Spool | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool |
| Section | 1 Section, 2 Section, 3 Section, 4 Section, 5 Section, 6 Section, 7 Section |
| Structure Type | Monoblock valve |
| Rated Flow | 40 L/min (10.5 US gpm) |
| Max Pressure | 315 bar (4600 psi) |
| Operating Viscosity Range | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| Ambient Temperature Range | -40°C to +60°C (-40°F to +140°F) |
We provide OEM/ODM services. When your product orders reach a certain value, we can offer a variety of customization services, including labels, packaging, product colors, and more.
We support multiple currencies and diverse payment methods, such as T/T, L/C, Alibaba platform, China Manufacturing Payment Platform, bank transfer, and more.
We can provide samples, and the sample costs will be refunded to you in the form of deducted payments in the later stages.
