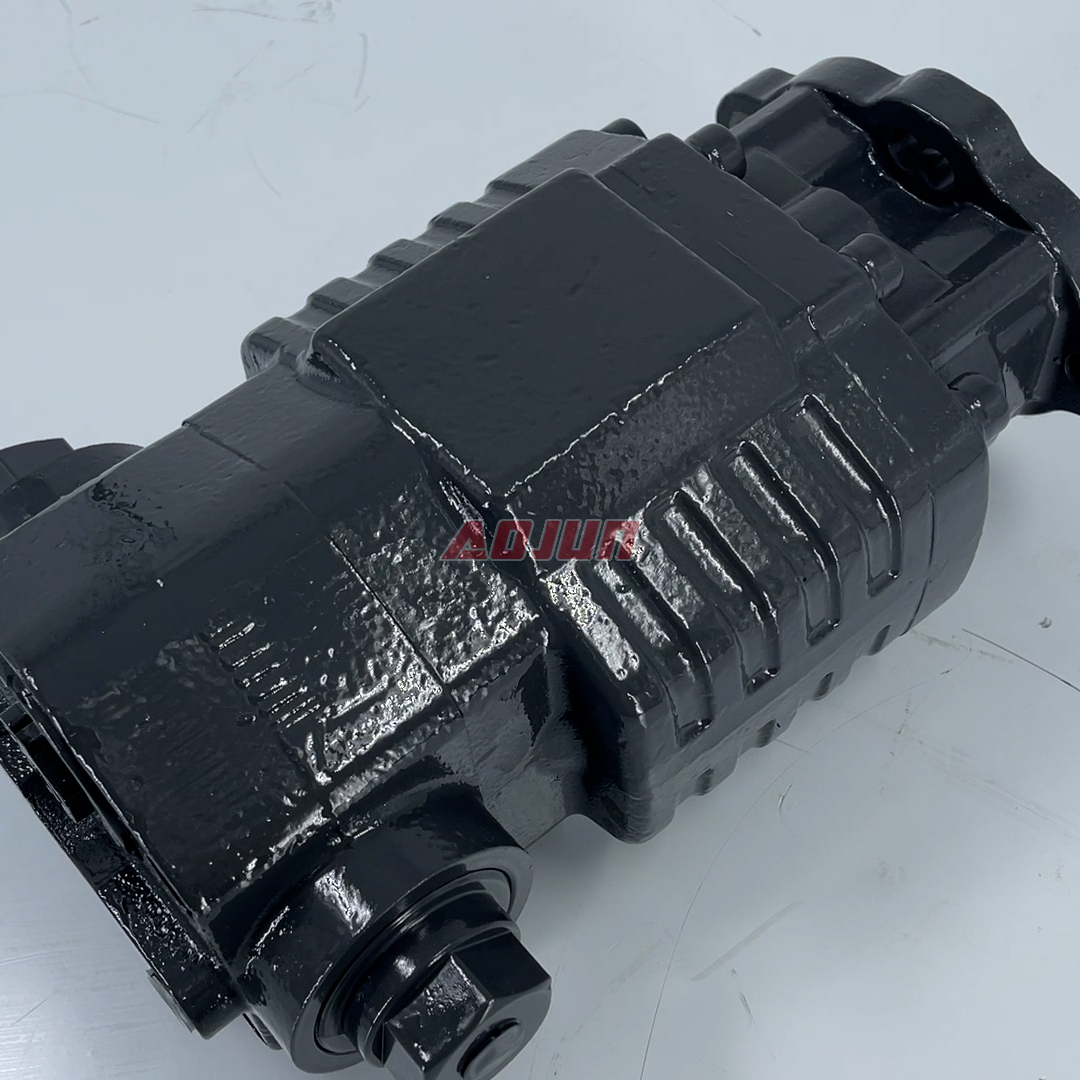

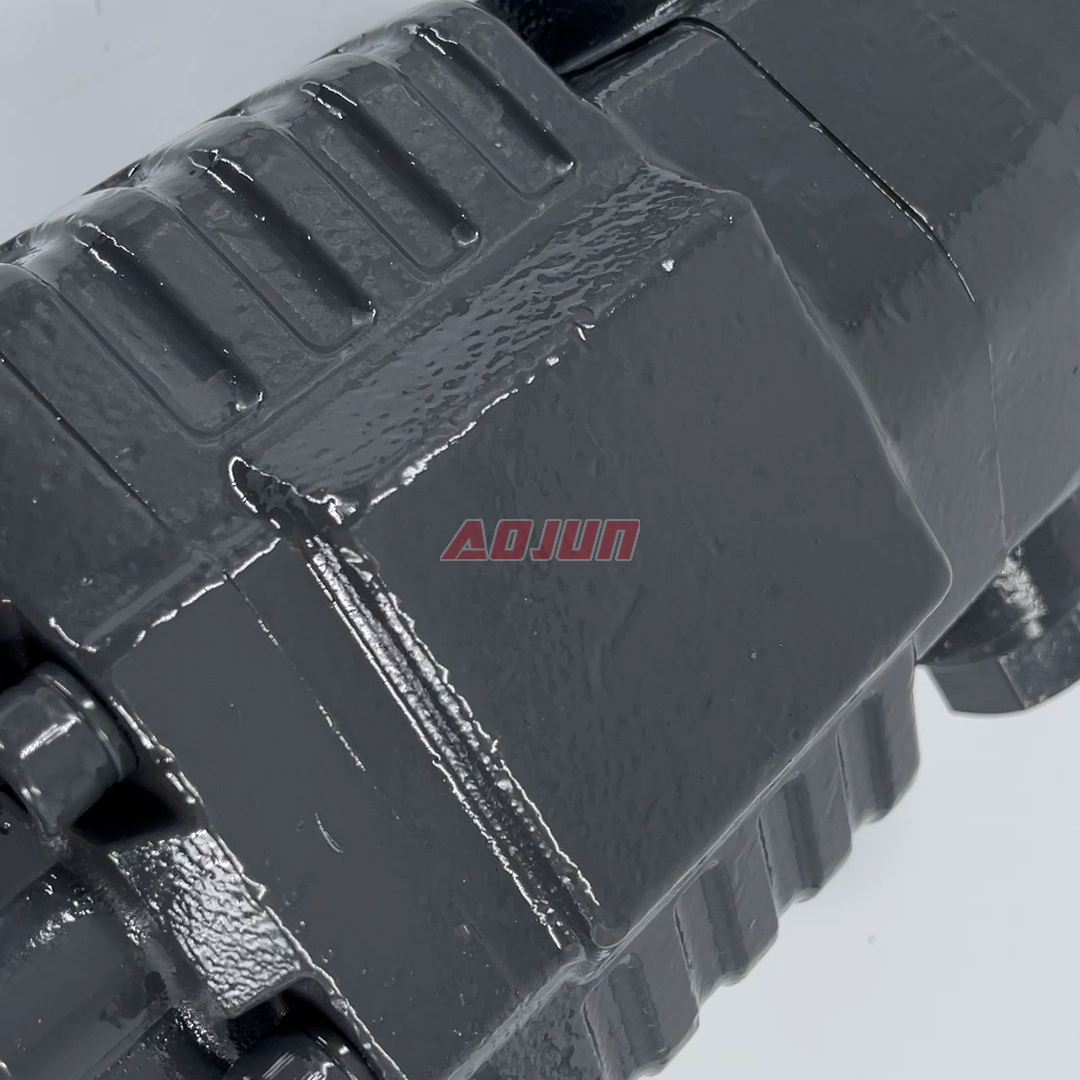

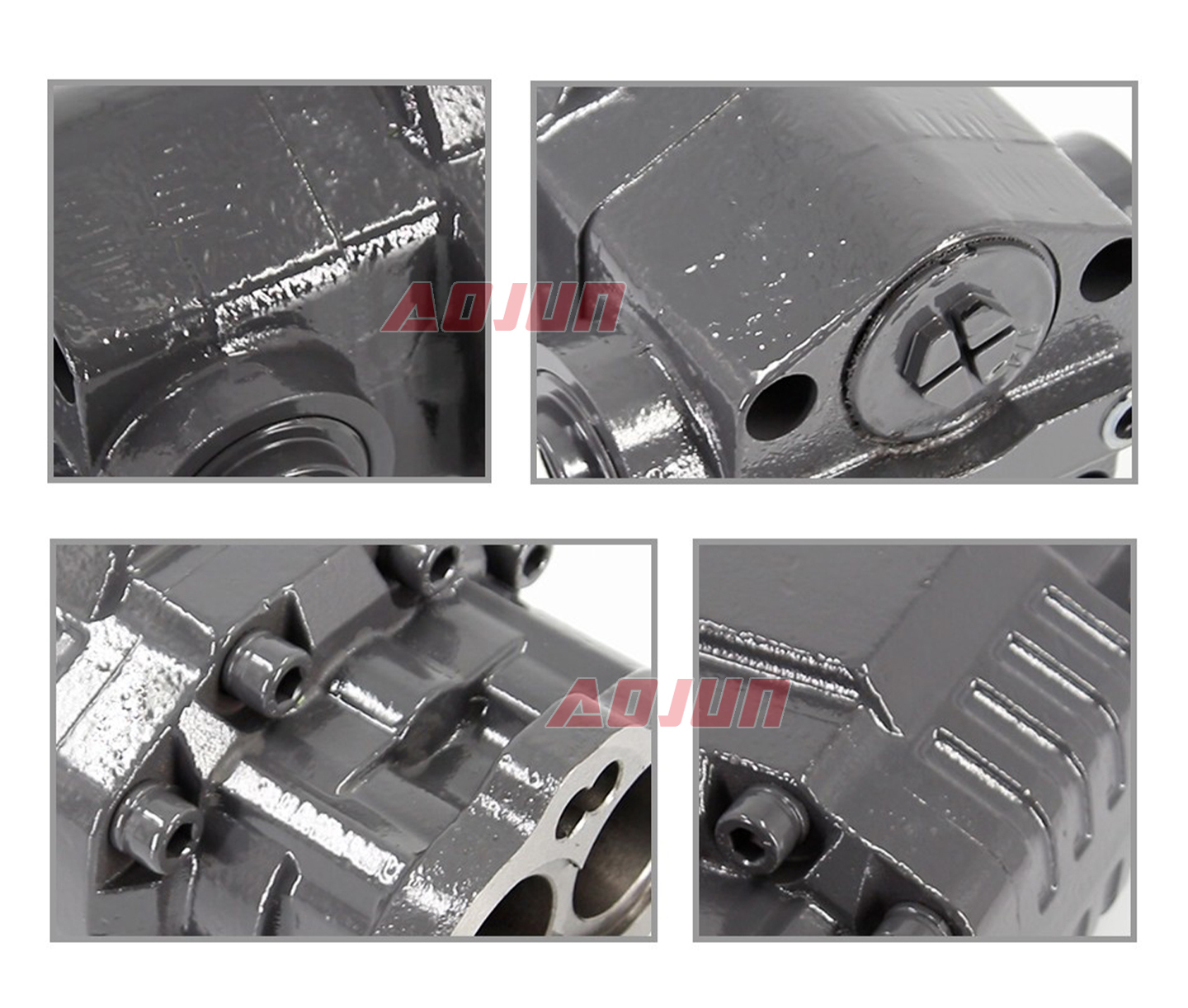

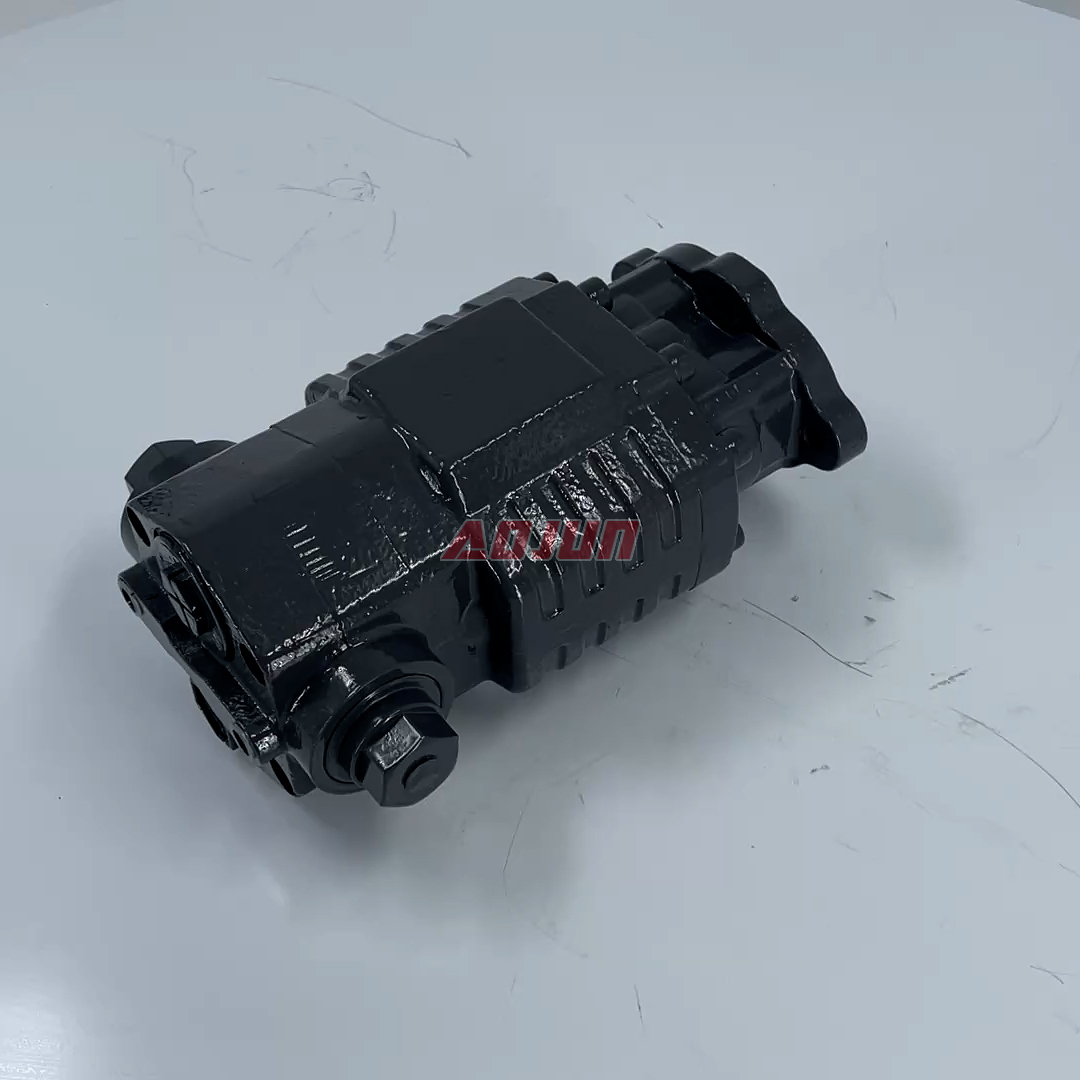

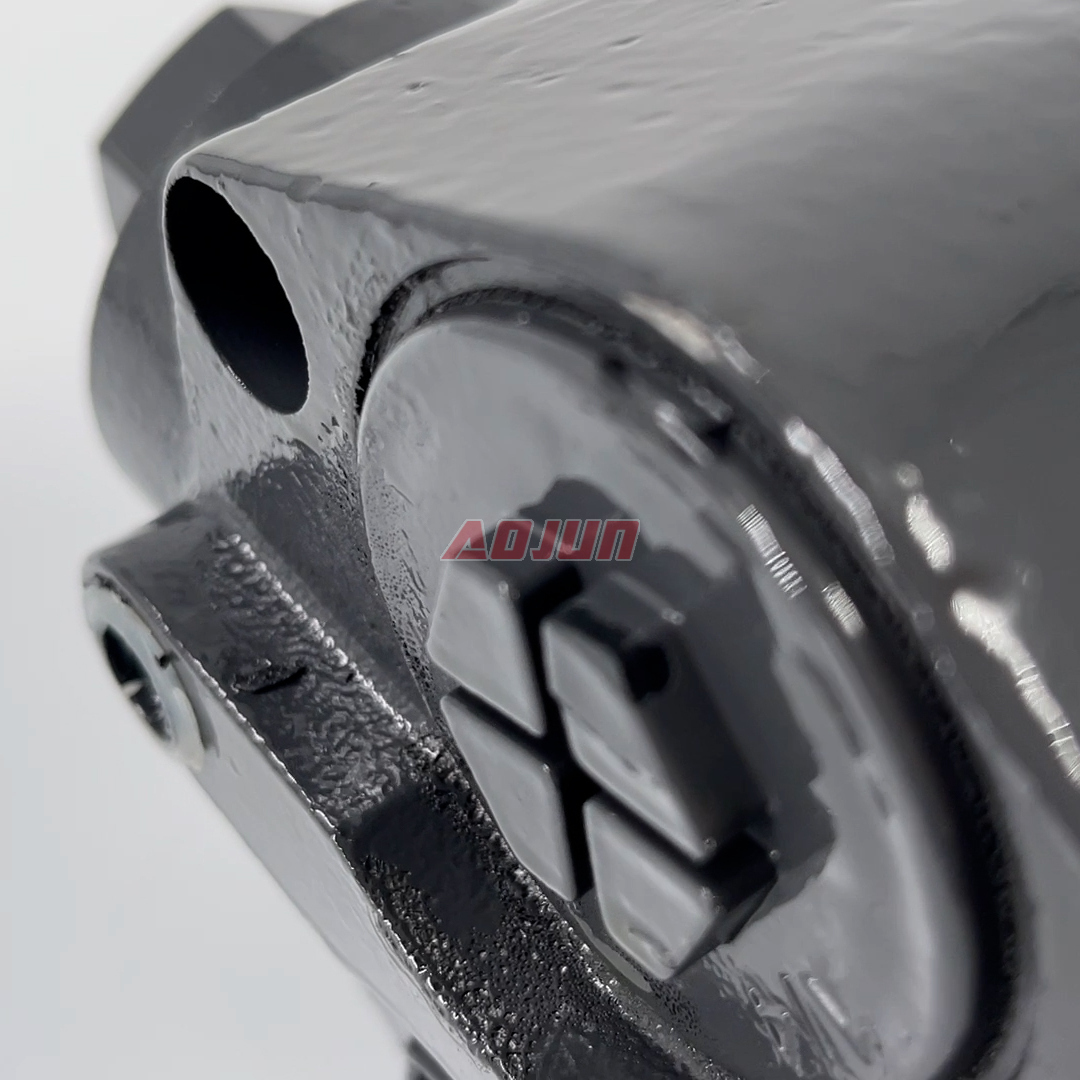

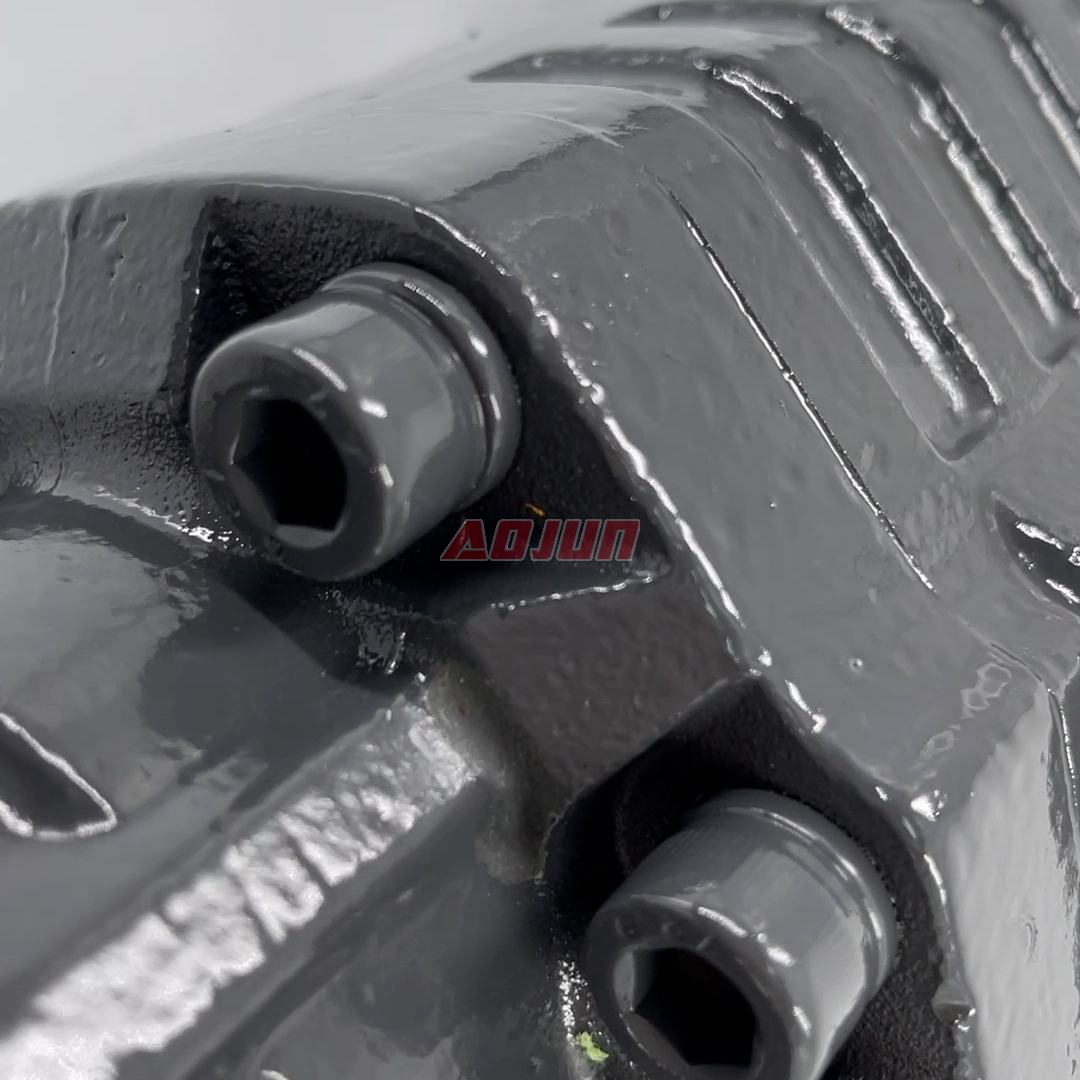

80 cc/rev gear-type hydraulic pump designed for mobile and industrial hydraulic systems, delivering up to 25 MPa pressure with stable performance at speeds up to 2500 r/min. Bidirectional rotation, cast-iron construction, and multiple flange/shaft options make it suitable for OEM replacement and new equipment builds.
global shipping world wide
Online Service For 24 X 7
Support OEM customization
Key specifications: displacement 80 cc/rev; rated pressure 20 MPa (option up to 25 MPa); max pressure 25 MPa; rated speed 2000 r/min; max speed 2500 r/min; bidirectional rotation; cast iron body for durability and vibration resistance.

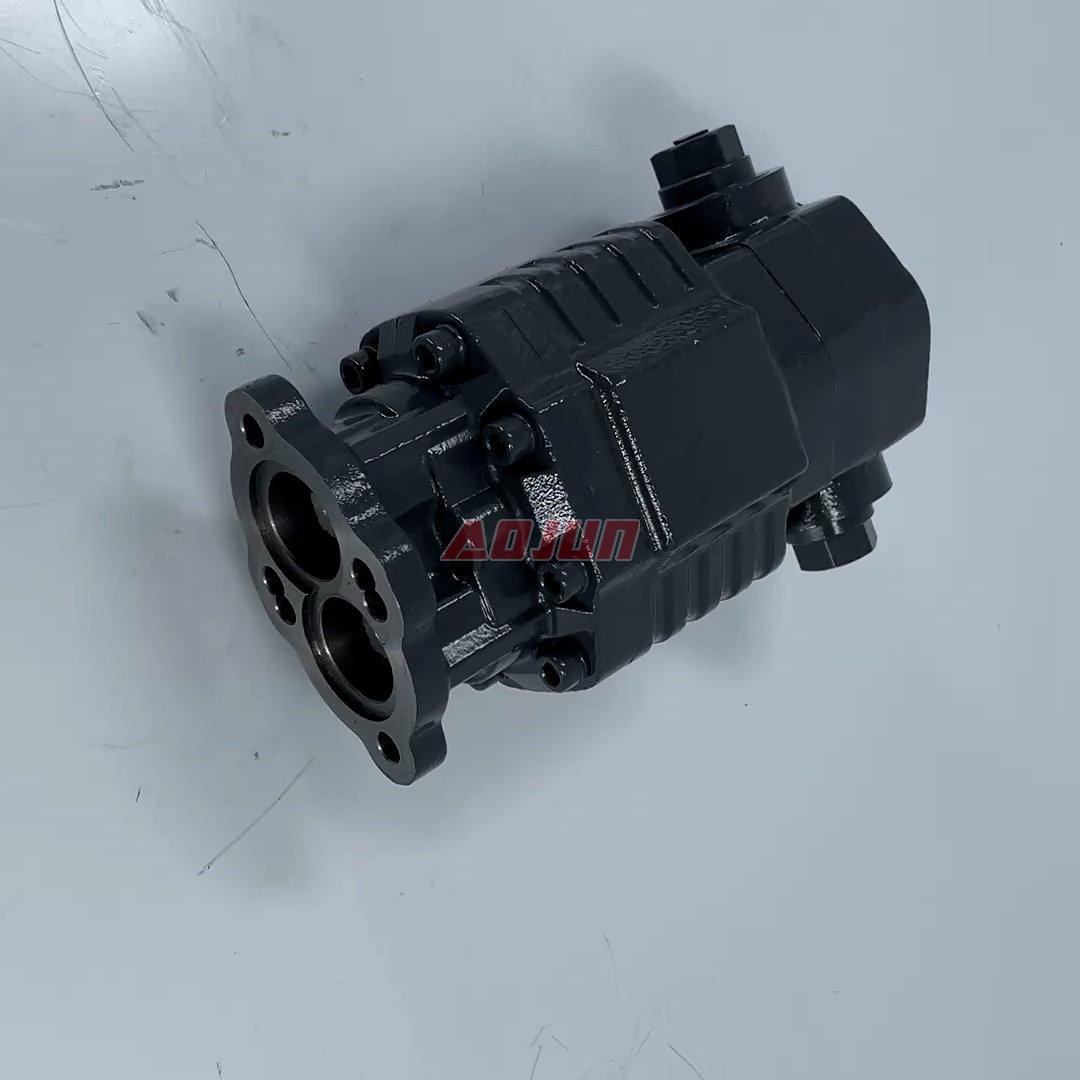

Mounting & interfaces: UNI-3 mounting holes with A-oval flange for common mobile hydraulics installations; shaft options include rectangle spline (H) for higher torque transmission and plain key (P) for standard couplings.
Product advantages: high-pressure capability for demanding actuators, reliable volumetric performance across typical operating speeds, robust housing for long service life, and configuration flexibility (internal/external gear structure options) for different system layouts.
Typical applications: lifting/steering and implement circuits in forklifts, telehandlers, aerial platforms, skid steer loaders, mini/midi excavators, wheel loaders, backhoe loaders, dumpers, and tractor front-end loaders.
Business support: factory direct supply for global customers, including manufacturing, OEM/ODM, private label, customization, wholesale programs, and partner support for distributors/agents/traders.
| BF Series Hydraulic Gear Pump Parameters | |
|---|---|
| Displacement | 63 cc/rev, 80 cc/rev, 110 cc/rev, 43 cc/rev |
| Rated Pressure | 20 MPa (2900 psi), 25 MPa (3625 psi) |
| Rated Speed | 2000 r/min |
| Structure | External Gear Pump, Internal Gear Pump |
| Material | Cast Iron |
| Shaft Type | H: Rectangle Spline, P: Plain Key |
| Flange Version | A-Oval Flange, UNI-3 Mounting Holes |
| Max Pressure | 25 MPa (3625 psi) |
| Rotation | /: (Bidirectional) |
| Max Speed | 2500 r/min |
