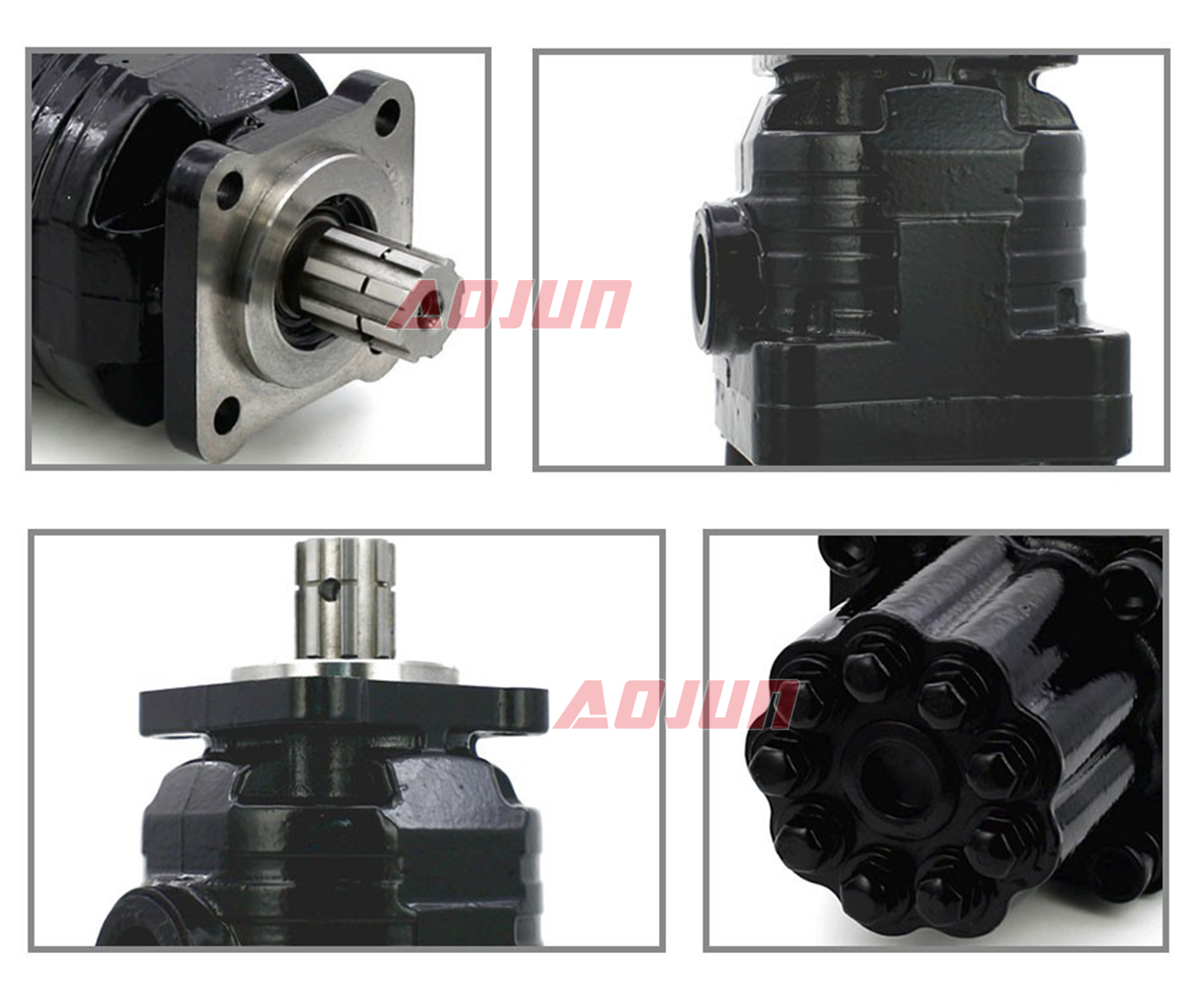

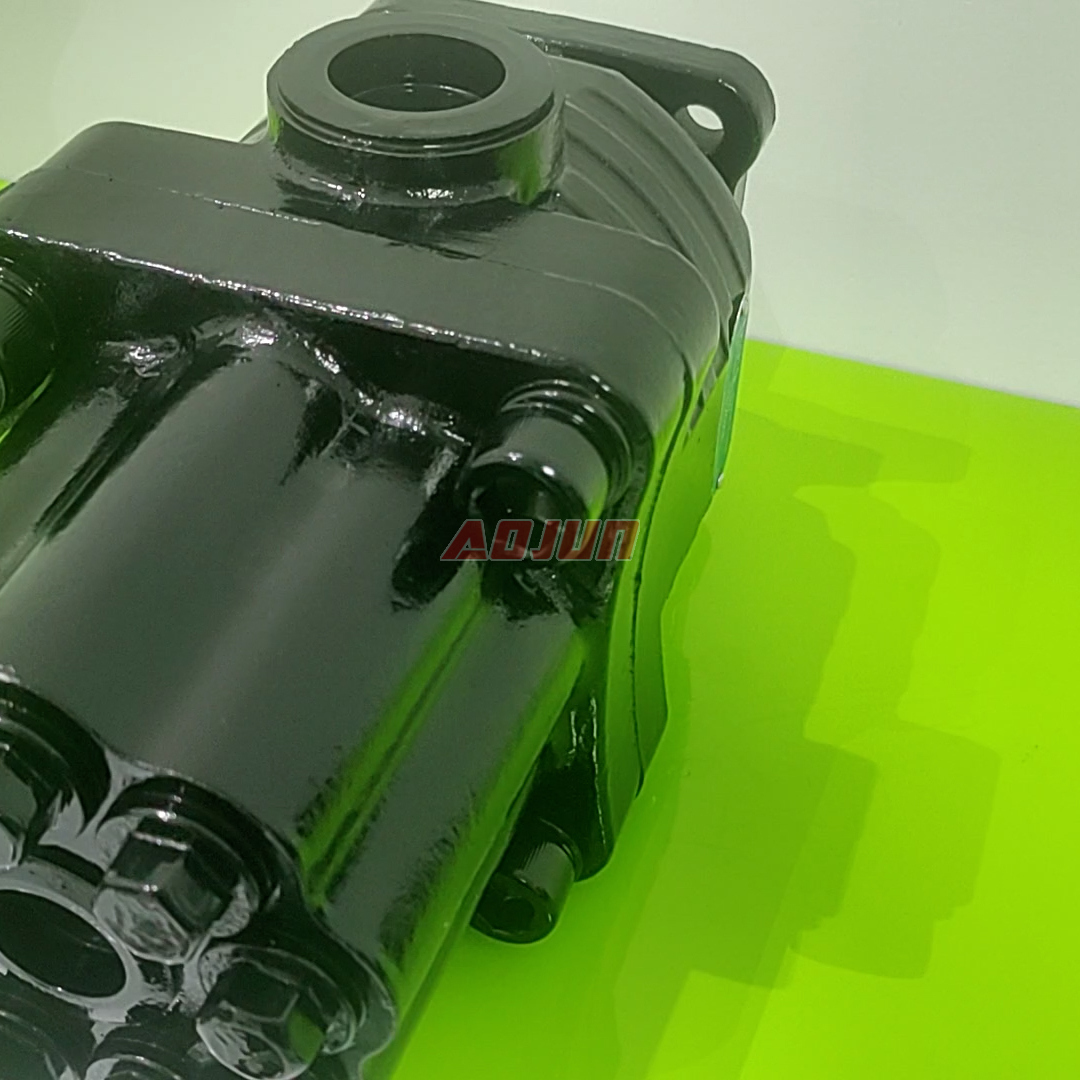

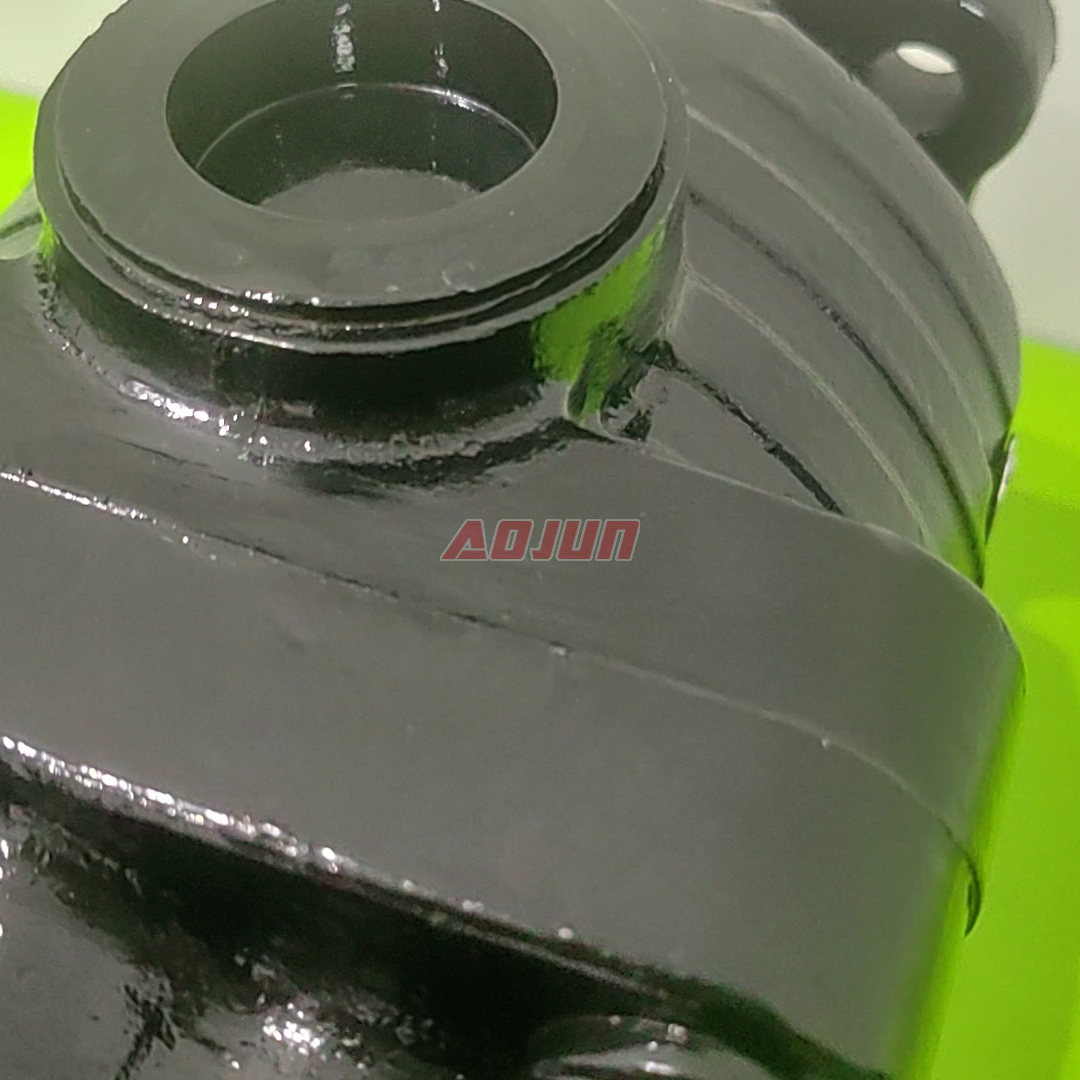

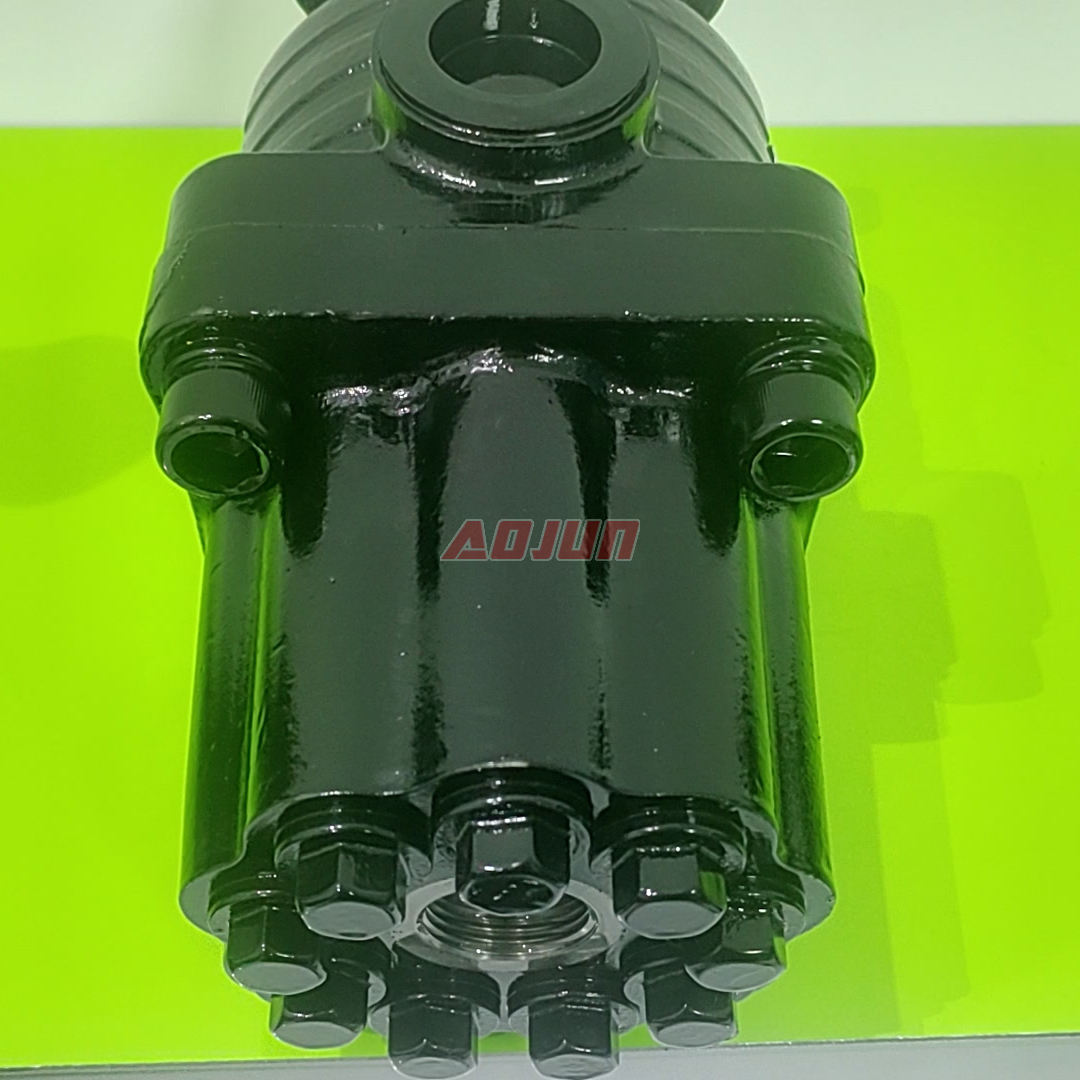

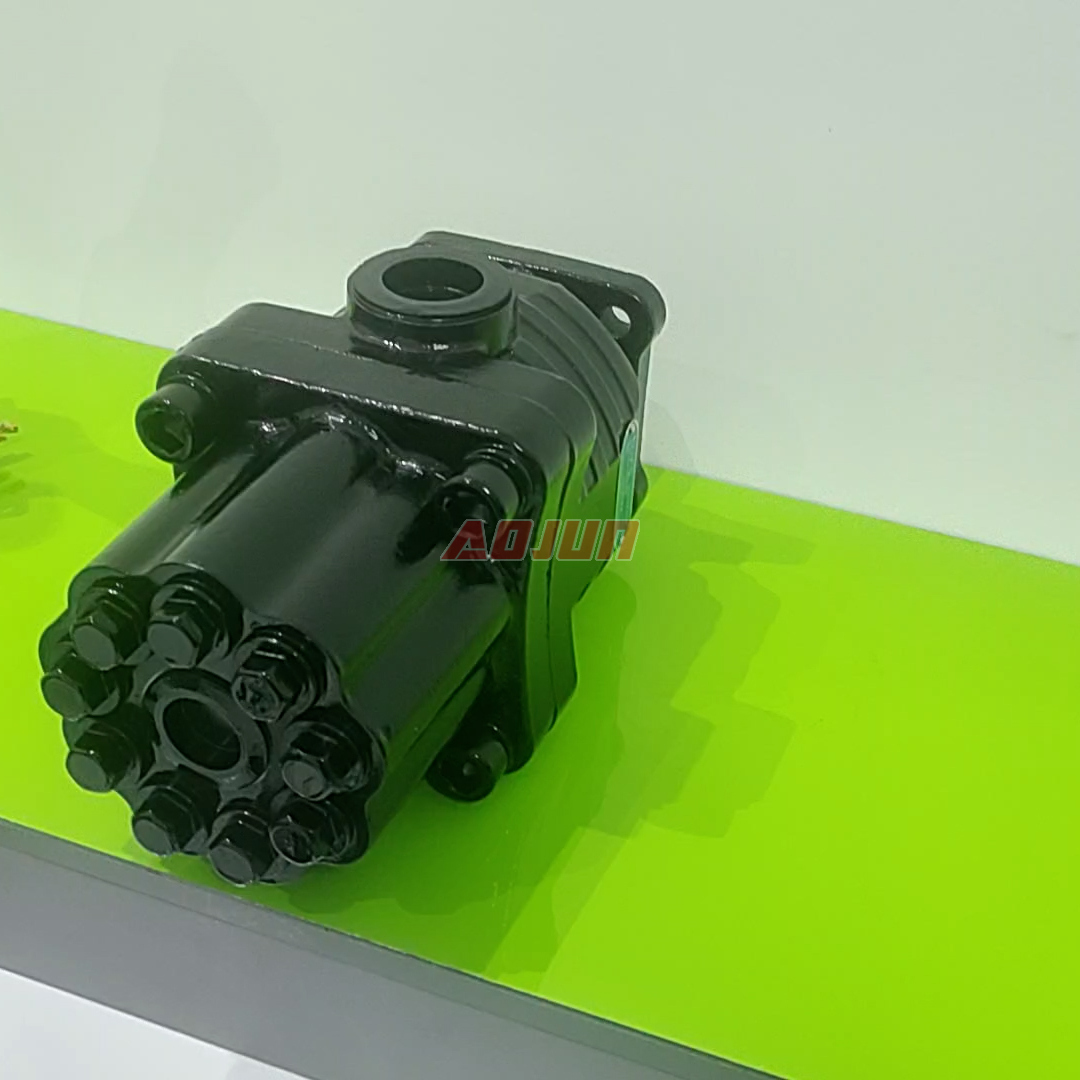

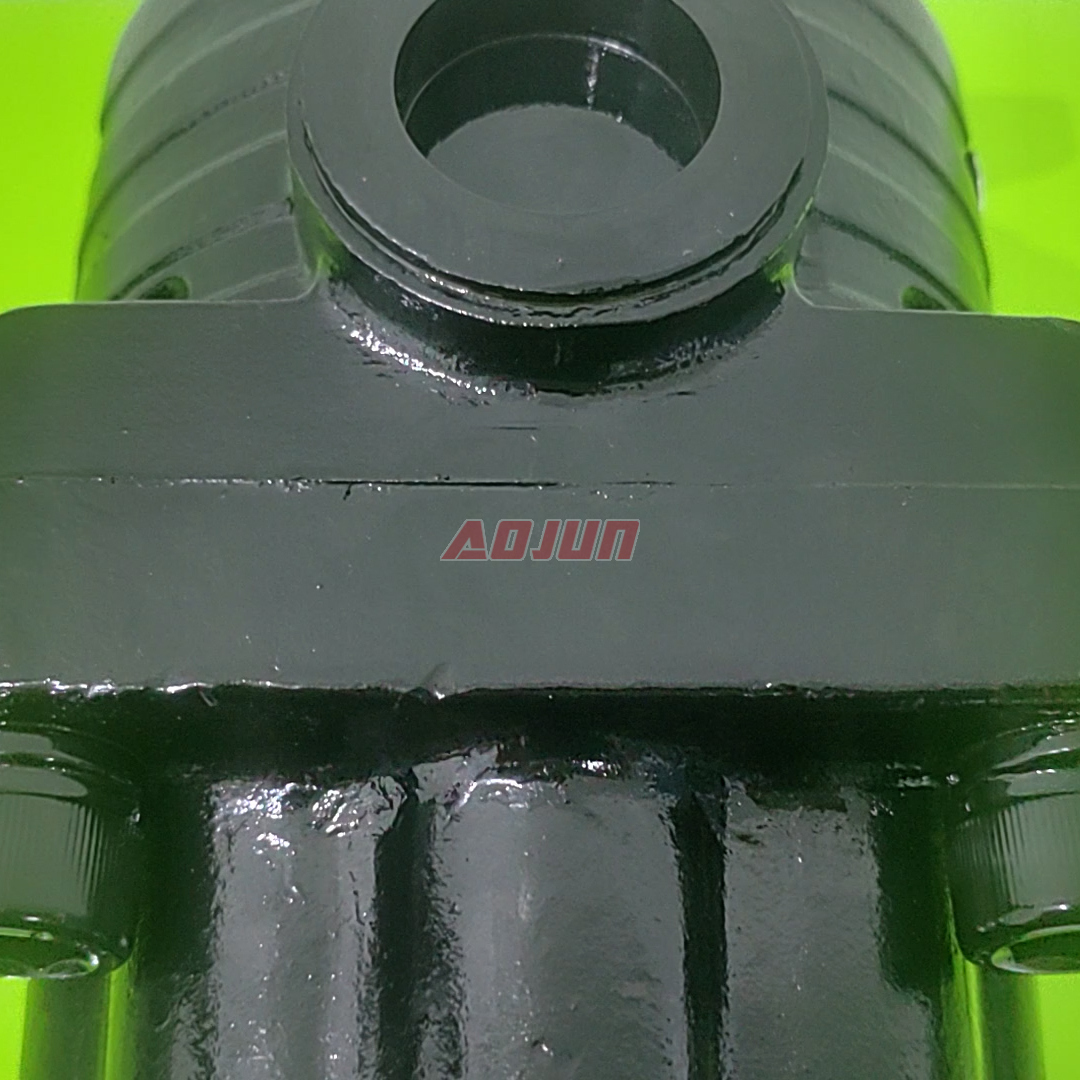

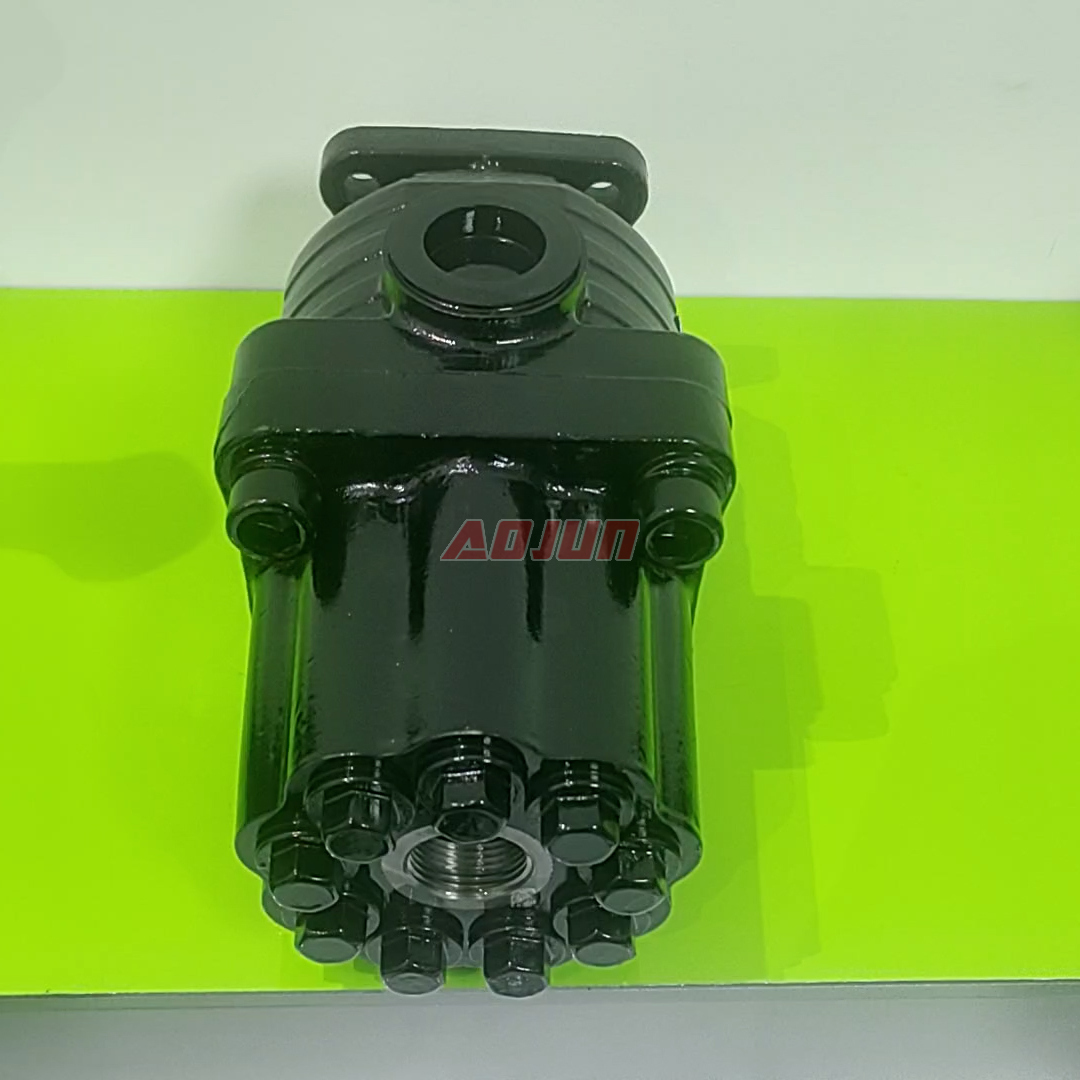

A robust 80 cc/rev swashplate axial piston pump built for mobile and industrial hydraulic systems, delivering 25 MPa rated pressure (30 MPa max), up to 1300 r/min, and bidirectional rotation with durable cast-iron construction.
global shipping world wide
Online Service For 24 X 7
Support OEM customization
This swashplate-type axial piston pump is designed for high-load hydraulic circuits requiring stable flow and pressure. Displacement is 80 cc/rev for strong output in lift/drive/implement functions. Rated pressure is 25 MPa (3625 psi) with 30 MPa (4351 psi) peak capability for demanding duty cycles. Rated speed is 800 r/min and maximum speed is 1300 r/min to suit common mobile powertrains and PTO-driven systems. Bidirectional rotation supports flexible installation and multi-direction drivetrain layouts. Cast iron housing improves rigidity, wear resistance, and service life in harsh environments. Multiple flange options (ISO-4 mounting holes and UNI-3 mounting holes) simplify interchangeability and retrofit, while the H-type rectangle spline shaft provides reliable torque transmission. Typical applications include telehandlers, forklifts, cranes, aerial platforms, excavators, skid steer loaders, wheel loaders, tractors, and other material-handling, construction, agricultural, and industrial vehicles. Available for manufacturer-direct supply, OEM/ODM, private label, customization, wholesale, and distributor/agent cooperation.
| P Series Hydraulic Piston Pump Parameters | |
|---|---|
| Displacement | 40 cc/rev, 63 cc/rev, 80 cc/rev |
| Rated Pressure | 25 MPa (3625 psi) |
| Max Pressure | 30 MPa (4351 psi) |
| Rated Speed | 800 r/min |
| Max Speed | 1300 r/min |
| Rotation | /: (Bidirectional) |
| Structure | Swashplate |
| Material | Cast Iron |
| Flange Version | ISO-4 Mounting Holes, UNI-3 Mounting Holes |
| Shaft Type | H: Rectangle Spline |
We provide OEM/ODM services. When your product orders reach a certain value, we can offer a variety of customization services, including labels, packaging, product colors, and more.
We support multiple currencies and diverse payment methods, such as T/T, L/C, Alibaba platform, China Manufacturing Payment Platform, bank transfer, and more.
We can provide samples, and the sample costs will be refunded to you in the form of deducted payments in the later stages.
